Hi Livio,
thanks for the nice widget. I like it and use it. I would love to have just one more parameter to add, or basically it could be calculated also with the values we can provide now →
on the left side we see how much we import and export from/to the grid. I would also like to see similarly on the right side (home) how much energy that I used is from the solarplant and how much is imported. its basically a simple substraction from values we have.
could you add it? if not i may fuzzle around a bit with the widget as i think it should be not so difficult. but maybe its quick for you and you like the idea. if not i may share my experiment here.
however. thanks for making this work already!
dandjo
August 17, 2023, 5:23pm
22

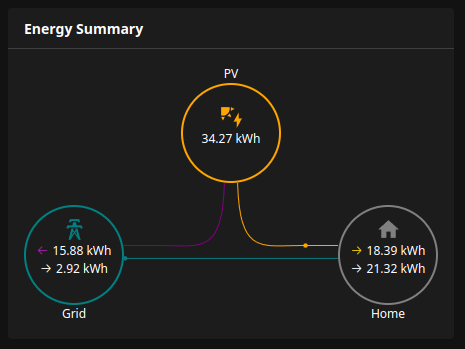

Here is my implementation without “Non-fossil” and “Gas”, but with property item-support and slight style changes.
uid: energy-summary
tags: []
props:
parameters:
- context: item
description: The item for grid consumption
label: Grid Consumption
name: grid_consumption
required: false
- context: item
description: The item for grid surplus
label: Grid Surplus
name: grid_surplus
required: false
type: TEXT
- context: item
description: The item for pv production
label: PV Production
name: pv_production
required: false
type: TEXT
- context: item
label: PV Own Consumption
name: pv_own_consumption
required: false
type: TEXT
- context: item
description: The item for home consumption
label: Home Consumption
name: home_consumption
required: false
type: TEXT
parameterGroups: []
timestamp: Aug 17, 2023, 7:14:09 PM
component: f7-card
config:
title: Energy Summary
slots:
content:
- component: f7-block
config:
style:
margin: 0
padding: 0
slots:
default:
- component: f7-block
config:
style:
margin: 0
padding: 0
display: flex
justify-content: space-between
--f7-theme-color: var(--f7-text-color)
--f7-block-font-size: 12px
slots:
default:
- component: f7-col
config:
style:
display: flex
flex-direction: column
align-items: center
slots:
default:
- component: f7-block
config:
style:
margin-top: 140px
padding-top: 10px
height: 100px
width: 100px
border: 2px solid teal
border-radius: 50px
display: flex
justify-content: top
align-items: center
flex-direction: column
slots:
default:
- component: oh-icon
config:
icon: if:mdi:transmission-tower
height: 25px
color: teal
- component: oh-link
config:
text: =@props.grid_surplus
iconF7: arrow_left
iconSize: 12px
iconColor: purple
style:
font-size: 12px
white-space: nowrap
action: analyzer
actionAnalyzerItems:
- =props.grid_surplus
- component: oh-link
config:
text: =@props.grid_consumption
iconF7: arrow_right
iconSize: 12px
iconColor: grey
style:
font-size: 12px
white-space: nowrap
action: analyzer
actionAnalyzerItems:
- =props.grid_consumption
- component: Label
config:
text: Grid
- component: f7-col
config:
style:
flex-grow: 1
display: flex
flex-direction: column
align-items: center
slots:
default:
- component: Label
config:
text: PV
- component: f7-block
config:
style:
padding-top: 20px
height: 100px
width: 100px
border: 2px solid orange
border-radius: 50px
display: flex
justify-content: top
align-items: center
flex-direction: column
slots:
default:
- component: oh-icon
config:
icon: if:mdi:solar-power
height: 25px
color: orange
- component: oh-link
config:
text: =@props.pv_production
style:
font-size: 12px
action: analyzer
actionAnalyzerItems:
- =props.pv_production
- component: f7-block
config:
style:
margin: 0
padding: 0
width: 100%
display: flex
height: 125px
justify-content: center
slots:
default:
- component: f7-row
config:
tag: svg
xmlns: http://www.w3.org/2000/svg
viewBox: 0 0 100 100
preserveAspectRatio: xMidYMid slice
style:
height: auto
slots:
default:
- component: f7-row
config:
tag: path
id: path1
d: M53,0 v15 c0,40 10,35 30,35 h20
stroke: orange
stroke-width: 1
vector-effect: non-scaling-stroke
fill: none
- component: f7-row
config:
tag: circle
r: 1
vector-effect: non-scaling-stroke
fill: orange
style:
stroke-width: 4
slots:
default:
- component: f7-row
config:
tag: animateMotion
repeatCount: indefinite
calcMode: linear
dur: 5s
slots:
default:
- component: f7-row
config:
tag: mpath
xlink:href: "#path1"
- component: f7-row
config:
tag: path
id: path2
d: M47,0 v15 c0,40 -10,35 -30,35 h-20
stroke: purple
stroke-width: 1
vector-effect: non-scaling-stroke
fill: none
- component: f7-row
config:
tag: circle
r: 1
vectorEffect: non-scaling-stroke
strokeWidth: 10
fill: purple
slots:
default:
- component: f7-row
config:
tag: animateMotion
repeatCount: indefinite
calcMode: linear
dur: 3s
slots:
default:
- component: f7-row
config:
tag: mpath
xlink:href: "#path2"
- component: f7-row
config:
tag: path
id: path3
d: M0,56 H100
stroke: teal
stroke-width: 1
vector-effect: non-scaling-stroke
fill: none
- component: f7-row
config:
tag: circle
r: 1
vectorEffect: non-scaling-stroke
strokeWidth: 10
fill: teal
slots:
default:
- component: f7-row
config:
tag: animateMotion
repeatCount: indefinite
calcMode: linear
dur: 3s
slots:
default:
- component: f7-row
config:
tag: mpath
xlink:href: "#path3"
- component: f7-col
config:
style:
display: flex
flex-direction: column
align-items: center
slots:
default:
- component: f7-block
config:
style:
margin-top: 140px
padding-top: 10px
height: 100px
width: 100px
border: 2px solid gray
border-radius: 50px
display: flex
justify-content: top
align-items: center
flex-direction: column
slots:
default:
- component: oh-icon
config:
icon: if:mdi:home
height: 25px
color: grey
- component: oh-link
config:
text: =@props.pv_own_consumption
iconF7: arrow_right
iconSize: 12px
iconColor: yellow
style:
font-size: 12px
white-space: nowrap
action: analyzer
actionAnalyzerItems:
- =props.pv_own_consumption
- component: oh-link
config:
text: =@props.home_consumption
iconF7: arrow_right
iconSize: 12px
iconColor: grey
style:
font-size: 12px
white-space: nowrap
action: analyzer
actionAnalyzerItems:
- =props.home_consumption
- component: Label
config:
text: Home
dandjo
August 17, 2023, 7:03pm
23
Having strange problems when it comes to small screens. Any idea how to solve this?
LukaNoah
February 2, 2024, 7:03pm
24

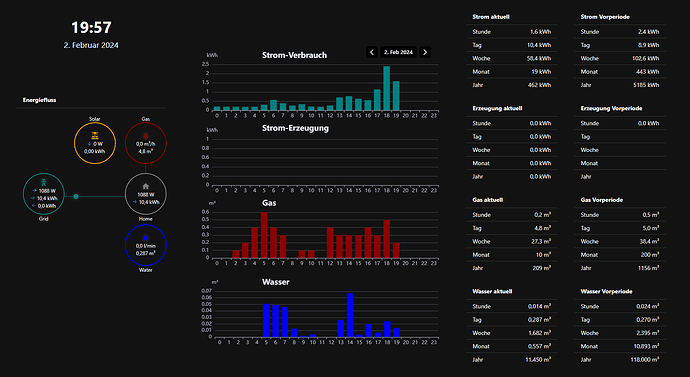

After a few hours of work and a lot of fiddling, I finally finished my HA-like energy dashboard.
I couldn’t solve a problem with the energy widget. As soon as no solar item is selected, the widget becomes much wider than with the solar item selected. That’s a shame, especially if you want to create a universal dashboard and the width of a widget plays an important role.
4 Likes
STSC
October 3, 2024, 9:44am
25
How is actually the “Non-fossil” item calculated, where is this coming from?
s89511
February 8, 2025, 11:58am
26

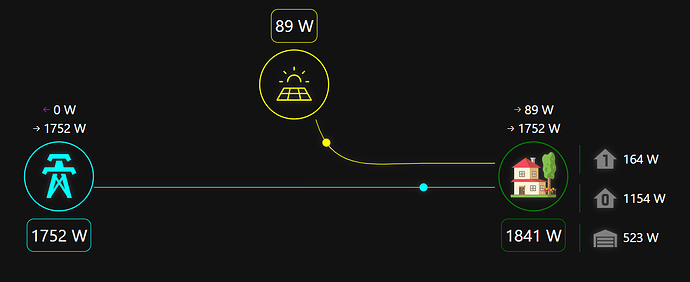

Hello, thanks to this topic I tried to develop my new energy widget.
I started using the one found on this topic and made some customizations to fit my actual openhab setup.
You can find it in my github
Contribute to domoticsduino/openhab-widgets development by creating an account on GitHub.
I made a video to show the configuration fields
It’s a work in progress job, so any feedback and suggestion is really appreciate.
2 Likes
s89511
February 11, 2025, 7:20pm
27

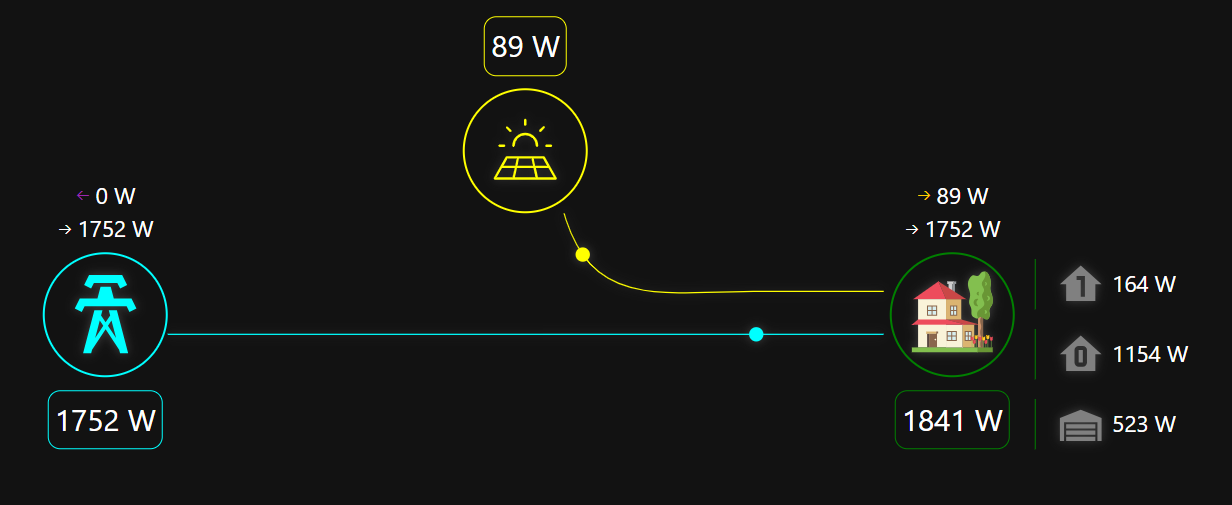

I made some progress on the Energy Widget.
I added some expression to manage opacity of elements and dynamic icons based on power values.
Then I added warning icons to check over power on the line
