I own a solar plant for a week now (Fronius Gen24). So I started digging into how to visualize it in OH. I quickly found the fronius inspired widget by @pwoehrer . It sure looks nice (really nice!), but for me it has 2 issues: It uses way too much real estate for little information, and extending it to include my EV and heatpump is far beyond my CSS and f7 framework capabilities.
After some more research, I discovered a promising widget by @james_dinniss which I then adopted to my needs and wishes. This meant:
- incorporating the dot resize function of the fronius widget (kudos for that one!) as well as the W/kW auto formatting function
- reworking the parameters
- reworking the visual appearance
I did not touch the basic layout so far, though.
I tried to my best to get the code somewhat organized, but to me it still looks like a total mess
Since it is hard to simulate all operating conditions of a PV/EV/Heatpump system, it might as well still have logical errors. For instance, I cannot test which data I get when the heatpump goes to defrosting mode. Through trial and error I discovered that in this state, it still reports its overall power consumption, but power for heating and drinking water both drop to 0. The Modbus binding for Kermi does not report the actual state directly, so I calculate it from the 3 power consumption readings.
Requirements
Unlike a lot of other energy flow widgets, it has no dependencies despite relying on oh-context (available from OH 4.2.1 onwards). No icon files used.
Usage

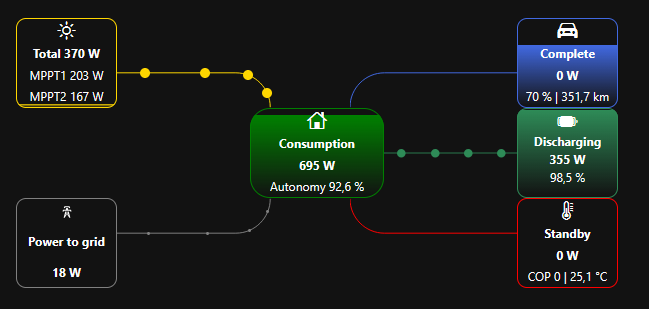

The widget is based on my own configuration, which determines the available items/properties.
- Fronius Gen24 inverter/smart meter
- Kermi Heatpump (Modbus TCP binding)
- Tesla EV
Based on the readings I can get from these devices, the widget supports the following data sources.
- PV inverter
- Total solar power
- MPPT1/MPPT2 power (individual MPPT readings due to the solar plant being a West/East-configuration)
- House power load
- Solar battery power
- Solar battery SOC
- Grid power
- Grid autonomy
- EV
- Charging power
- Charging state
- Connection state
- EV battery SOC
- Heat pump
- Electric power
- Electric power - heating (required to determine current operating state)
- Electric power - drinking water (required to determine current operating state)
- Water temperature - pick any value you like, I chose the hot water flow from the pump
- Overall COP
In addition, you can customize the maximum power values for your solar plant, your grid from/to and your heat pump. And you can configure CSS color names to polish up the colors of the 6 boxes (you know all 140 CSS colors by name, don’t you?
). Defaults are chosen to be readable on both dark and light themes.
Credits
Honorable mentions and a lot of thanks go to the creators of the 2 widgets mentioned before.
- @pwoehrer for his fronius widget which also gave me some insight on how to use CSS in widgets
- @james_dinniss for providing the basic layout and widget logic I could then built upon
Changelog
Version 0.1
- initial release
Resources
uid: generic_energy_flow_v2
tags: []
props:
parameters:
- default: "10000"
description: Maximum solar inverter power in watt. Used to calculate usage
percent background.
label: Maximum inverter power
name: power_solar_max
required: true
type: INTEGER
min: 1000
groupName: design
- default: "22000"
description: Maximum power to and from grid in watt. Used to calculate from/to
grid percent background.
label: Maximum grid power
name: power_grid_max
required: false
type: INTEGER
min: 1
groupName: design
advanced: true
- default: "8000"
description: Maximum electric power the heatpump can consume. Used to calculate
heatpump power percent background.
label: Maximum heatpump power
name: power_heatpump_max
required: false
type: INTEGER
min: 1000
groupName: design
advanced: true
- default: gold
description: CSS color name for the solar plant
label: Solar plant color
name: color_solar
required: false
type: TEXT
groupName: design
advanced: true
- default: green
description: CSS color name for the house
label: House color
name: color_house
required: false
type: TEXT
groupName: design
advanced: true
- default: seagreen
description: CSS color name for the solar battery
label: Battery color
name: color_battery
required: false
type: TEXT
groupName: design
advanced: true
- default: royalblue
description: CSS color name for the electric vehicle
label: EV color
name: color_ev
required: false
type: TEXT
groupName: design
advanced: true
- default: red
description: CSS color name for the heat pump
label: Heat pump color
name: color_heatpump
required: false
type: TEXT
groupName: design
advanced: true
- default: gray
description: CSS color name for the grid
label: Grid color
name: color_grid
required: false
type: TEXT
groupName: design
advanced: true
- context: item
description: Current solar power in Watts. Typically this would be the solar
yield item for a Fronius inverter.
label: Solar power
name: power_solar
required: false
type: TEXT
groupName: data_sources_pv
- context: item
description: Current solar power of MPPT1 in Watts.
label: MPPT 1
name: power_solar1
required: false
type: TEXT
groupName: data_sources_pv
- context: item
description: Current solar power of MPPT2 in Watts
label: MPPT 2
name: power_solar2
required: false
type: TEXT
groupName: data_sources_pv
- context: item
description: Current energy autonomy Smartmeter.
label: Autonomy
name: power_autonomy
required: true
type: TEXT
groupName: data_sources_pv
- context: item
description: Power the grid delivers or receives
label: Grid power
name: power_grid
required: false
type: TEXT
groupName: data_sources_pv
- context: item
description: Power the solar battery delivers or consumes
label: Battery power
name: power_battery
required: false
type: TEXT
groupName: data_sources_pv
- context: item
description: State of charge of the solar battery
label: Solar battery SOC
name: soc_battery
required: false
type: TEXT
groupName: data_sources_pv
- context: item
description: Power the heating system consumes for heating and drinking water.
label: Heating system power consumption
name: power_heatpump
required: false
type: TEXT
groupName: data_sources_heating
- context: item
description: Heating system power consumption for heating. Only used to
determine heating system state.
label: Heating system power consumption for heating
name: power_heating
required: false
type: TEXT
groupName: data_sources_heating
- context: item
description: Heating system power consumption for drinking water. Only used to
determine heating system state.
label: Heating system power - drinking water
name: power_drinking
required: false
type: TEXT
groupName: data_sources_heating
- context: item
description: Heating system water temperature - pre-flow temp of heat pump or
whatever value suits your needs.
label: Heating system water temperature
name: temp_heatpump
required: false
type: TEXT
groupName: data_sources_heating
- context: item
description: Heating system efficiency (Coefficient of power, COP)
label: Heating system COP
name: status_heatpump
required: false
type: TEXT
groupName: data_sources_heating
- context: item
description: Current charging power of the EV battery
label: EV battery charging power
name: power_ev
required: false
type: TEXT
groupName: data_sources_ev
- context: item
description: EV battery state of charge
label: EV battery percent
name: soc_ev
required: false
type: TEXT
groupName: data_sources_ev
- context: item
description: EV driving range estimated
label: EV range
name: range_ev
required: false
type: TEXT
groupName: data_sources_ev
- context: item
description: Current charging state of the EV
label: EV charging state
name: chargestate_ev
required: false
type: TEXT
groupName: data_sources_ev
- context: item
description: Current connection state of the EV
label: EV connection state
name: connected_ev
required: false
type: TEXT
groupName: data_sources_ev
- context: item
description: Current house power consumption
label: House power
name: power_house
required: false
type: TEXT
groupName: data_sources_pv
parameterGroups:
- name: design
label: Design elements
description: Group of parameters which determine the visual appearance of the widget.
- name: data_sources_pv
label: Data sources (solar plant)
description: Group of parameters which deliver data for solar power production.
- name: data_sources_ev
label: Data sources (electric vehicle)
description: Group of parameters which deliver data for electric vehicles.
- name: data_sources_heating
label: Data sources (heating system)
description: Group of parameters which deliver data for heating and drinking water.
timestamp: Mar 30, 2026, 6:01:39 PM
component: f7-block
config:
style:
width: 700px
slots:
default:
- component: oh-context
config:
comment: "'resize_dot' adjusts the size of the energy flow dots in relation to
the highest value in the system. The value correlates to the area of
the dot, not its radius to give a better visual feedback.
'switch_magnitude' switches between W an kW depending on the input
value."
functions:
resize_dot: "=value => Math.abs(value) < 10 ? 0 :
`${Math.pow(Math.max(Math.abs(value) / Math.max(
(Math.abs(#props.power_house) + (#props.power_grid > 0 ?
#props.power_grid : 0)), Math.abs(#props.power_grid),
Math.abs(#props.power_solar), Math.abs(#props.power_battery),
Math.abs(#props.power_ev), Math.abs(#props.power_heatpump)), 0.05),
0.5) * 7}px`"
switch_magnitude: "=value => Math.abs(value) > 999 ? `${(Math.abs(value) /
1000).toFixed(Math.abs(value) > 9999 ? 1 : 2)} kW` :
`${Math.round(Math.abs(value)) | 0} W`"
slots:
default:
- component: f7-row
config:
style:
height: 90px
display: flex
slots:
default:
- component: f7-col
config:
style:
width: 5%
height: 70px
- component: f7-col
config:
comment: box - solar plant
align: center
style:
width: 15%
height: 100%
display: flex
align-items: center
justify-content: space-around
flex-direction: column
border: ='1px solid '+props.color_solar
border-radius: 10px
background: ='linear-gradient(to top, transparent 0%, '+props.color_solar+' '+
(#props.power_solar*100/props.power_solar_max)+'%,
transparent '+
(#props.power_solar*100/props.power_solar_max)+'% )'
fill: none
slots:
default:
- component: oh-icon
config:
icon: =(#props.power_solar) > (props.power_solar_max/20) ?
'f7:sun_max_fill':'f7:sun_max'
- component: Label
config:
text: ="Total " + fn.switch_magnitude(#props.power_solar)
style:
font-size: 12px
font-weight: bold
- component: Label
config:
text: ="MPPT1 " + fn.switch_magnitude(#props.power_solar1)
style:
font-size: 12px
- component: Label
config:
text: ="MPPT2 " + fn.switch_magnitude(#props.power_solar2)
style:
font-size: 12px
- component: f7-col
config:
style:
width: 25%
height: 100%
slots:
default:
- component: svg
config:
comment: energy flow - solar plant
viewBox: 0 0 170 50
xlmns: http://www.w3.org/2000/svg
style:
height: 100%
width: 100%
slots:
default:
- component: path
config:
id: energyflowsolarplant
d: M 0 35 L 121 35 A 35 35 0 0 1 156 70
stroke: =props.color_solar
stroke-width: 1
fill: none
- component: oh-repeater
config:
comment: Sets up the circles, indicating the energy flow.
for: offset
fragment: true
rangeStart: 0
rangeStep: 1
rangeStop: 3
sourceType: range
slots:
default:
- component: circle
config:
fill: =props.color_solar
r: =fn.resize_dot(#props.power_solar)
slots:
default:
- component: animateMotion
config:
begin: =`${loop.offset}s`
calcMode: linear
dur: 4s
repeatCount: indefinite
slots:
default:
- component: mpath
config:
xlink:href: "#energyflowsolarplant"
- component: f7-col
config:
align: center
style:
width: 10%
height: 100%
fill: none
- component: f7-col
config:
style:
width: 25%
height: 100%
slots:
default:
- component: svg
config:
comment: energy flow - EV
viewBox: 0 0 170 50
xlmns: http://www.w3.org/2000/svg
style:
height: 100%
width: 100%
slots:
default:
- component: path
config:
id: energyflowev
d: M 0 70 A 35 35 0 0 1 35 35 L 170 35
stroke: =props.color_ev
stroke-width: 1
visible: =(@props.connected_ev) == 'disconnected' ? false:true
fill: none
- component: oh-repeater
config:
comment: Sets up the circles, indicating the energy flow.
for: offset
fragment: true
rangeStart: 0
rangeStep: 1
rangeStop: 3
sourceType: range
slots:
default:
- component: circle
config:
fill: =props.color_ev
r: =fn.resize_dot(#props.power_ev)
slots:
default:
- component: animateMotion
config:
begin: =`${loop.offset}s`
calcMode: linear
dur: 4s
repeatCount: indefinite
slots:
default:
- component: mpath
config:
xlink:href: "#energyflowev"
- component: f7-col
config:
comment: box - EV
align: center
style:
width: 15%
height: 100%
display: flex
align-items: center
justify-content: space-around
flex-direction: column
border: ='1px solid '+props.color_ev
border-radius: 10px
background: ='linear-gradient(to top, transparent 0%, '+props.color_ev+' '+#props.soc_ev + '%,
transparent '+#props.soc_ev+'% )'
fill: none
slots:
default:
- component: oh-icon
config:
icon: f7:car_fill
- component: Label
config:
text: =@props.chargestate_ev
style:
font-size: 12px
font-weight: bold
- component: Label
config:
text: =fn.switch_magnitude(#props.power_ev)
style:
font-size: 12px
font-weight: bold
- component: Label
config:
text: =#props.soc_ev+" % | "+@props.range_ev
style:
font-size: 12px
- component: f7-col
config:
style:
width: 5%
height: 70px
- component: f7-row
config:
style:
width: 100%
height: 90px
slots:
default:
- component: f7-col
config:
align: center
style:
width: 20%
height: 100%
display: flex
align-items: center
justify-content: space-around
flex-direction: column
- component: f7-col
config:
align: center
style:
width: 20%
height: 100%
- component: f7-col
config:
comment: box - house
align: center
style:
width: 20%
height: 100%
display: flex
align-items: center
justify-content: space-around
flex-direction: column
border: ='1px solid '+props.color_house
border-radius: 20px
background: ='linear-gradient(to top, transparent 0%, '+props.color_house+' '+
(#props.power_autonomy*100)+'%, transparent '+
(#props.power_autonomy*100)+'% )'
fill: none
slots:
default:
- component: oh-icon
config:
icon: f7:house
- component: Label
config:
text: ="Consumption"
style:
font-size: 12px
font-weight: bold
- component: Label
config:
text: =fn.switch_magnitude(#props.power_house)
style:
font-size: 12px
font-weight: bold
- component: Label
config:
text: ="Autonomy "+@props.power_autonomy
style:
font-size: 12px
- component: f7-col
config:
comment: energy flow - battery
style:
width: 20%
height: 100%
slots:
default:
- component: svg
config:
viewBox: 0 0 156 70
xlmns: http://www.w3.org/2000/svg
style:
height: 100%
width: 100%
slots:
default:
- component: path
config:
id: energyflowbattery
d: '=(#props.power_battery) > 0 ? "M 156 35 L 0 35" : "M 0 35 L 156 35"'
stroke: =props.color_battery
stroke-width: 1
fill: none
- component: oh-repeater
config:
comment: Sets up the circles, indicating the energy flow.
for: offset
fragment: true
rangeStart: 0
rangeStep: 1
rangeStop: 3
sourceType: range
slots:
default:
- component: circle
config:
fill: =props.color_battery
r: =fn.resize_dot(#props.power_battery)
slots:
default:
- component: animateMotion
config:
begin: =`${loop.offset}s`
calcMode: linear
dur: 4s
repeatCount: indefinite
slots:
default:
- component: mpath
config:
xlink:href: "#energyflowbattery"
- component: f7-col
config:
comment: box - battery
align: center
style:
width: 15%
height: 100%
border: ='1px solid '+props.color_battery
border-radius: 10px
background: ='linear-gradient(to top, transparent 0%, '+props.color_battery+'
'+(#props.soc_battery*100)+ '%, transparent
'+(#props.soc_battery*100)+'% )'
fill: none
slots:
default:
- component: oh-icon
config:
icon: =(#props.soc_battery) > 0.5 ? 'f7:battery_100':'f7:battery_25'
- component: Label
config:
text: =(#props.power_battery) > 0 ? "Discharging":"Charging"
style:
font-size: 12px
font-weight: bold
- component: Label
config:
text: =fn.switch_magnitude(#props.power_battery)
style:
font-size: 12px
font-weight: bold
- component: Label
config:
text: =@props.soc_battery
style:
font-size: 12px
- component: f7-col
config:
style:
width: 5%
height: 70px
- component: f7-row
config:
style:
width: 100%
height: 90px
slots:
default:
- component: f7-col
config:
align: center
style:
width: 5%
height: 100%
display: flex
align-items: center
justify-content: space-around
flex-direction: column
- component: f7-col
config:
comment: box - grid
align: center
style:
width: 15%
height: 100%
display: flex
align-items: center
justify-content: space-around
flex-direction: column
border: ='1px solid '+props.color_grid
border-radius: 10px
background: ='linear-gradient('+(#props.power_grid > 0 ? "to top":"to
bottom")+', transparent 0%, '+props.color_grid+' '+
Math.abs(#props.power_grid*100/props.power_grid_max)+'%,
transparent '+
Math.abs(#props.power_grid*100/props.power_grid_max)+'%
)'
fill: none
slots:
default:
- component: oh-icon
config:
icon: if:mdi:transmission-tower
- component: Label
config:
text: ="Power "+(#props.power_grid > 0 ? "from":"to")+" grid"
style:
font-size: 12px
font-weight: bold
- component: Label
config:
text: =fn.switch_magnitude(#props.power_grid)
style:
font-size: 12px
font-weight: bold
- component: f7-col
config:
style:
width: 25%
height: 100%
slots:
default:
- component: svg
config:
comment: energy path - grid
viewBox: 0 0 170 90
xlmns: http://www.w3.org/2000/svg
style:
height: 100%
width: 100%
slots:
default:
- component: path
config:
id: energyflowgrid
d: '=(#props.power_grid) < 0 ? "M 156 0 A 35 35 0 0 1 121 35 L 0 35 " : "M 0 35
L 121 35 A 35 35 0 0 0 156 0"'
stroke: =props.color_grid
stroke-width: 1
fill: none
- component: oh-repeater
config:
comment: Sets up the circles, indicating the energy flow.
for: offset
fragment: true
rangeStart: 0
rangeStep: 1
rangeStop: 3
sourceType: range
slots:
default:
- component: circle
config:
fill: =props.color_grid
r: =fn.resize_dot(#props.power_grid)
slots:
default:
- component: animateMotion
config:
begin: =`${loop.offset}s`
calcMode: linear
dur: 4s
repeatCount: indefinite
slots:
default:
- component: mpath
config:
xlink:href: "#energyflowgrid"
- component: f7-col
config:
align: center
style:
width: 10%
height: 100%
fill: none
- component: f7-col
config:
comment: energy path - heatpump
style:
width: 25%
height: 100%
slots:
default:
- component: svg
config:
viewBox: 0 0 170 90
xlmns: http://www.w3.org/2000/svg
style:
height: 100%
width: 100%
slots:
default:
- component: path
config:
id: energyflowheatpump
d: M 0 0 A 35 35 0 0 0 35 35 L 170 35
stroke: =props.color_heatpump
stroke-width: 1
fill: none
- component: oh-repeater
config:
comment: Sets up the circles, indicating the energy flow.
for: offset
fragment: true
rangeStart: 0
rangeStep: 1
rangeStop: 3
sourceType: range
slots:
default:
- component: circle
config:
fill: =props.color_heatpump
r: =fn.resize_dot(#props.power_heatpump)
slots:
default:
- component: animateMotion
config:
begin: =`${loop.offset}s`
calcMode: linear
dur: 4s
repeatCount: indefinite
slots:
default:
- component: mpath
config:
xlink:href: "#energyflowheatpump"
- component: f7-col
config:
comment: box - heatpump
align: center
style:
width: 15%
height: 100%
display: flex
align-items: center
justify-content: space-around
flex-direction: column
border: ='1px solid '+props.color_heatpump
border-radius: 10px
background: ='linear-gradient(to top, transparent 0%, '+props.color_heatpump+' '+
(#props.power_heatpump*100/props.power_heatpump_max)+'%,
transparent '+
(#props.power_heatpump*100/props.power_heatpump_max)+'%
)'
fill: none
slots:
default:
- component: oh-icon
config:
icon: f7:thermometer
- component: Label
config:
text: =(#props.power_heating) > 0 ? "Heating":(#props.power_drinking) > 0 ?
"Drinking water":(#props.power_heatpump) > 0 ? "Defrosting":"Standby"
style:
font-size: 12px
font-weight: bold
- component: Label
config:
text: =fn.switch_magnitude(#props.power_heatpump)
style:
font-size: 12px
font-weight: bold
- component: Label
config:
text: ="COP " + (#props.status_heatpump) + " | " + (@props.temp_heatpump)
style:
font-size: 12px
- component: f7-col
config:
style:
width: 5%
height: 70px
you remember correctly.
