List Item Widget for HP Printer

sebSmarthome · April 12, 2022, 1:54pm

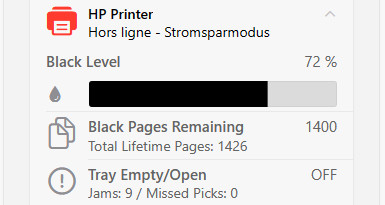

HPPrinterListItemScreenShot

This is an UI List Item Widget to view the HP Printer information with the HP Printer Binding and the Network Binding

Only use with List Card with accordion and rich list items option set to true.

Support to use a light and a dark background.

Configuration parameters:

All title string
Printer Icon- Use f7:iconName (Framework7 icon), material:iconName (Material icon) or iconify:iconSet:iconName
Visibility of Label item (Black Level, Pages, Tray & Missed Picks)

items HP Printer Binding

Printer Status item
Black level item
Black Pages Remaining item
Total Lifetime Pages item
Tray Empty/Open item
Jams item
Missed Picks item

items Network Binding

Printer Network State item
Printer Latency item

Screenshots

Standard Library List Card

Configure List

Changelog

Version 0.1

initial release

Resources

uid: frs_HP_Printer_list_item
tags:
  - list
  - printer
props:
  parameters:
    - defaultValue: HP Printer
      description: Titre
      label: Title
      name: ImprimanteTitle
      required: false
      type: TEXT
      groupName: header
    - description: Printer Icon - Use f7:iconName (Framework7 icon), material:iconName (Material icon) or iconify:iconSet:iconName
      defaultValue: f7:printer_fill
      label: Icon
      name: IconPrinter
      required: false
      type: TEXT
      groupName: header
    - context: item
      description: Printer Network State item
      label: Item
      name: PrinterNetworkStateItem
      required: false
      type: TEXT
      groupName: header
    - context: item
      description: Printer Status item
      label: Item
      name: PrinterStatusItem
      required: false
      type: TEXT
      groupName: header
    - context: item
      description: Printer Latency item
      label: Item
      name: PrinterLatencyItem
      required: false
      type: TEXT
      groupName: header
    - description: Hide Black Level label-item
      label: hide
      name: HideBlackLevel
      required: false
      type: BOOLEAN
      groupName: blacklevel
    - defaultValue: Black Level
      description: Black Level Title
      label: Title
      name: BlackLevelTitle
      required: false
      type: TEXT
      groupName: blacklevel
    - context: item
      description: Black level item
      label: Item
      name: BlackLevelItem
      required: false
      type: TEXT
      groupName: blacklevel
    - description: Hide Pages label-item
      label: hide
      name: HideBlackPagesRemaining
      required: false
      type: BOOLEAN
      groupName: pages
    - defaultValue: Black Pages Remaining
      description: Black Pages Remaining Title
      label: Title
      name: PagesTitle
      required: false
      type: TEXT
      groupName: pages
    - context: item
      description: Black Pages Remaining item
      label: Item
      name: PagesRestantesItem
      required: false
      type: TEXT
      groupName: pages
    - context: item
      description: Total Lifetime Pages item
      label: Item
      name: ImpressionsTotalesItem
      required: false
      type: TEXT
      groupName: pages
    - description: Hide  Tray & Missed Picks label-item
      label: hide
      name: HideTray
      required: false
      type: BOOLEAN
      groupName: erreurs
    - defaultValue: Tray Empty/Open
      description: Tray Empty/Open Title
      label: Title
      name: erreurs
      required: false
      type: TEXT
      groupName: erreurs
    - context: item
      description: Tray Empty/Open item
      label: Item
      name: BacVideOuvertItem
      required: false
      type: TEXT
      groupName: erreurs
    - context: item
      description: Jams item
      label: Item
      name: NbsBourragePapierItem
      required: false
      type: TEXT
      groupName: erreurs
    - context: item
      description: Missed Picks item
      label: Item
      name: ErreurChargemenPapierItem
      required: false
      type: TEXT
      groupName: erreurs
  parameterGroups:
    - name: header
      label: Header
    - name: blacklevel
      label: Black Level
    - name: pages
      label: Pages
    - name: erreurs
      label: Tray & Missed Picks
timestamp: Jan 5, 2022, 6:50:25 PM
component: oh-list-item
config:
  after: '=props.PrinterLatencyItem ? items[props.PrinterLatencyItem].state : ""'
  icon: =props.IconPrinter
  iconColor: '=(items[props.PrinterNetworkStateItem].state == "OFF") ? "green" : "red"'
  style:
    --f7-list-item-after-font-size: 16px
    --f7-list-item-after-text-color: "=themeOptions.dark === 'dark' ? 'rgb(180,180,180)' : 'rgb(80,80,80)'"
  subtitle: '=((items[props.PrinterNetworkStateItem].state == "OFF") ? "En ligne - " : "Hors ligne - ") + (items[props.PrinterStatusItem].displayState)'
  title: =props.ImprimanteTitle
slots:
  accordion:
    - component: f7-list
      config:
        mediaList: true
        style:
          background-color: "=themeOptions.dark === 'dark' ? 'rgb(35, 35, 35)' : 'rgb(247, 247, 247)'"
      slots:
        default:
          - component: f7-list-item
            config:
              after: '=props.BlackLevelItem ? items[props.BlackLevelItem].state : ""'
              style:
                --f7-list-item-after-font-size: 15px
                --f7-list-item-after-text-color: "=themeOptions.dark === 'dark' ? 'rgb(180,180,180)' : 'rgb(100,100,100)'"
                --f7-list-item-subtitle-font-size: 14px
                --f7-list-item-subtitle-text-color: "=themeOptions.dark === 'dark' ? 'rgb(180,180,180)' : 'rgb(100,100,100)'"
                --f7-list-item-title-font-size: 15px
                --f7-list-item-title-text-color: "=themeOptions.dark === 'dark' ? 'rgb(180,180,180)' : 'rgb(100,100,100)'"
              title: =props.BlackLevelTitle
              visible: =!props.HideBlackLevel
            slots:
              content:
                - component: f7-list-item-row
                  slots:
                    default:
                      - component: f7-list-item-cell
                        config:
                          style:
                            width: 32px
                        slots:
                          default:
                            - component: oh-icon
                              config:
                                color: gray
                                icon: f7:drop_fill
                                style:
                                  margin-top: 10px
                      - component: f7-list-item-cell
                        slots:
                          default:
                            - component: f7-progressbar
                              config:
                                progress: =Number(items[props.BlackLevelItem].state.split(' ')[0])
                                style:
                                  --f7-progressbar-height: 26px
                                  --f7-theme-color: rgb(0, 0, 0)
                                  margin-top: 10px
          - component: oh-label-item
            config:
              icon: f7:doc_on_doc
              iconColor: gray
              item: =props.PagesRestantesItem
              style:
                --f7-list-item-after-font-size: 15px
                --f7-list-item-after-text-color: "=themeOptions.dark === 'dark' ? 'rgb(180,180,180)' : 'rgb(100,100,100)'"
                --f7-list-item-subtitle-font-size: 14px
                --f7-list-item-subtitle-text-color: "=themeOptions.dark === 'dark' ? 'rgb(180,180,180)' : 'rgb(100,100,100)'"
                --f7-list-item-title-font-size: 15px
                --f7-list-item-title-text-color: "=themeOptions.dark === 'dark' ? 'rgb(180,180,180)' : 'rgb(100,100,100)'"
              subtitle: ="Total Lifetime Pages:" + " " + items[props.ImpressionsTotalesItem].state
              title: =props.PagesTitle
              visible: =!props.HideBlackPagesRemaining
          - component: oh-label-item
            config:
              icon: f7:exclamationmark_circle
              iconColor: gray
              item: =props.BacVideOuvertItem
              style:
                --f7-list-item-after-font-size: 15px
                --f7-list-item-after-text-color: "=themeOptions.dark === 'dark' ? 'rgb(180,180,180)' : 'rgb(100,100,100)'"
                --f7-list-item-subtitle-font-size: 14px
                --f7-list-item-subtitle-text-color: "=themeOptions.dark === 'dark' ? 'rgb(180,180,180)' : 'rgb(100,100,100)'"
                --f7-list-item-title-font-size: 15px
                --f7-list-item-title-text-color: "=themeOptions.dark === 'dark' ? 'rgb(180,180,180)' : 'rgb(100,100,100)'"
              subtitle: ="Jams:" + " " + items[props.NbsBourragePapierItem].state + " / " + "Missed Picks:" + " " + items[props.ErreurChargemenPapierItem].state
              title: =props.erreurs
              visible: =!props.HideTray

Pedro_Liberal · June 13, 2022, 10:38am

I seem to be having some trouble in getting this widget to work, this is what I see.
I added the state, status and latency, I see the latency, but the icon stays red, and I see no list.
Can you help @sebSmarthome ?

hmerk · June 13, 2022, 11:21am

Did you add it to a list card ? It will not work as a standalone widget.

Pedro_Liberal · June 13, 2022, 11:35am

Oh so that’s what op meant by that. Sorry, assumed it would be set as a list by default. My bad

hmerk · August 15, 2023, 9:20am

@sebSmarthome Can you please check, your widget is not working with openHAB 4 and the Online/Offline state (Network Item) would need an englisch translation

Screenshot openHAB 3

Screenshot openHAB 4

voland · March 2, 2024, 8:53pm

I had the same problem.
I solve this by change slot name from “content” to “inner”:

              title: =props.BlackLevelTitle
              visible: =!props.HideBlackLevel
            slots:
              inner:
                - component: f7-list-item-row
                  slots:
