OH3: How to smothen default charts

  • Platform information: OH3
  • Issue of the topic:
    Is it possible to smoothen the default charts like in the Analyze-Preview?

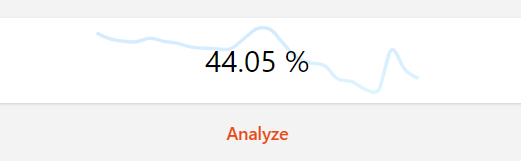

Analyze-Preview:

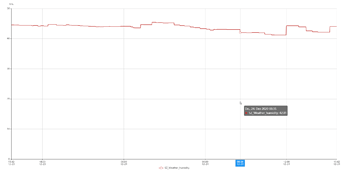

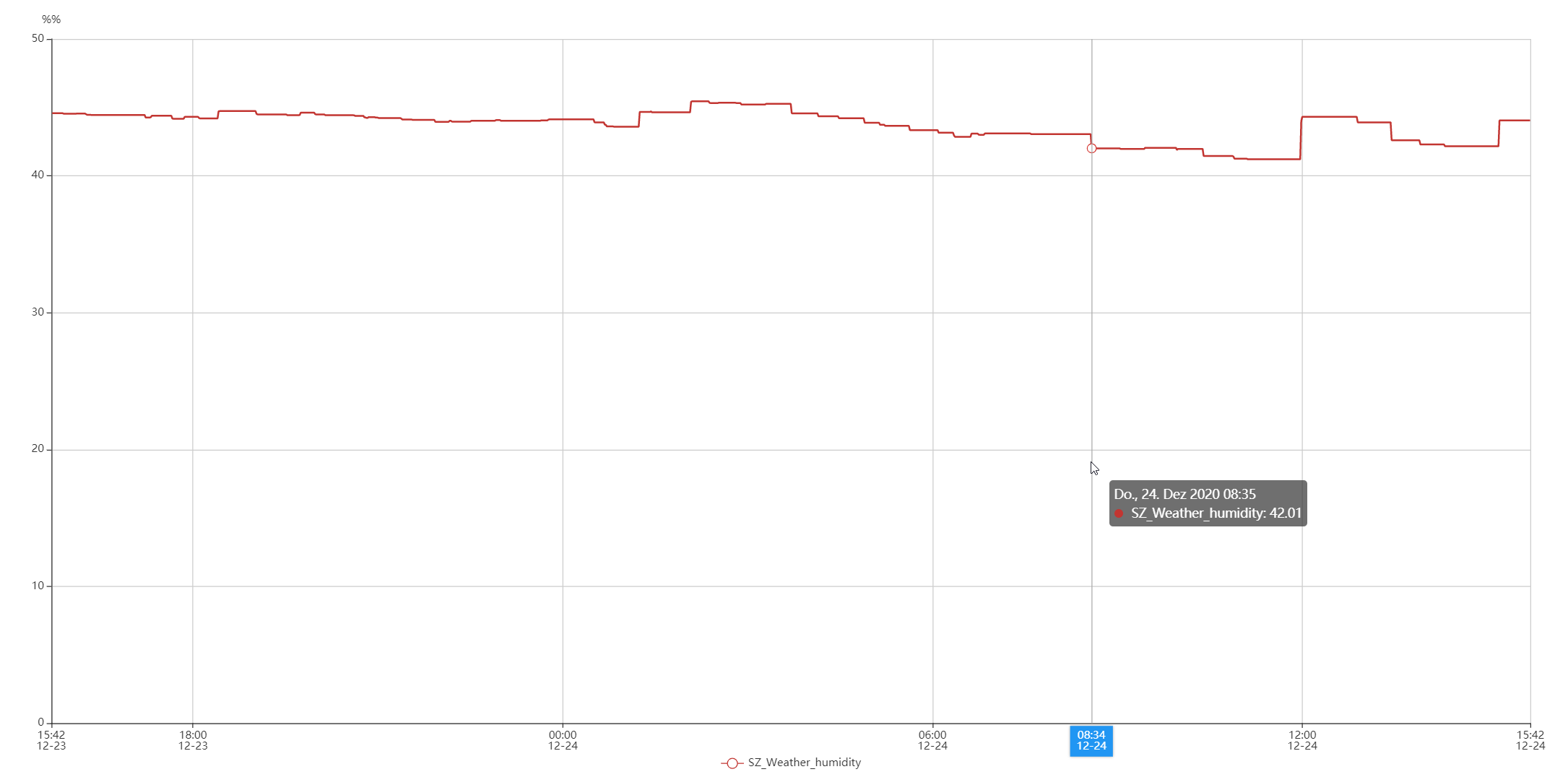

Default chart:

I´d like to have it as smooth as in the preview, even if I will loose some accuracy.
Is this possible?

I would be very interested in that, too. I tried to apply the smooth: true property, but it didn’t work.

@ysc Is this something that is not implemented right now, or do we overlook something?

I tried smooth: true half a year ago and it didn’t work either. Probably because it smoothes “between” the data points, but with openHAB/rrd4j those points are repeated even if the value doesn’t change. Don’t know yet if anything can be done.

So this is somewhat possible if you make a fixed period chart and sample every hour with an average aggregation function; to do this add a grid, a category X axis (for example Hours of day), a value Y axis, and an aggregate series with first dimension “Hour of Day”:

In YAML this is equivalent to this:

config:
  chartType: day
slots:
  grid:
    - component: oh-chart-grid
      config: {}
  xAxis:
    - component: oh-category-axis
      config:
        gridIndex: 0
        categoryType: day
        weekdayFormat: default
        monthFormat: default
  yAxis:
    - component: oh-value-axis
      config:
        gridIndex: 0
  series:
    - component: oh-aggregate-series
      config:
        name: Series 1
        gridIndex: 0
        xAxisIndex: 0
        yAxisIndex: 0
        type: bar
        item: FlowerCare_Temperature
        dimension1: hour

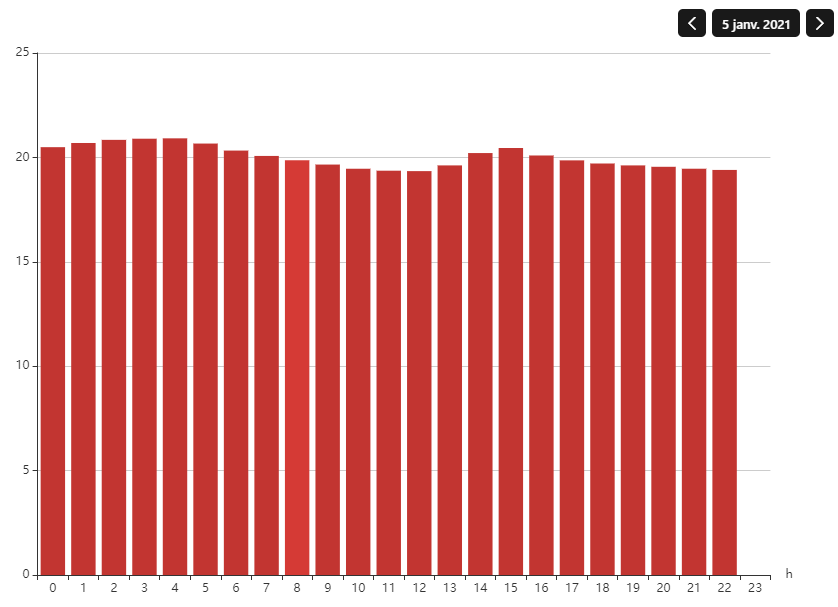

You’ll get something like this:

Changing type: bar to type: line leads to this:

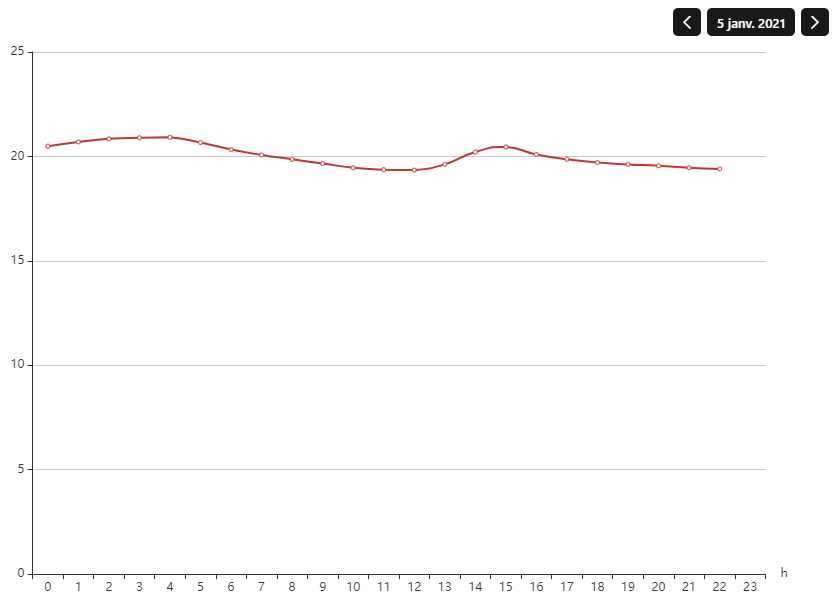

And then you can (in YAML only) add smooth: true to the aggregate series so you get this:

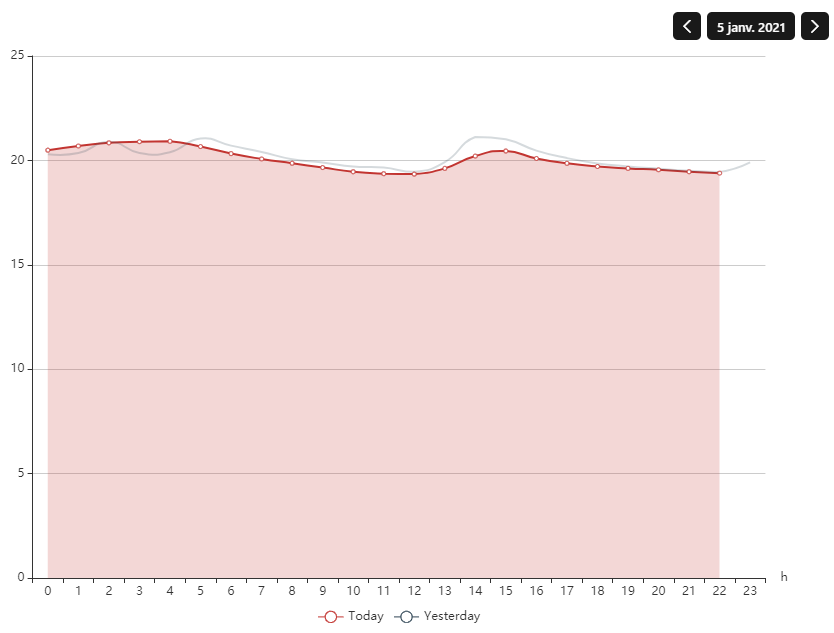

Bonus: if you add another series with offsetAmount & offsetUnit you can show the previous day for comparison:

YAML for the above chart:

config:
  chartType: day
slots:
  grid:
    - component: oh-chart-grid
      config: {}
  xAxis:
    - component: oh-category-axis
      config:
        gridIndex: 0
        categoryType: day
        weekdayFormat: default
        monthFormat: default
  yAxis:
    - component: oh-value-axis
      config:
        gridIndex: 0
  series:
    - component: oh-aggregate-series
      config:
        name: Today
        gridIndex: 0
        xAxisIndex: 0
        yAxisIndex: 0
        type: line
        item: FlowerCare_Temperature
        dimension1: hour
        areaStyle:
          opacity: 0.2
        smooth: true
    - component: oh-aggregate-series
      config:
        name: Yesterday
        gridIndex: 0
        xAxisIndex: 0
        yAxisIndex: 0
        type: line
        item: FlowerCare_Temperature
        dimension1: hour
        offsetAmount: 1
        offsetUnit: day
        smooth: true
        lineStyle:
          opacity: 0.2
        showSymbol: false
  tooltip:
    - component: oh-chart-tooltip
      config:
        show: true
  legend:
    - component: oh-chart-legend
      config:
        show: true
        bottom: "10"
4 Likes

Thank you Yannis, this is working great. And the bonus with the comparison is much more than I ever expected. :fireworks:

Hello,

would it be possible to aggregate the series every 15 Minutes instead of every hour?

In the list this entry is missing. How can I append it?

I would need quarter hours of Day.
