Hi community,

It would be great if someone could point me in the right direction. I am trying to get a MQTT topic to a item or into a ECMA rule so I can do stuff, managed to get stuck.

I have got the broker set up and the binding configured and I can see the below into the log.

2021-06-05 13:12:28.416 [INFO ] [openhab.event.ChannelTriggeredEvent ] - mqtt:systemBroker:openHab:test triggered 1
2021-06-05 13:16:37.244 [INFO ] [openhab.event.ChannelTriggeredEvent ] - mqtt:systemBroker:openHab:test triggered 0

Screen Shot 2021-06-05 at 1.14.54 pm
Screen Shot 2021-06-05 at 1.14.54 pm776×568 30.3 KB

Could someone show me how I could,

  • get the value into an item
  • use that value in an ECMA script

Kind Regards,
George

#2

Example below for one of my items controlled via MQTT:

Thing:

image780×879 20.8 KB

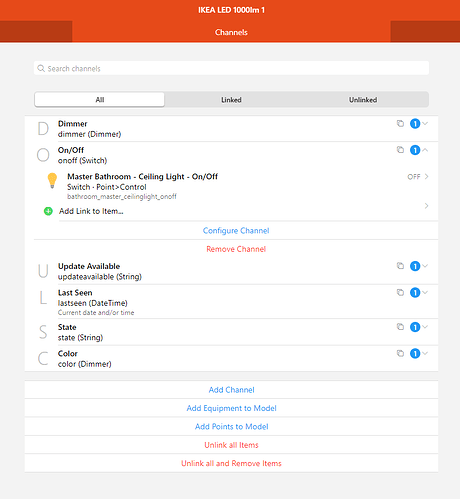

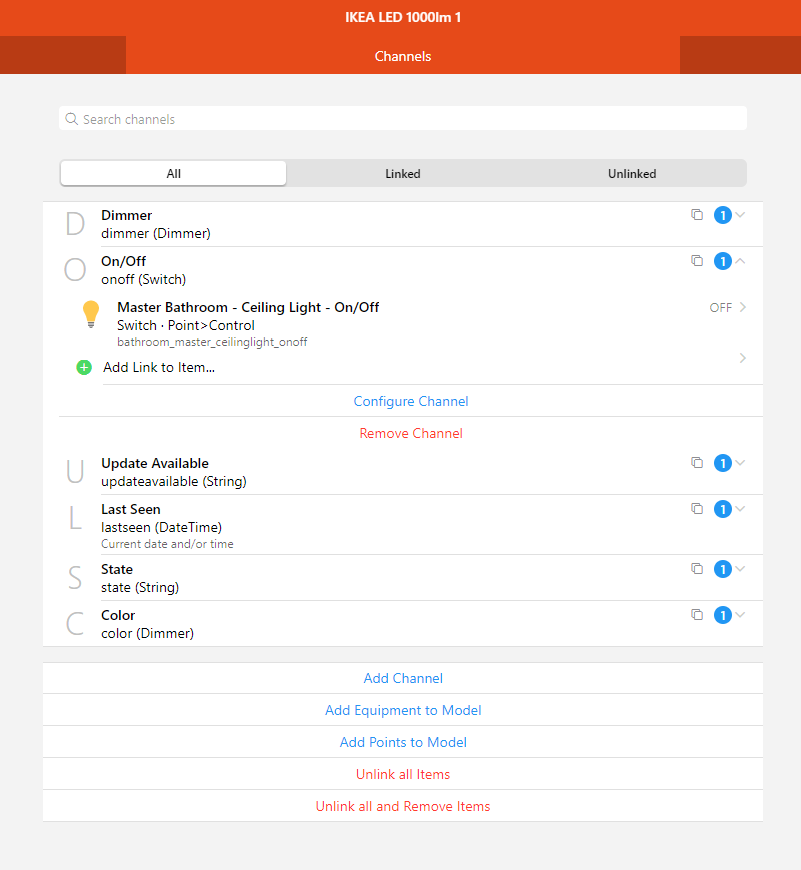

Channels and Item:

image801×870 27.7 KB

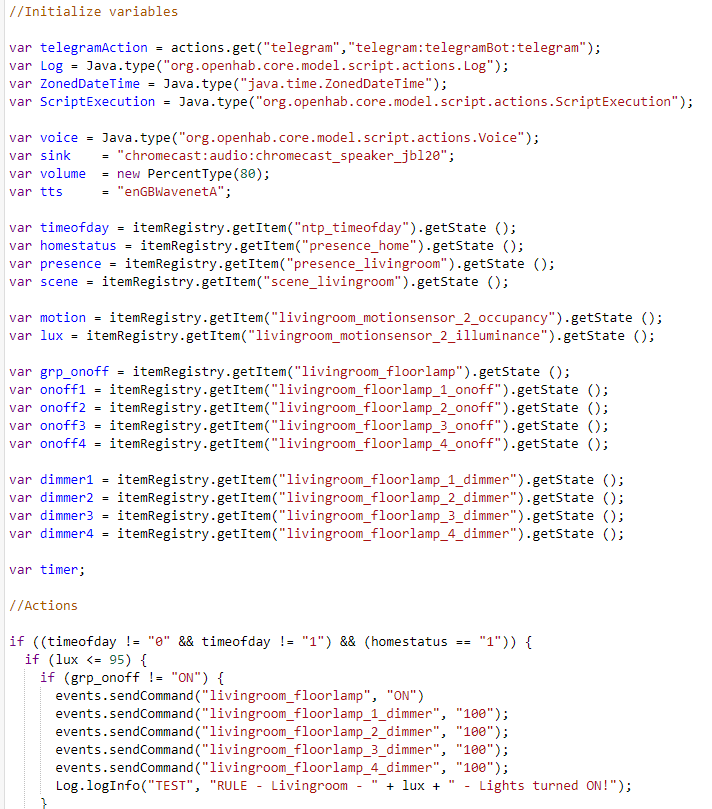

Example ECMA rule:

image712×809 29 KB

Hope those help you to build your setup.

OH3: MQTT publish via ECMA script?
#3

Hi Chris,

Thanks for that! Much appreciated.
That should get me going.

Kind Regards,
George
