OH3 UI How to hide the 3 dots on a cell

I’m slowly converting my sitemap to the new UI, which I mostly use on my phone.

Is there any way to remove the 3 dots that appear on a oh-label-cell when you define an action that navigates to another page?

Could you please post your YAML config for those cells.

Just checked, what about adding

  expandable: false

in the config section of the cell ?

How do you format the date? I try this, it doesn’t work :frowning:

=items.Box_CO2_Update.state.format("%1$tH:%1$tM %1$td.%1$tm")

You can define the pattern directly in your item and then use

=items.Box_CO2_Update.displayState
1 Like

Thanks! It works.
Taking this opportunity, I will ask, forgive that offtopic,
color change doesn’t work:

=Number.parseInt(items.Box_CO2.state)<800 ? "green" : Number.parseInt(items.Box_CO2.state)<1200 ? "orange" : "red"

When the page is refreshed, the widget is painted in the desired color and again painted in white.

component: oh-label-cell
config:
  item: Box_CO2
  footer: =items.Box_CO2_Update.displayState
  color: '=Number.parseInt(items.Box_CO2.state)<800 ? "green" :
    Number.parseInt(items.Box_CO2.state)<1200 ? "orange" : "red"'
  icon: oh:carbondioxide
  action: analyzer
  actionAnalyzerItems:
    - Box_CO2
  title: Бокс
  subtitle: '=Number.parseInt(items.Box_CO2.state < 800) ? "green" :
    Number.parseInt(items.Box_CO2.state) < 1200 ? "orange" : "red"'

Also, if you use a Trend Line Item, you can’t change the color of the widget?
Thanks!

Try:

  color: '=(Number.parseInt(items.Box_CO2.state)<800) ? "green" :
    ((Number.parseInt(items.Box_CO2.state)<1200) ? "orange" : "red")'

Thanks expandable: false did the trick.

Here’s the config with the fix applied:

component: oh-label-cell
config:
  expandable: false
  headerBadge: '=((items.loungeHarmonyActivity.state != "PowerOff" ? 1 : 0) +
    (items.bedroomSky.state == "ON" ? 1 : 0) + (items.kitchenSky.state == "ON" ?
    1 : 0)).toString()'
  title: Entertainment
  subtitle: '=((items.loungeHarmonyActivity.state != "PowerOff" ? "Lounge" : "") +
    (items.kitchenSky.state == "ON" ? (items.loungeHarmonyActivity.state !=
    "PowerOff" ? " | Kitchen" : "Kitchen") : "") + (items.bedroomSky.state ==
    "ON" ? (items.loungeHarmonyActivity.state != "PowerOff" ||
    items.kitchenSky.state == "ON" ? " | Bedroom" : "Bedroom") : ""))'
  icon: f7:tv
  color: '=((items.loungeHarmonyActivity.state != "PowerOff" ? 1 : 0) +
    (items.bedroomSky.state == "ON" ? 1 : 0) + (items.kitchenSky.state == "ON" ?
    1 : 0)) > 0 ? "blue" : var(--f7-theme-color)'
  label: '=(items.loungeHarmonyActivity.state != "PowerOff" ?
    items.loungeHarmonyActivity.state : ((items.kitchenSky.state == "ON" ||
    items.bedroomSky.state == "ON") ? "Sky" : " "))'
  item: loungeHarmonyActivity
  action: navigate
  actionPage: page:page_4cd90cd5df
  actionPageTransition: f7-circle
1 Like

Does not work. I’ve done a lot of tests, it looks like if the item name contains an underscore then the color doesn’t work.
Red widget:

component: oh-label-cell
config:
  item: RoomCO2
  color: = "red"
slots: null

The widget does not change color:

component: oh-label-cell
config:
  item: Room_CO2
  color: = "red"
slots: null

color: = "red"
Why should it with that expression?

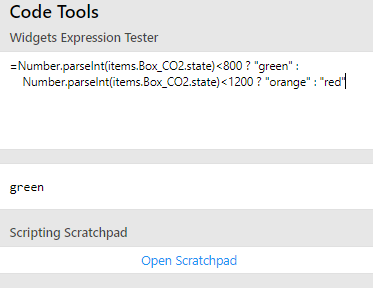

Remember if you’re running snapshot #2008 or later, you have a brand new expression tester in the developer sidebar (invoke it with Shift+Alt+D or from the developer tools menu), and then on the 3rd tab you can quickly test any expression you want.


1 Like

To minimize the test.

The expression itself works, I printed the result with a subtitle:


yaml:

component: oh-label-cell
config:
  item: Box_CO2
  footer: =items.Box_CO2_Update.displayState
  color: '=Number.parseInt(items.Box_CO2.state)<800 ? "green" :
    Number.parseInt(items.Box_CO2.state)<1200 ? "orange" : "red"'
  icon: oh:carbondioxide
  action: analyzer
  actionAnalyzerItems:
    - Box_CO2
  title: Бокс
  subtitle: '=Number.parseInt(items.Box_CO2.state) < 800 ? "green" :
    Number.parseInt(items.Box_CO2.state) < 1200 ? "orange" : "red"'
slots: null

If there is an underscore in the name of the item ( item: Box_CO2), then the color does not change.
If there is no underscore in the name of the item, then it works:


yaml:

component: oh-label-cell
config:
  item: BoxCO2
  footer: =items.Box_CO2_Update.displayState
  color: '=Number.parseInt(items.Box_CO2.state)<800 ? "green" :
    Number.parseInt(items.Box_CO2.state)<1200 ? "orange" : "red"'
  icon: oh:carbondioxide
  action: analyzer
  actionAnalyzerItems:
    - Box_CO2
  title: Бокс
  subtitle: '=Number.parseInt(items.Box_CO2.state) < 800 ? "green" :
    Number.parseInt(items.Box_CO2.state) < 1200 ? "orange" : "red"'
slots: null

I see. If you want to always apply the color, the best is to add:

on: true

Otherwise it’ll try to colorize the cell based on the state of the item, i.e. “ON” or a HSB value with the brightness > 0.

It works, thanks!

You need to practice to understand this clearly.
(I have very bad English, translation is not unambiguous)
I asked the question above, maybe I formulated it crookedly, I will ask again, if you use a Trend Line Item, can you then change the color?
Thanks!

Try if this works for you:

component: oh-cell
config:
  title: Something
  trendItem: ITEM
  style:
    --f7-theme-color-bg-color: "#ff3b30"
    background: var(--f7-theme-color-bg-color)
    filter: opacity(50%)
1 Like

Thanks! It work!!!

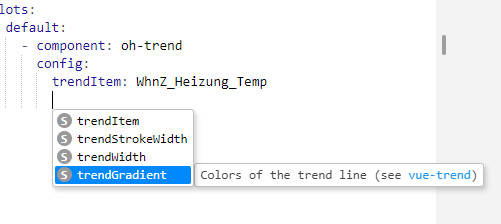

Before you edited the post, the picture had hints in the yaml editor, how to show them?


There is for sure a keyboard-shortcut, which I don’t know, but normaly it shows up automatically if you begin to write a new component line (beginning with “-”). To show it in the config area, press backspace and space again.

1 Like

You can trigger autocompletion with Ctrl+Space.
(it doesn’t work everywhere, mostly at the start of a key, at the start of a value if there are known options, or after = or items.

@ysc on MacOS the autocompletion does not seem to work.
I have tried it in Safari with Ctrl + Space, and also with Command + Space, but both do not work. Any thoughts about this?
Thanks!

hello,

i tried this code

component: oh-label-cell
config:
title: Abwesenheit
color: ‘=Number.parseInt(items.dummyawayswitch.state) == OFF ? “green” :
Number.parseInt(items.dummyawayswitch.state) == ON ? “orange” : “red”’
item: dummyawayswitch
action: command
actionItem: dummyawayswitch
actionCommand: ON
slots: null

the problem is when the state of dummyawayswitch is OFF the label cell doesnt goes green, it went grey.

the value is OFF and ON not a Number, i tried

=parseInt(items.dummyawayswitch.state.toString) == OFF? “green” :

parseInt(items.dummyawayswitch.state.toString) == ON? “orange”: “red”

but wont works
any ideas?

thx
