Hi All,
I have a small electric vehicle with an OVMS module installed, this allows an optional MQTT connectivity which can then be connected to openhab.
I have created a combination of a widget, plus the .items and .things files to implement all this.
The OVMS module itself is used in many vehicles, so, my below concept should be re-usable.

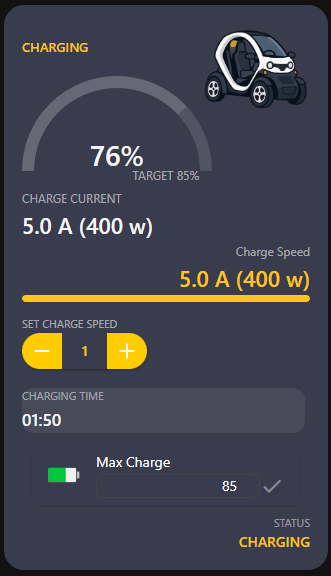

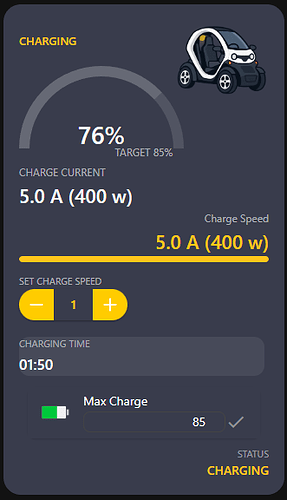

My requirements, I wanted a small dashboard giving information about my vehicle charge status, allowing to modify some basic parameters (charge speed and max %ge).
To implement this, there are a few steps needed.
-
You need to have a MQTT server running, I use mosquitto in a docker container.
-
You need to install the MQTT addon to openhab and connect it to the above MQTT server.
-
You need to configure the protocol “Server V3 (MQTT)” in OVMS webui.
- This is done under the Config tab, also, set it to autostart.
- Configure your MQTT server, username and password, the topic prefix should be “ovms/”
- Once this is complete, you should start to see messages arriving in your MQTT server. I use MQTT explorer or MQTTX to view the MQTT server activity.
- On Openhab, copy in the .items and .things files.
I do have a “complete” version of these 2 files with all the available parameters from OVMS, but as they are not displayed in the widget it seems pointless to add them all here.
- openhab/conf/things/ovms.things
Thing mqtt:topic:MQTTBroker:Twizy "Twizy" (mqtt:broker:MQTTBroker) {
Channels:
Type number : V_B_Soc "Battery State of Charge" [ stateTopic="ovms/metric/v/b/soc" ]
Type string : V_C_Charging "Currently Charging" [ stateTopic="ovms/metric/v/c/charging" ]
Type number : V_C_Climit "Maximum Charger Output Current" [ stateTopic="ovms/metric/v/c/climit" ]
Type number : V_C_Current "Momentary Charger Output Current" [ stateTopic="ovms/metric/v/c/current" ]
Type number : V_C_Duration_Soc "Estimated Time Remaining for Sufficient SOC" [ stateTopic="ovms/metric/v/c/duration/soc" ]
Type number : V_C_Limit_Soc "Sufficient SOC Limit for Current Charge" [ stateTopic="ovms/metric/v/c/limit/soc" ]
Type number : V_C_Time "Duration of Running Charge" [ stateTopic="ovms/metric/v/c/time" ]
Type number : Cmd_Charge_Limit_Soc "Set Charge SOC Limit" [ commandTopic="ovms/client/openhab/command/1", formatBeforePublish="config set xrt suffsoc %s", retained=false ]
Type string : Cmd_Charge_Limit_Soc_Response "Set Charge SOC Limit - Response" [ stateTopic="ovms/client/openhab/response/1" ]
Type number : Cmd_Charge_Speed "Set Charge Speed Level" [ commandTopic="ovms/client/openhab/command/1", formatBeforePublish="config set xrt chargelevel %s", retained=false ]
Type number : Cmd_Charge_Speed_Response "Set Charge Speed Level - Response" [ commandTopic="ovms/client/openhab/response/1" ]
}
- openhab/conf/items/ovms.items
Group Twizy "Twizy (OVMS)" <car>
Number Twizy_V_B_Soc "Battery State of Charge" (Twizy) { channel="mqtt:topic:MQTTBroker:Twizy:V_B_Soc" }
String Twizy_V_C_Charging "Currently Charging" (Twizy) { channel="mqtt:topic:MQTTBroker:Twizy:V_C_Charging" }
Number Twizy_V_C_Climit "Maximum Charger Output Current" (Twizy) { channel="mqtt:topic:MQTTBroker:Twizy:V_C_Climit" }
Number Twizy_V_C_Current "Momentary Charger Output Current" (Twizy) { channel="mqtt:topic:MQTTBroker:Twizy:V_C_Current" }
Number Twizy_V_C_Duration_Soc "Estimated Time Remaining for Sufficient SOC" (Twizy) { channel="mqtt:topic:MQTTBroker:Twizy:V_C_Duration_Soc" }
Number Twizy_V_C_Limit_Soc "Sufficient SOC Limit for Current Charge" (Twizy) { channel="mqtt:topic:MQTTBroker:Twizy:V_C_Limit_Soc" }
Number Twizy_V_C_Time "Duration of Running Charge" (Twizy) { channel="mqtt:topic:MQTTBroker:Twizy:V_C_Time" }
Number Twizy_Cmd_Charge_Limit_Soc "Set Charge SOC Limit" (Twizy) { channel="mqtt:topic:MQTTBroker:Twizy:Cmd_Charge_Limit_Soc" }
String Twizy_Cmd_Charge_Limit_Soc_Response "Set Charge SOC Limit - Response" (Twizy) { channel="mqtt:topic:MQTTBroker:Twizy:Cmd_Charge_Limit_Soc_Response" }
Number Twizy_Cmd_Charge_Speed "Set Charge Speed" (Twizy) { channel="mqtt:topic:MQTTBroker:Twizy:Cmd_Charge_Speed" }
String Twizy_Cmd_Charge_Speed_Response "Set Charge Speed - Response" (Twizy) { channel="mqtt:topic:MQTTBroker:Twizy:Cmd_Charge_Speed_Response" }
- In openhab, create a new widget under developer tab and paste this in:
version: 1
widgets:
Twizy_All_Props:
tags:
- custom
- dark
props:
parameters:
- context: item
default: Twizy_V_B_Soc
description: Battery state of charge
label: Battery SOC
name: socItem
required: true
type: TEXT
groupName: general
- context: item
default: Twizy_V_C_Charging
description: Charging state
label: Charging state
name: chargingItem
required: true
type: TEXT
groupName: general
- context: item
default: Twizy_V_C_Current
description: Actual charging current
label: Charge current
name: currentItem
required: true
type: TEXT
groupName: general
- context: item
default: Twizy_V_C_Climit
description: Maximum charging current
label: Charge current limit
name: currentLimitItem
required: true
type: TEXT
groupName: general
- context: item
default: Twizy_Cmd_Charge_Speed
description: Maximum charging index
label: Charge current index limit
name: currentLimitIndex
required: true
type: TEXT
groupName: general
- context: item
default: Twizy_V_C_Time
description: Charging duration so far, in seconds
label: Charge duration
name: durationItem
required: true
type: TEXT
groupName: general
- context: item
default: Twizy_V_C_Duration_Soc
description: Time remaining to the target SOC, in seconds
label: Time to SOC target
name: targetTimeItem
required: true
type: TEXT
groupName: general
- context: item
default: Twizy_V_C_Limit_Soc
description: Target battery SOC
label: Target SOC
name: targetSocItem
required: true
type: TEXT
groupName: general
- context: item
default: Twizy_Cmd_Charge_Limit_Soc
description: Set Target battery SOC
label: Set Target SOC
name: targetSocItemSet
required: true
type: TEXT
groupName: general
- default: Twizy
label: Headline
name: headline
required: false
type: TEXT
groupName: header
- default: twizy.png
label: icon
name: heroIcon
required: false
type: TEXT
groupName: images
- default: 0
description: Minimum charge current index
label: Minimum current
name: currentMin
required: false
type: INTEGER
groupName: controls
- default: 6
description: Maximum charge current index
label: Maximum current
name: currentMax
required: false
type: INTEGER
groupName: controls
- default: 1
description: Charge current step
label: Current step
name: currentStep
required: false
type: INTEGER
groupName: controls
parameterGroups:
- name: general
label: General settings
description: Items used by the Twizy charging widget
- name: header
label: Header
- name: controls
label: Charge current control
- name: images
label: Images
component: f7-block
config:
class:
- no-padding
- no-margin
style:
position: relative
user-select: none
-moz-user-select: none
-ms-user-select: none
-webkit-user-select: none
slots:
default:
- component: oh-icon
config:
icon: =props.heroIcon
style:
max-width: min(max(70px, 18vw), 110px)
position: absolute
right: 18px
top: 8px
width: 100%
z-index: 20
- component: div
config:
style:
position: absolute
top: 8px
left: 18px
right: calc(18px + min(max(70px, 18vw), 110px) / 2)
height: 60px
z-index: 15
pointer-events: none
slots:
default:
- component: div
config:
innerHTML: <style>@keyframes twzflow{0%{left:0;opacity:0}15%{opacity:1}85%{opacity:1}100%{left:100%;opacity:0}}</style>
- component: div
config:
style:
position: absolute
top: 50%
left: 0
right: 0
height: 3px
margin-top: -1.5px
border-radius: 2px
background: '=["yes","1","ON","true","TRUE"].includes(String(items[props.chargingItem].state)) ? "rgba(255,197,28,0.35)" : "rgba(255,255,255,0.12)"'
- component: div
config:
style:
position: absolute
top: 50%
left: 0
transform: translateY(-50%)
border-radius: 50%
background: rgb(255,197,28)
display: '=["yes","1","ON","true","TRUE"].includes(String(items[props.chargingItem].state)) ? "block" : "none"'
width: =Math.round(6 + Math.min(Math.max(Number.parseFloat(items[props.currentItem].state) || 0, 0), 35) / 35 * 12) + "px"
height: =Math.round(6 + Math.min(Math.max(Number.parseFloat(items[props.currentItem].state) || 0, 0), 35) / 35 * 12) + "px"
box-shadow: ="0 0 " + Math.round(6 + Math.min(Math.max(Number.parseFloat(items[props.currentItem].state) || 0, 0), 35) / 35 * 12) + "px rgba(255,197,28,0.8)"
animation: ="twzflow " + (6 - Math.min(Math.max(Number.parseFloat(items[props.currentItem].state) || 0, 0), 35) / 35 * 4.5).toFixed(2) + "s linear infinite"
- component: f7-card
config:
style:
background: rgb(57,60,76)
border-radius: 20px
margin: 0
min-height: 330px
overflow: hidden
position: relative
slots:
default:
- component: f7-card-content
config:
style:
padding: 18px
position: relative
z-index: 10
slots:
default:
- component: f7-row
config:
style:
align-items: center
min-height: 45px
slots:
default:
- component: f7-col
config:
width: 70%
slots:
default:
- component: Label
config:
style:
color: rgba(255,255,255,0.95)
font-size: 19px
font-weight: 600
letter-spacing: 0.5px
text: =props.headline
- component: Label
config:
style:
color: '=items[props.chargingItem].state == "yes" || items[props.chargingItem].state == "1" || items[props.chargingItem].state == "ON" || items[props.chargingItem].state == "true" || items[props.chargingItem].state == "TRUE" ? "rgb(255,197,28)" : "rgba(255,255,255,0.55)"'
font-size: 13px
font-weight: 500
margin-top: 3px
text: '=items[props.chargingItem].state == "yes" || items[props.chargingItem].state == "1" || items[props.chargingItem].state == "ON" || items[props.chargingItem].state == "true" || items[props.chargingItem].state == "TRUE" ? "CHARGING" : "NOT CHARGING"'
- component: f7-row
config:
style:
justify-content: center
margin-top: 8px
slots:
default:
- component: f7-col
config:
width: 100%
slots:
default:
- component: oh-gauge
config:
type: semicircle
min: 0
max: 100
value: =Number.parseFloat(items[props.socItem].state)
size: 190
borderWidth: 12
borderColor: rgba(255,255,255,0.12)
borderBgColor: rgba(255,255,255,0.12)
valueText: =Number.parseFloat(items[props.socItem].state).toFixed(0) + "%"
valueTextColor: rgba(255,255,255,0.95)
valueFontSize: 28
style:
margin: 0 auto
- component: Label
config:
style:
color: rgba(255,255,255,0.55)
display: block
font-size: 12px
margin-top: -10px
text-align: center
text: = "TARGET " + Number.parseFloat(items[props.targetSocItem].state).toFixed(0) + "%"
- component: f7-row
config:
style:
align-items: center
margin-top: 5px
slots:
default:
- component: f7-col
config:
width: 45%
slots:
default:
- component: Label
config:
style:
color: rgba(255,255,255,0.55)
font-size: 12px
text: CHARGE CURRENT
- component: Label
config:
style:
color: rgba(255,255,255,0.95)
font-size: 22px
font-weight: 600
margin-top: 2px
text: =Number.parseFloat(items[props.currentItem].state).toFixed(1) + " A (" + Number.parseFloat(items[props.currentItem].state*80).toFixed(0) + " w)"
- component: f7-col
config:
width: 55%
style:
text-align: right
slots:
default:
- component: Label
config:
style:
color: rgba(255,255,255,0.55)
font-size: 12px
text: Charge Speed
- component: Label
config:
style:
color: rgb(255,197,28)
font-size: 22px
font-weight: 600
margin-top: 2px
text: =Number.parseFloat(items[props.currentLimitItem].state).toFixed(1) + " A (" + Number.parseFloat(items[props.currentLimitItem].state*80).toFixed(0) + " w)"
- component: f7-block
config:
class:
- no-padding
- no-margin
style:
background: rgba(255,255,255,0.10)
border-radius: 6px
height: 7px
margin-top: 10px
overflow: hidden
width: 100%
slots:
default:
- component: f7-block
config:
class:
- no-padding
- no-margin
style:
background: rgb(255,197,28)
border-radius: 6px
height: 100%
transition: width 0.3s
width: =Math.min(100, Math.max(0, Number.parseFloat(items[props.currentItem].state) / Number.parseFloat(items[props.currentLimitItem].state) * 100)) + "%"
- component: f7-row
config:
style:
align-items: center
margin-top: 14px
slots:
default:
- component: f7-col
config:
width: 30%
slots:
default:
- component: Label
config:
style:
color: rgba(255,255,255,0.55)
font-size: 11px
text: SET CHARGE SPEED
- component: f7-col
config:
width: 70%
slots:
default:
- component: oh-stepper
config:
item: =props.currentLimitIndex
min: =Number(props.currentMin)
max: =Number(props.currentMax)
step: =Number(props.currentStep)
fill: true
round: true
raised: true
color: yellow
style:
margin: 0
- component: f7-row
config:
style:
margin-top: 14px
slots:
default:
- component: f7-col
config:
width: 50%
style:
padding-right: 5px
slots:
default:
- component: f7-block
config:
class:
- no-padding
style:
background: rgba(255,255,255,0.07)
border-radius: 12px
margin: 0
padding: 10px
slots:
default:
- component: Label
config:
style:
color: rgba(255,255,255,0.50)
font-size: 11px
text: CHARGING TIME
- component: Label
config:
style:
color: rgba(255,255,255,0.95)
font-size: 17px
font-weight: 600
margin-top: 3px
text: =Math.floor(Number.parseFloat(items[props.durationItem].state) / 3600).toString().padStart(2,"0") + ":" + Math.floor((Number.parseFloat(items[props.durationItem].state) % 3600) / 60).toString().padStart(2,"0")
- component: oh-grid-row
config: {}
slots:
default:
- component: oh-grid-col
config:
style:
font-size: 17px
font-weight: 600
margin-top: 3px
slots:
default:
- component: oh-list-card
config: {}
slots:
default:
- component: oh-input-item
config:
icon: oh:battery
inputmode: numeric
item: =props.targetSocItemSet
outline: true
sendButton: true
showTime: false
min: 60
max: 100
step: 1
title: Max Charge
type: number
useDisplayState: true
style:
background: rgb(57,60,76)
- component: f7-col
config:
width: 50%
style:
text-align: right
slots:
default:
- component: Label
config:
style:
color: rgba(255,255,255,0.45)
font-size: 11px
text: STATUS
- component: Label
config:
style:
color: '=items[props.chargingItem].state == "yes" || items[props.chargingItem].state == "1" || items[props.chargingItem].state == "ON" || items[props.chargingItem].state == "true" || items[props.chargingItem].state == "TRUE" ? "rgb(255,197,28)" : "rgba(255,255,255,0.65)"'
font-size: 14px
font-weight: 600
text: '=items[props.chargingItem].state == "yes" || items[props.chargingItem].state == "1" || items[props.chargingItem].state == "ON" || items[props.chargingItem].state == "true" || items[props.chargingItem].state == "TRUE" ? "CHARGING" : "IDLE"'
This widget can then be used in any of your layouts / overview page.
Finally, add the below icon as openhab/conf/icons/classic/twizy.png
Hope someone else finds this useful!
