(I’ve already mentioned this issue in the dedicated topic for the semanticHomeMenu widget, but since it looks like all the parameters are correct, this might be a broader issue?

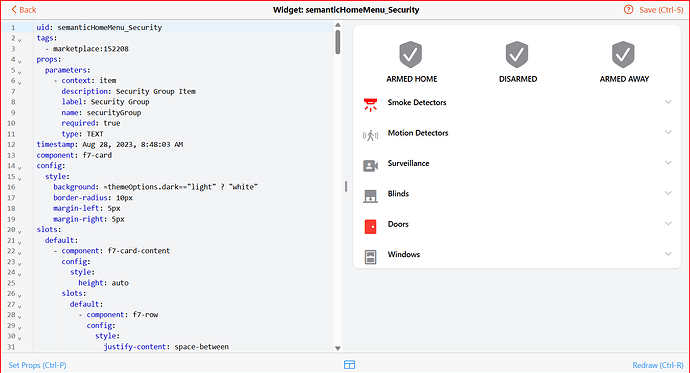

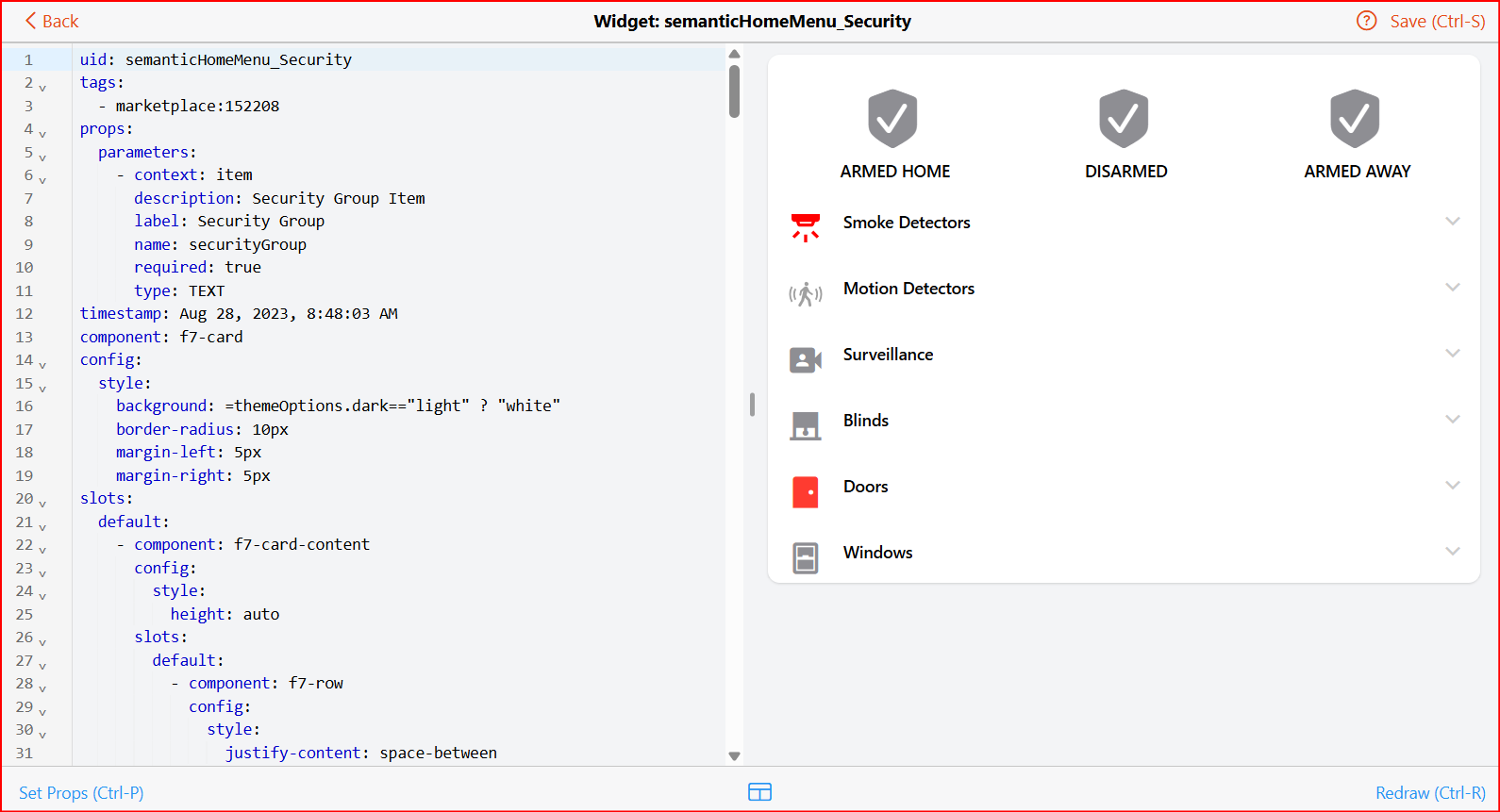

The two widgets I think are relevant are the “main” and the “security” widgets:
Main:
uid: semanticHomeMenu
tags:
- marketplace:168092
- improvements Nico_R and hmerk
- openHAB 5.1
props:
parameters:
- default: orange
description: ColorScheme for Widgets
label: Color
name: color
required: true
limitToOptions: true
options:
- label: Orange
value: orange
- label: Red
value: red
- label: Cyan
value: cyan
- description: Set color for Bottom NavBar
label: Bottom-Navbar-Color
name: bnavColor
required: false
type: TEXT
timestamp: Jan 21, 2026, 9:53:08 PM
component: f7-block
config:
style:
--my-bottom-navbar-background: '=!props.bnavColor ? "RGB(96, 96, 96)" : props.bnavColor'
--my-hex-colorScheme: '=props.color =="red" ? "#FF0000" : props.color =="cyan" ?
"#03FFFF" :"#FF9900"'
--my-rgb-colorScheme: '=props.color =="red" ? "RGB(255,0,0)" : props.color
=="cyan" ? "RGB(3,255,255)" : "RGB(255,153,0)"'
--my-text-colorScheme: =props.color
background: =(themeOptions.dark=="light") ? ("white"):("black")
height: 90vh
margin: 0
padding: 0
width: 100%
stylesheet: >
.invisible {
display: none;
/*position: absolute;*/
/*left: -999em;*/
/*opacity: 0.1;*/
}
.container {
height: 100%;
display: grid;
grid-template-columns: 100%;
grid-template-rows: min-content 1fr auto;
gap: 10px 0px;
margin: 0 !important;
padding: calc(15px + var(--f7-safe-area-top)) 0px var(--f7-safe-area-bottom) 0px !important;
grid-template-areas:
"header"
"main"
"footer";
}
.header {
grid-area: header;
margin: 0;
overflow: hidden;
}
.main {
grid-area: main;
overflow-y: scroll;
overflow-x: hidden;
-ms-overflow-style: none; /* IE and Edge */
scrollbar-width: none; /* Firefox */
}
.main::-webkit-scrollbar {
display: none;
}
.footer {
grid-area: footer;
overflow: hidden;
background: var(--my-bottom-navbar-background);
}
.mainWidget {
--f7-theme-color: #FBBF02;
--f7-theme-color-rgb: 251, 191, 2;
/*toggles*/
--f7-toggle-active-color: #545454;
--f7-toggle-inactive-color: #B9B9B9;
/*Custom Vars*/
/*--tobNavbar Buttons*/
--mW-topNavbar-button-color-selected: #262626;
--mW-topNavbar-button-color-unselected: #B9B9B9;
--mW-topNavbar-button-underline-color: var(--f7-theme-color);
/*--tobNavbar Swiper*/
--mW-topNavbar-swiper-navigation-color: #898989;
--mW-topNavbar-swiper-navigation-size: 20px;
}
.mainWidget .topNavbar .button {
--f7-button-hover-bg-color: transparent;
--f7-button-pressed-bg-color: rgba(var(--f7-theme-color-rgb), .07);
--f7-button-text-color: var(--mW-topNavbar-button-color-unselected);
--f7-button-text-transform: none;
font-size: 16px;
width: auto;
}
.mainWidget .topNavbar .selected_menu_item {
color: var(--mW-topNavbar-button-color);
text-decoration-color: var(--mW-topNavbar-button-underline-color) !important;
text-decoration: underline;
text-underline-offset: 5px;
}
.mainWidget .topNavbar .unselected_menu_item {
color: var(--mW-topNavbar-button-color-unselected);
font-weight: 300;
}
.mainWidget .topNavbar .swiper-button-prev, .mainWidget .topNavbar
.swiper-button-next {
width: 100%;
height: 40px;
}
.mainWidget .topNavbar .swiper-button-prev {
padding-right: 20px;
justify-content: right;
}
.mainWidget .topNavbar .swiper-button-next {
padding-left: 20px;
justify-content: left;
}
slots:
default:
- component: f7-block
config:
class:
- container
- mainWidget
slots:
default:
- component: f7-block
config:
class:
- no-padding
- header
- topNavbar
slots:
default:
- component: f7-row
config:
style:
height: auto
justify-content: center
margin-left: 2%
margin-right: 2%
slots:
default:
- component: oh-repeater
config:
cacheSource: true
for: baseMenu
fragment: true
in:
- name: =translation('Home')
- name: =translation('Floor')
- name: =translation('Room')
sourceType: array
slots:
default:
- component: oh-button
config:
action: variable
actionVariable: objVar
actionVariableValue:
selectSection: ="SECTION" + loop.baseMenu_idx
class:
- '=vars.objVar ? "" : "unselected_menu_item"'
- '=vars.objVar.selectSection=="SECTION" +
loop.baseMenu_idx ? "selected_menu_item" :
"unselected_menu_item"'
large: true
style:
font-size: 24px
width: auto
text: =loop.baseMenu.name
- component: f7-row
config:
class:
- align-items-stretch
- display-flex
style:
display: '=vars.objVar ? (vars.objVar.selectSection=="SECTION1") ? "" : "none
!important" : "none !important"'
height: auto
width: 100%
slots:
default:
- component: f7-col
config:
class:
- display-flex
- justify-content-right
- align-items-stretch
style:
width: 15%
slots:
default:
- component: f7-block
config:
class:
- swiper-button-prev
id: floorsPrev
style:
--swiper-navigation-color: var(--mW-topNavbar-swiper-navigation-color)
--swiper-navigation-size: var(--mW-topNavbar-swiper-navigation-size)
position: inherit
- component: f7-col
config:
class:
- display-flex
- align-items-center
style:
flex-grow: 1
slots:
default:
- component: f7-swiper
config:
params:
breakpoints:
"0":
slidesPerView: 1
spaceBetween: 0
"240":
slidesPerView: 1
spaceBetween: 0
"320":
slidesPerGroup: 2
slidesPerView: 2
spaceBetween: 0
"480":
slidesPerGroup: 3
slidesPerView: 3
spaceBetween: 0
"640":
slidesPerGroup: 4
slidesPerView: 4
spaceBetween: 0
"940":
slidesPerGroup: 5
slidesPerView: 5
spaceBetween: 0
"1400":
slidesPerGroup: 6
slidesPerView: 6
spaceBetween: 0
"1800":
slidesPerGroup: 8
slidesPerView: 8
spaceBetween: 0
centerInsufficientSlides: true
grabCursor: true
keyboard: true
mousewheel: true
navigation:
nextEl: "#floorsNext"
prevEl: "#floorsPrev"
observeSlideChildren: true
observer: true
runCallbacksOnInit: true
updateOnWindowResize: true
watchOverflow: true
style:
width: 100%
slots:
default:
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: metadata,semantics,widgetOrder
filter: (loop.floorArray.metadata) &&
(loop.floorArray.metadata.semantics.value).includes("Floor")
for: floorArray
fragment: true
itemTags: ","
sourceType: itemsWithTags
slots:
default:
- component: f7-swiper-slide
config:
expandable: true
style:
border-radius: 5px
slots:
default:
- component: oh-button
config:
action: variable
actionVariable: objVar
actionVariableValue:
floor: =loop.floorArray.name
selectSection: SECTION2
class:
- '=vars.objVar ? "" :
"unselected_menu_item"'
- '=(vars.objVar.floor ==
loop.floorArray.name) ?
"selected_menu_item" :
"unselected_menu_item"'
text: =loop.floorArray.label
- component: f7-col
config:
class:
- display-flex
- justify-content-center
- align-items-stretch
style:
width: 15%
slots:
default:
- component: f7-block
config:
class:
- swiper-button-next
id: floorsNext
style:
--swiper-navigation-color: var(--mW-topNavbar-swiper-navigation-color)
--swiper-navigation-size: var(--mW-topNavbar-swiper-navigation-size)
position: inherit
- component: f7-row
config:
class:
- align-items-stretch
style:
display: '=!vars.objVar ? "none !important" :
(vars.objVar.selectSection=="SECTION2" &&
!vars.objVar.floor) ? "" : "none !important"'
height: auto
width: 100%
slots:
default:
- component: f7-col
config:
class:
- display-flex
- justify-content-center
- align-items-stretch
style:
width: 15%
slots:
default:
- component: f7-block
config:
class:
- swiper-button-prev
id: allRoomsPrev
style:
--swiper-navigation-color: var(--mW-topNavbar-swiper-navigation-color)
--swiper-navigation-size: var(--mW-topNavbar-swiper-navigation-size)
position: inherit
- component: f7-col
config:
class:
- display-flex
- align-items-center
style:
flex-grow: 1
slots:
default:
- component: f7-swiper
config:
params:
breakpoints:
"0":
slidesPerView: 1
spaceBetween: 0
"240":
slidesPerView: 1
spaceBetween: 0
"320":
slidesPerGroup: 2
slidesPerView: 2
spaceBetween: 0
"480":
slidesPerGroup: 3
slidesPerView: 3
spaceBetween: 0
"640":
slidesPerGroup: 4
slidesPerView: 4
spaceBetween: 0
"940":
slidesPerGroup: 5
slidesPerView: 5
spaceBetween: 0
"1400":
slidesPerGroup: 6
slidesPerView: 6
spaceBetween: 0
"1800":
slidesPerGroup: 8
slidesPerView: 8
spaceBetween: 0
centerInsufficientSlides: true
grabCursor: true
keyboard: true
mousewheel: true
navigation:
nextEl: "#allRoomsNext"
prevEl: "#allRoomsPrev"
observeParents: true
observeSlideChildren: true
observer: true
runCallbacksOnInit: true
updateOnWindowResize: true
watchOverflow: true
style:
width: 100%
slots:
default:
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: metadata,semantics,widgetOrder
filter: (loop.roomArray.metadata) &&
((loop.roomArray.metadata.semantics.value).includes("Room") ||
(loop.roomArray.metadata.semantics.value).includes("Corridor"))
for: roomArray
fragment: true
itemTags: ","
sourceType: itemsWithTags
slots:
default:
- component: f7-swiper-slide
config:
style:
border-radius: 5px
slots:
default:
- component: oh-button
config:
action: variable
actionVariable: objVar
actionVariableValue:
floor: =vars.objVar.floor
room: =loop.roomArray.name
selectSection: =vars.objVar.selectSection
class:
- '=vars.objVar ? "" :
"unselected_menu_item"'
- '=(vars.objVar.room ==
loop.roomArray.name) ?
"selected_menu_item" :
"unselected_menu_item"'
text: =loop.roomArray.label
- component: f7-col
config:
class:
- display-flex
- justify-content-center
- align-items-stretch
style:
width: 15%
slots:
default:
- component: f7-block
config:
class:
- swiper-button-next
id: allRoomsNext
style:
--swiper-navigation-color: var(--mW-topNavbar-swiper-navigation-color)
--swiper-navigation-size: var(--mW-topNavbar-swiper-navigation-size)
position: inherit
- component: f7-row
config:
class:
- align-items-stretch
style:
display: '=vars.objVar ? (vars.objVar.selectSection=="SECTION2" &&
vars.objVar.floor ) ? "" : "none !important" : "none
!important"'
height: auto
width: 100%
slots:
default:
- component: f7-col
config:
class:
- display-flex
- justify-content-center
- align-items-stretch
style:
width: 15%
slots:
default:
- component: f7-block
config:
class:
- swiper-button-prev
id: roomsOfFloorPrev
style:
--swiper-navigation-color: var(--mW-topNavbar-swiper-navigation-color)
--swiper-navigation-size: var(--mW-topNavbar-swiper-navigation-size)
position: inherit
- component: f7-col
config:
class:
- display-flex
- align-items-center
style:
flex-grow: 1
slots:
default:
- component: f7-swiper
config:
params:
breakpoints:
"0":
slidesPerView: 1
spaceBetween: 0
"240":
slidesPerView: 1
spaceBetween: 0
"320":
slidesPerGroup: 2
slidesPerView: 2
spaceBetween: 0
"480":
slidesPerGroup: 3
slidesPerView: 3
spaceBetween: 0
"640":
slidesPerGroup: 4
slidesPerView: 4
spaceBetween: 0
"940":
slidesPerGroup: 5
slidesPerView: 5
spaceBetween: 0
"1400":
slidesPerGroup: 6
slidesPerView: 6
spaceBetween: 0
"1800":
slidesPerGroup: 8
slidesPerView: 8
spaceBetween: 0
centerInsufficientSlides: true
grabCursor: true
keyboard: true
mousewheel: true
navigation:
nextEl: "#roomsOfFloorNext"
prevEl: "#roomsOfFloorPrev"
observeSlideChildren: true
observer: true
runCallbacksOnInit: true
updateOnWindowResize: true
watchOverflow: true
style:
width: 100%
slots:
default:
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: metadata,semantics,widgetOrder
filter: (loop.roomArray.metadata) &&
((loop.roomArray.metadata.semantics.value).includes("Room")
||
(loop.roomArray.metadata.semantics.value).includes("Corridor"))
&&
((loop.roomArray.metadata.semantics.config.isPartOf).includes(vars.objVar.floor))
for: roomArray
fragment: true
itemTags: ","
sourceType: itemsWithTags
slots:
default:
- component: f7-swiper-slide
config:
style:
border-radius: 5px
slots:
default:
- component: oh-button
config:
action: variable
actionVariable: objVar
actionVariableValue:
floor: =vars.objVar.floor
room: =loop.roomArray.name
selectSection: =vars.objVar.selectSection
class:
- '=vars.objVar ? "" :
"unselected_menu_item"'
- '=(vars.objVar.room ==
loop.roomArray.name) ?
"selected_menu_item" :
"unselected_menu_item"'
text: =loop.roomArray.label
- component: f7-col
config:
class:
- display-flex
- justify-content-center
- align-items-stretch
style:
width: 15%
slots:
default:
- component: f7-block
config:
class:
- swiper-button-next
id: roomsOfFloorNext
style:
--swiper-navigation-color: var(--mW-topNavbar-swiper-navigation-color)
--swiper-navigation-size: var(--mW-topNavbar-swiper-navigation-size)
position: inherit
- component: f7-row
config:
style:
display: '=!vars.objVar ? "none !important": !vars.objVar.floor ? "none
!important" : ""'
height: auto
justify-content: center
width: 100%
slots:
default:
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: semantics,metadata,widgetOrder
filter: ((loop.floorItem.metadata) &&
(loop.floorItem.metadata.semantics.value).includes("Floor"))
&& (loop.floorItem.name == vars.objVar.floor)
for: floorItem
itemTags: ","
sourceType: itemsWithTags
slots:
default:
- component: f7-chip
config:
style:
background: "#F8BB00"
text: =loop.floorItem.label
- component: f7-block
config:
class:
- main
- no-margin
- no-padding
slots:
default:
- component: widget:semanticHomeMenu_Weather
config:
visible: '=(!vars.objVar || ((vars.objVar.selectSection=="SECTION0") &&
!vars.objVar.selectThing)) ? true : false'
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: semantics,metadata
for: securityGroup
itemTags: AlarmSystem
sourceType: itemsWithTags
slots:
default:
- component: widget:semanticHomeMenu_Security
config:
securityGroup: =loop.securityGroup.name
visible: '=vars.objVar ? ((vars.objVar.selectSection +
vars.objVar.selectThing)=="SECTION0Security") ? true
: false : false'
- component: oh-repeater
config:
cacheSource: true
for: scene
ruleTags: Scene
sourceType: rulesWithTags
slots:
default:
- component: widget:semanticHomeMenu_Scenes
config:
colorScheme: var(--my-text-colorScheme)
sceneName: =loop.scene.name
sceneUID: =loop.scene.UID
visible: '=vars.objVar ? ((vars.objVar.selectSection +
vars.objVar.selectThing)=="SECTION0Scenes") ? true :
false : false'
- component: widget:semanticHomeMenu_Appliances
config:
visible: '=vars.objVar ? ((vars.objVar.selectSection +
vars.objVar.selectThing)=="SECTION0Appliances") ? true :
false : false'
- component: widget:semanticHomeMenu_ElectricityMeter
config:
groupItem: ElectricityMeter
groupItemLabel: Smart Meter 1EMH0013125552
meterType: Energy
visible: '=vars.objVar ? ((vars.objVar.selectSection +
vars.objVar.selectThing)=="SECTION0Energy") ? true : false
: false'
- component: widget:semanticHomeMenu_EMS
config:
groupItem: ElectricityMeter
groupItemLabel: Electricity Management System
visible: '=vars.objVar ? ((vars.objVar.selectSection +
vars.objVar.selectThing)=="SECTION0Energy") ? true : false
: false'
- component: widget:semanticHomeMenu_System
config:
visible: '=vars.objVar ? ((vars.objVar.selectSection +
vars.objVar.selectThing)=="SECTION0System") ? true : false
: false'
- component: f7-row
config:
class:
- justify-content-center
- '=vars.objVar ? (vars.objVar.selectSection=="SECTION0")
? "" : "" : "invisible"'
slots:
default:
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: semantics,widgetOrder
filter: (loop.floors.metadata) &&
(loop.floors.metadata.semantics.value).includes("Floor")
for: floors
fragment: true
itemTags: ","
sourceType: itemsWithTags
slots:
default:
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: semantics
filter: (loop.rooms.metadata) &&
((loop.rooms.metadata.semantics.value).includes("Room") ||
(loop.rooms.metadata.semantics.value).includes("Corridor"))
for: rooms
fragment: true
groupItem: =loop.floors.name
sourceType: itemsInGroup
slots:
default:
- component: oh-repeater
config:
cacheSource: true
for: roomsSrc
fragment: true
in: =loop.rooms_source
sourceType: array
visible: =loop.rooms_idx == "0"
slots:
default:
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: semantics,metadata,uiSemantics,widgetOrder
filter: (loop.equipmentItem.metadata.semantics.config) &&
(loop.equipmentItem.metadata.semantics.config.hasLocation)
&&
(loop.equipmentItem.metadata.semantics.config.hasLocation
== loop.roomsSrc.name)
for: equipmentItem
fragment: true
itemTags: Lightbulb
sourceType: itemsWithTags
slots:
default:
- component: f7-col
config:
class:
- '=((vars.objVar.room ==
loop.equipmentItem.metadata.semantics.config.hasLocation
||
(vars.objVar.selectSection
== "SECTION2" &&
!vars.objVar.floor &&
!vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION2" &&
vars.objVar.floor ==
loop.rooms.metadata.semantics.config.isPartOf
&& !vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION1")) &&
(vars.objVar.selectThing
== "Lights" ||
!vars.objVar.selectThing
)) ? "visible" :
"invisible"'
large: 50
medium: 50
small: 90
style:
overflow: hidden
width: 100
xlarge: 33
xsmall: 100
slots:
default:
- component: widget:semanticHomeMenu_Lights
config:
colorScheme: var(--my-text-colorScheme)
equipmentType: Lightbulb
groupItem: =loop.equipmentItem.name
groupItemLabel: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.equipment :
loop.equipmentItem.la\
bel"
groupItemLocation: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.location :
loop.roomsSrc.label"
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: semantics,metadata,uiSemantics,widgetOrder
filter: (loop.equipmentItem.metadata.semantics.config) &&
(loop.equipmentItem.metadata.semantics.config.hasLocation)
&&
(loop.equipmentItem.metadata.semantics.config.hasLocation
== loop.roomsSrc.name)
for: equipmentItem
fragment: true
itemTags: DimmableLight
sourceType: itemsWithTags
slots:
default:
- component: f7-col
config:
class:
- '=((vars.objVar.room ==
loop.equipmentItem.metadata.semantics.config.hasLocation
||
(vars.objVar.selectSection
== "SECTION2" &&
!vars.objVar.floor &&
!vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION2" &&
vars.objVar.floor ==
loop.rooms.metadata.semantics.config.isPartOf
&& !vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION1")) &&
(vars.objVar.selectThing
== "Lights" ||
!vars.objVar.selectThing
)) ? "visible" :
"invisible"'
large: 50
medium: 50
small: 90
style:
overflow: hidden
width: 100
xlarge: 33
xsmall: 100
slots:
default:
- component: widget:semanticHomeMenu_Lights
config:
colorScheme: var(--my-text-colorScheme)
equipmentType: DimmableLight
groupItem: =loop.equipmentItem.name
groupItemLabel: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.equipment :
loop.equipmentItem.la\
bel"
groupItemLocation: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.location :
loop.roomsSrc.label"
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: semantics,metadata,uiSemantics,widgetOrder
filter: (loop.equipmentItem.metadata.semantics.config) &&
(loop.equipmentItem.metadata.semantics.config.hasLocation)
&&
(loop.equipmentItem.metadata.semantics.config.hasLocation
== loop.roomsSrc.name)
for: equipmentItem
fragment: true
itemTags: ColorLight
sourceType: itemsWithTags
slots:
default:
- component: f7-col
config:
class:
- '=((vars.objVar.room ==
loop.equipmentItem.metadata.semantics.config.hasLocation
||
(vars.objVar.selectSection
== "SECTION2" &&
!vars.objVar.floor &&
!vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION2" &&
vars.objVar.floor ==
loop.rooms.metadata.semantics.config.isPartOf
&& !vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION1")) &&
(vars.objVar.selectThing
== "Lights" ||
!vars.objVar.selectThing
)) ? "visible" :
"invisible"'
large: 50
medium: 50
small: 90
style:
overflow: hidden
width: 100
xlarge: 33
xsmall: 100
slots:
default:
- component: widget:semanticHomeMenu_Lights
config:
colorScheme: var(--my-text-colorScheme)
equipmentType: ColorLight
groupItem: =loop.equipmentItem.name
groupItemLabel: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.equipment :
loop.equipmentItem.la\
bel"
groupItemLocation: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.location :
loop.roomsSrc.label"
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: semantics,metadata,uiSemantics,widgetOrder
filter: (loop.equipmentItem.metadata.semantics.config) &&
(loop.equipmentItem.metadata.semantics.config.hasLocation)
&&
(loop.equipmentItem.metadata.semantics.config.hasLocation
== loop.roomsSrc.name)
for: equipmentItem
fragment: true
itemTags: Lightstripe
sourceType: itemsWithTags
slots:
default:
- component: f7-col
config:
class:
- '=((vars.objVar.room ==
loop.equipmentItem.metadata.semantics.config.hasLocation
||
(vars.objVar.selectSection
== "SECTION2" &&
!vars.objVar.floor &&
!vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION2" &&
vars.objVar.floor ==
loop.rooms.metadata.semantics.config.isPartOf
&& !vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION1")) &&
(vars.objVar.selectThing
== "Lights" ||
!vars.objVar.selectThing
)) ? "visible" :
"invisible"'
large: 50
medium: 50
small: 90
style:
overflow: hidden
width: 100
xlarge: 33
xsmall: 100
slots:
default:
- component: widget:semanticHomeMenu_Lights
config:
colorScheme: var(--my-text-colorScheme)
equipmentType: ColorLight
groupItem: =loop.equipmentItem.name
groupItemLabel: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.equipment :
loop.equipmentItem.la\
bel"
groupItemLocation: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.location :
loop.roomsSrc.label"
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: semantics,metadata,uiSemantics,widgetOrder
filter: (loop.equipmentItem.metadata.semantics.config) &&
(loop.equipmentItem.metadata.semantics.config.hasLocation)
&&
(loop.equipmentItem.metadata.semantics.config.hasLocation
== loop.roomsSrc.name)
for: equipmentItem
fragment: true
itemTags: Blinds
sourceType: itemsWithTags
slots:
default:
- component: f7-col
config:
class:
- '=((vars.objVar.room ==
loop.equipmentItem.metadata.semantics.config.hasLocation
||
(vars.objVar.selectSection
== "SECTION2" &&
!vars.objVar.floor &&
!vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION2" &&
vars.objVar.floor ==
loop.rooms.metadata.semantics.config.isPartOf
&& !vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION1")) &&
(vars.objVar.selectThing
== "Rollers")) ? "visible"
: "invisible"'
large: 50
medium: 50
small: 90
style:
overflow: hidden
width: 100
xlarge: 33
xsmall: 100
slots:
default:
- component: widget:semanticHomeMenu_Rollershutter
config:
colorScheme: var(--my-text-colorScheme)
groupItem: =loop.equipmentItem.name
groupItemLabel: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.equipment :
loop.equipmentItem.la\
bel"
groupItemLocation: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.location :
loop.roomsSrc.label"
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: semantics,metadata,uiSemantics,widgetOrder
filter: (loop.equipmentItem.metadata.semantics.config) &&
(loop.equipmentItem.metadata.semantics.config.hasLocation)
&&
(loop.equipmentItem.metadata.semantics.config.hasLocation
== loop.roomsSrc.name)
for: equipmentItem
fragment: true
itemTags: RadiatorControl
sourceType: itemsWithTags
slots:
default:
- component: f7-col
config:
class:
- '=((vars.objVar.room ==
loop.equipmentItem.metadata.semantics.config.hasLocation
||
(vars.objVar.selectSection
== "SECTION2" &&
!vars.objVar.floor &&
!vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION2" &&
vars.objVar.floor ==
loop.rooms.metadata.semantics.config.isPartOf
&& !vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION1")) &&
(vars.objVar.selectThing
== "Climate")) ? "visible"
: "invisible"'
large: 50
medium: 50
small: 90
style:
overflow: hidden
width: 100
xlarge: 33
xsmall: 100
slots:
default:
- component: widget:semanticHomeMenu_RadiatorControl
config:
colorScheme: var(--my-text-colorScheme)
groupItem: =loop.equipmentItem.name
groupItemLabel: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.equipment :
loop.equipmentItem.la\
bel"
groupItemLocation: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.location :
loop.roomsSrc.label"
hexColorScheme: var(--my-hex-colorScheme)
- component: oh-repeater
config:
cacheSource: true
fetchMetadata: semantics,uiSemantics,widgetOrder
filter: (loop.equipmentItem.metadata.semantics.config) &&
(loop.equipmentItem.metadata.semantics.config.hasLocation)
&&
(loop.equipmentItem.metadata.semantics.config.hasLocation
== loop.roomsSrc.name)
for: equipmentItem
fragment: true
itemTags: HVAC
sourceType: itemsWithTags
slots:
default:
- component: f7-col
config:
class:
- '=((vars.objVar.room ==
loop.equipmentItem.metadata.semantics.config.hasLocation
||
(vars.objVar.selectSection
== "SECTION2" &&
!vars.objVar.floor &&
!vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION2" &&
vars.objVar.floor ==
loop.rooms.metadata.semantics.config.isPartOf
&& !vars.objVar.room) ||
(vars.objVar.selectSection
== "SECTION1")) &&
(vars.objVar.selectThing
== "Climate")) ? "visible"
: "invisible"'
large: 50
medium: 50
small: 90
style:
overflow: hidden
width: 100
xlarge: 33
xsmall: 100
slots:
default:
- component: widget:semanticHomeMenu_HVAC
config:
groupItem: =loop.equipmentItem.name
groupItemLabel: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.equipment :
loop.equipmentItem.la\
bel"
groupItemLocation: "=loop.equipmentItem.metadata.uiSemantics ?
loop.equipmentItem.me\
tadata.uiSemantics.co\
nfig.location :
loop.roomsSrc.label"
- component: f7-block
config:
class:
- no-margin
- no-padding
- footer
style:
display: '=vars.objVar ? (vars.objVar.selectSection=="SECTION0") ? "" : "none
!important" : "none !important"'
width: 100%
slots:
default:
- component: f7-row
config:
class:
- display-flex
style:
flex-direction: row
height: 100%
justify-content: space-around
slots:
default:
- component: f7-col
config:
style:
height: 70px
min-width: 50px
slots:
default:
- component: oh-link
config:
action: variable
actionVariable: objVar
actionVariableValue:
floor: =vars.objVar.floor
room: =vars.objVar.room
selectSection: =vars.objVar.selectSection
selectThing: '=vars.objVar.selectThing == "Security" ? undefined : "Security"'
class:
- padding-half
style:
color: '=vars.objVar.selectThing == "Security" ? "var(--f7-toggle-active-color)"
: "var(--f7-toggle-inactive-color)"'
display: flex
flex-direction: column
height: 100%
slots:
default:
- component: oh-icon
config:
height: 100%
icon: iconify:carbon:security
- component: f7-badge
config:
bgColor: red
style:
--f7-badge-size: 16px
font-size: var(--f7-badge-in-icon-font-size)
margin-left: 48px
margin-top: -38px
position: absolute
visible: =(Number(items.gDoorsOpen.state) +Number(items.gWindowsOpen.state) +
Number(items.gSmokeAlarm.state) +
Number(items.gMotionDetected.state)) > 0
slots:
default:
- component: Label
config:
text: =(Number(items.gDoorsOpen.state) + Number(items.gWindowsOpen.state) +
Number(items.gSmokeAlarm.state) +
Number(items.gMotionDetected.state))
- component: Label
config:
text: =translation('AlarmSystem')
- component: f7-col
config:
style:
height: 70px
min-width: 50px
slots:
default:
- component: oh-link
config:
action: variable
actionVariable: objVar
actionVariableValue:
floor: =vars.objVar.floor
room: =vars.objVar.room
selectSection: =vars.objVar.selectSection
selectThing: '=vars.objVar.selectThing == "Scenes" ? undefined : "Scenes"'
class:
- padding-half
style:
color: '=vars.objVar.selectThing == "Scenes" ? "var(--f7-toggle-active-color)" :
"var(--f7-toggle-inactive-color)"'
display: flex
flex-direction: column
height: 100%
slots:
default:
- component: oh-icon
config:
height: 100%
icon: iconify:heroicons:rectangle-stack
- component: Label
config:
text: =translation('Scenes')
- component: f7-col
config:
style:
height: 70px
min-width: 50px
slots:
default:
- component: oh-link
config:
action: variable
actionVariable: objVar
actionVariableValue:
floor: =vars.objVar.floor
room: =vars.objVar.room
selectSection: =vars.objVar.selectSection
selectThing: '=vars.objVar.selectThing == "Appliances" ? undefined :
"Appliances"'
class:
- padding-half
style:
color: '=vars.objVar.selectThing == "Appliances"
? "var(--f7-toggle-active-color)" :
"var(--f7-toggle-inactive-color)"'
display: flex
flex-direction: column
height: 100%
slots:
default:
- component: oh-icon
config:
height: 80%
icon: iconify:bi:plugin
- component: Label
config:
text: =translation('home.equipment.title')
- component: f7-col
config:
style:
height: 70px
min-width: 50px
slots:
default:
- component: oh-link
config:
action: variable
actionVariable: objVar
actionVariableValue:
floor: =vars.objVar.floor
room: =vars.objVar.room
selectSection: =vars.objVar.selectSection
selectThing: '=vars.objVar.selectThing == "Energy" ? undefined : "Energy"'
class:
- padding-half
style:
color: '=vars.objVar.selectThing == "Energy" ? "var(--f7-toggle-active-color)"
: "var(--f7-toggle-inactive-color)"'
display: flex
flex-direction: column
height: 100%
slots:
default:
- component: oh-icon
config:
height: 80%
icon: iconify:simple-line-icons:energy
- component: f7-badge
config:
bgColor: red
style:
--f7-badge-size: 16px
font-size: var(--f7-badge-in-icon-font-size)
margin-left: 48px
margin-top: -38px
position: absolute
visible: =(Number(items.gBatteryLowTotal.state)) > 0
slots:
default:
- component: Label
config:
text: =(Number(items.gBatteryLowTotal.state))
- component: Label
config:
text: =translation('Energy')
- component: f7-col
config:
style:
height: 70px
min-width: 50px
slots:
default:
- component: oh-link
config:
action: variable
actionVariable: objVar
actionVariableValue:
floor: =vars.objVar.floor
room: =vars.objVar.room
selectSection: =vars.objVar.selectSection
selectThing: '=vars.objVar.selectThing == "System" ? undefined : "System"'
class:
- padding-half
style:
color: '=vars.objVar.selectThing == "System" ? "var(--f7-toggle-active-color)"
: "var(--f7-toggle-inactive-color)"'
display: flex
flex-direction: column
height: 100%
slots:
default:
- component: oh-icon
config:
height: 80%
icon: iconify:simple-line-icons:info
- component: Label
config:
text: =translation('System')
- component: f7-block
config:
class:
- no-margin
- no-padding
- footer
style:
display: '=vars.objVar ? (vars.objVar.selectSection=="SECTION0") ? "none
!important" : "" : "none !important"'
width: 100%
slots:
default:
- component: f7-row
config:
class:
- display-flex
style:
flex-direction: row
height: 100%
justify-content: space-around
slots:
default:
- component: f7-col
config:
style:
height: 70px
min-width: 50px
slots:
default:
- component: oh-link
config:
action: variable
actionVariable: objVar
actionVariableValue:
floor: =vars.objVar.floor
room: =vars.objVar.room
selectSection: =vars.objVar.selectSection
selectThing: '=vars.objVar.selectThing == "Lights" ? undefined : "Lights"'
class:
- padding-half
style:
color: '=vars.objVar.selectThing == "Lights" ? "var(--f7-toggle-active-color)" :
"var(--f7-toggle-inactive-color)"'
display: flex
flex-direction: column
height: 100%
slots:
default:
- component: oh-icon
config:
height: 100%
icon: iconify:clarity:lightbulb-line
- component: Label
config:
text: =translation('Light')
- component: f7-col
config:
style:
height: 70px
min-width: 50px
slots:
default:
- component: oh-link
config:
action: variable
actionVariable: objVar
actionVariableValue:
floor: =vars.objVar.floor
room: =vars.objVar.room
selectSection: =vars.objVar.selectSection
selectThing: '=vars.objVar.selectThing == "Rollers" ? undefined : "Rollers"'
class:
- padding-half
style:
color: '=vars.objVar.selectThing == "Rollers" ? "var(--f7-toggle-active-color)"
: "var(--f7-toggle-inactive-color)"'
display: flex
flex-direction: column
height: 100%
slots:
default:
- component: oh-icon
config:
height: 100%
icon: iconify:mdi:window-shutter
- component: Label
config:
text: =translation('Blinds')
- component: f7-col
config:
style:
height: 70px
min-width: 50px
slots:
default:
- component: oh-link
config:
action: variable
actionVariable: objVar
actionVariableValue:
floor: =vars.objVar.floor
room: =vars.objVar.room
selectSection: =vars.objVar.selectSection
selectThing: '=vars.objVar.selectThing == "Climate" ? undefined : "Climate"'
class:
- padding-half
style:
color: '=vars.objVar.selectThing == "Climate" ? "var(--f7-toggle-active-color)"
: "var(--f7-toggle-inactive-color)"'
display: flex
flex-direction: column
height: 100%
slots:
default:
- component: oh-icon
config:
height: 80%
icon: iconify:ph:thermometer-hot-light
- component: Label
config:
text: =translation('HVAC')
- component: f7-col
config:
style:
height: 70px
min-width: 50px
slots:
default:
- component: oh-link
config:
action: variable
actionVariable: objVar
actionVariableValue:
floor: =vars.objVar.floor
room: =vars.objVar.room
selectSection: =vars.objVar.selectSection
selectThing: '=vars.objVar.selectThing == "Appliances" ? undefined :
"Appliances"'
class:
- padding-half
style:
color: '=vars.objVar.selectThing == "Appliances"
? "var(--f7-toggle-active-color)" :
"var(--f7-toggle-inactive-color)"'
display: flex
flex-direction: column
height: 100%
slots:
default:
- component: oh-icon
config:
height: 80%
icon: iconify:bi:plugin
- component: Label
config:
text: =translation('home.equipment.title')
Security:
(See next post - the character limit was exceeded.)

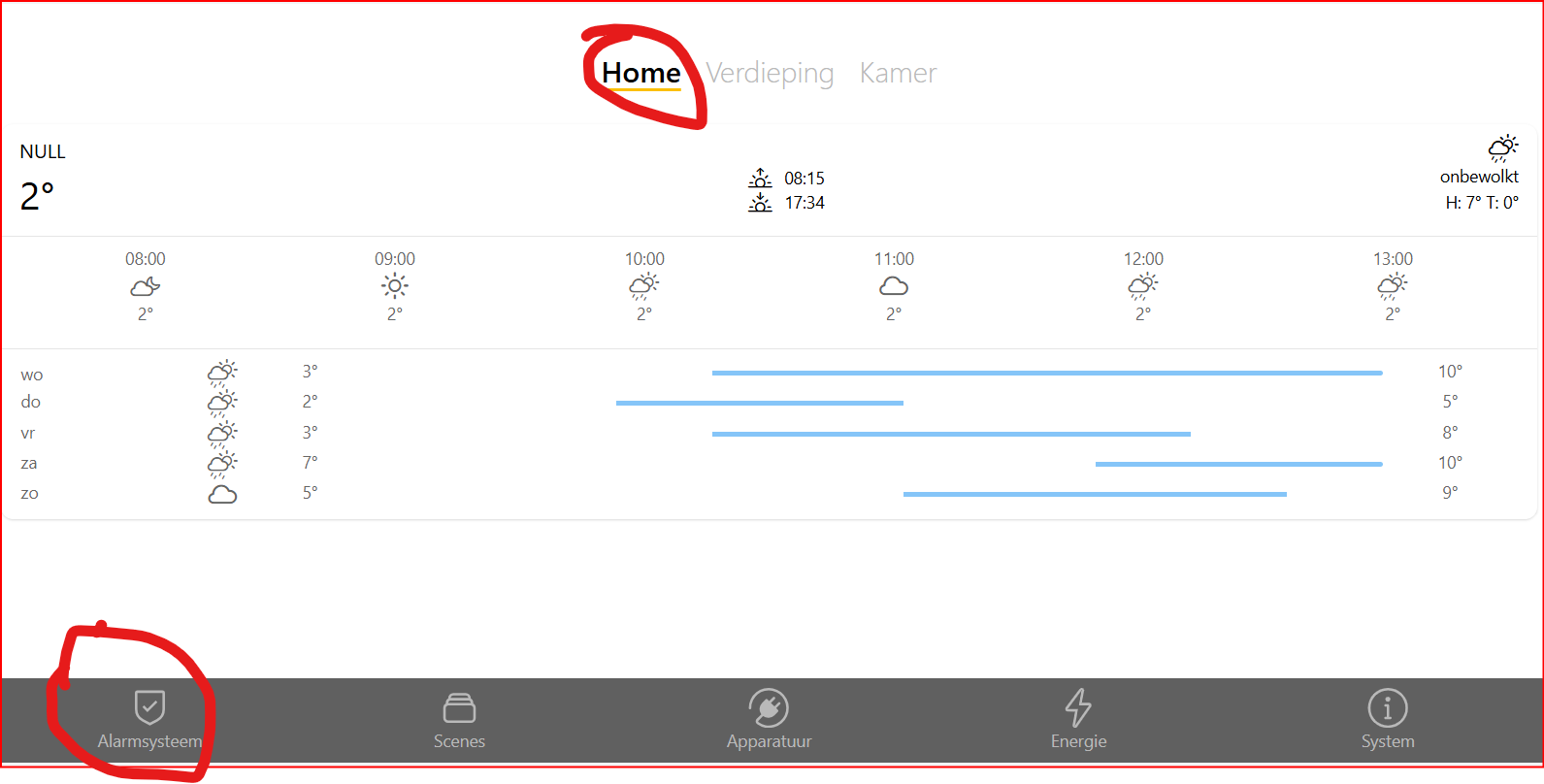

If I click on “Home”, the “Security” widget button is visible. The translation is done automatically, as @hmerk can confirm - but I haven’t investigated how that works (yet).

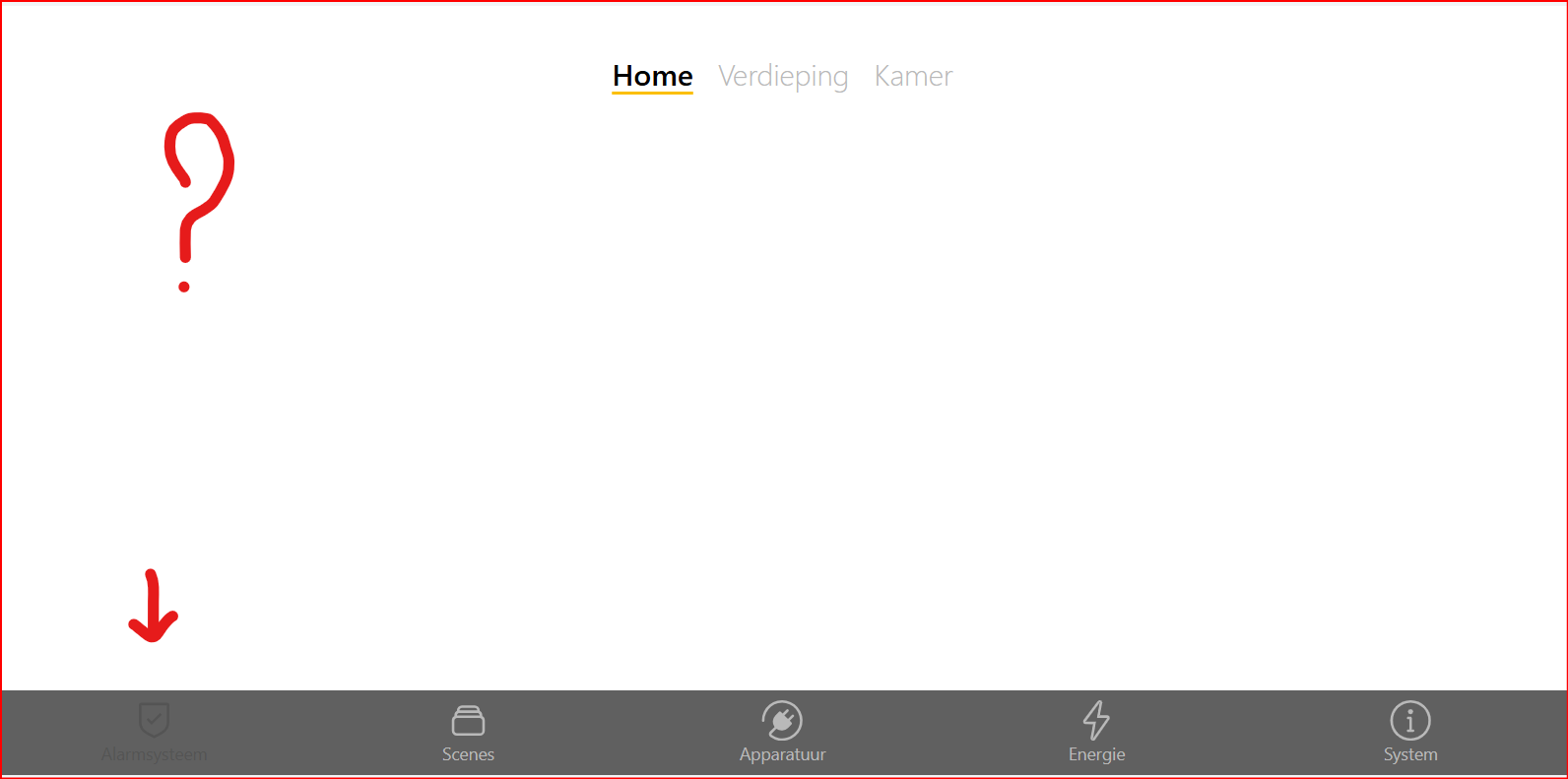

But when I click on “Alarmsysteem”, nothing is shown:
However, when I look at the “Security” widget in the “widget corner” of the “development tools”, some stuff is visible:
Also when I (in the “main” widget) set the visible parameter under the line - component: widget:semanticHomeMenu_Security to visible: true, nothing is visible.
Does anyone see what’s causing this behavior. Note that this wasn’t a problem until a couple of weeks…
(@JustinG, I’m pinging you, because you’re the widget wizard. Apologies ;))
).
