Preview and Beta: Amazon Echo Control

Preview and Beta Test Thread

In this thread @Lukask and I (@michi) provides the latest features of the amazonechocontrol binding.

Please jump to the Release Candidate and Support: Amazon Echo Control Binding thread if you need support of the released binding version or to download a stable bugfixed version.

Please continue reading here, if you want see all the very cool new features :sunglasses:

FAQ and Hints

When I have to remove and recreate things for a binding upgrade?

Check When I have to remove and recreate things for a binding upgrade? from below

I do not see all channels:

Please check out the section When I have to remove and recreate things for a binding upgrade? from below
Please click on ā€œShow moreā€ in the PaperUI Thing definition page

How I check the version of the binding

Please read

Download Latest Preview / Beta Version

Download Beta 2.5 (2019-10-23)

Whats new in 2.5 (2019-10-23):

  • New configuration for polling interval in Account Thing. Itā€™s now possible to configure 2 polling intervals, one for direct controlled devices and one for skill controlled devices. There is one more polling interval used with a fixed interval of 10 seconds if you use the glassBreakDetectionState or the smokeAlarmDetectionState. This fast pooling is needed to get the events. So you should only define it in the configuration if you really need it and you can live with so many requests.
  • New channel ā€˜sendMessageā€™ which turns on the green light on the echo device and you can ask afterwards for the stored message.

Whats new in 2.5 (2019-09-11):

  • Smart Home Support to control lamps, plugs and other devices

Steps for update from previous version (If you want use the new channels):

  1. Remove discovered echo devices from your inbox
  2. Remove all your existing echo things (If you have created them in PaperUI)
  3. Replace now the binding jar
  4. Create your things to get the new channels
  5. In PaperUI some channels are only shown if the ā€œshow moreā€ (top right corner) option in the thing page is activated

Amazon Echo Control Binding

This binding can control Amazon Echo devices (Alexa).

It provides features to control and view the current state of echo devices:

  • use echo device as text to speech from a rule
  • volume
  • pause/continue/next track/previous track
  • connect/disconnect bluetooth devices
  • start playing tuneIn radio
  • start playing Amazon Music
  • control of multi room music
  • show album art image in sitemap
  • speak a reminder message
  • plays an alarm sound
  • start traffic news
  • start daily briefing
  • start weather report
  • start good morning report
  • start automation routine
  • activate multiple configurations of flash briefings
  • start playing music by providing the voice command as text (Works with all music providers)
  • get last spoken voice command
  • change the volume of the alarm
  • change the equalizer settings
  • get information about the next alarm, reminder and timer
  • send a message to the echo devices

It also provides features to control devices connected to your echo:

  • turn on/off your lights
  • change the color
  • control groups of lights or just single bulbs
  • receive the current state of the lights
  • turn on/off smart plugs (e. g. OSRAM)

Restrictions:

  • groups canā€™t receive their current color (multiple colors are possible)
  • devices can only receive their state every 60 seconds
  • turning on/off (or switch color, change brightness) will send a request for every single bulb in a group

Some ideas what you can do in your home by using rules and other openHAB controlled devices:

  • Automatic turn on your amplifier and connect echo with bluetooth if the echo plays music
  • If the amplifier was turned of, the echo stop playing and disconnect the bluetooth
  • The echo starts playing radio if the light was turned on
  • The echo starts playing radio at specified time
  • Remind you with a voice message, that a window is open for a long time and it is winter
  • Start a routine which welcome you, if you come home
  • Start a routine which switch a smart home device connected to alexa
  • Start your briefing if you turn on the light first time in the morning
  • Have different flash briefing in the morning and evening
  • Let alexa say ā€˜welcomeā€™ to you if you open the door
  • Implement own handling for voice commands in a rule
  • Change the equalizer settings depending on the bluetooth connection
  • Turn on a light on your alexa alarm time
  • Activate or deactivate the Alexa Guard with presence detection

With the possibility to control your lights you could do:

  • a scene-based configuration of your rooms
  • connect single bulbs to functions of openhab
  • simulate your presence at home
  • automatically turn on your lights at the evening
  • integrate your smart bulbs with rules

Binding Configuration

The binding does not have any configuration.
The configuration of your amazon account must be done in the ā€˜Amazon Accountā€™ device.

Discover Smart Home Devices

If you want to discover your smart home devices you need to activate it in the ā€˜Amazon Accountā€™ thing. Devices from other skills can be discovered too. See section Smart Home Devices below for more information.

First Steps

  1. Create an ā€˜Amazon Accountā€™ thing
  2. open the url YOUR_OPENHAB/amazonechocontrol in your browser (e.g. http://openhab:8080/amazonechocontrol/), click the link for your account thing and login.
  3. You should see now a message that the login was successful

Discovery

After configuration of the account thing with the login data, the echo devices registered in the amazon account, get discovered.
If the device type is not known by the binding, the device will not be discovered.
But you can define any device listed in your alexa app with the best matching existing device (e.g. echo).
You will find the required serial number in settings of the device in the alexa app.

Echo

Supported Things

Thing type id Name
account Amazon Account
echo Amazon Echo Device
echospot Amazon Echo Spot Device
echoshow Amazon Echo Show Device
wha Amazon Echo Whole House Audio Control

Thing Configuration

Account Thing

Configuration name Default Description
discoverSmartHome 0 0ā€¦No discover, 1ā€¦Discover direct connected, 2ā€¦Discover direct and skill devices
pollingIntervalSmartHomeAlexa 30 Defines the time in seconds for openHAB to pull the state of the Alexa connected devices. The minimum is 10 seconds.
pollingIntervalSmartSkills 120 Defines the time in seconds for openHAB to pull the state of the over a skill connected devices. The minimum is 60 seconds.
discoverOpenHabSmartHomeDevices false Defines, if smart home devices of the openHAB skill should be discovered. This option is for development and testing purpose only.

echo, echospot, echoshow, wha Things

Configuration name Description
serialNumber Serial number of the amazon echo in the Alexa app
discoverSmartHome 0ā€¦No discover, 1ā€¦direct connected, 2ā€¦direct and over skill connected

You will find the serial number in the alexa app or on the webpage YOUR_OPENHAB/amazonechocontrol/YOUR_ACCOUNT (e.g. http://openhab:8080/amazonechocontrol/account1).

Channels

Channel Type ID Item Type Access Mode Thing Type Description
player Player R/W echo, echoshow, echospot, wha Control the music player (Supported commands: PLAY or ON, PAUSE or OFF, NEXT, PREVIOUS, REWIND, FASTFORWARD)
volume Dimmer R/W echo, echoshow, echospot Control the volume
equalizerTreble Number R/W echo, echoshow, echospot Control the treble (value from -6 to 6)
equalizerMidrange Number R/W echo, echoshow, echospot Control the midrange (value from -6 to 6)
equalizerBass Number R/W echo, echoshow, echospot Control the bass (value from -6 to 6)
shuffle Switch R/W echo, echoshow, echospot, wha Shuffle play if applicable, e.g. playing a playlist
imageUrl String R echo, echoshow, echospot, wha Url of the album image or radio station logo
title String R echo, echoshow, echospot, wha Title of the current media
subtitle1 String R echo, echoshow, echospot, wha Subtitle of the current media
subtitle2 String R echo, echoshow, echospot, wha Additional subtitle of the current media
providerDisplayName String R echo, echoshow, echospot, wha Name of the music provider
bluetoothMAC String R/W echo, echoshow, echospot Bluetooth device MAC. Used to connect to a specific device or disconnect if a empty string was provided
bluetooth Switch R/W echo, echoshow, echospot Connect/Disconnect to the last used bluetooth device (works after a bluetooth connection was established after the openHAB start)
bluetoothDeviceName String R echo, echoshow, echospot User friendly name of the connected bluetooth device
radioStationId String R/W echo, echoshow, echospot, wha Start playing of a TuneIn radio station by specifying itā€™s id or stops playing if a empty string was provided
radio Switch R/W echo, echoshow, echospot, wha Start playing of the last used TuneIn radio station (works after the radio station started after the openhab start)
amazonMusicTrackId String R/W echo, echoshow, echospot, wha Start playing of a Amazon Music track by itā€™s id od stops playing if a empty string was provided
amazonMusicPlayListId String W echo, echoshow, echospot, wha Write Only! Start playing of a Amazon Music playlist by specifying itā€™s id od stops playing if a empty string was provided. Selection will only work in PaperUI
amazonMusic Switch R/W echo, echoshow, echospot, wha Start playing of the last used Amazon Music song (works after at least one song was started after the openhab start)
remind String R/W echo, echoshow, echospot Write Only! Speak the reminder and sends a notification to the Alexa app (Currently the reminder is played and notified two times, this seems to be a bug in the amazon software)
nextReminder DateTime R echo, echoshow, echospot Next reminder on the device
playAlarmSound String W echo, echoshow, echospot Write Only! Plays ans Alarm sound
nextAlarm DateTime R echo, echoshow, echospot Next alarm on the device
nextMusicAlarm DateTime R echo, echoshow, echospot Next music alarm on the device
nextTimer DateTime R echo, echoshow, echospot Next timer on the device
startRoutine String W echo, echoshow, echospot Write Only! Type in what you normally say to Alexa without the preceding ā€œAlexa,ā€
musicProviderId String R/W echo, echoshow, echospot Current Music provider
playMusicVoiceCommand String W echo, echoshow, echospot Write Only! Voice command as text. E.g. ā€˜Yesterday from the Beatlesā€™
startCommand String W echo, echoshow, echospot Write Only! Used to start anything. Available options: Weather, Traffic, GoodMorning, SingASong, TellStory, FlashBriefing and FlashBriefing. (Note: The options are case sensitive)
announcement String W echo, echoshow, echospot Write Only! Display the announcement message on the display. See in the tutorial section to learn how itā€™s possible to set the title and turn off the sound. Please note: the announcement feature must be activated in the alexa app at the echo device.
textToSpeech String W echo, echoshow, echospot Write Only! Write some text to this channel and alexa will speak it. It is possible to use plain text or SSML: e.g. <speak>I want to tell you a secret.<amazon:effect name="whispered">I am not a real human.</amazon:effect></speak> Please note: the announcement feature must be activated in the alexa app at the echo device to use SSML.
textToSpeechVolume Dimmer R/W echo, echoshow, echospot Volume of the textToSpeech channel, if 0 the current volume will be used
playMusicVoiceCommand String W echo, echoshow, echospot Write Only! Voice command as text. E.g. ā€˜Yesterday from the Beatlesā€™
startCommand String W echo, echoshow, echospot Write Only! Used to start anything. Available options: Weather, Traffic, GoodMorning, SingASong, TellStory, FlashBriefing and FlashBriefing. (Note: The options are case sensitive)
announcement String W echo, echoshow, echospot Write Only! Display the announcement message on the display. See in the tutorial section to learn how itā€™s possible to set the title and turn off the sound.
textToSpeech String W echo, echoshow, echospot Write Only! Write some text to this channel and alexa will speak it. It is possible to use plain text or SSML: e.g. <speak>I want to tell you a secret.<amazon:effect name="whispered">I am not a real human.</amazon:effect></speak>
textToSpeechVolume Dimmer R/W echo, echoshow, echospot Volume of the textToSpeech channel, if 0 the current volume will be used
lastVoiceCommand String R/W echo, echoshow, echospot Last voice command spoken to the device. Writing to the channel starts voice output.
mediaProgress Dimmer R/W echo, echoshow, echospot Media progress in percent
mediaProgressTime Number:Time R/W echo, echoshow, echospot Media play time
mediaLength Number:Time R echo, echoshow, echospot Media length
notificationVolume Dimmer R echo, echoshow, echospot Notification volume
ascendingAlarm Switch R/W echo, echoshow, echospot Ascending alarm up to the configured volume
sendMessage String W account Write Only! Sends a message to the Echo devices.
save Switch W flashbriefingprofile Write Only! Stores the current configuration of flash briefings within the thing
active Switch R/W flashbriefingprofile Active the profile
playOnDevice String W flashbriefingprofile Specify the echo serial number or name to start the flash briefing.

Advanced Feature Technically Experienced Users

The url <YOUR_OPENHAB>/amazonechocontrol/<YOUR_ACCOUNT>/PROXY/<API_URL> provides a proxy server with an authenticated connection to the amazon alexa server. This can be used to call alexa api from rules.

E.g. to read out the history call from an installation on openhab:8080 with a account named account1:

http://openhab:8080/amazonechocontrol/account1/PROXY/api/activities?startTime=&size=50&offset=1

Example

echo.things

Bridge amazonechocontrol:account:account1 "Amazon Account" @ "Accounts" [discoverSmartHome=2, pollingIntervalSmartHomeAlexa=30, pollingIntervalSmartSkills=120]
{
    Thing echo                 echo1          "Alexa" @ "Living Room" [serialNumber="SERIAL_NUMBER"]
    Thing echoshow             echoshow1      "Alexa" @ "Kitchen" [serialNumber="SERIAL_NUMBER"]
    Thing echospot             echospot1      "Alexa" @ "Sleeping Room" [serialNumber="SERIAL_NUMBER"]
    Thing wha                  wha1           "Ground Floor Music Group" @ "Music Groups" [serialNumber="SERIAL_NUMBER"]
}

echo.items:

Sample for the Thing echo1 only. But it will work in the same way for the other things, only replace the thing name in the channel link.
Take a look in the channel description above to know, which channels are supported by your thing type.

Group Alexa_Living_Room <player>

// Player control
Player Echo_Living_Room_Player                "Player"                                (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:player"}
Dimmer Echo_Living_Room_Volume                "Volume [%.0f %%]" <soundvolume>        (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:volume"}
Number Echo_Living_Room_Treble                "Treble"                                (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:equalizerTreble"}
Number Echo_Living_Room_Midrange              "Midrange"                              (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:equalizerMidrange"}
Number Echo_Living_Room_Bass                  "Bass"                                  (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:equalizerBass"}
Switch Echo_Living_Room_Shuffle               "Shuffle"                               (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:shuffle"}

// Media channels
Dimmer Echo_Living_Room_MediaProgress    "Media progress"                             (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:mediaProgress"}
Number:Time Echo_Living_Room_MediaProgressTime    "Media progress time [%d %unit%]"   (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:mediaProgressTime"}
Number:Time Echo_Living_Room_MediaLength    "Media length [%d %unit%]"                (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:mediaLength"}

// Player Information
String Echo_Living_Room_ImageUrl              "Image URL"                             (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:imageUrl"}
String Echo_Living_Room_Title                 "Title"                                 (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:title"}
String Echo_Living_Room_Subtitle1             "Subtitle 1"                            (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:subtitle1"}
String Echo_Living_Room_Subtitle2             "Subtitle 2"                            (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:subtitle2"}
String Echo_Living_Room_ProviderDisplayName   "Provider"                              (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:providerDisplayName"}

// Music provider and start command
String Echo_Living_Room_MusicProviderId       "Music Provider Id"                     (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:musicProviderId"}
String Echo_Living_Room_PlayMusicCommand      "Play music voice command (Write Only)" (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:playMusicVoiceCommand"}
String Echo_Living_Room_StartCommand          "Start Information" (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:startCommand"}

// TuneIn Radio
String Echo_Living_Room_RadioStationId        "TuneIn Radio Station Id"               (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:radioStationId"}
Switch Echo_Living_Room_Radio                 "TuneIn Radio"                          (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:radio"}

// Amazon Music
String Echo_Living_Room_AmazonMusicTrackId    "Amazon Music Track Id"                 (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:amazonMusicTrackId"}
String Echo_Living_Room_AmazonMusicPlayListId "Amazon Music Playlist Id"              (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:amazonMusicPlayListId"}
Switch Echo_Living_Room_AmazonMusic           "Amazon Music"                          (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:amazonMusic"}

// Bluetooth
String Echo_Living_Room_BluetoothMAC          "Bluetooth MAC Address" <bluetooth>     (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:bluetoothMAC"}
Switch Echo_Living_Room_Bluetooth             "Bluetooth"             <bluetooth>     (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:bluetooth"}
String Echo_Living_Room_BluetoothDeviceName   "Bluetooth Device"      <bluetooth>     (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:bluetoothDeviceName"}

// Commands
String Echo_Living_Room_Announcement          "Announcement"                          (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:announcement"}
String Echo_Living_Room_TTS                   "Text to Speech"                        (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:textToSpeech"}
Dimmer Echo_Living_Room_TTS_Volume            "Text to Speech Volume"                 (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:textToSpeechVolume"}
String Echo_Living_Room_Remind                "Remind"                                (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:remind"}
String Echo_Living_Room_PlayAlarmSound        "Play Alarm Sound"                      (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:playAlarmSound"}
String Echo_Living_Room_StartRoutine          "Start Routine"                         (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:startRoutine"}
Dimmer Echo_Living_Room_NotificationVolume    "Notification volume"                   (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:notificationVolume"}
Switch Echo_Living_Room_AscendingAlarm    "Ascending alarm"                           (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:ascendingAlarm"}

// Feedbacks
String Echo_Living_Room_LastVoiceCommand          "Last voice command"                (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:lastVoiceCommand"}
DateTime Echo_Living_Room_NextReminder             "Next reminder"                     (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:nextReminder"}
DateTime Echo_Living_Room_NextAlarm                "Next alarm"                        (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:nextAlarm"}
DateTime Echo_Living_Room_NextMusicAlarm           "Next music alarm"                  (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:nextMusicAlarm"}
DateTime Echo_Living_Room_NextTimer                "Next timer"                        (Alexa_Living_Room) {channel="amazonechocontrol:echo:account1:echo1:nextTimer"}

echo.sitemap:

sitemap amazonechocontrol label="Echo Devices"
{
        Frame label="Alexa" {
            Default   item=Echo_Living_Room_Player
            Slider    item=Echo_Living_Room_Volume
            Setpoint  item=Echo_Living_Room_Volume   minValue=0  maxValue=100 step=5
            Setpoint  item=Echo_Living_Room_Treble   minValue=-6 maxValue=6   step=1
            Setpoint  item=Echo_Living_Room_Midrange minValue=-6 maxValue=6   step=1
            Setpoint  item=Echo_Living_Room_Bass     minValue=-6 maxValue=6   step=1
            Slider    item=Echo_Living_Room_MediaProgress
            Text      item=Echo_Living_Room_MediaProgressTime
            Text      item=Echo_Living_Room_MediaLength
            Switch    item=Echo_Living_Room_Shuffle
            Image     item=Echo_Living_Room_ImageUrl      label=""
            Text      item=Echo_Living_Room_Title
            Text      item=Echo_Living_Room_Subtitle1
            Text      item=Echo_Living_Room_Subtitle2
            Text      item=Echo_Living_Room_ProviderDisplayName

            // The listed providers are only samples, you could have more
            Selection item=Echo_Living_Room_MusicProviderId mappings=[ 'TUNEIN'='Radio', 'SPOTIFY'='Spotify', 'AMAZON_MUSIC'='Amazon Music', 'CLOUDPLAYER'='Amazon']
            Text    item=Echo_Living_Room_MusicProviderId

            // To start one of your flashbriefings use Flashbriefing.<YOUR FLASHBRIEFING THING ID>
            Selection item=Echo_Living_Room_StartCommand mappings=[ 'Weather'='Weather', 'Traffic'='Traffic', 'GoodMorning'='Good Morning', 'SingASong'='Song', 'TellStory'='Story', 'FlashBriefing'='Flash Briefing', 'FlashBriefing.flashbriefing1'='Technical', 'FlashBriefing.flashbriefing2'='Life Style' ]

            Selection item=Echo_Living_Room_RadioStationId mappings=[ ''='Off', 's1139'='Antenne Steiermark', 's8007'='Hitradio Ɩ3', 's16793'='Radio 10', 's8235'='FM4' ]
            Text    item=Echo_Living_Room_RadioStationId
            Switch  item=Echo_Living_Room_Radio

            Text    item=Echo_Living_Room_AmazonMusicTrackId
            Text    item=Echo_Living_Room_AmazonMusicPlayListId
            Switch  item=Echo_Living_Room_AmazonMusic

            Text    item=Echo_Living_Room_BluetoothMAC
            // Change the <YOUR_DEVICE_MAC> Place holder with the MAC address shown, if alexa is connected to the device
            Selection item=Echo_Living_Room_BluetoothMAC mappings=[ ''='Disconnected', '<YOUR_DEVICE_MAC>'='Bluetooth Device 1', '<YOUR_DEVICE_MAC>'='Bluetooth Device 2']

            // These are only view of the possible options. Enable ShowIDsInGUI in the binding configuration and look in drop-down-box of this channel in the Paper UI Control section
            Selection item=Echo_Living_Room_PlayAlarmSound mappings=[ ''='None', 'ECHO:system_alerts_soothing_01'='Adrift', 'ECHO:system_alerts_atonal_02'='Clangy']

            Switch  item=Echo_Living_Room_Bluetooth
            Text    item=Echo_Living_Room_BluetoothDeviceName
            Text    item=Echo_Living_Room_LastVoiceCommand
            Slider  item=Echo_Living_Room_NotificationVolume
            Switch  item=Echo_Living_Room_AscendingAlarm
        }
}

Flash Briefing

Supported Things

Thing type id Name
flashbriefingprofile Flash briefing profile

Flash Briefing Profile

The flashbriefingprofile thing has no configuration parameters.
It will be configured at runtime by using the save channel to store the current flash briefing configuration in the thing.

Channels

Channel Type ID Item Type Access Mode Thing Type Description
save Switch W flashbriefingprofile Write Only! Stores the current configuration of flash briefings within the thing
active Switch R/W flashbriefingprofile Active the profile
playOnDevice String W flashbriefingprofile Specify the echo serial number or name to start the flash briefing.

Example

flashbriefings.things

Bridge amazonechocontrol:account:account1 "Amazon Account" @ "Accounts" [discoverSmartHome=2]
{
    Thing flashbriefingprofile flashbriefing1 "Flash Briefing Technical" @ "Flash Briefings"
    Thing flashbriefingprofile flashbriefing2 "Flash Briefing Life Style" @ "Flash Briefings"
}

flashbriefings.items:

Sample for the Thing echo1 only. But it will work in the same way for the other things, only replace the thing name in the channel link.
Take a look in the channel description above to know, which channels are supported by your thing type.

// Flashbriefings
Switch FlashBriefing_Technical_Save   "Save (Write only)" { channel="amazonechocontrol:flashbriefingprofile:account1:flashbriefing1:save"}
Switch FlashBriefing_Technical_Active "Active" { channel="amazonechocontrol:flashbriefingprofile:account1:flashbriefing1:active"}
String FlashBriefing_Technical_Play   "Play (Write only)" { channel="amazonechocontrol:flashbriefingprofile:account1:flashbriefing1:playOnDevice"}

Switch FlashBriefing_LifeStyle_Save   "Save (Write only)" { channel="amazonechocontrol:flashbriefingprofile:account1:flashbriefing2:save"}
Switch FlashBriefing_LifeStyle_Active "Active" { channel="amazonechocontrol:flashbriefingprofile:account1:flashbriefing2:active"}
String FlashBriefing_LifeStyle_Play   "Play (Write only)" { channel="amazonechocontrol:flashbriefingprofile:account1:flashbriefing2:playOnDevice"}

flashbriefings.sitemap:

sitemap flashbriefings label="Flash Briefings"
{
        Frame label="Flash Briefing Technical" {
            Switch  item=FlashBriefing_Technical_Save
            Switch  item=FlashBriefing_Technical_Active
            Text    item=FlashBriefing_Technical_Play
        }

        Frame label="Flash Briefing Life Style" {
            Switch  item=FlashBriefing_LifeStyle_Save
            Switch  item=FlashBriefing_LifeStyle_Active
            Text    item=FlashBriefing_LifeStyle_Play
        }
}

Smart Home Devices

Note: the cannels of smartHomeDevices and smartHomeDeviceGroup will be created dynamically based on the capabilities reported by the amazon server. This can take a little bit of time.
The polling interval configured in the Account Thing to get the state is specified in minutes and has a minimum of 10. This means it takes up to 10 minutes to see the state of a channel. The reason for this low interval is, that the polling causes a big server load for the Smart Home Skills.

Supported Things

Thing type id Name
smartHomeDevice Smart Home Device
smartHomeDeviceGroup Smart Home Device group

Thing configuration of smartHomeDevice, smartHomeDeviceGroup

Configuration name Description
id The id of the device or device group

The only possibility to find out the id is by using the discover function in the PaperUI. You can use then the id, if you want define the Thing in a file.

Channels

Channel Type ID Item Type Access Mode Thing Type Description
powerState Switch R/W smartHomeDevice, smartHomeDeviceGroup Shows and changes the state (ON/OFF) of your device
brightness[^1] Dimmer R/W smartHomeDevice, smartHomeDeviceGroup Shows and changes the brightness of your lamp
color[^1] Color R smartHomeDevice, smartHomeDeviceGroup Shows the color of your light
colorName[^1] String R/W smartHomeDevice, smartHomeDeviceGroup Shows and changes the color name of your light (groups are not able to show their color)
colorTemperatureName[^1] String R/W smartHomeDevice, smartHomeDeviceGroup White temperatures name of your lights (groups are not able to show their color)
armState[^1] String R/W smartHomeDevice, smartHomeDeviceGroup State of your alarm guard. Options: ARMED_AWAY, ARMED_STAY, ARMED_NIGHT, DISARMED (groups are not able to show their state)

[^1]: The availability is depending on the device capabilities.

Example

smarthome.things

Bridge amazonechocontrol:account:account1 "Amazon Account" @ "Accounts" [discoverSmartHome=2, pollingIntervalSmartHomeAlexa=30, pollingIntervalSmartSkills=120]
{
    Thing smartHomeDevice      smartHomeDevice1 "Smart Home Device 1" @ "Living Room" [id="ID"]
    Thing smartHomeDevice      smartHomeDevice2 "Smart Home Device 2" @ "Living Room" [id="ID"]
    Thing smartHomeDevice      smartHomeDevice3 "Smart Home Device 3" @ "Living Room" [id="ID"]
    Thing smartHomeDeviceGroup smartHomeDeviceGroup1 "Living Room Group" @   "Living Room" [id="ID"]
}

smarthome.items:

Sample for the Thing echo1 only. But it will work in the same way for the other things, only replace the thing name in the channel link.
Take a look in the channel description above to know, which channels are supported by your thing type.

// Lights and lightgroups
Switch Light_State "On/Off" { channel="amazonechocontrol:smartHomeDevice:account1:smartHomeDevice1:powerState" }
Dimmer Light_Brightness "Brightness" { channel="amazonechocontrol:smartHomeDevice:account1:smartHomeDevice1:brightness" }
Color  Light_Color "Color" { channel="amazonechocontrol:smartHomeDevice:account1:smartHomeDevice1:color" }
String Light_Color_Name "Color Name" { channel="amazonechocontrol:smartHomeDevice:account1:smartHomeDevice1:colorName" }
String Light_White "White temperature" { channel="amazonechocontrol:smartHomeDevice:account1:smartHomeDevice1:colorTemperatureName" }

// Smart plugs
Switch Plug_State "On/Off" { channel="amazonechocontrol:smartHomeDevice:account1:smartHomeDevice2:powerState" }

// Alexa Guard
Switch Arm_State "State" { channel="amazonechocontrol:smartHomeDevice:account1:smartHomeDevice3:armState" }

// Smart Home device group
Switch Group_State "On/Off" { channel="amazonechocontrol:smartHomeDeviceGroup:account1:smartHomeDeviceGroup1:powerState" }

The only possibility to find out the id for the smartHomeDevice and smartHomeDeviceGroup Things is by using the discover function in the PaperUI.

smarthome.sitemap:

sitemap smarthome label="Smart Home Devices"
{
        Frame label="Lights and light groups" {
            Switch item=Light_State
            Slider item=Light_Brightness
            Default item=Light_Color
            Selection item=Light_Color_Name mappings=[ ''='', 'red'='Red', 'crimson'='Crimson', 'salmon'='Salmon', 'orange'='Orange', 'gold'='Gold', 'yellow'='Yellow', 'green'='Green', 'turquoise'='Turquoise', 'cyan'='Cyan', 'sky_blue'='Sky Blue', 'blue'='Blue', 'purple'='Purple', 'magenta'='Magenta', 'pink'='Pink', 'lavender'='Lavender' ]
            Selection item=Light_White mappings=[ ''='', 'warm_white'='Warm white', 'soft_white'='Soft white', 'white'='White', 'daylight_white'='Daylight white', 'cool_white'='Cool white' ]
            Switch item=Light_State
            Switch item=Group_State
            Selection item=Arm_State mappings=[ 'ARMED_AWAY'='Active', 'ARMED_STAY'='Present', 'ARMED_NIGHT'='Night', 'DISARMED'='Deactivated' ]
        }
}

How To Get IDs

  1. Open the url YOUR_OPENHAB/amazonechocontrol in your browser (e.g. http://openhab:8080/amazonechocontrol/)
  2. Click on the name of the account thing
  3. Click on the name of the echo thing
  4. Scroll to the channel and copy the required ID

Advanced Feature Technically Experienced Users

The url <YOUR_OPENHAB>/amazonechocontrol/<YOUR_ACCOUNT>/PROXY/<API_URL> provides a proxy server with an authenticated connection to the amazon alexa server. This can be used to call alexa api from rules.

E.g. to read out the history call from an installation on openhab:8080 with a account named account1:

http://openhab:8080/amazonechocontrol/account1/PROXY/api/activities?startTime=&size=50&offset=1

Tutorials

Let alexa speak a text from a rule:

  1. Create a rule with a trigger of your choice
rule "Say welcome if the door opens"
when
    Item Door_Contact changed to OPEN
then
    Echo_Living_Room_TTS.sendCommand('Hello World')
end

You can also use SSML to provide a better voice experience

rule "Say welcome if the door opens"
when
    Item Door_Contact changed to OPEN
then
    Echo_Living_Room_TTS.sendCommand('<speak>I want to tell you a secret.<amazon:effect name="whispered">I am not a real human.</amazon:effect>.Can you believe it?</speak>')
end

Show an announcement on the echo show or echo spot:

  1. Create a rule with a trigger of your choice

Simple:

rule "Say welcome if the door opens"
when
    Item Door_Contact changed to OPEN
then
    Echo_Living_Room_Announcement.sendCommand('Door opened')
end

Expert:
You can use a json formatted string to control title, sound and volume:

{ "sound": true, "speak":"<Speak>" "title": "<Title>", "body": "<Body Text>", "volume": 20}

The combination of sound=true and speak in SSML syntax is not allowed.
Not all properties need to be specified.
The value for volume can be between 0 and 100 to set the volume.
A volume value smaller then 0 means that the current alexa volume should be used.
No specification uses the volume from the textToSpeechVolume channel.

You can use a json formatted string to control the title and the sound:

{ "sound": true, "speak":"<Speak>" "title": "<Title>", "body": "<Body Text>"}

The combination of sound=true and speak in SSML syntax is not allowed

Note: If you turn off the sound and alexa is playing music, it will anyway turn down the volume for a moment. This behavior can not be changed.

rule "Say welcome if the door opens"
when
    Item Door_Contact changed to OPEN
then
    Echo_Living_Room_Announcement.sendCommand('{ "sound": false, "title": "Doorstep", "body": "Door opened"}')
end

Playing an alarm sound for 15 seconds with an openHAB rule if an door contact was opened:

  1. Do get the ID of your sound, follow the steps in ā€œHow To Get IDsā€
  2. Write down the text in the square brackets. e.g. ECHO:system_alerts_repetitive01 for the nightstand sound
  3. Create a rule for start playing the sound:
var Timer stopAlarmTimer = null

rule "Turn on alarm sound for 15 seconds if door opens"
when
    Item Door_Contact changed to OPEN
then
    Echo_Living_Room_PlayAlarmSound.sendCommand('ECHO:system_alerts_repetitive01')
    if (stopAlarmTimer === null)
    {
        stopAlarmTimer = createTimer(now.plusSeconds(15)) [|
            stopAlarmTimer.cancel()
            stopAlarmTimer = null
            Echo_Living_Room_PlayAlarmSound.sendCommand('')
        ]
    }
end

Note 1: Do not use a to short time for playing the sound, because alexa needs some time to start playing the sound.
Itā€™s not recommended to use a time below 10 seconds.

Note 2: The rule have no effect for your default alarm sound used in the alexa app.

Play a spotify playlist if a switch was changed to on:

  1. Do get the ID of your sound, follow the steps in ā€œHow To Get IDsā€
  2. Write down the text in the square brackets. e.g. SPOTIFY for the spotify music provider
  3. Create a rule for start playing a song or playlist:
rule "Play a playlist on spotify if a switch was changed"
when
    Item Spotify_Playlist_Switch changed to ON
then
    Echo_Living_Room_PlayMusicProvider.sendCommand('SPOTIFY')
    Echo_Living_Room_PlayMusicCommand.sendCommand('Playlist Party')
end

Note: Itā€™s recommended to test the command send to play music command first with the voice and the real alexa device. E.g. say ā€˜Alexa, Playlist Partyā€™

Start playing weather/traffic/etc:

  1. Pick up one of the available commands: Weather, Traffic, GoodMorning, SingASong, TellStory, FlashBriefing
  2. Create a rule for start playing the information where you provide the command as string:
rule "Start wheater info"
when
    Item Spotify_Start_Wheater_Switch changed to ON
then
     Echo_Living_Room_StartCommand.sendCommand('Weather')
end

Start playing a custom flashbriefing on a device:

  1. Do get the ID of your sound, follow the steps in ā€œHow To Get IDsā€
  2. Write down the text in the square brackets. e.g. flashbriefing.flashbriefing1
  3. Create a rule for start playing the information where you provide the command as string:
rule "Start wheater info"
when
    Item Spotify_Start_Wheater_Switch changed to ON
then
     Echo_Living_Room_StartCommand.sendCommand('FlashBriefing.flashbriefing1')
end

Note

This binding uses the same API as the Web-Browser-Based Alexa site (alexa.amazon.de).
In other words, it simulates a user which is using the web page.
Unfortunately, the binding can get broken if Amazon change the web site.

The binding is tested with amazon.de, amazon.fr, amazon.it, amazon.com and amazon.co.uk accounts, but should also work with all others.

Credits

The idea for writing this binding came from this blog: http://blog.loetzimmer.de/2017/10/amazon-alexa-hort-auf-die-shell-echo.html (German).
Thank you Alex!
The technical information for the web socket connection to get live alexa state updates cames from Ingo. He has done the alexa iobrokern implementation https://github.com/Apollon77
Thank you Ingo!

Trademark Disclaimer

TuneIn, Amazon Echo, Amazon Echo Spot, Amazon Echo Show, Amazon Music, Amazon Prime, Alexa and all other products and Amazon, TuneIn and other companies are trademarksā„¢ or registeredĀ® trademarks of their respective holders.
Use of them does not imply any affiliation with or endorsement by them.

5 Likes

The Smart-Home Devices uses different Controllers for the capabilities.
Take a look in the amazon documentation to see which controller are officially supported.
The current binding supports:

  • BrightnessController
  • ColorController
  • ColorTemperatureController
  • PercentageController
  • PowerController
  • PowerLevelController
  • TemperatureSensor
  • SecurityPanelController (Will only work in countries where the Alexa Guard is available, not yet tested, please provide feedback)
  • AcousticEventSensor (Not in the amazon documentation, but should provide feedback of the firealarm or glas break detection of the echo dots. Will only work in countries where the Alexa Guard is available, not yet tested, please provide feedback

Please note, that there is no active notification of smarthome state changes, so the polling configured in the Account Thing is used. Also channels like fire alarm are only polled!

Best,
Michael

This could be a great way around the nest api disapearing soon.
If the echo control binding could be made to retrieve the states of the nest thermostat smart home devices and set the target temperatures, the echos could act as a sort of a ā€œbridgeā€

If the next version of the binding add the thermostatController, Iā€™ll be happy to experiment with that and create a tutorial for the soon mandatory migration.

1 Like

Hi,
I expect your device will also support https://developer.amazon.com/docs/device-apis/alexa-temperaturesensor.html. So maybe you can test this function already and give feedback here.
Best,
Michael

This is awesome! No more routines! It may also help eventually reduce the number of bindings used for predominantly voice first commands

I also have an alexa only controllable air conditioner via the Polyaire skill which is classed as a thermostat if you need another tester

Hi Andrew,

I think it would be helpful to have another tester. Just download the beta version of the binding and take a look at openhab. Maybe your air conditioner can be used with openhab. Donā€™t forget to activate the device search in your account thing.

Good luck!

Nice but this is going to confuse Noobies even more :rofl:

I myself still get mixed up between the skill and the control binding and have to think hard when I come back to it after a long break :grin:

I also have another binding, Openwebnet, for my devices and add Alexa metadata labels for items to be used via the Alexa skill.

Maybe a small schematic shown at the the top of both threads would help. It could show how all these things are/could be linked up in openhab with direction arrows to indicate the communication flow.

I found a schematic for the Alexa skill but not one for Echo control.


So, something like that but with the Alexa Skill, Echo Control and a Device binding all in the same diagram.

I hope you are correct.

I am currently using some routines and virtual switches to get Alexa to operate some blinds via another Openhab binding that connects to my devicesā€¦ BTicino/Openwebnet BUS system.

Hey @michi @Lukask ive installed it and it has worked as advertised - my problem (not yours) is I have many cross over skills that I have also solutions for in Openhab (eg LIFX) and have an overwhelming number of devices discovered.
I went straight to my air conditioner - it has detected two channels - powerstate and temperature - temperature is the current temp of the thermostat. When I turn on the A/C the alexa interface changes to then show a temperature setpoint - unfortunately this isnt available as a channel but its a great start even this has removed proxy items and two routines and two rules to turn the AC on and off

I made a draft, its not pretty, probably wrong. I am still thinking about it :woozy_face:

It illustrates the new and old path options to get a command to a device and the Proxy item work around in case of compatibility issues.

edit ā€¦deleted draft graphic to avoid causing confusion. I will post Michiā€™s approved graphic if he approves :slight_smile:

Nice drawing, but I think it is not yet correct:

This is the information flow:

amazonechocontrol

With the amazonechocontrol binding can each device which have a Alexa-SmartHome-Skill controlled from OpenHAB. Also the echo device itself can be controlled from OpenHAB, like starting music or let the echo device speak.

Openhab Switch Device On -> amazonechocontrolbinding -> Amazon Cloud -> Alexa-SmartHome-Skill-Cloud (e.g. Samsung) -> Samsung TV

OpenHAB Alexa Skill

With the OpenHAB Alexa Skill can you control all devices connected to OpenHAB with your voice through the echo device.

Spoken Text -> OpenHAB Alexa Smarthome Skill -> OpenHAB Cloud -> OpenHAB Cloud Connector -> Switch Item -> Device Binding (KNX, Z-Wave) -> Light

Better?

edit ā€¦deleted draft graphic to avoid causing confusion. I will post Michiā€™s approved graphic if he approves :slight_smile:

This is awesome! Thanks for putting this together. Iā€™ve been looking forward to trying the echo guard functionality connected to OH and so far it seems to be working brilliantly.

Just a small thing. Is there a typo in the *.things examples? I get syntax errors when include

[discoverSmartHome=2 pollingIntervalSmartHome=20]

 Configuration model 'amazonechocontrol.things' has errors, therefore ignoring it: [1,94]: missing ']' at 'pollingIntervalSmartHome'

Works fine if I just include one parameter.

Nice, but sorry, for me, this picture makes it not more easier to understand.
The reason is, the binding and the skill a completely independent, so each of the can be used without the other one. So, please make the arrows for the flow for the skill and the arrows for the binding in two different colors.
And maybe only in one direction for the command flow (And maybe a second picture for the Status query).
Sorry, for my comments, but I do not want the users become more confused as they are already.

Yes, maybe it should be:
[discoverSmartHome=2, pollingIntervalSmartHome=20]
But not yet tested.

OK Michi No problem. Its a good learning exercise for me too. Lets get this right. I will PM you with the update to avoid filling the thread with incorrect information. If you like I can send the PowerPoint file and you can modify it as you likeā€¦ if you see a use for it.

Mark

Hi Mark,

I took a look into my config files and @michi is right. It seems thereā€™s missing a comma. Just add the comma to your config file and the binding should start itā€™s work. Have fun! :slight_smile:

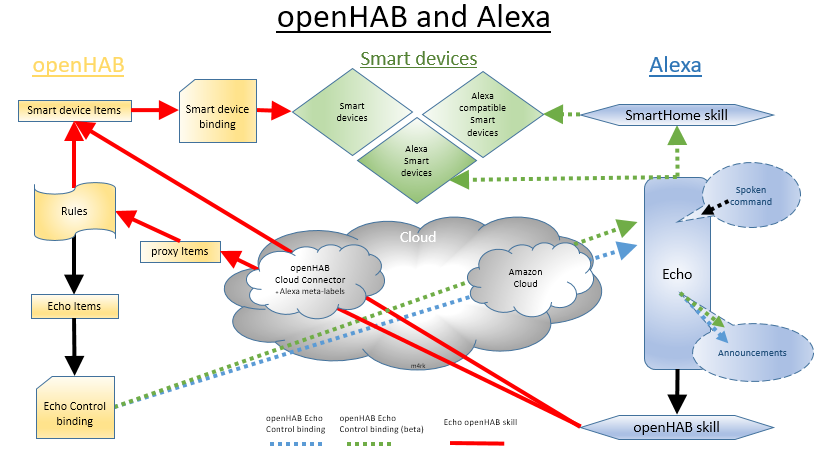

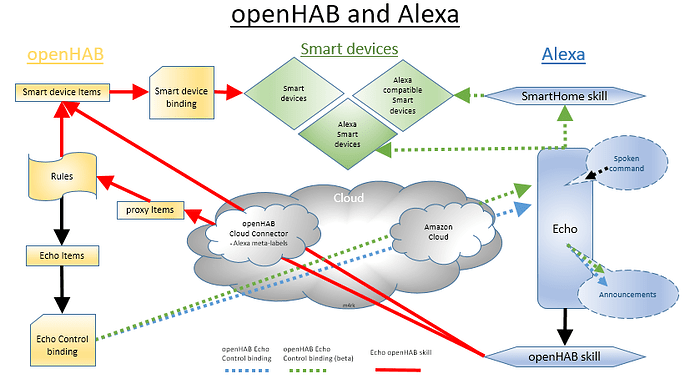

Michi gave it the thumbs up. so, here it is. Hope its usefulā€¦

3 Likes

Hi Mark,

Iā€™m going to write an article on my blog about the amazon echo control binding. I would like to integrate your overview for every visitor. Is it okay for you to share this image on my blog?
