receivedCommand in blockly?

Setup, Configuration and Use Scripts & Rules
, ,
1

Hi,

maybe it’s a stupid question, but how do I react to a command which was send to an item?

Just the equivalent to this DSL rule:

triggers:
  - id: "1"
    configuration:
      itemName: test
    type: core.ItemCommandTrigger
conditions: []
actions:
  - inputs: {}
    id: "2"
    configuration:
      type: application/vnd.openhab.dsl.rule
      script: |-
        switch (receivedCommand){
          case ON: {
            logInfo("TEST","TEST received ON")
          }

          case OFF: {
            logInfo("TEST","TEST received OFF")
          }
        }
    type: script.ScriptAction
2

That is not yet supported in Blockly.

3

If you want to do it in JavaScript as blockly doesn’t support it then it is like this:

var logger = Java.type('org.slf4j.LoggerFactory').getLogger('org.openhab.rule.' + ctx.ruleUID);
var Exec = Java.type("org.openhab.core.model.script.actions.Exec");
var Duration = Java.type("java.time.Duration");
var TOPIC = null;
var PAYLOAD = null;

var rfinput = itemRegistry.getItem('RFBridgekitchen_Receiveddata').getState().toString();

switch(rfinput) {
 //row 3 green and switch is on S
     case 'BB369A':
     events.sendCommand("Lightsshedinandoutside_Shedlights", 'ON');
       logger.info('Shed lights ON');
    break;

//row 3 red and switch is on S
     case 'BB3692':
     events.sendCommand("Lightsshedinandoutside_Shedlights", 'OFF');
       logger.info('Shed lights OFF');
    break;
  default:
}
4

any news when “received command” will support in blockly?

PS maybe there is another way (in blockly) to get

image676×528 12.7 KB
buttons click?

5

PR is made and under review. There will be an event block and you can get to the item command through that.

1 Like
6

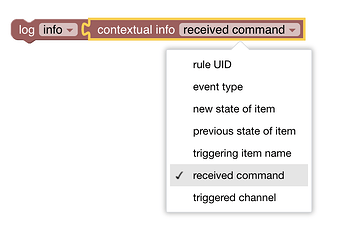

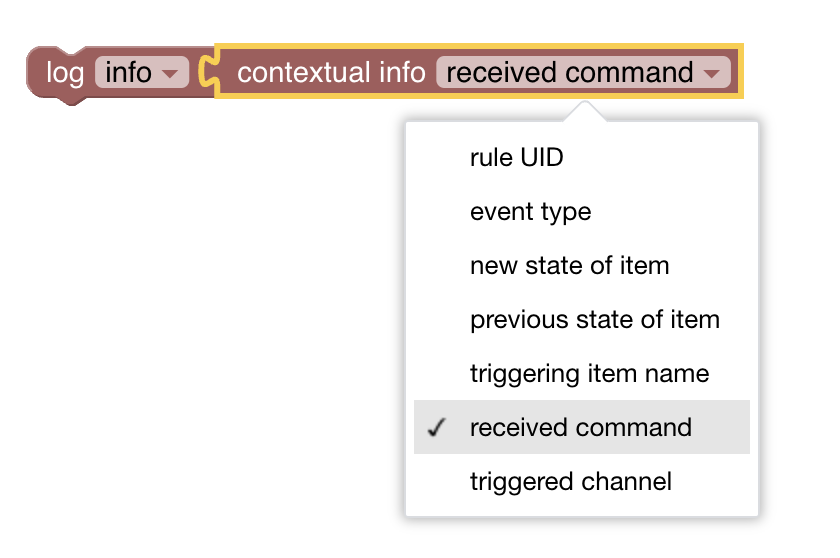

It has been made available with the 3.2.0 Release,

image840×558 35.6 KB

The Blockly Reference though is work in progress which is why you don’t see it yet there.

3 Likes
