Can anyone give me a hint on how to get the inner circle highlighted in respect of where the sun is for someone in the southern hemisphere? Everything else looks good, but my wife just commented that the bright section of the inner circle wasn’t in the right place… now it’s all I can see and i’m not sure where to begin with the script.

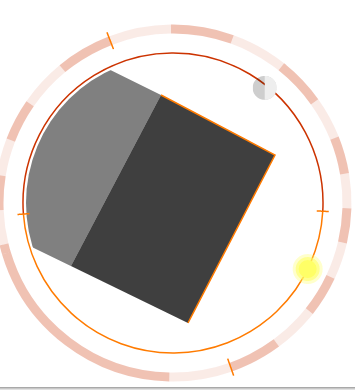

The attached image was taken just before midday and the inner and outer markers look good.
Hi @pahansen
These two lines:
svg = svg + self.generateArc(WIDTH/2,PRIMARY_COLOR,self.sunset_azimuth,self.sunrise_azimuth)
svg = svg + self.generateArc(WIDTH/2,LIGHT_COLOR,self.sunrise_azimuth,self.sunset_azimuth)
Change the first one the LIGHT_COLOR and the second one to PRIMARY_COLOR
Small evolution, if you happen to have moon age and want to display it directly :
Add a moon_age property :
self.moon_azimuth = float(self.oh.getState('Astro_Moon_Azimuth').replace(" °",""))
self.moon_elevation = float(self.oh.getState('Astro_Moon_Elevation').replace(" °",""))
self.moon_age = self.oh.getState('Astro_Moon_Age')
Modification of the moon rendering :
# moon
moon = self.degreesToPoint(self.moon_azimuth, WIDTH / 2)
#svg = svg + '<circle cx="' + str(moon['x']) + '" cy="' + str(moon['y']) + '" r="' + str(MOON_RADIUS -1) + '" stroke="' + MOON_COLOR + '" stroke-width="0" fill="' + MOON_COLOR + '" />'
svg = svg + '<image x="' + str(moon['x']) + '" y="' + str(moon['y']) + '" width="' + str(MOON_RADIUS *2 ) + '" height="' + str(MOON_RADIUS *2) + '" xlink:href="/icon/moon?state=' + self.moon_age +'&format=svg" />'
svg = svg + '</svg>'
And here you are :
Dumb question but is north up on the svg?
Yes, it should
Yes, but you’ll have to make some code changes if you live in the southern hemisphere
And altitude in meters?
Ah I do I think there’s a post a bit up about that…
Yes in meters
I have a black background - what line can I change the colour of the shadow on? I found two “black” references but they didnt seem to do anything or is this in CSS? I also dont seem to have the hour slots?
anyone? my other question is - what could I do to use this information to help me raise and lower blinds as they come out of shadow?
Hi, I need help, I used the code from llegovich (Show Current Sun Position and Shadow of House (Generate SVG) - #141 by llegovich) to have the moon, but for some reason the svg iisn’t showing the moon. When i do
python /etc/openhab2/scripts/shaddow.py update
it shows the
Sun azimuth: 314.954392516
Sun elevation: -13.147332433
Moon azimuth: 97.0532998037
Moon elevation: -22.8624873031
Done in 0:00:00.165627 seconds
but no moon is displayed, Do i have to do some other changes or just in the shadow.py?
Hello,
would it be possible to change the “SHAPE” part to 2 separate shapes? I have a detached garage i would like to include in the image, but have no idea about the needed syntax.
Thanks in advance!
can someone post a fully working script ive tried to grab bits from a few posts above but only have it “kind of” working
bump
Hi,
I struggle with the same error of missing requests library in pip other people mentioned before
import requests
ImportError: No module named requests
The thing is though request is already installed in python
Requirement already satisfied: requests in /usr/lib/python3/dist-packages (2.18.4)
How can I change the reference of request to pip?
My current ubuntu version is:
Ubuntu: 18.04.2 LTS
Version of python3: 3.6.8
Version of pip: pip 19.1.1 from /python3.6/site-packages/pip (python 3.6)
Any ideas?
Cheers
@Daniel_Hampson
it is because moon elevation is below 0
but there might be issue with pylunar itself as now (0:27) i can see moon on sky physically, but pylunar is saying elevation -9 degrees (which is below horizon)
at same time astro binding from OH is saying 8,95 degrees which would result of moon being displayed.
so I suspect pylunar is having wrong data.
edit: well no, it’s wrongly implemented in script. Because per documentation pylunar requires UTC time, but in here it uses local time.
Corrected and cleaned whole working code is:
(change LAT + LONG ALT + SHAPE and your time eg. Europe/Berlin )
from __future__ import print_function
import math
from datetime import datetime, timedelta, date, time
import sys
import pytz
import pylunar
from astral import Astral
from astral import Location
WIDTH = 100
HEIGHT = 100
PRIMARY_COLOR = '#1b3024'
LIGHT_COLOR = '#26bf75'
BG_COLOR = '#1a1919'
#BG_COLOR = '#555555'
SUN_COLOR = '#ffff66'
SUN_RADIUS = 5
MOON_COLOR = '#999999'
MOON_RADIUS = 3
STROKE_WIDTH = '1'
FILENAME = '/etc/openhab2/html/shaddow.svg'
LATITUDE = XXX
LONGITUDE = XXX
ALTITUDE = XXX
# Shape of the house in a 100 by 100 units square
SHAPE = [{'x': 16.37, 'y': 62.07}, \
{'x': 28.32, 'y': 40.16}, \
{'x': 29.57, 'y': 39.87}]
HOURS = 1
DEGS = []
class shadow(object):
"""
Shadow Object
"""
def __init__(self):
self.debug = False
self.astr = Astral()
timezone = pytz.timezone('Europe/Berlin') # Enter your time zone
self.l = Location(('HOME', 'YOUR TOWN', LATITUDE, LONGITUDE, 'Europe/Berlin', ALTITUDE))
self.sun = self.l.sun()
self.now = timezone.localize(datetime.now())
self.nowUTC = datetime.utcnow()
self.sun_azimuth = float(self.astr.solar_azimuth(self.now, LATITUDE, LONGITUDE))
print('Sun azimuth: ' + str(self.sun_azimuth))
self.sun_elevation = float(self.astr.solar_elevation(self.now, LATITUDE, LONGITUDE))
print('Sun elevation: ' + str(self.sun_elevation))
self.sunrise_azimuth = float(self.astr.solar_azimuth(self.sun['sunrise'], LATITUDE, LONGITUDE))
self.sunset_azimuth = float(self.astr.solar_azimuth(self.sun['sunset'], LATITUDE, LONGITUDE))
for i in xrange(0, 24, HOURS):
a = float(self.astr.solar_azimuth(timezone.localize(datetime.combine(date.today(), time(i))), LATITUDE, LONGITUDE))
if (a == None): a = 0
DEGS.extend([float(a)])
self.moon_info = pylunar.MoonInfo(self.decdeg2dms(LATITUDE), self.decdeg2dms(LONGITUDE))
self.moon_info.update(self.nowUTC)
self.moon_azimuth = self.moon_info.azimuth()
print('Moon azimuth: ' + str(self.moon_azimuth))
self.moon_elevation = self.moon_info.altitude()
print('Moon elevation: ' + str(self.moon_elevation))
if (self.sun_elevation>0):
self.elevation = self.sun_elevation
else:
self.elevation = self.moon_elevation
#
#
#
def decdeg2dms(self,dd):
negative = dd < 0
dd = abs(dd)
minutes,seconds = divmod(dd*3600,60)
degrees,minutes = divmod(minutes,60)
if negative:
if degrees > 0:
degrees = -degrees
elif minutes > 0:
minutes = -minutes
else:
seconds = -seconds
return (degrees,minutes,seconds)
#
#
#
def generatePath(self,stroke,fill,points,attrs=None):
p = ''
p = p + '<path stroke="' + stroke + '" stroke-width="' + STROKE_WIDTH + '" fill="' + fill + '" '
if (attrs != None): p = p + ' ' + attrs + ' '
p = p + ' d="'
for point in points:
if (points.index(point) == 0):
p = p + 'M' + str(point['x']) + ' ' + str(point['y'])
else:
p = p + ' L' + str(point['x']) + ' ' + str(point['y'])
p = p + '" />'
return p
#
#
#
def generateArc(self,dist,stroke,fill,start,end,attrs=None):
p = ''
try:
angle = end-start
if (angle<0):
angle = 360 + angle
p = p + '<path d="M' + str(self.degreesToPoint(start,dist)['x']) + ' ' + str(self.degreesToPoint(start,dist)['y']) + ' '
p = p + 'A' + str(dist) + ' ' + str(dist) + ' 0 '
if (angle<180):
p = p + '0 1 '
else:
p = p + '1 1 '
p = p + str(self.degreesToPoint(end,dist)['x']) + ' ' + str(self.degreesToPoint(end,dist)['y']) + '"'
p = p + ' stroke="' + stroke + '"'
if (fill != None):
p = p + ' fill="' + fill + '" '
else:
p = p + ' fill="none" '
if (attrs != None):
p = p + ' ' + attrs + ' '
else:
p = p + ' stroke-width="' + STROKE_WIDTH + '"'
p = p + ' />'
except:
p = ''
return p
#
#
#
def degreesToPoint(self,d,r):
coordinates = {'x': 0, 'y': 0}
cx = WIDTH / 2
cy = HEIGHT / 2
d2 = 180 - d
coordinates['x'] = cx + math.sin(math.radians(d2))*r
coordinates['y'] = cy + math.cos(math.radians(d2))*r
return coordinates
#
#
#
def generateSVG(self):
realSun_pos = self.degreesToPoint(self.sun_azimuth, 10000)
if self.debug:
print(realSun_pos)
sun_pos = self.degreesToPoint(self.sun_azimuth, WIDTH / 2)
moon_pos = self.degreesToPoint(self.moon_azimuth, WIDTH / 2)
minPoint = -1
maxPoint = -1
i = 0
minAngle = 999
maxAngle = -999
for point in SHAPE:
#Angle of close light source
angle = -math.degrees(math.atan2(point['y']-sun_pos['y'],point['x']-sun_pos['x']))
#Angle of distant light source (e.g. sun_pos)
angle = -math.degrees(math.atan2(point['y']-realSun_pos['y'],point['x']-realSun_pos['x']))
distance = math.sqrt(math.pow(sun_pos['y']-point['y'],2) + math.pow(sun_pos['x']-point['x'],2))
if (angle<minAngle):
minAngle = angle
minPoint = i
if (angle>maxAngle):
maxAngle = angle
maxPoint = i
point['angle'] = angle
point['distance'] = distance
if self.debug:
print(str(i).ljust(10),":", str(point['x']).ljust(10), str(point['y']).ljust(10), str(round(angle,7)).ljust(10), str(round(distance)).ljust(10))
i = i + 1
if self.debug:
print("Min Point = ",minPoint)
print("Max Point = ",maxPoint)
print("")
i = minPoint
k = 0
side1Distance = 0
side2Distance = 0
side1Done = False
side2Done = False
side1 = []
side2 = []
while True:
if (side1Done == False):
side1Distance = side1Distance + SHAPE[i]['distance']
if(i != minPoint and i != maxPoint): SHAPE[i]['side'] = 1
if (i == maxPoint): side1Done = True
side1.append( { 'x': SHAPE[i]['x'], 'y': SHAPE[i]['y'] } )
if (side1Done == True):
side2Distance = side2Distance + SHAPE[i]['distance']
if(i != minPoint and i != maxPoint): SHAPE[i]['side'] = 2
if (i == minPoint): side2Done = True
side2.append( { 'x': SHAPE[i]['x'], 'y': SHAPE[i]['y'] } )
i = i + 1
if( i > len(SHAPE)-1): i = 0
if (side1Done and side2Done): break
k = k + 1
if (k == 20): break
svg = '<?xml version="1.0" encoding="utf-8"?>'
svg = svg + '<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">'
svg = svg + '<svg version="1.1" id="Layer_1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" x="0px" y="0px" viewBox="-10 -10 120 120" xml:space="preserve">'
# background
svg = svg + '<circle cx="' + str(WIDTH/2) + '" cy="' + str(HEIGHT/2) + '" r="' + str(WIDTH/2-1) + '" fill="' + BG_COLOR + '"/>'
minPointShadowX = SHAPE[minPoint]['x'] + WIDTH * math.cos(math.radians(minAngle))
minPointShadowY = SHAPE[minPoint]['y'] - HEIGHT * math.sin(math.radians(minAngle))
maxPointShadowX = SHAPE[maxPoint]['x'] + WIDTH * math.cos(math.radians(maxAngle))
maxPointShadowY = SHAPE[maxPoint]['y'] - HEIGHT * math.sin(math.radians(maxAngle))
shadow = [ {'x': maxPointShadowX, 'y': maxPointShadowY } ] + \
side2 + \
[ {'x': minPointShadowX, 'y': minPointShadowY } ]
svg = svg + '<defs><mask id="shadowMask">'
svg = svg + ' <rect width="100%" height="100%" fill="black"/>'
svg = svg + ' <circle cx="' + str(WIDTH/2) + '" cy="' + str(HEIGHT/2) + '" r="' + str(WIDTH/2-1) + '" fill="white"/>'
svg = svg + '</mask></defs>'
svg = svg + self.generatePath('none',PRIMARY_COLOR,SHAPE)
shadow_svg = self.generatePath('none','black',shadow,'mask="url(#shadowMask)" fill-opacity="0.5"')
if (self.elevation>0):
svg = svg + self.generatePath(LIGHT_COLOR,'none',side1)
else:
svg = svg + self.generatePath(PRIMARY_COLOR,'none',side2)
if (self.elevation>0): svg = svg + shadow_svg
svg = svg + self.generateArc(WIDTH/2,PRIMARY_COLOR,'none',self.sunset_azimuth,self.sunrise_azimuth)
svg = svg + self.generateArc(WIDTH/2,LIGHT_COLOR,'none',self.sunrise_azimuth,self.sunset_azimuth)
svg = svg + self.generatePath(LIGHT_COLOR,'none',[self.degreesToPoint(self.sunrise_azimuth,WIDTH/2-2), self.degreesToPoint(self.sunrise_azimuth,WIDTH/2+2)])
svg = svg + self.generatePath(LIGHT_COLOR,'none',[self.degreesToPoint(self.sunset_azimuth,WIDTH/2-2), self.degreesToPoint(self.sunset_azimuth,WIDTH/2+2)])
for i in range(0,len(DEGS)):
if (i == len(DEGS)-1):
j = 0
else:
j = i + 1
if (i % 2 == 0):
svg = svg + self.generateArc(WIDTH/2+8,PRIMARY_COLOR,'none',DEGS[i],DEGS[j],'stroke-width="3" stroke-opacity="0.2"')
else:
svg = svg + self.generateArc(WIDTH/2+8,PRIMARY_COLOR,'none',DEGS[i],DEGS[j],'stroke-width="3" ')
svg = svg + self.generatePath(LIGHT_COLOR,'none',[self.degreesToPoint(DEGS[0],WIDTH/2+5), self.degreesToPoint(DEGS[0],WIDTH/2+11)])
svg = svg + self.generatePath(LIGHT_COLOR,'none',[self.degreesToPoint(DEGS[(len(DEGS))/2],WIDTH/2+5), self.degreesToPoint(DEGS[(len(DEGS))/2],WIDTH/2+11)])
# moon drawing: compute left and right arcs
phase = self.astr.moon_phase(self.now)
if self.debug:
print('phase: ' + str(phase))
left_radius=MOON_RADIUS
left_sweep=0
right_radius=MOON_RADIUS
right_sweep=0
if (phase > 14):
right_radius = MOON_RADIUS - (2.0*MOON_RADIUS* (1.0 - ((phase%14)*0.99 / 14.0)))
if (right_radius < 0):
right_radius = right_radius * -1.0
right_sweep = 0
else:
right_sweep = 1
if (phase < 14):
left_radius = MOON_RADIUS - (2.0*MOON_RADIUS* (1.0 - ((phase%14)*0.99 / 14.0)))
if (left_radius < 0):
left_radius = left_radius * -1.0
left_sweep = 1
if (self.moon_elevation>0):
svg = svg + '<path stroke="none" stroke-width="0" fill="' + MOON_COLOR \
+ '" d="M ' + str(moon_pos['x']) + ' ' + str(moon_pos['y']-MOON_RADIUS) \
+ ' A ' + str(left_radius) + ' ' + str(MOON_RADIUS) + ' 0 0 ' + str(left_sweep) + ' ' + str(moon_pos['x']) + ' ' + str(moon_pos['y']+MOON_RADIUS) \
+ ' ' + str(right_radius) + ' ' + str(MOON_RADIUS) + ' 0 0 ' + str(right_sweep) + ' ' + str(moon_pos['x']) + ' ' + str(moon_pos['y']-MOON_RADIUS) + ' z" />'
# sun drawing
if (self.sun_elevation>0):
svg = svg + '<circle cx="' + str(sun_pos['x']) + '" cy="' + str(sun_pos['y']) + '" r="' + str(SUN_RADIUS) + '" stroke="none" stroke-width="0" fill="' + SUN_COLOR + '55" />'
svg = svg + '<circle cx="' + str(sun_pos['x']) + '" cy="' + str(sun_pos['y']) + '" r="' + str(SUN_RADIUS -1) + '" stroke="none" stroke-width="0" fill="' + SUN_COLOR + '99" />'
svg = svg + '<circle cx="' + str(sun_pos['x']) + '" cy="' + str(sun_pos['y']) + '" r="' + str(SUN_RADIUS -2) + '" stroke="' + SUN_COLOR + '" stroke-width="0" fill="' + SUN_COLOR + '" />'
svg = svg + '</svg>'
if self.debug:
print(svg)
f = open(FILENAME, 'w')
f.write(svg)
f.close()
def main():
t1 = datetime.now()
s = shadow()
args = sys.argv
if(len(args) == 1):
dummy = 0
#print('\033[91mNo parameters specified\033[0;0m')
else:
if(args[1] == "update"):
s.generateSVG()
t2 = datetime.now()
print("Done in " + str(t2-t1) + " seconds")
if __name__ == '__main__':
main()
I might update that script so moon will cast proper shadow when sun is below horizon… later
so here is a script which after SUN is under horizon (elevation < 0) shows house shadow cast by moon
it’s quick hack and it’s already dark in here so it needs some testing during the day as well
from __future__ import print_function
import math
from datetime import datetime, timedelta, date, time
import sys
import pytz
import pylunar
from astral import Astral
from astral import Location
WIDTH = 100
HEIGHT = 100
PRIMARY_COLOR = '#1b3024'
LIGHT_COLOR = '#26bf75'
BG_COLOR = '#1a1919'
SUN_COLOR = '#ffff66'
SUN_RADIUS = 5
MOON_COLOR = '#999999'
MOON_RADIUS = 3
STROKE_WIDTH = '1'
FILENAME = '/etc/openhab2/html/shaddow.svg'
LATITUDE = XXX
LONGITUDE = XXX
ALTITUDE = XXX
# Shape of the house in a 100 by 100 units square
SHAPE = [{'x': 16.37, 'y': 62.07}, \
{'x': 28.32, 'y': 40.16}, \
{'x': 38.68, 'y': 74.68}]
HOURS = 1
DEGS = []
class shadow(object):
"""
Shadow Object
"""
def __init__(self):
self.debug = False
self.astr = Astral()
timezone = pytz.timezone('Europe/Prague') # Enter your time zone
self.l = Location(('HOME', 'YOUR TOWN', LATITUDE, LONGITUDE, 'Europe/Prague', ALTITUDE))
self.sun = self.l.sun()
self.now = timezone.localize(datetime.now())
self.nowUTC = datetime.utcnow()
self.sun_azimuth = float(self.astr.solar_azimuth(self.now, LATITUDE, LONGITUDE))
print('Sun azimuth: ' + str(self.sun_azimuth))
self.sun_elevation = float(self.astr.solar_elevation(self.now, LATITUDE, LONGITUDE))
print('Sun elevation: ' + str(self.sun_elevation))
self.sunrise_azimuth = float(self.astr.solar_azimuth(self.sun['sunrise'], LATITUDE, LONGITUDE))
self.sunset_azimuth = float(self.astr.solar_azimuth(self.sun['sunset'], LATITUDE, LONGITUDE))
for i in xrange(0, 24, HOURS):
a = float(self.astr.solar_azimuth(timezone.localize(datetime.combine(date.today(), time(i))), LATITUDE, LONGITUDE))
if (a == None): a = 0
DEGS.extend([float(a)])
self.moon_info = pylunar.MoonInfo(self.decdeg2dms(LATITUDE), self.decdeg2dms(LONGITUDE))
self.moon_info.update(self.nowUTC)
self.moon_azimuth = self.moon_info.azimuth()
print('Moon azimuth: ' + str(self.moon_azimuth))
self.moon_elevation = self.moon_info.altitude()
print('Moon elevation: ' + str(self.moon_elevation))
if (self.sun_elevation>0):
self.elevation = self.sun_elevation
else:
self.elevation = self.moon_elevation
#
#
#
def decdeg2dms(self,dd):
negative = dd < 0
dd = abs(dd)
minutes,seconds = divmod(dd*3600,60)
degrees,minutes = divmod(minutes,60)
if negative:
if degrees > 0:
degrees = -degrees
elif minutes > 0:
minutes = -minutes
else:
seconds = -seconds
return (degrees,minutes,seconds)
#
#
#
def generatePath(self,stroke,fill,points,attrs=None):
p = ''
p = p + '<path stroke="' + stroke + '" stroke-width="' + STROKE_WIDTH + '" fill="' + fill + '" '
if (attrs != None): p = p + ' ' + attrs + ' '
p = p + ' d="'
for point in points:
if (points.index(point) == 0):
p = p + 'M' + str(point['x']) + ' ' + str(point['y'])
else:
p = p + ' L' + str(point['x']) + ' ' + str(point['y'])
p = p + '" />'
return p
#
#
#
def generateArc(self,dist,stroke,fill,start,end,attrs=None):
p = ''
try:
angle = end-start
if (angle<0):
angle = 360 + angle
p = p + '<path d="M' + str(self.degreesToPoint(start,dist)['x']) + ' ' + str(self.degreesToPoint(start,dist)['y']) + ' '
p = p + 'A' + str(dist) + ' ' + str(dist) + ' 0 '
if (angle<180):
p = p + '0 1 '
else:
p = p + '1 1 '
p = p + str(self.degreesToPoint(end,dist)['x']) + ' ' + str(self.degreesToPoint(end,dist)['y']) + '"'
p = p + ' stroke="' + stroke + '"'
if (fill != None):
p = p + ' fill="' + fill + '" '
else:
p = p + ' fill="none" '
if (attrs != None):
p = p + ' ' + attrs + ' '
else:
p = p + ' stroke-width="' + STROKE_WIDTH + '"'
p = p + ' />'
except:
p = ''
return p
#
#
#
def degreesToPoint(self,d,r):
coordinates = {'x': 0, 'y': 0}
cx = WIDTH / 2
cy = HEIGHT / 2
d2 = 180 - d
coordinates['x'] = cx + math.sin(math.radians(d2))*r
coordinates['y'] = cy + math.cos(math.radians(d2))*r
return coordinates
#
#
#
def generateSVG(self):
realSun_pos = self.degreesToPoint(self.sun_azimuth, 10000)
realMoon_pos = self.degreesToPoint(self.moon_azimuth, 10000)
if self.debug:
print(realSun_pos)
sun_pos = self.degreesToPoint(self.sun_azimuth, WIDTH / 2)
moon_pos = self.degreesToPoint(self.moon_azimuth, WIDTH / 2)
minPoint = -1
maxPoint = -1
i = 0
minAngle = 999
maxAngle = -999
if(self.sun_elevation>0):
angle_pos = sun_pos
real_pos = realSun_pos
else:
angle_pos = moon_pos
real_pos = realMoon_pos
for point in SHAPE:
#Angle of close light source
angle = -math.degrees(math.atan2(point['y']-angle_pos['y'],point['x']-angle_pos['x']))
#Angle of distant light source (e.g. sun_pos)
angle = -math.degrees(math.atan2(point['y']-real_pos['y'],point['x']-real_pos['x']))
distance = math.sqrt(math.pow(angle_pos['y']-point['y'],2) + math.pow(angle_pos['x']-point['x'],2))
if (angle<minAngle):
minAngle = angle
minPoint = i
if (angle>maxAngle):
maxAngle = angle
maxPoint = i
point['angle'] = angle
point['distance'] = distance
if self.debug:
print(str(i).ljust(10),":", str(point['x']).ljust(10), str(point['y']).ljust(10), str(round(angle,7)).ljust(10), str(round(distance)).ljust(10))
i = i + 1
if self.debug:
print("Min Point = ",minPoint)
print("Max Point = ",maxPoint)
print("")
i = minPoint
k = 0
side1Distance = 0
side2Distance = 0
side1Done = False
side2Done = False
side1 = []
side2 = []
while True:
if (side1Done == False):
side1Distance = side1Distance + SHAPE[i]['distance']
if(i != minPoint and i != maxPoint): SHAPE[i]['side'] = 1
if (i == maxPoint): side1Done = True
side1.append( { 'x': SHAPE[i]['x'], 'y': SHAPE[i]['y'] } )
if (side1Done == True):
side2Distance = side2Distance + SHAPE[i]['distance']
if(i != minPoint and i != maxPoint): SHAPE[i]['side'] = 2
if (i == minPoint): side2Done = True
side2.append( { 'x': SHAPE[i]['x'], 'y': SHAPE[i]['y'] } )
i = i + 1
if( i > len(SHAPE)-1): i = 0
if (side1Done and side2Done): break
k = k + 1
if (k == 20): break
svg = '<?xml version="1.0" encoding="utf-8"?>'
svg = svg + '<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">'
svg = svg + '<svg version="1.1" id="Layer_1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" x="0px" y="0px" viewBox="-10 -10 120 120" xml:space="preserve">'
# background
svg = svg + '<circle cx="' + str(WIDTH/2) + '" cy="' + str(HEIGHT/2) + '" r="' + str(WIDTH/2-1) + '" fill="' + BG_COLOR + '"/>'
minPointShadowX = SHAPE[minPoint]['x'] + WIDTH * math.cos(math.radians(minAngle))
minPointShadowY = SHAPE[minPoint]['y'] - HEIGHT * math.sin(math.radians(minAngle))
maxPointShadowX = SHAPE[maxPoint]['x'] + WIDTH * math.cos(math.radians(maxAngle))
maxPointShadowY = SHAPE[maxPoint]['y'] - HEIGHT * math.sin(math.radians(maxAngle))
shadow = [ {'x': maxPointShadowX, 'y': maxPointShadowY } ] + \
side2 + \
[ {'x': minPointShadowX, 'y': minPointShadowY } ]
svg = svg + '<defs><mask id="shadowMask">'
svg = svg + ' <rect width="100%" height="100%" fill="black"/>'
svg = svg + ' <circle cx="' + str(WIDTH/2) + '" cy="' + str(HEIGHT/2) + '" r="' + str(WIDTH/2-1) + '" fill="white"/>'
svg = svg + '</mask></defs>'
svg = svg + self.generatePath('none',PRIMARY_COLOR,SHAPE)
shadow_svg = self.generatePath('none','black',shadow,'mask="url(#shadowMask)" fill-opacity="0.5"')
if (self.elevation>0):
svg = svg + self.generatePath(LIGHT_COLOR,'none',side1)
else:
svg = svg + self.generatePath(PRIMARY_COLOR,'none',side2)
if (self.elevation>0): svg = svg + shadow_svg
svg = svg + self.generateArc(WIDTH/2,PRIMARY_COLOR,'none',self.sunset_azimuth,self.sunrise_azimuth)
svg = svg + self.generateArc(WIDTH/2,LIGHT_COLOR,'none',self.sunrise_azimuth,self.sunset_azimuth)
svg = svg + self.generatePath(LIGHT_COLOR,'none',[self.degreesToPoint(self.sunrise_azimuth,WIDTH/2-2), self.degreesToPoint(self.sunrise_azimuth,WIDTH/2+2)])
svg = svg + self.generatePath(LIGHT_COLOR,'none',[self.degreesToPoint(self.sunset_azimuth,WIDTH/2-2), self.degreesToPoint(self.sunset_azimuth,WIDTH/2+2)])
for i in range(0,len(DEGS)):
if (i == len(DEGS)-1):
j = 0
else:
j = i + 1
if (i % 2 == 0):
svg = svg + self.generateArc(WIDTH/2+8,PRIMARY_COLOR,'none',DEGS[i],DEGS[j],'stroke-width="3" stroke-opacity="0.2"')
else:
svg = svg + self.generateArc(WIDTH/2+8,PRIMARY_COLOR,'none',DEGS[i],DEGS[j],'stroke-width="3" ')
svg = svg + self.generatePath(LIGHT_COLOR,'none',[self.degreesToPoint(DEGS[0],WIDTH/2+5), self.degreesToPoint(DEGS[0],WIDTH/2+11)])
svg = svg + self.generatePath(LIGHT_COLOR,'none',[self.degreesToPoint(DEGS[(len(DEGS))/2],WIDTH/2+5), self.degreesToPoint(DEGS[(len(DEGS))/2],WIDTH/2+11)])
# moon drawing: compute left and right arcs
phase = self.astr.moon_phase(self.now)
if self.debug:
print('phase: ' + str(phase))
left_radius=MOON_RADIUS
left_sweep=0
right_radius=MOON_RADIUS
right_sweep=0
if (phase > 14):
right_radius = MOON_RADIUS - (2.0*MOON_RADIUS* (1.0 - ((phase%14)*0.99 / 14.0)))
if (right_radius < 0):
right_radius = right_radius * -1.0
right_sweep = 0
else:
right_sweep = 1
if (phase < 14):
left_radius = MOON_RADIUS - (2.0*MOON_RADIUS* (1.0 - ((phase%14)*0.99 / 14.0)))
if (left_radius < 0):
left_radius = left_radius * -1.0
left_sweep = 1
if (self.moon_elevation>0):
svg = svg + '<path stroke="none" stroke-width="0" fill="' + MOON_COLOR \
+ '" d="M ' + str(moon_pos['x']) + ' ' + str(moon_pos['y']-MOON_RADIUS) \
+ ' A ' + str(left_radius) + ' ' + str(MOON_RADIUS) + ' 0 0 ' + str(left_sweep) + ' ' + str(moon_pos['x']) + ' ' + str(moon_pos['y']+MOON_RADIUS) \
+ ' ' + str(right_radius) + ' ' + str(MOON_RADIUS) + ' 0 0 ' + str(right_sweep) + ' ' + str(moon_pos['x']) + ' ' + str(moon_pos['y']-MOON_RADIUS) + ' z" />'
# sun drawing
if (self.sun_elevation>0):
svg = svg + '<circle cx="' + str(sun_pos['x']) + '" cy="' + str(sun_pos['y']) + '" r="' + str(SUN_RADIUS) + '" stroke="none" stroke-width="0" fill="' + SUN_COLOR + '55" />'
svg = svg + '<circle cx="' + str(sun_pos['x']) + '" cy="' + str(sun_pos['y']) + '" r="' + str(SUN_RADIUS -1) + '" stroke="none" stroke-width="0" fill="' + SUN_COLOR + '99" />'
svg = svg + '<circle cx="' + str(sun_pos['x']) + '" cy="' + str(sun_pos['y']) + '" r="' + str(SUN_RADIUS -2) + '" stroke="' + SUN_COLOR + '" stroke-width="0" fill="' + SUN_COLOR + '" />'
svg = svg + '</svg>'
if self.debug:
print(svg)
f = open(FILENAME, 'w')
f.write(svg)
f.close()
def main():
t1 = datetime.now()
s = shadow()
args = sys.argv
if(len(args) == 1):
dummy = 0
#print('\033[91mNo parameters specified\033[0;0m')
else:
if(args[1] == "update"):
s.generateSVG()
t2 = datetime.now()
print("Done in " + str(t2-t1) + " seconds")
if __name__ == '__main__':
main()
I stuck with the convert error of Sunrise_Azimuth Item
16:11:35.640 [INFO ] [clipse.smarthome.model.script.Shaddow] - Successfully got state from OpenHab: Sun_Azimuth
Successfully got state from OpenHab: Sun_Elevation
Successfully got state from OpenHab: Sunrise_Azimuth
Traceback (most recent call last):
File “/etc/openhab2/scripts/shaddow.py”, line 249, in
main()
File “/etc/openhab2/scripts/shaddow.py”, line 235, in main
s = shaddow()
File “/etc/openhab2/scripts/shaddow.py”, line 46, in init
self.sunrise_azimuth = float(self.oh.getState(‘Sunrise_Azimuth’))
ValueError: could not convert string to float: NULL
values from influxdb looks good, since the script is running for a few days now:
select * from “Sun_Azimuth”
name: Sun_Azimuth
time value
…
…
…
1563058800302000000 353.4056682666371
1563062400012000000 7.785783228662439
1563066000012000000 21.899547402426805
the Sun_Azimuth ItemChangedEvent returns:
16:11:35.060 [INFO ] [smarthome.event.ItemStateChangedEvent] - Sun_Azimuth changed from 268.235249080293 to 269.24698230499183
astro.items
Number Sun_Azimuth “Azimuth” (Astro) { channel=“astro:sun:home:position#azimuth” }
Number Sunrise_Azimuth
Number Sunset_Azimuth
astro.things
astro:sun:home [ geolocation=“53.385087, 10.549860,100”, interval=300 ]
astro:moon:home [ geolocation=“53.385087, 10.549860”, interval=300 ]
My guess the sunset and sunrise rule are not triggert, but don’t know what’s wrong here??
rule “Sunset Rule”
when
Channel ‘astro:sun:local:set#event’ triggered START
thenpostUpdate(Sunset_Azimuth,Sun_Azimuth.state) logInfo("Shaddow","Setting Sunset Azimuth.")end
rule “Sunrise Rule”
when
Channel ‘astro:sun:local:rise#event’ triggered START
thenpostUpdate(Sunrise_Azimuth,Sun_Azimuth.state) logInfo("Shaddow","Setting Sunrise Azimuth.")end
Hope some one could help me with this
Cheers
astro.things file content?
Astro binding is loaded (karaf bundle list -s | grep astro)?
