Binding for BBQKees EMS Gateway (Buderus, Junkers thermostats controlling)

Hello,

are you aware about any binding possibility for BBQKees EMS Gateway which connects in parallel of your thermostats and allows to control of your boiler and home thermostat for various vendors like Buderus, Junkers, etc.?

It is being sold here: https://bbqkees-electronics.nl/product/gateway-premium-ii/

Thank you for any hint

1 Like

Interesting.
From what I read you can use mqtt to interface with openHab.
Should not be to complicated - but I have not used this device, so I´m not able to help you further.

Yes, that is my idea that I will check in existing Domoticz plugin for available messages and commands, but just wanted to check if something already didn’t exist for openhab as well as I think that Buderus and Junkers boilers are very common…

I run a Junkers heating with the MBLan2 Gateway using the KM200 binding by @Markinus
The KM200 Gateway links to a Bosch Webinterface.

As you see: It all is more or less the same :wink:

Hello, have you used this product? I’m thinking of buying.

Just ordered on for testing purpose as your post reminded me :wink:. Will let you know the results as soon as I find time to attach it.

Besides that the km200-Binding is running really fine here, I only want to check out this different approach.

I will be looking forward to the results. :wink: Thank you.

Short update on the status of my findings:

  • Connecting the device was straight forward, you can simple plug in the cable into the service connector
  • Connecting to the WiFi is easy, it spans a hotspot where you can configure the SID etc.
  • My boiler was unknown to the firmware, it showed up as unknown. Developer fixed this within 30 minutes and provided a build for it. Very impressive!
  • Configuring MQTT and connecting to mosquitto worked as expected

Connecting to openHAB is easily been done:

  • configure the gateway to support the HA auto discovery
  • In openHAB create an MQTT thing based on Home Assistant MQTT Component
    openHAB then auto-discovers the gateway with its things (e.g. the boiler).

Where I currently struggle is that certain Number channels deliver a blank space as a value and OH complains that this is not valid.
But that is likely to be a misconfiguration from my side as I did not have the time to dig deeper into it.

Before connecting to OH a think you should let the device run for some hours so that it captures all available channels (At least for me not everyting was shown immediately).
Then start with some channels first, do not link then all at once, as this makes it hard to figure out what might be wrong (see above).

As soon as I find some time I’ll write an how-to describing the steps in detail.

So overall my impression is quite positive, it works as promised and it does not rely on calculating the secret keys as required for the KM200 solution, making it more stable against firmware changes because it connects directly to the bus. In addition it does not require a special binding, MQTT can be used.

Shifting from KM200 to EMS-ESP is a bit work as you have to recreate many things. But you can run the km200 in parallel which makes it easy to do it step by step.

Guess I found the reason for the errors shown:
According to the mqtt binding documentation the “climate” component is not yet supported.

This causes some exceptions showing up in the log:


2021-01-11 16:34:55.916 [WARN ] [mqtt.homeassistant.internal.CFactory] - Not supported

java.lang.UnsupportedOperationException: Component:Climate not supported yet

	at org.openhab.binding.mqtt.homeassistant.internal.ComponentClimate.<init>(ComponentClimate.java:38) ~[bundleFile:?]

	at org.openhab.binding.mqtt.homeassistant.internal.CFactory.createComponent(CFactory.java:69) [bundleFile:?]

	at org.openhab.binding.mqtt.homeassistant.internal.DiscoverComponents.processMessage(DiscoverComponents.java:99) [bundleFile:?]

	at org.openhab.core.io.transport.mqtt.internal.Subscription.processMessage(Subscription.java:85) [bundleFile:?]

	at org.openhab.core.io.transport.mqtt.internal.Subscription.lambda$1(Subscription.java:81) [bundleFile:?]

	at java.util.stream.ForEachOps$ForEachOp$OfRef.accept(ForEachOps.java:183) [?:?]

	at java.util.concurrent.ConcurrentHashMap$KeySpliterator.forEachRemaining(ConcurrentHashMap.java:3566) [?:?]

	at java.util.stream.AbstractPipeline.copyInto(AbstractPipeline.java:484) [?:?]

	at java.util.stream.ForEachOps$ForEachTask.compute(ForEachOps.java:290) [?:?]

	at java.util.concurrent.CountedCompleter.exec(CountedCompleter.java:746) [?:?]

	at java.util.concurrent.ForkJoinTask.doExec(ForkJoinTask.java:290) [?:?]

	at java.util.concurrent.ForkJoinTask.doInvoke(ForkJoinTask.java:408) [?:?]

	at java.util.concurrent.ForkJoinTask.invoke(ForkJoinTask.java:736) [?:?]

	at java.util.stream.ForEachOps$ForEachOp.evaluateParallel(ForEachOps.java:159) [?:?]

	at java.util.stream.ForEachOps$ForEachOp$OfRef.evaluateParallel(ForEachOps.java:173) [?:?]

	at java.util.stream.AbstractPipeline.evaluate(AbstractPipeline.java:233) [?:?]

	at java.util.stream.ReferencePipeline.forEach(ReferencePipeline.java:497) [?:?]

	at java.util.stream.ReferencePipeline$Head.forEach(ReferencePipeline.java:661) [?:?]

	at org.openhab.core.io.transport.mqtt.internal.Subscription.messageArrived(Subscription.java:81) [bundleFile:?]

	at org.openhab.core.io.transport.mqtt.internal.Subscription.messageArrived(Subscription.java:66) [bundleFile:?]

	at com.hivemq.client.internal.mqtt.mqtt3.Mqtt3AsyncClientView.lambda$callbackView$1(Mqtt3AsyncClientView.java:73) [bundleFile:?]

	at com.hivemq.client.internal.mqtt.MqttAsyncClient$CallbackSubscriber.onNext(MqttAsyncClient.java:227) [bundleFile:?]

	at com.hivemq.client.internal.mqtt.MqttAsyncClient$CallbackSubscriber.onNext(MqttAsyncClient.java:212) [bundleFile:?]

	at com.hivemq.client.rx.FlowableWithSingle$SingleFutureSubscriber.onNext(FlowableWithSingle.java:377) [bundleFile:?]

	at com.hivemq.client.internal.rx.operators.FlowableWithSingleCombine$SplitSubscriber$Default.tryOnNextActual(FlowableWithSingleCombine.java:206) [bundleFile:?]

	at com.hivemq.client.internal.rx.operators.FlowableWithSingleCombine$SplitSubscriber.tryOnNext(FlowableWithSingleCombine.java:171) [bundleFile:?]

	at io.reactivex.internal.operators.flowable.FlowableObserveOn$ObserveOnConditionalSubscriber.runAsync(FlowableObserveOn.java:649) [bundleFile:?]

	at io.reactivex.internal.operators.flowable.FlowableObserveOn$BaseObserveOnSubscriber.run(FlowableObserveOn.java:176) [bundleFile:?]

	at io.reactivex.internal.schedulers.ScheduledRunnable.run(ScheduledRunnable.java:66) [bundleFile:?]

	at io.reactivex.internal.schedulers.ScheduledRunnable.call(ScheduledRunnable.java:57) [bundleFile:?]

	at java.util.concurrent.FutureTask.run(FutureTask.java:264) [?:?]

	at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:304) [?:?]

	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128) [?:?]

	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628) [?:?]

	at java.lang.Thread.run(Thread.java:834) [?:?]

So I´d say that the related things / channels need to be configured manually. What a pitty.

Does anybody know if there are plans / ongoing developments to support the component ?

Hi Thomas,

I provided the device and connected it to the boiler. The seller was very supportive in this regard.

Now information is coming from mqtt.

How do I integrate this with openhab? I need your help in this matter.

Mmmh… you are right:

## Limitations

* The HomeAssistant Fan Components only support ON/OFF.
* The HomeAssistant Cover Components only support OPEN/CLOSE/STOP.
* The HomeAssistant Light Component only supports RGB color changes.
* The HomeAssistant Climate Components is not yet supported.

Maybe opening an issue in openhab-addons and asking for adding then climate component could be an idea?

First install a MQTT Broker (E.g. mosquito), then enable MQTT in the ems-esp and do not use. the HA format for it.
Then install the MQTT binding and connect it to the broker.
If not already active install the JSONPath transformation (Settings -> Transformations -> “Plus”-Sign).

After this you can start configuring your mqtt things in OH.

Here something I set up for the boiler. Everything read-only except “burnMaxPower” which is not working yet.

label: Boiler Data
thingTypeUID: mqtt:topic
configuration: {}
bridgeUID: mqtt:broker:mosquitto
channels:
  - id: heatingActive
    channelTypeUID: mqtt:switch
    label: Heating Active
    description: ""
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.heatingActive
      off: off
      on: on
  - id: tapwaterActive
    channelTypeUID: mqtt:switch
    label: Tap Water Active
    description: ""
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.tapwaterActive
      off: off
      on: on
  - id: curBurnPow
    channelTypeUID: mqtt:number
    label: Burner Power (current)
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.curBurnPow
      unit: "%"
  - id: selBurnPow
    channelTypeUID: mqtt:number
    label: Burner Power (selected)
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.selBurnPow
      unit: "%"
  - id: burnGas
    channelTypeUID: mqtt:switch
    label: Burner Gas Active
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.burnGas
      off: off
      on: on
  - id: heatPump
    channelTypeUID: mqtt:switch
    label: Heat Pump Active
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.heatPump
      off: off
      on: on
  - id: fanWork
    channelTypeUID: mqtt:switch
    label: Fan Working
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.fanWork
      off: off
      on: on
  - id: ignWork
    channelTypeUID: mqtt:switch
    label: Ignition working
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.ignWork
      off: off
      on: on
  - id: pumpMod
    channelTypeUID: mqtt:number
    label: Pump Modulation
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.pumpMod
      unit: "%"
  - id: outdoorTemp
    channelTypeUID: mqtt:number
    label: Outdoor Temperature
    description: ""
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.outdoorTemp
      unit: °C
  - id: maintenance
    channelTypeUID: mqtt:switch
    label: Maintenance
    description: null
    configuration:
      postCommand: true
      transformationPatternOut: JSONPATH:$.maintenance
      commandTopic: ems-esp/boiler_data
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.maintenance
      off: off
      on: on
  - id: curFlowTemp
    channelTypeUID: mqtt:number
    label: Flow Temperature (current)
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.curFlowTemp
      unit: °C
  - id: heatingTemp
    channelTypeUID: mqtt:number
    label: Heating Temperature
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.heatingTemp
      unit: °C
  - id: burnStarts
    channelTypeUID: mqtt:number
    label: Burner Starts
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.burnStarts
  - id: burnWorkMin
    channelTypeUID: mqtt:number
    label: Burner Working Minutes
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.burnWorkMin
      unit: min
  - id: heatWorkMin
    channelTypeUID: mqtt:number
    label: Heating Work Minutes
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.heatWorkMin
      unit: min
  - id: pumpModMax
    channelTypeUID: mqtt:number
    label: Pump Modulation (max)
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.pumpModMax
      unit: "%"
  - id: pumpModMin
    channelTypeUID: mqtt:number
    label: Pump Modulation (min)
    description: null
    configuration:
      postCommand: true
      unit: "%"
      min: 0
      max: 100
      commandTopic: ems-esp/boiler_data
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.pumpModMin
  - id: flameCurr
    channelTypeUID: mqtt:number
    label: Flame Current
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.heatingTemp
      unit: ÎĽA
  - id: selFlowTemp
    channelTypeUID: mqtt:number
    label: Flow Temperature (selected)
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.selFlowTemp
      unit: °C
  - id: heatingActivated
    channelTypeUID: mqtt:switch
    label: Heating Activated
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.heatingActivated
      off: off
      on: on
  - id: burnMinPower
    channelTypeUID: mqtt:number
    label: Burner Power (Minimum)
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.burnMinPower
      unit: "%"
  - id: burnMaxPower
    channelTypeUID: mqtt:number
    label: Burner Power (Maximum)
    description: null
    configuration:
      postCommand: true
      unit: "%"
      min: 0
      transformationPatternOut: '{"cmd":"burnmaxpower", "data":%s}'
      max: 100
      commandTopic: ems-esp/boiler
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.burnMaxPower
  - id: burnMinPeriod
    channelTypeUID: mqtt:number
    label: Burner Period (Minimum)
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.burnMinPeriod
      unit: min
  - id: pumpDelay
    channelTypeUID: mqtt:number
    label: Pump Delay
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.pumpDelay
      unit: min
  - id: boilHystOn
    channelTypeUID: mqtt:number
    label: Boiler Hysteresis On
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.boilHystOn
      unit: °C
  - id: boilHystOff
    channelTypeUID: mqtt:number
    label: Boiler Hysteresis Off
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.boilHystOff
      unit: °C
  - id: UBAuptime
    channelTypeUID: mqtt:number
    label: UBA Uptime
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.UBAuptime
      unit: min
  - id: serviceCode
    channelTypeUID: mqtt:string
    label: Service Code
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.serviceCode
  - id: serviceCodeNumber
    channelTypeUID: mqtt:string
    label: Service Code Number
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.serviceCodeNumber
  - id: lastCode
    channelTypeUID: mqtt:string
    label: Service Code (last)
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.lastCode
  - id: maintenanceMessage
    channelTypeUID: mqtt:string
    label: Maintenance Message
    description: null
    configuration:
      stateTopic: ems-esp/boiler_data
      transformationPattern: JSONPATH:$.maintenanceMessage

Your channels will differ as they depend on the boiler installed, so take this as an example.
I do not claim this to be error free.
It’s a hell of a typing and clicking to get this up and running…

But more important:
With the current firmware I see periodical breakdowns in the mqtt publishing from the ems-esp to the broker. Disabling the mqtt on the device and reenabling it solves it. Might be a memory issue, but I’m not familiar with the firmware code.

Firmware version is 2.2.2-dev(38a443e) - but that an intermediate development build with added support for my Cerapur Aero which was not recognised before.
Will have to monitor this and check on the forum if this is well known and being worked on - otherwise we need to file a bug report in the ems-esp GIT repository.

Hope this helps a bit and save a lot of typing…

2 Likes

Hi Thomas, thank you so much for your help. I am novice in this matter, my mqtt system is working. I’ve never done JSONPath transformation before. I would appreciate it if you could tell me step by step what to do. I am thankful to you.

Me too ;-). I figured out by reading the docs and scanning the forum.

The basic thing is that in you channels you define the mqtt-topic you want to link to.
In case the topic holds a JSON value, you use the transformation service to access only the single attribute within the JSON that is of interest.

Example from above:

stateTopic: ems-esp/boiler_data
transformationPattern: JSONPATH:$.heatingActive

The ems-esp publishes (depending on the settings in the MQTT section of the device) under the top level topic “ems-esp”. Below you find the devices it is providing data for (e.g. "boiler_data) in a JSON String.
In this example is was interested in the “heatingActive” attribute value within the JSON.
In the UI you find this in Thing-Channels->Configure Channel. You have to tick the “Show Advanced” box.

More details and (textual)examples can be found in the documentation and in various posts in the forum.

Sorry for replying somehow short, but I’m a bit busy at the moment.

To which file should I write this?

The long example above is a textual definition of a thing and it’s channels in OH3.
You can create a mqtt thing, switch to the code tab and paste it over the code there (but ensure to keep the ID of your thing).
I’d suggest you make yourself more familiar with OH3 and how to manage things based on a more simple scenarios before setting up more complex things.

I am so sorry. I did not understand. I would be pleased if you describe it as a picture. I took your time, forgive me.

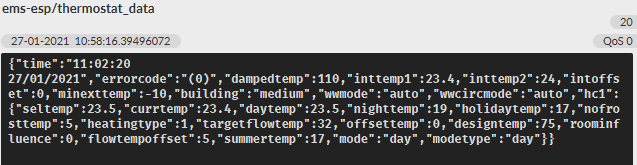

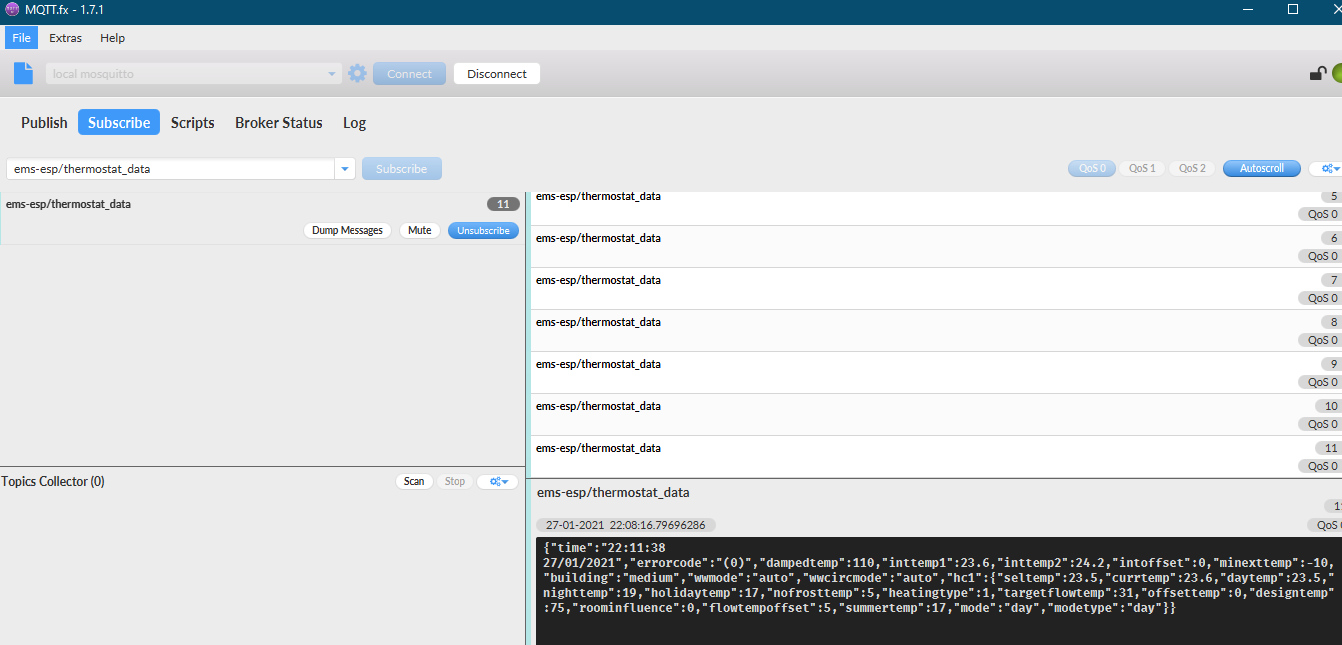

When I connect from mqtt, the data is as in the picture above. How do I properly shred this incoming data. I do not understand there.

This is where the transformation kicks in, you create the thing, the channel is linked to the topic and the transformation selects the detail information you want.
Some screenshot of the channel from my mobile as I’m not at home.



Just try the procedure to create the thing from the example I gave you and you can explore the settings.

thank you so much. I will try and give you information.
