Eltako FAE14SSR / FHK14 / F4HK14 and Enocean Binding

Hi,

after having connected FSR14 with Openhab by using the FAM14 USB interface in the next step I would like to control the FAE14SSR from Openhab. In the headline I also added FHK14 and F4HK14 as these use the same protocol but in the following I’ll only use the term FAE14SSR.

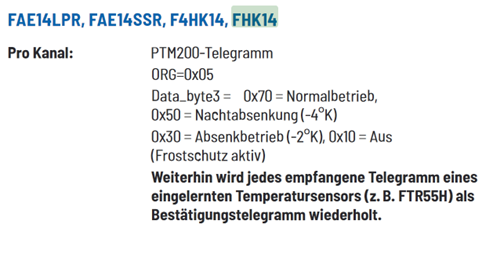

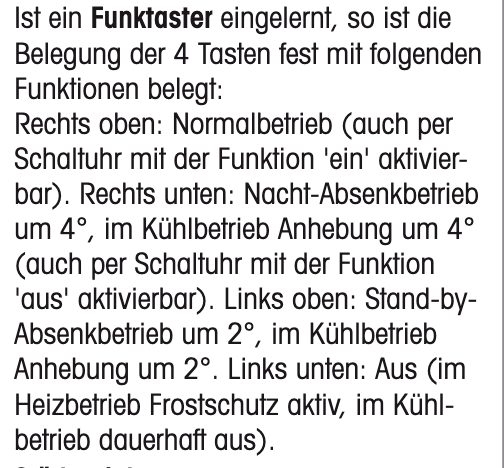

In the Eltako Enocean documentation I was able to find the following protocol documentation for the FAE14SSR (confirmation message):
grafik

In the PCT14 Software the FAE14SSR can be configured with following relevant options:
Funktionsgruppe 1:
grafik
Funktionsgruppe 3:
grafik

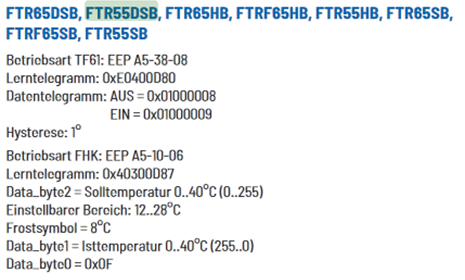

In a standard setup without openhab the FAE14SSR is linked to e.g. a FTR55DSB (roompanel). These sensors use the follwing protocol:
grafik
Thus in PCT14 for the FTR55DSB the “64” A5-10-06 is selected.

I already know that the FAE14SSR needs to get temperature setpoint and Actual temperature inputs to be able to control the room temperature.
My Target is to control the FAE14SSR by Openhab rules so that for example all heatings can be switched off/on independently from the roompanel setpoints. Therefore I would like to influence the FAE14SSR behaviour by sending setpoints to these actors from Openhab rules, e.g. setpoint 40°C ==> heating always on, setpoint 8°C heating always off. The direct setpoint channel from the roompanel to the FAE14SSR must therefore be interupted. The setpoint must be send by using a appropiate EEP. A temperature signal must be sent cyclic, either simulated or forwarded from a roompanel.

It tried the following:
FAE14SSR Thing:

Thing centralCommand ht_OG_H_3_1 "H-OG-Bad-HK" @ "OG Bad" [enoceanId="00000029", senderIdOffset=29, sendingEEPId="A5_10_06", receivingEEPId="F6_00_00", broadcastMessages=true, suppressRepeating=false ] //ID29 FFEAAC29

SetPoint ITEM
Number H_OG_Bad_TempSet_OPENHAB "Setpoint Bad OPENHAB" {channel="enocean:centralCommand:gtwy:ht_OG_H_3_1:setPoint"}

Temperature ITEM (Roompanel) - Roompanel is forwarding the temperature to openhab and fully functional

Number:Temperature H_OG_Bad_Temp "Temperatur Bad" {channel="enocean:roomOperatingPanel:gtwy:pn_H_OG_Bad:temperature",
                                                       channel="enocean:centralCommand:gtwy:ht_OG_H_2_2:temperature",
                                                      channel="enocean:centralCommand:gtwy:ht_OG_H_3_1:temperature"}

Problem is: In the debug window I cannot see that any data is being sent (no sending requests) to the FAE14SSR although it works for other configurations like FSR14-4x…
Any idea how to come a step ahead?

This reminds me of the classical XY Problem … (you ask for help with your solution instead describing what you want to achieve).

The main issue is that neither of your devices is supported directly by the binding nor does Enocean allow to “interrupt” a signal.

If all you want is “switch on/off” the heating via rule then use the capability that the actor provides: teaching in a 4-button switch for these functions:
grafik

Then create a “classic device” in the binding, register it to the actor via PCT14 and use GUI or rules to send the button-presses.
This will give you at least “off and normal” (and “saving”) via rules (normal operations controlled by the roompanel).

Hi Markus,

thanks for that hint, maybe it solves the problem. I have the following use case:
A bathroom heater is connected to the low temperature floor heating system, addtionally I have installed a electric heating device inside the bathroom heater that allows high temperatures.
The idea is that this electric insert will boost the bathroom heater temperature if someone requests it. The request to boost the bathroom temperature for e.g. 30min will come from an FTR55DSB that is already installed in the bathroom. I want to detect the request as a change in setpoint temperature of FTR55DSB. I already found out that this works fine by using a rule. After the request is detected the floor heating system shall be switched off and the electric insert is switched on for 30min so that the heater can reach a higher temperature. After 30min the electric device is switched off and some minutes later the floor heating system is switched on again so that then the heater is supplied from the heating system at least with low temperature.

Your solution would work only if the setpoint is set to a high temperature so that the heating is always switched on. But at least then because I will not use the FTR55SB to control the bathroom temperature - it is not needed as the low temperature floor heating in the bathroom is set to always on and even then the temperature will not overshoot 22°C…

Hi,

today I tried the following:
I left all the Funktionsgruppen empty. In Funktionsgruppe 4 there is the Option to set the FAE14SSR to the mode 29: 4-Fach-Testtaster. I added first the ID of a FT55 normal rockerswitch to the Testtaster and it worked, the FAE14SSR reacts in the right way. Following meassages I find in the debug:
(FROM PHYISCAL WALL ROCKER SWITCH ORIGNAL MESSAGE: ==> Switch to ON confirmed)
0B 05 10 000000 FEF42EA3 30 “PRESSED”
0B 05 00 000000 FEF42EA3 20 “RELEASED”

(FROM PHYISCAL WALL ROCKER SWITCH ORIGNAL MESSAGE: ==> Switch to OFF confirmed)
0B 05 30 000000 FEF42EA3 30 “PRESSED”
0B 05 20 000000 FEF42EA3 20 “RELEASED”

Then I tried to see if I can do the same from OPENHAB. Therefore I added the adress FFFAAC29 to the Funktionsgruppe 4 in the same way like in the Rockerswitch. But with my configuration from OPENHAB I was not able to send the same meassages, and it doesn’t work yet.

I created a classicDevice :

Thing classicDevice

ht_OG_H_3_1 “H-OG-Bad–K” @ “OG Bad” [senderIdOffset=41, sendingEEPId=“F6_02_01”, receivingEEPId=“F6_00_00”, broadcastMessages=true, suppressRepeating=false ]
{
Type virtualSwitchA : virtualSwitchLO [duration=300, switchMode=“toggleButtonDir2”]
Type virtualSwitchA : virtualSwitchLU [duration=300, switchMode=“toggleButtonDir1”]
}

And linked the channel to items as follows:

Switch H_OG_Bad_HK_Switch_OFF “Switch Off” (Heizung_PrioA){channel=“enocean:classicDevice:gtwy:ht_OG_H_3_1:virtualSwitchLU”}
Switch H_OG_Bad_HK_Switch_ON “Switch On” (Heizung_PrioA){channel=“enocean:classicDevice:gtwy:ht_OG_H_3_1:virtualSwitchLO”}

The debug output is:
6B 05 30 000000 FFFAAC29 30
6B 05 00 000000 FFFAAC29 20
or
6B 05 10 000000 FFFAAC29 30
6B 05 00 000000 FFFAAC29 20

After each packet there comes “Unknown/unsupported ESP2Packet:”…

Any hint how to send exactly the same like the pyhsical rocker switch? My bridge is working in the right way as I’am already able to control the FSR14-4x.

Hi Daniel @damator,

your settup looks good to me and the messages are genereated as expected.
6B => TX, 05 => RPS Telegram, 30/10 Press or 00 Release, 000000 unused data, FF… senderId (baseId + 0x29 = 41 decimal), 30/20 CC.
So could you please post the part after “Unknown/unsupported ESP2Packet:”. I would like to know which data you receive here. By the way I am currently advancing the PTM EEP to control a FHK14 and receive its current state.

Best regards
Daniel

Hi Daniel @fruggy83,

an EEP control for FHK14 would be great. To keep all similar to FSR14x4 control it could make sense to use the Setpoint from GVFS in Funktionsgruppe 3. If you need some support for testing then I can help out.
Below you find the LOG and TRACE for Switch OFF control (lower button of the left side):
