ESP8266 / ESP32 and Waveshare E-Paper Display for openHAB

Hardware DIY
, , ,
1

I have some homeoffice-icons and corresponding information:

  • “In a Meeting”
  • “Do Not Disturb”
  • End of Meeting
  • …

I’d like to send those items (and perhaps some cute icons and/or a color) to a e-Paper display just outside the office room. So I don’t get interrupted in calls/meetings in homeoffice. (see Homeoffice Signage )

Has anyone achieved this via an ESP and some e-paper displays? I do find some examples, but I seem to not be able to put them together in that regard, that I am able to send (preferably via MQTT) some information? I found, that there is some similar task for FHEM (sorry german only): Neues Modul: ESPEInk für e-Paper Displays (Name geändert, war ESP8266EInk)

If there is someone, who sends temperatures or other stuff to an E-Ink display, please give me a hint into that direction! thanks!

1 Like
2

I implemented something like this with ESPhome. Works perfect in both directions

From OH to ESP and from ESP to OH.

If needed I can post my ESPhome code here.

3 Likes
3

That would be awesome! …and I seem to fail to connect/configure the correct GPIOs for the display, perhaps you can point me to a decent howto? Every tutorial I found was “using xx to yyy” and then like “boom” everything works, but I can’t get even a simple “Hello World” to the display. Is that wrapped into the ESPHome, so I “only” have to connect the right outputs to the display and am more or less ready to go? :wink:

4

ESPhome covers mostly everything and you just need to write less code. ==> ready to go

What it does:

  • Read and some items from OH via REST-API and displays it at the display
  • Write some items to OH via REST-API
  • OH can control ESPhome variables by sending HTTP requests to ESPhome

Here is my code

esp32:
  board: nodemcu-32s
  framework:
    version: recommended # = stabile version

substitutions:
  openhab_ip: "xxx"
  debughost_ip: "xxx"
  debughost_port: "xx"
  wifi_password: "xxx"
  wifi_ssid: "xxx"
  code_version: "1.26"

esphome:
  name: esp32eink
  comment: esp32eink
  on_boot:
    - priority: 700
      then:
        - delay: 2sec
        - component.update: epaper
        - delay: 100ms
        - component.update: epaper
        - delay: 100ms
        - component.update: epaper
        - delay: 100ms
        - component.update: epaper
        - delay: 100ms
        - lambda: |-
            id(st_openhabmessage02).publish_state( "                                                                         ");
            id(st_openhabmessage03).publish_state( "                                                                         ");
            id(st_openhabmessage04).publish_state( "                                                                         ");
            id(st_openhabmessage05).publish_state( "                                                                         ");
            id(st_openhabescalation).publish_state("                                                                         ");
        - button.press: bu_openhabquerydata
        - button.press: bu_openhabupdatelastevent

# Enable logging
logger:
  level: DEBUG
  logs:
    text_sensor: ERROR
    ultrasonic.sensor: ERROR
    sensor: INFO
    button: ERROR
    ledc.output: ERROR
    rtttl: ERROR
    http_request: ERROR

# Enable Home Assistant API
api:
  reboot_timeout: 0s

ota:
  password: "xxx"

wifi:
  ssid: $wifi_ssid
  password: $wifi_password
  #fast_connect: on
  #power_save_mode: none

  manual_ip:
    static_ip: xx
    gateway: xx
    subnet: xx
    dns1: xx
    dns2: xx

web_server:
  port: 80

# NTP sync
time:
  - platform: sntp
    id: sntp_time
    timezone: xxx
    servers:
      - xxx
    on_time:
      - seconds: 5
        minutes: /5
        then:
          #- logger.log: "every 5min task started"
          - button.press: bu_openhabquerydata
      - seconds: 0
        minutes: /1
        then:
          #- logger.log: "every 1min task started"
          - component.update: epaper
      - seconds: 30
        minutes: 30
        hours: 0
        then:
          - switch.turn_on: sw_DeviceRestart
      - seconds: 30
        minutes: 30
        hours: 12
        then:
          - switch.turn_on: sw_DeviceRestart

http_request:
  useragent: esphome/device
  timeout: 2s
  id: http_request_data

# Example button configuration
button:
  - platform: template
    name: openhabquerydata
    id: bu_openhabquerydata
    on_press:
      then:
        - logger.log: "bu_openhabquerydata pressed"
        - http_request.get:
            url: http://OH-IP:8080/rest/items/nuTempForecast_Max
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        id(se_statustemperaturmax).publish_state(root["state"]);
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/DoorSensor08_Temperature
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        id(se_statustemperaturcurrent).publish_state(root["state"]);
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swBriefkastenPostvorhanden
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statuspostbox).publish_state(false);
                        } else {
                          id(bs_statuspostbox).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/ADAM6050_01_DI11
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "CLOSED") {
                          id(bs_statusbathwindow).publish_state(false);
                        } else {
                          id(bs_statusbathwindow).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swRainSensor01_State
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statusrain).publish_state(false);
                        } else {
                          id(bs_statusrain).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swSchattenUltraHot
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statusultrahot).publish_state(false);
                        } else {
                          id(bs_statusultrahot).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swSchattenGaragenseiteRunter
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statusschattengaragerunter).publish_state(false);
                        } else {
                          id(bs_statusschattengaragerunter).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swSchattenGaragenseiteHoch
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statusschattengaragehoch).publish_state(false);
                        } else {
                          id(bs_statusschattengaragehoch).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swSchattenStrassenseiteRunter
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statusschattenstrasserunter).publish_state(false);
                        } else {
                          id(bs_statusschattenstrasserunter).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swSchattenStrassenseiteHoch
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statusschattenstrassehoch).publish_state(false);
                        } else {
                          id(bs_statusschattenstrassehoch).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swSchattenTerrassenseiteRunter
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statusschattenterrasserunter).publish_state(false);
                        } else {
                          id(bs_statusschattenterrasserunter).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swSchattenTerrassenseiteHoch
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statusschattenterrassehoch).publish_state(false);
                        } else {
                          id(bs_statusschattenterrassehoch).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swTrashRestmuellICAL_Alert
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statusmuellrest).publish_state(false);
                        } else {
                          id(bs_statusmuellrest).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swTrashBiomuellICAL_Alert
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statusmuellbio).publish_state(false);
                        } else {
                          id(bs_statusmuellbio).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swTrashGelbersackICAL_Alert
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statusmuellgelbsack).publish_state(false);
                        } else {
                          id(bs_statusmuellgelbsack).publish_state(true);
                        }
                    });
        - http_request.get:
            url: http://OH-IP:8080/rest/items/swTrashPapiertonneICAL_Alert
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        if(root["state"] == "OFF") {
                          id(bs_statusmuellpapier).publish_state(false);
                        } else {
                          id(bs_statusmuellpapier).publish_state(true);
                        }
                    });
        - component.update: epaper
  - platform: template
    name: openhabupdatelastevent
    id: bu_openhabupdatelastevent
    on_press:
      then:
        - logger.log: "bu_openhabupdatelastevent pressed"
        - http_request.get:
            url: http://OH-IP:8080/rest/items/stLastEventTriggered
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    id(st_openhabmessage05).publish_state(id(st_openhabmessage04).state.c_str());
                    id(st_openhabmessage04).publish_state(id(st_openhabmessage03).state.c_str());
                    id(st_openhabmessage03).publish_state(id(st_openhabmessage02).state.c_str());
                    id(st_openhabmessage02).publish_state(id(st_openhabmessage01).state.c_str());
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        id(st_openhabmessage01).publish_state(root["state"]);
                    });
        - component.update: epaper
  - platform: template
    name: openhabupdateescalation_start
    id: bu_openhabupdateescalation_start
    on_press:
      then:
        - logger.log: "bu_openhabupdateescalation_start pressed"
        - http_request.get:
            url: http://OH-IP:8080/rest/items/stEskalationMessage
            headers:
              Content-Type: application/json
            verify_ssl: false
            on_response:
              then:
                - lambda: |-
                    json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                        id(st_openhabescalation).publish_state(root["state"]);
                    });
        - component.update: epaper
        - rtttl.play: 'siren:d=8,o=5,b=100:d,e,d,e'
  - platform: template
    name: openhabupdateescalation_end
    id: bu_openhabupdateescalation_end
    on_press:
      then:
        - logger.log: "bu_openhabupdateescalation_end pressed"
        - lambda: |-
            id(st_openhabescalation).publish_state("                                                                         ");
        - component.update: epaper
        #- rtttl.play: 'oneshort:d=4,o=5,b=100:8e6'
  - platform: template
    name: openhabplaysound
    id: openhabplaysound
    on_press:
      then:
        - rtttl.play: 'oneshort:d=4,o=5,b=100:8e6'

binary_sensor:
  - platform: template
    name: statuspostbox
    id: bs_statuspostbox
  - platform: template
    name: statusbathwindow
    id: bs_statusbathwindow
  - platform: template
    name: statusrain
    id: bs_statusrain
  - platform: template
    name: statusultrahot
    id: bs_statusultrahot
  - platform: template
    name: statusschattengaragerunter
    id: bs_statusschattengaragerunter
  - platform: template
    name: statusschattengaragehoch
    id: bs_statusschattengaragehoch
  - platform: template
    name: statusschattenstrasserunter
    id: bs_statusschattenstrasserunter
  - platform: template
    name: statusschattenstrassehoch
    id: bs_statusschattenstrassehoch
  - platform: template
    name: statusschattenterrasserunter
    id: bs_statusschattenterrasserunter
  - platform: template
    name: statusschattenterrassehoch
    id: bs_statusschattenterrassehoch
  - platform: template
    name: statusmuellbio
    id: bs_statusmuellbio
  - platform: template
    name: statusmuellrest
    id: bs_statusmuellrest
  - platform: template
    name: statusmuellpapier
    id: bs_statusmuellpapier
  - platform: template
    name: statusmuellgelbsack
    id: bs_statusmuellgelbsack

switch:
  - platform: restart
    name: "Device Restart"
    id: sw_DeviceRestart

output:
  - platform: ledc
    pin: GPIO19
    id: rtttl_out

rtttl:
  output: rtttl_out

sensor:
  - platform: wifi_signal
    name: "WiFi-Signal"
    id: wifisignal
    update_interval: 60s
  # Uptime sensor
  - platform: uptime
    id: uptime_s
    update_interval: 1s
    accuracy_decimals: 0
  - platform: template
    name: "statustemperaturcurrent"
    id: se_statustemperaturcurrent
  - platform: template
    name: "statustemperaturmax"
    id: se_statustemperaturmax

text_sensor:
  - platform: version
    name: "Firmware Version"
  - platform: template
    name: "Code-Version:"
    id: CodeVersion
    lambda: |-
      return {"$code_version"};
  - platform: template
    name: "ESP-Uptime"
    id: Uptime_ID
    lambda: |-
      uint32_t dur = id(uptime_s).state;
      int dys = 0;
      int hrs = 0;
      int mnts = 0;
      if (dur > 86399) {
        dys = trunc(dur / 86400);
        dur = dur - (dys * 86400);
      }
      if (dur > 3599) {
        hrs = trunc(dur / 3600);
        dur = dur - (hrs * 3600);
      }
      if (dur > 59) {
        mnts = trunc(dur / 60);
        dur = dur - (mnts * 60);
      }
      char buffer[38];
      sprintf(buffer, "%ud %02uh %02um %02us", dys, hrs, mnts, dur);
      return {buffer};
    update_interval: 1s
  - platform: template
    name: "openhabescalation"
    id: st_openhabescalation
  - platform: template
    name: "openhabmessage01"
    id: st_openhabmessage01
  - platform: template
    name: "openhabmessage02"
    id: st_openhabmessage02
  - platform: template
    name: "openhabmessage03"
    id: st_openhabmessage03
  - platform: template
    name: "openhabmessage04"
    id: st_openhabmessage04
  - platform: template
    name: "openhabmessage05"
    id: st_openhabmessage05

font:
  #https://fontdrop.info/
  - file: ".fonts/arial.ttf"
    id: arial_font_14
    size: 14
  - file: ".fonts/arialbd.ttf"
    id: arialbd_font_14
    size: 14
  - file: ".fonts/arial.ttf"
    id: arial_font_20
    size: 20
  - file: ".fonts/materialdesignicons-webfont.ttf"
    # https://community.home-assistant.io/t/display-materialdesign-icons-on-esphome-attached-to-screen/199790
    # https://cdn.jsdelivr.net/npm/@mdi/font@6.7.96/fonts/
    # https://pictogrammers.github.io/@mdi/font/6.7.96/
    # https://github.com/Templarian/MaterialDesign/issues/6682
    # it.print(32, 24, id(icon_font), TextAlign::CENTER, "\U000F0599");
    id:  material_font_24
    size: 24
    glyphs:
      # Briefkasten
      - "\U000F01EE" # mdi-email
      # Wifi
      - "\U000F0783" # mdi-signal-off
      - "\U000F08BF" # mdi-signal-cellular-outline
      - "\U000F08BC" # mdi-signal-cellular-1
      - "\U000F08BD" # mdi-signal-cellular-2
      - "\U000F08BE" # mdi-signal-cellular-3
      # Rollo
      - "\U000F111C" # mdi-window-shutter
      - "\U000F111E" # mdi-window-shutter-open
      - "\U000F12E5" # mdi-hydro-power
      # Sonstiges
      - "\U000F05AF" # window open
      - "\U000F0596" # mdi-weather-pouring
      - " " # Leerzeichen

spi:
  clk_pin: GPIO18
  mosi_pin: GPIO23
  id: epaper_display

display:
  # 296 (x) x 128 (y) pixel, black and white, SPI-Interface, 3.3V/5V
  # x = 0 - 127
  # y = 0 - 295
  # main.cpp
  - platform: waveshare_epaper
    id: epaper
    cs_pin: GPIO5
    busy_pin: GPIO16
    reset_pin: GPIO21
    dc_pin: GPIO22
    rotation: 90°
    model: 2.90inv2
    update_interval: never
    #full_update_every: 1
    reset_duration: 2ms
    lambda: |-
      //ESP_LOGI("display", "Updating display ...");
      it.printf(  0,   0, id(arial_font_14), TextAlign::TOP_LEFT, "%s", id(st_openhabmessage01).state.c_str());
      it.printf(  0,  16, id(arial_font_14), TextAlign::TOP_LEFT, "%s", id(st_openhabmessage02).state.c_str());
      it.printf(  0,  32, id(arial_font_14), TextAlign::TOP_LEFT, "%s", id(st_openhabmessage03).state.c_str());
      it.printf(  0,  48, id(arial_font_14), TextAlign::TOP_LEFT, "%s", id(st_openhabmessage04).state.c_str());
      it.printf(  0,  64, id(arial_font_14), TextAlign::TOP_LEFT, "%s", id(st_openhabmessage05).state.c_str());
      it.printf(  0,  80, id(arialbd_font_14), TextAlign::TOP_LEFT, "%s", id(st_openhabescalation).state.c_str());

      //######################################################################################################################
      if(id(bs_statusmuellbio).state == true) {
        it.printf(  145, 112, id(arial_font_14), TextAlign::BOTTOM_RIGHT, "%s", "B");
      } else {
        it.printf(  145, 112, id(arial_font_14), TextAlign::BOTTOM_RIGHT, "%s", " ");
      }

      if(id(bs_statusmuellgelbsack).state == true) {
        it.printf(  157, 112, id(arial_font_14), TextAlign::BOTTOM_RIGHT, "%s", "G");
      } else {
        it.printf(  157, 112, id(arial_font_14), TextAlign::BOTTOM_RIGHT, "%s", " ");
      }

      if(id(bs_statusmuellpapier).state == true) {
        it.printf(  167, 112, id(arial_font_14), TextAlign::BOTTOM_RIGHT, "%s", "P");
      } else {
        it.printf(  167, 112, id(arial_font_14), TextAlign::BOTTOM_RIGHT, "%s", " ");
      }

      if(id(bs_statusmuellrest).state == true) {
        it.printf(  178, 112, id(arial_font_14), TextAlign::BOTTOM_RIGHT, "%s", "R");
      } else {
        it.printf(  178, 112, id(arial_font_14), TextAlign::BOTTOM_RIGHT, "%s", " ");
      }

      it.strftime(296, 112, id(arial_font_14), TextAlign::BOTTOM_RIGHT, "%H:%M/%d.%m.%Y", id(sntp_time).now());

      //######################################################################################################################
      it.printf(  0, 131, id(arial_font_14), TextAlign::BOTTOM_LEFT, "%s", id(CodeVersion).state.c_str());

      if((id(bs_statusschattengaragerunter).state == true) && ((id(bs_statusschattengaragehoch).state == false) || (id(bs_statusultrahot).state == true))){
        it.print(  30, 133, id(material_font_24), TextAlign::BOTTOM_LEFT, "\U000F111C");
      } else {
        it.print(  30, 133, id(material_font_24), TextAlign::BOTTOM_LEFT, "\U000F111E");
      }

      if((id(bs_statusschattenstrasserunter).state == true) && ((id(bs_statusschattenstrassehoch).state == false) || (id(bs_statusultrahot).state == true))){
        it.print(  50, 133, id(material_font_24), TextAlign::BOTTOM_LEFT, "\U000F111C");
      } else {
        it.print(  50, 133, id(material_font_24), TextAlign::BOTTOM_LEFT, "\U000F111E");
      }

      if((id(bs_statusschattenterrasserunter).state == true) && ((id(bs_statusschattenterrassehoch).state == false) || (id(bs_statusultrahot).state == true))){
        it.print(  70, 133, id(material_font_24), TextAlign::BOTTOM_LEFT, "\U000F111C");
      } else {
        it.print(  70, 133, id(material_font_24), TextAlign::BOTTOM_LEFT, "\U000F111E");
      }

      if(id(bs_statusultrahot).state == true) {
        it.print(  90, 132, id(material_font_24), TextAlign::BOTTOM_LEFT, "\U000F12E5");
      } else {
        it.print(  90, 132, id(material_font_24), TextAlign::BOTTOM_LEFT, " ");
      }

      if(id(bs_statusrain).state == true) {
        it.print( 138, 133, id(material_font_24), TextAlign::BOTTOM_RIGHT, "\U000F0596");
      } else {
        it.print( 138, 133, id(material_font_24), TextAlign::BOTTOM_RIGHT, " ");
      }

      if(id(bs_statusbathwindow).state == true) {
        it.print( 161, 133, id(material_font_24), TextAlign::BOTTOM_RIGHT, "\U000F05AF");
      } else {
        it.print( 161, 133, id(material_font_24), TextAlign::BOTTOM_RIGHT, " ");
      }

      // WiFi Signal Strenght
      // https://www.screenbeam.com/wifihelp/wifibooster/wi-fi-signal-strength-what-is-a-good-signal/
      if(id(wifisignal).has_state()) {
        if(id(wifisignal).state >= -60) {
          // mdi-signal-cellular-3
          it.print(185, 133, id(material_font_24), TextAlign::BOTTOM_RIGHT, "\U000F08BE");
        } else if (id(wifisignal).state  >= -66) {
          // mdi-signal-cellular-2
          it.print(185, 133, id(material_font_24), TextAlign::BOTTOM_RIGHT, "\U000F08BD");
        } else if (id(wifisignal).state  >= -72) {
          // mdi-signal-cellular-1
          it.print(185, 133, id(material_font_24), TextAlign::BOTTOM_RIGHT, "\U000F08BC");
        } else if (id(wifisignal).state  >= -75) {
          // mdi-signal-cellular-outline
          it.print(185, 133, id(material_font_24), TextAlign::BOTTOM_RIGHT, "\U000F08BF");
        } else {
          // mdi-signal-off
          it.print(185, 133, id(material_font_24), TextAlign::BOTTOM_RIGHT, "\U000F0783");
        }
      }

      if(id(bs_statuspostbox).state == true) {
        it.print( 210, 133, id(material_font_24), TextAlign::BOTTOM_RIGHT, "\U000F01EE");
      } else {
        it.print( 210, 133, id(material_font_24), TextAlign::BOTTOM_RIGHT, " ");
      }

      it.printf(  296, 133, id(arial_font_20), TextAlign::BOTTOM_RIGHT, "%.1f/%.1f", id(se_statustemperaturcurrent).state, id(se_statustemperaturmax).state);

Sorry, long listing :wink:
Sorry for some german OH-ITEM-names

It looks like this:

grafik
grafik1920×875 70.5 KB

Upper part: log what the house does
Lower part: Roller shutter status, Wifi strenght, date/time, outside temp and max temp./trash bin needs to be brought to outside (not seen at the screenshot), rain status, emegency notification (buzzer is played in parallel)

Next thing to do from my side:
Put some hardware buttons to acknowledge some status and send back to OH

4 Likes
5

thanks for the help!

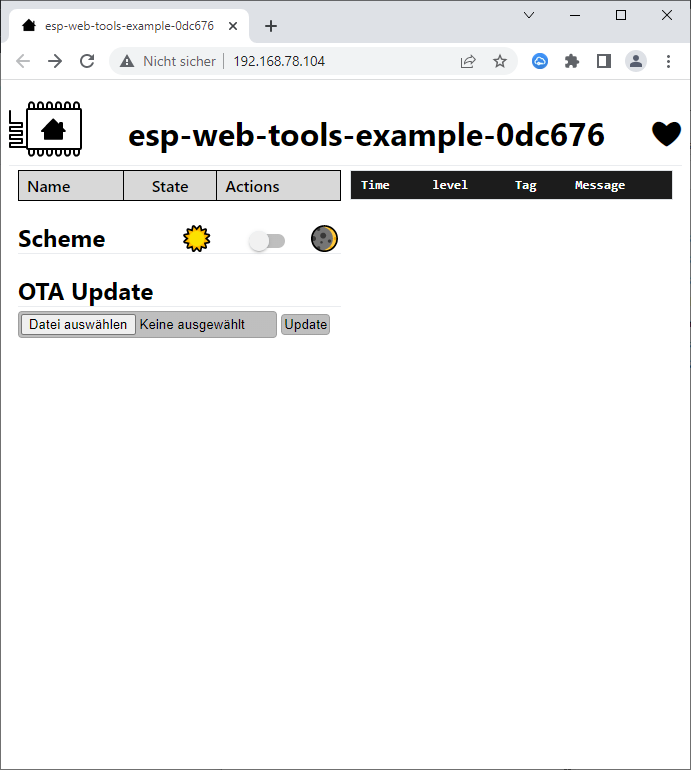

Sorry for asking, but how can I add the YAML of your code? I somehow managed to flash my ESP8266 with ESP Web Tools but then I’m stuck somehow?

grafik
grafik691×770 23.1 KB

What do I do from here? Do I need home assistant for configuration?

6

There’s probably many ways to do this.

I cloned the esphome GitHub source, opened it in vscode as devcontainer, mapped my yaml directory (by changing devcontainer.json)

Then used the esphome cli

esphome run something.yaml

1 Like
7

@HomeAutomation you could probably simplify and DRY your code a lot, esp the rest posts, by using parameterized script. I added that feature several months ago.

I’m curious, you mentioned that you could send a command from openhab to esphome without mqtt but my casual glance on my phone couldn’t see how.

8

To send a command from OH to ESPHome I use the ESPHome API:
example:
sendHttpPostRequest(“http://ESP-ip/button/openhabplaysound/press”, 500)

Can you provide me a hint what you mentioned “by using parameterized script”.

9

Do the full installation of ESPHome:

  1. Install python
  2. Install ESPHome as written in the documentation
  3. Create your first ESP yaml with the wizzard
  4. Adapt my code
  5. flash is as JimT has written
  6. Enjoy
1 Like
10

Thanks! I wasn’t aware of this.

Here I only include the pertinent parts of your yaml… and disclaimer: I haven’t tried to compile this. I am sure there’ll be some syntax errors, but I hope it conveys the idea:

globals:
  # Stores the output of get_openhab_item script
  - id: openhab_status
    type: std::string

# Example button configuration
button:
  - platform: template
    name: openhabquerydata
    id: bu_openhabquerydata
    on_press:
      then:
        - logger.log: "bu_openhabquerydata pressed"
        - lambda: |-
            id(get_openhab_item)->execute("nuTempForecast_Max");
            id(se_statustemperaturmax).publish_state(id(openhab_status));

            id(get_openhab_item)->execute("DoorSensor08_Temperature");
            id(se_statustemperaturcurrent).publish_state(id(openhab_status));

            id(get_openhab_item)->execute("ADAM6050_01_DI11");
            id(bs_statusbathwindow).publish_state(id(openhab_status) != "CLOSED");

            std::map<std::string, binary_sensor::BinarySensor> item_to_sensor_map = {
              {"swBriefkastenPostvorhanden", id(bs_statuspostbox)},
              {"swBriefkastenPostvorhanden", id(bs_statuspostbox)},
              {"swRainSensor01_State", id(bs_statusrain)},
              {"swSchattenUltraHot", id(bs_statusultrahot)},
              {"swSchattenGaragenseiteRunter", id(bs_statusschattengaragerunter)},
              {"swSchattenGaragenseiteHoch", id(bs_statusschattengaragehoch)},
              {"swSchattenStrassenseiteRunter", id(bs_statusschattenstrasserunter)},
              {"swSchattenStrassenseiteHoch", id(bs_statusschattenstrassehoch)},
              {"swSchattenTerrassenseiteRunter", id(bs_statusschattenterrasserunter)},
              {"swTrashRestmuellICAL_Alert", id(bs_statusmuellrest)},
              {"swTrashBiomuellICAL_Alert", id(bs_statusmuellbio)},
              {"swTrashGelbersackICAL_Alert", id(bs_statusmuellgelbsack)},
              {"swTrashPapiertonneICAL_Alert", id(bs_statusmuellpapier)}
            };

            for (auto const &m : item_to_sensor_map) {
              id(get_openhab_item)->execute(m.first, m.second);
            }

        - component.update: epaper

script:
  - id: get_openhab_item
    mode: queued
    parameters:
      item_name: string
      component: binary_sensor::BinarySensor*
    then:
      - http_request.get:
        url: !lambda return std::string("http://OH-IP:8080/rest/items/") + item_name;
        headers: { Content-Type: application/json }
        verify_ssl: false
        on_response:
          then:
            - lambda: |-
                json::parse_json(id(http_request_data).get_string(), [](JsonObject root) {
                    component->publish_state(root["state"] != "OFF");
                });

note you might be able to make item_to_sensor_map a static const

EDIT: the parameter can be a pointer indeed!

11

Thank you guys! After some more difficulties, at least I can now write “hello world” on the display! :wink:
I used “1.54in”, but it’s “1.54inv2”, as I bought the v2 revision…

Now for some work filling the 1,54 inches with my infos.
