Since this binding is now included in the OpenHAB distribution, no more updates via the Marketplace are provided, please use the binding that is bundled with OpenHAB.
If you use this binding do
the Fine Offset Weather Station Binding topic on the openHAB community forum or for questions related to this version post your question in the discussion thread.
This binding is for weather stations that are manufactured by Fine Offset.
These weather stations are white labeled products which are re-branded by many distribution companies around the world.
Some of these brands are e.g.:
- Aercus
- Ambient Weather
- Ecowitt
- Frogitt
- Misol
- Pantech
- Sainlogic
- Steinberg Systems
- Waldbeck Halley

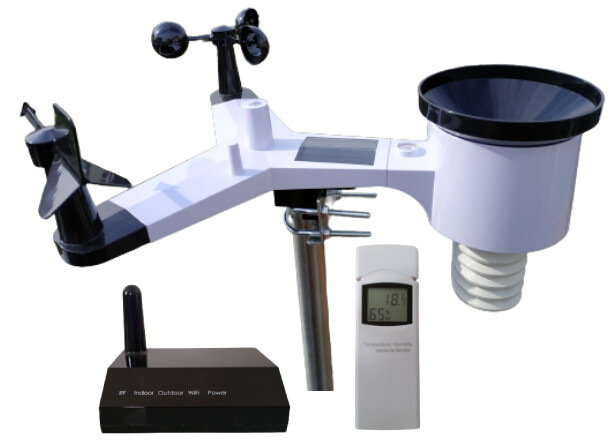

Here is a product picture of how this Weather Station looks like:
This binding works offline by implementing the wire protocol of the WiFi gateway device.
Supported Things
-
weatherstation: A Fine Offset gateway device with the ThingTypeUIDfineoffsetweatherstation:weatherstationwich supports the wire protocol e.g.:- HP2550
- HP3500
- GW1000
- GW1001
- GW1002
- GW1003
- GW1100
- WN1900
- WN1910
- WH2350
- WH2600
- WH2610
- WH2620
- WH2650 (tested)
- WH2680
- WH2900
- WH2950
-
sensor: A Fine Offset sensor which is connected to the bridge with the ThingTypeUIDfineoffsetweatherstation:sensor.
Since the gateway collects all the sensor data and harmonizes them, the sensor thing itself will only hold information about the signal and battery status.
This is a list of sensors supported by the protocol:- WH24 - 7-in-1 weather station, Sensor for wind speed & direction, solar radiation & light, temperature, humidity, rainfall
- WH25 - 3-in-1 sensor temperature, humidity, pressure
- WH26 - 2-in-1 sensor temperature, humidity
- WH31 - 2-in-1 sensor temperature, humidity
- WH34 - External temperature sensor
- WH35 - Leaf wetness sensor
- WH40 - Rainfall sensor
- WH41 - Outdoor air quality sensor
- WH45 - Air quality sensor
- WH51 - Soil moisture sensor
- WH55 - Water leak detection sensor
- WH57 - Lightning detection sensor
- WH65 - 7-in-1 weather station for wind speed & direction, solar radiation & light, temperature, humidity and rainfall
- WH68 - 4-in-1 weather station - Solar-powered sensor for wind speed & direction, solar radiation & light
- WH80 - 6-in-1 weather station - Ultrasonic sensor for wind speed & direction, solar radiation & light, temperature & humidity
- WH90 - A new weather station
Discovery
This binding support discovery of Fine Offset gateway devices by sending a broadcast message.
Thing Configuration
gateway Thing Configuration
| Name | Type | Description | Default | Required | Advanced |
|---|---|---|---|---|---|
| ip | text | Hostname or IP address of the device | N/A | yes | no |
| port | text | Port | 45000 | yes | no |
| pollingInterval | integer | Polling period for refreshing the data in sec | 16 | yes | yes |
| discoverInterval | integer | Interval in sec to fetch registered sensors, battery status and signal strength | 900 | yes | yes |
sensor Thing Configuration
| Name | Type | Description | Default | Required | Advanced |
|---|---|---|---|---|---|
| sensor | text | The Name of sensor attached to the gateway (multiple sensors of the same type my have different names according to the bound channel) | N/A | yes | no |
Valid sensors:
- WH24
- WH65
- WH68
- WH80
- WH40
- WH25
- WH26
- WH31_CH1
- WH31_CH2
- WH31_CH3
- WH31_CH4
- WH31_CH5
- WH31_CH6
- WH31_CH7
- WH31_CH8
- WH51_CH1
- WH51_CH2
- WH51_CH3
- WH51_CH4
- WH51_CH5
- WH51_CH6
- WH51_CH7
- WH51_CH8
- WH41_CH1
- WH41_CH2
- WH41_CH3
- WH41_CH4
- WH57
- WH55_CH1
- WH55_CH2
- WH55_CH3
- WH55_CH4
- WH34_CH1
- WH34_CH2
- WH34_CH3
- WH34_CH4
- WH34_CH5
- WH34_CH6
- WH34_CH7
- WH34_CH8
- WH45
- WH35_CH1
- WH35_CH2
- WH35_CH3
- WH35_CH4
- WH35_CH5
- WH35_CH6
- WH35_CH7
- WH35_CH8
- WH90
Channels
gateway Channels
| Channel | Type | Read/Write | Description |
|---|---|---|---|
| temperature-indoor | Number:Temperature | R | Indoor Temperature |
| temperature-outdoor | Number:Temperature | R | Outdoor Temperature |
| temperature-dew-point | Number:Temperature | R | Dew Point |
| temperature-wind-chill | Number:Temperature | R | Perceived Temperature |
| temperature-heat-index | Number:Temperature | R | Heat Index |
| humidity-indoor | Number:Dimensionless | R | Humidity Inside |
| humidity-outdoor | Number:Dimensionless | R | Humidity Outside |
| pressure-absolute | Number:Pressure | R | Absolute Pressure |
| pressure-relative | Number:Pressure | R | Relative Pressure |
| direction-wind | Number:Angle | R | Wind Direction |
| speed-wind | Number:Speed | R | Wind Speed |
| speed-gust | Number:Speed | R | Gust Speed |
| rain-event | Number:Length | R | Amount of Rainfall At the last Rain |
| rain-rate | Number:VolumetricFlowRate | R | Rainfall Rate |
| rain-hour | Number:Length | R | Rainfall Current Hour |
| rain-day | Number:Length | R | Rainfall Today |
| rain-week | Number:Length | R | Rainfall this Week |
| rain-month | Number:Length | R | Rainfall this Month |
| rain-year | Number:Length | R | Rainfall this Year |
| rain-total | Number:Length | R | Rainfall Total |
| illumination | Number:Illuminance | R | Light Intensity |
| irradiation-uv | Number:Intensity | R | UV Irradiation |
| uv-index | Number:Dimensionless | R | UV Index |
| wind-max-day | Number:Speed | R | Maximum Wind Speed Today |
| temperature-channel-1 | Number:Temperature | R | Temperature Channel 1 |
| temperature-channel-2 | Number:Temperature | R | Temperature Channel 2 |
| temperature-channel-3 | Number:Temperature | R | Temperature Channel 3 |
| temperature-channel-4 | Number:Temperature | R | Temperature Channel 4 |
| temperature-channel-5 | Number:Temperature | R | Temperature Channel 5 |
| temperature-channel-6 | Number:Temperature | R | Temperature Channel 6 |
| temperature-channel-7 | Number:Temperature | R | Temperature Channel 7 |
| temperature-channel-8 | Number:Temperature | R | Temperature Channel 8 |
| humidity-channel-1 | Number:Dimensionless | R | Humidity Channel 1 |
| humidity-channel-2 | Number:Dimensionless | R | Humidity Channel 2 |
| humidity-channel-3 | Number:Dimensionless | R | Humidity Channel 3 |
| humidity-channel-4 | Number:Dimensionless | R | Humidity Channel 4 |
| humidity-channel-5 | Number:Dimensionless | R | Humidity Channel 5 |
| humidity-channel-6 | Number:Dimensionless | R | Humidity Channel 6 |
| humidity-channel-7 | Number:Dimensionless | R | Humidity Channel 7 |
| humidity-channel-8 | Number:Dimensionless | R | Humidity Channel 8 |
| temperature-soil-channel-1 | Number:Temperature | R | Soil Temperature Channel 1 |
| temperature-soil-channel-2 | Number:Temperature | R | Soil Temperature Channel 2 |
| temperature-soil-channel-3 | Number:Temperature | R | Soil Temperature Channel 3 |
| temperature-soil-channel-4 | Number:Temperature | R | Soil Temperature Channel 4 |
| temperature-soil-channel-5 | Number:Temperature | R | Soil Temperature Channel 5 |
| temperature-soil-channel-6 | Number:Temperature | R | Soil Temperature Channel 6 |
| temperature-soil-channel-7 | Number:Temperature | R | Soil Temperature Channel 7 |
| temperature-soil-channel-8 | Number:Temperature | R | Soil Temperature Channel 8 |
| temperature-soil-channel-9 | Number:Temperature | R | Soil Temperature Channel 9 |
| temperature-soil-channel-10 | Number:Temperature | R | Soil Temperature Channel 10 |
| temperature-soil-channel-11 | Number:Temperature | R | Soil Temperature Channel 11 |
| temperature-soil-channel-12 | Number:Temperature | R | Soil Temperature Channel 12 |
| temperature-soil-channel-13 | Number:Temperature | R | Soil Temperature Channel 13 |
| temperature-soil-channel-14 | Number:Temperature | R | Soil Temperature Channel 14 |
| temperature-soil-channel-15 | Number:Temperature | R | Soil Temperature Channel 15 |
| temperature-soil-channel-16 | Number:Temperature | R | Soil Temperature Channel 16 |
| moisture-soil-channel-1 | Number:Dimensionless | R | Soil Moisture Channel 1 |
| moisture-soil-channel-2 | Number:Dimensionless | R | Soil Moisture Channel 2 |
| moisture-soil-channel-3 | Number:Dimensionless | R | Soil Moisture Channel 3 |
| moisture-soil-channel-4 | Number:Dimensionless | R | soil Moisture Channel 4 |
| moisture-soil-channel-5 | Number:Dimensionless | R | Soil Moisture Channel 5 |
| moisture-soil-channel-6 | Number:Dimensionless | R | Soil Moisture Channel 6 |
| moisture-soil-channel-7 | Number:Dimensionless | R | Soil Moisture Channel 7 |
| moisture-soil-channel-8 | Number:Dimensionless | R | Soil Moisture Channel 8 |
| moisture-soil-channel-9 | Number:Dimensionless | R | Soil Moisture Channel 9 |
| moisture-soil-channel-10 | Number:Dimensionless | R | Soil Moisture Channel 10 |
| moisture-soil-channel-11 | Number:Dimensionless | R | Soil Moisture Channel 11 |
| moisture-soil-channel-12 | Number:Dimensionless | R | Soil Moisture Channel 12 |
| moisture-soil-channel-13 | Number:Dimensionless | R | soil Moisture Channel 13 |
| moisture-soil-channel-14 | Number:Dimensionless | R | Soil Moisture Channel 14 |
| moisture-soil-channel-15 | Number:Dimensionless | R | Soil Moisture Channel 15 |
| moisture-soil-channel-16 | Number:Dimensionless | R | Soil Moisture Channel 16 |
| air-quality-24-hour-average-channel-1 | Number:Density | R | PM2.5 Air Quality 24 Hour Average Channel 1 |
| air-quality-24-hour-average-channel-2 | Number:Density | R | PM2.5 Air Quality 24 Hour Average Channel 2 |
| air-quality-24-hour-average-channel-3 | Number:Density | R | PM2.5 Air Quality 24 Hour Average Channel 3 |
| air-quality-24-hour-average-channel-4 | Number:Density | R | PM2.5 Air Quality 24 Hour Average Channel 4 |
| air-quality-channel-1 | Number:Density | R | PM2.5 Air Quality Channel 1 |
| air-quality-channel-2 | Number:Density | R | PM2.5 Air Quality Channel 2 |
| air-quality-channel-3 | Number:Density | R | PM2.5 Air Quality Channel 3 |
| air-quality-channel-4 | Number:Density | R | PM2.5 Air Quality Channel 4 |
| water-leak-channel-1 | Switch | R | Water Leak Detection Channel 1 |
| water-leak-channel-2 | Switch | R | Water Leak Detection Channel 2 |
| water-leak-channel-3 | Switch | R | Water Leak Detection Channel 3 |
| water-leak-channel-4 | Switch | R | Water Leak Detection Channel 4 |
| lightning-distance | Number:Length | R | Lightning Distance |
| lightning-time | DateTime | R | Time of last Lightning Strike |
| lightning-counter | Number | R | Lightning Strikes Today |
| temperature-external-channel-1 | Number:Temperature | R | External Temperature Sensor Channel 1 |
| temperature-external-channel-2 | Number:Temperature | R | External Temperature Sensor Channel 2 |
| temperature-external-channel-3 | Number:Temperature | R | External Temperature Sensor Channel 3 |
| temperature-external-channel-4 | Number:Temperature | R | External Temperature Sensor Channel 4 |
| temperature-external-channel-5 | Number:Temperature | R | External Temperature Sensor Channel 5 |
| temperature-external-channel-6 | Number:Temperature | R | External Temperature Sensor Channel 6 |
| temperature-external-channel-7 | Number:Temperature | R | External Temperature Sensor Channel 7 |
| temperature-external-channel-8 | Number:Temperature | R | External Temperature Sensor Channel 8 |
| sensor-co2-temperature | Number:Temperature | R | Temperature (CO2-Sensor) |
| sensor-co2-humidity | Number:Dimensionless | R | Humidity (CO2-Sensor) |
| sensor-co2-pm10 | Number:Density | R | PM10 Air Quality (CO2-Sensor) |
| sensor-co2-pm10-24-hour-average | Number:Density | R | PM10 Air Quality 24 Hour Average (CO2-Sensor) |
| sensor-co2-pm25 | Number:Density | R | PM2.5 Air Quality (CO2-Sensor) |
| sensor-co2-pm25-24-hour-average | Number:Density | R | PM2.5 Air Quality 24 Hour Average (CO2-Sensor) |
| sensor-co2-co2 | Number:Dimensionless | R | CO2 |
| sensor-co2-co2-24-hour-average | Number:Dimensionless | R | CO2 24 Hour Average |
| leaf-wetness-channel-1 | Number:Dimensionless | R | Leaf Moisture Channel 1 |
| leaf-wetness-channel-2 | Number:Dimensionless | R | Leaf Moisture Channel 2 |
| leaf-wetness-channel-3 | Number:Dimensionless | R | Leaf Moisture Channel 3 |
| leaf-wetness-channel-4 | Number:Dimensionless | R | Leaf Moisture Channel 4 |
| leaf-wetness-channel-5 | Number:Dimensionless | R | Leaf Moisture Channel 5 |
| leaf-wetness-channel-6 | Number:Dimensionless | R | Leaf Moisture Channel 6 |
| leaf-wetness-channel-7 | Number:Dimensionless | R | Leaf Moisture Channel 7 |
| leaf-wetness-channel-8 | Number:Dimensionless | R | Leaf Moisture Channel 8 |
sensor Channels
| Channel | Type | Read/Write | Description |
|---|---|---|---|
| signal | Number | R | The sensors signal strenght |
| batteryLevel | Number | R | The sensors battery level |
| lowBattery | Switch | R | The sensors battery status |
Full Example
This is an example configuration for the WH2650 gateway
weatherstation.things:
Bridge fineoffsetweatherstation:gateway:3906700515 "Weather station" [ip="192.168.1.42", port="45000", discoverInterval="900", pollingInterval="16"] {
Thing sensor WH25 "WH25" [sensor="WH25"]
Thing sensor WH65 "WH65" [sensor="WH65"]
}
weatherstation.items:
Group WH25 "WH25" <Sensor> ["Sensor"]
Number SignalWH25 "Signal WH25" <QualityOfService> (WH25) ["Measurement", "Level"] { channel="fineoffsetweatherstation:sensor:3906700515:WH25:signal" }
Switch BatteryStatusWH25 "Low Battery WH25" <LowBattery> (WH25) ["Energy", "LowBattery"] { channel="fineoffsetweatherstation:sensor:3906700515:WH25:lowBattery" }
Group WH65 "WH65" <Sensor> ["Sensor"]
Number SignalWH65 "Signal WH65" <QualityOfService> (WH65) ["Measurement", "Level"] { channel="fineoffsetweatherstation:sensor:3906700515:WH65:signal" }
Switch BatteryStatusWH65 "Low Battery WH65" <LowBattery> (WH65) ["Energy", "LowBattery"] { channel="fineoffsetweatherstation:sensor:3906700515:WH65:lowBattery" }
Group gOutdoor "Outdoor" ["Location"]
Number:Temperature weather_temperature_outdoor "Outdoor Temperature" <Temperature> (gOutdoor) ["Measurement", "Temperature"] { channel="fineoffsetweatherstation:gateway:3906700515:temperature-outdoor" }
Number:Temperature weather_temperature_indoor "Inside temperature" <Temperature> ["Measurement", "Temperature"] { channel="fineoffsetweatherstation:gateway:3906700515:temperature-indoor" }
Number:Dimensionless weather_humidity_indoor "Humidity inside" <Humidity> ["Measurement", "Humidity"] { channel="fineoffsetweatherstation:gateway:3906700515:humidity-indoor" }
Number:Pressure weather_pressure_absolute "Absolute pressure" <Pressure> (gOutdoor) ["Measurement", "Pressure"] { channel="fineoffsetweatherstation:gateway:3906700515:pressure-absolute" }
Number:Pressure weather_pressure_relative "Relative pressure" <Pressure> (gOutdoor) ["Measurement", "Pressure"] { channel="fineoffsetweatherstation:gateway:3906700515:pressure-relative" }
Number:Dimensionless weather_humidity_outdoor "Humidity outside" <Humidity> (gOutdoor) ["Measurement", "Humidity"] { channel="fineoffsetweatherstation:gateway:3906700515:humidity-outdoor" }
Number:Angle weather_direction_wind "Wind direction" <Wind> (gOutdoor) ["Measurement", "Wind"] { channel="fineoffsetweatherstation:gateway:3906700515:direction-wind" }
Number:Speed weather_speed_wind "Wind speed" <Wind> (gOutdoor) ["Measurement", "Wind"] { channel="fineoffsetweatherstation:gateway:3906700515:speed-wind" }
Number:Speed weather_speed_gust "Gust speed" <Wind> (gOutdoor) ["Measurement", "Wind"] { channel="fineoffsetweatherstation:gateway:3906700515:speed-gust" }
Number:Illuminance weather_illumination "Light intensity" <Sun> (gOutdoor) ["Measurement", "Light"] { channel="fineoffsetweatherstation:gateway:3906700515:illumination" }
Number:Intensity weather_irradiation_uv "UV radiation" <Sun> (gOutdoor) ["Measurement", "Light"] { channel="fineoffsetweatherstation:gateway:3906700515:irradiation-uv" }
Number:Dimensionless weather_uv_index "UV Index" <Sun> (gOutdoor) ["Measurement", "Light"] { channel="fineoffsetweatherstation:gateway:3906700515:uv-index" }
Number:Speed weather_max_day "Maximum wind speed today" <Wind> (gOutdoor) ["Measurement", "Wind"] { channel="fineoffsetweatherstation:gateway:3906700515:wind-max-day" }
Number:VolumetricFlowRate weather_rain_rate "Rainfall rate" <Rain> (gOutdoor) ["Measurement", "Rain"] { channel="fineoffsetweatherstation:gateway:3906700515:rain-rate" }
Number:Length weather_rain_day "Rainfall today" <Rain> (gOutdoor) ["Measurement", "Rain"] { channel="fineoffsetweatherstation:gateway:3906700515:rain-day" }
Number:Length weather_rain_week "Rainfall this week" <Rain> (gOutdoor) ["Measurement", "Rain"] { channel="fineoffsetweatherstation:gateway:3906700515:rain-week" }
Number:Length weather_rain_month "Rainfall this month" <Rain> (gOutdoor) ["Measurement", "Rain"] { channel="fineoffsetweatherstation:gateway:3906700515:rain-month" }
Number:Length weather_rain_year "Rainfall this year " <Rain> (gOutdoor) ["Measurement", "Rain"] { channel="fineoffsetweatherstation:gateway:3906700515:rain-year" }
Number:Length weather_rain_event "Amount of rainfall at the last rain" <Rain> (gOutdoor) ["Measurement", "Rain"] { channel="fineoffsetweatherstation:gateway:3906700515:rain-event" }
