Formatting state for MQTT. Shelly Outputs

Add-ons Bindings
, ,
1

Hi,

I’m trying to use MQTT to control some Shellys.

I have the input sorted and can read that fine as I get a dedicated MQTT topic:

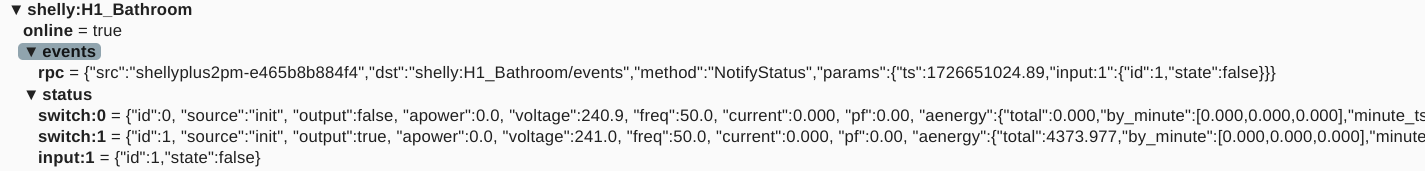

image1425×171 34.9 KB

The output only seems to be available in the full message in ‘switch:0’ and ‘switch:1’.

I am using text configuration files for my MQTT things. Here is my current version:

Thing mqtt:topic:shelly:H1_MainAttic_CeilingLight "Switch,H1,Main Attic,Ceiling Light" (mqtt:broker:aab6726def) [ availabilityTopic="shelly:H1_MainAttic/online", payloadAvailable="true", payloadNotAvailable="false" ]  {
    Channels:
    Type switch : input "Switch On/Off" [
        stateTopic="shelly:H1_MainAttic/status/input:0",
        transformationPattern= "JSONPATH:$.state",
        on= "true",
        off= "false"
    ]
    Type switch : output "Output On/Off" [
        stateTopic="shelly:H1_MainAttic/status/switch:0",
        commandTopic="shelly:H1_MainAttic/command/switch:0",
        formatBeforePublish= ""{'id':0, 'source': 'switch', 'output': %s, 'apower': JSONPATH:$.apower, 'voltage': JSONPATH:$.voltage, 'freq': JSONPATH:$.freq, 'current': JSONPATH:$.current, 'aenergy':{'total': JSONPATH:$.aenergy.total,'by_minute':[0.000,0.000,0.000],'minute_ts':1726649820}, 'ret_aenergy':{'total':0.000,'by_minute': JSONPATH:$.aenergy.by_minute,'minute_ts': JSONPATH:$.aenergy.minute_ts},'temperature':{'tC': JSONPATH:$.temperature.tC, 'tF': JSONPATH:$.temperature.tF}}",
        transformationPattern= "JSONPATH:$.output",
        on= "true",
        off= "false"
    ]

I am unsure about the ‘commandTopic’ and the ‘formatBeforePublish’. I can read the value, so the state topic is working, but I can’t send a command.

Can anyone help? I found some posts in the forum that I thought would help, but this is as far as I can get on my own.

2

Why are you not using the easy mqtt interface?

3
Thing mqtt:topic:shelly:H1_MainAttic_CeilingLight "Switch,H1,Main Attic,Ceiling Light" (mqtt:broker:aab6726def) [
    availabilityTopic="shelly:H1_MainAttic/online",
    payloadAvailable="true",
    payloadNotAvailable="false"
 ] {
    Channels:
    Type switch : input "Switch On/Off" [
        stateTopic="shelly:H1_MainAttic/status/input:0",
        transformationPattern= "JSONPATH:$.state",
        on= "true",
        off= "false"
    ]
    Type switch : output "Output On/Off" [
        stateTopic="shelly:H1_MainAttic/status/switch:0",
        commandTopic="shelly:H1_MainAttic/command/switch:0",
        formatBeforePublish= "{\"output\": %s}"
        transformationPattern= "JSONPATH:$.output",
        on= "true",
        off= "false"
    ]
 }

You don’t have to send all those values (especially if unknown…). afaik output will suffice.

Please be aware that valid JSON needs double quotes " around each string.
As you need those double quotes to setup the thing itself, you have to escape them with \
Please also be aware that true and false, although delivered as strings, inside JSON aren’t strings but boolean values, so they must not be surrounded with double quotes.

4

Thanks for replying, but I’m still stuck.

After reading your posts, the following is my best guess:

Thing mqtt:topic:shelly:H1_Kitchen_SinkLight "Switch,H1,Kitchen,Sink Light" (mqtt:broker:aab6726def) [ availabilityTopic="shelly:H1_Kitchen_Sink/online", payloadAvailable=true, payloadNotAvailable=false ]  {
    Channels:
    Type switch : input "Switch On/Off" [
        stateTopic="shelly:H1_Kitchen_Sink/status/input:0",
        transformationPattern= "JSONPATH:$.state",
        on= true,
        off= false
    ]
    Type switch : output "Output On/Off" [
        stateTopic="shelly:H1_Kitchen_Sink/status/switch:0",
        commandTopic="shelly:H1_Kitchen_Sink/command/switch:0",
        formatBeforePublish= "{\"output\": %s }",
        transformationPattern= "JSONPATH:$.output",
        on= true,
        off= false
    ]
}

The input channel is working fine.
I am reading the output channel in openhab, but still cannot command.

5

Think I cracked it:

Thing mqtt:topic:shelly:H1_Kitchen_SinkLight "Switch,H1,Kitchen,Sink Light" (mqtt:broker:aab6726def) [ availabilityTopic="shelly:H1_Kitchen_Sink/online", payloadAvailable=true, payloadNotAvailable=false ]  {
    Channels:
    Type switch : input "Switch On/Off" [
        stateTopic="shelly:H1_Kitchen_Sink/status/input:0",
        transformationPattern= "JSONPATH:$.state",
        on= true,
        off= false
    ]
    Type switch : output "Output On/Off" [
        stateTopic="shelly:H1_Kitchen_Sink/status/switch:0",
        commandTopic="shelly:H1_Kitchen_Sink/command/switch:0",
        transformationPatternOut="MAP:trueFalse.map",
        transformationPattern= "JSONPATH:$.output",
        on= true,
        off= false
    ]
}

trueFalse.map

true=on
false=off
6

Yes, ugly but might be the only solution, as shelly uses different values for state and command (shame on shelly!)
