In this tutorial, I would like to share with you how I configured Openhab to control my Fujitsu Airstage air conditioner.

Openhab_Fujitsu

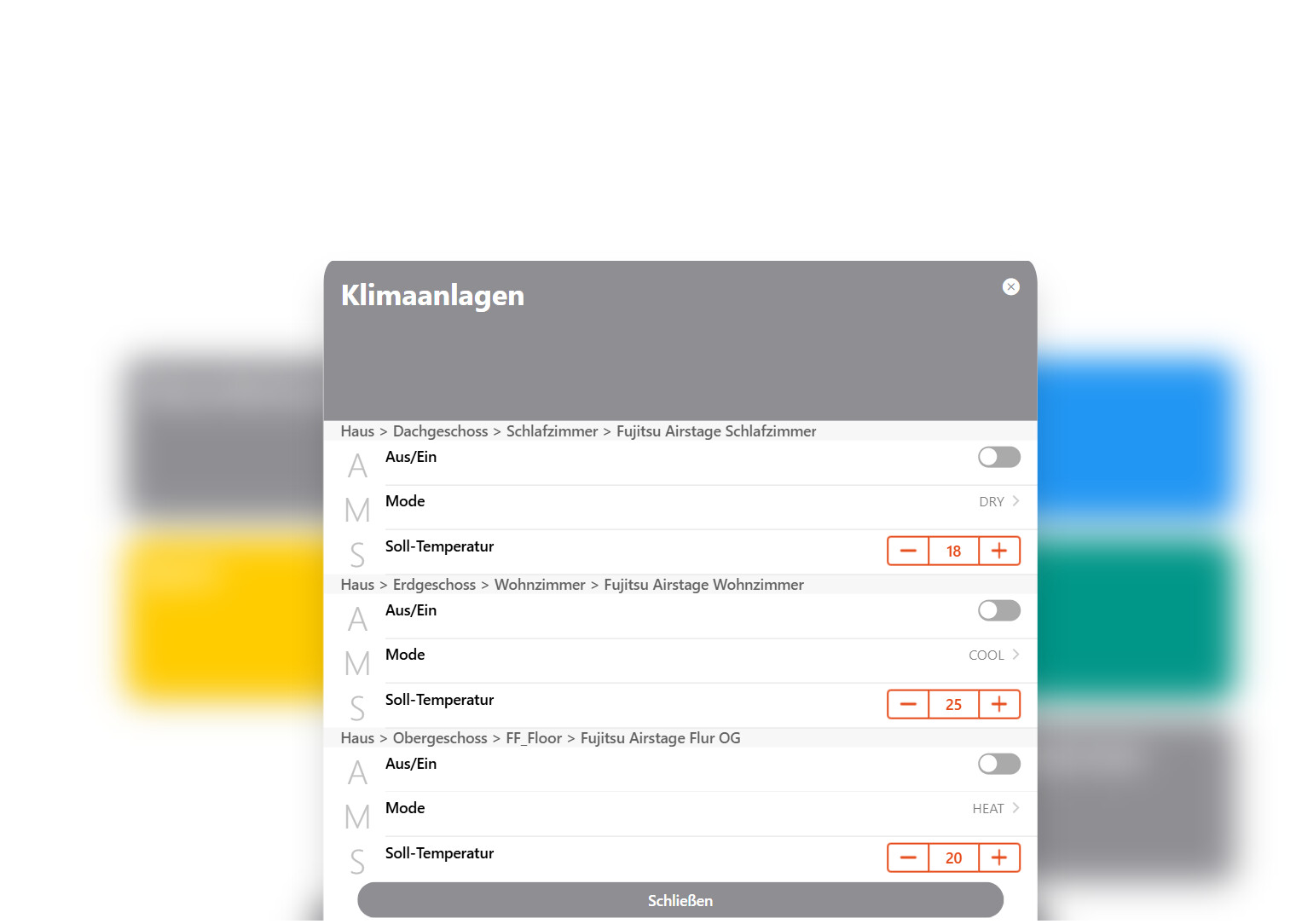

Openhab_Fujitsu1520×1084 100 KB

My indoor unit: Fujitsu ASYG12KMCF (Comes with WIFI, no other/additional dongle required)

Note: I only want to control my air conditioner on the local network and am NOT using the Fujitsu cloud connection.

The air conditioning system offers a REST interface, which unfortunately is not officially documented. I used the following repository as reference: GitHub - danielkaldheim/ha_airstage: Connects your Fujitsu Airstage air conditioner to Home Assistant.

REST Request to retrieve the current status:
The device_id is the MAC address of your device, without colons.

curl --location 'http://192.168.xxx.xx/GetParam' \
--header 'Content-Type: text/plain' \
--data '{
    "device_id": "94BBxxxxxx529",
    "device_sub_id": 0,
    "req_id": "",
    "modified_by": "",
    "set_level": "03",
    "list": [
        "iu_set_tmp",
        "iu_onoff",
        "iu_op_mode"
    ]
}'

REST Reqeust to tun on the AC:
iu_onoff 1 represents ON, whereby iu_onoff = represents OFF

curl --location 'http://192.168.xxx.xx/SetParam' \
--header 'Content-Type: text/plain' \
--data '{
    "device_id": "94BBxxxxxx529",
    "device_sub_id": 0,
    "req_id": "",
    "modified_by": "",
    "set_level": "02",
    "value": {
        "iu_onoff": "1"
    }
}'

REST Request to change the target temperatur:
The target temperatur needs to be handed over multiplied by 10, e.g 190 for 19°C

curl --location 'http://192.168.178.55/SetParam' \
--header 'Content-Type: text/plain' \
--data '{
    "device_id": "94BB4393442F",
    "device_sub_id": 0,
    "req_id": "",
    "modified_by": "",
    "set_level": "02",
    "value": {
        "iu_set_tmp": "190"
    }
}'

REST Request to change the mode:
“AUTO”: “0”,
“COOL”: “1”,
“DRY”: “2”,
“FAN”: “3”,
“HEAT”: “4”

curl --location 'http://192.168.178.55/SetParam' \
--header 'Content-Type: text/plain' \
--data '{
    "device_id": "94BB4393442F",
    "device_sub_id": 0,
    "req_id": "",
    "modified_by": "",
    "set_level": "02",
    "value": {
        "iu_op_mode":"1"
    }
}'

Setup in Openhab:

I’m using the HTTP Binding, JSONPATH Transformation & Java Script. Please install the same, if not done already.

HTTP Thing configuration:

Channels:

Off/On:

  • State URL Extension: GetParam
  • Command URL Extenson: SetParam
  • State Content: { “device_id”: “yourMAC”, “device_sub_id”: 0, “req_id”: “”, “modified_by”: “”, “set_level”: “03”, “list”: [ “iu_onoff” ] }
  • State Transformation: JS:airstageOnoffState.js
  • Command Transformation: JS:airstageSendOnoff.js
  • Mode: Read & Write

Temperature:

  • State URL Extension: GetParam
  • Command URL Extenson: SetParam
  • State Content: { “device_id”: “yourMAC”, “device_sub_id”: 0, “req_id”: “”, “modified_by”: “”, “set_level”: “03”, “list”: [ “iu_set_tmp” ] }
  • State Transformation: JSONPATH:$.value.iu_set_tmp ∩ JS:airstageDivideBy10.js
  • Command Transformation: JS:airstageSendTemp.js
  • Mode: Read & Write

Mode:

  • State URL Extension: GetParam
  • Command URL Extenson: SetParam
  • State Content: { “device_id”: “yourMAC”, “device_sub_id”: 0, “req_id”: “”, “modified_by”: “”, “set_level”: “03”, “list”: [ “iu_op_mode” ] }
  • State Transformation: JS:airstageModeState.js
  • Command Transformation: JS:airstageMode.js
  • Mode: Read & Write

JS files to be stored in your openHAB-conf\transform folder:

airstageDivideBy10.js

(function(i) {
    if (isNaN(i)) return i;
    return parseFloat(i) / 10.0;
})(input)

airstageMode.js

(function(input) {
    var modes = {
        "AUTO": "0",
        "COOL": "1",
        "DRY": "2",
        "FAN": "3",
        "HEAT": "4"
    };

    var val = modes[input] || "0";

    var body = {
        "device_id": "yourMAC",
        "device_sub_id": 0,
        "req_id": "",
        "modified_by": "",
        "set_level": "02",
        "value": {
            "iu_op_mode": val
        }
    };
    return JSON.stringify(body);
})(input)

airstageModeState.js

(function(input) {
    var json = JSON.parse(input);
    var val = json.value.iu_op_mode; // Das ist z.B. "1"

    var map = {
        "0": "AUTO",
        "1": "COOL",
        "2": "DRY",
        "3": "FAN",
        "4": "HEAT"
    };

    return map[val] || "UNKNOWN";
})(input)

airstageOnoffState.js

(function(input) {
    var json = JSON.parse(input);
    var val = json.value.iu_onoff;
    return (val == "1") ? "ON" : "OFF";
})(input)

airstageSendOnoff.js

(function(input) {
    var val = (input == "ON") ? "1" : "0";

    var body = {
        "device_id": "yourMAC",
        "device_sub_id": 0,
        "req_id": "",
        "modified_by": "",
        "set_level": "02",
        "value": {
            "iu_onoff": val
        }
    };

    return JSON.stringify(body);
})(input)

airstageSendTemp.js

(function(input) {
    var numericValue = parseFloat(input);
    var transformedValue = (numericValue * 10).toFixed(0);

    var body = {
        "device_id": "yourMAC",
        "device_sub_id": 0,
        "req_id": "",
        "modified_by": "",
        "set_level": "02",
        "value": {
            "iu_set_tmp": transformedValue.toString()
        }
    };

    return JSON.stringify(body);
})(input)

In my specific case, I have three devices, which means that the file names of the JS files have been slightly modified.

UID: http:url:88d294d182
label: Fujitsu Airstage Wohnzimmer
thingTypeUID: http:url
configuration:
  authMode: BASIC
  ignoreSSLErrors: false
  baseURL: http://192.168.178.54/
  delay: 0
  stateMethod: POST
  refresh: 60
  commandMethod: POST
  timeout: 3000
  bufferSize: 2048
channels:
  - id: last-failure
    channelTypeUID: http:request-date-time
    label: Last Failure
    configuration: {}
  - id: last-success
    channelTypeUID: http:request-date-time
    label: Last Success
    configuration: {}
  - id: Soll-Temperatur
    channelTypeUID: http:number
    label: Soll-Temperatur
    configuration:
      stateContent: '{     "device_id": "94BB4379C529",     "device_sub_id":
        0,     "req_id": "",     "modified_by": "",     "set_level":
        "03",     "list": [         "iu_set_tmp"     ] }'
      commandTransformation:
        - JS:airstageSendTemp_Wohnzimmer.js
      stateExtension: GetParam
      commandExtension: SetParam
      stateTransformation:
        - JSONPATH:$.value.iu_set_tmp ∩ JS:airstageDivideBy10.js
  - id: Schalten
    channelTypeUID: http:switch
    label: Aus/Ein
    configuration:
      onValue: ON
      stateContent: '{     "device_id":
        "94BB4379C529",     "device_sub_id":         0,     "req_id":
        "",     "modified_by": "",     "set_level":         "03",     "list":
        [         "iu_onoff"     ] }'
      commandTransformation:
        - JS:airstageOnoffState_Wohnzimmer.js
      offValue: OFF
      stateExtension: GetParam
      commandExtension: SetParam
      stateTransformation:
        - JS:airstageOnoffState.js
  - id: Mode
    channelTypeUID: http:string
    label: Mode
    configuration:
      stateContent: '{     "device_id": "94BB4379C529",     "device_sub_id":
        0,     "req_id": "",     "modified_by": "",     "set_level":
        "03",     "list": [         "iu_op_mode"     ] }'
      commandTransformation:
        - JS:airstageMode_Wohnzimmer.js
      stateExtension: GetParam
      commandExtension: SetParam
      stateTransformation:
        - JS:airstageModeState.js
1 Like
