Funkfernschalter Unitec 48110 Rfxcom - does it work?

Add-ons Bindings
1

Dear community !

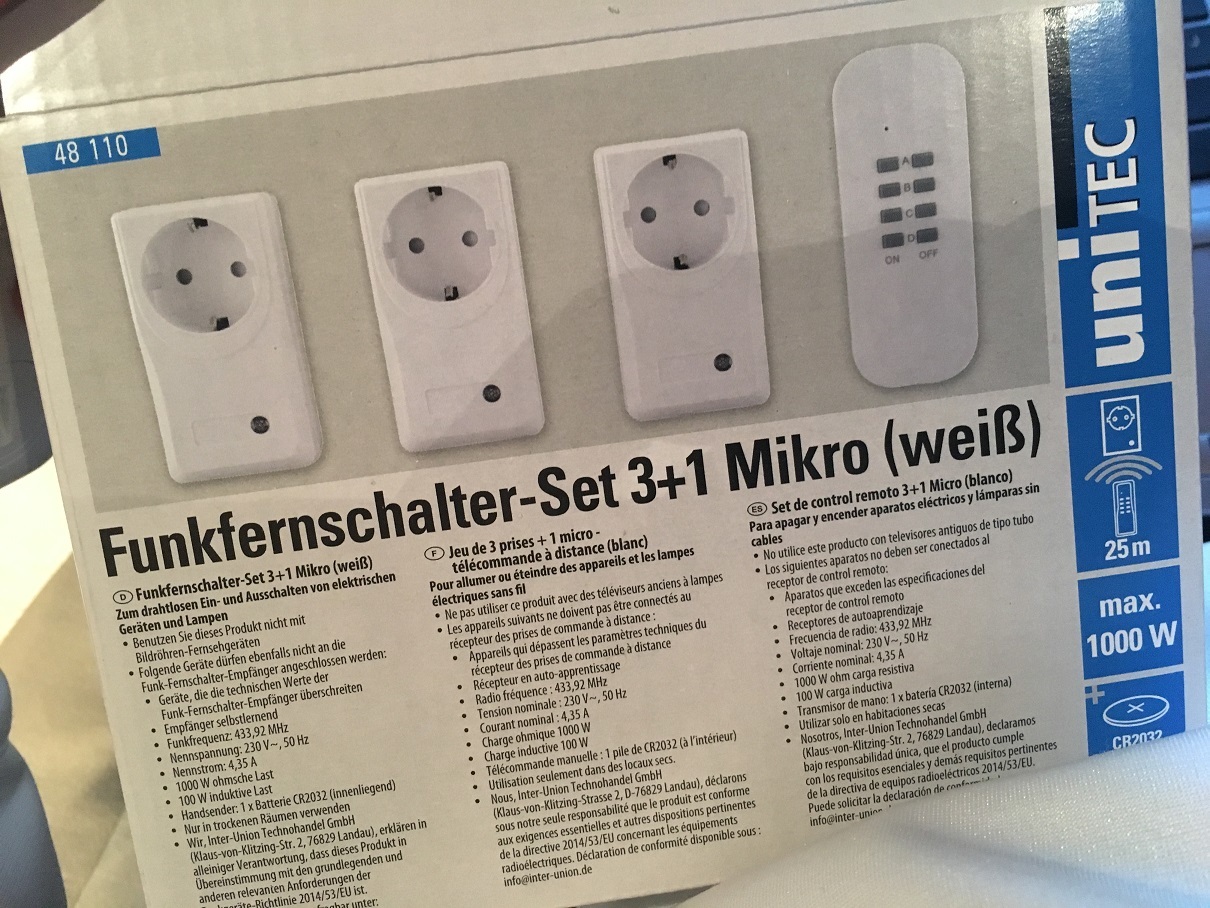

I bought a cheap plug 433mhz like this :

Photo 23-01-2017, 23 50 13.jpg1210×908 372 KB

Any idea on how to configure it in OpenHab (using RfXcom) ?

When I press the remote button, there are “random” signals sent :

------------------------------------------------
1/24/2017 12:03:56 AM
------------------------------------------------
1/24/2017 12:03:56 AM
Packettype        = UNDECODED RF Message
UNDECODED ARC:24AE170005FA
------------------------------------------------
1/24/2017 12:05:38 AM
------------------------------------------------
1/24/2017 12:05:39 AM
Packettype        = UNDECODED RF Message
UNDECODED ARC:1EA4C005E8
------------------------------------------------
1/24/2017 12:05:40 AM
------------------------------------------------
1/24/2017 12:05:40 AM
Packettype        = UNDECODED RF Message
UNDECODED ARC:19A00005E8

Signal is changing at each key pressed (seq number?).
Help is welcome !

Thibaut

2

Such devices are mentioned on this FHEM page (sorry, only in German) , The useage discribed is for the CUL-Stick and the Unitech devices used there are probably older ones with a switchable code. However the Information given will Point in the needed direction.
Can’t tell if the RfxCom binding does support something like the “raw”-mode that the CUL-stick can handle. I’d think using a CUL-Stick it would be possible to use those pluggs.

3

Hello
After discussion with Rfxcom support, I managed to have it working using a Lighting5 / Kangtai type of device

Thank you all !
