Google Wifi Status page and HTTP binding

Add-ons Bindings
1

Hi everyone… im trying to use the HTTP binding and JSON transformation to pull the Online status of my google wifi.

Using the JSONPATH transformation $.wan.online

I setup the Thing with

UID: http:url:Gwifi_HTTP
label: GWIFI HTTP URL Thing
thingTypeUID: http:url
configuration:
  authMode: BASIC
  ignoreSSLErrors: true
  baseURL: http://192.168.86.1/api/v1/status
  refresh: 30
  commandMethod: GET
  contentType: application/json
  timeout: 3000
  bufferSize: 2048
channels:
  - id: gwifistste
    channelTypeUID: http:string
    label: gws
    description: ""
    configuration:
      mode: READONLY

I setup a string item with
JSONPATH Profile

Jsonpath expression
$.wan.online

Web page looks like this.

{
   "setupState": "GWIFI_OOBE_COMPLETE",
   "software": {
      "blockingUpdate": 1,
      "softwareVersion": "12371.52.22",
      "updateChannel": "stable-channel",
      "updateNewVersion": "0.0.0.0",
      "updateProgress": 0.0,
      "updateRequired": false,
      "updateStatus": "idle"
   },
   "system": {
      "countryCode": "us",
      "hardwareId": "WHIRLWIND",
      "modelId": "ACdqK",
      "uptime": 511980
   },
   "vorlonInfo": {
      "migrationMode": "vorlon_all"
   },
   "wan": {
      "captivePortal": false,
      "ethernetLink": true,
      "gatewayIpAddress": "",
      "invalidCredentials": false,
      "ipAddress": true,
      "ipMethod": "dhcp",
      "ipPrefixLength": 24,
      "leaseDurationSeconds": 7200,
      "localIpAddress": "",
      "nameServers": [ "" ],
      "online": true,
      "pppoeDetected": false
   }

I get NULL for all results… i got it working with my PiHole and Solar pages but i cant crack this one…

Thanks!

2

Did you try to add the JSONPATH transform into the channel?

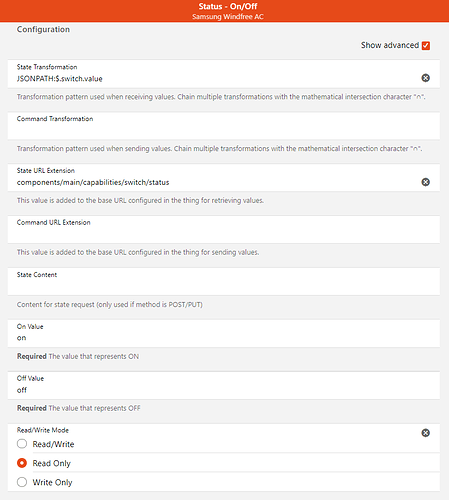

See below for an example from my Samsung AC (the item does not need the transform entry then):

image825×917 26.8 KB

3

I tried that and also check that my settings are identical to my Pihole and Solar http things… very strange… i also switched to a different item since the online was true false and dint have quotes… still i cant get any items to pull from that google wifi status page.

4

Sanity check; create a new string channel, do not use any profile or transformation, link to String Item and see if you get what you expect.

5

Good call… wow its still null

url is correct if i put it in browser
http://192.168.86.1/api/v1/status
