- Platform information:
- Hardware: Orangepi 3 LTS
- OS: Armbian 23.02.2 Bullseye Kernel 5.15.93
- Java Runtime Environment: Zulu 11.43+100
- openHAB version: 3.4.2
I am using the earth source heat pump control code developed by @masipila and also the graph he has developed. The control code uses a Tasmota relay to allow my heat pump to only run when electricity price is low. The code works and my electricity bill is saving me money.

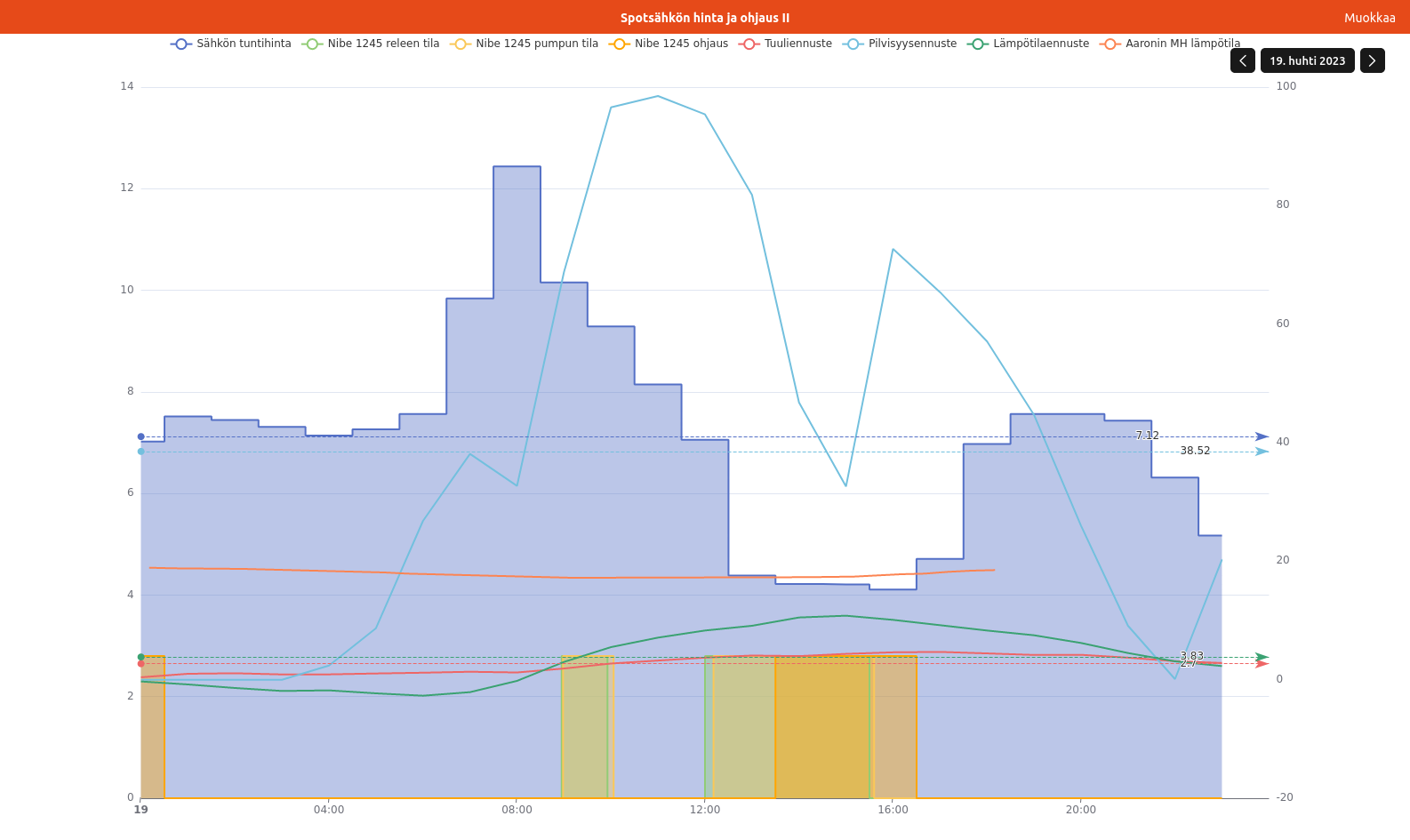

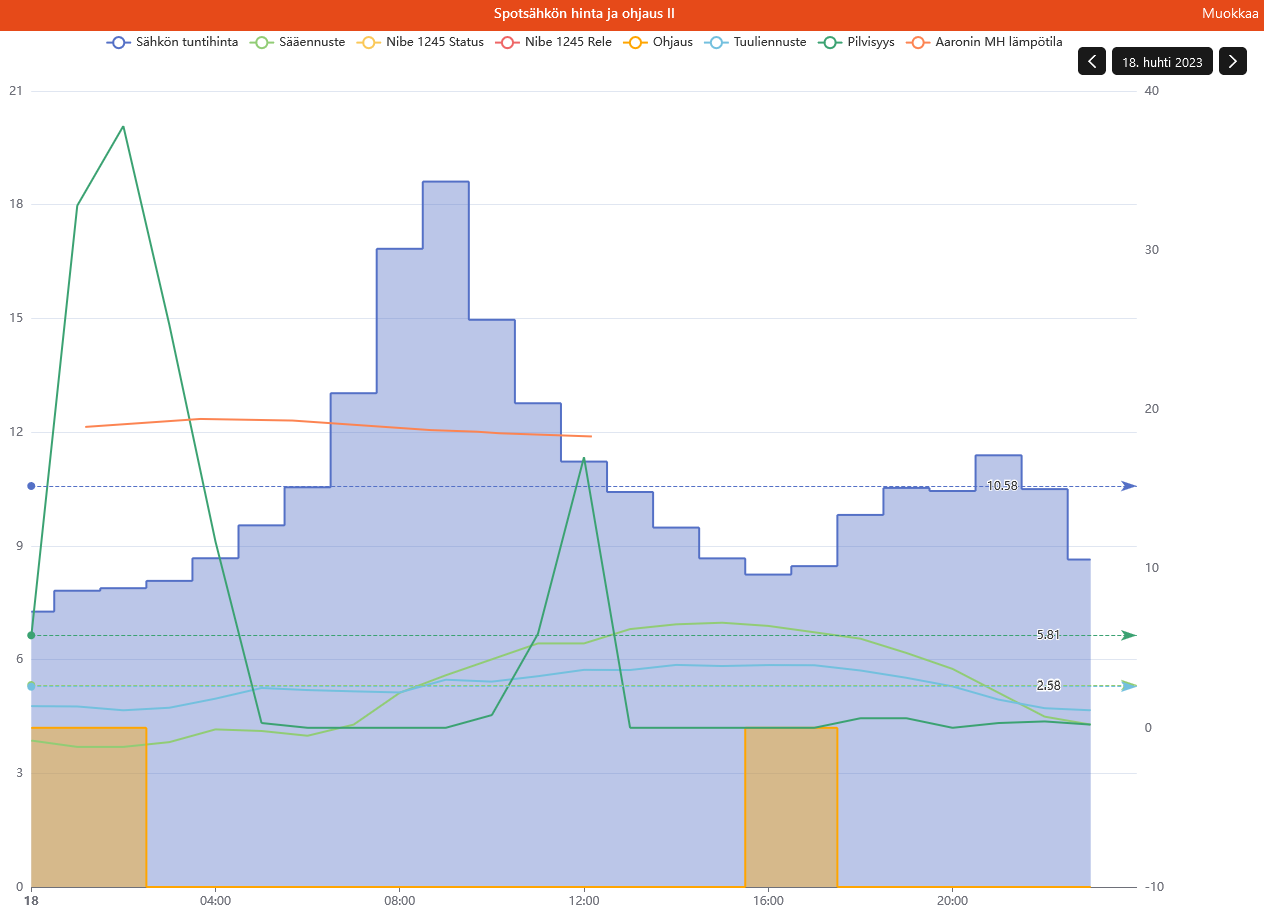

However, I would like to monitor what is going on with the heat pump and the control system. I have three items I would like to graph a) the control provided by @masipila’s code, b) the tasmota relay and c) the heat pump motor. I can read a) from influxdb and b) and c) from mqtt and influxdb. However, I am not able to graph these nicely. In the graph below I have electricity price, forecasted windspeed, temperature and cloudiness, heat pump control graphed. Relay and motor are missing from this first graph.

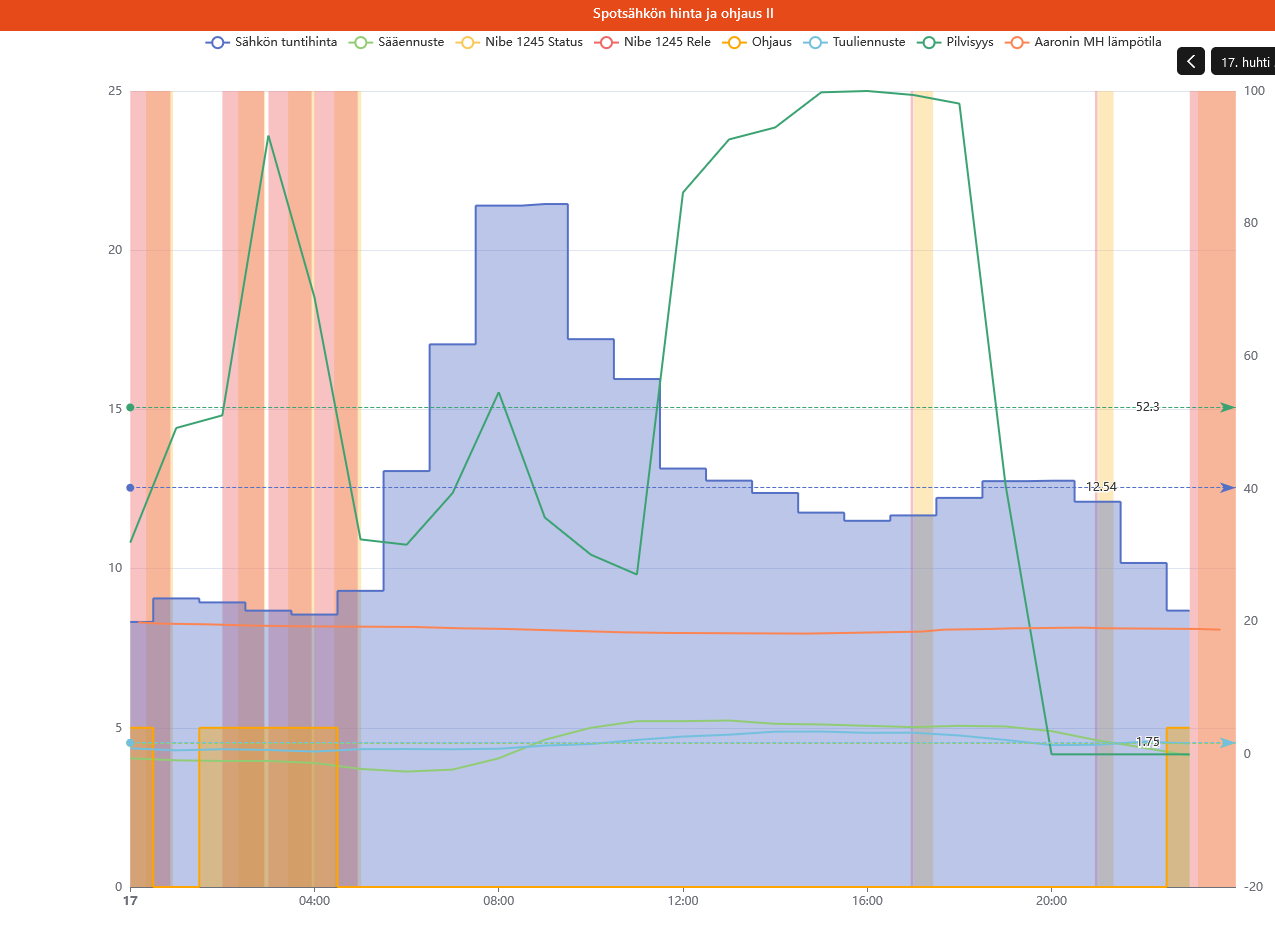

I have managed to add relay state and heat pump motor to the graph like so:
As one can see, the relay and heat pump motor state bars extend all the way from bottom to top. I would like them to behave like the shorter yellow control signal bar. I do not understand OH graphing well enough to get this to work. I would appreciate help on how to get this working correct.
Here is my code:
config:
chartType: day
label: Spotsähkön hinta ja ohjaus II
order: "-15"
sidebar: true
slots:
grid:
- component: oh-chart-grid
config: {}
legend:
- component: oh-chart-legend
config:
orient: horizontal
show: true
series:
- component: oh-time-series
config:
areaStyle:
opacity: "0.4"
gridIndex: 0
item: spot_price
markLine:
data:
- label:
distance: -150
name: Avg
type: average
name: Sähkön tuntihinta
step: middle
type: line
xAxisIndex: 0
yAxisIndex: 0
- component: oh-time-series
config:
gridIndex: 0
item: fmi_forecast_temperature
markLine:
data:
- label:
distance: -100
name: Avg
type: average
name: Sääennuste
type: line
xAxisIndex: 0
yAxisIndex: 1
- component: oh-time-series
config:
areaStyle: {}
gridIndex: 0
name: Nibe 1245 Status
type: line
xAxisIndex: 0
yAxisIndex: 2
slots:
markArea:
- component: oh-mark-area
config:
item: Nibe1245Sensor
name: Nibe1245Sensor
service: influxdb
stack: foo
type: bar
- component: oh-time-series
config:
areaStyle:
opacity: "0.4"
gridIndex: 0
name: Nibe 1245 Rele
service: influxdb
step: middle
type: line
xAxisIndex: 0
yAxisIndex: 2
slots:
markArea:
- component: oh-time-series
config:
item: Lampopumpun_ohjaus_Nibe1245_rele
name: Lampopumpun_ohjaus_Nibe1245_rele
- component: oh-time-series
config:
areaStyle:
opacity: "0.4"
color: orange
gridIndex: 0
item: nibe_control
name: Ohjaus
step: middle
type: line
xAxisIndex: 0
yAxisIndex: 2
- component: oh-time-series
config:
gridIndex: 0
item: fmi_forecast_WindSpeedMS
markLine:
data:
- label:
distance: -100
name: Avg
type: average
name: Tuuliennuste
type: line
xAxisIndex: 0
yAxisIndex: 1
- component: oh-time-series
config:
gridIndex: 0
item: fmi_forecast_TotalCloudCover
markLine:
data:
- label:
distance: -100
name: Avg
type: average
name: Pilvisyys
type: line
xAxisIndex: 0
yAxisIndex: 1
- component: oh-time-series
config:
gridIndex: 0
item: aaroninHuoneenAnturi
name: Aaronin MH lämpötila
type: line
xAxisIndex: 0
yAxisIndex: 1
tooltip:
- component: oh-chart-tooltip
config:
orient: horizontal
show: true
xAxis:
- component: oh-time-axis
config:
gridIndex: 0
yAxis:
- component: oh-value-axis
config:
gridIndex: 0
- component: oh-value-axis
config:
gridIndex: 0
splitLine:
show: false
- component: oh-value-axis
config:
gridIndex: 0
max: "5"
min: "0"
show: false
