Ir blaster HOME AUTOMATION wiwo orvibo & S20

Achille_Di_Sano · November 9, 2015, 2:51pm

There is low price ir blaster. ORVIBO WIWO IR .

I want implementation in openhab.

Is it possibile?

review of product:

Revere enginnering on ORVIBO:
https://stikonas.eu/wordpress/2015/02/24/reverse-engineering-orvibo-s20-socket/

I found open source JAVASCRIPT driver FOR in NODE.js :

I found other this code GO LANGUAGE:

Achille_Di_Sano · November 9, 2015, 2:53pm

That socket looks very similar to one Aldi Australia are selling (under the brand name Bauhn, but it’s actually an Orvibo socket, just rebranded). If it is the same, then check out the sample node.js code I’ve posted over on GitHub

https://github.com/Grayda/ninja-allone/blob/master/lib/allone.js (javascript)

(This code actually controls an Orvibo AllOne, but also controls Orvibo S10 / S20 sockets too)

The short of it is:

The socket communicates via UDP on port 10000
You need to know the MAC address of your socket
You send a discovery packet to which the socket replies
You then ‘subscribe’ to the socket in order to control it
When you send on / off packets to the socket, it replies in turn with it’s current state

data analisys:
http://pastebin.com/0w8N7AJD

Achille_Di_Sano · November 21, 2015, 4:23pm

I buy device… if we need sniffer i can

magcode · November 24, 2015, 12:59pm

Interesting! Any idea whether this device also supports “receiving”? This would make it possible to have a cheap IR receiver connected to OH. (beside the IR sender)

With that you could use any IR remote and trigger something in OH.

danielwalters86 · November 24, 2015, 1:17pm

I’ve started some work on a Java library (that should be able to be converted into a binding) for the S20 socket.

The problem I’m having at the moment is reliably communicating with the socket. My global discovery packet works fine but the subscription and commands are very intermittent (and often I get no response at all for long periods).

I’m not sure if this is a problem with my dev PC, or my home network or if the UDP packets I’m sending are invalid but the Android App seems to work OK.

Achille_Di_Sano · November 24, 2015, 8:23pm

this device support receving becouse have the possibility for store code IR. And it can recive any ir code device.

Achille_Di_Sano · November 24, 2015, 8:24pm

I have same problem , i sniffing command udp generate andoird app . After when i send command of pc -> ir blaster i dont have response

richbeales · November 24, 2015, 9:29pm

I’m using the python-orvibo project on github for the s20, and that seems very reliable at present. Is your java code available anywhere maybe you/I could compare the two?

danielwalters86 · November 24, 2015, 10:56pm

I’m beginning to think it’s something to do with my (Windows) PC. I’ve got a python script that I can run on my Raspberry Pi and it works pretty reliably. I’ve tried the same script on my PC and it doesn’t work.

I then tried some basic Java code and it didn’t work on my PC. I zipped it up in a jar file and ran it on my Raspberry Pi and it works and controls my socket.

PS why does the forum keep telling me this reply is too similar to a previous one?

Achille_Di_Sano · November 29, 2015, 9:54am

How to send commands to disable / enable Orvibo S20 Smart WIFI Plug.

The tests use S20 Smart WIFI Plug in a while that Plug Power is capable of Control on / off as well, but the Control to use the IOS and Android can not be activated via Computer if maybe we. Conditions need to turn on / off can be operated from a computer is very good. I try to find a way to find Web Control S20 Andrius. Štikonas most talented Reference and Information Packet began to write their own programs to be prepared to go Home Automate

Begin
The function of the applications we are interested.

Open / Close Plug
Pull Plug the status of what is now a state.

Job Description
S20 will receive UDP Port number 48 899 and 10 000 orders for the program by 48 899 will be part of the Discovery of the S20 and Port 10000 will transfer Command.

From Socket said the orders are to be numbered Mac Address all queries, we need numbers Mac’s S20 but will allow customers to enter the Mac would not have to start by sending commands to the Port. Get a Mac before, to 48 899

To find the Mac address

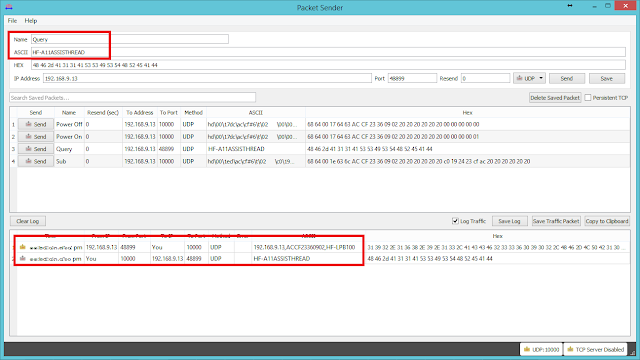

He that sent Command " HF-A11ASSISTHREAD "ASCII to 255.255.255.255 Port 48899 all in the S20 system will respond. IP, MAC, HOSTNAME back, but we want just one. We will send the IP address of the S20 that we want to represent. It has come out as IP, MAC, HOSTNAME But by cutting out part of the MAC.

Example of order " HF-A11ASSISTHREAD "192.168.9.13:48899 to have a value of S20.
" 192.168.9.13, ACCF23360902, HF-LPB100 ".

From the above statement, we will have a Mac, S20 to send the next command.

To send a command to turn on / off
data from Socket mentioned above. Before we send commands to the S20 has required Subscribe before placing an order. ON / OFF

orders Subscribe
by order forms Subscribe to this (as Hex Number)

[Magic Number] 6864
[ Package Length] 001e
[Subscribe Command] 636C
[Mac address] Accf23360902
[SPACE PAD x 6] the 202,020,202,020th.
[ Mac Address Little Endian ( Mac dual switch from back to front) ] 02093623cfac
[SPACE PAD x 6] the 202,020,202,020th

this example is to send a
6864001e636c Accf23360902 20202020202002093623cfac202020202020.

For example, an order by the Packet Subscribe " 6864001e636c Accf23360902 20202020202002093623cfac202020202020 " to. 192.168.9.13:10000 On the back of the S20 is
" 68640018636c Accf23360902 2020202020200000000000 01 "

From the results, we can know the status Plug the Hex final has been set at 01, is open 00 off

**orders on / off **
by the format command off. / open like this (showing a Hex Number)

[Magic Number] 6864
[ Package Length] 0017
[Subscribe Command] 6463
[Mac address] Accf23360902
[SPACE PAD x 6] 202 020 202 020
[Zero X4] 00000000
[Power Command] 00 or 01.

An example of this would be the value to be sent off for a
"686400176463 Accf23360902 the 202,020,202,020th 00000000 00 "
to open a
"686 400 176 463 Accf23360902 202,020,202,020th 00000000 01 ".

For example, to send a statement with the ON Command " 686400176463 Accf23360902 the 202,020,202,020th 00000000 01 " to. 192.168.9.13:10000 On the back of S20 3 packet is

" the 686,400,176,463th Accf23360902 2020202020200100000000 "unused
" 686400177366 Accf23360902 20202020202000000000 01 "Packet desired
" the 686,400,177,366th Accf23360902 20202020202000000000 01 " Packet over from two

of the results enable us to check. a statement that the state was at the behest or HEX final Packet that two or three are equal,

Achille_Di_Sano · November 29, 2015, 10:04am

Switch OrviboSwitch “OrviboSwitch” (gMainRoom) { exec=">[ON:/usr/local/jre/bin/java -cp /share/homes/admin S20 192.168.1.13 on]
>[OFF:/usr/local/jre/bin/java -cp /share/homes/admin S20 192.168.1.13 off]
<[/usr/local/jre/bin/java -cp /share/homes/admin S20 192.168.1.13 status:10000:REGEX((.*))]" }

Achille_Di_Sano · November 29, 2015, 10:22am

@grayda tell :

/lib/allone.js is a stand-alone file, the rest of the driver is just a wrapper for that, so it’s definitely possible to use it without a Ninja Block.

github.com

Grayda/ninja-allone/blob/master/lib/allone.js

/*
  * Orvibo AllOne Module
  * --------------------
  *
  * This library lets you control an Orvibo AllOne IR Blaster from node.js
  *
  * Usage
  * ------
  * You need to set your AllOne up using the WiWo app first. This code only controls an already set up socket
  * Require the allone.js file, create a new instance of OrviboAllOne, then call the prepare function, the discover function, the subscribe function, then emitIR
  * Use "on" or callbacks to listen for events
  *
  * Emits
  * ------
  * allonefound (index, IP address, MAC address) - New AllOne has been found
  * namechanged (old name, new name) - Socket name has changed.
  * queried (name of socket, index) - .query() has been called, but no confirmation received yet
  * subscribed (index, state) - Same as above, but for .subscribe()
  * statechanged (index, state) - The state has been changed by other means (e.g. Physical button press, button press in the SmartPoint app)
  * messagerecieved (message, remote IP address, type of message) - A message has been received. Type of message is just a human-readable string (e.g. "Socket Found message")

This file has been truncated. show original

Achille_Di_Sano · December 9, 2015, 9:16am

Is it possible use allone.js with exec comand in openhab?

danielwalters86 · December 9, 2015, 11:02am

Can you run it from command line without openhab?

richbeales · December 9, 2015, 11:59am

Yes in my fork of the project on github i’ve added a “cmd.py” which you can run from the command line or an exec binding providing you have python 3.x installed

{exec="<[/usr/bin/python3 /home/rich/python-orvibo/cmd.py --server 10.1.0.14 --status:60000:REGEX((.*?))] >[ON:/usr/bin/python3 /home/rich/python-orvibo/cmd.py --server 10.1.0.14 --switch ON] >[OFF:/usr/bin/python3 /home/rich/python-orvibo/cmd.py --server 10.1.0.14 --switch OFF]"}

andrew · January 10, 2016, 6:11am

Is this just for the S20 or can it be used with the IR Blaster as well?

Pavel_Cherezov · January 22, 2016, 12:50pm

You may be interesting in my orvibo module for python3 . It allows control s20 and AllOne IR blasters.

Achille_Di_Sano · March 8, 2016, 7:14pm

I use master orvibo is work. I test ir grab and Ir send

python /usr/share/openhab/addons/orvibo.py -i 192.168.1.26 -t /usr/share/openhab/addons/ir/test.ir
python /usr/share/openhab/addons/orvibo.py -i 192.168.1.26 -e /usr/share/openhab/addons/ir/test.ir

but after 5 time i end command i have this error:

Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
Last login: Tue Mar 8 19:46:46 2016 from 192.168.1.21
root@raspberrypi:~# python /usr/share/openhab/addons/orvibo.py -i 192.168.1.26 -t /usr/share/openhab/addons/ir/test.ir
Traceback (most recent call last):
File “/usr/share/openhab/addons/orvibo.py”, line 519, in
d = Orvibo.discover(ip)
File “/usr/share/openhab/addons/orvibo.py”, line 241, in discover
with orvibo_socket() as s:
File “/usr/lib/python2.7/contextlib.py”, line 17, in _enter
return self.gen.next()
File “/usr/share/openhab/addons/orvibo.py”, line 99, in _orvibo_socket
sock.bind((’’, PORT))
File “/usr/lib/python2.7/socket.py”, line 224, in meth
return getattr(self._sock,name)(*args)
socket.error: [Errno 98] Address already in use

Pavel_Cherezov · March 8, 2016, 7:42pm

Seems you’ve tried to do it too frequently. Despite of orvibo connection has SO_REUSEADDR for the UDP socket to Orvibo devices, there is a system level stuff like TIME_WAIT, which doesn’t allow reuse address while TIME_WAIT timeout. You may read more about this timeout and a workaround here

Achille_Di_Sano · March 8, 2016, 8:01pm

I see that i have port 10000 in use
