JK-BMS Widget

Updated 25.07.2025

Hi all
first of all, I have really no knowledge in widget development. But my goal was to visualize the BMS from my battery pack in OH
So I use parts from other code I found here

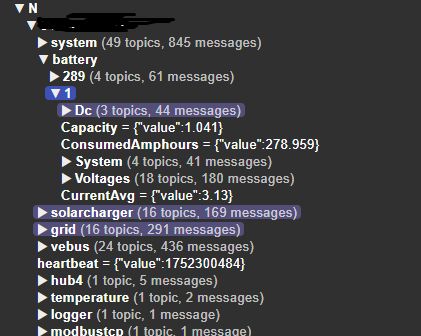

My Solarsystem is based on Victron and use the Victron Venus OS with MQTT broker
(Image Large)

This widget displays the values for up to a 16 Cell battery pack

But here is my first try (My battery pack have the name of my former dog “Ruby”)
Have a try and yes, pls. give me a feedback how to opitmize the code

Have fun

// I don’t know how to add a yaml-, thing- and itemfile in this post.

The data of the JKBMS are collected with the github project Sissi ESPHome JKBMS

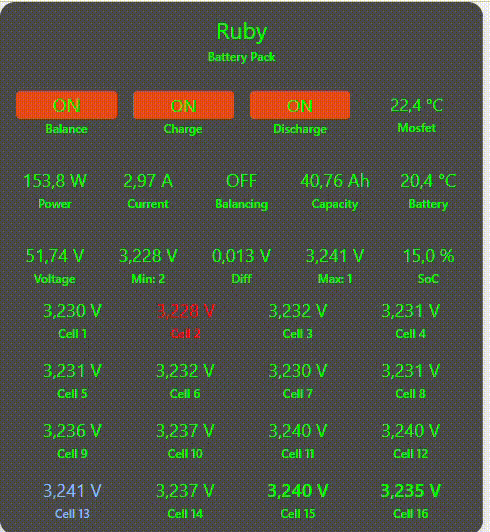

The widget diesplays several data of the JKBMS

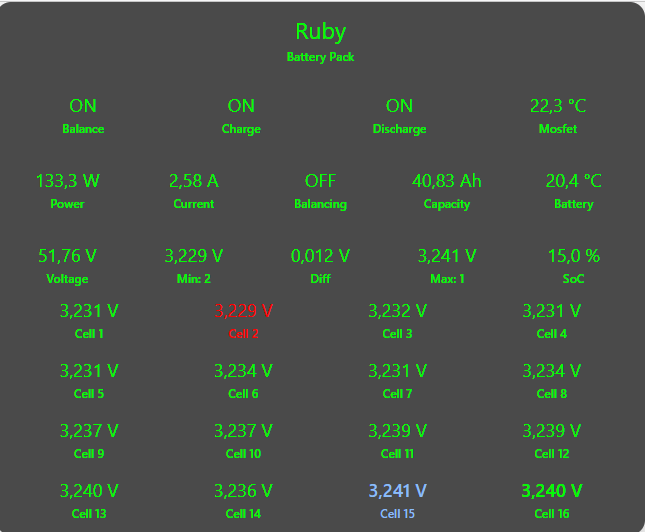

It shows up to 16 cells, the amount of cells are collected from the jkbms and highlight the upper und lower cell in a different colour.
You can choose if the Balancing, Charging and Discharging if you allowed to be turned on / off within OH

JKBMS-Widget-V3

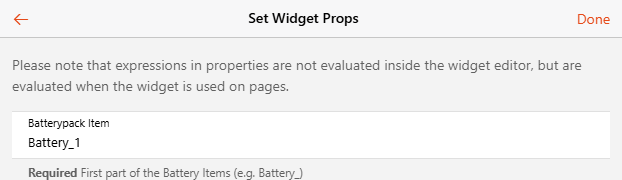

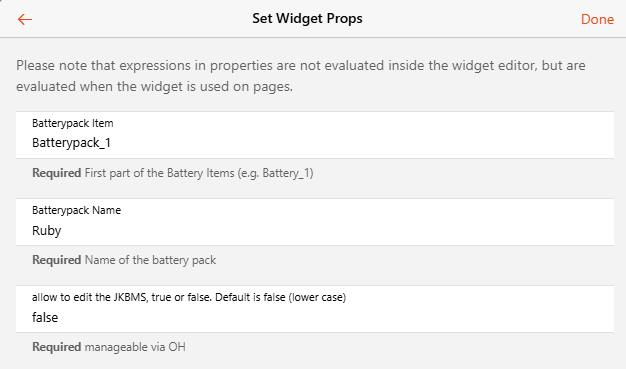

Parameters are Thing Name, your name for the battery pack and if the buttons are enabled or not

Below are the Thing-File, the Item-File and the YAML Code for the Widget
If you have more than one battery pack, just give the battery pack in the thing file another name
In the item file replace “Batterypack_1” with your own naming.
The widget completed the itemname with the parameter
e.g. “Batterypack_1” + “_Cellcount”

The thing-File


[details="Summary"]
Bridge mqtt:broker:batterypack "MQTT Battery Broker" [
    host="192.168.1.25",
    port=1883,
    clientID="BatteryPacks"
] {
    Thing topic Batterypack_1 "PV Battery Pack Ruby" {
        Channels:
            Type number : cell1  "Cell 1 Voltage"  [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_1/state" ]
            Type number : cell2  "Cell 2 Voltage"  [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_2/state" ]
            Type number : cell3  "Cell 3 Voltage"  [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_3/state" ]
            Type number : cell4  "Cell 4 Voltage"  [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_4/state" ]
            Type number : cell5  "Cell 5 Voltage"  [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_5/state" ]
            Type number : cell6  "Cell 6 Voltage"  [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_6/state" ]
            Type number : cell7  "Cell 7 Voltage"  [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_7/state" ]
            Type number : cell8  "Cell 8 Voltage"  [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_8/state" ]
            Type number : cell9  "Cell 9 Voltage"  [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_9/state" ]
            Type number : cell10 "Cell 10 Voltage" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_10/state" ]
            Type number : cell11 "Cell 11 Voltage" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_11/state" ]
            Type number : cell12 "Cell 12 Voltage" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_12/state" ]
            Type number : cell13 "Cell 13 Voltage" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_13/state" ]
            Type number : cell14 "Cell 14 Voltage" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_14/state" ]
            Type number : cell15 "Cell 15 Voltage" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_15/state" ]
            Type number : cell16 "Cell 16 Voltage" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_16/state" ]
	    Type number : Mosfet "Mosfet Temperature" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_power_tube_temperature/state" ]
            Type number : Cell_Diff "Cell Difference" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_delta_cell_voltage/state" ]
            Type number : BatVoltage "Cell Voltage" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_total_voltage/state" ]
            Type number : Cellcount "Cell Count" [ stateTopic="jk-bms-ruby/number/jk-bms-ruby_cell_count/state" ]
            Type string : CellLow "Cell ID Low" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_min_voltage_cell/state" ]
            Type string : CellHigh "Cell ID High" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_max_voltage_cell/state" ]
            Type number : Capacity "Capacity" [ stateTopic="jk-bms-ruby/number/jk-bms-ruby_total_battery_capacity/state" ]
            Type number : BatTemperature "MaxCellTemperature" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_temperature_sensor_1/state" ]
            Type number : MinCellVoltage "MinCellVoltage" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_min_cell_voltage/state" ]
            Type number : MaxCellVoltage "MaxCellVoltage" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_max_cell_voltage/state" ]
            Type number : Balancing "Balancing" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_balancing/state" ]
            Type number : InstalledCapacity "InstalledCapacity" [ stateTopic="jk-bms-ruby/number/jk-bms-ruby_total_battery_capacity/state" ]
            Type number : Balancing "Balancing" [ stateTopic="jk-bms-ruby/binary_sensor/jk-bms-ruby_balancing/state" ]
            Type number : SoC "State of Charge" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_state_of_charge/state" ]
            Type number : Current "Current A"  [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_current/state" ]
            Type number : Power "Power in W" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_power/state" ]
            Type switch : AllowToCharge "AllowToCharge" [ commandTopic="jk-bms-ruby/switch/jk-bms-ruby_charging/state", stateTopic="jk-bms-ruby/switch/jk-bms-ruby_charging/state" ]
            Type switch : AllowToDischarge "AllowToDischarge" [ commandTopic="jk-bms-ruby/switch/jk-bms-ruby_discharging/state", stateTopic="jk-bms-ruby/switch/jk-bms-ruby_discharging/state" ]
            Type switch : AllowToBalance "AllowToBalance" [ commandTopic="jk-bms-ruby/switch/jk-bms-ruby_balancer/state", stateTopic="jk-bms-ruby/switch/jk-bms-ruby_balancer/state" ]
            Type number : CapacityRemaining  "Capacity Remaining" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_capacity_remaining/state" ]
            Type number : ChargingPower "Charging Power" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_charging_power/state" ]
            Type number : DischargingPower "Discharging Power" [ stateTopic="jk-bms-ruby/sensor/jk-bms-ruby_discharging_power/state" ]


    }
}
[/details]


The item-File

Number Batterypack_1_C1  "Zelle 1 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell1" }
Number Batterypack_1_C2  "Zelle 2 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell2" }
Number Batterypack_1_C3  "Zelle 3 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell3" }
Number Batterypack_1_C4  "Zelle 4 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell4" }
Number Batterypack_1_C5  "Zelle 5 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell5" }
Number Batterypack_1_C6  "Zelle 6 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell6" }
Number Batterypack_1_C7  "Zelle 7 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell7" }
Number Batterypack_1_C8  "Zelle 8 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell8" }
Number Batterypack_1_C9  "Zelle 9 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell9" }
Number Batterypack_1_C10 "Zelle 10 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell10" }
Number Batterypack_1_C11 "Zelle 11 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell11" }
Number Batterypack_1_C12 "Zelle 12 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell12" }
Number Batterypack_1_C13 "Zelle 13 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell13" }
Number Batterypack_1_C14 "Zelle 14 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell14" }
Number Batterypack_1_C15 "Zelle 15 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell15" }
Number Batterypack_1_C16 "Zelle 16 [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:cell16" }
Number Batterypack_1_Voltage "Voltage [%.2f V]" { channel="mqtt:topic:batterypack:Batterypack_1:BatVoltage" }
Number Batterypack_1_Mosfet "Mosfet Temperature [%.1f °C]" { channel="mqtt:topic:batterypack:Batterypack_1:Mosfet" }
Number Batterypack_1_CelDiff "Cell Difference [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:Cell_Diff" }
Number Batterypack_1_Cellcount "NrOfCellsPerBattery" { channel="mqtt:topic:batterypack:Batterypack_1:Cellcount" }
Number Batterypack_1_BatTemperature "Battery Temperature [%.1f °C]" { channel="mqtt:topic:batterypack:Batterypack_1:BatTemperature" }
String Batterypack_1_CellLow "Cell ID Low" { channel="mqtt:topic:batterypack:Batterypack_1:CellLow" }
String Batterypack_1_CellHigh "Cell ID High" { channel="mqtt:topic:batterypack:Batterypack_1:CellHigh", transformationPattern="CellIDHighlight.js" }
Number Batterypack_1_Capacity "Capacity [%.2f Ah]" { channel="mqtt:topic:batterypack:Batterypack_1:Capacity" }
Number Batterypack_1_MaxCellVoltage "Voltage [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:MaxCellVoltage" }
Number Batterypack_1_MinCellVoltage "Voltage [%.3f V]" { channel="mqtt:topic:batterypack:Batterypack_1:MinCellVoltage" }
String Batterypack_1_CustomeName "CustomName"  { channel="mqtt:topic:batterypack:Batterypack_1:CustomName" }
Number Batterypack_1_installedCapacity "Capacity"  { channel="mqtt:topic:batterypack:Batterypack_1:InstalledCapacity" }
Number Batterypack_1_Balancing "Balancing"  { channel="mqtt:topic:batterypack:Batterypack_1:Balancing" }
Switch Batterypack_1_AllowToCharge "AllowToCharge"  { channel="mqtt:topic:batterypack:Batterypack_1:AllowToCharge" }
Switch Batterypack_1_AllowToDischarge "AllowToDischarge"  { channel="mqtt:topic:batterypack:Batterypack_1:AllowToDischarge" }
Switch Batterypack_1_AllowToBalance "AllowToBalance"  { channel="mqtt:topic:batterypack:Batterypack_1:AllowToBalance" }
Number Batterypack_1_SoC "State of Charge [%.1f %%]" { channel="mqtt:topic:batterypack:Batterypack_1:SoC" }
Number Batterypack_1_Current "Current [%.2f A]" { channel="mqtt:topic:batterypack:Batterypack_1:Current" }
Number Batterypack_1_Power "Power [%.1f W]" { channel="mqtt:topic:batterypack:Batterypack_1:Power" }
Number Batterypack_1_CapacityRemaining "Remaining [%.2f Ah]" { channel="mqtt:topic:batterypack:Batterypack_1:CapacityRemaining" }
Number Batterypack_1_ChargingPower "Power [%.1f W]" { channel="mqtt:topic:batterypack:Batterypack_1:ChargingPower" }
Number Batterypack_1_DischargingPower "Discharging Power [%.1f W]" { channel="mqtt:topic:batterypack:Batterypack_1:DischargingPower" }
Switch  Batterypack_1_Balancing "Balancing" { channel="mqtt:topic:batterpack:Batterypack_1:Balancing" }

and the widget

uid: JKBMS_V3
tags:
  - JKBMS
  - VenusOS
props:
  parameters:
    - description: First part of the Battery Items (e.g. Battery_1)
      label: Batterypack Item
      name: battery
      required: true
      type: TEXT
    - description: Name of the battery pack
      label: Batterypack Name
      name: batterypackname
      required: true
      type: TEXT
    - description: manageable via OH
      label: allow to edit the JKBMS, true or false. Default is false (lower case)
      name: batterymanageable
      required: true
  parameterGroups: []
timestamp: Jul 25, 2025, 3:17:36 PM
component: f7-card
config:
  expandable: true
  swipeToClose: true
  backdrop: true
  hideStatusbarOnOpen: true
  class:
    - card-expandable-animate-width
    - card-outline
  style:
    height: =((Number.parseInt(items[props.battery+"_Cellcount"].state) / 4 *
      62)+285) +'px'
    width: auto
    margin-left: 0px
    margin-right: 0px
    margin-top: 0px
    margin-bottom: -25px
    --f7-card-outline-border-color: "'gray' : ''"
    background-color: rgba(18,18,18,0.75)
    //box-shadow: var(--f7-card-expandable-box-shadow)
slots:
  default:
    - component: f7-card-content
      config:
        style:
          width: 100%
      slots:
        default:
          - component: f7-row
            config:
              style:
                width: 100%
                height: 0px
              class:
                - display-flex
                - flex-direction-row
                - justify-content-flex-end
                - align-items-baseline
          - component: f7-block
            config:
              style:
                margin-top: -12px
                height: 100px
            slots:
              default:
                - component: f7-row
                  config:
                    class:
                      - display-flex
                      - align-items-center
                      - justify-content-space-between
                      - card-prevent-open
                    style:
                      white-space: nowrap
                      flex-wrap: nowrap
                      height: 75px
                      weight: 100%
                  slots:
                    default:
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =props.batterypackname
                                margin-top: -9px
                                style:
                                  font-size: 23px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Battery Pack
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                - component: f7-row
                  config:
                    visible: '=props.batterymanageable === "true"? true : false'
                    class:
                      - display-flex
                      - align-items-center
                      - justify-content-space-between
                      - card-prevent-open
                    style:
                      white-space: nowrap
                      flex-wrap: nowrap
                      height: 75px
                      weight: 100%
                  slots:
                    default:
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: oh-button
                              config:
                                text: =items[props.battery+"_AllowToBalance"].state
                                margin-top: -9px
                                outline: true
                                fill: '=items[props.battery+"_AllowToBalance"].state === "ON" ? true : false'
                                action: toggle
                                actionItem: =[props.battery+"_AllowToBalance"]
                                actionCommand: ON
                                actionCommandAlt: OFF
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Balance
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: oh-button
                              config:
                                text: =items[props.battery+"_AllowToCharge"].state
                                outline: true
                                fill: '=items[props.battery+"_AllowToCharge"].state === "ON" ? true : false'
                                action: toggle
                                actionItem: =[props.battery+"_AllowToCharge"]
                                actionCommand: ON
                                actionCommandAlt: OFF
                                margin-top: -9px
                                style:
                                  font-size: 17px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Charge
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: oh-button
                              config:
                                text: =items[props.battery+"_AllowToDischarge"].state
                                margin-top: -9px
                                outline: true
                                fill: '=items[props.battery+"_AllowToDischarge"].state === "ON" ? true : false'
                                action: toggle
                                actionItem: =[props.battery+"_AllowToDischarge"]
                                actionCommand: ON
                                actionCommandAlt: OFF
                                style:
                                  font-size: 17px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Discharge
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_Mosfet"].displayState
                                margin-top: -9px
                                style:
                                  font-size: 17px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Mosfet
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                - component: f7-row
                  config:
                    visible: '=props.batterymanageable === "true"? false : true'
                    class:
                      - display-flex
                      - align-items-center
                      - justify-content-space-between
                      - card-prevent-open
                    style:
                      white-space: nowrap
                      flex-wrap: nowrap
                      height: 75px
                      weight: 100%
                  slots:
                    default:
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_AllowToBalance"].state
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Balance
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_AllowToCharge"].state
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Charge
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_AllowToDischarge"].state
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Discharge
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_Mosfet"].displayState
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Mosfet
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                - component: f7-row
                  config:
                    class:
                      - display-flex
                      - align-items-center
                      - justify-content-space-between
                      - card-prevent-open
                    style:
                      white-space: nowrap
                      flex-wrap: nowrap
                      height: 75px
                      weight: 100%
                  slots:
                    default:
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_Power"].displayState
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Power
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_Current"].displayState
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Current
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_Balancing"].state
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Balancing
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_CapacityRemaining"].displayState
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Capacity
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_BatTemperature"].displayState
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Battery
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                - component: f7-row
                  config:
                    class:
                      - display-flex
                      - align-items-center
                      - justify-content-space-between
                      - card-prevent-open
                    style:
                      white-space: nowrap
                      flex-wrap: nowrap
                      height: 75px
                      weight: 100%
                  slots:
                    default:
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_Voltage"].displayState
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Voltage
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_MinCellVoltage"].displayState
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: '= "Min: " +  items[props.battery+"_CellLow"].state'
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_CelDiff"].displayState
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: Diff
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_MaxCellVoltage"].displayState
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: "= 'Max: ' + items.Battery_CellHigh.state"
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_SoC"].displayState
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: lime
                                  class:
                                    - text-align-center
                            - component: Label
                              config:
                                text: SoC
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: lime
                - component: f7-row
                  config:
                    visible: "=items.Battery_Cellcount.state >= 4 ? true : false"
                    style:
                      height: 60px
                      width: 100%
                    class:
                      - display-flex
                      - flex-direction-row
                      - justify-content-space-around
                      - card-prevent-open
                  slots:
                    default:
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+"_C1"].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '1' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '1') ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 1
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '1' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '1' ) ? 'red' : 'lime'"
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C2'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '2') ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '2') ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 2
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '2') ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '2') ? 'red' : 'lime'"
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C3'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '3') ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '3') ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 3
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '3') ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '3') ? 'red' : 'lime'"
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C4'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '4' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '4') ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 4
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '4' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '4') ? 'red' : 'lime'"
                - component: f7-row
                  config:
                    visible: "=items[props.battery+'_Cellcount'].state >= 8 ? true : false"
                    style:
                      height: 60px
                      width: 100%
                    class:
                      - display-flex
                      - flex-direction-row
                      - justify-content-space-around
                      - card-prevent-open
                  slots:
                    default:
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C5'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '5' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '5' ) ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 5
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '5' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '5' ) ? 'red' : 'lime'"
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C6'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '6' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '6' ) ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 6
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '6' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '6' ) ? 'red' : 'lime'"
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C7'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '7' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '7' ) ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 7
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '7' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '7' ) ? 'red' : 'lime'"
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C8'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '8' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '8' ) ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 8
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '8' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '8' ) ? 'red' : 'lime'"
                - component: f7-row
                  config:
                    visible: "=items[props.battery+'_Cellcount'].state >= 12 ? true : false"
                    style:
                      height: 60px
                      width: 100%
                    class:
                      - display-flex
                      - flex-direction-row
                      - justify-content-space-around
                      - card-prevent-open
                  slots:
                    default:
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C9'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '9' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '9' ) ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 9
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '9' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '9' ) ? 'red' : 'lime'"
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C10'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '10' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '10' ) ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 10
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '10' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '10' ) ? 'red' : 'lime'"
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items.Battery_C11.displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '11' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '11' ) ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 11
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '11' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '11' ) ? 'red' : 'lime'"
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C12'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '12' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '12' ) ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 12
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '12' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '12' ) ? 'red' : 'lime'"
                - component: f7-row
                  config:
                    visible: "=items[props.battery+'_Cellcount'].state >= 16 ? true : false"
                    style:
                      height: 100px
                      width: 100%
                    class:
                      - display-flex
                      - flex-direction-row
                      - justify-content-space-around
                      - card-prevent-open
                  slots:
                    default:
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C13'].displayState
                                margin-top: -9px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '13' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '13' ) ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 13
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '13' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '13' ) ? 'red' : 'lime'"
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C14'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 400
                                  color: "=(items[props.battery+'_CellHigh'].state === '14' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '14' ) ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 14
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '14' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '14' ) ? 'red' : 'lime'"
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C15'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '15' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '15' ) ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 15
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '15' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '15' ) ? 'red' : 'lime'"
                      - component: f7-col
                        config:
                          style:
                            margin-top: -9px
                          class:
                            - display-flex
                            - flex-direction-column
                            - text-align-center
                        slots:
                          default:
                            - component: Label
                              config:
                                text: =items[props.battery+'_C16'].displayState
                                margin-top: px
                                style:
                                  font-size: 18px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '16' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '16' ) ? 'red' : 'lime'"
                                class:
                                  - text-align-center
                            - component: Label
                              config:
                                text: Cell 16
                                style:
                                  font-size: 12px
                                  font-weight: 600
                                  color: "=(items[props.battery+'_CellHigh'].state === '16' ) ? '#8bbcf7' :
                                    (items[props.battery+'_CellLow'].state ===
                                    '16' ) ? 'red' : 'lime'"

I forgot
the cells with the minimum and maximum voltage are shown in red and blue

Updates:
The height of the widget is now calculated with the amount of cells in the batterypack divided by 4

height:  =((Number.parseInt(items.Battery_Cellcount.state) / 4 * 62)+240) +'px'

What I still miss is the posibility to combine props.item with the last part of itemname
e.g.

Itemname = Battery_Cellcount
Props = Battery_

props.item + Cellcount.state

Problem solved

examples
Widget will be updatet soon

text: =items[props.battery+“AllowToBalance”]"].state

text: ‘= "Cell Min: " + items[props.battery+“Celllow”].state’

Hi Uwe,

Impressive work. I have recently built a similar setup, with three JK-BMS based batteries on a Victron system.Are you connecting via Bluetooth? And would you habe the ability to cycle through three batteries? Cheers, Tom

Hi Thomas
no, you dont need a separate connection via BT. VenusOS deliver this information.
All you need is MQTT enabled in VenusOS.
I have only one battery pack, so I cannot answer your question. But let us see which information your system will show-

Lets start:

I will show you my settings in Venus
under settings > Integration enable MQTT Access

than use a MQTT tool to discover your VenusOS output
I myself use MQTT Explorer
use a search engine for MQTT Explorer

search as shown in the picture for N
Below you will see your VRMSystemID, important: tis is your VRMsystemID never shows this in a forum
In my screenshot you see below battery two numbers. this are the VRM Instances of the batterys, 289 is in my case the Victron smart shunt and 1 the jkbms

You will find this Instanz numbers also in the VRM portal
I you see different numbers for your connected battery packs, I believe so, than we can create for each battery pack a thing

I all battery packs are bundled under one VRM instance we should have a look how this data are arranged

Monday I will update my widget

BR Uwe

Hi Uwe,
thanks. I have my batteries talking to my GX device as well. Unfortunately, I don’t seem to have the topics which shows individual cell voltages, i.e. no

N/ID/battery/1/Voltages

Which JK-BMS are you using and did you enable any specific “verbosity” settings? My batteries are built using the HW Version 15 of the JK_PB2A16S20P “Inverter” BMS. Firmware is V15.41. I can get the overall Min/MaxCellVoltage/ID from the “N/ID/battery/1/System” topics:

MaxCellVoltage = {"value":3.303999900817871}
MinCellVoltage = {"value":3.2990000247955322}
MaxVoltageCellId = {"value":"01::08"}
MinVoltageCellId = {"value":"00::02"}

But sadly, nothing for the individual cells. Possibly this has to do with the fact the the “master” BMS aggregates data and does not report individually. I also can’t get individual pack voltages for my three batteries, just the overall average that the master BMS aggregates. Same for all the other values that might be interesting such as the individual current per pack. This is all only available when connecting individually to the packs via bluetooth at the moment.

Cheers,

Tom

Hi Thomas
I use a JKBMS V11, this black bricks
I use this to connect the BMS via RS485

I will check if there is a possibility for your battery connection
Maybe there is a way to publish all or part of the data via Node-Red or with some of this ESPHome projects, which works with BT

ok, thanks for looking into it. Since the BMS connection is relevant to safe battery management, I will most likely not switch from the native support of the JK BMS connectivity to the dbus-serialbattery.

Hi Thomas
have a look on GitHub - syssi/esphome-jk-bms: ESPHome component to monitor and control a Jikong Battery Management System (JK-BMS) via UART-TTL or BLE and the supported jkbms Versions

All you need is ESPHome and an ESP32, this project deliver all the data you need.also via MQTT

ESPHome can be also used without HA .

To use my widget, only the path in the thing-file must be replaced.

But, as long the ESP32 is connect via BLE to the BMS, you are not able to connect with the jkbms app.Only when you switch the ESP32 off, you can connect.

If you need help, get in contact with me

Update:
You need a BLE scanner
One way is to flash a ESP32 or for example this BLE Scanner

Cool, thanks for the pointer. I have the ESP32 up and running and cell data is delivered to my MQTT for all three battery packs. Is there any specific way that I need to name my MQTT things in order to make them readable by your widget?

nevermind, I can see in your code that it expects “Battery_C1”, “Battery_C2” and so on. I guess I’ll add three widgets and do variations of that name for the three Battery packs. Cheers!

The item definition Battery_C1 to Battery_C16 are for the Cell voltages
All you have to do is to define a separate thing- and item file for each battery pack.
name the thing as you like it and replace in the item file the below bold marked parts


Number **Battery**_C1  "Zelle 1 [%.3f V]" { channel="mqtt:topic:myBroker:**batteryVoltage**s:cell1" }

Battery with your name for the Battery Pack e.g. Battery_1
batteryVoltage with the name defined in the thing file


Thing topic **batteryVoltages** "PV Battery One" {

In the widget


Add in “Batterypack Item” the first part of the itemnames e.g. “Battery_1”

If you are using the the sissi ESPHome than take care that Max Cell ID and Min Cell ID deliver only numbers and the widget function to highlight the cell is based on “C” and the Cell ID

There you have two possibilities
Modify the widget or modify the incoming values with a JS.file which add at the beginning of the Cell Numer a “C”

And in the Thing-File you don’t need this part
“, transformationPattern=“JSONPATH:$.value””
