Widget to visualize a LFP Batterypack, in my case I use JKBMS for my Batterypacks. The data are collected via the Sissi Project, which establish a communicate between a ESp32 and a JK BMS via UART-TTL or BLE found here:
The widget visualize, based on the cell count delivered from the BMS, the rows with the values for each cell

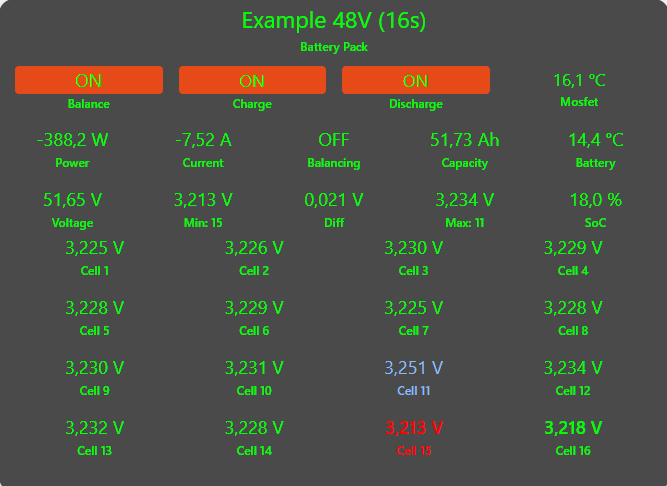

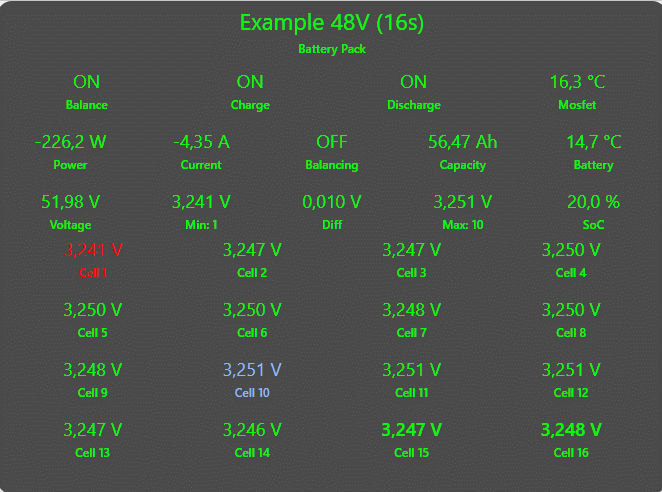

Screenshots

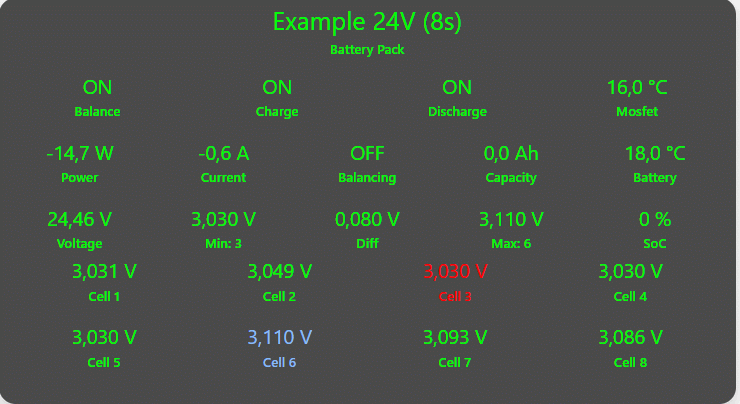

Example for a 8s Batterypack (disabled switches for Balance, Charge and Discharge)

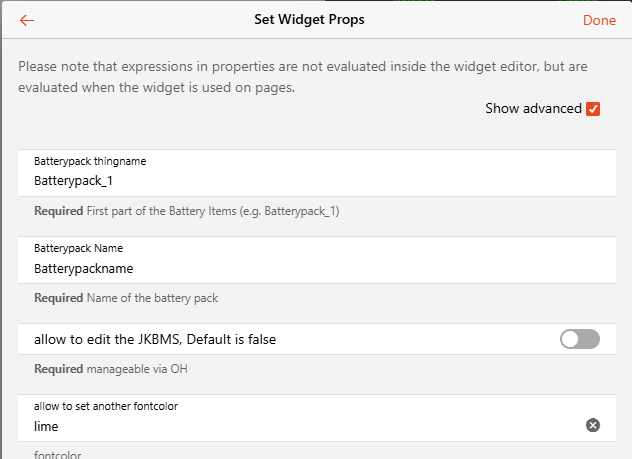

Settings
Settings are now prefilled with default values.
to enable the switches for Balance, Charge and Discharge enter in the settings “true” in lower cases
Changelog
Version 2
- Adjustments in the settings, they are now prefilled with default values
- added possibility to set another fontcolor
Version 1
- initial release
Resources
widget
uid: JKBMS_V2
tags:
- JKBMS
- Sissi ESPHome JK BMS
- VenusOS
props:
parameters:- default: Batterypack_1
description: First part of the Battery Items (e.g. Batterypack_1)
label: Batterypack thingname
name: battery
required: true
type: TEXT - default: Batterypackname
description: Name of the battery pack
label: Batterypack Name
name: batterypackname
required: true
type: TEXT - default: “false”
description: manageable via OH
label: allow to edit the JKBMS, Default is false
name: batterymanageable
required: true
type: BOOLEAN
advanced: true - default: lime
description: fontcolor
label: allow to set another fontcolor
name: widgetfonttext
required: false
type: TEXT
advanced: true
parameterGroups:
timestamp: Sep 25, 2025, 3:38:34 PM
component: f7-card
config:
backdrop: true
class: - card-expandable-animate-width
- card-outline
expandable: true
hideStatusbarOnOpen: true
style:
–f7-card-outline-border-color: “‘gray’ : ‘’”
//box-shadow: var(–f7-card-expandable-box-shadow)
background-color: rgba(18,18,18,0.75)
height: =((Number.parseInt(items[props.battery+“_Cellcount”].state) / 4 *
62)+225) +‘px’
margin-bottom: -25px
margin-left: 0px
margin-right: 0px
margin-top: 0px
width: auto
swipeToClose: true
slots:
default: - component: f7-card-content
config:
style:
width: 100%
slots:
default:- component: f7-row
config:
class: - display-flex
- flex-direction-row
- justify-content-flex-end
- align-items-baseline
style:
height: 0px
width: 100% - component: f7-block
config:
style:
height: 100px
margin-top: -12px
slots:
default: - component: f7-row
config:
class: - display-flex
- align-items-center
- justify-content-space-between
- card-prevent-open
style:
flex-wrap: nowrap
height: 60px
weight: 100%
white-space: nowrap
slots:
default: - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 23px
font-weight: 400
text: =props.batterypackname - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Battery Pack - component: f7-row
config:
class: - display-flex
- align-items-center
- justify-content-space-between
- card-prevent-open
style:
flex-wrap: nowrap
height: 60px
weight: 100%
white-space: nowrap
visible: “=props.batterymanageable === true? true : false”
slots:
default: - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: oh-button
config:
action: toggle
actionCommand: ON
actionCommandAlt: OFF
actionItem: =[props.battery+“_AllowToBalance”]
fill: ‘=items[props.battery+“_AllowToBalance”].state === “ON” ? true : false’
margin-top: -9px
outline: true
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_AllowToBalance”].state - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Balance - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: oh-button
config:
action: toggle
actionCommand: ON
actionCommandAlt: OFF
actionItem: =[props.battery+“_AllowToCharge”]
fill: ‘=items[props.battery+“_AllowToCharge”].state === “ON” ? true : false’
margin-top: -9px
outline: true
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 17px
font-weight: 400
text: =items[props.battery+“_AllowToCharge”].state - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Charge - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: oh-button
config:
action: toggle
actionCommand: ON
actionCommandAlt: OFF
actionItem: =[props.battery+“_AllowToDischarge”]
fill: ‘=items[props.battery+“_AllowToDischarge”].state === “ON” ? true : false’
margin-top: -9px
outline: true
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 17px
font-weight: 400
text: =items[props.battery+“_AllowToDischarge”].state - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Discharge - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 17px
font-weight: 400
text: =items[props.battery+“_Mosfet”].displayState - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Mosfet - component: f7-row
config:
class: - display-flex
- align-items-center
- justify-content-space-between
- card-prevent-open
style:
flex-wrap: nowrap
height: 60px
weight: 100%
white-space: nowrap
visible: “=props.batterymanageable === true? false : true”
slots:
default: - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_AllowToBalance”].state - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Balance - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_AllowToCharge”].state - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Charge - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_AllowToDischarge”].state - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Discharge - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_Mosfet”].displayState - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Mosfet - component: f7-row
config:
class: - display-flex
- align-items-center
- justify-content-space-between
- card-prevent-open
style:
flex-wrap: nowrap
height: 60px
weight: 100%
white-space: nowrap
slots:
default: - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_Power”].displayState - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Power - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_Current”].displayState - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Current - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_Balancing”].state - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Balancing - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_CapacityRemaining”].displayState - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Capacity - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_BatTemperature”].displayState - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Battery - component: f7-row
config:
class: - display-flex
- align-items-center
- justify-content-space-between
- card-prevent-open
style:
flex-wrap: nowrap
height: 60px
weight: 100%
white-space: nowrap
slots:
default: - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_Voltage”].displayState - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Voltage - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_MinCellVoltage”].displayState - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: ‘= “Min: " + items[props.battery+”_CellLow"].state’ - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_CelDiff”].displayState - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: Diff - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_MaxCellVoltage”].displayState - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: ‘= “Max: " + items[props.battery+”_CellHigh"].state’ - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
margin-top: -9px
style:
class: - text-align-center
color: =props.widgetfonttext
font-size: 18px
font-weight: 400
text: =items[props.battery+“_SoC”].displayState - component: Label
config:
style:
color: =props.widgetfonttext
font-size: 12px
font-weight: 600
text: SoC - component: f7-row
config:
class: - display-flex
- flex-direction-row
- justify-content-space-around
- card-prevent-open
style:
height: 60px
width: 100%
visible: “=items.Battery_Cellcount.state >= 4 ? true : false”
slots:
default: - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘1’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘1’) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+“_C1”].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘1’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘1’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 1 - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘2’) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘2’) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+‘_C2’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘2’) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘2’) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 2 - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘3’) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘3’) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+‘_C3’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘3’) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘3’) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 3 - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘4’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘4’) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+‘_C4’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘4’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘4’) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 4 - component: f7-row
config:
class: - display-flex
- flex-direction-row
- justify-content-space-around
- card-prevent-open
style:
height: 60px
width: 100%
visible: “=items[props.battery+‘_Cellcount’].state >= 8 ? true : false”
slots:
default: - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘5’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘5’ ) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+‘_C5’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘5’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘5’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 5 - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘6’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘6’ ) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+‘_C6’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘6’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘6’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 6 - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘7’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘7’ ) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+‘_C7’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘7’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘7’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 7 - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘8’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘8’ ) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+‘_C8’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘8’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘8’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 8 - component: f7-row
config:
class: - display-flex
- flex-direction-row
- justify-content-space-around
- card-prevent-open
style:
height: 60px
width: 100%
visible: “=items[props.battery+‘_Cellcount’].state >= 12 ? true : false”
slots:
default: - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘9’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘9’ ) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+‘_C9’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘9’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘9’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 9 - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘10’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘10’ ) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+‘_C10’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘10’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘10’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 10 - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘11’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘11’ ) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items.Battery_C11.displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘11’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘11’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 11 - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘12’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘12’ ) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+‘_C12’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘12’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘12’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 12 - component: f7-row
config:
class: - display-flex
- flex-direction-row
- justify-content-space-around
- card-prevent-open
style:
height: 60px
width: 100%
visible: “=items[props.battery+‘_Cellcount’].state >= 16 ? true : false”
slots:
default: - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: -9px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘13’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘13’ ) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+‘_C13’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘13’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘13’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 13 - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘14’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘14’ ) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 400
text: =items[props.battery+‘_C14’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘14’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘14’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 14 - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘15’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘15’ ) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 600
text: =items[props.battery+‘_C15’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘15’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘15’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 15 - component: f7-col
config:
class: - display-flex
- flex-direction-column
- text-align-center
style:
margin-top: -9px
slots:
default: - component: Label
config:
class: - text-align-center
margin-top: px
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘16’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘16’ ) ? ‘red’ : props.widgetfonttext”
font-size: 18px
font-weight: 600
text: =items[props.battery+‘_C16’].displayState - component: Label
config:
style:
color: “=(items[props.battery+‘_CellHigh’].state === ‘16’ ) ? ‘#8bbcf7’ :
(items[props.battery+‘_CellLow’].state ===
‘16’ ) ? ‘red’ : props.widgetfonttext”
font-size: 12px
font-weight: 600
text: Cell 16
- component: f7-row
- default: Batterypack_1
In the thing-file add the ip-address of your MQTT broker, replace “Batterypack_1” with your thing name (this name will be used in the widget settings) and search and replace “jk-bms-ruby” with your definition from the esphome project
The thing file create a MQTT bridge called batterypack
save this as a thing file in openhab
(location: /srv/openhab-conf/things)
Thing file
Bridge mqtt:broker:batterypack “MQTT Battery Broker” [
host=“IP-Address”,
port=1883,
clientID=“BatteryPacks”
] {
Thing topic Batterypack_1 “PV Battery Pack Ruby” {
Channels:
Type number : cell1 “Cell 1 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_1/state” ]
Type number : cell2 “Cell 2 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_2/state” ]
Type number : cell3 “Cell 3 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_3/state” ]
Type number : cell4 “Cell 4 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_4/state” ]
Type number : cell5 “Cell 5 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_5/state” ]
Type number : cell6 “Cell 6 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_6/state” ]
Type number : cell7 “Cell 7 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_7/state” ]
Type number : cell8 “Cell 8 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_8/state” ]
Type number : cell9 “Cell 9 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_9/state” ]
Type number : cell10 “Cell 10 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_10/state” ]
Type number : cell11 “Cell 11 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_11/state” ]
Type number : cell12 “Cell 12 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_12/state” ]
Type number : cell13 “Cell 13 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_13/state” ]
Type number : cell14 “Cell 14 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_14/state” ]
Type number : cell15 “Cell 15 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_15/state” ]
Type number : cell16 “Cell 16 Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_cell_voltage_16/state” ]
Type number : Mosfet “Mosfet Temperature” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_power_tube_temperature/state” ]
Type number : Cell_Diff “Cell Difference” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_delta_cell_voltage/state” ]
Type number : BatVoltage “Cell Voltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_total_voltage/state” ]
Type number : Cellcount “Cell Count” [ stateTopic=“jk-bms-ruby/number/jk-bms-ruby_cell_count/state” ]
Type string : CellLow “Cell ID Low” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_min_voltage_cell/state” ]
Type string : CellHigh “Cell ID High” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_max_voltage_cell/state” ]
Type number : Capacity “Capacity” [ stateTopic=“jk-bms-ruby/number/jk-bms-ruby_total_battery_capacity/state” ]
Type number : BatTemperature “MaxCellTemperature” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_temperature_sensor_1/state” ]
Type number : MinCellVoltage “MinCellVoltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_min_cell_voltage/state” ]
Type number : MaxCellVoltage “MaxCellVoltage” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_max_cell_voltage/state” ]
Type number : Balancing “Balancing” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_balancing/state” ]
Type number : InstalledCapacity “InstalledCapacity” [ stateTopic=“jk-bms-ruby/number/jk-bms-ruby_total_battery_capacity/state” ]
Type number : Balancing “Balancing” [ stateTopic=“jk-bms-ruby/binary_sensor/jk-bms-ruby_balancing/state” ]
Type number : SoC “State of Charge” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_state_of_charge/state” ]
Type number : Current “Current A” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_current/state” ]
Type number : Power “Power in W” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_power/state” ]
Type switch : AllowToCharge “AllowToCharge” [ commandTopic=“jk-bms-ruby/switch/jk-bms-ruby_charging/state”, stateTopic=“jk-bms-ruby/switch/jk-bms-ruby_charging/state” ]
Type switch : AllowToDischarge “AllowToDischarge” [ commandTopic=“jk-bms-ruby/switch/jk-bms-ruby_discharging/state”, stateTopic=“jk-bms-ruby/switch/jk-bms-ruby_discharging/state” ]
Type switch : AllowToBalance “AllowToBalance” [ commandTopic=“jk-bms-ruby/switch/jk-bms-ruby_balancer/state”, stateTopic=“jk-bms-ruby/switch/jk-bms-ruby_balancer/state” ]
Type number : CapacityRemaining “Capacity Remaining” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_capacity_remaining/state” ]
Type number : ChargingPower “Charging Power” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_charging_power/state” ]
Type number : DischargingPower “Discharging Power” [ stateTopic=“jk-bms-ruby/sensor/jk-bms-ruby_discharging_power/state” ]
}
}
in the item file below replace “Batterypack_1” with your thing name and save this as a item file
(location: /srv/openhab-conf/items)
Item file
Number Batterypack_1_C1 “Zelle 1 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell1” }
Number Batterypack_1_C2 “Zelle 2 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell2” }
Number Batterypack_1_C3 “Zelle 3 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell3” }
Number Batterypack_1_C4 “Zelle 4 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell4” }
Number Batterypack_1_C5 “Zelle 5 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell5” }
Number Batterypack_1_C6 “Zelle 6 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell6” }
Number Batterypack_1_C7 “Zelle 7 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell7” }
Number Batterypack_1_C8 “Zelle 8 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell8” }
Number Batterypack_1_C9 “Zelle 9 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell9” }
Number Batterypack_1_C10 “Zelle 10 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell10” }
Number Batterypack_1_C11 “Zelle 11 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell11” }
Number Batterypack_1_C12 “Zelle 12 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell12” }
Number Batterypack_1_C13 “Zelle 13 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell13” }
Number Batterypack_1_C14 “Zelle 14 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell14” }
Number Batterypack_1_C15 “Zelle 15 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell15” }
Number Batterypack_1_C16 “Zelle 16 [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:cell16” }
Number Batterypack_1_Voltage “Voltage [%.2f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:BatVoltage” }
Number Batterypack_1_Mosfet “Mosfet Temperature [%.1f °C]” { channel=“mqtt:topic:batterypack:Batterypack_1:Mosfet” }
Number Batterypack_1_CelDiff “Cell Difference [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:Cell_Diff” }
Number Batterypack_1_Cellcount “NrOfCellsPerBattery” { channel=“mqtt:topic:batterypack:Batterypack_1:Cellcount” }
Number Batterypack_1_BatTemperature “Battery Temperature [%.1f °C]” { channel=“mqtt:topic:batterypack:Batterypack_1:BatTemperature” }
String Batterypack_1_CellLow “Cell ID Low” { channel=“mqtt:topic:batterypack:Batterypack_1:CellLow” }
String Batterypack_1_CellHigh “Cell ID High” { channel=“mqtt:topic:batterypack:Batterypack_1:CellHigh” }
Number Batterypack_1_Capacity “Capacity [%.2f Ah]” { channel=“mqtt:topic:batterypack:Batterypack_1:Capacity” }
Number Batterypack_1_MaxCellVoltage “Voltage [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:MaxCellVoltage” }
Number Batterypack_1_MinCellVoltage “Voltage [%.3f V]” { channel=“mqtt:topic:batterypack:Batterypack_1:MinCellVoltage” }
String Batterypack_1_CustomeName “CustomName” { channel=“mqtt:topic:batterypack:Batterypack_1:CustomName” }
Number Batterypack_1_installedCapacity “Capacity” { channel=“mqtt:topic:batterypack:Batterypack_1:InstalledCapacity” }
Number Batterypack_1_Balancing “Balancing” { channel=“mqtt:topic:batterypack:Batterypack_1:Balancing” }
Switch Batterypack_1_AllowToCharge “AllowToCharge” { channel=“mqtt:topic:batterypack:Batterypack_1:AllowToCharge” }
Switch Batterypack_1_AllowToDischarge “AllowToDischarge” { channel=“mqtt:topic:batterypack:Batterypack_1:AllowToDischarge” }
Switch Batterypack_1_AllowToBalance “AllowToBalance” { channel=“mqtt:topic:batterypack:Batterypack_1:AllowToBalance” }
Number Batterypack_1_SoC “State of Charge [%.1f %%]” { channel=“mqtt:topic:batterypack:Batterypack_1:SoC” }
Number Batterypack_1_Current “Current [%.2f A]” { channel=“mqtt:topic:batterypack:Batterypack_1:Current” }
Number Batterypack_1_Power “Power [%.1f W]” { channel=“mqtt:topic:batterypack:Batterypack_1:Power” }
Number Batterypack_1_CapacityRemaining “Remaining [%.2f Ah]” { channel=“mqtt:topic:batterypack:Batterypack_1:CapacityRemaining” }
Number Batterypack_1_ChargingPower “Power [%.1f W]” { channel=“mqtt:topic:batterypack:Batterypack_1:ChargingPower” }
Number Batterypack_1_DischargingPower “Discharging Power [%.1f W]” { channel=“mqtt:topic:batterypack:Batterypack_1:DischargingPower” }
Switch Batterypack_1_Balancing “Balancing” { channel=“mqtt:topic:batterpack:Batterypack_1:Balancing” }
