LCN: Local Control Network

LCN Logo-200px

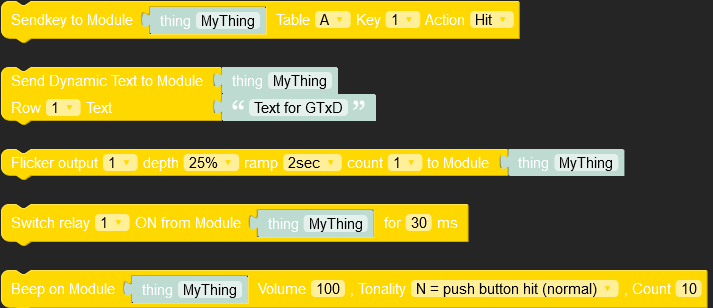

This block library is for the LCN Binding and enables the interaction with the LCN-Bus by the offered Thing actions.

LCN 001

Blocks

Hit Key

LCN 002
This block can hits a key of a key table in an LCN module.
It is useful to perform actions that the binding doesn`t support.

Dynamic Text

LCN 003

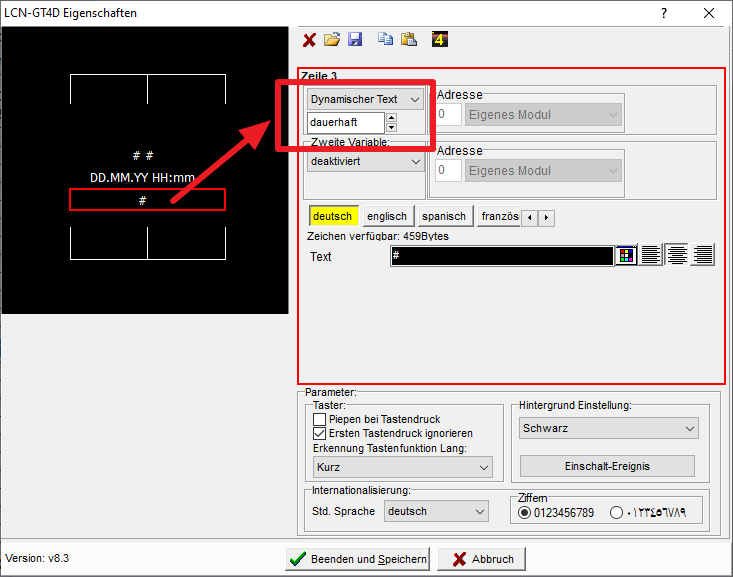

This block send custom texts to an LCN-GTxD display.

Note:
If your GTxD is configured in 3 row mode (button label on the upper and lower edge of the display) you can only use row 1-3.

Flicker Output

LCN 004
This Block let a dimmer output flash a given number of times.

Relay Timer

LCN 005
This block switches the selected relay on immediately and off again after the given time.

Flicker Output and Relay Timer i have only used it once to test.
Hit Key and Dynamic Text is in daily use and works perfectly.

Changelog

Version 1.0

  • initial release

Resources

uid: LCN
tags: []
props:
  parameters: []
  parameterGroups: []
component: BlockLibrary
config:
  name: LCN
slots:
  blocks:
    - component: BlockType
      config:
        args0:
          - name: THING
            check: thing
            type: input_value
          - name: TABLE
            options:
              - - A
                - A
              - - B
                - B
              - - C
                - C
              - - D
                - D
            type: field_dropdown
          - name: KEY
            options:
              - - "1"
                - "1"
              - - "2"
                - "2"
              - - "3"
                - "3"
              - - "4"
                - "4"
              - - "5"
                - "5"
              - - "6"
                - "6"
              - - "7"
                - "7"
              - - "8"
                - "8"
            type: field_dropdown
          - name: ACTION
            options:
              - - Hit
                - HIT
              - - Make
                - MAKE
              - - Break
                - BREAK
            type: field_dropdown
        colour: ffd800
        helpUrl: https://www.openhab.org/addons/bindings/lcn/#hit-key
        message0: Sendkey to Module %1 Table %2 Key %3 Action %4
        nextStatement: ""
        previousStatement: ""
        tooltip: >
          Hits a key of a key table in an LCN module.

          table - The module's key table: A, B, C or D

          key - The number of the key within the key table: 1-8

          action - The key's action: HIT (German: "kurz"), MAKE ("lang") or BREAK ("los")
        type: sendKey
      slots:
        code:
          - component: BlockCodeTemplate
            config:
              template: >
                {{utility:things}}.getActions('lcn', {{input:THING}}).hitKey('{{field:TABLE}}', {{field:KEY}}, '{{field:ACTION}}');
        toolbox:
          - component: PresetInput
            config:
              name: THING
              shadow: true
              type: oh_thing
    - component: BlockType
      config:
        args0:
          - name: THING
            check: thing
            type: input_value
          - name: ROW
            options:
              - - "1"
                - "1"
              - - "2"
                - "2"
              - - "3"
                - "3"
              - - "4"
                - "4"
            type: field_dropdown
          - name: MESSAGE
            check: String
            type: input_value
        colour: ffd800
        helpUrl: https://www.openhab.org/addons/bindings/lcn/#dynamic-text
        inputsInline: false
        message0: Send Dynamic Text to Module %1 Row %2 Text %3
        nextStatement: ""
        previousStatement: ""
        tooltip: >
          Send dynamic text to LCN module with GTxD.

          row - The number of the row in the display: 1-4

          text - The text to be displayed (UTF-8)
        type: sendDynamicText
      slots:
        code:
          - component: BlockCodeTemplate
            config:
              template: >
                {{utility:things}}.getActions('lcn', {{input:THING}}).sendDynamicText({{field:ROW}}, {{input:MESSAGE}});
        toolbox:
          - component: PresetInput
            config:
              name: THING
              shadow: true
              type: oh_thing
          - component: PresetInput
            config:
              fields:
                TEXT: Text for GTxD
              name: MESSAGE
              shadow: true
              type: text
    - component: BlockType
      config:
        args0:
          - name: THING
            check: thing
            type: input_value
          - name: Output
            options:
              - - "1"
                - "1"
              - - "2"
                - "2"
              - - "3"
                - "3"
              - - "4"
                - "4"
            type: field_dropdown
          - name: Depth
            options:
              - - 25%
                - "0"
              - - 50%
                - "1"
              - - 100%
                - "2"
            type: field_dropdown
          - name: Ramp
            options:
              - - 2sec
                - "0"
              - - 1sec
                - "1"
              - - 0.5sec
                - "2"
            type: field_dropdown
          - name: Count
            options:
              - - "1"
                - "1"
              - - "2"
                - "2"
              - - "3"
                - "3"
              - - "4"
                - "4"
              - - "5"
                - "5"
              - - "6"
                - "6"
              - - "7"
                - "7"
              - - "8"
                - "8"
              - - "9"
                - "9"
              - - "10"
                - "10"
              - - "11"
                - "11"
              - - "12"
                - "12"
              - - "13"
                - "13"
              - - "14"
                - "14"
              - - "15"
                - "15"
            type: field_dropdown
        colour: ffd800
        helpUrl: https://www.openhab.org/addons/bindings/lcn/#flicker-output
        inputsInline: false
        message0: Flicker output %2 depth %3 ramp %4 count %5 to Module %1
        nextStatement: ""
        previousStatement: ""
        tooltip: >
          output flicker to LCN module.

          output - The dimmer output number: 1-4

          depth - The depth of the flickering: 0-2 (0=25% 1=50% 2=100% Example: When the output is fully on (100%), and 0 is selected, flashes will dim from 100% to 75% and back)

          ramp - The duration/ramp of one flash: 0-2 (0=2sec 1=1sec 2=0.5sec)

          count - The number of flashes: 1-15
        type: outputFlicker
      slots:
        code:
          - component: BlockCodeTemplate
            config:
              template: >
                {{utility:things}}.getActions('lcn', {{input:THING}}).flickerOutput({{field:Output}}, {{field:Depth}}, {{field:Ramp}}, {{field:Count}});
        toolbox:
          - component: PresetInput
            config:
              name: THING
              shadow: true
              type: oh_thing
    - component: BlockType
      config:
        args0:
          - name: THING
            check: thing
            type: input_value
          - name: RelayNumber
            options:
              - - "1"
                - "1"
              - - "2"
                - "2"
              - - "3"
                - "3"
              - - "4"
                - "4"
              - - "5"
                - "5"
              - - "6"
                - "6"
              - - "7"
                - "7"
              - - "8"
                - "8"
            type: field_dropdown
          - max: 240000
            min: 30
            name: Duration
            precision: 1
            type: field_number
            value: 30
        colour: ffd800
        helpUrl: https://www.openhab.org/addons/bindings/lcn/#relay-timer
        inputsInline: true
        message0: Switch relay %2 ON from Module %1 for %3 ms
        nextStatement: ""
        previousStatement: ""
        tooltip: >
          The command switches the given relay immediately to on and after a given time back to off.

          relayNumber - The relay number: 1-8

          duration - Timer duration in milliseconds: 30-240.000 ms
        type: relayTimer
      slots:
        code:
          - component: BlockCodeTemplate
            config:
              template: >
                {{utility:things}}.getActions('lcn', {{input:THING}}).startRelayTimer({{field:RelayNumber}}, {{field:Duration}});
        toolbox:
          - component: PresetInput
            config:
              name: THING
              shadow: true
              type: oh_thing
  utilities:
    - component: UtilityJavaType
      config:
        javaClass: org.openhab.core.model.script.actions.Things
        name: things
