MainUI: Buienradar (dutch rain forecast) widget

mattv · September 29, 2023, 6:23pm

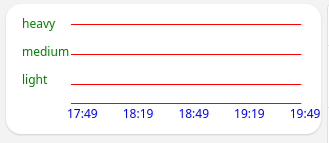

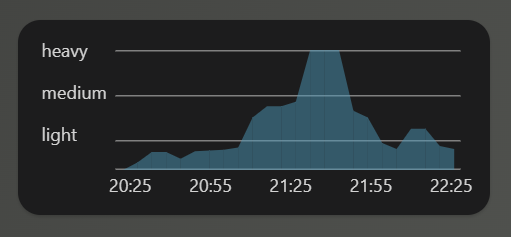

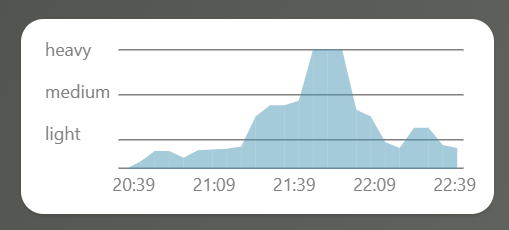

This widget visualizes the rain forecast using the data from the Buienradar binding. The Buienradar binding is required to retrieve the weather forecast (+2 hours).

The forecast data for each timestamp is mapped as follows:

1 – 5: Light
5 – 20: Medium
20 – 100: Heavy

Note: Buienradar only provides Dutch weather forecasts.

Contents

Changelog

Version 0.1

initial release

Debugging and testing

While creating this widget, I needed some valid item values to test the widget. Unfortunately it didn’t actually rain at that time so I created some test items. Feel free to use it for some adjustments:
Debug Items:

Number buienradar_rain_prediction_mock_current
Number buienradar_rain_prediction_mock_5min
Number buienradar_rain_prediction_mock_10min
Number buienradar_rain_prediction_mock_15min
Number buienradar_rain_prediction_mock_20min
Number buienradar_rain_prediction_mock_25min
Number buienradar_rain_prediction_mock_30min
Number buienradar_rain_prediction_mock_35min
Number buienradar_rain_prediction_mock_40min
Number buienradar_rain_prediction_mock_45min
Number buienradar_rain_prediction_mock_50min
Number buienradar_rain_prediction_mock_55min
Number buienradar_rain_prediction_mock_60min
Number buienradar_rain_prediction_mock_65min
Number buienradar_rain_prediction_mock_70min
Number buienradar_rain_prediction_mock_75min
Number buienradar_rain_prediction_mock_80min
Number buienradar_rain_prediction_mock_85min
Number buienradar_rain_prediction_mock_90min
Number buienradar_rain_prediction_mock_95min
Number buienradar_rain_prediction_mock_100min
Number buienradar_rain_prediction_mock_105min
Number buienradar_rain_prediction_mock_110min
Number buienradar_rain_prediction_mock_115min

Rule to set the initial value:

rule "buienradar mock"
when
     System reached start level 50
then
	buienradar_rain_prediction_mock_current.postUpdate(0)
    buienradar_rain_prediction_mock_5min.postUpdate(0.5)
    buienradar_rain_prediction_mock_10min.postUpdate(1)
    buienradar_rain_prediction_mock_15min.postUpdate(1)
    buienradar_rain_prediction_mock_20min.postUpdate(0.75)
    buienradar_rain_prediction_mock_25min.postUpdate(1.25)
    buienradar_rain_prediction_mock_30min.postUpdate(1.5)
    buienradar_rain_prediction_mock_35min.postUpdate(1.75)
    buienradar_rain_prediction_mock_40min.postUpdate(2.5)
    buienradar_rain_prediction_mock_45min.postUpdate(10)
    buienradar_rain_prediction_mock_50min.postUpdate(15)
    buienradar_rain_prediction_mock_55min.postUpdate(15)
    buienradar_rain_prediction_mock_60min.postUpdate(17)
    buienradar_rain_prediction_mock_65min.postUpdate(20)
    buienradar_rain_prediction_mock_70min.postUpdate(20)
    buienradar_rain_prediction_mock_75min.postUpdate(20)
    buienradar_rain_prediction_mock_80min.postUpdate(13)
    buienradar_rain_prediction_mock_85min.postUpdate(10)
    buienradar_rain_prediction_mock_90min.postUpdate(4)
    buienradar_rain_prediction_mock_95min.postUpdate(2)
    buienradar_rain_prediction_mock_100min.postUpdate(5)
    buienradar_rain_prediction_mock_105min.postUpdate(5)
    buienradar_rain_prediction_mock_110min.postUpdate(3)
    buienradar_rain_prediction_mock_115min.postUpdate(2)
end

Resources

Required thing (file configuration):

Thing buienradar:rain_forecast:home [ location="52.198864211111925,5.4192629660193585" ]

Required items (file configuration):

Number buienradar_rain_prediction_current "Current rain"  {channel="buienradar:rain_forecast:home:forecast_0" }
Number buienradar_rain_prediction_5min "Rain 5 min."  {channel="buienradar:rain_forecast:home:forecast_5" }
Number buienradar_rain_prediction_10min "Rain 10 min."  {channel="buienradar:rain_forecast:home:forecast_10" }
Number buienradar_rain_prediction_15min "Rain 15 min."{channel="buienradar:rain_forecast:home:forecast_15" }
Number buienradar_rain_prediction_20min "Rain 20 min."  {channel="buienradar:rain_forecast:home:forecast_20" }
Number buienradar_rain_prediction_25min "Rain 25 min."  {channel="buienradar:rain_forecast:home:forecast_25" }
Number buienradar_rain_prediction_30min "Rain 30 min."  {channel="buienradar:rain_forecast:home:forecast_30" }
Number buienradar_rain_prediction_35min "Rain 35 min."  {channel="buienradar:rain_forecast:home:forecast_35" }
Number buienradar_rain_prediction_40min "Rain 40 min."  {channel="buienradar:rain_forecast:home:forecast_40" }
Number buienradar_rain_prediction_45min "Rain 45 min."  {channel="buienradar:rain_forecast:home:forecast_45" }
Number buienradar_rain_prediction_50min "Rain 50 min."  {channel="buienradar:rain_forecast:home:forecast_50" }
Number buienradar_rain_prediction_55min "Rain 55 min."  {channel="buienradar:rain_forecast:home:forecast_55" }
Number buienradar_rain_prediction_60min "Rain 60 min."  {channel="buienradar:rain_forecast:home:forecast_60" }
Number buienradar_rain_prediction_65min "Rain 65 min."  {channel="buienradar:rain_forecast:home:forecast_65" }
Number buienradar_rain_prediction_70min "Rain 70 min."  {channel="buienradar:rain_forecast:home:forecast_70" }
Number buienradar_rain_prediction_75min "Rain 75 min."  {channel="buienradar:rain_forecast:home:forecast_75" }
Number buienradar_rain_prediction_80min "Rain 80 min."  {channel="buienradar:rain_forecast:home:forecast_80" }
Number buienradar_rain_prediction_85min "Rain 85 min."  {channel="buienradar:rain_forecast:home:forecast_85" }
Number buienradar_rain_prediction_90min "Rain 90 min."  {channel="buienradar:rain_forecast:home:forecast_90" }
Number buienradar_rain_prediction_95min "Rain 95 min."  {channel="buienradar:rain_forecast:home:forecast_95" }
Number buienradar_rain_prediction_100min "Rain 100 min."  {channel="buienradar:rain_forecast:home:forecast_100" }
Number buienradar_rain_prediction_105min "Rain 105 min."  {channel="buienradar:rain_forecast:home:forecast_105" }
Number buienradar_rain_prediction_110min "Rain 110 min."  {channel="buienradar:rain_forecast:home:forecast_110" }
Number buienradar_rain_prediction_115min "Rain 115 min."  {channel="buienradar:rain_forecast:home:forecast_115" }

Widget:

uid: buienradar_rain_prediction
tags:
  - buienradar
  - rainprediction
  - madebyMatthijsV
props:
  parameters:
    - label: graph color (default= rgba(60, 149, 181, 0.5))
      name: graph_background
      required: false
      type: TEXT
    - label: graph x-axis text color (default= lightgrey)
      name: graph_x_axis_text_color
      required: false
      type: TEXT
    - label: graph y-axis text color (default= lightgrey)
      name: graph_y_axis_text_color
      required: false
      type: TEXT
    - label: graph axis line color (default= grey)
      name: graph_axis_line_color
      required: false
      type: TEXT
    - label: base item text (i.e.= 'RAIN_')
      name: base
      required: true
      type: TEXT
  parameterGroups: []
timestamp: Sep 29, 2023, 12:56:23 PM
component: oh-repeater
config:
  for: coords
  sourceType: array
  in:
    - p0: = 800 - (Number.parseFloat(items[props.base+"current"].state)<1?(Number.parseFloat(items[props.base+"current"].state*100)):(Number.parseFloat(items[props.base+"current"].state))<5? (Number.parseFloat(items[props.base+"current"].state*20 + 100)):(Number.parseFloat(items[props.base+"current"].state))<20? (Number.parseFloat(items[props.base+"current"].state*15 + 200)):800)
      p1: = 800 - (Number.parseFloat(items[props.base+   "5min"].state)<1?(Number.parseFloat(items[props.base+   "5min"].state*100)):(Number.parseFloat(items[props.base+   "5min"].state))<5? (Number.parseFloat(items[props.base+   "5min"].state*20 + 100)):(Number.parseFloat(items[props.base+   "5min"].state))<20? (Number.parseFloat(items[props.base+   "5min"].state*15 + 200)):800)
      p2: = 800 - (Number.parseFloat(items[props.base+  "10min"].state)<1?(Number.parseFloat(items[props.base+  "10min"].state*100)):(Number.parseFloat(items[props.base+  "10min"].state))<5? (Number.parseFloat(items[props.base+  "10min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "10min"].state))<20? (Number.parseFloat(items[props.base+  "10min"].state*15 + 200)):800)
      p3: = 800 - (Number.parseFloat(items[props.base+  "15min"].state)<1?(Number.parseFloat(items[props.base+  "15min"].state*100)):(Number.parseFloat(items[props.base+  "15min"].state))<5? (Number.parseFloat(items[props.base+  "15min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "15min"].state))<20? (Number.parseFloat(items[props.base+  "15min"].state*15 + 200)):800)
      p4: = 800 - (Number.parseFloat(items[props.base+  "20min"].state)<1?(Number.parseFloat(items[props.base+  "20min"].state*100)):(Number.parseFloat(items[props.base+  "20min"].state))<5? (Number.parseFloat(items[props.base+  "20min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "20min"].state))<20? (Number.parseFloat(items[props.base+  "20min"].state*15 + 200)):800)
      p5: = 800 - (Number.parseFloat(items[props.base+  "25min"].state)<1?(Number.parseFloat(items[props.base+  "25min"].state*100)):(Number.parseFloat(items[props.base+  "25min"].state))<5? (Number.parseFloat(items[props.base+  "25min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "25min"].state))<20? (Number.parseFloat(items[props.base+  "25min"].state*15 + 200)):800)
      p6: = 800 - (Number.parseFloat(items[props.base+  "30min"].state)<1?(Number.parseFloat(items[props.base+  "30min"].state*100)):(Number.parseFloat(items[props.base+  "30min"].state))<5? (Number.parseFloat(items[props.base+  "30min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "30min"].state))<20? (Number.parseFloat(items[props.base+  "30min"].state*15 + 200)):800)
      p7: = 800 - (Number.parseFloat(items[props.base+  "35min"].state)<1?(Number.parseFloat(items[props.base+  "35min"].state*100)):(Number.parseFloat(items[props.base+  "35min"].state))<5? (Number.parseFloat(items[props.base+  "35min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "35min"].state))<20? (Number.parseFloat(items[props.base+  "35min"].state*15 + 200)):800)
      p8: = 800 - (Number.parseFloat(items[props.base+  "40min"].state)<1?(Number.parseFloat(items[props.base+  "40min"].state*100)):(Number.parseFloat(items[props.base+  "40min"].state))<5? (Number.parseFloat(items[props.base+  "40min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "40min"].state))<20? (Number.parseFloat(items[props.base+  "40min"].state*15 + 200)):800)
      p9: = 800 - (Number.parseFloat(items[props.base+  "45min"].state)<1?(Number.parseFloat(items[props.base+  "45min"].state*100)):(Number.parseFloat(items[props.base+  "45min"].state))<5? (Number.parseFloat(items[props.base+  "45min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "45min"].state))<20? (Number.parseFloat(items[props.base+  "45min"].state*15 + 200)):800)
      p10: = 800 - (Number.parseFloat(items[props.base+  "50min"].state)<1?(Number.parseFloat(items[props.base+  "50min"].state*100)):(Number.parseFloat(items[props.base+  "50min"].state))<5? (Number.parseFloat(items[props.base+  "50min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "50min"].state))<20? (Number.parseFloat(items[props.base+  "50min"].state*15 + 200)):800)
      p11: = 800 - (Number.parseFloat(items[props.base+  "55min"].state)<1?(Number.parseFloat(items[props.base+  "55min"].state*100)):(Number.parseFloat(items[props.base+  "55min"].state))<5? (Number.parseFloat(items[props.base+  "55min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "55min"].state))<20? (Number.parseFloat(items[props.base+  "55min"].state*15 + 200)):800)
      p12: = 800 - (Number.parseFloat(items[props.base+  "60min"].state)<1?(Number.parseFloat(items[props.base+  "60min"].state*100)):(Number.parseFloat(items[props.base+  "60min"].state))<5? (Number.parseFloat(items[props.base+  "60min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "60min"].state))<20? (Number.parseFloat(items[props.base+  "60min"].state*15 + 200)):800)
      p13: = 800 - (Number.parseFloat(items[props.base+  "65min"].state)<1?(Number.parseFloat(items[props.base+  "65min"].state*100)):(Number.parseFloat(items[props.base+  "65min"].state))<5? (Number.parseFloat(items[props.base+  "65min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "65min"].state))<20? (Number.parseFloat(items[props.base+  "65min"].state*15 + 200)):800)
      p14: = 800 - (Number.parseFloat(items[props.base+  "70min"].state)<1?(Number.parseFloat(items[props.base+  "70min"].state*100)):(Number.parseFloat(items[props.base+  "70min"].state))<5? (Number.parseFloat(items[props.base+  "70min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "70min"].state))<20? (Number.parseFloat(items[props.base+  "70min"].state*15 + 200)):800)
      p15: = 800 - (Number.parseFloat(items[props.base+  "75min"].state)<1?(Number.parseFloat(items[props.base+  "75min"].state*100)):(Number.parseFloat(items[props.base+  "75min"].state))<5? (Number.parseFloat(items[props.base+  "75min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "75min"].state))<20? (Number.parseFloat(items[props.base+  "75min"].state*15 + 200)):800)
      p16: = 800 - (Number.parseFloat(items[props.base+  "80min"].state)<1?(Number.parseFloat(items[props.base+  "80min"].state*100)):(Number.parseFloat(items[props.base+  "80min"].state))<5? (Number.parseFloat(items[props.base+  "80min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "80min"].state))<20? (Number.parseFloat(items[props.base+  "80min"].state*15 + 200)):800)
      p17: = 800 - (Number.parseFloat(items[props.base+  "85min"].state)<1?(Number.parseFloat(items[props.base+  "85min"].state*100)):(Number.parseFloat(items[props.base+  "85min"].state))<5? (Number.parseFloat(items[props.base+  "85min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "85min"].state))<20? (Number.parseFloat(items[props.base+  "85min"].state*15 + 200)):800)
      p18: = 800 - (Number.parseFloat(items[props.base+  "90min"].state)<1?(Number.parseFloat(items[props.base+  "90min"].state*100)):(Number.parseFloat(items[props.base+  "90min"].state))<5? (Number.parseFloat(items[props.base+  "90min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "90min"].state))<20? (Number.parseFloat(items[props.base+  "90min"].state*15 + 200)):800)
      p19: = 800 - (Number.parseFloat(items[props.base+  "95min"].state)<1?(Number.parseFloat(items[props.base+  "95min"].state*100)):(Number.parseFloat(items[props.base+  "95min"].state))<5? (Number.parseFloat(items[props.base+  "95min"].state*20 + 100)):(Number.parseFloat(items[props.base+  "95min"].state))<20? (Number.parseFloat(items[props.base+  "95min"].state*15 + 200)):800)
      p20: = 800 - (Number.parseFloat(items[props.base+ "100min"].state)<1?(Number.parseFloat(items[props.base+ "100min"].state*100)):(Number.parseFloat(items[props.base+ "100min"].state))<5? (Number.parseFloat(items[props.base+ "100min"].state*20 + 100)):(Number.parseFloat(items[props.base+ "100min"].state))<20? (Number.parseFloat(items[props.base+ "100min"].state*15 + 200)):800)
      p21: = 800 - (Number.parseFloat(items[props.base+ "105min"].state)<1?(Number.parseFloat(items[props.base+ "105min"].state*100)):(Number.parseFloat(items[props.base+ "105min"].state))<5? (Number.parseFloat(items[props.base+ "105min"].state*20 + 100)):(Number.parseFloat(items[props.base+ "105min"].state))<20? (Number.parseFloat(items[props.base+ "105min"].state*15 + 200)):800)
      p22: = 800 - (Number.parseFloat(items[props.base+ "110min"].state)<1?(Number.parseFloat(items[props.base+ "110min"].state*100)):(Number.parseFloat(items[props.base+ "110min"].state))<5? (Number.parseFloat(items[props.base+ "110min"].state*20 + 100)):(Number.parseFloat(items[props.base+ "110min"].state))<20? (Number.parseFloat(items[props.base+ "110min"].state*15 + 200)):800)
      p23: = 800 - (Number.parseFloat(items[props.base+ "115min"].state)<1?(Number.parseFloat(items[props.base+ "115min"].state*100)):(Number.parseFloat(items[props.base+ "115min"].state))<5? (Number.parseFloat(items[props.base+ "115min"].state*20 + 100)):(Number.parseFloat(items[props.base+ "115min"].state))<20? (Number.parseFloat(items[props.base+ "115min"].state*15 + 200)):800)
      spacing: 96
      y_graph_start: 200
      y_graph_height: 800
      x_graph_start: 700
      graph_background: "=props.graph_background?props.graph_background:'rgba(60, 149, 181, 0.5)'"
      graph_x_axis_text_color: "=props.graph_x_axis_text_color?props.graph_x_axis_text_color :'lightgrey'"
      graph_y_axis_text_color: "=props.graph_y_axis_text_color?props.graph_y_axis_text_color :'lightgrey'"
      graph_axis_line_color: "=props.graph_axis_line_color?props.graph_axis_line_color :'grey'"
  fragment: true
slots:
  default:
    - component: f7-card
      config:
        style:
          border-radius: var(--f7-card-expandable-border-radius)
          margin-left: 5px
          margin-right: 5px
          padding: 0px
          height: 130px
          width: 315px
      slots:
        default:
          - component: f7-block
            config:
              style:
                display: flex
                flex-direction: column
                left: 0px
                position: absolute
                top: -5px
            slots:
              default:
                - component: Label
                  config:
                    style:
                      font-size: 12px
                      margin-top: 0px
                      color: =`${loop.coords.graph_y_axis_text_color}`
                    text: heavy
                - component: Label
                  config:
                    style:
                      font-size: 12px
                      margin-top: 10px
                      color: =`${loop.coords.graph_y_axis_text_color}`
                    text: medium
                - component: Label
                  config:
                    style:
                      font-size: 12px
                      margin-top: 10px
                      color: =`${loop.coords.graph_y_axis_text_color}`
                    text: light
                - component: f7-block
                  config:
                    style:
                      display: flex
                      flex-direction: row
                      left: 0px
                      position: absolute
                      top: 90px
                  slots:
                    default:
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            margin-left: 45px
                            color: =`${loop.coords.graph_x_axis_text_color}`
                          text: =dayjs().format('HH:mm')
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            margin-left: 25px
                            color: =`${loop.coords.graph_x_axis_text_color}`
                          text: =dayjs().add(30, 'minute').format('HH:mm')
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            margin-left: 25px
                            color: =`${loop.coords.graph_x_axis_text_color}`
                          text: =dayjs().add(60, 'minute').format('HH:mm')
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            margin-left: 25px
                            color: =`${loop.coords.graph_x_axis_text_color}`
                          text: =dayjs().add(90, 'minute').format('HH:mm')
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            margin-left: 25px
                            color: =`${loop.coords.graph_x_axis_text_color}`
                          text: =dayjs().add(120, 'minute').format('HH:mm')
          - component: svg
            config:
              height: 100px
              margin-left: 5px
              margin-right: 5px
              viewBox: 0 0 3000 1000
            slots:
              default:
                - component: polygon
                  config:
                    points: 650 200, 2950 200, 2950 210, 650 210
                    fill: =`${loop.coords.graph_axis_line_color}`
                - component: polygon
                  config:
                    points: 650 500, 2950 500, 2950 510, 650 510
                    fill: =`${loop.coords.graph_axis_line_color}`
                - component: polygon
                  config:
                    points: 650 800, 2950 800, 2950 810, 650 810
                    fill: =`${loop.coords.graph_axis_line_color}`
                - component: polygon
                  config:
                    points: 650 990, 2950 990, 2950 1000, 650 1000
                    fill: =`${loop.coords.graph_axis_line_color}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*0} ${loop.coords.y_graph_start + loop.coords.p0}, ${loop.coords.x_graph_start + loop.coords.spacing*1} ${loop.coords.y_graph_start + loop.coords.p1}, ${loop.coords.x_graph_start + loop.coords.spacing*1} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*1} ${loop.coords.y_graph_start + loop.coords.p1}, ${loop.coords.x_graph_start + loop.coords.spacing*2} ${loop.coords.y_graph_start + loop.coords.p2}, ${loop.coords.x_graph_start + loop.coords.spacing*2} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*1} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*2} ${loop.coords.y_graph_start + loop.coords.p2}, ${loop.coords.x_graph_start + loop.coords.spacing*3} ${loop.coords.y_graph_start + loop.coords.p3}, ${loop.coords.x_graph_start + loop.coords.spacing*3} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*2} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*3} ${loop.coords.y_graph_start + loop.coords.p3}, ${loop.coords.x_graph_start + loop.coords.spacing*4} ${loop.coords.y_graph_start + loop.coords.p4}, ${loop.coords.x_graph_start + loop.coords.spacing*4} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*3} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*4} ${loop.coords.y_graph_start + loop.coords.p4}, ${loop.coords.x_graph_start + loop.coords.spacing*5} ${loop.coords.y_graph_start + loop.coords.p5}, ${loop.coords.x_graph_start + loop.coords.spacing*5} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*4} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*5} ${loop.coords.y_graph_start + loop.coords.p5}, ${loop.coords.x_graph_start + loop.coords.spacing*6} ${loop.coords.y_graph_start + loop.coords.p6}, ${loop.coords.x_graph_start + loop.coords.spacing*6} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*5} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*6} ${loop.coords.y_graph_start + loop.coords.p6}, ${loop.coords.x_graph_start + loop.coords.spacing*7} ${loop.coords.y_graph_start + loop.coords.p7}, ${loop.coords.x_graph_start + loop.coords.spacing*7} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*6} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*7} ${loop.coords.y_graph_start + loop.coords.p7}, ${loop.coords.x_graph_start + loop.coords.spacing*8} ${loop.coords.y_graph_start + loop.coords.p8}, ${loop.coords.x_graph_start + loop.coords.spacing*8} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*7} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*8} ${loop.coords.y_graph_start + loop.coords.p8}, ${loop.coords.x_graph_start + loop.coords.spacing*9} ${loop.coords.y_graph_start + loop.coords.p9}, ${loop.coords.x_graph_start + loop.coords.spacing*9} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*8} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*9} ${loop.coords.y_graph_start + loop.coords.p9}, ${loop.coords.x_graph_start + loop.coords.spacing*10} ${loop.coords.y_graph_start + loop.coords.p10}, ${loop.coords.x_graph_start + loop.coords.spacing*10} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*9} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*10} ${loop.coords.y_graph_start + loop.coords.p10}, ${loop.coords.x_graph_start + loop.coords.spacing*11} ${loop.coords.y_graph_start + loop.coords.p11}, ${loop.coords.x_graph_start + loop.coords.spacing*11} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*10} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*11} ${loop.coords.y_graph_start + loop.coords.p11}, ${loop.coords.x_graph_start + loop.coords.spacing*12} ${loop.coords.y_graph_start + loop.coords.p12}, ${loop.coords.x_graph_start + loop.coords.spacing*12} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*11} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*12} ${loop.coords.y_graph_start + loop.coords.p12}, ${loop.coords.x_graph_start + loop.coords.spacing*13} ${loop.coords.y_graph_start + loop.coords.p13}, ${loop.coords.x_graph_start + loop.coords.spacing*13} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*12} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*13} ${loop.coords.y_graph_start + loop.coords.p13}, ${loop.coords.x_graph_start + loop.coords.spacing*14} ${loop.coords.y_graph_start + loop.coords.p14}, ${loop.coords.x_graph_start + loop.coords.spacing*14} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*13} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*14} ${loop.coords.y_graph_start + loop.coords.p14}, ${loop.coords.x_graph_start + loop.coords.spacing*15} ${loop.coords.y_graph_start + loop.coords.p15}, ${loop.coords.x_graph_start + loop.coords.spacing*15} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*14} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*15} ${loop.coords.y_graph_start + loop.coords.p15}, ${loop.coords.x_graph_start + loop.coords.spacing*16} ${loop.coords.y_graph_start + loop.coords.p16}, ${loop.coords.x_graph_start + loop.coords.spacing*16} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*15} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*16} ${loop.coords.y_graph_start + loop.coords.p16}, ${loop.coords.x_graph_start + loop.coords.spacing*17} ${loop.coords.y_graph_start + loop.coords.p17}, ${loop.coords.x_graph_start + loop.coords.spacing*17} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*16} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*17} ${loop.coords.y_graph_start + loop.coords.p17}, ${loop.coords.x_graph_start + loop.coords.spacing*18} ${loop.coords.y_graph_start + loop.coords.p18}, ${loop.coords.x_graph_start + loop.coords.spacing*18} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*17} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*18} ${loop.coords.y_graph_start + loop.coords.p18}, ${loop.coords.x_graph_start + loop.coords.spacing*19} ${loop.coords.y_graph_start + loop.coords.p19}, ${loop.coords.x_graph_start + loop.coords.spacing*19} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*18} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*19} ${loop.coords.y_graph_start + loop.coords.p19}, ${loop.coords.x_graph_start + loop.coords.spacing*20} ${loop.coords.y_graph_start + loop.coords.p20}, ${loop.coords.x_graph_start + loop.coords.spacing*20} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*19} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*20} ${loop.coords.y_graph_start + loop.coords.p20}, ${loop.coords.x_graph_start + loop.coords.spacing*21} ${loop.coords.y_graph_start + loop.coords.p21}, ${loop.coords.x_graph_start + loop.coords.spacing*21} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*20} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*21} ${loop.coords.y_graph_start + loop.coords.p21}, ${loop.coords.x_graph_start + loop.coords.spacing*22} ${loop.coords.y_graph_start + loop.coords.p22}, ${loop.coords.x_graph_start + loop.coords.spacing*22} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*21} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`
                - component: polygon
                  config:
                    points: =` ${loop.coords.x_graph_start + loop.coords.spacing*22} ${loop.coords.y_graph_start + loop.coords.p22}, ${loop.coords.x_graph_start + loop.coords.spacing*23} ${loop.coords.y_graph_start + loop.coords.p23}, ${loop.coords.x_graph_start + loop.coords.spacing*23} ${loop.coords.y_graph_start + loop.coords.y_graph_height}, ${loop.coords.x_graph_start + loop.coords.spacing*22} ${loop.coords.y_graph_start + loop.coords.y_graph_height}`
                    fill: =`${loop.coords.graph_background}`

JustinG · September 29, 2023, 7:21pm

Clever use of the repeater for a dynamic object variable; I like it.

You should check the market place on your OH, I’m not sure this post is currently formatted correctly to let users download the widget code. I think the widget still needs to be the final code block in the post if it’s to be downloaded.

mattv · September 30, 2023, 11:56am

Thanks!

I changed the order and now it’s available in the marketplace

treesink · October 3, 2023, 6:22pm

Many thanks Matthijs for this very nice widget!
