OH 4.1.0 changed behaviour in basicUI -> how to fix it?

Setup, Configuration and Use Items & Sitemaps
1

So newly there are some configuration for basic UI layout and such, which is nice.
But it started to render these empty dummy lines (which I’m using for ages):

Frame label="Lights" {
				Switch item=Sauna_Outside		label="Outside"
				Text label="" icon=""
				Switch item=Sauna_WSwitch		label="Sauna"
				Switch item=Sauna_Bathroom		label="Bathroom"
				Switch item=Utility_WSwitch		label="Utillity"
				Switch item=Garage_WSwitch		label="Garage"
			}

as

image1083×189 5.12 KB

has there been change how label=“” and icon=“” is now handled?
Or any other reliable approach how to insert empty segment?

Thanks!

2

Try icon=“none”

3

thanks!

that worked, and simple CTRL+F2 in vscode did it in 2s across my whole sitemap :slight_smile:

1 Like
4

huh, hit ctrl+f5 and layout changed as well

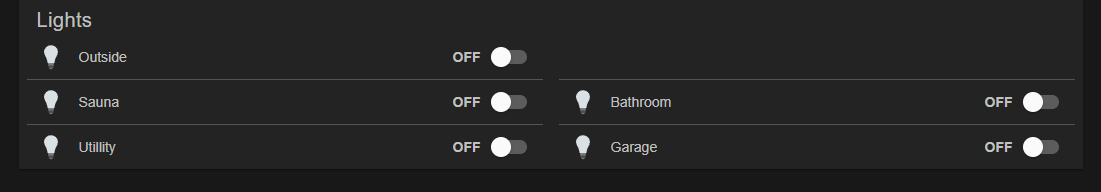

image1101×192 4.7 KB

these lines was not there before, can that be disabled? havent seen setting for that. Pretty bad tho :thinking:

5

Do you mean the separator line?
It was already there before but its color has been changed a little for dark mode to make it more visible.

6

yeah separator line color i meant.

can i locally change it somehow somewhere?

7

No, it is something defined by the theme.

8

what about

/var/lib/openhab/tmp/mvn/org/openhab/ui/bundles/org.openhab.ui.basic/4.1.0/org.openhab.ui.basic-4.1.0.jar

and file

web/smarthome.css

I see the responsible css definition

Is this file unpacked during OH start so if I change content of it, it will adjust look&feel?

9

answer for myself and others.
Yes, kind of

I’ve copied jar file elsewhere, removed basic UI from OH
Then inside jar edited

web/smarthome.css

and then whole jar I’ve copied into

/usr/share/openhab/addons

and voala, all changes are there :wink:

1 Like
