[OH3] Representation of semantic model in MainUI

Dear all,

during my migration journey from OH2.5 to 3.0 I also tried to get my head around the semantic modelling. I never used this in OH2.5 but decided to re-model my whole items setup to get the benefit out of all the amazing new possibilities coming with MainUI and its automatically created HomePage.

I played a little bit with different combinations of locations, equipment and points and got more and more confused bringing me to this point not being sure if I just don’t get how all of this works or maybe found some bugs/issues.

Will try to explain the reasons for my headache. Maybe some of you can help me to get around this. Esp. pinging @ysc as the mastermind behind all this great stuff.

Location card badges

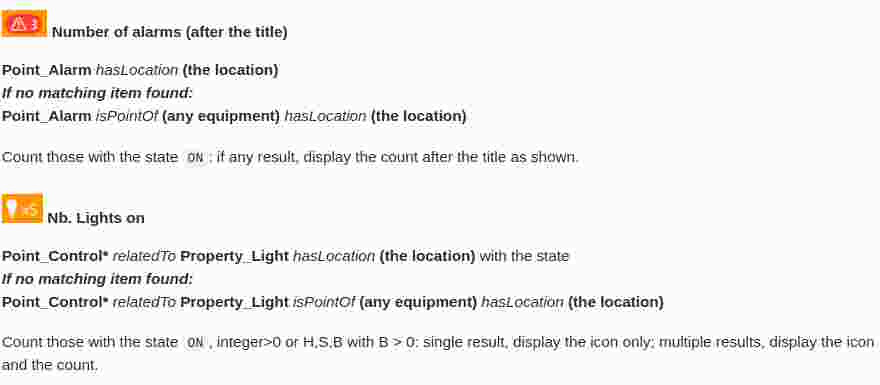

According to [Design/Spec] Location semantic cards: header · Issue #556 · openhab/openhab-webui · GitHub badges should work like this, right?

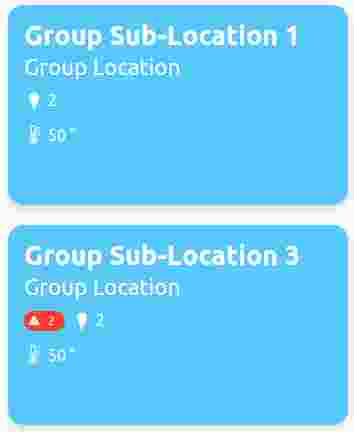

  1. Expecting the same behavior for lights and alarms
  • But I can just get an alarm badge when placing the alarm points directly under the location
  • All combinations with alarm points nested in equipment gives no badges
  • while it is working for lights
// Points attached to Equipment
Group g2     "Group Sub-Location 1"          (g1)    ["Room"]
Group e1     "Group Equipment 1 for Sub-L1"  (g2)    ["Lightbulb"]
Switch s1    "Switch 1 for E1"               (e1)    ["Switch", "Light"]
Switch s2    "Switch 2 for E1"               (e1)    ["Switch", "Light"]
Group e2     "Group Equipment 2 for Sub-L1"  (g2)    ["Siren"]
Switch s3    "Switch 1 for E2"               (e2)    ["Alarm", "Temperature"]
Switch s4    "Switch 2 for E2"               (e2)    ["Alarm", "Temperature"]

// Points straight under Location
Group g4     "Group Sub-Location 3"          (g1)    ["Room"]
Switch s9    "Switch 1 for Sub-L3"           (g4)    ["Switch", "Light"]
Switch s10   "Switch 2 for Sub-L3"           (g4)    ["Switch", "Light"]
Switch s11   "Switch 3 for Sub-L3"           (g4)    ["Alarm", "Temperature"]
Switch s12   "Switch 4 for Sub-L3"           (g4)    ["Alarm", "Temperature"]


  1. Badges for nested Equipment
  • Having a sub-equipment nested in another equipment produces no badges at all
  • I think that’s the intended behavior
  • but leads to quite overloaded location cards, e.g. when having several Z-wave dimmers
    • dimmer should be right there when clicking the location -> ["Lightbulb"]
    • alarm channels (up 3 per dimmer) should be considered additional information not needed at first sight to keep the card clean
    • => nested in a sub-equipment => no badges
  • Do I miss something?

Location card hierarchy

  • Let’s assume having a room with 2 equipment with 2 points each

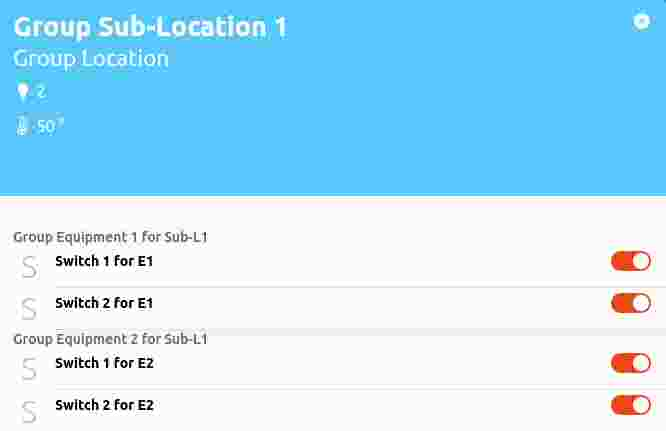

  • Placing equipment in the room and points in equipment shows the points straight away with equipment as headline :white_check_mark:

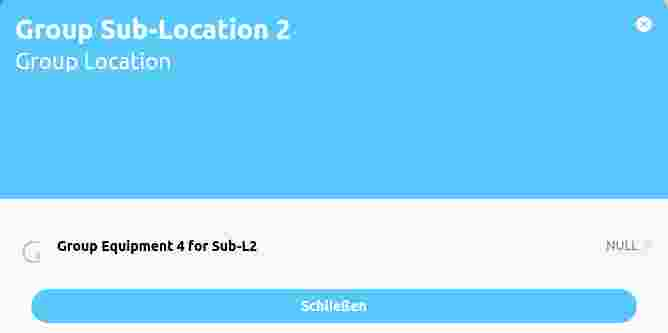

  • Placing equipment in the room but points as part of sub-equipment shows the equipment as link
  • clicking this link opens a popup with the sub-equipments further linked to the points
  • Why not showing equipment as headline (like case1) and provide the sub-equipments as links :question:
  • Why do I feel this is important (besides saving 1 click)? … see case 3 below

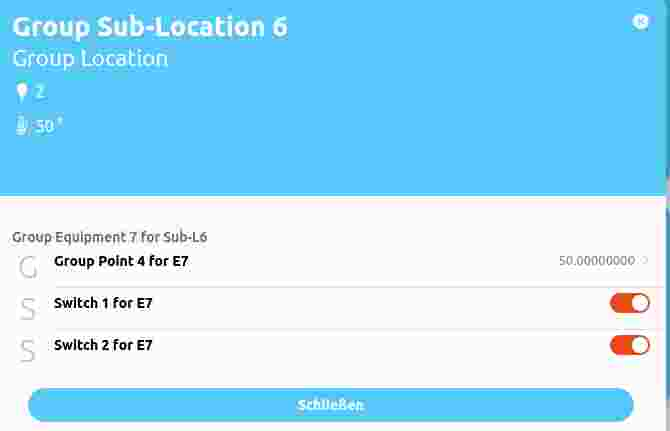

  • With the current behavior a combination of case1 & 2 to model your equipment with “main functionality” (directly accessible) and some nested sub-equipment for advanced features doesn’t work (or at least I didn’t find a way to do this)
  • All the points attached to the main equipment are shown under the headline as in case 1
  • this works even for points that are groups themselves
  • but points nested in sub-equipment is not there at all
  • so no chance to reach this points from the location card :x:
  • btw it’s the same for the equipment tab :x:
  • while points of sub-equipment are listed correct under properties tab :white_check_mark:
// Mixed Modell
Group g7                        "Group Sub-Location 6"          (g1)    ["Room"]
Group e13                       "Group Equipment 7 for Sub-L6"  (g7)    ["Lightbulb"]
Switch s21                      "Switch 1 for E7"               (e13)   ["Switch", "Light"]
Switch s22                      "Switch 2 for E7"               (e13)   ["Switch", "Light"]

Group:Switch:OR(ON,OFF) e14     "Group Sub-Equipment 7 for E7"  (e13)   ["Siren"]
Switch s23                      "Switch 1 for Sub-E7"           (e14)   ["Alarm", "Temperature"]
Switch s24                      "Switch 2 for SubE-7"           (e14)   ["Alarm", "Temperature"]

Group:Dimmer:AVG p4             "Group Point 4 for E7"          (e13)   ["Measurement", "Temperature"]
Dimmer n11                      "Number 1 for P4"               (p4)
Dimmer n12                      "Number 2 for P4"               (p4)

Group no5                       "Group NoSemantic 5 for E7"     (e13)
String t11                      "Text 1 for No5"                (no5)
String t12                      "Text 2 for No5"                (no5)


Hope by writing this I did not confuse you guys as I’m confused right now :joy:
May be you can help me sort this out…

Complete items file I used for testing as reference
Group g1                        "Group Location"                        ["Location"]

// Points attached to Equipment
Group g2                        "Group Sub-Location 1"          (g1)    ["Room"]
Group e1                        "Group Equipment 1 for Sub-L1"  (g2)    ["Lightbulb"]
Switch s1                       "Switch 1 for E1"               (e1)    ["Switch", "Light"]
Switch s2                       "Switch 2 for E1"               (e1)    ["Switch", "Light"]

Group e2                        "Group Equipment 2 for Sub-L1"  (g2)    ["Siren"]
Switch s3                       "Switch 1 for E2"               (e2)    ["Alarm", "Temperature"]
Switch s4                       "Switch 2 for E2"               (e2)    ["Alarm", "Temperature"]

Group e3                        "Group Equipment 3 for Sub-L1"  (g2)    ["Sensor"]
Dimmer n1                       "Number 1 for E3"               (e3)    ["Measurement", "Temperature"]
Dimmer n2                       "Number 2 for E3"               (e3)    ["Measurement", "Temperature"]

Group no1                       "Group NoSemantic 1 for Sub-L1" (g2)
String t1                       "Text 1 for No1"                (no1)
String t2                       "Text 2 for No1"                (no1)

// Points attached to Sub-Equipment
Group g3                        "Group Sub-Location 2"          (g1)    ["Room"]
Group e4                        "Group Equipment 4 for Sub-L2"  (g3)    ["Equipment"]
Group e5                        "Group Sub-Equipment 1 for E4"  (e4)    ["Lightbulb"]
Switch s5                       "Switch 1 for Sub-E1"           (e5)    ["Switch", "Light"]
Switch s6                       "Switch 2 for Sub-E1"           (e5)    ["Switch", "Light"]

Group e6                        "Group Sub-Equipment 2 for E4"  (e4)    ["Siren"]
Switch s7                       "Switch 1 for Sub-E2"           (e6)    ["Alarm", "Temperature"]
Switch s8                       "Switch 2 for Sub-E2"           (e6)    ["Alarm", "Temperature"]

Group e7                        "Group Sub-Equipment 3 for E4"  (e4)    ["Sensor"]
Dimmer n3                       "Number 1 for Sub-E3"           (e7)    ["Measurement", "Temperature"]
Dimmer n4                       "Number 2 for Sub-E3"           (e7)    ["Measurement", "Temperature"]

Group no2                       "Group NoSemantic 2 for E4"     (e4)
String t3                       "Text 1 for No2"                (no2)
String t4                       "Text 2 for No2"                (no2)

// Points straight under Location
Group g4                        "Group Sub-Location 3"          (g1)    ["Room"]
Switch s9                       "Switch 1 for Sub-L3"           (g4)    ["Switch", "Light"]
Switch s10                      "Switch 2 for Sub-L3"           (g4)    ["Switch", "Light"]
Switch s11                      "Switch 3 for Sub-L3"           (g4)    ["Alarm", "Temperature"]
Switch s12                      "Switch 4 for Sub-L3"           (g4)    ["Alarm", "Temperature"]
Dimmer n5                       "Number 1 for Sub-L3"           (g4)    ["Measurement", "Temperature"]
Dimmer n6                       "Number 2 for Sub-L3"           (g4)    ["Measurement", "Temperature"]
String t5                       "Text 1 for Sub-L3"             (g4)
String t6                       "Text 2 for Sub-L3"             (g4)

// Points attached to Sub-Equipment with Group-Agg
Group g5                        "Group Sub-Location 4"          (g1)    ["Room"]
Group:Switch:OR(ON,OFF) e8      "Group Equipment 5 for Sub-L4"  (g5)    ["Equipment"]
Group:Switch:OR(ON,OFF) e9      "Group Sub-Equipment 4 for E5"  (e8)    ["Lightbulb"]
Switch s13                      "Switch 1 for Sub-E4"           (e9)    ["Switch", "Light"]
Switch s14                      "Switch 2 for Sub-E4"           (e9)    ["Switch", "Light"]

Group:Switch:OR(ON,OFF) e10     "Group Sub-Equipment 5 for E5"  (e8)    ["Siren"]
Switch s15                      "Switch 1 for Sub-E5"           (e10)   ["Alarm", "Temperature"]
Switch s16                      "Switch 2 for Sub-E5"           (e10)   ["Alarm", "Temperature"]

Group:Dimmer:AVG e11            "Group Sub-Equipment 6 for E5"  (e8)    ["Sensor"]
Dimmer n7                       "Number 1 for Sub-E6"           (e11)   ["Measurement", "Temperature"]
Dimmer n8                       "Number 2 for Sub-E6"           (e11)   ["Measurement", "Temperature"]

Group no3                       "Group NoSemantic 3 for E5"     (e8)
String t7                       "Text 1 for No3"                (no3)
String t8                       "Text 2 for No3"                (no3)

// Points as Groups with Group-Agg under Equipment
Group g6                        "Group Sub-Location 5"          (g1)    ["Room"]
Group e12                       "Group Equipment 6 for Sub-L5"  (g6)    ["Equipment"]
Group:Switch:OR(ON,OFF) p1      "Group Point 1 for E6"          (e12)   ["Switch", "Light"]
Switch s17                      "Switch 1 for P1"               (p1)    //["Switch", "Light"]
Switch s18                      "Switch 2 for P1"               (p1)    //["Switch", "Light"]

Group:Switch:OR(ON,OFF) p2      "Group Point 2 for E6"          (e12)   ["Alarm", "Temperature"]
Switch s19                      "Switch 1 for P2"               (p2)    //["Alarm", "Temperature"]
Switch s20                      "Switch 2 for P2"               (p2)    //["Alarm", "Temperature"]

Group:Dimmer:AVG p3             "Group Point 3 for E6"          (e12)   ["Measurement", "Temperature"]
Dimmer n9                       "Number 1 for P3"               (p3)    //["Measurement", "Temperature"]
Dimmer n10                      "Number 2 for P3"               (p3)    //["Measurement", "Temperature"]

Group no4                       "Group NoSemantic 4 for E6"     (e12)
String t9                       "Text 1 for No4"                (no4)
String t10                      "Text 2 for No4"                (no4)

// Mixed Modell
Group g7                        "Group Sub-Location 6"          (g1)    ["Room"]
Group e13                       "Group Equipment 7 for Sub-L6"  (g7)    ["Lightbulb"]
Switch s21                      "Switch 1 for E7"               (e13)   ["Switch", "Light"]
Switch s22                      "Switch 2 for E7"               (e13)   ["Switch", "Light"]

Group:Switch:OR(ON,OFF) e14     "Group Sub-Equipment 7 for E7"  (e13)   ["Siren"]
Switch s23                      "Switch 1 for Sub-E7"           (e14)   ["Alarm", "Temperature"]
Switch s24                      "Switch 2 for SubE-7"           (e14)   ["Alarm", "Temperature"]

Group:Dimmer:AVG p4             "Group Point 4 for E7"          (e13)   ["Measurement", "Temperature"]
Dimmer n11                      "Number 1 for P4"               (p4)    //["Measurement", "Temperature"]
Dimmer n12                      "Number 2 for P4"               (p4)    //["Measurement", "Temperature"]

Group no5                       "Group NoSemantic 5 for E7"     (e13)
String t11                      "Text 1 for No5"                (no5)
String t12                      "Text 2 for No5"                (no5)

I think there was an issue already filed for alarms. It doesn’t show the badge if none of the alarms are on was the problem if I recall correctly.

For the rest I can’t offer much.

Yes I think there was a bug with alarm badges fixed a week ago.

But as this was merged for RC2 and I’m running OH3 release I think this is not the reason why alarm badges are not shown when the points are part of an equipment

Did some further investigation.
At least the part with the alarm badges really seems to be a bug. So I created
