PLC (Power Line Communication)

Tags: #<Tag:0x00007f617376d7f8>

Hello,

Maybe you will be interested in a solution …
Application: IoT, “Smart home”, etc…

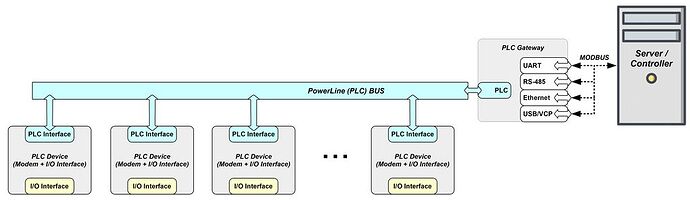

There is a developed and tested PLC modem. Work on any AC / DC lines.
Implementation on MCU STM32F303CBT6. Minimum parts for the analog part. Tested at a distance of 150-200 m. Estimated distance 300-350 m. Speed ​​19200 bps. I couldn’t think of anything cheaper and easier to manufacture.

Idea: https://github.com/open-plc-com/PLC-modem

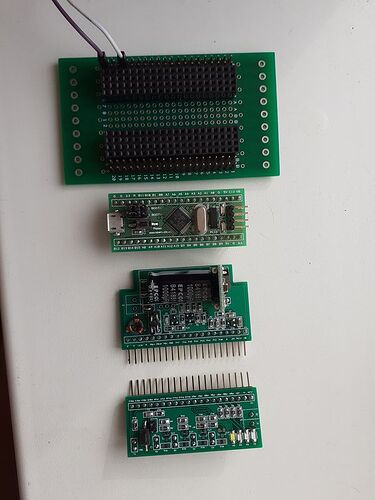

There is an introductory kit as a set of boards (for voltage 9-24V; AC / DC; inverter 9-24-> 5V on the modem board):

!

Assembled:

20200626_174059|666x500 !
