Rainwater tank level measurement with Esphome

Here is an example of how to measure the level of a rainwater tank using a pressure sensor.

My inspiration comes from here.

For my 5000L tank with a height of 160cm I ordered a pressure sensor that measures 2m height, with a cable of 10m. It transmits the data with a 4-20mA current loop. The cable contains 2 wires and also a small tube to compensate the atmospheric pressure.

I use an ESP32 board, because it is cheap, fast and easy to program with Esphome. The Esphome binding from @Seime makes it very easy to communicate with OH.

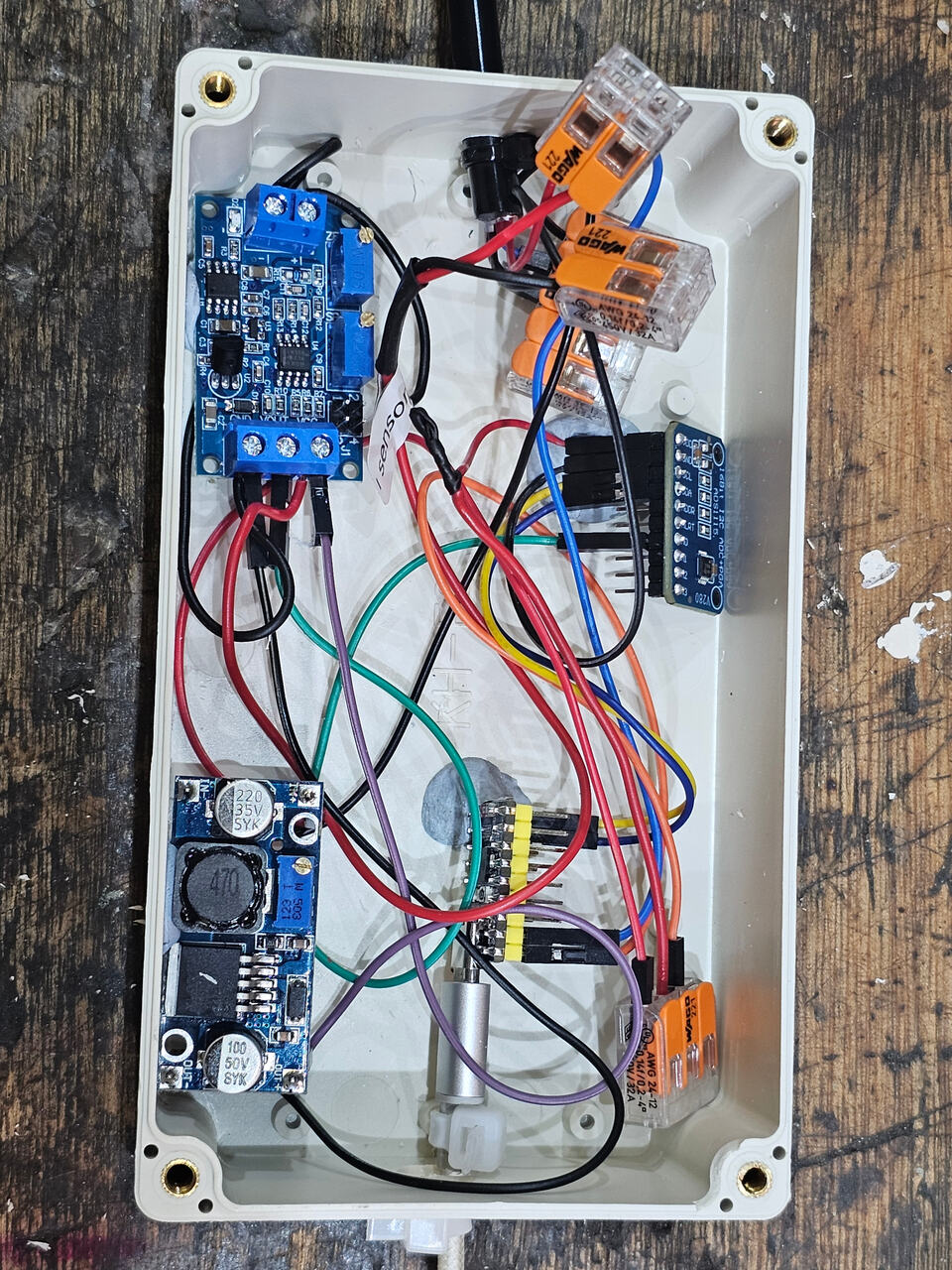

Here is the layout of the 8 x 12 cm PCB board I made:


The module on the right bottom is a voltage booster that transforms the 5V to 24V. This has to be adjusted with the potentiometer.

The module on the left bottom provides the current loop.

  • The two jumpers must be removed to provide a measuring range from 0 to 3,3V.
  • The zero potentiometer must be adjusted so that the measured voltage (green wire) is 0V when the pressure sensor is out of the water (empty rainwater tank).
  • I adjusted the span potentiometer to maximum (turn clockwise): if the tank is full (160cm), then I want to have as much volts as possible.

The module in the middle is a 16 bit ADC converter. It measures the voltage precisely and with low noise. The result is sent to the ESP32 via a I2C bus. The default address of the module is 0X48. The ESP32 can also measure voltages, but the linearity is not good and there is a lot of noise (variations of the measured level).

The small module on top left has nothing to do with this project. It is a BME280 board that can measure air pressure, temperature and humidity in my cellar. It is also connected with the I2C bus on address 0x76.

Here is the Esphome code:

esphome:
  name: esp3
  comment: esp32 controller for rainwater tank

esp32:
  board: az-delivery-devkit-v4
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API (to be able to send commands; not necessary here)
api:
  encryption:
    key: !secret encryption_key

ota:
  # to send over the air updates to the esp32
  - platform: esphome
    password: !secret ota_pw

time:
  # synchronise time from OH
  - platform: homeassistant
    id: openhab_time

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_pw
  fast_connect: true    # necessary for hidden networks,
                        # faster for other networks as there is no scanning
  # esp3 with a manual ip address
  manual_ip:
    static_ip: 192.168.1.20
    gateway: 192.168.1.1
    subnet: 255.255.255.0

# i2c initialisation for BME280 and ADS1115
i2c:
  id:   bus_a
  sda:  GPIO21
  scl:  GPIO22
  scan: True

# ADC initialization, ADDR pin is not connected, so address is 0x48
ads1115:
  - address: 0x48

sensor:

  # ADC channel A0 voltage measurement
  - platform: ads1115
    multiplexer: 'A0_GND'   # measure between pin A0 and GND
    gain: 4.096             # measure maximum 4.096V
    name: "niveauV"
    id: niveau_V
    update_interval: 5s
    filters:
      - median:
          window_size: 61          # mediaan of 61 measurements
          send_every: 61           # every 5*61 = 365s

  # convert voltage to cm
  - platform: copy
    source_id: niveau_V
    name: "niveauCm"
    id: niveau_cm
    filters:
      - calibrate_linear:
          - 0.115 -> 6       # the sensor is at about 6cm above the bottom = 200L
          - 2.415 -> 160     # the height of the tank is 160cm
      - round: 1
    accuracy_decimals: 0
    unit_of_measurement: cm

  # convert voltage to liter
  - platform: copy
    source_id: niveau_V
    name: "niveauL"
    filters:
      - calibrate_linear:
          - 0.115   -> 200
          - 2.415   -> 5000
      - round: 0
    accuracy_decimals: 0
    unit_of_measurement: l


  # BME280 air pressure and humidity measurement
  - platform: bme280_i2c
    address: 0x76
    pressure:
      name: "luchtdruk"
      filters:
        - offset: 6.5
        - round: 1
    humidity:
      name: "kelderVochtigheid"
      filters:
        - round: 0
    update_interval: 60s

The measurement was still a bit noisy, so in the code I added a median filter:

  • Every 5s a measurement is made.
  • After 61 measurements the median value is taken (has to be uneven otherwise there is no median).
  • This is sent every 61 measurements or about 5 minutes.

Now the noise is less than 1mm or about 3L. This gives a stable reading:

The channels used for the rainwater tank are:

  • niveauV: the measured voltage
  • niveauCm: the corresponding water level in cm
  • niveauL: the level in liters

I used a widget to show the level:

uid: regenwaterput
tags: []
props:
  parameters:
    - default: Regenwaterput
      description: Title
      label: Title
      name: title
      required: false
      type: TEXT
    - context: item
      default: regenwaterL
      description: Item that contains the level in %
      label: Level Item
      name: levelItem
      required: true
      type: TEXT
    - default: blue
      description: "Fill color: red, blue,... or rgb(200,10,65) or '#ff0066'"
      label: Fill color
      name: fillColor
      required: false
      type: TEXT
    - default: Regenwater
      description: Text label abover the tank
      label: tankLabel
      name: tankLabel
      required: false
      type: TEXT
    - default: 110px
      description: "Height in px (needed for responsive layout)"
      label: Height
      name: height
      required: false
      type: TEXT
    - default: "160"
      description: "Width (no units)"
      label: Width
      name: width
      required: false
      type: TEXT
  parameterGroups: []
timestamp: Mar 2, 2025, 6:31:10 PM
component: f7-card
config:
  outline: true
  style:
    background-color: "#1c1c1d"
    margin-left: 0px
    margin-right: 0px
    noShadow: true
    padding: 0px
  title: =props.title
slots:
  default:
    - component: f7-block
      config:
        style:
          display: flex
          height: =props.height
          justify-content: center
          margin-left: 0px
          margin-right: 0px
          padding: 0px
      slots:
        default:
          - component: svg
            config:
              preserveAspectRatio: xMidYMin meet
              viewBox: ='0 0 180 160'
              xlmns: http://www.w3.org/2000/svg
            slots:
              default:
                - component: defs
                  slots:
                    default:
                      - component: linearGradient
                        config:
                          comment: the id can only be used once in a page; so we have to make it unique if
                            we want to use the widget more than once
                          id: ='Grad'+props.levelItem
                          x1: 0%
                          x2: 0%
                          y1: 100%
                          y2: 0%
                        slots:
                          default:
                            - component: stop
                              config:
                                comment: in order to have a hard line, both stops must use the same offset
                                offset: =items[props.levelItem].numericState / 50 + '%'
                                stop-color: =items[props.levelItem].numericState>500?'blue':'red'
                            - component: stop
                              config:
                                comment: the upper part is transparent
                                offset: =items[props.levelItem].numericState / 50 + '%'
                                stop-color: rgba(0,0,0,0)
                            - component: animate
                              config:
                                attributeName: y2
                                dur: 1s
                                from: 100%
                                repeatCount: 1
                                to: 0%
                - component: path
                  config:
                    d: ='M 30 20 q -10 0 -10 10 l 0 100 q 0 10 10 10 l 100 0 q 10 0 10 -10 l 0 -100
                      q 0 -10 -10 -10 l -100 0 m -10 24 l 10 0 m -10 24 l 10 0 m
                      -10 24 l 10 0 m -10 24 l 10 0'
                    fill: ='url(#Grad'+props.levelItem+')'
                    stroke: =themeOptions.dark=='dark'?'white':'black'
                    stroke-width: 2
          - component: oh-label-card
            config:
              action: navigate
              actionPage: page:regenwaterL
              fontSize: 18px
              label: =items[props.levelItem].numericState + ' L'
              stylesheet: |
                .item-inner {
                  margin-top: 30px;
                  margin-bottom: 0px;
                  }
                .card-content-padding {
                  padding: 0px;
                  }

The only drawback is, that you need to do some digging and drilling to install the pressure sensor in the tank. There is no OH binding yet for this…
