representing the Semantic features of an openHAB Item to Blockly
simple filter functions,
and
a calculator for humidity

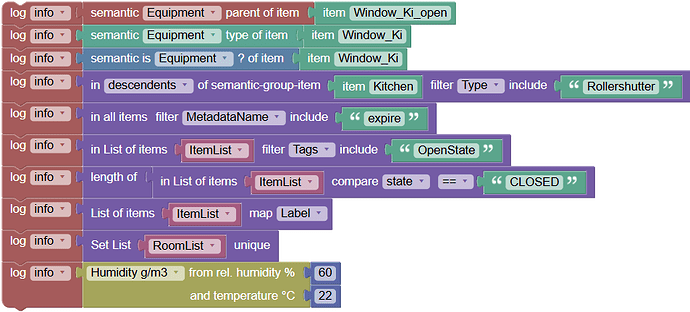

Semantic-Blocks

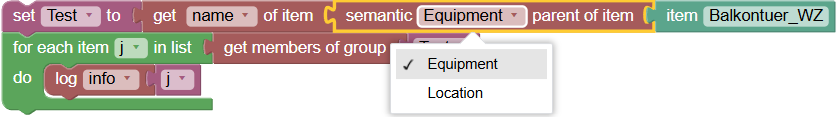

Parents of Item
return equipment and location as a Item
Type of …
return a String

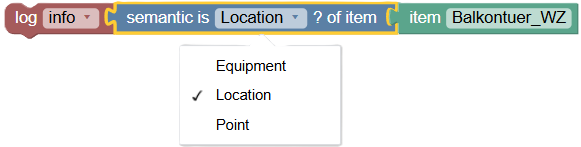

Whether the Item is a …
return a Boolean

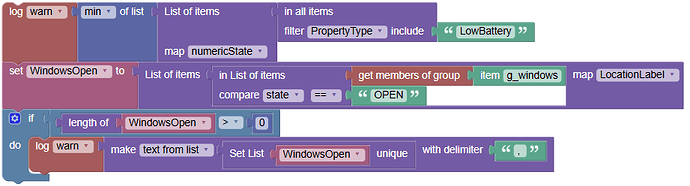

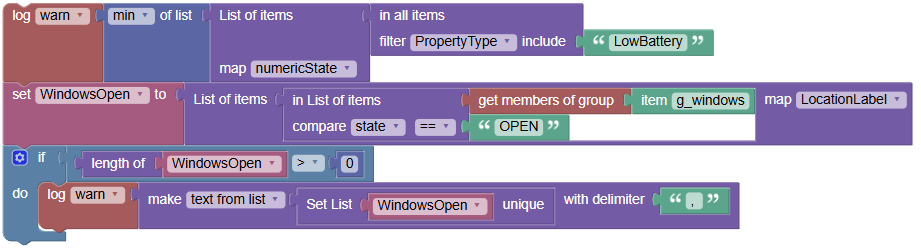

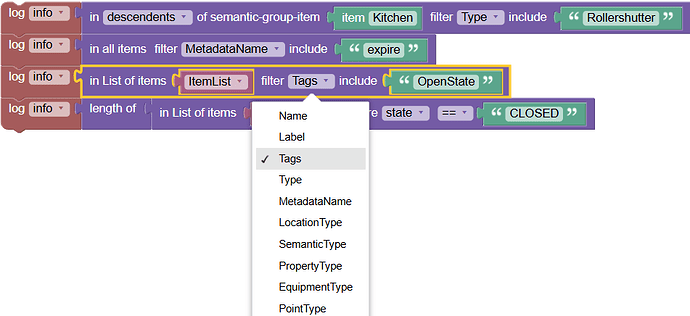

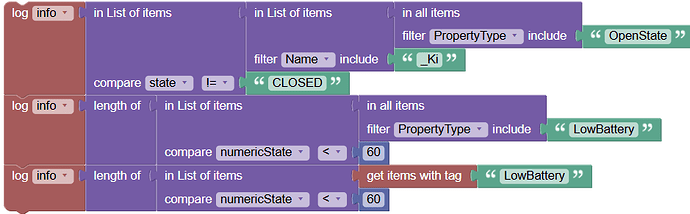

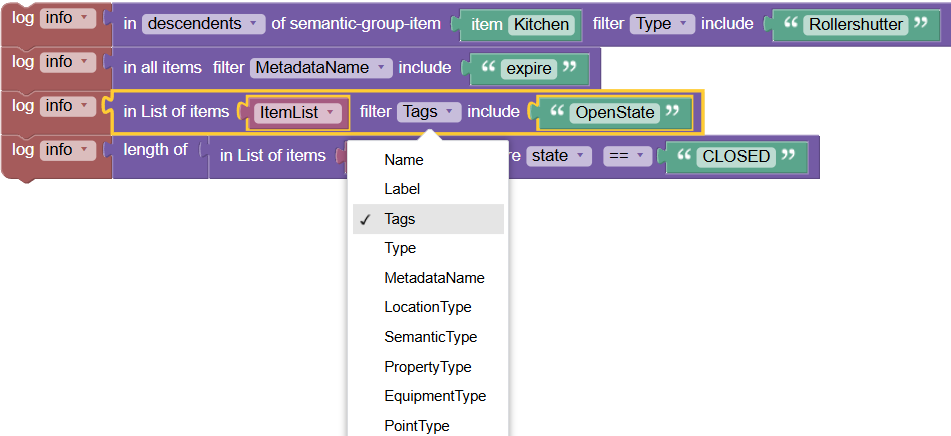

Filter-Blocks
return a List (Array)
Care blocks for groups and tags
Carelessly swapping tags can damage the semantic-model. Therefore, always make a fresh backup beforehand.

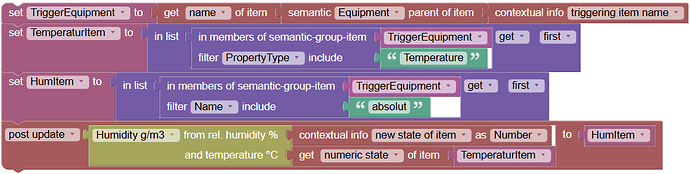

Calculator for air humidity
Calculated based on this Function absolute air humidity, dew point, vapor pressure and wet-bulb.
Input only in Units % and °C. The Unit for Output Is included.
Changelog
Version 0.6

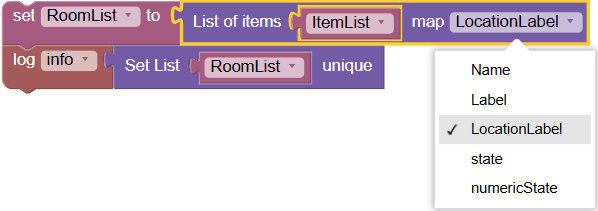

- new Blocks for map and removes duplicate
Version 0.5
- the filter for semantic-group-item can now also be used for location with all equipment
- new Blocks for care groups and tags
Version 0.4
- simple calculation wet-bulb with deviation < +/- 1 C°
- simple filter functionsVersion 0.4
Version 0.3
- Fine-tuning code
Version 0.2
- Optical changes
Version 0.1
- first published version
Ressourcen
-requires JavaScript (ECMAScript 2022+/GraalJS)
uid: Semantic_Humidity
tags:
- marketplace:164297
props:
parameters: []
parameterGroups: []
timestamp: Aug 20, 2025, 6:12:18 PM
component: BlockLibrary
config:
name: Semantic, Filter & Humidity
slots:
blocks:
- component: BlockType
config:
args0:
- name: optSemantic
options:
- - Equipment
- equipment
- - Location
- location
type: field_dropdown
- align: right
name: semanticItem
type: input_value
colour: 0
helpUrl: https://openhab.github.io/openhab-js/items.ItemSemantics.html
message0: semantic %1 parent of item %2
output: ""
tooltip: equipment/location of Item. In for_each use get_name_of_item if
necessary
type: SemanticItem
slots:
code:
- component: BlockCodeTemplate
config:
template: items.getItem({{input:semanticItem}}).semantics.{{field:optSemantic}}
toolbox:
- component: PresetInput
config:
name: semanticItem
shadow: true
type: oh_item
- component: BlockType
config:
args0:
- name: optSemantic
options:
- - Equipment
- equipmentType
- - Location
- locationType
- - Point
- pointType
- - Property
- propertyType
- - Semantic
- semanticType
type: field_dropdown
- align: right
name: semanticItem
type: input_value
colour: 165
helpUrl: https://openhab.github.io/openhab-js/items.ItemSemantics.html
message0: semantic %1 type of item %2
output: String
tooltip: Type of equipment/location/point/property/semantic. Return string
type: SemanticString
slots:
code:
- component: BlockCodeTemplate
config:
template: items.getItem({{input:semanticItem}}).semantics.{{field:optSemantic}}
toolbox:
- component: PresetInput
config:
name: semanticItem
shadow: true
type: oh_item
- component: BlockType
config:
args0:
- name: optSemantic
options:
- - Equipment
- isEquipment
- - Location
- isLocation
- - Point
- isPoint
type: field_dropdown
- align: right
name: semanticItem
type: input_value
colour: 210
helpUrl: https://openhab.github.io/openhab-js/items.ItemSemantics.html
message0: semantic is %1 ? of item %2
output: Boolean
tooltip: Is Equipment/Location/Point? Return Boolean
type: semanticBoolean
slots:
code:
- component: BlockCodeTemplate
config:
template: items.getItem({{input:semanticItem}}).semantics.{{field:optSemantic}}
toolbox:
- component: PresetInput
config:
name: semanticItem
shadow: true
type: oh_item
- component: BlockType
config:
args0:
- name: optFilterMember
options:
- - members
- members
- - descendents
- descendents
type: field_dropdown
- align: left
name: semanticItem
type: input_value
- name: optFilterGroup
options:
- - Name
- name
- - Label
- label
- - Tags
- tags
- - Type
- type
- - MetadataName
- getMetadata()
- - LocationType
- semantics.locationType
- - SemanticType
- semantics.semanticType
- - PropertyType
- semantics.propertyType
- - EquipmentType
- semantics.equipmentType
- - PointType
- semantics.pointType
type: field_dropdown
- name: suchtext
type: input_value
colour: 260
inputsInline: true
helpUrl: https://community.openhab.org/t/semantic-features-filter-and-air-humidity/
message0: in %1 of semantic-group-item %2 filter %3 include %4
output: Array
tooltip: method checks if a specific value exists. Return List of items
type: filterGroup
slots:
code:
- component: BlockCodeTemplate
config:
template: items.getItem({{input:semanticItem}}).{{field:optFilterMember}}.filter(
x => {{utility:fFilterBlock}}(x.{{field:optFilterGroup}},
{{input:suchtext}}))
toolbox:
- component: PresetInput
config:
name: semanticItem
shadow: true
type: oh_item
- component: PresetInput
config:
fields:
TEXT: text
name: suchtext
shadow: true
type: text
- component: BlockType
config:
args0:
- align: left
name: Dummy
type: input_dummy
- name: optFilterGroup
options:
- - Name
- name
- - Label
- label
- - Tags
- tags
- - Type
- type
- - MetadataName
- getMetadata()
- - LocationType
- semantics.locationType
- - SemanticType
- semantics.semanticType
- - PropertyType
- semantics.propertyType
- - EquipmentType
- semantics.equipmentType
- - PointType
- semantics.pointType
type: field_dropdown
- name: suchtext
type: input_value
colour: 260
inputsInline: true
helpUrl: https://community.openhab.org/t/semantic-features-filter-and-air-humidity/
message0: in all items %1 filter %2 include %3
output: Array
tooltip: method checks if a specific value exists. Return List of items
type: filterAll
slots:
code:
- component: BlockCodeTemplate
config:
template: items.getItems().filter( x =>
{{utility:fFilterBlock}}(x.{{field:optFilterGroup}},
{{input:suchtext}}))
toolbox:
- component: PresetInput
config:
fields:
TEXT: text
name: suchtext
shadow: true
type: text
- component: BlockType
config:
args0:
- align: left
name: itemList
check: Array
type: input_value
- name: optFilterGroup
options:
- - Name
- name
- - Label
- label
- - Tags
- tags
- - Type
- type
- - MetadataName
- getMetadata()
- - LocationType
- semantics.locationType
- - SemanticType
- semantics.semanticType
- - PropertyType
- semantics.propertyType
- - EquipmentType
- semantics.equipmentType
- - PointType
- semantics.pointType
type: field_dropdown
- name: suchtext
type: input_value
colour: 260
inputsInline: true
helpUrl: https://community.openhab.org/t/semantic-features-filter-and-air-humidity/
message0: in List of items %1 filter %2 include %3
output: Array
tooltip: method checks if a specific value exists. Return List of items
type: filterList
slots:
code:
- component: BlockCodeTemplate
config:
template: "{{input:itemList}}.filter( x =>
{{utility:fFilterBlock}}(x.{{field:optFilterGroup}},
{{input:suchtext}}))"
toolbox:
- component: PresetInput
config:
fields:
TEXT: text
name: suchtext
shadow: true
type: text
- component: BlockType
config:
args0:
- align: left
name: itemList
check: Array
type: input_value
- name: optFilterState
options:
- - state
- state
- - numericState
- numericState
- - Name
- name
type: field_dropdown
- name: Comparison
options:
- - ==
- ==
- - "!="
- "!="
- - <
- <
- - <=
- <=
- - ">"
- ">"
- - ">="
- ">="
type: field_dropdown
- name: ValueComparison
type: input_value
colour: 260
inputsInline: true
helpUrl: https://community.openhab.org/t/semantic-features-filter-and-air-humidity/
message0: in List of items %1 compare %2 %3 %4
output: Array
tooltip: Compare the values. Return List of items
type: filterVergleich
slots:
code:
- component: BlockCodeTemplate
config:
template: "{{input:itemList}}.filter((i => i.{{field:optFilterState}}
{{field:Comparison}} {{input:ValueComparison}}))"
- component: BlockType
config:
args0:
- align: left
name: itemList
check: Array
type: input_value
- name: map
options:
- - Name
- name)
- - Label
- label)
- - LocationLabel
- semantics.location).label
- - state
- state)
- - numericState
- numericState)
type: field_dropdown
colour: 260
inputsInline: true
helpUrl: https://community.openhab.org/t/semantic-features-filter-and-air-humidity/
message0: List of items %1 map %2
output: Array
tooltip: reduces the output to a property of the objects. Return List of value
type: mapList
slots:
code:
- component: BlockCodeTemplate
config:
template: "{{input:itemList}}.map( x => (x.{{field:map}})"
- component: BlockType
config:
args0:
- align: left
name: itemList
check: Array
type: input_value
colour: 260
inputsInline: true
helpUrl: https://community.openhab.org/t/semantic-features-filter-and-air-humidity/
message0: Set List %1 unique
output: Array
tooltip: removes duplicate from the list. Return list.
type: DuplicateEX
slots:
code:
- component: BlockCodeTemplate
config:
template: "[...new Set({{input:itemList}})]"
- component: BlockType
config:
args0:
- align: left
name: semanticItem
type: input_value
- check: Array
name: itemList
type: input_value
colour: 0
helpUrl: https://community.openhab.org/t/semantic-features-filter-and-air-humidity/
inputsInline: true
message0: add list of items %2 to groupItem %1
nextStatement: ""
previousStatement: ""
tooltip: adds a list of items to a group
type: addGroups
slots:
code:
- component: BlockCodeTemplate
config:
template: "{{input:itemList}}.forEach(i => i.addGroups({{input:semanticItem}}))"
toolbox:
- component: PresetInput
config:
name: semanticItem
shadow: true
type: oh_item
- component: BlockType
config:
args0:
- align: left
name: semanticItem
type: input_value
- name: oldTags
type: input_value
- name: newTags
type: input_value
colour: 0
helpUrl: https://community.openhab.org/t/semantic-features-filter-and-air-humidity/
inputsInline: true
message0: replace Tags from %2 to %3 of item %1
nextStatement: ""
previousStatement: ""
tooltip: swaps old tags for new ones, multiple values separated by commas
possible. Backup first.
type: ReplaceTag
slots:
code:
- component: BlockCodeTemplate
config:
template: ({{utility:fReplaceTags}}({{input:semanticItem}}, {{input:oldTags}},
{{input:newTags}}))
toolbox:
- component: PresetInput
config:
name: semanticItem
shadow: true
type: oh_item
- component: PresetInput
config:
fields:
TEXT: old
name: oldTags
shadow: true
type: text
- component: PresetInput
config:
fields:
TEXT: new
name: newTags
shadow: true
type: text
- component: BlockType
config:
args0:
- name: Ausgabe
options:
- - Humidity g/m3
- af
- - dew point °C
- tt
- - vapor pressure hPa
- dd
- - wet-bulb °C
- tw
type: field_dropdown
- name: relativ
type: input_value
- align: right
name: temp
type: input_value
colour: 60
helpUrl: https://www.smarthome-tricks.de/iobroker-scriptsammlung/taupunkt-berechnen/
lastDummyAlign0: right
message0: "%1 from rel. humidity % %2 and temperature °C %3"
output: Number
tooltip: calculates values for humidity
type: Humidity
slots:
code:
- component: BlockCodeTemplate
config:
template: "{{utility:fTaupunkt}}({{input:relativ}},{{input:temp}}).{{field:Ausg\
abe}}"
toolbox:
- component: PresetInput
config:
fields:
NUM: 50
name: relativ
shadow: true
type: math_number
- component: PresetInput
config:
fields:
NUM: 15
name: temp
shadow: true
type: math_number
utilities:
- component: UtilityFunction
config:
code: >
function {{name}}(rel ,temp) {
// Block Humidity
var r = parseFloat(rel);
var t = parseFloat(temp);
var mw = 18.016; var gk = 8314.3;
var t0 = 273.15; var tk = t + t0;
var a, b;
if (t >= 0) {
a = 7.5; b = 237.3;
} else if (t < 0) {
a = 7.6; b = 240.7;
}
var sdd = 6.1078 * Math.pow(10, (a*t)/(b+t));
var dd = sdd * (r/100);
var af = Math.pow(10,5) * mw/gk * dd/tk;
var v = Math.log(dd/6.1078)/ 2.302585092994046;
var tt = (b*v) / (a-v);
var tw = -5.809 + 0.058 * r + 0.697 * t + 0.003 * r * t; //kuehlgrenzeEinfach
return { tt: tt.toFixed(4) + ' °C', af: af.toFixed(4) + ' g/m³', dd: dd.toFixed(4) + ' hPa', tw: tw.toFixed(4) + ' °C'};
}
name: fTaupunkt
- component: UtilityFunction
config:
code: >
function {{name}}(arg, such) {
if (!arg) return false;
if (typeof arg === 'object' && arg !== null && !Array.isArray(arg)) {
return Object.prototype.hasOwnProperty.call(arg, such);
}
if (typeof arg.includes === 'function') {
return arg.includes(such);
}
return false;
}
name: fFilterBlock
- component: UtilityFunction
config:
code: >
function {{name}}(itemName, oldTags, newTags) {
const i = items[itemName];
const toArray = tags => Array.isArray(tags) ? tags : String(tags).split(',').map(t => t.trim()).filter(Boolean);
toArray(oldTags).forEach(tag => i.removeTags(tag));
toArray(newTags).forEach(tag => i.addTags(tag));
}
name: fReplaceTags
Beginner with bad English skills. Sorry.
Error messages (and solutions?) Are expressly desired.
The group block, for example, could also be used as a precursor.
