Sitemap looks odd when configuring global cache IR

Setup, Configuration and Use Items & Sitemaps
,
1

Hi,

I am trying to set up a global cache IR blaster for openhab but I cannot get it to work and since the sitemap I’ve set up also looks funny I figured this may be one of the problems behind the failure.

My sitemap looks like this:

34

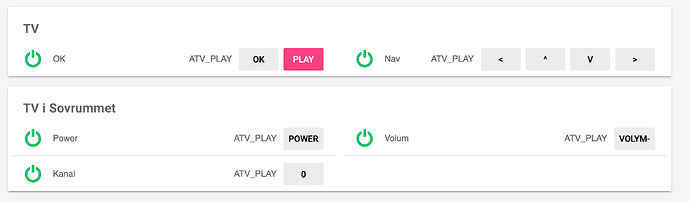

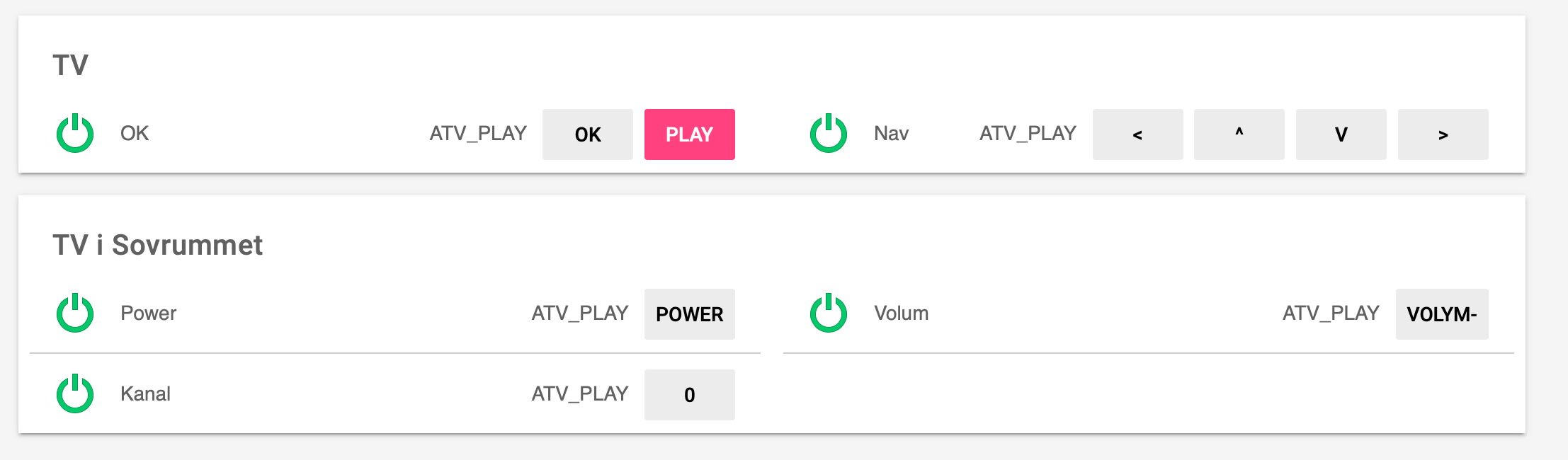

Skärmavbild 2019-02-27 kl. 20.53.34.png2214×650 39 KB

My map file:

# Apple TV
ATV_OK = 38580,1,1,348,173,21,22,21,65,21,65,21,65,21,22,21,65,21,65,21,65,21,65,21,65,21,65,21,22,21,22,21,22,21,22,21,65,21,22,21,22,21,65,21,65,21,65,21,22,21,65,21,22,21,65,21,65,21,22,21,22,21,22,21,22,21,22,21,65,21,1481,347,173,21,22,21,65,21,65,21,65,21,22,21,65,21,65,21,65,21,65,21,65,21,65,21,22,21,22,21,22,21,22,21,65,21,65,21,22,21,65,21,22,21,22,21,22,21,22,21,22,21,65,21,65,21,22,21,22,21,22,21,22,21,22,21,65,21,3800
ATV_RIGHT = 38580,1,1,347,173,21,22,21,65,21,65,21,65,21,22,21,65,21,65,21,65,21,65,21,65,21,65,21,22,21,22,21,22,21,22,21,65,21,22,21,65,21,65,21,22,21,22,21,22,21,22,21,22,21,65,21,65,21,22,21,22,21,22,21,22,21,22,21,65,21,1560,347,87,21,3800
ATV_LEFT = 38580,1,1,347,173,21,22,21,65,21,65,21,65,21,22,21,65,21,65,21,65,21,65,21,65,21,65,21,22,21,22,21,22,21,22,21,65,21,65,21,22,21,22,21,65,21,22,21,22,21,22,21,22,21,65,21,65,21,22,21,22,21,22,21,22,21,22,21,65,21,1560,347,87,21,3800
ATV_UP = 38580,1,1,347,173,21,22,21,65,21,65,21,65,21,22,21,65,21,65,21,65,21,65,21,65,21,65,21,22,21,22,21,22,21,22,21,65,21,22,21,65,21,22,21,65,21,22,21,22,21,22,21,22,21,65,21,65,21,22,21,22,21,22,21,22,21,22,21,65,21,3800
ATV_DOWN = 38580,1,1,25,65,21,65,21,65,21,65,21,65,21,65,21,22,21,22,21,22,21,22,21,65,21,22,21,22,21,65,21,65,21,22,21,22,21,22,21,22,21,65,21,65,21,22,21,22,21,22,21,22,21,22,21,65,21,3800
ATV_MENU = 38580,1,1,347,173,21,22,21,65,21,65,21,65,21,22,21,65,21,65,21,65,21,65,21,65,21,65,21,22,21,22,21,22,21,22,21,65,21,65,21,65,21,22,21,22,21,22,21,22,21,22,21,22,21,65,21,65,21,22,21,22,21,22,21,22,21,22,21,65,21,3800
ATV_PLAY = 38580,1,1,347,173,21,22,21,65,21,65,21,65,21,22,21,65,21,65,21,65,21,65,21,65,21,65,21,22,21,22,21,22,21,22,21,65,21,65,21,65,21,65,21,65,21,65,21,22,21,65,21,22,21,65,21,65,21,22,21,22,21,22,21,22,21,22,21,65,21,1393,347,173,21,22,21,65,21,65,21,65,21,22,21,65,21,65,21,65,21,65,21,65,21,65,21,22,21,22,21,22,21,22,21,65,21,65,21,22,21,65,21,22,21,22,21,22,21,22,21,22,21,65,21,65,21,22,21,22,21,22,21,22,21,22,21,65,21,3800


# TV i Sovrummet Toshiba
SOVRUM_TV_POWER = 0000 006C 0022 0002 015B 00AD 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0016 0016 0041 0016 0016 0016 0041 0016 0016 0016 0016 0016 0041 0016 0016 0016 0016 0016 0016 0016 0041 0016 0016 0016 0041 0016 0041 0016 0016 0016 0041 0016 0041 0016 0041 0016 05F7 015B 0057 0016 0E6C
SOVRUM_TV_VOLUME_MINUS = 0000 006C 0022 0002 015B 00AD 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0016 0016 0041 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041 0016 0016 0016 0016 0016 0016 0016 0041 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0041 0016 0041 0016 05F7 015B 0057 0016 0E6C
SOVRUM_TV_VOLUME_PLUS =  0000 006C 0022 0002 015B 00AD 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0016 0016 0041 0016 0016 0016 0041 0016 0016 0016 0041 0016 0041 0016 0016 0016 0016 0016 0016 0016 0041 0016 0016 0016 0041 0016 0016 0016 0016 0016 0041 0016 0041 0016 0041 0016 05F7 015B 0057 0016 0E6C
SOVRUM_TV_VOLUME_0 = 38226,1,1,341,171,21,22,21,22,21,22,21,22,21,22,21,22,21,64,21,22,21,64,21,64,21,64,21,64,21,64,21,64,21,22,21,64,21,64,21,22,21,22,21,22,21,22,21,22,21,22,21,22,21,22,21,64,21,64,21,64,21,64,7,78,1,3800

the item:

String   ITachISovrummet_IrM1C3   "Fjärr Sovrummet"   {channel="globalcache:itachIR:000C1E02E8E0:ir-m1#c3"}

and the sitemap

sitemap Remote label="Fjärrkontroll" {
    Frame label="TV" {
        Switch item=ITachISovrummet_IrM1C3 label="OK" mappings=[ATV_OK="OK",ATV_PLAY="PLAY"]
        Switch item=ITachISovrummet_IrM1C3 label="Nav" mappings=[ATV_LEFT="<", ATV_UP="^", ATV_DOWN="v",ATV_RIGHT=">"]

    }

    Frame label="TV i Sovrummet" {
        Switch item=ITachISovrummet_IrM1C3 label="Power" mappings=[SOVRUM_TV_POWER="POWER"]
        Switch item=ITachISovrummet_IrM1C3 label="Volum" mappings=[SOVRUM_TV_VOLUME_MINUS="Volym-"]
        Switch item=ITachISovrummet_IrM1C3 label="Kanal" mappings=[SOVRUM_TV_VOLUME_0="0"]
    }
}

Any ideas on why the IR code alias / command that should have been sent is seen in the sitemap like that?

2

You mean you want to suppress the display of value ATV_PLAY ?

Null format in label e.g.

Switch item=ITachISovrummet_IrM1C3 label="OK []" mappings=...
