[SOLVED] OH3 Z-Wave Serial Controller offline (RaZberry)

Lars_Reidelbach · December 29, 2020, 1:25pm

Hello,
since the years I use OpenHAB 2 without problems. With OpenHAB3 I want start a new installation. So I take my PI 3 (from working OH2 Installation) and use new sdcard with fresh OH3 installation. I use openHABian v1.6.2 for install.

I added my HUE with all ligths this work.

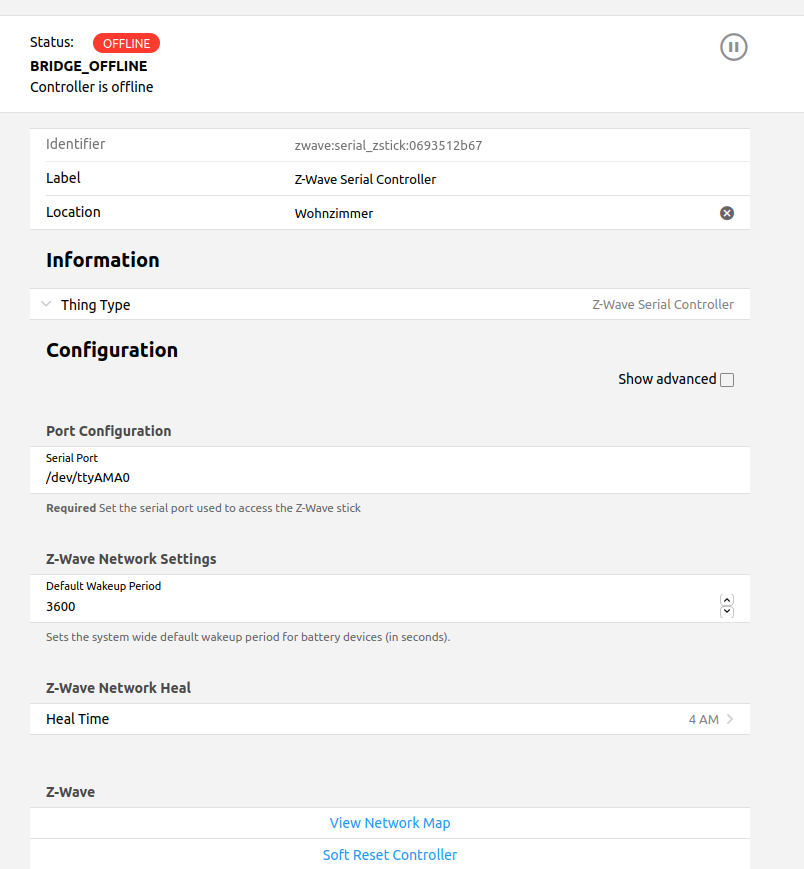

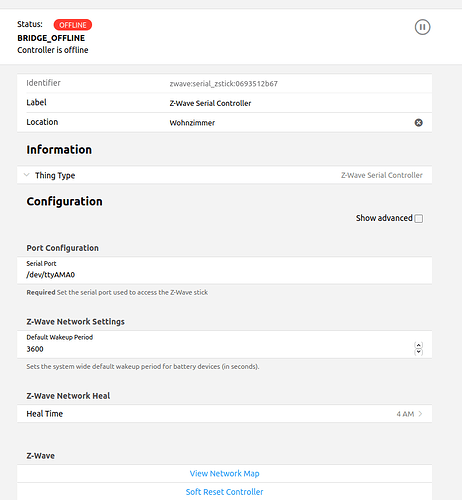

After that I added my Z-Wave Controller but this is not working. The controller is still offline. The serial port was found. Port is there in system.

When I switch to sdcard with OH2, all is working fine Z-Wave controller is working.
How can I debug futher in OH3? Has someone a idea?

Platform information:
Release = Raspbian GNU/Linux 10 (buster)
Kernel = Linux 5.4.79-v7+
Platform = Raspberry Pi 3 Model B Plus Rev 1.3
openHAB version: 3.0.0
Z-Wave controller RaZberry
If logs where generated please post these here using code fences:

2020-12-29 14:01:58.051 [DEBUG] [ing.zwave.handler.ZWaveSerialHandler] - Disposing receive thread
2020-12-29 14:01:58.055 [DEBUG] [ing.zwave.handler.ZWaveSerialHandler] - Receive thread dispose
2020-12-29 14:01:58.058 [DEBUG] [ing.zwave.handler.ZWaveSerialHandler] - Disposing serial connection
2020-12-29 14:01:58.062 [DEBUG] [ing.zwave.handler.ZWaveSerialHandler] - Serial connection disposed
2020-12-29 14:01:58.066 [DEBUG] [ing.zwave.handler.ZWaveSerialHandler] - Stopped ZWave serial handler
2020-12-29 14:01:58.084 [DEBUG] [wave.discovery.ZWaveDiscoveryService] - ZWave discovery: Deactivate zwave:serial_zstick:0693512b67
2020-12-29 14:01:58.009 [INFO ] [ab.event.ThingStatusInfoChangedEvent] - Thing ‘zwave:serial_zstick:0693512b67’ changed from OFFLINE (BRIDGE_OFFLINE): Controller is offline to UNINITIALIZED
2020-12-29 14:01:58.113 [INFO ] [ab.event.ThingStatusInfoChangedEvent] - Thing ‘zwave:serial_zstick:0693512b67’ changed from UNINITIALIZED to UNINITIALIZED (HANDLER_MISSING_ERROR)
2020-12-29 14:02:17.826 [DEBUG] [wave.discovery.ZWaveDiscoveryService] - Creating ZWave discovery service for zwave:serial_zstick:0693512b67 with scan time of 60
2020-12-29 14:02:17.833 [DEBUG] [wave.discovery.ZWaveDiscoveryService] - ZWave discovery: Active zwave:serial_zstick:0693512b67
2020-12-29 14:02:17.838 [INFO ] [zwave.handler.ZWaveControllerHandler] - Attempting to add listener when controller is null
2020-12-29 14:02:18.016 [DEBUG] [ing.zwave.handler.ZWaveSerialHandler] - Initializing ZWave serial controller.
2020-12-29 14:02:18.019 [DEBUG] [zwave.handler.ZWaveControllerHandler] - Initializing ZWave Controller zwave:serial_zstick:0693512b67.
2020-12-29 14:02:17.986 [INFO ] [ab.event.ThingStatusInfoChangedEvent] - Thing ‘zwave:serial_zstick:0693512b67’ changed from UNINITIALIZED (HANDLER_MISSING_ERROR) to INITIALIZING
2020-12-29 14:02:18.026 [INFO ] [ab.event.ThingStatusInfoChangedEvent] - Thing ‘zwave:serial_zstick:0693512b67’ changed from INITIALIZING to OFFLINE (BRIDGE_OFFLINE): Controller is offline
2020-12-29 14:18:54.149 [DEBUG] [g.zwave.internal.ZWaveConfigProvider] - No bridgeUID found in getConfigDescription thing:zwave:serial_zstick:0693512b67

Thanks!
Lars

Bruce_Osborne · December 29, 2020, 1:44pm

How did you add it? Through the UI or a text file?

Lars_Reidelbach · December 29, 2020, 1:46pm

Hi,

I add it through the UI. Install Z-Wave binding. Then add Thing. Use serial controller. Only serial port for devices was /dev/ttyAMA0.

Lars

Bruce_Osborne · December 29, 2020, 1:53pm

Is that what the OS sees? What does dmesg | grep -i tty return?

Lars_Reidelbach · December 29, 2020, 2:04pm

Yes OS say right serial I think.

dmesg | grep -i tty
[ 0.000000] Kernel command line: coherent_pool=1M 8250.nr_uarts=1 snd_bcm2835.enable_compat_alsa=0 snd_bcm2835.enable_hdmi=1 bcm2708_fb.fbwidth=656 bcm2708_fb.fbheight=416 bcm2708_fb.fbdepth=16 bcm2708_fb.fbswap=1 vc_mem.mem_base=0x3f000000 vc_mem.mem_size=0x3f600000 console=ttyAMA0,115200 console=tty1 root=PARTUUID=1ceb473a-02 rootfstype=ext4 elevator=deadline fsck.repair=yes rootwait
[ 0.000877] printk: console [tty1] enabled
[ 2.519130] 3f201000.serial: ttyAMA0 at MMIO 0x3f201000 (irq = 81, base_baud = 0) is a PL011 rev2
[ 3.524892] printk: console [ttyAMA0] enabled
[ 3.533294] 3f215040.serial: ttyS0 at MMIO 0x0 (irq = 53, base_baud = 50000000) is a 16550

Bruce_Osborne · December 29, 2020, 2:10pm

This looks related.

The RaZberry UART may be conflicting with Bluetooth?

Lars_Reidelbach · December 29, 2020, 2:35pm

Hi,

I done this via openhabian-config. I must deactivate serial port and change bluethooth to mini-UART.

Now controller is online. Thanks!

2020-12-29_15:28:22_CET [openHABian] Beginning configuration of serial console for serial port peripherals… OK
2020-12-29_15:28:27_CET [openHABian] Enabling serial port and disabling serial console… OK (reboot required)
2020-12-29_15:28:32_CET [openHABian] Making Bluetooth use mini-UART… OK

best regards,
Lars

Bruce_Osborne · December 29, 2020, 2:40pm

@chris Should there be a section in the binding docs for specific controller tips?

In this case with the Pi 3 & RaZberry, there is some further configuration needed.

chris · December 29, 2020, 5:57pm

I don’t overly mind adding something, although if it’s specific to hardware, then maybe it should be in the hardware installation?

I don’t mind either way though.

Bruce_Osborne · December 29, 2020, 6:03pm

I was thinking of something similar to the coordinator section of the Zigbee binding.

chris · December 29, 2020, 6:19pm

I don’t mind. Most of the zigbee coordinator section is talking about different coordinators. Here we only have 1 zwave controller, but the quirk is with the host hardware (I assume).

Anyway - no problem with me to add it

mstormi · December 29, 2020, 9:06pm

Yes and specific to RPis. I don’t mind you add something but frankly I do not think this belongs into the binding docs. It’s host HW specific.

Bruce_Osborne · December 29, 2020, 10:11pm

Would it belong in the openHABian docs then? It is focused mainly on that hardware.

mstormi · December 29, 2020, 10:17pm

I’d think anybody to buy specific HW should know how to install it himself.
We cannot add instructions for each and everything.
However, if someone wrote a PR to contribute to docs/openhabian.md I wouldn’t mind accepting it.

bee · September 25, 2021, 8:13pm

Hi all,

I have exactly the same issue but on a Raspi 4. I installed openhabian-pi-raspios32-v1.6.5 (OpenHAB 3.1) and everything was working without problem. However, I can’t get the RaZberry 2 card to work. The two LEDs on the card are on for 2 secs when powering up the Raspi which should indicate the card works correctly.

I have configured the serial port to relocate the Bluetooth module.

And I find the corresponding entry in /boot/config.txt at the end of the file.

[all]
#dtoverlay=vc4-fkms-v3d
gpu_mem=16
dtoverlay=miniuart-bt

As @Lars_Reidelbach I added the Z-Wave binding and afterwards the Z-Wave Serial controller. As serial port I used /dev/ttyAMA0.

However it remains in state BRIDGE_OFFLINE.

When I debug Z-Wave, I get:

…
2021-09-25 21:34:11.107 [INFO ] [e.automation.internal.RuleEngineImpl] - Rule engine started.
2021-09-25 21:34:11.116 [DEBUG] [wave.discovery.ZWaveDiscoveryService] - Creating ZWave discovery service for zwave:serial_zstick:Razberry2 with scan time of 60
2021-09-25 21:34:11.117 [DEBUG] [wave.discovery.ZWaveDiscoveryService] - ZWave discovery: Active zwave:serial_zstick:Razberry2
2021-09-25 21:34:11.118 [INFO ] [zwave.handler.ZWaveControllerHandler] - Attempting to add listener when controller is null
2021-09-25 21:34:11.193 [DEBUG] [ing.zwave.handler.ZWaveSerialHandler] - Initializing ZWave serial controller.
2021-09-25 21:34:11.195 [DEBUG] [zwave.handler.ZWaveControllerHandler] - Initializing ZWave Controller zwave:serial_zstick:Razberry2.
2021-09-25 21:35:10.510 [DEBUG] [g.zwave.internal.ZWaveConfigProvider] - No bridgeUID found in getConfigDescription thing:zwave:serial_zstick:Razberry2
2021-09-25 21:36:01.932 [DEBUG] [g.zwave.internal.ZWaveConfigProvider] - No bridgeUID found in getConfigDescription thing:zwave:serial_zstick:Razberry2

Does anybody have a clue what is wrong here?

What I find a bit strange is how the devices look:

crw--w----  1 root tty     204,  64 Sep 25 21:33 ttyAMA0
crw-------  1 root root      5,   3 Sep 25 21:33 ttyprintk
crw-rw----  1 root dialout   4,  64 Sep 25 21:33 ttyS0
crw-rw----  1 root dialout 188,   0 Sep 25 21:34 ttyUSB0

On anohter Raspi4 I run successful with RaZberry it will show ttyAMA0 with the r flag on group and well and the group is set to dialout as with ttyS0. Btw, I have tried as well /dev/ttyS0 but same result.

Does someone has a clue here?

Thanks, Bernd

mstormi · September 25, 2021, 9:05pm

Yes like this the openhab user cannot access the device. Just change it to be like your other Raspi.

bee · September 25, 2021, 9:14pm

Hi Markus, I tried to change the permissions and the user on /dev/ttyAMA0 before, but after reboot it will be changed back. But I think I have a clue now.

Have a look at this: https://www.raspberrypi.org/forums/viewtopic.php?t=180254

It says:

Never add a user to the tty group. A serial device being in tty group suggests that a getty (serial login manager) is running on the port; otherwise it should be in dialout group. Trying to use the port if a getty is also running will just cause other problems.

Disable the login shell on the serial port in the interfacing options of “sudo raspi-config”, and reboot. For B+ that may be all that is required.

For Pi3, and possibly in future, disabling the getty will also put the physical pins back to general-purpose mode. To have them as serial by default, you should add “enable_uart=1” to /boot/config.txt. For best compatibility across Pi models, it may be better to use /dev/serial0, instead of ttyAMA0 or ttyS0.

When I check on processes, I find this here:

openhabian@hestia:~ $ ps -ef | grep getty
root       843     1  0 22:55 ?        00:00:00 /sbin/agetty -o -p -- \u --keep-baud 115200,38400,9600 ttyAMA0 vt220
root       844     1  0 22:55 tty1     00:00:00 /sbin/agetty -o -p -- \u --noclear tty1 linux
openhab+  2061  1340  0 22:59 pts/0    00:00:00 grep --color=auto getty

Now how can I turn this serial login manager off? raspi-config is not available on openHABian. BTW I have not installed anything else, it is a clean openHABian.

mstormi · September 25, 2021, 9:23pm

You can use the openhabian menu to do that but I don’t think it affects if a getty is started on /dev/ttyAMA0 which is your problem.

bee · September 25, 2021, 9:32pm

@mstormi where can I do this in openhabian-config?

I have disabled it now using systemctl:

openhabian@hestia:~ $ sudo systemctl disable getty@ttyAMA0

Then checked:

openhabian@hestia:/dev $ sudo systemctl status getty@ttyAMA0
[sudo] password for openhabian:
● getty@ttyAMA0.service - Getty on ttyAMA0
   Loaded: loaded (/lib/systemd/system/getty@.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:agetty(8)
           man:systemd-getty-generator(8)
           http://0pointer.de/blog/projects/serial-console.html

Rebooted … and then permissions on /dev/ttyAMA0 were automatically changed to rw for the group and dialout as gid:

crw-rw---- 1 root dialout 204, 64 Sep 25 23:20 ttyAMA0

Afterwards Z-Wave Controller went online after adding. Puh! Took me the whole evening to get this sorted. Now the question is, why was getty@ttyAMA0.service enabled? systemctl says vendor preset: enabled. Maybe something to look into …

Bernd

bee · September 25, 2021, 9:50pm

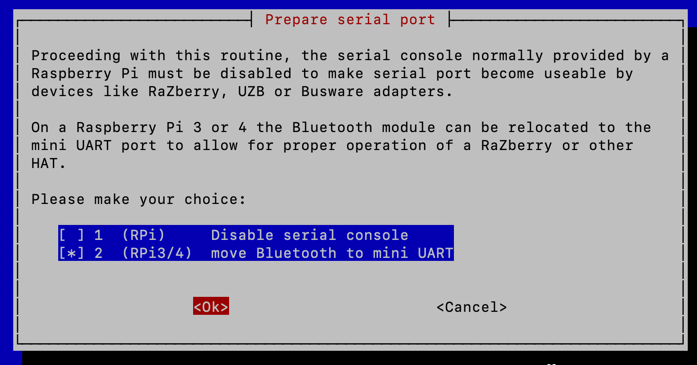

Now I understand … You have to check both items in openHABian-config. I thought the first setting is only applicable to older PI models. But it must be done for all as it disables the console. So for everybody trying to get a Z-Wave RaZberry controller running, both settings need to be enabled:

This leads to following settings in /boot/config.txt

dtoverlay=miniuart-bt
enable_uart=1

Thanks to the maintainers for all the hard work.
