[SOLVED] Weird USB issue, multipe USB dongles attached but unable to select correct one from OH paperUI

Setup, Configuration and Use Beginners
, ,
1

I’m new to OH, really like it and expanding OH quickly with all kinds of tools and bindings. But I have a weird issue with the USB devices connected to the Pi.

I cannot use udec/rules.d to symlink my USB device to a named USB device, this does not work. I can get over this and have accepted it for now and will deal with this later.

But the weird issue is I cannot select the correct ttyUSBx port in PaperUI when configuring the thing for a binding. It just wont allow me to select the correct ttyUSB port. Sometimes PaperUI presents me with a free text field to enter my port manually and sometimes it presents me with a fixed pull-doen selection menu with not all the available ports listed.

Here is my setup:
I have OH running on a Pi3B, OH version 2.4.0-M4-1
I have 4 USB devices connected to the Pi.

P1 cable (for DSMR binding)
RFXCOM (for rfxcom binding)
USB300 (for enocean binding)
MiLight iBox (for MiLight binding, only power connection)

I’ve already tried booting up with no USB devices attached, and attaching them one-by-one. But I just cannot get it to work. if I only connect the RFXCOM it works fine, if I connect the P1 it works but as soon as I connect the USB300 things get weird and ass you can see from the output I have the RFXCOM connected to both ttyUSB0 and ttyUSB2, how is this happening?

here is the dmesg | grep ‘usb 1-1’ output:

[    1.691460] usb 1-1.1: new high-speed USB device number 3 using dwc_otg
[    1.841818] usb 1-1.1: New USB device found, idVendor=0424, idProduct=ec00
[    1.843411] usb 1-1.1: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[  162.913202] usb 1-1.3: new full-speed USB device number 4 using dwc_otg
[  163.069373] usb 1-1.3: New USB device found, idVendor=0403, idProduct=6015
[  163.069386] usb 1-1.3: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[  163.069395] usb 1-1.3: Product: RFXtrx433XL
[  163.069404] usb 1-1.3: Manufacturer: RFXCOM
[  163.069412] usb 1-1.3: SerialNumber: DO2VHXAH
[  163.127802] usb 1-1.3: Detected FT-X
[  163.131119] usb 1-1.3: FTDI USB Serial Device converter now attached to **ttyUSB0**
[  347.706000] usb 1-1.3: USB disconnect, device number 4
[  358.494630] usb 1-1.3: new full-speed USB device number 5 using dwc_otg
[  358.652122] usb 1-1.3: New USB device found, idVendor=0403, idProduct=6001
[  358.652134] usb 1-1.3: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[  358.652143] usb 1-1.3: Product: FT232R USB UART
[  358.652152] usb 1-1.3: Manufacturer: FTDI
[  358.652160] usb 1-1.3: SerialNumber: A42IEITZ
[  358.660537] usb 1-1.3: Detected FT232RL
[  358.661452] usb 1-1.3: FTDI USB Serial Device converter now attached to **ttyUSB0**
[  918.117715] usb 1-1.4: new full-speed USB device number 7 using dwc_otg
[  918.273998] usb 1-1.4: New USB device found, idVendor=0403, idProduct=6015
[  918.274014] usb 1-1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[  918.274023] usb 1-1.4: Product: RFXtrx433XL
[  918.274031] usb 1-1.4: Manufacturer: RFXCOM
[  918.274039] usb 1-1.4: SerialNumber: DO2VHXAH
[  918.281139] usb 1-1.4: Detected FT-X
[  918.283045] usb 1-1.4: FTDI USB Serial Device converter now attached to **ttyUSB2**
[  765.536857] usb 1-1.5: new full-speed USB device number 6 using dwc_otg
[  765.697131] usb 1-1.5: New USB device found, idVendor=0403, idProduct=6001
[  765.697147] usb 1-1.5: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[  765.697156] usb 1-1.5: Product: EnOcean USB 300 DB
[  765.697164] usb 1-1.5: Manufacturer: EnOcean GmbH
[  765.697172] usb 1-1.5: SerialNumber: FT2PTSWO
[  765.705658] usb 1-1.5: Detected FT232RL
[  765.706553] usb 1-1.5: FTDI USB Serial Device converter now attached to **ttyUSB1**

rfxcom_unable-to-select-correct-ttyUSB2-port

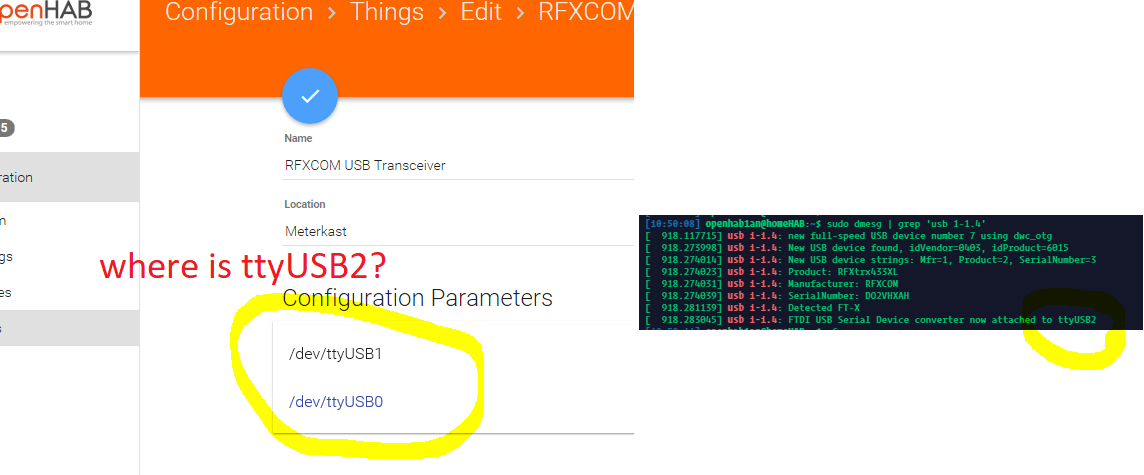

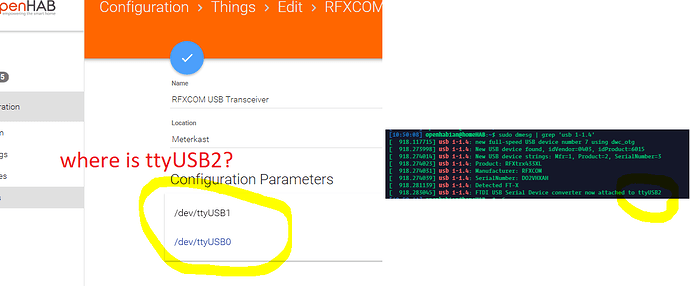

rfxcom_unable-to-select-correct-ttyUSB2-port.PNG1144×475 47.6 KB

1 Like
2

Have you tried typing “/dev/ttyUSB2” in the serial port field, instead of selecting it from the proposed list?

3

Hi George, I cannot type anything, it is a list where I can only select one of the items listed

4

Try adding the thing RFXCOM USB Transceiver manually (first delete the one automatically discovered) and type in the serial port, see this:

499EDD7F-6684-40A8-8964-E298EE47CFDB.jpg750×1334 110 KB

I intentionally typed bogus there!

5

Tried this, but same issue occurs, I can only select ttyUSB0 from the list, I cannot type anything! also tried Chrome but same problem.

6

What issues are you having with udev rules and symlink? What is the output of /dev ls -al

7

The issue I’m having with the udev/symlink is that I cannot get the symlink to work. see below.
