SVG floorplan not displaying properly in HABPanel

Apps & Services HABPanel
1

Hi All,

I am trying to display sample floorplan svg in HABPanel. I have created template widgets and added the corresponding code in that.

When run HABPanel, Floorplan is not displayed inside widgets and it is displayed outside bounders of widgets. Even I am getting partial floorplan only not full one.

I have tried to change width and height but it is not working.

Some one please help me on this.

This is my code

image.png1366×768 110 KB

I have attached the screen shot, Please view it,

image.png1366×768 150 KB

Thanks,
Dhanasekar

2

you should edit your panel and increase the dimensions of the custom (template) widget that you added:


3

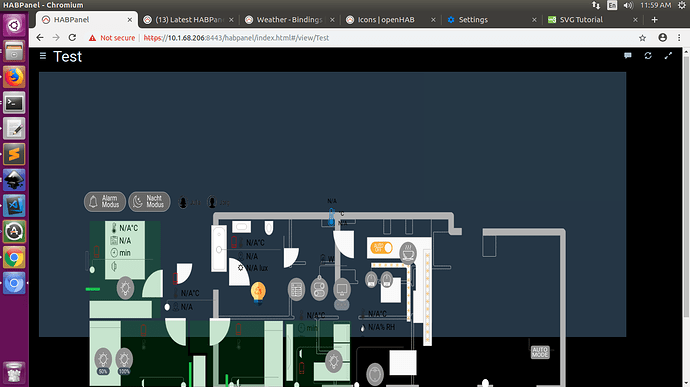

Yes… I tried that too. I have increased the widgets size according to my floor plain. Floor plan is displayed out of widgets.

image.png1366×768 158 KB
