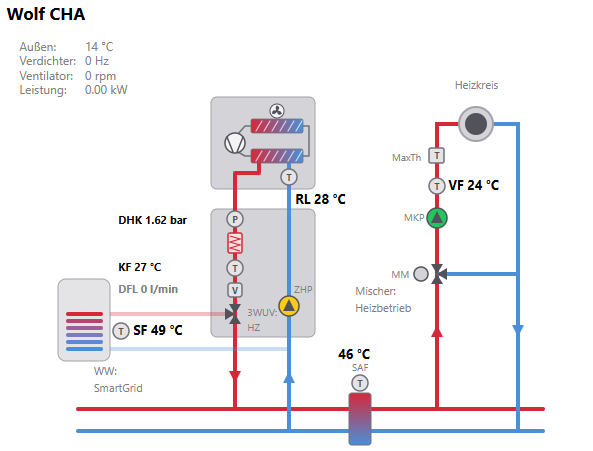

This widget shows a live hydraulic schematic of a Wolf CHA air-to-water heat pump: outdoor unit, indoor module, domestic hot water heat exchanger, mixer circuit and the most important sensor values.
The schematic is a responsive SVG that scales with the card width. Labels and states update live:
- The compressor and fan are highlighted when running, and the fan animates.
- The flow direction is animated when there is circulation (flow rate > 0).
- The 3-way diverter valve (3WUV) switches between heating and DHW. The inactive path is dimmed.
- The heating circuit pump (ZHP), mixer circuit pump (MKP) and electric heater (E-Heizung) change color when active.
The abbreviations (KF, SF, SAF, DFL, DHK, ZHP, MKP, MM, VF …) follow Wolf’s own hydraulic scheme, so they match the documentation and the display on the unit.
Requirements
- openHAB 5 Main UI
- ism7mqtt, which reads the data from the Wolf ISM7 interface and publishes it via MQTT
- MQTT binding with the corresponding items
The status checks expect the German values delivered by ism7mqtt (e.g. “Ladung”, “Ein”, “Betrieb”, “Warmwasser”). If your installation reports different values, you may need to adjust the functions in the oh-context at the top of the widget.
Parameters
The Wolf datapoint number is noted in each parameter label, so you can easily find the matching value in ism7mqtt:
| Parameter | Description | Wolf datapoint |
|---|---|---|
| outsideTemp | Outside temperature | 270005 |
| flowTemp | Flow temperature heat pump (VL) | 340011 |
| returnTemp | Return temperature (RL) | 270009 |
| boilerTemp | Boiler temperature (KF) | 270044 |
| flowRate | Flow rate (DFL) | 270028 |
| pressure | System pressure (DHK) | 270030 |
| dhwTemp | DHW temperature (SF) | 270007 |
| dhwStatus | DHW status | 350001 |
| collectorTemp | Collector temperature (SAF) | 270029 |
| mixerFlowTemp | Mixer circuit flow temperature (VF) | 40028 |
| mixerStatus | Mixer circuit status (optional) | 360005 |
| valve3wuv | 3-way diverter valve HZ/WW (optional) | 270013 |
| heatingPump | Heating circuit pump ZHP (optional) | 270012 |
| mixerPump | Mixer circuit pump MKP (optional) | 40070 |
| eHeater | Electric heater status (optional) | 270052 |
| compressorFreq | Compressor frequency | 270048 |
| fanSpeed | Fan speed | 270047 |
| power | Power consumption | 270049 |
| compressorStatus | Compressor status | 270051 |
Optional parameters can be left empty. For example, without valve3wuv the DHW mode is derived from dhwStatus, and without heatingPump the pump state is derived from the flow rate.
Credits
The widget was developed with the help of Claude (Anthropic’s AI assistant). Claude helped me build the SVG schematic, the logic in the oh-context and the layout fine-tuning. Feedback and improvements are welcome!
Changelog
- Version 1.1.0 – Outdoor unit redesigned (heat exchanger, animated compressor and fan), new optional parameter “Compressor Status” (270051) to display the maximum thermostat setting.
- Version 1.0.0 – initial release
Resources
version: 1
widgets:
Widget_Wolf_CHA:
tags:
- Version 1.1.0
- Heizung
- Wolf
props:
parameters:
- default: Wolf CHA
label: Titel
name: title
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Temperatur_Aussen
label: Außentemperatur (270005)
name: outsideTemp
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Vorlauftemperatur
label: Vorlauftemperatur WP (VL) (340011) ToDo nicht klar Wert abgeriffen wird
name: flowTemp
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Rucklauftemperatur
label: Rücklauftemperatur (RL) (270009)
name: returnTemp
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Kesseltemperatur_2
label: Kesseltemperatur (KF) (270044)
name: boilerTemp
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Heizkreisdurchfluss
label: Durchfluss (DFL) (270028)
name: flowRate
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Anlagendruck
label: Anlagendruck (DHK) (270030)
name: pressure
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Warmwassertemperatur
label: Warmwassertemperatur (SF) (270007)
name: dhwTemp
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Warmwasser_Status
description: Warmwasser gilt als aktiv, wenn der Status 'Ladung' enthält (aber nicht 'keine Ladung'). Das Umschaltventil-Item hat Vorrang.
label: Warmwasser-Status (350001)
name: dhwStatus
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Temperatur_Sammler
label: Sammlertemperatur (SAF) (270029)
name: collectorTemp
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Verdichterfrequenz
label: Verdichterfrequenz (270048)
name: compressorFreq
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Drehzahl_Ventilator
label: Drehzahl Ventilator (270047)
name: fanSpeed
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Leistungsaufnahme_WP__EHZ
label: Leistungsaufnahme (270049)
name: power
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Vorlauftemperatur_MM
label: Vorlauf Mischerkreis (VF) (40028)
name: mixerFlowTemp
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Mischerkreis_Status
description: Optional
label: Mischerkreis-Status (360005)
name: mixerStatus
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_3WegeUmschaltventil_HZWW
description: "Optional: Wolf-Datenpunkt '3-Wege-Umschaltventil HZ/WW' (Heizen/Warmwasser). Hat Vorrang vor dem Warmwasser-Status."
label: 3-Wege-Umschaltventil HZ/WW (270013)
name: valve3wuv
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_ZubringerHeizkreispumpe
description: "Optional: Wolf-Datenpunkt 'Zubringer-/Heizkreispumpe' (Ein/Aus). Ohne Item wird der Durchfluss ausgewertet."
label: Heizkreispumpe (ZHP) (270012)
name: heatingPump
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Mischerkreispumpe
description: "Optional: Wolf-Datenpunkt 'Mischerkreispumpe' (Ein/Aus)"
label: Mischerkreispumpe (MKP) (40070)
name: mixerPump
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Status_E_Heizung
description: "Optional: Wolf-Datenpunkt 'E-Heizung' (Ein/Aus)"
label: Status E-Heizung (270052)
name: eHeater
required: false
type: TEXT
- context: item
default: Wolf_Heatpump_Verdichter_Status
description: "Optional: Wolf-Datenpunkt 'Verdichterstatus'. MaxTh wird rot markiert, wenn der Status 'MaxTh' enthält (z. B. 'TPW/MaxTh' oder 'MaxTH')."
label: Verdichterstatus (270051)
name: compressorStatus
required: false
type: TEXT
component: oh-context
config:
constants:
red: "#d62839"
blue: "#4a90d9"
unit: "#d4d4d8"
unitStroke: "#a1a1aa"
dark: "#52525b"
part: "#f4f4f5"
on: "#22c55e"
functions:
v: "=(item) => !item ? '–' : ((@@item === 'NULL' || @@item === 'UNDEF') ? '–' : @item)"
flowing: "=() => !!props.flowRate && #props.flowRate > 0"
compressorOn: "=() => !!props.compressorFreq && #props.compressorFreq > 0"
fanOn: "=() => !!props.fanSpeed && #props.fanSpeed > 0"
ww: =() => (!!props.valve3wuv && (('' + @@props.valve3wuv).includes('Warm') || ('' + @@props.valve3wuv) === 'WW')) || (!props.valve3wuv && !!props.dhwStatus && ('' + @@props.dhwStatus).includes('Ladung') && !('' + @@props.dhwStatus).includes('keine'))
zhpOn: "=() => (!!props.heatingPump && ['Ein', 'ON', 'An'].indexOf('' + @@props.heatingPump) >= 0) || (!props.heatingPump && !!props.flowRate && #props.flowRate > 0)"
mkpOn: =() => !!props.mixerPump && ['Ein', 'ON', 'An'].indexOf('' + @@props.mixerPump) >= 0
ehzOn: =() => !!props.eHeater && ['Betrieb'].indexOf('' + @@props.eHeater) >= 0
maxThOn: =() => !!props.compressorStatus && ('' + @@props.compressorStatus).toLowerCase().includes('maxth')
slots:
default:
- component: f7-card
config:
style:
border-radius: var(--f7-card-expandable-border-radius)
box-shadow: 5px 5px 10px 1px rgba(0,0,0,0.1)
margin-left: 5px
margin-right: 5px
padding: 8px
slots:
default:
- component: Label
config:
text: =props.title
style:
font-size: 17px
font-weight: bold
padding: 4px 8px
- component: div
config:
style:
margin: 0 auto
max-width: 600px
position: relative
width: 100%
slots:
default:
- component: f7-row
config:
tag: svg
viewBox: 0 0 600 420
xmlns: http://www.w3.org/2000/svg
style:
display: block
height: auto
width: 100%
preserveAspectRatio: xMidYMid meet
slots:
default:
- component: f7-row
config:
tag: defs
slots:
default:
- component: f7-row
config:
tag: linearGradient
id: wolfcha_saf
x1: "0"
y1: "0"
x2: "0"
y2: "1"
slots:
default:
- component: f7-row
config:
tag: stop
offset: "0"
stop-color: "#d62839"
- component: f7-row
config:
tag: stop
offset: "1"
stop-color: "#4a90d9"
- component: f7-row
config:
tag: linearGradient
id: wolfcha_hx
x1: "0"
y1: "0"
x2: "1"
y2: "0"
slots:
default:
- component: f7-row
config:
tag: stop
offset: "0"
stop-color: "#d62839"
- component: f7-row
config:
tag: stop
offset: "1"
stop-color: "#4a90d9"
- component: f7-row
config:
tag: rect
x: 198
y: 66
width: 104
height: 92
rx: 6
fill: =const.unit
stroke: =const.unitStroke
style:
height: 92px
width: 104px
- component: f7-row
config:
tag: rect
x: 198
y: 178
width: 104
height: 128
rx: 6
fill: =const.unit
stroke: =const.unitStroke
style:
height: 128px
width: 104px
- component: f7-row
config:
tag: rect
x: 45
y: 248
width: 52
height: 82
rx: 8
fill: "#e4e4e7"
stroke: =const.unitStroke
style:
height: 82px
width: 52px
- component: f7-row
config:
comment: Kältekreis Leitungen
tag: path
d: M225 113 L232 105 H238 M225 131 L232 135 H238 M290 105 H296 V135 H290
fill: none
stroke: "#71717a"
stroke-width: 1.5
stroke-linejoin: round
transform: translate(0 -10)
- component: f7-row
config:
comment: Wärmetauscher oben (Verdampfer)
tag: rect
x: 238
y: 98
width: 52
height: 14
rx: 2
fill: url(#wolfcha_hx)
stroke: "#71717a"
stroke-width: 0.8
style:
height: 14px
width: 52px
transform: translate(0 -10)
- component: f7-row
config:
comment: Wärmetauscher unten (Verflüssiger)
tag: rect
x: 238
y: 128
width: 52
height: 14
rx: 2
fill: url(#wolfcha_hx)
stroke: "#71717a"
stroke-width: 0.8
style:
height: 14px
width: 52px
transform: translate(0 -10)
- component: f7-row
config:
comment: Verdichter
tag: circle
cx: 222
cy: 122
r: 10
fill: "=fn.compressorOn() ? '#86efac' : const.part"
stroke: =const.dark
stroke-width: 1.5
transform: translate(0 -10)
- component: f7-row
config:
comment: Verdichter-Symbol
tag: g
transform: translate(0 -10)
slots:
default:
- component: f7-row
config:
d: M214 116 L220 131 M230 116 L224 131
fill: none
stroke: =const.dark
stroke-linecap: round
stroke-width: 1.5
tag: path
slots:
default:
- component: f7-row
config:
attributeName: transform
dur: 3s
from: 0 222 122
repeatCount: indefinite
tag: animateTransform
to: 360 222 122
type: rotate
visible: =fn.compressorOn()
- component: f7-row
config:
comment: Ventilator
tag: g
transform: translate(0 -10)
slots:
default:
- component: f7-row
config:
comment: Gehäuse
cx: 264
cy: 90
fill: "=fn.fanOn() ? '#86efac' : const.part"
r: 7
stroke: =const.dark
stroke-width: 1
tag: circle
- component: f7-row
config:
comment: Rotor
tag: g
slots:
default:
- component: f7-row
config:
d: M264 90 C267 88 267 85.5 264 84.5 C262.5 85.5 262 88 264 90 Z
fill: =const.dark
tag: path
- component: f7-row
config:
d: M264 90 C267 88 267 85.5 264 84.5 C262.5 85.5 262 88 264 90 Z
fill: =const.dark
tag: path
transform: rotate(120 264 90)
- component: f7-row
config:
d: M264 90 C267 88 267 85.5 264 84.5 C262.5 85.5 262 88 264 90 Z
fill: =const.dark
tag: path
transform: rotate(240 264 90)
- component: f7-row
config:
attributeName: transform
dur: 1s
from: 0 264 90
repeatCount: indefinite
tag: animateTransform
to: 360 264 90
type: rotate
visible: =fn.fanOn()
- component: f7-row
config:
cx: 264
cy: 90
fill: =const.dark
r: 1.2
tag: circle
- component: f7-row
config:
comment: Wärmetauscher Rohrschlangen
tag: path
d: M243 110 L249 100 M251 110 L257 100 M259 110 L265 100 M267 110 L273 100 M275 110 L281 100 M283 110 L289 100 M243 140 L249 130 M251 140 L257 130 M259 140 L265 130 M267 140 L273 130 M275 140 L281 130 M283 140 L289 130
fill: none
stroke: rgba(255,255,255,0.7)
stroke-width: 1.2
stroke-linecap: round
transform: translate(0 -10)
- component: f7-row
config:
tag: path
d: M65 378 H530
fill: none
stroke: =const.red
stroke-width: 4
stroke-linecap: round
- component: f7-row
config:
tag: path
d: M65 400 H530
fill: none
stroke: =const.blue
stroke-width: 4
stroke-linecap: round
- component: f7-row
config:
tag: path
d: M276 400 V132
fill: none
stroke: =const.blue
stroke-width: 4
- component: f7-row
config:
tag: path
d: M246 132 V142 H222 V283
fill: none
stroke: =const.red
stroke-width: 4
stroke-linejoin: round
- component: f7-row
config:
tag: path
d: M222 283 V378
fill: none
stroke: =const.red
stroke-width: 4
opacity: "=fn.ww() ? 0.3 : 1"
- component: f7-row
config:
tag: path
d: M222 283 H97
fill: none
stroke: =const.red
stroke-width: 4
opacity: "=fn.ww() ? 1 : 0.3"
- component: f7-row
config:
tag: path
d: M97 318 H276
fill: none
stroke: =const.blue
stroke-width: 4
opacity: "=fn.ww() ? 1 : 0.3"
- component: f7-row
config:
tag: path
d: M55 283 H88 M55 290 H88 M55 297 H88 M55 304 H88 M55 311 H88 M55 318 H88
fill: none
stroke: "#a1a1aa"
stroke-width: 0
- component: f7-row
config:
tag: path
d: M55 283 H88
stroke: "#d62839"
stroke-width: 4
stroke-linecap: round
- component: f7-row
config:
tag: path
d: M55 290 H88
stroke: "#b7446c"
stroke-width: 4
stroke-linecap: round
- component: f7-row
config:
tag: path
d: M55 297 H88
stroke: "#98609f"
stroke-width: 4
stroke-linecap: round
- component: f7-row
config:
tag: path
d: M55 304 H88
stroke: "#7a7cc2"
stroke-width: 4
stroke-linecap: round
- component: f7-row
config:
tag: path
d: M55 311 H88
stroke: "#5b8ad0"
stroke-width: 4
stroke-linecap: round
- component: f7-row
config:
tag: path
d: M55 318 H88
stroke: "#4a90d9"
stroke-width: 4
stroke-linecap: round
- component: f7-row
config:
tag: path
d: M216 340 H228 L222 352 Z
fill: =const.red
opacity: "=fn.ww() ? 0.3 : 1"
- component: f7-row
config:
tag: path
d: M270 352 H282 L276 340 Z
fill: =const.blue
- component: f7-row
config:
tag: path
d: M424 378 V93 H446
fill: none
stroke: =const.red
stroke-width: 4
- component: f7-row
config:
tag: path
d: M480 93 H505 V400
fill: none
stroke: =const.blue
stroke-width: 4
- component: f7-row
config:
tag: path
d: M424 243 H505
fill: none
stroke: =const.blue
stroke-width: 4
- component: f7-row
config:
tag: path
d: M418 306 H430 L424 294 Z
fill: =const.red
- component: f7-row
config:
tag: path
d: M499 294 H511 L505 306 Z
fill: =const.blue
- component: f7-row
config:
tag: circle
cx: 463
cy: 93
r: 17
fill: =const.unit
stroke: =const.unitStroke
stroke-width: 2
- component: f7-row
config:
tag: circle
cx: 463
cy: 93
r: 11
fill: =const.dark
- component: f7-row
config:
tag: path
d: M246 132 V142 H222 V283
fill: none
stroke: rgba(255,255,255,0.85)
stroke-width: 2
stroke-dasharray: 3 9
visible: =fn.flowing()
stroke-linejoin: round
slots:
default:
- component: f7-row
config:
tag: animate
attributeName: stroke-dashoffset
from: "12"
to: "0"
dur: 0.8s
repeatCount: indefinite
- component: f7-row
config:
tag: path
d: M222 283 V378
fill: none
stroke: rgba(255,255,255,0.85)
stroke-width: 2
stroke-dasharray: 3 9
visible: =fn.flowing() && !fn.ww()
slots:
default:
- component: f7-row
config:
tag: animate
attributeName: stroke-dashoffset
from: "12"
to: "0"
dur: 0.8s
repeatCount: indefinite
- component: f7-row
config:
tag: path
d: M222 283 H97
fill: none
stroke: rgba(255,255,255,0.85)
stroke-width: 2
stroke-dasharray: 3 9
visible: =fn.flowing() && fn.ww()
slots:
default:
- component: f7-row
config:
tag: animate
attributeName: stroke-dashoffset
from: "12"
to: "0"
dur: 0.8s
repeatCount: indefinite
- component: f7-row
config:
tag: path
d: M97 318 H276
fill: none
stroke: rgba(255,255,255,0.85)
stroke-width: 2
stroke-dasharray: 3 9
visible: =fn.flowing() && fn.ww()
slots:
default:
- component: f7-row
config:
tag: animate
attributeName: stroke-dashoffset
from: "12"
to: "0"
dur: 0.8s
repeatCount: indefinite
- component: f7-row
config:
tag: path
d: M276 400 V132
fill: none
stroke: rgba(255,255,255,0.85)
stroke-width: 2
stroke-dasharray: 3 9
visible: =fn.flowing()
slots:
default:
- component: f7-row
config:
tag: animate
attributeName: stroke-dashoffset
from: "12"
to: "0"
dur: 0.8s
repeatCount: indefinite
- component: f7-row
config:
comment: Circle DHK
tag: circle
cx: 222
cy: 188
r: 8
fill: "#e4e4e7"
stroke: "#71717a"
stroke-width: 1.5
- component: text
config:
tag: text
x: 222
y: 188
text-anchor: middle
dominant-baseline: central
font-size: 9
font-weight: bold
fill: "#52525b"
content: P
- component: f7-row
config:
tag: rect
x: 215
y: 202
width: 14
height: 20
rx: 2
fill: "=fn.ehzOn() ? '#fca5a5' : '#fee2e2'"
stroke: =const.red
stroke-width: 1.5
style:
height: 20px
width: 14px
- component: f7-row
config:
tag: path
d: M217 205 L227 208 L217 211 L227 214 L217 217 L227 220
fill: none
stroke: =const.red
stroke-width: 1.2
- component: f7-row
config:
comment: Circle KF
tag: circle
cx: 222
cy: 237
r: 8
fill: "#e4e4e7"
stroke: "#71717a"
stroke-width: 1.5
- component: text
config:
tag: text
x: 222
y: 237
text-anchor: middle
dominant-baseline: central
font-size: 9
font-weight: bold
fill: "#52525b"
content: T
- component: f7-row
config:
comment: Rectangle DFL
tag: rect
x: 215
y: 252
rx: 3
fill: "#e4e4e7"
stroke: "#71717a"
stroke-width: 1.5
style:
height: 14px
width: 14px
- component: text
config:
tag: text
x: 222
y: 259
text-anchor: middle
dominant-baseline: central
font-size: 9
font-weight: bold
fill: "#52525b"
content: V
- component: f7-row
config:
tag: path
d: M212 277 L222 283 L212 289 Z M216 273 L222 283 L228 273 Z M216 293 L222 283 L228 293 Z
fill: =const.dark
- component: f7-row
config:
tag: circle
cx: 276
cy: 275
r: 10
fill: "=fn.zhpOn() ? const.on : '#facc15'"
stroke: =const.dark
stroke-width: 1.5
- component: f7-row
config:
tag: path
d: M270 280 L276 268 L282 280 Z
fill: =const.dark
- component: f7-row
config:
comment: Circle RL
tag: circle
cx: 276
cy: 146
r: 8
fill: "#e4e4e7"
stroke: "#71717a"
stroke-width: 1.5
- component: text
config:
tag: text
x: 276
y: 146
text-anchor: middle
dominant-baseline: central
font-size: 9
font-weight: bold
fill: "#52525b"
content: T
- component: f7-row
config:
comment: Circle SF
tag: circle
cx: 108
cy: 300
r: 8
fill: "#e4e4e7"
stroke: "#71717a"
stroke-width: 1.5
- component: text
config:
tag: text
x: 108
y: 300
text-anchor: middle
dominant-baseline: central
font-size: 9
font-weight: bold
fill: "#52525b"
content: T
- component: f7-row
config:
tag: rect
x: 336
y: 362
width: 22
height: 52
rx: 3
fill: url(#wolfcha_saf)
stroke: "#71717a"
style:
height: 52px
width: 22px
- component: f7-row
config:
comment: Circle SAF
tag: circle
cx: 347
cy: 352
r: 8
fill: "#e4e4e7"
stroke: "#71717a"
stroke-width: 1.5
- component: text
config:
tag: text
x: 347
y: 352
text-anchor: middle
dominant-baseline: central
font-size: 9
font-weight: bold
fill: "#52525b"
content: T
- component: f7-row
config:
comment: Rectangle MaxTh
tag: rect
x: 416
y: 117
rx: 2
fill: "=fn.maxThOn() ? '#fca5a5' : '#e4e4e7'"
stroke: "=fn.maxThOn() ? const.red : '#71717a'"
stroke-width: 1.5
style:
height: 15px
width: 15px
- component: text
config:
tag: text
x: 424
y: 124
text-anchor: middle
dominant-baseline: central
font-size: 9
font-weight: bold
fill: "#52525b"
content: T
- component: f7-row
config:
comment: Circle VF
tag: circle
cx: 424
cy: 155
r: 8
fill: "#e4e4e7"
stroke: "#71717a"
stroke-width: 1.5
- component: text
config:
tag: text
x: 424
y: 155
text-anchor: middle
dominant-baseline: central
font-size: 9
font-weight: bold
fill: "#52525b"
content: T
- component: f7-row
config:
tag: circle
cx: 424
cy: 187
r: 10
fill: "=fn.mkpOn() ? const.on : '#facc15'"
stroke: =const.dark
stroke-width: 1.5
- component: f7-row
config:
tag: path
d: M418 192 L424 180 L430 192 Z
fill: =const.dark
- component: f7-row
config:
tag: path
d: M418 233 L424 243 L430 233 Z M418 253 L424 243 L430 253 Z M434 237 L424 243 L434 249 Z
fill: =const.dark
- component: f7-row
config:
tag: circle
cx: 408
cy: 243
r: 7
fill: =const.unit
stroke: =const.dark
stroke-width: 1.5
- component: div
config:
style:
position: absolute
left: 1%
top: 2%
font-size: clamp(9px, 2.2vw, 12px)
line-height: "1.45"
color: gray
white-space: nowrap
slots:
default:
- component: Label
config:
text: ='Außen:\t' + fn.v(props.outsideTemp)
style:
white-space: pre
tab-size: 20
line-height: 1.2
- component: Label
config:
text: ='Verdichter:\t' + fn.v(props.compressorFreq)
style:
color: "=fn.compressorOn() ? 'green' : 'gray'"
white-space: pre
tab-size: 20
line-height: 1.2
- component: Label
config:
text: ='Ventilator:\t' + fn.v(props.fanSpeed)
style:
white-space: pre
tab-size: 20
line-height: 1.2
- component: Label
config:
text: ='Leistung:\t' + fn.v(props.power)
style:
white-space: pre
tab-size: 20
line-height: 1.2
- component: Label
config:
text: ='RL ' + fn.v(props.returnTemp)
style:
position: absolute
left: 47%
top: 40%
transform: translateY(-50%)
font-size: clamp(9px, 2.2vw, 13px)
font-weight: bold
white-space: nowrap
- component: Label
config:
text: ='DHK ' + fn.v(props.pressure)
style:
position: absolute
left: 17.5%
top: 45.2%
transform: translateY(-50%)
font-size: clamp(7px, 1vw, 11px)
font-weight: bold
white-space: nowrap
- component: Label
config:
text: ='KF ' + fn.v(props.boilerTemp)
style:
position: absolute
left: 17.5%
top: 56.2%
transform: translateY(-50%)
font-size: clamp(7px, 2vw, 11px)
font-weight: bold
white-space: nowrap
- component: Label
config:
text: ='DFL ' + fn.v(props.flowRate)
style:
position: absolute
left: 17.5%
top: 61.5%
transform: translateY(-50%)
font-size: clamp(7px, 2vw, 11px)
font-weight: bold
white-space: nowrap
color: "=fn.flowing() ? 'var(--f7-text-color)' : 'gray'"
- component: Label
config:
text: "='3WUV: \\n' + (fn.ww() ? 'WW' : 'HZ')"
style:
position: absolute
left: 39%
top: 69%
transform: translateY(-50%)
font-size: clamp(8px, 1.8vw, 10px)
color: gray
white-space: pre-line
- component: Label
config:
text: ZHP
style:
position: absolute
left: 46.8%
top: 61.5%
transform: translateY(-50%)
font-size: clamp(8px, 1.8vw, 10px)
color: gray
- component: Label
config:
text: ='SF ' + fn.v(props.dhwTemp)
style:
position: absolute
left: 20%
top: 71.4%
transform: translateY(-50%)
font-size: clamp(9px, 2.2vw, 13px)
font-weight: bold
white-space: nowrap
- component: Label
config:
text: "='WW: \\n' + fn.v(props.dhwStatus)"
style:
position: absolute
left: 17.5%
top: 83%
transform: translate(-50%, -50%)
font-size: clamp(8px, 1.8vw, 11px)
color: "=fn.ww() ? 'red' : 'gray'"
white-space: pre-line
- component: Label
config:
text: =fn.v(props.collectorTemp)
style:
position: absolute
left: 56.8%
top: 77%
transform: translate(-50%, -50%)
font-size: clamp(9px, 2.2vw, 13px)
font-weight: bold
white-space: nowrap
- component: Label
config:
text: ='SAF'
style:
position: absolute
left: 57.8%
top: 80%
transform: translate(-50%, -50%)
font-size: clamp(8px, 1.8vw, 10px)
color: gray
- component: Label
config:
text: ='VF ' + fn.v(props.mixerFlowTemp)
style:
position: absolute
left: 72.5%
top: 36.9%
transform: translateY(-50%)
font-size: clamp(9px, 2.2vw, 13px)
font-weight: bold
white-space: nowrap
- component: Label
config:
text: MaxTh
style:
position: absolute
left: 68%
top: 30.2%
transform: translate(-100%, -50%)
font-size: clamp(8px, 1.8vw, 10px)
color: "=fn.maxThOn() ? 'red' : 'gray'"
- component: Label
config:
text: MKP
style:
position: absolute
left: 68.5%
top: 44.5%
transform: translate(-100%, -50%)
font-size: clamp(8px, 1.8vw, 10px)
color: gray
- component: Label
config:
text: MM
style:
position: absolute
left: 66%
top: 57.9%
transform: translate(-100%, -50%)
font-size: clamp(8px, 1.8vw, 10px)
color: gray
- component: Label
config:
text: "='Mischer: \\n' + fn.v(props.mixerStatus)"
visible: =!!props.mixerStatus
style:
position: absolute
left: 57%
top: 64%
transform: translateY(-50%)
font-size: clamp(8px, 1.8vw, 11px)
color: gray
white-space: pre-line
- component: Label
config:
text: Heizkreis
style:
position: absolute
left: 77.2%
top: 13%
transform: translate(-50%, -50%)
font-size: clamp(8px, 1.8vw, 11px)
color: gray
