Animated Energy Widget

Hi,

very nice widjet !
Would it possible to use this in Habpanel ?
If yes, how ?
Many thanks

Can you pls share your solution for removing battery state and format the items to float. I have the same issue with the lines (don’t show up) and can’t solve it :see_no_evil:

Thank you for this nice widget.

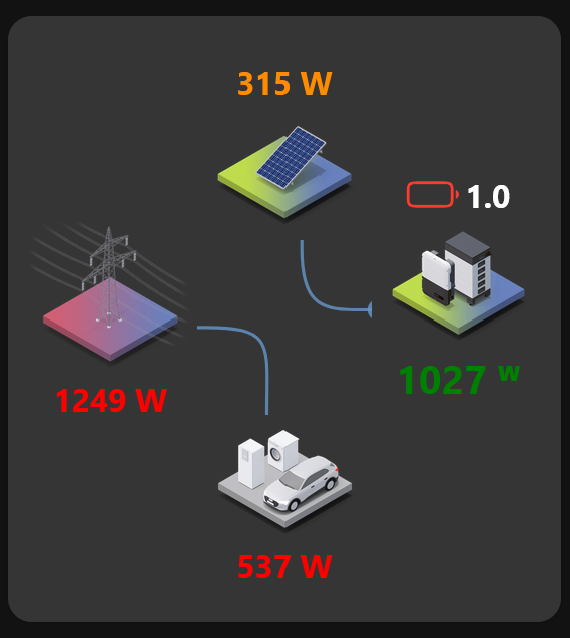

I updated the code from @Sebastian_Neu (V0.1) with the color changes by @jlikonen. So if ok, I would call it V0.2
It’s my first post so sorry if formatting goes wrong

please see widget code below:

uid: Energiefluss
tags: []
props:
  parameters:
    - context: item
      label: Netzeinspeisung
      name: netzeinspeisung
      required: true
      type: TEXT
    - context: item
      label: Netzbezug
      name: netzbezug
      required: true
      type: TEXT
    - context: item
      label: Gesamtverbrauch
      name: gesamtverbrauch
      required: true
      type: TEXT
    - context: item
      label: PV Leistung
      name: pv_leistung
      required: true
      type: TEXT
    - context: item
      label: Batterieleistung
      name: batterieleistung
      required: true
      type: TEXT
    - context: item
      label: Batterie Ladezustand
      name: batterylevel
      required: true
      type: TEXT
  parameterGroups: []
timestamp: Oct 29, 2022, 9:57:14 PM
component: f7-card
config:
  class:
    - display-flex
    - flex-direction-column
    - align-items-center
  style:
    height: 383px
slots:
  content:
    - component: f7-block
      config:
        style:
          --f7-theme-color: var(--f7-text-color)
          display: flex
          justify-content: space-between
          padding: 0
      slots:
        default:
          - component: f7-col
            config:
              style:
                align-items: center
                display: flex
                flex-direction: row
            slots:
              default:
                - component: f7-block
                  config:
                    style:
                      align-items: center
                      display: flex
                      flex-direction: column
                      height: 110px
                      justify-content: center
                      margin-top: 0
                      width: 110px
                  slots:
                    default:
                      - component: oh-icon
                        config:
                          height: 110px
                          icon: sma_grid_2
                      - component: Label
                        config:
                          style:
                            color: red
                            font-size: 25px
                            font-weight: bold
                            margin-top: -10px
                            text-align: center
                            width: 100px
                          text: =items[props.netzbezug].displayState
                          visible: '=(Number.parseFloat(items[props.netzeinspeisung].state.split(" ")[0]) == 0) ? true : false'
                      - component: Label
                        config:
                          style:
                            color: green
                            font-size: 25px
                            font-weight: bold
                            margin-top: -10px
                            text-align: center
                            width: 100px
                          text: =items[props.netzeinspeisung].displayState
                          visible: '=(Number.parseFloat(items[props.netzeinspeisung].state.split(" ")[0]) > 0) ? true : false'
          - component: f7-col
            config:
              style:
                align-items: center
                display: flex
                flex-direction: column
                flex-grow: 1
            slots:
              default:
                - component: f7-block
                  config:
                    style:
                      align-items: center
                      display: flex
                      flex-direction: column
                      height: 110px
                      justify-content: center
                      margin-top: 0
                      width: 110px
                  slots:
                    default:
                      - component: Label
                        config:
                          style:
                            color: green
                            font-size: 25px
                            font-weight: bold
                            text-align: center
                            width: 100px
                          text: =items[props.pv_leistung].displayState
                      - component: oh-icon
                        config:
                          height: 110px
                          icon: sma_pv_2
                          style:
                            margin-top: -20px
                - component: f7-block
                  config:
                    style:
                      display: flex
                      justify-content: center
                      margin: 0
                      padding: 0
                      width: 100%
                  slots:
                    default:
                      - component: f7-row
                        config:
                          preserveAspectRatio: xMidYMid slice
                          style:
                            height: auto
                            width: auto
                          tag: svg
                          viewBox: 0 0 100 100
                          xmlns: http://www.w3.org/2000/svg
                        slots:
                          default:
                            - component: f7-row
                              config:
                                d: M60 -5 v10 c0 30 10 35 30 35 h20
                                fill: none
                                id: path1
                                stroke: rgba(243, 156, 18, 0.8)
                                stroke-width: 2
                                tag: path
                                vector-effect: non-scaling-stroke
                                visible: '=(Number.parseFloat(items[props.batterieleistung].state.split(" ")[0]) < 0) ? true : false'
                            - component: f7-row
                              config:
                                fill: rgba(243, 156, 18, 0.8)
                                r: 6
                                style:
                                  stroke-width: 4
                                tag: circle
                                vector-effect: non-scaling-stroke
                                visible: '=(Number.parseFloat(items[props.batterieleistung].state.split(" ")[0]) < 0) ? true : false'
                              slots:
                                default:
                                  - component: f7-row
                                    config:
                                      calcMode: linear
                                      dur: 4s
                                      repeatCount: indefinite
                                      tag: animateMotion
                                    slots:
                                      default:
                                        - component: f7-row
                                          config:
                                            tag: mpath
                                            xlink:href: "#path1"
                            - component: f7-row
                              config:
                                d: M40 -5 v10 c0 40 -10 35 -30 35 h-20
                                fill: none
                                id: path2
                                stroke: rgba(22, 160, 133, 0.8)
                                stroke-width: 2
                                tag: path
                                vector-effect: non-scaling-stroke
                                visible: '=(Number.parseFloat(items[props.netzeinspeisung].state.split(" ")[0]) > 0 && Number.parseFloat(items[props.netzbezug].state.split(" ")[0]) == 0) ? true : false'
                            - component: f7-row
                              config:
                                fill: rgba(22, 160, 133, 0.8)
                                r: 6
                                strokeWidth: 10
                                tag: circle
                                vectorEffect: non-scaling-stroke
                                visible: '=(Number.parseFloat(items[props.netzeinspeisung].state.split(" ")[0]) > 0 && Number.parseFloat(items[props.netzbezug].state.split(" ")[0]) == 0) ? true : false'
                              slots:
                                default:
                                  - component: f7-row
                                    config:
                                      calcMode: linear
                                      dur: 4s
                                      repeatCount: indefinite
                                      tag: animateMotion
                                    slots:
                                      default:
                                        - component: f7-row
                                          config:
                                            tag: mpath
                                            xlink:href: "#path2"
                            - component: f7-row
                              config:
                                d: M50, 0 v100
                                fill: none
                                id: path3
                                stroke: rgba(22, 160, 133, 0.8)
                                stroke-width: 2
                                tag: path
                                vector-effect: non-scaling-stroke
                                visible: '=(Number.parseFloat(items[props.pv_leistung].state.split(" ")[0]) - (Number.parseFloat(items[props.netzeinspeisung].state.split(" ")[0]) + Math.abs(Number.parseFloat(items[props.batterieleistung].state.split(" ")[0]))) > 0) ? true : false'
                            - component: f7-row
                              config:
                                fill: rgba(22, 160, 133, 0.8)
                                r: 6
                                strokeWidth: 10
                                tag: circle
                                vectorEffect: non-scaling-stroke
                                visible: '=(Number.parseFloat(items[props.pv_leistung].state.split(" ")[0]) - (Number.parseFloat(items[props.netzeinspeisung].state.split(" ")[0]) + Math.abs(Number.parseFloat(items[props.batterieleistung].state.split(" ")[0]))) > 0) ? true : false'
                              slots:
                                default:
                                  - component: f7-row
                                    config:
                                      calcMode: linear
                                      dur: 4s
                                      repeatCount: indefinite
                                      tag: animateMotion
                                    slots:
                                      default:
                                        - component: f7-row
                                          config:
                                            tag: mpath
                                            xlink:href: "#path3"
                            - component: f7-row
                              config:
                                d: M-5 50 l10 0 c40 0 35 10 35 50 l 0 20
                                fill: none
                                id: path4
                                stroke: rgba(255, 0, 0, 0.8)
                                stroke-width: 2
                                tag: path
                                vector-effect: non-scaling-stroke
                                visible: '=(Number.parseFloat(items[props.netzbezug].state.split(" ")[0]) > 0) ? true : false'
                            - component: f7-row
                              config:
                                fill: rgba(255, 0, 0, 0.8)
                                r: 6
                                strokeWidth: 10
                                tag: circle
                                vectorEffect: non-scaling-stroke
                                visible: '=(Number.parseFloat(items[props.netzbezug].state.split(" ")[0]) > 0) ? true : false'
                              slots:
                                default:
                                  - component: f7-row
                                    config:
                                      calcMode: linear
                                      dur: 4s
                                      repeatCount: indefinite
                                      tag: animateMotion
                                    slots:
                                      default:
                                        - component: f7-row
                                          config:
                                            tag: mpath
                                            xlink:href: "#path4"
                            - component: f7-row
                              config:
                                d: M 105 50 l -10 0 c -40 0 -35 10 -35 50 l 0 20
                                fill: none
                                id: path5
                                stroke: rgba(243, 156, 18, 0.8)
                                stroke-width: 2
                                tag: path
                                vector-effect: non-scaling-stroke
                                visible: '=(Number.parseFloat(items[props.batterieleistung].state.split(" ")[0]) > 0) ? true : false'
                            - component: f7-row
                              config:
                                fill: rgba(243, 156, 18, 0.8)
                                r: 6
                                strokeWidth: 10
                                tag: circle
                                vectorEffect: non-scaling-stroke
                                visible: '=(Number.parseFloat(items[props.batterieleistung].state.split(" ")[0]) > 0) ? true : false'
                              slots:
                                default:
                                  - component: f7-row
                                    config:
                                      calcMode: linear
                                      dur: 4s
                                      repeatCount: indefinite
                                      tag: animateMotion
                                    slots:
                                      default:
                                        - component: f7-row
                                          config:
                                            tag: mpath
                                            xlink:href: "#path5"
                - component: f7-block
                  config:
                    style:
                      align-items: center
                      display: flex
                      flex-direction: column
                      height: 110px
                      justify-content: center
                      margin-top: -10px
                      width: 110px
                  slots:
                    default:
                      - component: oh-icon
                        config:
                          color: orange
                          height: 110px
                          icon: sma_consumption_2
                      - component: Label
                        config:
                          style:
                            font-size: 25px
                            font-weight: bold
                            margin-top: -10px
                            text-align: center
                            width: 100px
                          text: =items[props.gesamtverbrauch].displayState
          - component: f7-col
            config:
              style:
                align-items: center
                display: flex
                flex-direction: row
            slots:
              default:
                - component: f7-block
                  config:
                    style:
                      align-items: center
                      display: flex
                      flex-direction: column
                      height: 110px
                      justify-content: center
                      margin-top: -40px
                      width: 110px
                  slots:
                    default:
                      - component: oh-link
                        config:
                          iconColor: red
                          iconF7: battery_0
                          iconSize: 33px
                          style:
                            font-size: 25px
                            font-weight: bold
                            white-space: nowrap
                          text: =items[props.batterylevel].state
                          visible: '=(Number.parseFloat(items[props.batterylevel].state.split(" ")[0]) < 10) ? true : false'
                      - component: oh-link
                        config:
                          iconColor: orange
                          iconF7: battery_25
                          iconSize: 33px
                          style:
                            font-size: 25px
                            font-weight: bold
                            white-space: nowrap
                          text: =items[props.batterylevel].state
                          visible: '=(Number.parseFloat(items[props.batterylevel].state.split(" ")[0]) >= 10 && Number.parseFloat(items[props.batterylevel].state.split(" ")[0]) < 75) ? true : false'
                      - component: oh-link
                        config:
                          iconColor: green
                          iconF7: battery_100
                          iconSize: 33px
                          style:
                            font-size: 25px
                            font-weight: bold
                            white-space: nowrap
                          text: =items[props.batterylevel].state
                          visible: '=(Number.parseFloat(items[props.batterylevel].state.split(" ")[0]) >= 75) ? true : false'
                      - component: oh-icon
                        config:
                          height: 110px
                          icon: sma_battery_2
                          style:
                            margin-top: -20px
                      - component: Label
                        config:
                          style:
                            color: '=(Number.parseFloat(items[props.batterieleistung].state.split(" ")[0]) > 0) ? "red" : "green"'
                            font-size: 25px
                            font-weight: bold
                            margin-top: -10px
                            text-align: center
                            white-space: nowrap
                            width: 100px
                          text: =Math.abs(Number.parseFloat(items[props.batterieleistung].state.split(" ")[0])) + ' ᵂ'
                          visible: '=(Number.parseFloat(items[props.batterieleistung].state.split(" ")[0]) !== 0) ? true : false'

Thanks for the great widget!
I implemented it in my openHAB and came across some questions:

grafik

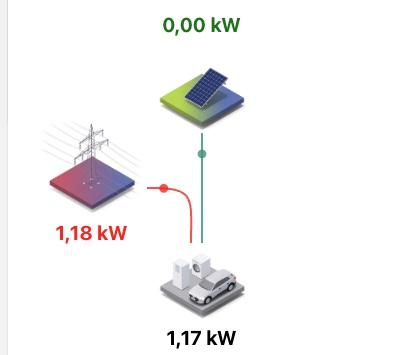

  1. I miss the PV power, which I did configure correctly, but it doesn’t show.

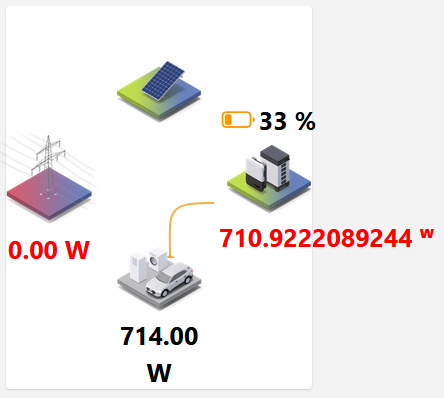

  2. also, for some reason my battery power gets not formatted correctly to .2f at first, it does take a while (like 1 second) to get formatted?
  3. sometimes, the “0.00 W” grid power gets completely deleted and then the grid-icon “jumps” a bit.
  4. I don’t have seperate items for grid purchase and grid feed-in (its the same, becoming positive and negative), so I put in both configurations the same item, is this “the way”?

I think, I have to configure the items to a certain pattern?

Hi!
I have the same problem, the lines from panel to consumer don’t show up

Can’t help you in this case as I have no PV. For tests I just used another “Watt-Item”

Formatting could be a problem as the “.displayState” can not be used in the calculations/figuring.

If you want to have decimals, you should go this way (“.toFixed”):

 text: =Math.abs(Number.parseFloat(items[props.batterieleistung].state.split(" ")[0])).toFixed(2) + ' ᵂ'

Otherwise you can use “parseInt” instead of “parseFloat”.

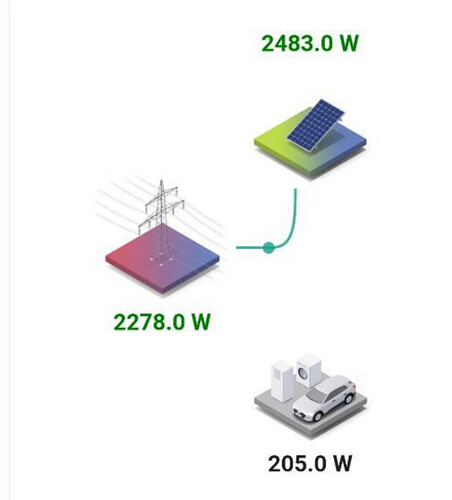

That’s my guess too. But my test seems to work ??!!
grafik

Have look here in the german forum with similar problems.

2 Likes

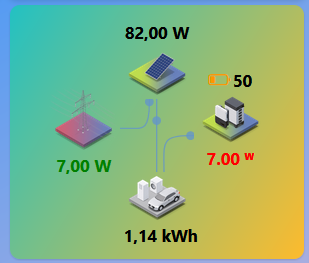

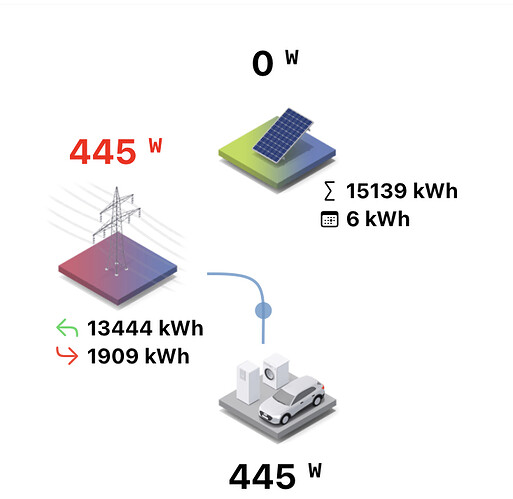

I just added some more items, which contain the feed-in and purchase seperately and now it works (sort of).
I do get the correct values, but the animation does not always tell my, where the power goes to. I’ll have to take a look, perhaps that’s some operator issue (+/-).

2 Likes

Thanks for this great widget!

If you don´t use a battery then don´t assign any items to it and edit the code. I had the same problem that there was no connection from solar to my house consumption.

Im new on this platform, maybe can anyone explain me how to use this custom widget with openhab habpanel? create a custom widget and inser the code. But this wont work? Maybe i done some mistakes?

It’s a Main UI widget, not for habpanel.
