Hello,
I’'m a complete beginner when it comes to openHAB and I have difficulties understanding the various concepts of this tool. I am a professional programmer though, so I’m confident that with the right information I’ll be able to figure things out. However, I think I need some conceptual help from you.
I use rrd4j persistence and have a Hoymiles HM-1500 solar inverter from which I read various channels via MQTT. One channel gives me the (accumulated) yield total, which is an ever increasing value similar to a power meter.
Another channel gives me the yield day, which resets to zero and increases once the inverter goes on in the morning, when the first sunlight hits the panels and the daily yield is reset.
The reset is not at 0:00 but when the inverter goes on:
I was able to create a chart page to display the daily power production with day-of-month:
config:
chartType: month
label: Solar Yield - Day of Month
sidebar: true
slots:
grid:
- component: oh-chart-grid
config:
show: true
xAxis:
- component: oh-category-axis
config:
categoryType: month
monthFormat: default
weekdayFormat: default
gridIndex: 0
yAxis:
- component: oh-value-axis
config:
gridIndex: 0
name: kWh
series:
- component: oh-aggregate-series
config:
gridIndex: 0
xAxisIndex: 0
yAxisIndex: 0
type: bar
item: HM1500_HM1500_YieldDay
aggregationFunction: last
dimension1: date
name: kW/h pro Tag
- component: oh-aggregate-series
config:
name: Letzter Monat
gridIndex: 0
xAxisIndex: 0
yAxisIndex: 0
type: line
item: HM1500_HM1500_YieldDay
dimension1: date
offsetAmount: 1
offsetUnit: month
aggregationFunction: last
legend:
- component: oh-chart-legend
config:
show: true
orient: horizontal
tooltip:
- component: oh-chart-tooltip
config:
show: true
orient: vertical
Now I would like to create 2 more charts:
The first one should display the monthly power production on a yearly base and just like in the chart above, I’d like to have bars for the current year and a line for last year. So the x-axis should display the months (January, February, etc.) and the y-axis should display the power production. But how would I do that? I would need to take the last entry from each month and subtract the last point from the month before to get the actual delta which I would like to display as the bar.
For example on July 1st 0:00 the yield total was 106 kW/h. On August 1st 0:00 it was 199 and on September 1st it was 374. So the bar should display 106 for June, 93 for July and 175 for August.
The second chart should also be a bar chart and each bar should represent a whole year. Not sure if this is even possible. In the first year, I’d like to see only one bar, in the second year a second bar and maybe you can have up to the last 5 or 10 years so in the 11th year the 1st year will fall off the chart.
I hope the provided information is enough to guide me to the right location. Thank you in advance.
You’ll have to create a separate Item and a rule to do your delta calculation.
Same approach. You’ll need a separate Item and rule for this as well.
The charts in OH don’t have a whole lot of bells and whistles to do more than just show what’s there in the database. If you need more, you have to do the aggregations in another Item or rule, or use some other service for charting like Grafana.
I see. So I would basically use OH to pipe stuff to a grafana instance and embed charts from there on the dashboard. phew. I’ll start with the item+rule approach first
There really isn’t anything to do to “pipe” the data. You would have to use an external database like PostgreSQL, MariaDB, or InfluxDB instead of rrd4j. But Grafana will read from the same database that OH writes to.
Actually I like the rrd4j database because of the size limitation. What I meant was something like a rule to manually persist only the values I want to e. G. Mariadb. I don’t want everything in mariadb to save some storage space
Which is what I describe above. Create a separate Item and make sure it’s excluded from automatically being persisted. Then in a rule, when you want to save the value, call tehg persist action on the Item.
rlkoshak, in fact you can do quite lot of different things with the build-in charting in OH.
I found a nice widget in this post. I modified it slightly for my purposes. You can put as many widgets in your page as you need. It does the delta calculation as well. I’m using InfluxDB but you can change it to rrd4j. Only thing which I haven’t figured out yet is how to calculate e.g. total daily and monthly electricity consumption. My code for plotting the electricity consumption is:
uid: Sahkonkulutus_tunti
tags: []
props:
parameters:
- context: item
description: Main toggle item (use for single toggle or as main switch for group)
label: Item
name: item
required: false
type: TEXT
- context: text
default: You forgot to set a card title
description: Pretty card label
label: Title
name: title
required: false
type: TEXT
parameterGroups: []
timestamp: Oct 14, 2023, 3:17:47 PM
component: f7-card
config:
title: =props.title
class:
- padding-bottom
slots:
default:
- component: f7-row
config:
class:
- margin-top
slots:
default:
- component: f7-col
config:
width: 75
slots:
default:
- component: oh-chart
config:
chartType: day
label: Kulutus
slots:
grid:
- component: oh-chart-grid
config:
containLabel: false
xAxis:
- component: oh-category-axis
config:
gridIndex: 0
categoryType: day
weekdayFormat: default
monthFormat: default
yAxis:
- component: oh-value-axis
config:
gridIndex: 0
name: Kulutus (kWh)
series:
- component: oh-aggregate-series
config:
name: Sähkönkulutus
service: influxdb
aggregationFunction: diff_last
gridIndex: 0
xAxisIndex: 0
yAxisIndex: 0
type: bar
item: =props.item
dimension1: hour
tooltip:
- component: oh-chart-tooltip
config:
action: analyzer
actionAnalyzerChartType: day
actionAnalyzerItems:
- props.item
aggregationFunction: sum
presetFeatures:
- dataZoom
right: right
show: true
top: top
legend:
- component: oh-chart-legend
config:
bottom: 3
type: scroll
dataZoom:
- component: oh-chart-datazoom
config:
type: inside

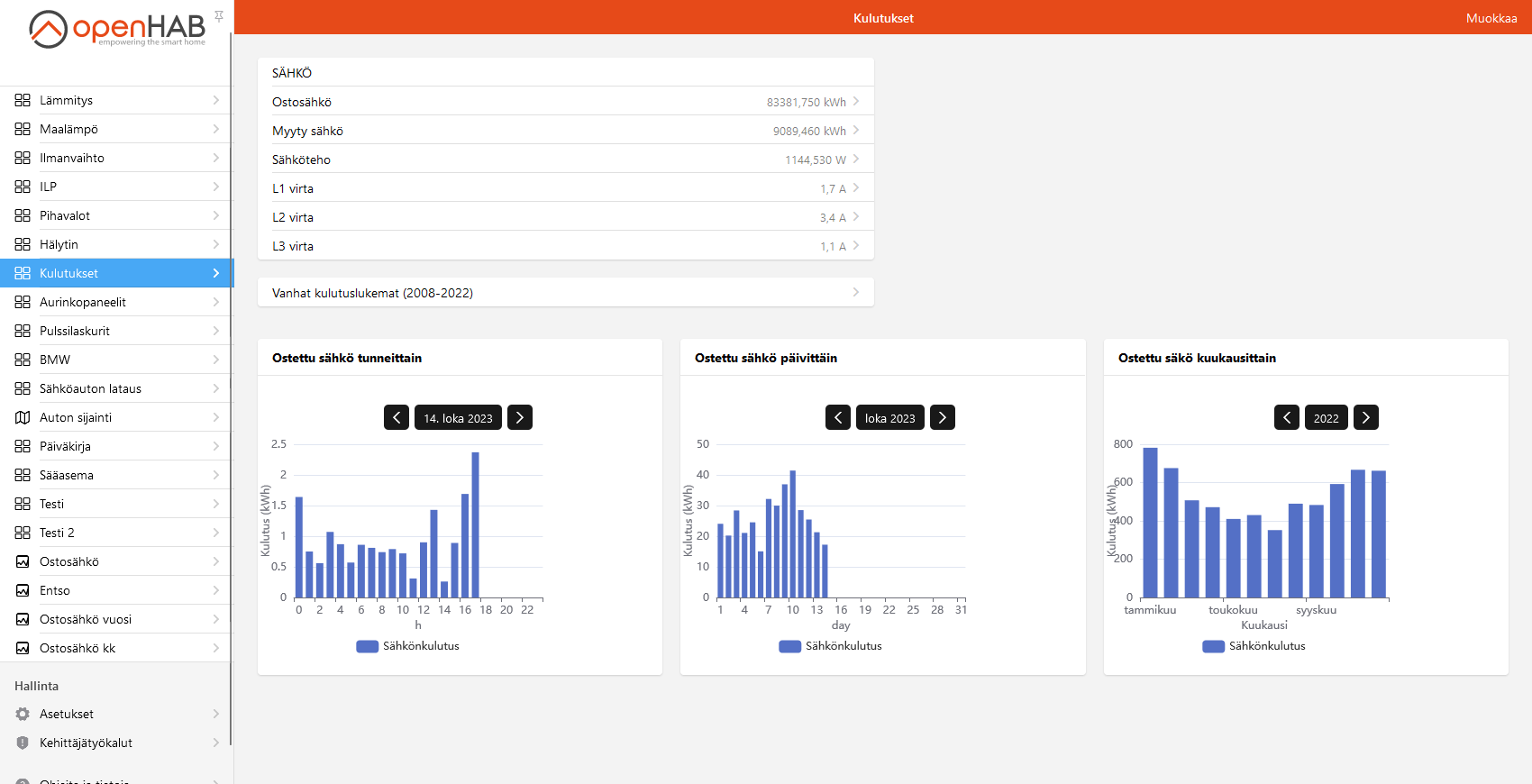

Attached please find a screen copy on my page for the electricity meter. The chart on the left is the hourly consumption, middle one the daily and the last one the monthly consumption. By clicking “<” or “>” buttons you can go back and forth in time. As you can see you can add several widgets on the same page.
I think one year is the longest period. I’m using the following code for yearly consumption:
uid: Sahkonkulutus_vuosi
tags: []
props:
parameters:
- context: item
description: Main toggle item (use for single toggle or as main switch for group)
label: Item
name: item
required: false
type: TEXT
- context: text
default: You forgot to set a card title
description: Pretty card label
label: Title
name: title
required: false
type: TEXT
parameterGroups: []
timestamp: Oct 14, 2023, 5:52:25 PM
component: f7-card
config:
class:
- padding-bottom
title: =props.title
slots:
default:
- component: f7-row
config:
class:
- margin-top
slots:
default:
- component: f7-col
config:
width: 75
slots:
default:
- component: oh-chart
config:
chartType: year
label: Kulutus
slots:
dataZoom:
- component: oh-chart-datazoom
config:
type: inside
grid:
- component: oh-chart-grid
config:
containLabel: false
left: "40"
width: 83%
legend:
- component: oh-chart-legend
config:
bottom: 3
type: scroll
series:
- component: oh-aggregate-series
config:
aggregationFunction: diff_last
dimension1: month
gridIndex: 0
item: =props.item
name: Sähkönkulutus
service: influxdb
type: bar
xAxisIndex: 0
yAxisIndex: 0
tooltip:
- component: oh-chart-tooltip
config:
action: analyzer
actionAnalyzerChartType: month
actionAnalyzerItems:
- props.item
aggregationFunction: sum
presetFeatures:
- dataZoom
right: right
show: true
top: top
xAxis:
- component: oh-category-axis
config:
categoryType: year
gridIndex: 0
monthFormat: default
name: Kuukausi
nameGap: 25
nameLocation: center
weekdayFormat: default
yAxis:
- component: oh-value-axis
config:
gridIndex: 0
name: Kulutus (kWh)
nameGap: 25
nameLocation: center
This is basically very similar to my code above.
Only problem I’m having are the lines in the tooltip part:
action: analyzer
actionAnalyzerChartType: month
actionAnalyzerItems:
- props.item
aggregationFunction: sum
I would like to get the total daily, monthly or yearly consumption but it seems that the tooltip is not meant for this purpose so the snippet above doesn’t work.
Hi Jari, I really like your widget as I was looking for something similar. Two of them work fine (day and year overview). However I tried to get it working for an overview on a month base (aggregated per day) but don’t get it working. Below my code, maybe you can see whatever I am doing wrong or even share your code (again)?
I am running OH 4.0.2.
uid: barchart_day_v1
tags: []
props:
parameters:
- context: item
description: Main toggle item (use for single toggle or as main switch for group)
label: Item
name: item
required: false
type: TEXT
- context: text
default: You forgot to set a card title
description: Pretty card label
label: Title
name: title
required: false
type: TEXT
parameterGroups: []
timestamp: Oct 15, 2023, 9:07:20 AM
component: f7-card
config:
class:
- padding-bottom
title: =props.title
slots:
default:
- component: f7-row
config:
class:
- margin-top
slots:
default:
- component: f7-col
config:
width: 75
slots:
default:
- component: oh-chart
config:
chartType: month
label: Usage
slots:
dataZoom:
- component: oh-chart-datazoom
config:
type: inside
grid:
- component: oh-chart-grid
config:
containLabel: false
left: "40"
width: 83%
legend:
- component: oh-chart-legend
config:
bottom: 3
type: scroll
series:
- component: oh-aggregate-series
config:
aggregationFunction: sum
dimension1: weekday
gridIndex: 0
item: =props.item
name: Electricity_usage
service: jdbc
type: bar
xAxisIndex: 0
yAxisIndex: 0
tooltip:
- component: oh-chart-tooltip
config:
action: analyzer
actionAnalyzerChartType: weekday
actionAnalyzerItems:
- props.item
aggregationFunction: sum
presetFeatures:
- dataZoom
right: right
show: true
top: top
xAxis:
- component: oh-category-axis
config:
categoryType: month
gridIndex: 0
monthFormat: default
name: Day
nameGap: 25
nameLocation: center
yAxis:
- component: oh-value-axis
config:
gridIndex: 0
name: Usage (kWh)
nameGap: 25
nameLocation: center
Thank you in advance.
