Configuration of blinds to openhab

Setup, Configuration and Use Beginners
1

I’m trying to make a smart blinds control system , i built up my system using esp8266 wifi module and burned the software image to it , then connected it to a servo motor .
Then i checked it using mqtt broker . i published to the topic and it worked well .

asd
asd1279×841 50.8 KB

After that i tried to configure it to openhab , but it gave me no response .
those are my configuration files :
things file :

asg
asg823×224 3.53 KB

items file :
asf
asf861×80 2.85 KB

sitemaps file :
ash
ash715×86 2.4 KB

i have no rules file .
i think the problem is in my configuration .i’m trying a week ago but the problem still exists . please help me

2

The things file looks strange to me.
Here is the thing file for an esp8266 running espeasy that I’m using

Bridge mqtt:broker:baba "Mosquitto" @ "Systems"   [ host="host.domain.lan", secure=false ]
{
    Thing topic terrace_sprinklers  "Sprinklers esp 161" @ "Terrace" {
    Channels:
        Type switch : Sprinklers_switch "Sprinklers switch"    [ commandTopic="terrace_sprinklers/cmd", on="GPIO,14,0", off="GPIO,14,1" ]
    }
}

And the switch item configuration
Switch Sprinklers_Switch "Sprinklers switch" (Switches){channel="mqtt:topic:baba:terrace_sprinklers:Sprinklers_switch"}

3

for the things file , this is the format i have been using for other systems such as (sonof switch and fire sensor ) , and they are working well

asdasd
asdasd1157×865 13.5 KB

4

Can you display what is logged when you press the switch in the sitemap?

5

sorry , what switch you mean ?

6

What is in the openhab logs when you press Open/Half/Close?

image715×85 3.57 KB

7

that’s it

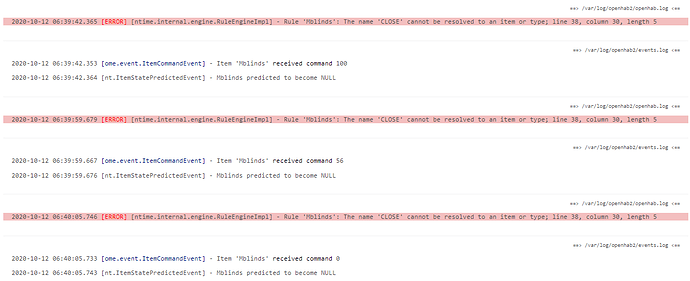

log
log1256×513 28.5 KB

8

This is not ok
I’m not a very experienced openhab user but I think the problem is that you defined the button as a switch. I think that switch type can only be ON/ OFF. Try to change Switch to Dimmer.

Dimmer item=Mblinds ................

9

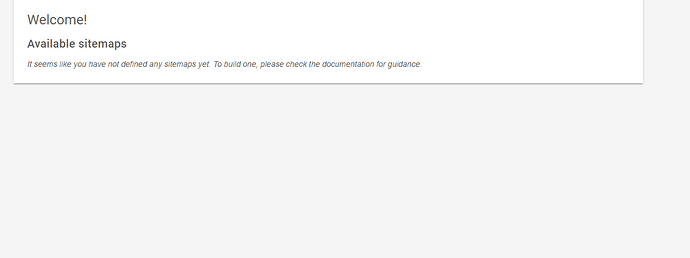

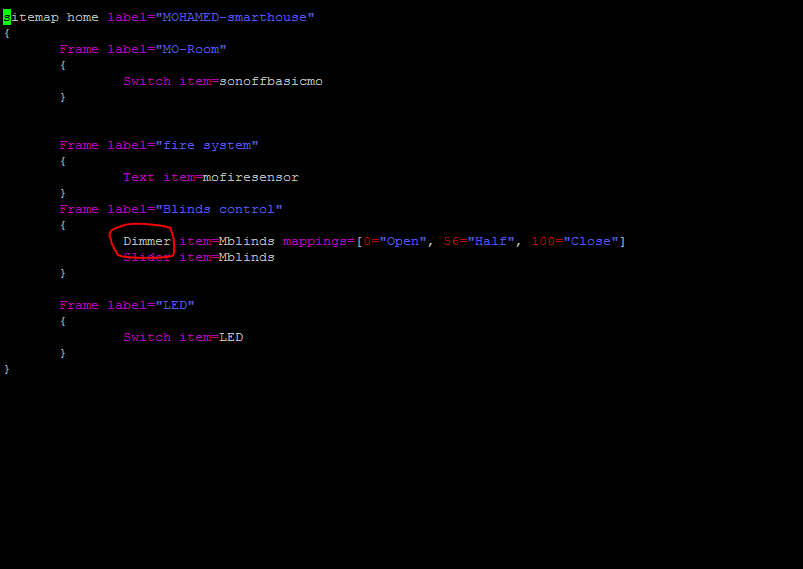

it doesn’t work . i seems that it is not possible to define something as a Dimmer in the sitemaps file .

x
x803×569 7.21 KB
z
z1219×457 7.58 KB

10

not in the sitemap, in the items file

11

Are you just trying to send a number to your MQTT device?

I would change your Thing Channel Type to a number.

12

in the items file i have defined it as " Rollershutter "

13

I have something similar to your rollershuters

Sitemap file
Switch item=Kitchen_VentilationtMode label="Kitchen Ventilation" mappings=[0="Off",100="On",50="High"]

And here is the log
23:03:02.426 [INFO ] [smarthome.event.ItemCommandEvent ] - Item ‘Kitchen_VentilationtMode’ received command 100
23:03:02.441 [INFO ] [smarthome.event.ItemStateChangedEvent] - Kitchen_VentilationtMode changed from 0 to 100

So I send the command 100 and the item state is changed to 100.
In your case you send the command 100 and the state is changed to NULL

14

You can try to send the command directly in the console with the
smarthome:update Mblinds 100

and check status with
smarthome:status Mblinds

15

sorry i don’t know what is console . where i could do that ?

16

i tried that , but the problem still exists

17
18

I think the problem is that you are giving your Rollershutter channel the name Rollershutter, and this doesn’t work. I’ve just tried it. What I have got working is the following:

things

Thing topic Mblinds "Mblinds" {
    Channels:
        Type number:Rollershutter1 "Rollershutter" [
            commandTopic="Mblinds"
        ]
}

items

Number nMblinds "Blinds [%s]" { channel="mqtt:topic:Mblinds:Rollershutter1" }

sitemap

Switch item=nMblinds label="Blinds []" mappings=[0="Open", 56="Half", 100="Close"]
Slider item=nMblinds

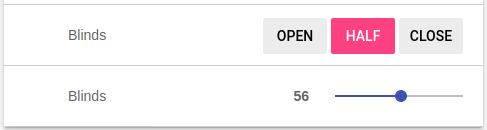

When pressing “Half”, for example, 56 is sent to the Mblinds topic, as shown below from MQTT Explorer:

19

According to the docs Rolleshutter accepts UpDown, StopMove, Percent

image1186×526 18.8 KB

20

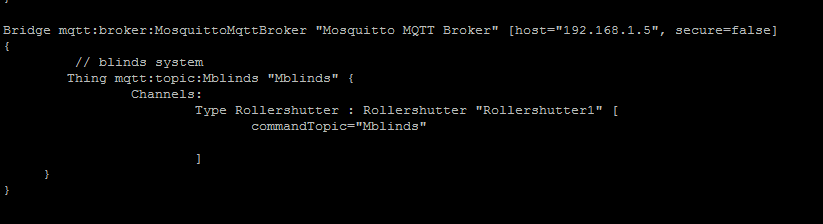

i actually changed my config. files as follow

a
a790×203 3.45 KB
b
c
c781×90 2.5 KB

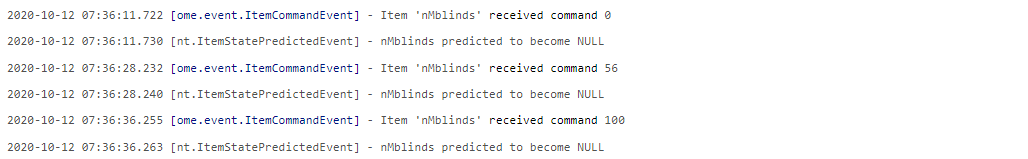

but unfortunately it still giving me null
d
d1028×159 8.15 KB
