Daikin HVAC integration lessons learned

Hi there - thought I might post up some quick lessons learned with my Daikin integration, if it helps same anyone time in future with similar requirements/issues. I have recently moved on to OH3, and decided to take the plunge and move all my config from text files to the UI based config, and moved from sitemaps to OH3 UI. As part of this journey, also got around to extending the items I am controlling on the unit, beyond the basic on/off & temp…

At the same time, I decided to upgrade the Daikin wireless control firmware to the latest version, after all, what could go wrong? :slight_smile: (Yes - I do normally know better than that!!)

First things first, my setup is as follows:

  • 1 * BRP072A42 wifi adaptor in a ‘Standalone’ split-system
  • 3 * BRP072A42 wifi adaptors in a ‘Multi-Zone’ split-system (3 internal units, one external)
  • OpenHAB 3.1.0 (Stable)
  • Daikin Binding (3.1.0)
  • BRP072A42 Firmware version 3.4.3

Note that the 3 way split system has some limitations, which don’t matter whether you are using the remotes, or the OpenHAB binding - They can all be in either Heat or Cool mode, but not different (but a unit can be in “Fan-only” mode whilst others are in heat or cool). The system will pickup the mode from the ‘Master’ indoor unit (Set on the outdoor unit) if there are differences. In my to-do list, I will setup something with groups and/or rules to control this, but for now, just need to use OpenHAB like I would a remote.

So, firstly - The integration issues that arose after moving the config into OpenHAB UI, and upgrading the firmware;

  • After a lot of reading, I had convinced myself that this was related to tokens being required after the firmware upgrade, and went down that rabbit hole for a long time
  • When using the browser to test, I would get an error message from the adapter such as: Access to dkac-lvng.local was denied You don’t have authorization to view this page
  • After lots of wasted time, found (via a browser) that whilst the new firmware would not allow me to browse to the hostname or FQDN (http://dkac-lvng.local/common/basic_info), the IP Address worked fine (http://192.168.xx.xx/common/basic_info)
  • Once I changed the hostname to an IP address in the OpenHAB binding, it also worked just fine
  • It IS a firmware issue within the adapter, NOT a name resolution or OpenHAB Daikin binding issue !!

Moving on from there, I decided to leverage the great work done by @maxmaximax with the Daikin UI widget (see: Daikin Aircon / HVAC ) I had to make a few modifications as follows:

  • Fan speed & swing are not supported by the wifi adapter/heatpump combo’s I have (Nothing to do with OpenHAB binding). I have added some properties to be able to hide these unusable items.
  • Some Operation modes are not supported. I took a shortcut here, and didn’t use properties to control their display - Just removed the other modes leaving the main modes used (heat, cool, fan. dehum)

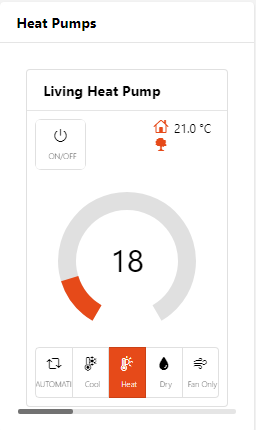

Modified widget code follows:

uid: Daikin HVAC
tags: []
props:
  parameters:
    - description: Location (room) or device name
      label: Title
      name: title
      required: false
      type: TEXT
    - context: item
      description: Item for power channel
      label: Power
      name: itemPower
      required: false
      type: TEXT
    - context: item
      description: Item for indoor temperature channel
      label: Indoor temperature
      name: itemIndoorTemp
      required: false
      type: TEXT
    - context: item
      description: Item for outdoor temperature channel
      label: Outdoor temperature
      name: itemOutdoorTemp
      required: false
      type: TEXT
    - context: item
      description: Item for target temperature channel
      label: Target temperature
      name: itemTargetTemp
      required: false
      type: TEXT
    - description: Set minimum target temperature (default = 0)
      label: Minimum Temperature
      name: MinimumTemperature
      required: false
      type: INTEGER
    - description: Set maximum target temperature (default = 100)
      label: Maximum Temperature
      name: MaximumTemperature
      required: false
      type: INTEGER
    - description: Set Target Temperature Stepsize (default = 1)
      label: Target Temperature Stepsize
      name: TemperatureStepsize
      required: false
      type: DECIMAL
    - context: item
      description: Item for operation mode channel
      label: Operation mode
      name: itemMode
      required: false
      type: TEXT
    - description: Hide fan & swing buttons
      label: Hide Fan & Swing Function
      name: hideFanSwingFunction
      required: false
      type: BOOLEAN
    - context: item
      description: Item for fan speed channel
      label: Fan speed
      name: itemFanSpeed
      required: false
      type: TEXT
    - context: item
      description: Item for swing channel
      label: Swing mode
      name: itemSwing
      required: false
      type: TEXT
    - description: Hide timer button and options
      label: Hide Timer Function
      name: hideTimerFunction
      required: false
      type: BOOLEAN
    - context: item
      description: Switch item for timer
      label: Switch Timer ON/OFF
      name: itemTimerSwitch
      required: false
      type: TEXT
      advanced: true
    - context: item
      description: Item for timer duration
      label: Timer Duration
      name: itemTimerDuration
      required: false
      type: TEXT
      advanced: true
    - description: Timer minimum duration
      label: Timer minimum
      name: TimerMinimum
      required: false
      type: DECIMAL
      advanced: true
    - description: Timer maximum duration
      label: Timer maximum
      name: TimerMaximum
      required: false
      type: DECIMAL
      advanced: true
    - description: Timer step
      label: Timer step
      name: TimerStep
      required: false
      type: DECIMAL
      advanced: true
    - description: Timer scale steps
      label: Timer scale steps
      name: TimerScaleSteps
      required: false
      type: DECIMAL
      advanced: true
    - description: Timer scale sub steps
      label: Timer scale sub steps
      name: TimerScaleSubSteps
      required: false
      type: DECIMAL
      advanced: true
    - description: Hide solarplant power
      label: Hide Solarplant AC power measurement
      name: hideSolarplant
      required: false
      type: BOOLEAN
    - context: item
      description: AC Power item for solarplant
      label: Solarplant AC Power
      name: itemSolarplantACPower
      required: false
      type: TEXT
      advanced: true
  parameterGroups: []
timestamp: Oct 27, 2021, 9:49:29 PM
component: f7-card
config:
  title: =props.title
  outline: true
  class:
    - no-padding
slots:
  default:
    - component: f7-row
      config:
        class:
          - margin-top-half
          - margin-left-half
          - margin-right-half
          - margin-bottom
      slots:
        default:
          - component: f7-col
            config:
              width: "50"
              large: "33"
            slots:
              default:
                - component: f7-segmented
                  config:
                    class:
                      - segmented-strong
                    style:
                      --f7-segmented-strong-padding: 0px
                      --f7-segmented-strong-between-buttons: 5px
                      --f7-segmented-strong-button-font-weight: 300
                      --f7-segmented-strong-bg-color: transparent
                      --f7-segmented-strong-button-hover-bg-color: rgba(var(--f7-theme-color-rgb), 0.07)
                      --f7-button-fill-hover-bg-color: var(--f7-theme-color)
                      --f7-button-border-radius: 4px
                      --f7-button-padding-vertical: 0px
                      --f7-button-padding-horizontal: 0px
                  slots:
                    default:
                      - component: oh-button
                        config:
                          outline: true
                          class:
                            - padding-top-half
                            - display-flex
                            - flex-direction-column
                          text: ON/OFF
                          action: toggle
                          actionItem: =props.itemPower
                          actionCommand: ON
                          actionCommandAlt: OFF
                          icon-f7: power
                          iconSize: 15
                          fill: "=(items[props.itemPower].state === 'ON') ? true : false"
                          style:
                            --f7-button-border-width: 1px
                            --f7-button-border-color: var(--f7-card-outline-border-color)
                            height: auto
                            font-size: 8px
                      - component: oh-button
                        config:
                          visible: =!props.hideTimerFunction
                          text: TIMER
                          action: toggle
                          actionItem: =props.itemTimerSwitch
                          actionCommand: ON
                          actionCommandAlt: OFF
                          iconF7: timer
                          iconSize: 15px
                          fill: "=(items.ac_timer_on_off.state === 'ON') ? true : false"
                          outline: false
                          class:
                            - display-flex
                            - flex-direction-column
                            - padding-top-half
                          style:
                            --f7-button-border-width: 1px
                            --f7-button-border-color: var(--f7-card-outline-border-color)
                            font-size: 8px
                            height: auto
          - component: f7-col
            config:
              width: "33"
            slots:
              default:
                - component: f7-row
                  config:
                    class:
                      - padding-right-half
                  slots:
                    default:
                      - component: f7-col
                        config:
                          width: "25"
                        slots:
                          default:
                            - component: f7-icon
                              config:
                                class:
                                  - float-right
                                f7: house
                                size: 15
                                color: var(--f7-theme-color)
                      - component: f7-col
                        config:
                          width: "75"
                        slots:
                          default:
                            - component: Label
                              config:
                                class:
                                  - float-right
                                text: =items[props.itemIndoorTemp].displayState
                                style:
                                  white-space: nowrap
                                  overflow: hidden
                                  text-overflow: elipsis
                                  font-size: 12px
                - component: f7-row
                  config:
                    class:
                      - padding-right-half
                  slots:
                    default:
                      - component: f7-col
                        config:
                          width: "25"
                        slots:
                          default:
                            - component: f7-icon
                              config:
                                class:
                                  - float-right
                                f7: tree
                                size: 15
                                color: var(--f7-theme-color)
                      - component: f7-col
                        config:
                          width: "75"
                        slots:
                          default:
                            - component: Label
                              config:
                                class:
                                  - float-right
                                text: =items[props.itemOutdoorTemp].displayState
                                style:
                                  white-space: nowrap
                                  overflow: hidden
                                  text-overflow: elipsis
                                  font-size: 12px
                - component: f7-row
                  config:
                    visible: =!props.hideSolarplant
                    class:
                      - padding-right-half
                  slots:
                    default:
                      - component: f7-col
                        config:
                          width: "25"
                        slots:
                          default:
                            - component: f7-icon
                              config:
                                class:
                                  - float-right
                                f7: sun_max
                                size: 15
                                color: var(--f7-theme-color)
                      - component: f7-col
                        config:
                          width: "75"
                        slots:
                          default:
                            - component: Label
                              config:
                                class:
                                  - float-right
                                text: =items[props.itemSolarplantACPower].state
                                style:
                                  white-space: nowrap
                                  overflow: hidden
                                  text-overflow: elipsis
                                  font-size: 12px
    - component: f7-row
      config:
        class:
          - justify-content-center
      slots:
        default:
          - component: oh-knob
            config:
              item: =props.itemTargetTemp
              min: =props.MinimumTemperature
              max: =props.MaximumTemperature
              stepSize: =props.TemperatureStepsize
              secondaryColor: var(--f7-card-outline-border-color)
              primaryColor: var(--f7-theme-color)
              responsive: false
              strokeWidth: "12"
              size: 150
    - component: f7-segmented
      config:
        visible: true
        class:
          - margin-left-half
          - margin-right-half
          - margin-top
          - margin-bottom-half
        style:
          --f7-button-font-size: 8px
          --f7-button-text-color: "=themeOptions.dark === 'light' ? 'black' : 'white'"
          --f7-button-border-radius: 4px
          --f7-button-outline-border-width: 1px
          --f7-button-font-weight: 300
          --f7-button-padding-vertical: 0px
          --f7-button-padding-horizontal: 0px
      slots:
        default:
          - component: oh-repeater
            config:
              sourceType: array
              for: modeRow
              in:
                - icon: arrow_2_squarepath
                  command: AUTO
                  text: AUTOMATIC
                - icon: thermometer_snowflake
                  command: COLD
                  text: Cool
                - icon: thermometer_sun
                  command: HEAT
                  text: Heat
                - icon: drop_fill
                  command: DEHUMIDIFIER
                  text: Dry
                - icon: wind
                  command: FAN
                  text: Fan Only
              fragment: true
            slots:
              default:
                - component: oh-button
                  config:
                    iconF7: =loop.modeRow.icon
                    iconSize: 15px
                    fill: "=(items[props.itemMode].state === loop.modeRow.command) ? true : false"
                    outline: true
                    class:
                      - display-flex
                      - flex-direction-column
                      - padding-top-half
                    style:
                      --f7-button-border-color: var(--f7-card-outline-border-color)
                      height: auto
                    text: =loop.modeRow.text
                    action: command
                    actionItem: =props.itemMode
                    actionCommand: =loop.modeRow.command
          - component: oh-button
            config:
              visible: =!props.hideFanSwingFunction
              iconF7: ellipsis_vertical
              iconSize: 15px
              action: variable
              actionVariable: options
              actionVariableValue: "=vars.options || vars.options === undefined ? false : true"
              fill: "=vars.options || vars.options === undefined ? false : true"
              outline: true
              class:
                - display-flex
                - flex-direction-column
              style:
                --f7-button-border-color: var(--f7-card-outline-border-color)
                height: auto
                width: 50%
    - component: f7-segmented
      config:
        visible: =vars.options === false
        class:
          - margin-left-half
          - margin-right-half
          - margin-top
          - margin-bottom-half
        style:
          --f7-button-font-size: 8px
          --f7-button-text-color: "=themeOptions.dark === 'light' ? 'black' : 'white'"
          --f7-button-border-radius: 4px
          --f7-button-outline-border-width: 1px
          --f7-button-font-weight: 300
          --f7-button-padding-vertical: 0px
          --f7-button-padding-horizontal: 0px
      slots:
        default:
          - component: oh-repeater
            config:
              sourceType: array
              for: optionsRow
              in:
                - icon: wind ellipsis_vertical
                  option: fanspeed
                - icon: move ellipsis_vertical
                  option: swing
              fragment: true
            slots:
              default:
                - component: oh-button
                  config:
                    iconF7: =loop.optionsRow.icon
                    iconSize: 15px
                    fill: "=vars[loop.optionsRow.option] || vars[loop.optionsRow.option] === undefined ? false : true"
                    outline: true
                    class:
                      - display-flex
                      - flex-direction-column
                    style:
                      --f7-button-border-color: var(--f7-card-outline-border-color)
                      height: auto
                    action: variable
                    actionVariable: =loop.optionsRow.option
                    actionVariableValue: "=vars[loop.optionsRow.option] || vars[loop.optionsRow.option] === undefined ? false : true"
          - component: oh-button
            config:
              visible: =!props.hideTimerFunction
              action: variable
              actionVariable: timer_menu
              actionVariableValue: "=vars.timer_menu || vars.timer_menu === undefined ? false : true"
              fill: "=vars.timer_menu || vars.timer_menu === undefined ? false : true"
              iconF7: timer ellipsis_vertical
              iconSize: 15px
              outline: true
              style:
                --f7-button-border-color: var(--f7-card-outline-border-color)
    - component: f7-segmented
      config:
        visible: "=vars.fanspeed === false && vars.options === false ? true : false"
        class:
          - margin-left-half
          - margin-right-half
          - margin-top
          - margin-bottom-half
        style:
          --f7-button-text-color: "=themeOptions.dark === 'light' ? 'black' : 'white'"
          --f7-button-border-radius: 4px
          --f7-button-outline-border-width: 1px
          --f7-button-font-weight: 300
          --f7-button-padding-vertical: 0px
          --f7-button-padding-horizontal: 0px
      slots:
        default:
          - component: oh-repeater
            config:
              sourceType: array
              for: fanspeedRow
              in:
                - icon: arrow_2_squarepath
                  command: AUTO
                - command: LEVEL_1
                  text: 1
                - command: LEVEL_2
                  text: 2
                - command: LEVEL_3
                  text: 3
                - command: LEVEL_4
                  text: 4
                - command: LEVEL_5
                  text: 5
              fragment: true
            slots:
              default:
                - component: oh-button
                  config:
                    iconF7: =loop.fanspeedRow.icon
                    iconSize: 15px
                    fill: "=(items[props.itemFanSpeed].state === loop.fanspeedRow.command) ? true : false"
                    outline: true
                    class:
                      - display-flex
                      - flex-direction-column
                    style:
                      --f7-button-border-color: var(--f7-card-outline-border-color)
                      height: auto
                    text: =loop.fanspeedRow.text
                    action: command
                    actionItem: =props.itemFanSpeed
                    actionCommand: =loop.fanspeedRow.command
    - component: f7-segmented
      config:
        visible: "=vars.swing === false && vars.options === false ? true : false"
        class:
          - margin-left-half
          - margin-right-half
          - margin-top
          - margin-bottom-half
        style:
          --f7-button-text-color: "=themeOptions.dark === 'light' ? 'black' : 'white'"
          --f7-button-border-radius: 4px
          --f7-button-outline-border-width: 1px
          --f7-button-font-weight: 300
          --f7-button-padding-vertical: 0px
          --f7-button-padding-horizontal: 0px
      slots:
        default:
          - component: oh-repeater
            config:
              sourceType: array
              for: swingRow
              in:
                - command: STOPPED
                  text: Off
                - icon: resize_v
                  command: VERTICAL
                - icon: resize_h
                  command: HORIZONTAL
                - icon: view_3d
                  command: VERTICAL_AND_HORIZONTAL
              fragment: true
            slots:
              default:
                - component: oh-button
                  config:
                    iconF7: =loop.swingRow.icon
                    iconSize: 15px
                    fill: "=(items[props.itemSwing].state === loop.swingRow.command) ? true : false"
                    outline: true
                    class:
                      - display-flex
                      - flex-direction-column
                    style:
                      --f7-button-border-color: var(--f7-card-outline-border-color)
                      height: auto
                    text: =loop.swingRow.text
                    action: command
                    actionItem: =props.itemSwing
                    actionCommand: =loop.swingRow.command
    - component: f7-row
      config:
        visible: "=vars.timer_menu === false && vars.options === false && !props.hideTimerFunction === true ? true : false"
        class:
          - margin-left-half
          - margin-right-half
          - margin-bottom-half
      slots:
        default:
          - component: f7-col
            slots:
              default:
                - component: oh-slider-card
                  config:
                    outline: true
                    item: =props.itemTimerDuration
                    min: =props.TimerMinimum
                    max: =props.TimerMaximum
                    step: =props.TimerStep
                    scaleSteps: =props.TimerScaleSteps
                    scaleSubSteps: =props.TimerScaleSubSteps
                    scale: true
                    unit: min
                    label: true

From there, I have jammed all 4 heatpumps into a swiper card, which allow me to easily move between the widgets, while limiting the screen real-estate used.

component: oh-swiper-card
config:
  title: Heat Pumps
  scrollbar: true
slots:
  default:
    - component: widget:Daikin HVAC
      config:
        title: Living Heat Pump
        itemPower: LivingHeatPump_Power
        itemIndoorTemp: LivingHeatPump_IndoorTemperature
        itemOutdoorTemp: LivingHeatPump_OutdoorTemperature
        itemTargetTemp: LivingHeatPump_SetPoint
        MinimumTemperature: 16
        MaximumTemperature: 30
        itemMode: LivingHeatPump_Mode
        hideFanSwingFunction: true
        hideTimerFunction: true
        TemperatureStepsize: 1
        hideSolarplant: true
    - component: widget:Daikin HVAC
      config:
        title: Lounge Heat Pump
        itemPower: LoungeHeatPump_Power
        itemIndoorTemp: LoungeHeatPump_IndoorTemperature
        itemOutdoorTemp: LoungeHeatPump_OutdoorTemperature
        itemTargetTemp: LoungeHeatPump_SetPoint
        MinimumTemperature: 16
        MaximumTemperature: 30
        TemperatureStepsize: 1
        itemMode: LoungeHeatPump_Mode
        hideFanSwingFunction: true
        hideTimerFunction: true
        hideSolarplant: true
    - component: widget:Daikin HVAC
      config:
        title: Rumpus Heat Pump
        itemPower: RumpusHeatPump_Power
        itemIndoorTemp: RumpusHeatPump_IndoorTemperature
        itemOutdoorTemp: RumpusHeatPump_OutdoorTemperature
        itemTargetTemp: RumpusHeatPump_SetPoint
        MinimumTemperature: 16
        TemperatureStepsize: 1
        hideFanSwingFunction: true
        hideTimerFunction: true
        hideSolarplant: true
        itemMode: RumpusHeatPump_Mode
        MaximumTemperature: 30
    - component: widget:Daikin HVAC
      config:
        title: Bedroom 1 Heat Pump
        itemPower: Bedroom1HeatPump_Power
        itemIndoorTemp: Bedroom1HeatPump_IndoorTemperature
        itemOutdoorTemp: Bedroom1HeatPump_OutdoorTemperature
        itemTargetTemp: Bedroom1HeatPump_SetPoint
        MinimumTemperature: 16
        MaximumTemperature: 30
        TemperatureStepsize: 1
        itemMode: Bedroom1HeatPump_Mode
        hideFanSwingFunction: true
        hideTimerFunction: true
        hideSolarplant: true

Only issue with using the swiper card, is occasionally on the mobile, you can grab the temp ‘circle’ and unintentionally set the room temp to 'Bake" :slight_smile: instead of moving between widgets. Pretty rare, and very happy with the result overall.

Pretty much the same as the orignal posted by @maxmaximax, with the surplus items removed,
and incorporated into the swiper card. Note the outdoor temperature is not showing when the unit is off - A limitation of the heatpump, not the OpenHAB binding. I could modify the widget to hide this item when the unit is off, but bigger things to move onto now !!


Hope this is of use to someone, and thanks to those in the community who originally shared their work, and gave the inspiration/starting point to help get me to this result. As well as the UI widget, this also includes the Daikin Binding author/maintainers - This binding has been rock-solid in my installation since OH2.x (Other than my self-induced ‘external’ issue described above!!). Cheers

1 Like

This topic was automatically closed 41 days after the last reply. New replies are no longer allowed.
