In / Out Board

I would like to use Habpanel for an in /out board for our IT department. Idea is we have an IPad on the back of the door for selection, and a second one facing out to show where the IT staff have gone.

4 locations I was thinking big buttons which are switch items for selection, and a large text item for the display.
I would like to be able to display “IT are in Building 1” if that was the location selected, but show each location that is selected “IT are in Building 1 and then IT are in Building 2”

What I cant get my head around are the rules needed to do the logic for this - can anyone help?


I would use a dimmer item to store a number value.

Then a selection widget with a map to assign rooms / zones / areas to numbers.

With text like this in the selection

1=Main Building,2=Rest Area,3=Student Support,4=Server Room,5=Hiding

I’d guess it wouldn’t need a rule at all, unless you want to translate the selection to label for the outside door.

However, I might be over simplifying your needs.

You could go mad and use WiFi presence or Bluetooth beaconing to automatically display your locations…

Thanks - I not sure how this would solve the multiple building option.

I am playing with the icloud binding for location tracking as well but finding it a bit inacurate


I think I might be reading your original post wrong, or I am over simplifying your request.

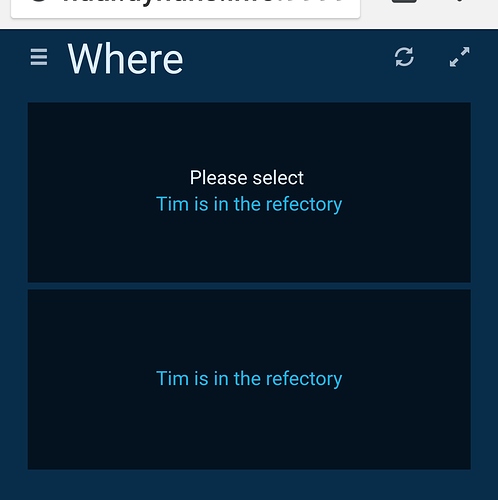

Is this the kind of solution your looking for?

(I’ll PM you a link to the live HabPanel)

Im not sure how to explain my requirements i have alraady done your mockup but was hoping for some sort of thing where if we go from building 1 to building 2 on an outing we tap two boxes instead of one and it changes the text to be “we are in building 1 or building 2” but if only going to building 2 - “we are in building 2”


I see now.

So are you looking for two toggles / switches that you (the tech team) can operate to indicate where you are performing your magic?

But on a display unit, you only want a single text display that states a choice of…

IT are definitely in building ONE

IT might be in building One or building Two

IT are most definitely in building TWO

So are you looking for a rule that will post the required text into a string, depending on the state of the two switches?

Would an IF array or Switch Case rule work for you?

Would you happen to have a floor plan of the site that you could use on the display board?

Hi Andrew

I’ve been away on a show, but had some time to think about what you’re looking for.

I’d say that you could probably use a set of switches to set your locations, then a text string to display whatever message you want.

(You can map these switches to presence devices later)

I found this topic that I think you could take inspiration from for the rule.

When you work out what this chap is doing with the rule, it’s actually rather clever in a truly simple way. (Which suits my brain)

Good luck

A simpler version of the code from that link.

First note the imports are not needed on OH 2 Rules.

rule "Switch transformer ON/OFF"
    Item Pump01 changed or
    Item Pump02 changed or
    Item Relay02 changed
    var TestString = ""

    TestString = TestString + if(Pump01.state == ON)  "1" else "0"
    TestString = TestString + if(Pump02.state == ON)  "1" else "0"
    TestString = TestString + if(Relay02.state == ON) "1" else "0"

    val newState = Relay02.state
    switch TestString {
        case "110": newState = ON
        case "010": newState = ON
        case "100": newState = ON
        case "001": newState = OFF

1 Like

You planning to do this just for teams or individuals too? If later is also a usecase, I would suggest not to monitor individuals using hi-tech. You will loose the confidence of employees once they know you are monitoring them. They (at least the good ones) will leave you.
I had big fights with my previous employer on the issue of In/Out monitoring and also windows desktop monitoring. I quit them.
