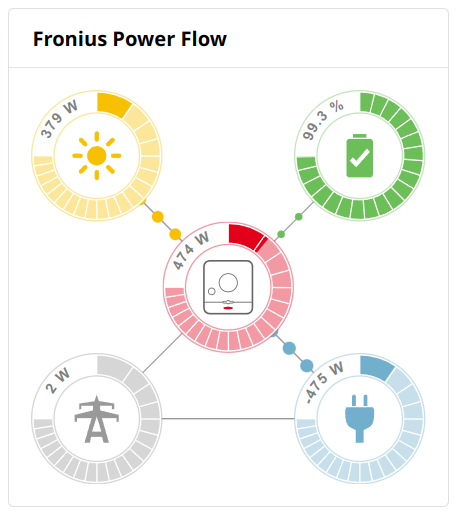

This is my interpretation of the Fronius Energy Flow Widget. I made a few changes to the original, which make more sense to me. The DC components are in the top row, the inverter (AC/DC) is in the center and on the bottom are the AC components. I also included a dial for the inverter. It shows the DC to AC power. It does not include any energy flow from solar to battery, which (at least for my system) ist pure DC. There is an extra indicator to visualize the energy flow from grid to load, which bypasses the inverter, depicting the actual physical flow, which bypasses the inverter.

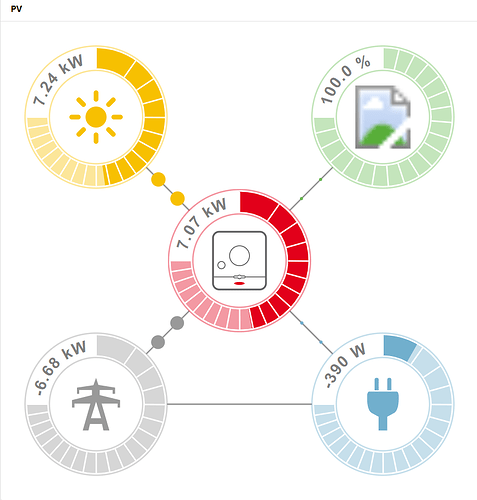

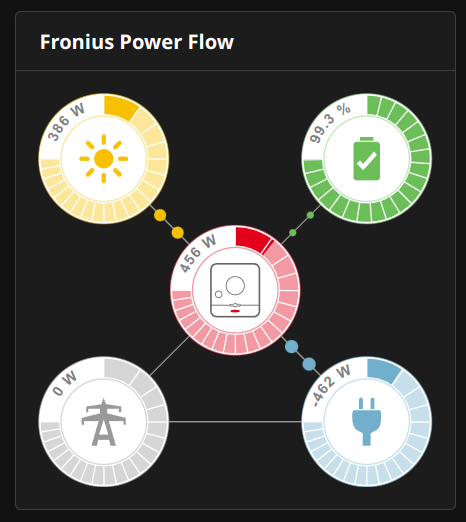

There are no zoom effects, but the battery and inverter icons have a mouseover tooltip.
The code is reasonably well commented, at least as much as YAML would allow. I am pretty sure it could be written better (especially the flow animations, which currently are an unholy mess and repetitive DRY nightmare), but for now this is beyond my capabilities and time frame. If you are into this, please feel free to refactor the code to your liking. The code is about 770 lines, and can be a bit intimidating. The math is not as bad as javascript makes it looks. I tried my best to keep it somewhat grouped by functionality, but there are some severe restrictions on what can be factored out.
Keep in mind that the whole widget relies on oh-context which needs OH 4.2.1 to work properly (OH 4.2.0 has a bug which prevents the code from running outside the development environment).
NOTES:

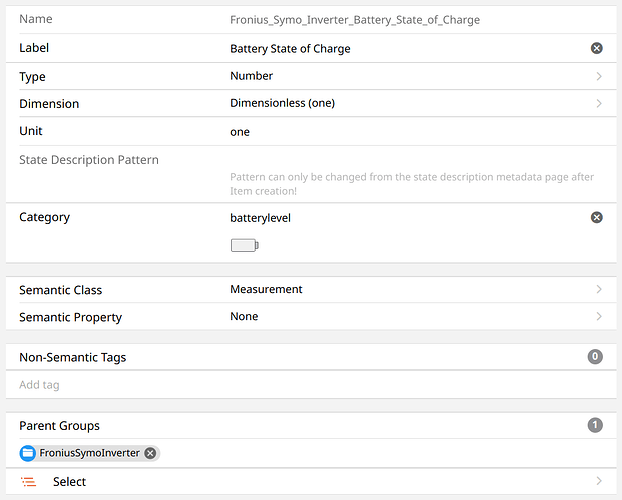

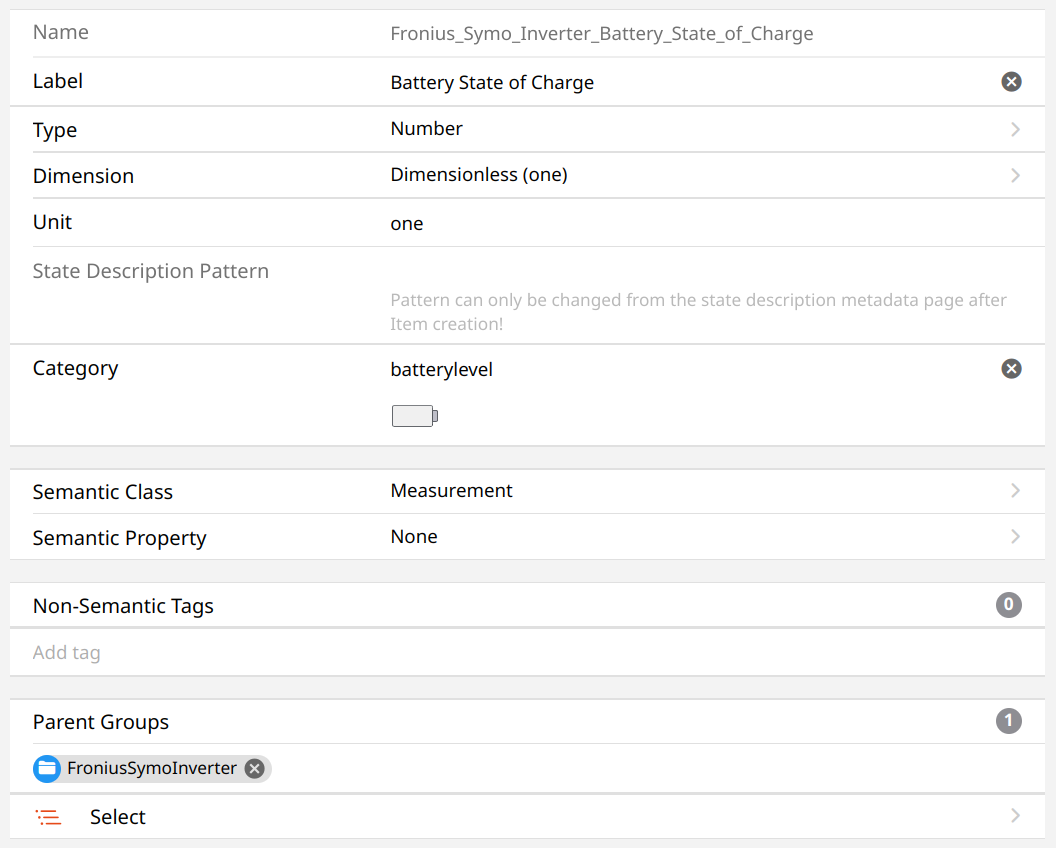

- The widget expects the battery state of charge as a dimensionless number between 0 and one. If your setup provides 0 to 100 (%) you may have to change this or modify the formula for the battery icon. See this post on how to do it.
- There seems to be a weird bug with the forum software, which changes hyphens to underscores in some filenames. This affects the battery icon files. If you have trouble displaying them correctly, please correct the filenames manually by replacing the last underscore before the number part with a hyphen. I tried to upload them anew but it did not change anything.
Changelog
Version 1.0
- encapsulated the svg in
f7-cardcomponent for better integration- added
titleconfiguration parameter forf7-card - removed
sizeparameter, as the size is now determined by the placement on the page
- added
- moved
max_grid_powerparameter to advanced settings - fixed a bug in
resize_dotfunction which prevented it from including grid power flow in the size calculation - added
maxparameter toscale_to_degfunction to account formax_grid_powersetting- changed the function calls accordingly, passing the appropriate max value
- reduced decimals to one for high yield installations (>= 10 kWp) in
switch_magnitude - added layout options to
f7-blockcomponent to adjust padding and content alignment - removed superfluous
circleelement indefs - added prefix “few_” (for “fronius energyflow widget”) to all ids to prevent clashes with identical ids from other components
- increased
font-sizeto 11pt andfont-weightto bold for better readability when displayed on small screens - moved grid dial back to exponential spacing
- cleaned up various typos in comments and formatting
Version 0.9
- initial release
Resources
uid: fronius_energy_flow
tags:
- energy
- fronius
- solar
props:
parameters:
- default: Fronius Power Flow
label: Title
name: title
required: false
type: TEXT
groupName: design
- default: "8000"
description: Maximum solar/inverter power in Watt.
label: Maximum solar/inverter power
name: max_solar_power
required: true
type: INTEGER
min: 1
- default: "10000"
description: Maximum power to and from grid in Watt. Either use your fuse
amperage to calculate this value or refer to your energy providers terms
of use, or just leave the default value.
label: Maximum grid power
name: max_grid_power
required: false
type: INTEGER
min: 1
advanced: true
- context: item
description: Current solar power in Watts. Typically this would be the
solar_yield item for a Fronius inverter.
label: Solar Power
name: solar_power
required: true
type: TEXT
groupName: data_sources
- context: item
description: Battery level of charge in percent. Typically this would be the
battery state of charge item of a Fronius inverter.
label: Battery level
name: battery_level
required: true
type: TEXT
groupName: data_sources
- context: item
description: Battery charge/discharge power. Typically this would be the battery
charge/discharge item of a Fronius inverter.
label: Battery charge/discharge power.
name: battery_charge
required: true
type: TEXT
groupName: data_sources
- context: item
description: Current inverter power in Watts delivered either to load or grid.
Typically this would be the inverter_power item for a Fronius inverter.
label: Inverter power
name: inverter_power
required: true
type: TEXT
groupName: data_sources
- context: item
description: Current energy autonomy. Typically the autonomy item for a Fronius
Smartmeter-
label: Autonomy
name: autonomy
required: true
type: TEXT
groupName: data_sources
- context: item
description: Power to an from grid in Watts. Typically this would be .
label: Grid power
name: grid_power
required: true
type: TEXT
groupName: data_sources
- context: item
description: Current consumption of electric energy (load), regardless of its
source. Typically this would be the Fronius Smartmeter item load.
label: Load power
name: load_power
required: true
type: TEXT
groupName: data_sources
- default: "0.68"
description: "Exponent for the scale (default: 0.68; 1=linear, reasonable values
range from 0.5 to 2)"
label: Exponent
name: exponent
required: false
groupName: design
advanced: true
parameterGroups:
- name: design
label: Design elements
description: Group of parameters which determine the visual appearance of the widget.
- name: data_sources
label: Data sources
description: Groups all datasources together.
timestamp: Aug 23, 2024, 9:26:18 AM
component: f7-card
config:
comment: This component determines the size of the widget.
outline: true
title: =props.title
slots:
default:
- component: oh-context
config:
comment: "'arc_flag' determines which arc should be drawn (short or long).
'resize_dot' adjusts the size of the energy flow dots in relation to
the highest value in the system. The value correlates to the area of
the dot, not its radius to give a better visual feedback.
'scale_to_deg' makes sure the input value does not exceed
max_solar_power or max_grid_power and scales everything to 270°.
'switch_color' handles power less than 1 and sets the color dependent
on the data_source, based on the dictionary in the function.
'switch_magnitude' switches between W an kW depending on the input
value. 'to_cartesian' converts degree to cartesian coordinates to be
used by arc."
functions:
arc_flag: "=degree => degree < 180 ? 0 : 1"
resize_dot: "=value => Math.abs(value) < 10 ? 0 :
`${Math.pow(Math.max(Math.abs(value) / Math.max(
(Math.abs(#props.load_power) + (#props.grid_power > 0 ?
#props.grid_power : 0)), Math.abs(#props.grid_power),
Math.abs(#props.solar_power), Math.abs(#props.battery_charge)),
0.05), 0.5) * 5}px`"
scale_to_deg: =(value, max) => Math.pow(Math.min(Math.abs(value), max) * (270 /
max), props.exponent) * (270 / Math.pow(270, props.exponent))
switch_color: '=(value, type) => (Math.abs(value) >= 1) ? {"pv": "#f7c002",
"grid": "#999999", "inverter": "#e2001a", "load": "#71afcd",
"battery": "#6cbe58"}[type] : "grey"'
switch_magnitude: "=value => Math.abs(value) > 999 ? `${(value /
1000).toFixed(Math.abs(value) > 9999 ? 1 : 2)} kW` :
`${Math.round(value) | 0} W`"
to_cartesian: =degree => (50 + Math.sin(degree * Math.PI / 180) * 41) + " " +
(50 - Math.cos(degree * Math.PI / 180) * 41)

slots:
default:
- component: f7-block
config:
style:
display: flex
height: 100%
width: 100%
content-justify: center
padding: 5%
slots:
default:
- component: svg
config:
comment: The component scales freely to the size of its parent.
height: 100%
viewBox: 0 0 300 300
width: 100%
slots:
default:
- component: defs
slots:
default:
- component: symbol
config:
id: few_segment_line
slots:
default:
- component: line
config:
comment: Separator line for the dial.
style:
stroke: white
stroke-width: 1px
x1: 50px
x2: 50px
y1: 2px
y2: 16px
- component: symbol
config:
comment: "Draws the background of each dial: Outer ring, scale backdrop, inner
Ring."
id: few_rings
slots:
default:
- component: circle
config:
comment: Outer ring. The stroke color uses the base color with less opacity.
cx: 50px
cy: 50px
fill: white
r: 49.5px
style:
stroke-opacity: 0.4
stroke-width: 1px
- component: circle
config:
comment: Inner ring. The stroke color uses the base color with less opacity.
cx: 50px
cy: 50px
fill: rgba(0, 0, 0, 0)
r: 32.5px
style:
stroke-opacity: 0.4
stroke-width: 1px
- component: path
config:
comment: Background of the dial. The stroke color uses the base color with less
opacity.
cx: 50px
cy: 50px
d: M50 9 A41 41 0 1 1 9 50
fill: rgba(0, 0, 0, 0)
r: 41px
style:
stroke-opacity: 0.4
stroke-width: 14px
- component: path
config:
comment: Path for numerical display of value.
d: M9,50 A41 41 0 0 1 50 9
fill: rgba(0, 0, 0, 0)
id: few_text_path
stroke-width: 0px
- component: g
config:
comment: Solarpanel
id: few_solarpanel
slots:
default:
- component: g
config:
comment: Solar energy flow visualisation
id: few_solar_energy_flow
slots:
default:
- component: path
config:
comment: Energy flow visualization solar.
d: M80 80 L120 120
id: few_solar_path
style:
stroke: "#999999"
stroke_width: 1px
- component: oh-repeater
config:
comment: Sets up the circles, indicating the energy flow.
for: offset
fragment: true
rangeStart: 0
rangeStep: 1
rangeStop: 2
sourceType: range
slots:
default:
- component: circle
config:
fill: "#f7c002"
r: =fn.resize_dot(#props.solar_power)
slots:
default:
- component: animateMotion
config:
begin: =`${loop.offset}s`
calcMode: linear
dur: 3s
repeatCount: indefinite
slots:
default:
- component: mpath
config:
xlink:href: "#few_solar_path"
- component: use
config:
comment: PV dial.
style:
stroke: =fn.switch_color(#props.solar_power, "pv")
x: 0px
xlink:href: "#few_rings"
y: 0px
- component: path
config:
comment: Dial, using an exponential scale. If the value exceeds max_solar_power,
the color dial turns red.
d: =`M50 9 A41 41 0 ${fn.arc_flag(fn.scale_to_deg(#props.solar_power,
props.max_solar_power))} 1
${fn.to_cartesian(fn.scale_to_deg(#props.solar_power,
props.max_solar_power))}`
fill: rgba(0, 0, 0, 0)
style:
stroke: '=(Math.abs(#props.solar_power) < props.max_solar_power) ?
fn.switch_color(#props.solar_power, "pv") :
"#f70202"'
stroke-width: 14px
- component: text
config:
style:
dominant-baseline: central
fill: rgb(127, 127, 127)
font-family: sans-serif
font-weight: bold
font-size: 11px
letter-spacing: 1px
text-anchor: middle
translate: 0px 0px
slots:
default:
- component: textPath
config:
content: =fn.switch_magnitude(#props.solar_power)
startOffset: 50%
xlink:href: "#few_text_path"
- component: image
config:
comment: Solar pv icon.
height: 44px
width: 44px
x: 28px
xlink:href: =`/icon/fronius_pv?format=svg&anyFormat=true&iconset=classic`
y: 28px
- component: g
config:
comment: Battery
id: few_battery
slots:
default:
- component: g
config:
comment: Energy flow visualisation
id: few_battery_energy_flow
slots:
default:
- component: path
config:
comment: Energy flow visualization battery.
d: '=#props.battery_charge >= 0 ? "M220 80 L180 120" : "M180 120 L220 80"'
id: few_battery_path
style:
stroke: "#999999"
stroke_width: 1px
- component: oh-repeater
config:
comment: Sets up the circles, indicating the energy flow.
for: offset
fragment: true
rangeStart: 0
rangeStep: 1
rangeStop: 2
sourceType: range
slots:
default:
- component: circle
config:
fill: "#6cbe58"
r: =fn.resize_dot(#props.battery_charge)
slots:
default:
- component: animateMotion
config:
begin: =`${loop.offset}s`
calcMode: linear
dur: 3s
repeatCount: indefinite
slots:
default:
- component: mpath
config:
xlink:href: "#few_battery_path"
- component: use
config:
comment: Battery dial.
style:
stroke: "#6cbe58"
x: 200px
xlink:href: "#few_rings"
y: 0px
- component: path
config:
comment: Dial, using a linear scale.
d: =`M50 9 A41 41 0 ${fn.arc_flag(#props.battery_level * 270)} 1
${fn.to_cartesian(#props.battery_level *
270)}`
fill: rgba(0, 0, 0, 0)
style:
stroke: "#6cbe58"
stroke-width: 14px
translate: 200px 0px
- component: text
config:
style:
dominant-baseline: central
fill: rgb(127, 127, 127)
font-family: sans-serif
font-weight: bold
font-size: 11px
letter-spacing: 1px
text-anchor: middle
translate: 200px 0px
slots:
default:
- component: textPath
config:
content: =@props.battery_level
startOffset: 50%
xlink:href: "#few_text_path"
- component: image
config:
comment: Battery icon
height: 44px
width: 44px
x: 228px
xlink:href: '=`/icon/fronius_battery${#props.battery_charge < 0 ? "_charging" :
""}-${25 * Math.round(#props.battery_level *
4)}?format=svg&anyFormat=true&iconset=classic`'
y: 28px
slots:
default:
- component: title
config:
content: '=`${#props.battery_charge > 0 ? "Disc" : "C"}harging with
${fn.switch_magnitude(Math.abs(#props.battery_charge))}.`'
- component: g
config:
comment: Grid
id: few_grid
slots:
default:
- component: g
config:
comment: Grid energy flow visualisation
id: few_grid_energy_flow
slots:
default:
- component: path
config:
comment: PV to grid energy flow visualization.
d: M120 180 L80 220
id: few_grid_path
style:
stroke: "#999999"
stroke_width: 1px
- component: oh-repeater
config:
comment: Sets up the circles, indicating the energy flow.
for: offset
fragment: true
rangeStart: 0
rangeStep: 1
rangeStop: 2
sourceType: range
slots:
default:
- component: circle
config:
fill: "#999999"
r: "=fn.resize_dot(#props.grid_power < 0 ? #props.grid_power : 0)"
slots:
default:
- component: animateMotion
config:
begin: =`${loop.offset}s`
calcMode: linear
dur: 3s
repeatCount: indefinite
slots:
default:
- component: mpath
config:
xlink:href: "#few_grid_path"
- component: g
config:
comment: Grid to load energy flow visualisation.
id: few_grid_to_load_flow
slots:
default:
- component: path
config:
comment: Energy flow visualization grid.
d: M90 250 L210 250
id: few_grid_load_path
style:
stroke: "#999999"
stroke_width: 1px
- component: oh-repeater
config:
comment: Sets up the circles, indicating the energy flow.
for: offset
fragment: true
rangeStart: 0
rangeStep: 1
rangeStop: 4
sourceType: range
slots:
default:
- component: circle
config:
fill: "#999999"
r: "=fn.resize_dot(#props.grid_power > 0 ? #props.grid_power : 0)"
slots:
default:
- component: animateMotion
config:
begin: =`${loop.offset}s`
calcMode: linear
dur: 5s
repeatCount: indefinite
slots:
default:
- component: mpath
config:
xlink:href: "#few_grid_load_path"
- component: use
config:
comment: Grid dial.
style:
stroke: "#999999"
x: 0px
xlink:href: "#few_rings"
y: 200px
- component: path
config:
comment: Dial, using a exponential scale.
d: =`M50 9 A41 41 0 ${fn.arc_flag(fn.scale_to_deg(#props.grid_power,
props.max_grid_power))} 1
${fn.to_cartesian(fn.scale_to_deg(#props.grid_power,
props.grid_solar_power))}`
fill: rgba(0, 0, 0, 0)
style:
stroke: =fn.switch_color(#props.grid_power, "grid")
stroke-width: 14px
translate: 0px 200px
- component: text
config:
style:
dominant-baseline: central
fill: rgb(127, 127, 127)
font-family: sans-serif
font-weight: bold
font-size: 11px
letter-spacing: 1px
text-anchor: middle
translate: 0px 200px
slots:
default:
- component: textPath
config:
content: =fn.switch_magnitude(#props.grid_power)
startOffset: 50%
xlink:href: "#few_text_path"
- component: image
config:
comment: grid icon
height: 44px
width: 44px
x: 28px
xlink:href: /icon/fronius_grid?format=svg&anyFormat=true&iconset=classic
y: 228px
- component: g
config:
comment: Load
id: few_few_load
slots:
default:
- component: g
config:
comment: Load energy flow visualisation
id: few_oad_energy_flow
slots:
default:
- component: path
config:
comment: Energy flow visualization load.
d: M180 180 L220 220
id: few_load_path
style:
stroke: "#999999"
stroke_width: 1px
- component: oh-repeater
config:
comment: Sets up the circles, indicating the energy flow.
for: offset
fragment: true
rangeStart: 0
rangeStep: 1
rangeStop: 2
sourceType: range
slots:
default:
- component: circle
config:
fill: "#71afcd"
r: "=fn.resize_dot(#props.load_power + (#props.grid_power > 0 ?
#props.grid_power : 0))"
slots:
default:
- component: animateMotion
config:
begin: =`${loop.offset}s`
calcMode: linear
dur: 3s
repeatCount: indefinite
slots:
default:
- component: mpath
config:
xlink:href: "#few_load_path"
- component: use
config:
comment: Load dial
style:
stroke: "#71afcd"
x: 200px
xlink:href: "#few_rings"
y: 200px
- component: path
config:
comment: Dial, using a exponential scale.
d: =`M50 9 A41 41 0 ${fn.arc_flag(fn.scale_to_deg(#props.load_power,
props.max_grid_power))} 1
${fn.to_cartesian(fn.scale_to_deg(#props.load_power,
props.max_grid_power))}`
fill: rgba(0, 0, 0, 0)
style:
stroke: =fn.switch_color(#props.load_power, "load")
stroke-width: 14px
translate: 200px 200px
- component: text
config:
style:
dominant-baseline: central
fill: rgb(127, 127, 127)
font-family: sans-serif
font-size: 11px
font-weight: bold
letter-spacing: 1px
text-anchor: middle
translate: 200px 200px
slots:
default:
- component: textPath
config:
content: =fn.switch_magnitude(#props.load_power)
startOffset: 50%
xlink:href: "#few_text_path"
- component: image
config:
comment: Load icon
height: 44px
width: 44px
x: 228px
xlink:href: =`/icon/fronius_consumption?format=svg&anyFormat=true&iconset=classic`
y: 228px
- component: g
config:
comment: Inverter
id: few_inverter
slots:
default:
- component: use
config:
comment: Inverter dial.
style:
stroke: =fn.switch_color(#props.inverter_power, "inverter")
x: 100px
xlink:href: "#few_rings"
y: 100px
- component: path
config:
comment: Dial, using an exponential scale. If the value exceeds max_solar_power,
the color dial turns red.
d: =`M50 9 A41 41 0 ${fn.arc_flag(fn.scale_to_deg(#props.inverter_power,
props.max_solar_power))} 1
${fn.to_cartesian(fn.scale_to_deg(#props.inverter_power,
props.max_solar_power))}`
fill: rgba(0, 0, 0, 0)
style:
stroke: '=(Math.abs(#props.inverter_power) < props.max_solar_power) ?
fn.switch_color(#props.inverter_power,
"inverter") : "#f70202"'
stroke-width: 14px
translate: 100px 100px
- component: text
config:
style:
dominant-baseline: central
fill: rgb(127, 127, 127)
font-family: sans-serif
font-size: 11px
font-weight: bold
letter-spacing: 1px
text-anchor: middle
translate: 100px 100px
slots:
default:
- component: textPath
config:
content: =fn.switch_magnitude(#props.inverter_power)
startOffset: 50%
xlink:href: "#few_text_path"
- component: image
config:
comment: inverter icon.
height: 44px
width: 44px
x: 128px
xlink:href: =`/icon/fronius_gen24?format=svg&anyFormat=true&iconset=classic`
y: 128px
slots:
default:
- component: title
config:
content: "=`Autonomy: ${@props.autonomy || '--'}`"
- component: oh-repeater
config:
comment: Draws the segments of the dials, using an exponential scale.
for: degree
fragment: true
rangeStart: 0
rangeStep: 13.5
rangeStop: 270
sourceType: range
slots:
default:
- component: use
config:
comment: Battery dial segments.
style:
transform: =`rotate(${loop.degree}deg)`
transform-origin: 250px 50px
x: 200px
xlink:href: "#few_segment_line"
y: 0px
- component: use
config:
comment: PV dial segments
style:
transform: =`rotate(${(Math.pow(loop.degree, props.exponent) * 270 /
Math.pow(270, props.exponent))}deg)`
transform-origin: 50px 50px
x: 0px
xlink:href: "#few_segment_line"
y: 0px
- component: use
config:
comment: Inverter dial segments
style:
transform: =`rotate(${(Math.pow(loop.degree, props.exponent) * 270 /
Math.pow(270, props.exponent))}deg)`
transform-origin: 150px 150px
x: 100px
xlink:href: "#few_segment_line"
y: 100px
- component: use
config:
comment: Load dial segments
style:
transform: =`rotate(${(Math.pow(loop.degree, props.exponent) * 270 /
Math.pow(270, props.exponent))}deg)`
transform-origin: 250px 250px
x: 200px
xlink:href: "#few_segment_line"
y: 200px
- component: use
config:
comment: Grid dial segments
style:
transform: =`rotate(${(Math.pow(loop.degree, props.exponent) * 270 /
Math.pow(270, props.exponent))}deg)`
transform-origin: 50px 250px
x: 0px
xlink:href: "#few_segment_line"
y: 200px
