openHAB 5.2 Milestone discussion

This topic can be used for any discussions around the openHAB 5.2 Milestone builds as it has been announced in openHAB 5.2 Milestone Builds.

3 Likes

Hi All
I have just upgraded from OH 5.2.0-SNAPSHOT (openHAB 5.2.0

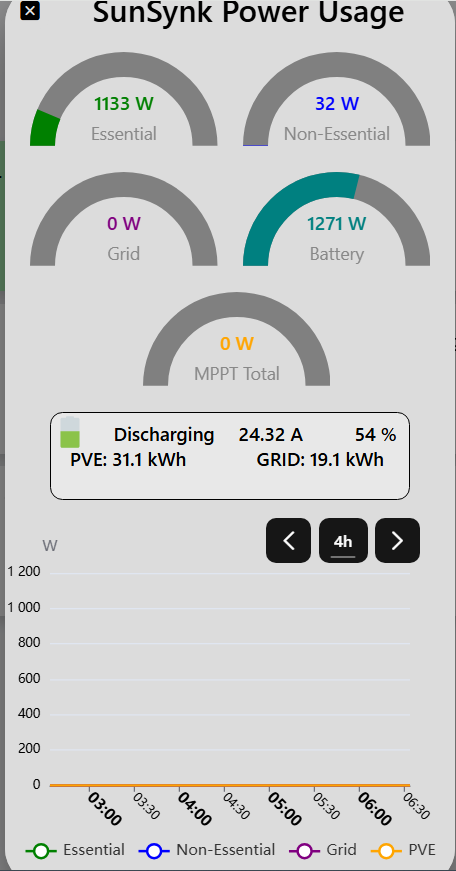

Build #5067) to OH 5.2.0.M1 and two of my widgets no longer work.


now looks like

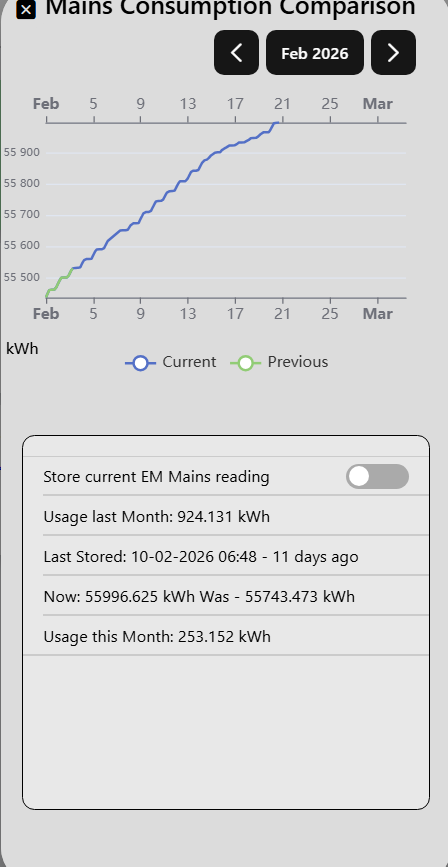

and

now looks like

The widgest are defined as:

component: oh-cell
config:
  on: true
  title: ="SunSynk Summary "
slots:
  background:
    - component: f7-block
      config:
        style:
          --cell-green: rgba(165,236,176,255)
          --cell-red: rgba(255,156,151,255)
          --cell-yellow: rgba(254,229,128,255)
          height: 100%
          margin: 0
          padding: 0
          position: absolute
          width: 100%
    - component: f7-block
      config:
        style:
          bottom: 5px
          left: 0px
          margin: 0
          padding: 0
          position: absolute
          width: 100%
      slots:
        default:
          - component: oh-button
            config:
              action: variable
              actionVariable: visibleSunSynkPop
              actionVariableValue: true
              popupOpen: .sunSynk-pop
              style:
                height: 100%
                width: 100%
              text: OPEN
    - component: f7-popup
      config:
        class: sunSynk-pop
        style:
          --f7-popup-tablet-height: 720px
          --f7-popup-tablet-width: 360px
          background-color: rgb(220,220,220)
          border-radius: 30px
          height: 720px
          text-overflow: ellipsis
          width: 360px
      slots:
        default:
          - component: f7-block
            config:
              popupClose: .sunSynk-pop
              style:
                --f7-popup-tablet-height: 720px
                --f7-popup-tablet-width: 360px
                background-color: rgb(220,220,220)
                border-radius: 30px
                height: 720px
                margin: 0
                padding: 0
                text-overflow: ellipsis
                width: 360px
              visible: =(vars.visibleSunSynkPop) == true
            slots:
              default:
                - component: oh-button
                  config:
                    action: variable
                    actionVariable: visibleSunSynkPop
                    actionVariableValue: false
                    clearVariable:
                      - ZZvisibleSunSynkPop
                    large: true
                    popupClose: .modal-in
                    style:
                      background: rgb(220,220,220)
                      color: white
                      display: flex
                      height: 30px
                      left: 5px
                      position: absolute
                      top: 5px
                      width: 30px
                      z-index: 999
                  slots:
                    default:
                      - component: f7-icon
                        config:
                          color: white
                          f7: clear_fill
                          style:
                            color: black
                            font-size: 20px
                            margin: auto
                - component: Label
                  config:
                    style:
                      font-size: 25px
                      font-weight: 500
                      padding-left: 70px
                      width: 100%
                    text: SunSynk Summary
                - component: f7-block
                  config:
                    style:
                      --f7-popup-tablet-height: 180px
                      --f7-popup-tablet-width: 326px
                      background-color: rgba(232,232,232)
                      border: 1px solid black
                      border-radius: 10px
                      height: 180px
                      left: 17px
                      margin: 0
                      padding: 0
                      position: absolute
                      width: 326px
                  slots:
                    default:
                      - component: oh-gauge
                        config:
                          borderBgColor: rgba(230,240,252,255)
                          borderColor: rgba(43,208,254,255)
                          borderWidth: 20
                          class:
                            - margin-top
                            - margin-bottom
                          item: SunSynk_Load_Grid
                          labelText: Grid
                          max: 8800
                          min: 0
                          size: 300
                          style: left:15px
                          type: semicircle
                          valueFontSize: 35
                          valueTextColor: rgba(84,214,138,255)
                - component: f7-block
                  config:
                    style:
                      --f7-popup-tablet-height: 320px
                      --f7-popup-tablet-width: 326px
                      background-color: rgba(232,232,232)
                      border: 1px solid black
                      border-radius: 10px
                      display: flex
                      height: 320px
                      justify-content: space-around
                      left: 17px
                      margin: 0
                      padding: 0
                      position: absolute
                      top: 250px
                      width: 326px
                  slots:
                    default:
                      - component: f7-col
                        config:
                          style:
                            align-items: center
                            display: flex
                            flex-direction: column
                        slots:
                          default:
                            - component: f7-block
                              config:
                                style:
                                  align-items: center
                                  border-radius: 40px
                                  display: flex
                                  flex-direction: column
                                  height: 80px
                                  justify-content: center
                                  margin: 0
                                  padding: 0
                                  top: 35px
                                  width: 80px
                              slots:
                                default:
                                  - component: oh-icon
                                    config:
                                      height: 40px
                                      icon: oh:ss_solar
                                  - component: Label
                                    config:
                                      style:
                                        font-size: 12px
                                      text: =items.SunSynk_MPPT1_House.state
                                  - component: oh-icon
                                    config:
                                      height: 40px
                                      icon: oh:ss_solar
                                  - component: Label
                                    config:
                                      style:
                                        font-size: 12px
                                      text: =items.SunSynk_MPPT2_Garage.state
                                  - component: Label
                                    config:
                                      style:
                                        font-size: 12px
                                        font-weight: 800
                                      text: =items.SunSynk_MPPT_TOTAL.state
                            - component: f7-block
                              config:
                                style:
                                  align-items: center
                                  border-radius: 40px
                                  display: flex
                                  flex-direction: column
                                  height: 80px
                                  justify-content: center
                                  margin: 0
                                  padding: 0
                                  top: 140px
                                  width: 80px
                              slots:
                                default:
                                  - component: oh-icon
                                    config:
                                      height: 40px
                                      icon: oh:ss_battery
                                  - component: Label
                                    config:
                                      style:
                                        font-size: 12px
                                      text: =items.SunSynk_Battery_SOC.state + " " + items.SunSynk_Battery_Power.state
                      - component: f7-col
                        config:
                          style:
                            align-items: center
                            display: flex
                            flex-direction: column
                            flex-grow: 1
                        slots:
                          default:
                            - component: f7-block
                              config:
                                style:
                                  align-items: center
                                  display: flex
                                  flex-direction: column
                                  height: 80px
                                  justify-content: center
                                  margin: 0
                                  padding: 0
                                  top: 120px
                                  width: 80px
                              slots:
                                default:
                                  - component: oh-icon
                                    config:
                                      height: 70px
                                      icon: oh:ss_inverter
                            - component: f7-block
                              config:
                                style:
                                  display: flex
                                  height: 295px
                                  justify-content: center
                                  margin: 0
                                  padding: 0
                                  top: -49px
                                  width: 100%
                              slots:
                                default:
                                  - component: svg
                                    config:
                                      preserveAspectRatio: xMidYMid slice
                                      style:
                                        height: auto
                                      viewBox: 0 0 80 140
                                      xmlns: http://www.w3.org/2000/svg
                                    slots:
                                      default:
                                        - component: path
                                          config:
                                            d: M0,10 H25 A 10 10 45 0 1 35 20 V45
                                            fill: none
                                            id: solarInverter
                                            stroke: =(items.SunSynk_MPPT_TOTAL.state != "0
                                              W")?("orange"):("rgb(220,220,220)")
                                            stroke-width: 2
                                            vector-effect: non-scaling-stroke
                                        - component: g
                                          config:
                                            visible: =(items.SunSynk_MPPT_TOTAL.state != "0 W")?(true):(false)
                                          slots:
                                            default:
                                              - component: circle
                                                config:
                                                  fill: orange
                                                  r: 3
                                                  strokeWidth: 10
                                                  vectorEffect: non-scaling-stroke
                                              - component: text
                                                config:
                                                  content: Ā»
                                                  font-size: 8px
                                                  text-anchor: middle
                                                  x: 0
                                                  y: 2.3
                                              - component: animateTransform
                                                config:
                                                  attributeName: transform
                                                  attributeType: XML
                                                  dur: =Number.parseInt(Math.abs((7-Number.parseFloat(items.SunSynk_MPPT_TOTAL.state)/1000)))
                                                  keyTimes: 0;.33;.66;1
                                                  repeatCount: indefinite
                                                  type: rotate
                                                  values: 0;0;90;90
                                              - component: animateMotion
                                                config:
                                                  calcMode: linear
                                                  dur: =Number.parseInt(Math.abs((7-Number.parseFloat(items.SunSynk_MPPT_TOTAL.state)/1000)))
                                                  keyPoints: 0;1
                                                  keyPointsReverse: 1;0
                                                  keyTimes: 0;1
                                                  repeatCount: indefinite
                                                slots:
                                                  default:
                                                    - component: mpath
                                                      config:
                                                        xlink:href: "#solarInverter"
                                        - component: path
                                          config:
                                            d: M80,10 H55 A 10 10 45 0 0 45 20 V45
                                            fill: none
                                            id: gridInverter
                                            stroke: =(items.SunSynk_Load_Grid.state != "0
                                              W")?("orange"):("rgb(220,220,220)")
                                            stroke-width: 2
                                            vector-effect: non-scaling-stroke
                                        - component: g
                                          config:
                                            visible: =(items.SunSynk_Load_Grid.state != "0 W")?(true):(false)
                                          slots:
                                            default:
                                              - component: circle
                                                config:
                                                  fill: orange
                                                  r: 3
                                                  strokeWidth: 10
                                                  vectorEffect: non-scaling-stroke
                                              - component: text
                                                config:
                                                  content: Ā»
                                                  font-size: 8px
                                                  text-anchor: middle
                                                  x: 0
                                                  y: 2.3
                                              - component: animateTransform
                                                config:
                                                  attributeName: transform
                                                  attributeType: XML
                                                  dur: =Number.parseInt(Math.abs((7-Number.parseFloat(items.SunSynk_Load_Grid.state)/1000)))
                                                  keyTimes: 0;.33;.66;1
                                                  repeatCount: indefinite
                                                  type: rotate
                                                  values: =(Number.parseInt(items.SunSynk_Load_Grid.state) >
                                                    0)?('-180;-180;-270;-270'):('-90;-90;0;0')
                                              - component: animateMotion
                                                config:
                                                  calcMode: linear
                                                  dur: =Number.parseInt(Math.abs((7-Number.parseFloat(items.SunSynk_Load_Grid.state)/1000)))
                                                  keyPoints: =(Number.parseInt(items.SunSynk_Load_Grid.state) > 0)?('0;1'):('1;0')
                                                  keyPointsReverse: 1;0
                                                  keyTimes: 0;1
                                                  repeatCount: indefinite
                                                slots:
                                                  default:
                                                    - component: mpath
                                                      config:
                                                        xlink:href: "#gridInverter"
                                        - component: path
                                          config:
                                            d: M0,115 H25 A 10 10 45 0 0 35 105 V80
                                            fill: none
                                            id: batteryInverter
                                            stroke: =(items.SunSynk_Battery_Power.state != "0
                                              W")?("orange"):("rgb(220,220,220)")
                                            stroke-width: 2
                                            vector-effect: non-scaling-stroke
                                        - component: g
                                          config:
                                            visible: =(items.SunSynk_Battery_Power.state != "0 W")?(true):(false)
                                          slots:
                                            default:
                                              - component: circle
                                                config:
                                                  fill: orange
                                                  r: 3
                                                  strokeWidth: 10
                                                  vectorEffect: non-scaling-stroke
                                              - component: text
                                                config:
                                                  content: Ā»
                                                  font-size: 8px
                                                  text-anchor: middle
                                                  x: 0
                                                  y: 2.3
                                              - component: animateTransform
                                                config:
                                                  attributeName: transform
                                                  attributeType: XML
                                                  dur: =Number.parseInt(Math.abs((7-Number.parseFloat(items.SunSynk_Battery_Power.state)/1000)))
                                                  keyTimes: 0;.33;.66;1
                                                  repeatCount: indefinite
                                                  type: rotate
                                                  values: =(Number.parseInt(items.SunSynk_Battery_Power.state) >
                                                    0)?('0;0;-90;-90'):('90;90;180;180')
                                              - component: animateMotion
                                                config:
                                                  calcMode: linear
                                                  dur: =Number.parseInt(Math.abs((7-Number.parseFloat(items.SunSynk_Battery_Power.state)/1000)))
                                                  keyPoints: =(Number.parseInt(items.SunSynk_Battery_Power.state) >
                                                    0)?('0;1'):('1;0')
                                                  keyPointsReverse: 1;0
                                                  keyTimes: 0;1
                                                  repeatCount: indefinite
                                                slots:
                                                  default:
                                                    - component: mpath
                                                      config:
                                                        xlink:href: "#batteryInverter"
                                        - component: path
                                          config:
                                            d: M80,95 H55 A 10 10 45 0 1 45 85 V80
                                            fill: none
                                            id: upsInverter
                                            stroke: =(items.SunSynk_Load_Essential.state != "0
                                              W")?("orange"):("rgb(220,220,220)")
                                            stroke-width: 2
                                            vector-effect: non-scaling-stroke
                                        - component: g
                                          config:
                                            visible: =(items.SunSynk_Load_Essential.state != "0 W")?(true):(false)
                                          slots:
                                            default:
                                              - component: circle
                                                config:
                                                  fill: orange
                                                  r: 3
                                                  strokeWidth: 10
                                                  vectorEffect: non-scaling-stroke
                                              - component: text
                                                config:
                                                  content: Ā»
                                                  font-size: 8px
                                                  text-anchor: middle
                                                  x: 0
                                                  y: 2.3
                                              - component: animateTransform
                                                config:
                                                  attributeName: transform
                                                  attributeType: XML
                                                  dur: =Number.parseInt(Math.abs((7-Number.parseFloat(items.SunSynk_Load_Essential.state)/1000)))
                                                  keyTimes: 0;.10;.50;1
                                                  repeatCount: indefinite
                                                  type: rotate
                                                  values: =(Number.parseInt(items.SunSynk_Load_Essential.state) >
                                                    0)?('90;90;0;0'):('-180;-180;-90;-90')
                                              - component: animateMotion
                                                config:
                                                  calcMode: linear
                                                  dur: =Number.parseInt(Math.abs((7-Number.parseFloat(items.SunSynk_Load_Essential.state)/1000)))
                                                  keyPoints: =(Number.parseInt(items.SunSynk_Load_Essential.state) >
                                                    0)?('1;0'):('0;1')
                                                  keyPointsReverse: 1;0
                                                  keyTimes: 0;1
                                                  repeatCount: indefinite
                                                slots:
                                                  default:
                                                    - component: mpath
                                                      config:
                                                        xlink:href: "#upsInverter"
                                        - component: path
                                          config:
                                            d: M80,115 H50 A 10 10 40 0 1 40 105 V80
                                            fill: none
                                            id: homeInverter
                                            stroke: =(Number.parseFloat(items.SunSynk_Load_NonEssential.state) >
                                              0)?("orange"):("rgb(220,220,220)")
                                            stroke-width: 2
                                            vector-effect: non-scaling-stroke
                                        - component: g
                                          config:
                                            visible: =(Number.parseFloat(items.SunSynk_Load_NonEssential.state) >
                                              0)?(true):(false)
                                          slots:
                                            default:
                                              - component: circle
                                                config:
                                                  fill: orange
                                                  r: 3
                                                  strokeWidth: 10
                                                  vectorEffect: non-scaling-stroke
                                              - component: text
                                                config:
                                                  content: Ā»
                                                  font-size: 8px
                                                  text-anchor: middle
                                                  x: 0
                                                  y: 2.3
                                              - component: animateTransform
                                                config:
                                                  attributeName: transform
                                                  attributeType: XML
                                                  dur: =(Number.parseInt(Math.abs((7-(Number.parseFloat(items.SunSynk_Load_NonEssential.state)/1000)))))
                                                  keyTimes: 0;.33;.66;1
                                                  repeatCount: indefinite
                                                  type: rotate
                                                  values: =(Number.parseFloat(items.SunSynk_Load_NonEssential.state) >
                                                    0)?('90;90;0;0'):('-180;-180;-90;-90')
                                              - component: animateMotion
                                                config:
                                                  calcMode: linear
                                                  dur: =(Number.parseInt(Math.abs((7-(Number.parseFloat(items.SunSynk_Load_NonEssential.state)/1000)))))
                                                  keyPoints: =(Number.parseFloat(items.SunSynk_Load_NonEssential.state) >
                                                    0)?('1;0'):('0;1')
                                                  keyPointsReverse: 1;0
                                                  keyTimes: 0;1
                                                  repeatCount: indefinite
                                                slots:
                                                  default:
                                                    - component: mpath
                                                      config:
                                                        xlink:href: "#homeInverter"
                      - component: f7-col
                        config:
                          style:
                            align-items: center
                            display: flex
                            flex-direction: column
                        slots:
                          default:
                            - component: f7-block
                              config:
                                style:
                                  align-items: center
                                  border-radius: 40px
                                  display: flex
                                  flex-direction: column
                                  height: 80px
                                  justify-content: center
                                  margin: 0
                                  padding: 0
                                  top: 20px
                                  width: 80px
                              slots:
                                default:
                                  - component: oh-icon
                                    config:
                                      height: 40px
                                      icon: oh:ss_grid
                                  - component: Label
                                    config:
                                      style:
                                        font-size: 12px
                                      text: =items.SunSynk_Load_Grid.state
                            - component: f7-block
                              config:
                                style:
                                  align-items: center
                                  border-radius: 40px
                                  display: flex
                                  flex-direction: column
                                  height: 80px
                                  justify-content: center
                                  margin: 0
                                  padding: 0
                                  top: 130px
                                  width: 80px
                              slots:
                                default:
                                  - component: oh-icon
                                    config:
                                      height: 40px
                                      icon: oh:ss_bolt
                                  - component: Label
                                    config:
                                      style:
                                        font-size: 12px
                                        white-space: nowrap
                                      text: =items.SunSynk_Load_Essential.state
                                  - component: oh-icon
                                    config:
                                      height: 40px
                                      icon: oh:ss_house
                                  - component: Label
                                    config:
                                      style:
                                        font-size: 12px
                                        white-space: nowrap
                                      text: =items.SunSynk_Load_NonEssential.state
                - component: f7-block
                  config:
                    style:
                      background-color: rgba(232,232,232)
                      left: 210px
                      margin: 0
                      padding: 0
                      position: absolute
                      top: 403px
                      width: 100px
                  slots:
                    default:
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            white-space: nowrap
                          text: =items.SunSynk_inv_Total_Power_175.state
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            white-space: nowrap
                          text: =items.SunSynk_inv_Current_L1_164.state
                - component: f7-block
                  config:
                    style:
                      --f7-popup-tablet-height: 20px
                      --f7-popup-tablet-width: 326px
                      background-color: rgba(232,232,232)
                      border: 1px solid black
                      border-radius: 10px
                      bottom: 15px
                      height: 20px
                      left: 17px
                      margin: 0
                      padding: 0
                      position: absolute
                      width: 326px
                  slots:
                    default:
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            font-weight: 700
                            left: 10px
                            position: absolute
                            white-space: nowrap
                          text: '="MCU: "'
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            left: 45px
                            position: absolute
                            white-space: nowrap
                          text: =items.SunSynk_MCU.state
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            font-weight: 700
                            left: 95px
                            position: absolute
                            white-space: nowrap
                          text: '="COMM: "'
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            left: 143px
                            position: absolute
                            white-space: nowrap
                          text: =items.SunSynk_COMM.state
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            font-weight: 700
                            left: 185px
                            position: absolute
                            white-space: nowrap
                          text: '="Last: "'
                      - component: Label
                        config:
                          style:
                            font-size: 12px
                            left: 212px
                            position: absolute
                            white-space: nowrap
                          text: =items.SunSynk_FW_LastUpdate.displayState

and

component: oh-cell
config:
  title: ="Mains TOTAL Energy "
slots:
  background:
    - component: f7-block
      config:
        style:
          height: 25px
          margin: 0
          padding: 0
          position: absolute
          top: 12px
          width: 100%
        visible: =(screen.viewAreaWidth >= 1600)
      slots:
        default:
          - component: oh-toggle
            config:
              item: ShellyEM_MAINS_TotalEnergy_Switch
              style:
                position: absolute
                right: 5px
                top: 2px
              width: 50px
          - component: Label
            config:
              style:
                color: blue
                position: absolute
                right: 50px
                top: 2px
              text: Store
    - component: f7-block
      config:
        style:
          bottom: 36px
          height: 45px
          left: 0px
          margin: 0
          padding: 0
          position: absolute
          width: 100%
        visible: =(screen.viewAreaWidth >= 835)
      slots:
        default:
          - component: Label
            config:
              style:
                color: blue
                font-size: 13px
                left: 5px
                position: absolute
                top: 0px
              text: '="Was: " + (items.ShellyEM_Mains_TotalEnergy_PreviousMonth.state)'
          - component: Label
            config:
              style:
                color: blue
                font-size: 13px
                position: absolute
                right: 5px
                top: 0px
              text: '= "Now: " + (items.ShellyEM_MAINS_TotalEnergy.state)'
          - component: Label
            config:
              style:
                color: blue
                font-size: 13px
                left: 5px
                position: absolute
                top: 17px
              text: '="Last: " + (items.ShellyEM_MAINS_TotalEnergy_Monthly.state)'
          - component: Label
            config:
              style:
                color: blue
                font-size: 13px
                position: absolute
                right: 5px
                top: 17px
              text: '="This: " +
                (Math.round((Math.abs(Number.parseFloat(items.ShellyEM_MAINS_TotalEnergy.state))
                -
                (Number.parseFloat(items.ShellyEM_Mains_TotalEnergy_PreviousMonth.state)))
                *1000) /1000) + " kWh"'
    - component: f7-block
      config:
        bgColor: none
        style:
          bottom: 5px
          left: 0px
          margin: 0
          padding: 0
          position: absolute
          width: 100%
      slots:
        default:
          - component: oh-button
            config:
              action: variable
              actionVariable: visibleMonthlyPop
              actionVariableValue: true
              popupOpen: .month-pop-test
              style:
                height: 100%
                width: 100%
              text: OPEN
    - component: f7-popup
      config:
        class: month-pop-test
        style:
          --f7-popup-tablet-height: 720px
          --f7-popup-tablet-width: 360px
          background-color: rgb(220,220,220)
          border-radius: 30px
          height: 720px
          text-overflow: ellipsis
          width: 360px
      slots:
        default:
          - component: f7-block
            config:
              style:
                --f7-popup-tablet-height: 720px
                --f7-popup-tablet-width: 360px
                background: rgb(220,220,220)
                border-radius: 20px
                height: 720px
                margin: 0
                padding: 0
                position: absolute
                top: 0px
                width: 360px
              visible: =(vars.visibleMonthlyPop)==true
            slots:
              default:
                - component: oh-button
                  config:
                    action: variable
                    actionVariable: visibleMonthlyPop
                    actionVariableValue: false
                    clearVariable:
                      - ZZvisibleMonthlyPop
                    large: true
                    popupClose: .modal-in
                    style:
                      background: rgb(220,220,220)
                      color: white
                      display: flex
                      height: 30px
                      left: 5px
                      position: absolute
                      top: 5px
                      width: 30px
                      z-index: 999
                  slots:
                    default:
                      - component: f7-icon
                        config:
                          color: white
                          f7: clear_fill
                          style:
                            color: black
                            font-size: 20px
                            margin: auto
                - component: Label
                  config:
                    style:
                      font-size: 20px
                      font-weight: 500
                      padding-left: 35px
                      width: 100%
                      z-index: 999
                    text: Mains Consumption Comparison
                - component: f7-block
                  config:
                    style:
                      --f7-popup-tablet-height: 350px
                      --f7-popup-tablet-width: 360px
                      --my-chart-menu-size: =(device.desktop)?(1):(.5)
                      height: 350px
                      margin: 0
                      padding: 0
                      position: absolute
                      top: 20px
                      width: 360px
                    stylesheet: |
                      .menu {
                        transform: Scale(var(--my-chart-menu-size));
                      }
                  slots:
                    default:
                      - component: oh-chart
                        config:
                          chartType: month
                          label: Mains Consumption Comparison
                          period: M
                        slots:
                          dataZoom:
                            - component: oh-chart-datazoom
                              config:
                                show: true
                                type: inside
                          grid:
                            - component: oh-chart-grid
                              config:
                                includeLabels: true
                                top: 90px
                          legend:
                            - component: oh-chart-legend
                              config:
                                bottom: 5
                                type: scroll
                          series:
                            - component: oh-time-series
                              config:
                                gridIndex: 0
                                item: ShellyEM_MAINS_TotalEnergy
                                name: Current
                                type: line
                                xAxisIndex: 1
                                yAxisIndex: 0
                            - component: oh-time-series
                              config:
                                gridIndex: 0
                                item: ShellyEM_MAINS_TotalEnergy
                                name: Previous
                                offsetAmount: 1
                                offsetUnit: month
                                type: line
                                xAxisIndex: 0
                                yAxisIndex: 0
                          tooltip:
                            - component: oh-chart-tooltip
                              config:
                                confine: true
                                smartFormatter: true
                          xAxis:
                            - component: oh-time-axis
                              config:
                                gridIndex: 0
                            - component: oh-time-axis
                              config:
                                gridIndex: 0
                                verticalAlign: top
                          yAxis:
                            - component: oh-value-axis
                              config:
                                axisLabel:
                                  align: right
                                  fontSize: 9
                                  hideOverlap: true
                                  inside: false
                                  margin: 5
                                  rotate: 0
                                  show: true
                                  showMaxLabel: false
                                  showMinLabel: false
                                containLabel: true
                                gridIndex: 0
                                max: dataMax
                                min: dataMin
                                name: kWh
                                nameGap: 30
                                nameLocation: start
                                nameTextStyle:
                                  align: right
                                  color: black
                                  padding: 6
                                  verticalAlign: top
                                position: left
                - component: f7-block
                  config:
                    style:
                      --f7-popup-tablet-height: 300px
                      --f7-popup-tablet-width: 326px
                      background-color: rgba(232,232,232)
                      border: 1px solid black
                      border-radius: 10px
                      height: 300px
                      left: 17px
                      margin: 0
                      padding: 0
                      position: absolute
                      top: 360px
                      width: 326px
                  slots:
                    default:
                      - component: f7-list
                        config: {}
                        slots:
                          default:
                            - component: oh-toggle-item
                              config:
                                color: black
                                item: ShellyEM_MAINS_TotalEnergy_Switch
                                style:
                                  --f7-toggle-height: 20px
                                  --f7-toggle-width: 50px
                                  background-color: rgba(232,232,232)
                                  font-size: 13px
                                title: Store current EM Mains reading
                            - component: oh-list-item
                              config:
                                color: black
                                style:
                                  background-color: rgba(232,232,232)
                                  font-size: 13px
                                title: '= "Usage last Month: " +
                                  (items.ShellyEM_MAINS_TotalEnergy_Monthly.state)'
                            - component: oh-list-item
                              config:
                                color: black
                                style:
                                  background-color: rgba(232,232,232)
                                  font-size: 13px
                                title: '= "Last Stored: " + (items.ShellyEM_Mains_LastStored.displayState) + " -
                                  " +
                                  dayjs(items["ShellyEM_Mains_LastStored"].state).fromNow()'
                            - component: oh-list-item
                              config:
                                color: black
                                style:
                                  background-color: rgba(232,232,232)
                                  font-size: 13px
                                title: '= "Now: " + (items.ShellyEM_MAINS_TotalEnergy.state) + "     Was - " +
                                  (items.ShellyEM_Mains_TotalEnergy_PreviousMonth.state)'
                            - component: oh-list-item
                              config:
                                color: black
                                style:
                                  background-color: rgba(232,232,232)
                                  font-size: 13px
                                title: '= "Usage this Month: " +
                                  (Math.round((Math.abs(Number.parseFloat(items.ShellyEM_MAINS_TotalEnergy.state))
                                  -
                                  (Number.parseFloat(items.ShellyEM_Mains_TotalEnergy_PreviousMonth.state)))
                                  *1000) /1000) + " kWh"'

Any suggestions would be appreciated.

I was hoping that the Chart issue in the 2nd widget had been fixed (to do with period offset and previoulsy reported)

Any advise would be appreciated.

Mark

I have just upgraded from OH 4.2.0-SNAPSHOT (openHAB 5.2.0
Build #5067) to OH 4.2.0.M1 and two of my widgets no longer work.

I presume you mean 5.2.0-SNAPSHOT and 5.2.0.M1.

It looks like the issue is in the screen.viewAreaWidth calculation used for the visible property. This code was updated a while ago (early December 2025) - was your snapshot used from before then?

Lastly, what type of page is this widget instantiated on? The viewAreaWidth is update when the ā€œpageā€ changes size, there might be a page in the code we need to include the resize logic.

Yes, sorry about that - corrected in original post.

The SNAPSHOT is more recent than that I am almost 100% sure. Looking at files dates I would say around 4 Janaury 2026.

The oh-cell are called from teh Overview page.

What is weird is that some similar widgets seem to work:

I am not sure what is different about the two that do not work.

After I installed M1 all of my rules did not trigger.
So I went back to 5.1.

How are we to figure out why without any more information? Was there anything logged - what kind of rules, what language, file or managed?

Nothing in the logs, all rules (file and ui), all languages. When i push run in the ui it is working.
It was on my production system so i had to go back and did not have time to investigate further.
Maybe the rule engine did not start?
I also tried to clear cache but it did not help.

The os is armbian.

Do you have M1 installed and your rules are working?

No, not M1 particularly, but I work with the ā€œlatest codeā€ which is somewhat akin to ā€œthe latest snapshotā€, and my rules are firing in my development environment. Also, I don’t think there has been any changes that would interfere with rules triggering lately. But, if it’s in fact a general problem and not some ā€œhiccupā€ with your installation, it needs attention quickly.

I’ve been running openHAB 5.2.0.M1 for a few days and the Add On Store is not showing Community Marketplace bindings.

This has been fixed in the latest snapshots, but I’m afraid it will remain broken in M1. The forum was updated, which broke the parsing of the data extracted from the forum, which means that the parsing in OH had to be modified.

How long should I expect to wait for M2 vs using a snapshot ( :scream: )

Milestones are released once a month, usually in the second half of the month. So sometime around March 15th, give or take a week.

I’m a bit surprised as to how little attention this has gotten, all I know is that the fix was merged 4 days ago and backported 2 days ago:

The backporting is to 5.1.x and 4.3.x only I think, but there aren’t really any details available (that I’m aware of). I suggested that it should be backported to 5.0.x as well.

M1 itself cannot be modified, so it will never work. One could in theory release M1.1 or something like that, but I have no idea if that has been considered.

It is possible to get it to work by using only the org.openhab.core.addon.marketplace bundle from a snapshot together with M1, but I guess doing that falls in the ā€œexpertā€ category. Maybe if somebody figured out the URL to a working version of that bundle and posted here how to replace it, it would be viable for people to do.

It’s either that, run a snapshot, or wait for M2.

1 Like

Maybe because it was fixed so fast … :innocent:

1 Like

ā€œFixedā€ is one thing, has the fix actually reached the users?

1 Like

This is a good point. In my view, OH updates and related bug fixes are sometimes to fast and overwhelm most of the users. Also the statement, that SNAPSHOTs might be faulty and unreliable, force many users to stay with what they have, probably OH 4.3. I can understand this very good bcause i hesitated for a long time to leave OH 3.4.5 for an upgrade.

I’m still running 4.2.3 because there have been changes since then that I’m hesitant about (killing of timezones, all the back and forth with Frontail, and of course forcing me to reinstall everything to upgrade to 64-bit OS if I want to use 5.x). If there was less ā€œdeprecationsā€ and other removal of functionality, I would be quicker to upgrade, but there aren’t, which creates obstacles. I might be the only one that feels this way, but my impression is that I’m not exactly alone in still running 4.x. My 4.2.3 installation will have the marketplace permanently broken now, because it won’t see a backport.

We don’t do patch releases for previous minor releases, i.e. 5.1.x will not receive further patches. 4.3.x will receive further patches as it is from a different major series.

Probably we can do M2 two weeks earlier, I might propose this to the other maintainers.

I can understand that all major and minor upgraded can be overwhelming, but bug fix/patch release contain no breaking changes, no new features, only bug fixes. They should be no brainers to upgrade to.
