Super @vzorglub and @rotulet!
Thanks to both of you for the fast fix!
Kurt
Dumb question.
Do I need to do anything special to run the python scripts? If I put them in the scripts folder, is that sufficient or do they need to be executed?
See post #1
I’ve now got it running using your code, vzorglub and all looking good, except the actual graphics don’t update in HabPanel. Only if I delete the widget and add it again will it update to show the correct sun position.
I’m using this in the widget template:
<object data="/static/matrix-theme/shaddow.svg?{{itemValue('Sun_Elevation')}}" type="image/svg+xml"></object>
Logs show that Sun_Elevation and Sun_Azimuth are all updating every 300 seconds. Any ideas why it won’t update?
Are you sure that your svg file is saved in /html/matrix-theme ?
If yes, then I have no idea. Not good with html and web dev.
Yeah, it’s being created there each time. It looks great, just not changing. Mmm…
Which code are you using,
from what post number?
Sorry, I’m using the original code (on top/first post).
(I tried the astral version but it failed saying “astral.AstralError: Sun never reaches 6 degrees below the horizon, at this location”. Apparently I live too far north?)
Where do you live if I may ask?
In Norway, in the northern parts
Nice,
Now the original script uses persistence to draw the circles so the whole set-up needs to run for a full 24 hours from midnight to midnight before the persistence can pick up all the values needed to draw the circles.
Let it run for 48 hours and you should be good.
Ah! Thanks!
@pmpkk Can you please share this widget that has energy cost, gas usage etc? It looks fantastic.
I got errors when i run the script:
File “/etc/openhab2/scripts/shaddow.py”, line 5, in
from myopenhab import openhab
File “/etc/openhab2/scripts/myopenhab.py”, line 3, in
import requests
ImportError: No module named requests
Anyone can help?
You need to download the myopenhab.py script and put it in the same folder as shaddow.py for your fisrt issue
For the second, you need to run:
pip install requests from the console
Hi Guys, really cool!!!

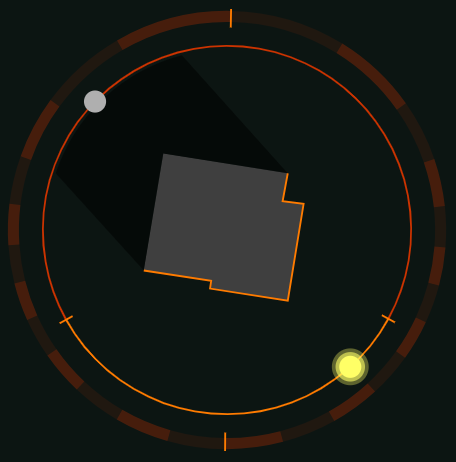

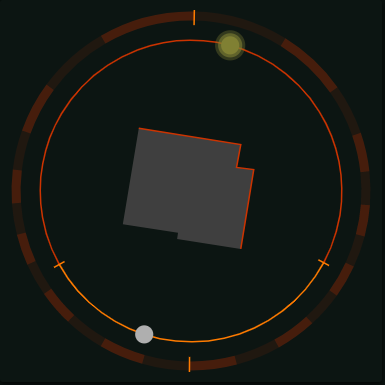

please find below orange version (with brighter sun during the day) and moon.
code here.
import math
import time
from datetime import datetime, timedelta, date
import sys
from myopenhab import openhab
from myopenhab import mapValues
from myopenhab import getJSONValue
WIDTH = 100
HEIGHT = 100
PRIMARY_COLOR = '#cc3300'
LIGHT_COLOR = '#ff7b00'
HOUSE_COLOR = '#3f3f3f'
STROKE_WIDTH = '0.5'
SUN_COLOR = '#ffff66'
SUN_COLOR_OFF = '#808033'
SUN_RADIUS = 5
MOON_COLOR = '#afafaf'
MOON_RADIUS = 4
FILENAME = '/etc/openhab2/html/matrix-theme/shaddow.svg'
# Shape of the house in a 100 by 100 units square
SHAPE = [{'x': 32.7, 'y': 29.2}, \
{'x': 66.5, 'y': 34.6}, \
{'x': 65.1, 'y': 42.2}, \
{'x': 70.8, 'y': 42.9}, \
{'x': 66.5, 'y': 69.2}, \
{'x': 45.4, 'y': 65.9}, \
{'x': 45.7, 'y': 63.8}, \
{'x': 27.4, 'y': 61.0}]
HOURS = 1
DEGS = []
class shaddow(object):
"""
Shaddow Object
"""
def __init__(self):
self.debug = False
self.oh = openhab()
self.azimuth = float(self.oh.getState('LocalSun_Position_Azimuth'))
self.elevation = float(self.oh.getState('LocalSun_Position_Elevation'))
self.sr = self.oh.getState('LocalSun_Rise_Azimuth')
self.ss = self.oh.getState('LocalSun_Set_Azimuth')
self.sunrise_azimuth = float(self.sr) if self.sr != 'NULL' else 0
self.sunset_azimuth = float(self.ss) if self.ss != 'NULL' else 0
self.moon_azimuth = float(self.oh.getState('LocalMoon_Position_Azimuth'))
self.moon_elevation = float(self.oh.getState('LocalMoon_Position_Elevation'))
ts = time.time()
utc_offset = (datetime.fromtimestamp(ts) - datetime.utcfromtimestamp(ts)).total_seconds()/3600
for h in xrange(0,24,HOURS):
t = datetime.combine(date.today(), datetime.min.time()) + timedelta(hours=-utc_offset+h-24)
a = self.oh.getStateHistoryFromInflux('LocalSun_Position_Azimuth',t.strftime('%Y-%m-%dT%H:%M:%S') + 'Z')
if (a == None): a = 0
DEGS.extend([a])
def generatePath(self,stroke,fill,points,attrs=None):
p = ''
p = p + '<path stroke="' + stroke + '" stroke-width="' + STROKE_WIDTH + '" fill="' + fill + '" '
if (attrs != None): p = p + ' ' + attrs + ' '
p = p + ' d="'
for point in points:
if (points.index(point) == 0):
p = p + 'M' + str(point['x']) + ' ' + str(point['y'])
else:
p = p + ' L' + str(point['x']) + ' ' + str(point['y'])
p = p + '" />'
return p
def generateArc(self,dist,stroke,start,end,attrs=None):
p = ''
try:
angle = end-start
if (angle<0):
angle = 360 + angle
p = p + '<path d="M' + str(self.degreesToPoint(start,dist)['x']) + ' ' + str(self.degreesToPoint(start,dist)['y']) + ' '
p = p + 'A' + str(dist) + ' ' + str(dist) + ' 0 '
if (angle<180):
p = p + '0 1 '
else:
p = p + '1 1 '
p = p + str(self.degreesToPoint(end,dist)['x']) + ' ' + str(self.degreesToPoint(end,dist)['y']) + '"'
p = p + ' stroke="' + stroke + '"'
if (attrs != None):
p = p + ' ' + attrs + ' '
else:
p = p + ' stroke-width="' + STROKE_WIDTH + '" fill="none" '
p = p + ' />'
except:
p = ''
return p
def degreesToPoint(self,d,r):
coordinates = {'x': 0, 'y': 0}
cx = WIDTH / 2
cy = HEIGHT / 2
d2 = 180 - d
coordinates['x'] = cx + math.sin(math.radians(d2))*r
coordinates['y'] = cy + math.cos(math.radians(d2))*r
return coordinates
def generateSVG(self):
realSun = self.degreesToPoint(self.azimuth, 10000)
if self.debug: print realSun
sun = self.degreesToPoint(self.azimuth, WIDTH / 2)
minPoint = -1
maxPoint = -1
i = 0
minAngle = 999
maxAngle = -999
for point in SHAPE:
#Angle of close light source
angle = -math.degrees(math.atan2(point['y']-sun['y'],point['x']-sun['x']))
#Angle of distant light source (e.g. sun)
angle = -math.degrees(math.atan2(point['y']-realSun['y'],point['x']-realSun['x']))
distance = math.sqrt(math.pow(sun['y']-point['y'],2) + math.pow(sun['x']-point['x'],2))
if (angle<minAngle):
minAngle = angle
minPoint = i
if (angle>maxAngle):
maxAngle = angle
maxPoint = i
point['angle'] = angle
point['distance'] = distance
if self.debug: print str(i).ljust(10),":", str(point['x']).ljust(10), str(point['y']).ljust(10), str(round(angle,7)).ljust(10), str(round(distance)).ljust(10)
i = i + 1
if self.debug:
print "Min Point = ",minPoint
print "Max Point = ",maxPoint
print ""
i = minPoint
k = 0
side1Distance = 0
side2Distance = 0
side1Done = False
side2Done = False
side1 = []
side2 = []
while True:
if (side1Done == False):
side1Distance = side1Distance + SHAPE[i]['distance']
if(i != minPoint and i != maxPoint): SHAPE[i]['side'] = 1
if (i == maxPoint): side1Done = True
side1.append( { 'x': SHAPE[i]['x'], 'y': SHAPE[i]['y'] } )
if (side1Done == True):
side2Distance = side2Distance + SHAPE[i]['distance']
if(i != minPoint and i != maxPoint): SHAPE[i]['side'] = 2
if (i == minPoint): side2Done = True
side2.append( { 'x': SHAPE[i]['x'], 'y': SHAPE[i]['y'] } )
i = i + 1
if( i > len(SHAPE)-1): i = 0
if (side1Done and side2Done): break
k = k + 1
if (k == 20): break
svg = '<?xml version="1.0" encoding="utf-8"?>'
svg = svg + '<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">'
svg = svg + '<svg version="1.1" id="Layer_1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" x="0px" y="0px" viewBox="-10 -10 120 120" xml:space="preserve">'
minPointShaddowX = SHAPE[minPoint]['x'] + WIDTH * math.cos(math.radians(minAngle))
minPointShaddowY = SHAPE[minPoint]['y'] - HEIGHT * math.sin(math.radians(minAngle))
maxPointShaddowX = SHAPE[maxPoint]['x'] + WIDTH * math.cos(math.radians(maxAngle))
maxPointShaddowY = SHAPE[maxPoint]['y'] - HEIGHT * math.sin(math.radians(maxAngle))
shaddow = [ {'x': maxPointShaddowX, 'y': maxPointShaddowY } ] + \
side2 + \
[ {'x': minPointShaddowX, 'y': minPointShaddowY } ]
svg = svg + '<defs><mask id="shaddowMask">'
svg = svg + ' <rect width="100%" height="100%" fill="black"/>'
svg = svg + ' <circle cx="' + str(WIDTH/2) + '" cy="' + str(HEIGHT/2) + '" r="' + str(WIDTH/2-1) + '" fill="white"/>'
svg = svg + '</mask></defs>'
svg = svg + self.generatePath('none',HOUSE_COLOR,SHAPE)
shaddow_svg = self.generatePath('none','black',shaddow,'mask="url(#shaddowMask)" fill-opacity="0.5"')
if (self.elevation>0):
svg = svg + self.generatePath(LIGHT_COLOR,'none',side1)
else:
svg = svg + self.generatePath(PRIMARY_COLOR,'none',side1)
if (self.elevation>0): svg = svg + shaddow_svg
svg = svg + self.generateArc(WIDTH/2,PRIMARY_COLOR,self.sunset_azimuth,self.sunrise_azimuth)
svg = svg + self.generateArc(WIDTH/2,LIGHT_COLOR,self.sunrise_azimuth,self.sunset_azimuth)
svg = svg + self.generatePath(LIGHT_COLOR,'none',[self.degreesToPoint(self.sunrise_azimuth,WIDTH/2-2), self.degreesToPoint(self.sunrise_azimuth,WIDTH/2+2)])
svg = svg + self.generatePath(LIGHT_COLOR,'none',[self.degreesToPoint(self.sunset_azimuth,WIDTH/2-2), self.degreesToPoint(self.sunset_azimuth,WIDTH/2+2)])
for i in range(0,len(DEGS)):
if (i == len(DEGS)-1):
j = 0
else:
j = i + 1
if (i % 2 == 0):
svg = svg + self.generateArc(WIDTH/2+8,PRIMARY_COLOR,DEGS[i],DEGS[j],'stroke-width="3" fill="none" stroke-opacity="0.1"')
else:
svg = svg + self.generateArc(WIDTH/2+8,PRIMARY_COLOR,DEGS[i],DEGS[j],'stroke-width="3" fill="none" stroke-opacity="0.3"')
svg = svg + self.generatePath(LIGHT_COLOR,'none',[self.degreesToPoint(DEGS[0],WIDTH/2+5), self.degreesToPoint(DEGS[0],WIDTH/2+11)])
svg = svg + self.generatePath(LIGHT_COLOR,'none',[self.degreesToPoint(DEGS[(len(DEGS))/2],WIDTH/2+5), self.degreesToPoint(DEGS[(len(DEGS))/2],WIDTH/2+11)])
# sun
#svg = svg + '<circle cx="' + str(sun['x']) + '" cy="' + str(sun['y']) + '" r="3" stroke="' + LIGHT_COLOR + '" stroke-width="' + STROKE_WIDTH + '" fill="' + LIGHT_COLOR + '" />'
if (self.elevation>0):
sun_c = SUN_COLOR
else:
sun_c = SUN_COLOR_OFF
svg = svg + '<circle cx="' + str(sun['x']) + '" cy="' + str(sun['y']) + '" r="' + str(SUN_RADIUS) + '" stroke="none" stroke-width="0" fill="' + sun_c + '55" />'
svg = svg + '<circle cx="' + str(sun['x']) + '" cy="' + str(sun['y']) + '" r="' + str(SUN_RADIUS -1) + '" stroke="none" stroke-width="0" fill="' + sun_c + '99" />'
svg = svg + '<circle cx="' + str(sun['x']) + '" cy="' + str(sun['y']) + '" r="' + str(SUN_RADIUS -2) + '" stroke="' + sun_c + '" stroke-width="0" fill="' + sun_c + '" />'
# moon
moon = self.degreesToPoint(self.moon_azimuth, WIDTH / 2)
svg = svg + '<circle cx="' + str(moon['x']) + '" cy="' + str(moon['y']) + '" r="' + str(MOON_RADIUS -1) + '" stroke="' + MOON_COLOR + '" stroke-width="0" fill="' + MOON_COLOR + '" />'
svg = svg + '</svg>'
if self.debug: print svg
f = open(FILENAME, 'w')
f.write(svg)
f.close()
def main():
t1 = time.time()
s = shaddow()
args = sys.argv
if(len(args) == 1):
print '\033[91mNo parameters specified\033[0;0m'
else:
if(args[1] == "update"):
s.generateSVG()
t2 = time.time()
print "Done in " + str(t2-t1) + " seconds"
if __name__ == '__main__':
main()
What do you mean by brighter sun during the day?
It does that already. I thought you implemented the sun getting brighter and dimmer in the course of the day.
