Sonoff Zigbee (SNZB) Sensors & Switches with Zigbee2MQTT

max-e-moose · July 2, 2020, 4:59pm

With the recent release of the affordable Sonoff Zigbee range, I decided to upgrade some sensors around the house from RF to Zigbee. Here is how I added them to my openHAB installation.

There are (at least) two ways to go about adding Zigbee things:

The Zigbee Binding
Using a Zigbee to MQTT bridge

I chose the second option.

Prerequisites:

This guide assumes that you already have a working MQTT Broker such as the embedded openHAB MQTT Broker Moquette or Mosquitto.

Note: This guide contains references to a Bridge to the embedded MQTT broker (mqtt:broker:bridge). Replace that with a reference to your own broker bridge, where necessary.

ZigBee Hardware

CC2531: IEEE 802.15.4 wireless MCU
SNZB-01: Wireless Switch
SNZB-02: Temperature and Humidity Sensor*
SNZB-03: Motion Sensor
SNZB-04: Wireless door/window sensor

Note: * = Not covered yet as I don’t have one.

Software

Zigbee2MQTT: Zigbee to MQTT bridge

Add-ons

JSONPath Transformation: Extracts values from a JSON string using a JsonPath expression
Map Transformation: Transforms the input by mapping it to another string.
Regex Transformation: Transforms a source string on basis of the regular expression (regex) search pattern to a defined result string

Procedure:

Prepare the CC2531

Follow the guide in the Zigbee2MQTT documentation.
Setup Zigbee2MQTT

The software can be installed in various ways that are all well documented. I chose Docker.

Add Map Transformations

reachable.js:

OPEN=ONLINE
CLOSED=OFFLINE
NULL=?

zigbee2mqtt_log_level.js:

0=DEBUG
1=INFO
2=WARNING
3=ERROR
0.0=DEBUG
1.0=INFO
2.0=WARNING
3.0=ERROR
debug=0
info=1
warn=2
error=3

zigbee2mqtt_log_type.js:

pairing=PAIRING
device_connected=DEVICE CONNECTED
device_ban=DEVICE BAN
device_ban_failed=DEVICE BAN FAILED
device_announced=DEVICE ANNOUNCED
device_removed=DEVICE REMOVE
device_removed_failed=DEVICE REMOVE FAILED
device_force_removed=DEVICE FORCE REMOVE
device_force_removed_failed=DEVICE FORCE REMOVE FAILED
device_banned=DEVICE BANNED
device_whitelisted=DEVICE WHITELISTED
device_renamed=DEVICE RENAMED
group_renamed=GROUP RENAMED
group_added=GROUP ADDED
group_removed=GROUP REMOVED
device_bind=DEVICE BOUND
device_unbind=DEVICE UNBOUND
device_group_add=DEVICE GROUP ADD
device_group_add_failed=DEVICE GROUP ADD FAILED
device_group_remove=DEVICE GROUP REMOVE
device_group_remove_failed=DEVICE GROUP REMOVE FAILED
device_group_remove_all=DEVICE GROUP REMOVE ALL
device_group_remove_all_failed=DEVICE GROUP REMOVE ALL FAILED
devices=LIST ALL DEVICES
groups=LIST ALL GROUPS
zigbee_publish_error=ZIGBEE PUBLISH ERROR
ota_update=OTA UPDATE
touchlink=TOUCHLINK

zigbee2mqtt_supported.js:

OPEN=YES
CLOSED=NO
NULL=UNKNOWN

Add Zigbee2MQTT Thing

Create a new Things file and add the following:

Thing mqtt:topic:zigbee2mqtt "Zigbee 2 MQTT" (mqtt:broker:bridge) {
    Channels:
        Type contact : state       "State"              [ stateTopic="zigbee2mqtt/bridge/state", off="offline", on="online"]
        Type string : version      "Version"            [ stateTopic="zigbee2mqtt/bridge/config", transformationPattern="JSONPATH:$.version"]
        Type string : commit       "Commit"             [ stateTopic="zigbee2mqtt/bridge/config", transformationPattern="JSONPATH:$.commit"]
        Type string : type         "Type"               [ stateTopic="zigbee2mqtt/bridge/config", transformationPattern="REGEX:(.*type.*)∩JSONPATH:$.coordinator.type"]
        Type string : transportrev "Transport Revision" [ stateTopic="zigbee2mqtt/bridge/config", transformationPattern="REGEX:(.*meta.*)∩JSONPATH:$.coordinator.meta.transportrev"]
        Type string : product      "Product"            [ stateTopic="zigbee2mqtt/bridge/config", transformationPattern="REGEX:(.*meta.*)∩JSONPATH:$.coordinator.meta.product"]
        Type string : majorrel     "Major Release"      [ stateTopic="zigbee2mqtt/bridge/config", transformationPattern="REGEX:(.*meta.*)∩JSONPATH:$.coordinator.meta.majorrel"]
        Type string : minorrel     "Minor Release"      [ stateTopic="zigbee2mqtt/bridge/config", transformationPattern="REGEX:(.*meta.*)∩JSONPATH:$.coordinator.meta.minorrel"]
        Type string : maintrel     "Main Release"       [ stateTopic="zigbee2mqtt/bridge/config", transformationPattern="REGEX:(.*meta.*)∩JSONPATH:$.coordinator.meta.maintrel"]
        Type string : revision     "Revision"           [ stateTopic="zigbee2mqtt/bridge/config", transformationPattern="REGEX:(.*meta.*)∩JSONPATH:$.coordinator.meta.revision"]
        Type number : log          "Log Level"          [ stateTopic="zigbee2mqtt/bridge/config", commandTopic="zigbee2mqtt/bridge/config/log_level", transformationPattern="REGEX:(.*log_level.*)∩JSONPATH:$.log_level"]
        Type switch : permit       "Permit Join"        [ stateTopic="zigbee2mqtt/bridge/config", commandTopic="zigbee2mqtt/bridge/config/permit_join", transformationPattern="REGEX:(.*permit_join.*)∩JSONPATH:$.permit_join", off="false", on="true"]
        Type string : logtype      "Log type"           [ stateTopic="zigbee2mqtt/bridge/log", transformationPattern="JSONPATH:$.type"]
        Type string : message      "Message"            [ stateTopic="zigbee2mqtt/bridge/log", transformationPattern="JSONPATH:$.message"]
        Type string : friendlyname "Friendly name"      [ stateTopic="zigbee2mqtt/bridge/log", transformationPattern="REGEX:(.*friendly_name.*)∩JSONPATH:$.meta.friendly_name"]
        Type string : model        "Model"              [ stateTopic="zigbee2mqtt/bridge/log", transformationPattern="REGEX:(.*model.*)∩JSONPATH:$.meta.model"]
        Type string : vendor       "Vendor"             [ stateTopic="zigbee2mqtt/bridge/log", transformationPattern="REGEX:(.*vendor.*)∩JSONPATH:$.meta.vendor"]
        Type string : description  "Description"        [ stateTopic="zigbee2mqtt/bridge/log", transformationPattern="REGEX:(.*description.*)∩JSONPATH:$.meta.description"]
        Type contact : supported   "Supported"          [ stateTopic="zigbee2mqtt/bridge/log", transformationPattern="REGEX:(.*supported.*)∩JSONPATH:$.meta.supported", off="false", on="true"]
}

Add Zigbee2MQTT Item

Put this in an Items file:

Group  Zigbee_2_MQTT "Zigbee2MQTT"    <zigbee2mqtt>     (ZigbeeBridges)
Contact Zigbee_2_MQTT_State       "State: [MAP(reachable.map):%s]" <contactable> (Zigbee_2_MQTT) { channel="mqtt:topic:zigbee2mqtt:state" }
String  Zigbee_2_MQTT_Version     "Version: [%s]"                  <zigbee2mqtt> (Zigbee_2_MQTT) { channel="mqtt:topic:zigbee2mqtt:version" }
String  Zigbee_2_MQTT_Commit      "Commit: [%s]"                   <zigbee2mqtt> (Zigbee_2_MQTT) { channel="mqtt:topic:zigbee2mqtt:commit" }
String  Zigbee_2_MQTT_Type        "Type: [%s]"                     <zigbee2mqtt> (Zigbee_2_MQTT) { channel="mqtt:topic:zigbee2mqtt:type" }
String  Zigbee_2_MQTT_Transport   "Transport rev: [%s]"            <zigbee2mqtt> (Zigbee_2_MQTT) { channel="mqtt:topic:zigbee2mqtt:transportrev" }
String  Zigbee_2_MQTT_Product     "Product: [%s]"                  <zigbee2mqtt> (Zigbee_2_MQTT) { channel="mqtt:topic:zigbee2mqtt:product" }
String  Zigbee_2_MQTT_Major_Rel   "Major rel: [%s]"                <zigbee2mqtt> (Zigbee_2_MQTT) { channel="mqtt:topic:zigbee2mqtt:majorrel" }
String  Zigbee_2_MQTT_Minor_Rel   "Minor rel: [%s]"                <zigbee2mqtt> (Zigbee_2_MQTT) { channel="mqtt:topic:zigbee2mqtt:minorrel" }
String  Zigbee_2_MQTT_Main_Rel    "Main rel: [%s]"                 <zigbee2mqtt> (Zigbee_2_MQTT) { channel="mqtt:topic:zigbee2mqtt:maintrel" }
String  Zigbee_2_MQTT_Revision    "Revision: [%s]"                 <zigbee2mqtt> (Zigbee_2_MQTT) { channel="mqtt:topic:zigbee2mqtt:revision" }
Switch  Zigbee_2_MQTT_Permit_Join "Permit Join: []"                <zigbee2mqtt> (Zigbee_2_MQTT) { channel="mqtt:topic:zigbee2mqtt:permit" }

Group  Zigbee_2_MQTT_Logs "Zigbee2MQTT Logs" <text> (Zigbee_2_MQTT)
Number  Zigbee_2_MQTT_Log_Level   "Log level: [MAP(zigbee2mqtt_log_level.map):%s]" <text> (Zigbee_2_MQTT_Logs) { channel="mqtt:topic:zigbee2mqtt:log" }
String  Zigbee_2_MQTT_Log_Type    "Log type: [MAP(zigbee2mqtt_log_type.map):%s]"   <text> (Zigbee_2_MQTT_Logs) { channel="mqtt:topic:zigbee2mqtt:logtype" }
String  Zigbee_2_MQTT_Log_Message "Log message: [%s]"                              <text> (Zigbee_2_MQTT_Logs) { channel="mqtt:topic:zigbee2mqtt:message" }
String  Zigbee_2_MQTT_Friendly    "Friendly name: [%s]"                            <text> (Zigbee_2_MQTT_Logs) { channel="mqtt:topic:zigbee2mqtt:friendlyname" }
String  Zigbee_2_MQTT_Model       "Model: [%s]"                                    <text> (Zigbee_2_MQTT_Logs) { channel="mqtt:topic:zigbee2mqtt:model" }
String  Zigbee_2_MQTT_Vendor      "Vendor: [%s]"                                   <text> (Zigbee_2_MQTT_Logs) { channel="mqtt:topic:zigbee2mqtt:vendor" }
String  Zigbee_2_MQTT_Description "Description: [%s]"                              <text> (Zigbee_2_MQTT_Logs) { channel="mqtt:topic:zigbee2mqtt:description" }
Contact Zigbee_2_MQTT_Supported   "Supported: [MAP(zigbee2mqtt_supported.map)%s]"  <text> (Zigbee_2_MQTT_Logs) { channel="mqtt:topic:zigbee2mqtt:supported" }

Discover Zigbee Things and IDs

I refer you to the Zigbee2MQTT documentation (last time, swear )

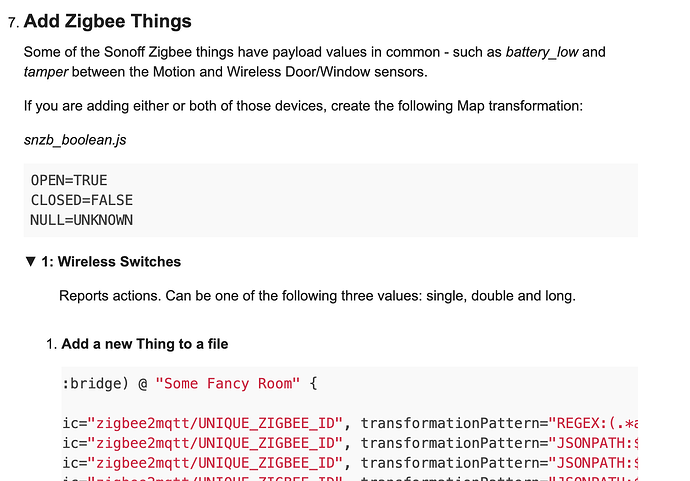

Add Zigbee Things

Some of the Sonoff Zigbee things have payload values in common - such as battery_low and tamper between the Motion and Wireless Door/Window sensors.

If you are adding either or both of those devices, create the following Map transformation:

snzb_boolean.js

OPEN=TRUE
CLOSED=FALSE
NULL=UNKNOWN

1: Wireless Switches

Reports actions. Can be one of the following three values: single, double and long.

Add a new Thing to a file

Thing mqtt:topic:snzb01a "My Awesome Button" (mqtt:broker:bridge) @ "Some Fancy Room" {
   Channels:
     Type string : action       "Action"       [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="REGEX:(.*action.*)∩JSONPATH:$.action"]
     Type number : linkquality  "Link Quality" [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="JSONPATH:$.linkquality"]
     Type number : battery      "Battery"      [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="JSONPATH:$.battery"]
     Type number : voltage      "Voltage"      [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="JSONPATH:$.voltage"]
}

Add a new Item to a file

Group ZigbeeButtonActions "Zigbee Buttons" <button>

Group  SNZB_01_1_Button "My Awesome Button" <sonoff_snzb01> (GF_SomeRoom, Sonoff_SNZB_01)
String  SNZB_01_1_Button_Action  "Action: [%s]"      <none> (SNZB_01_1_Button, ZigbeeButtonActions) { channel="mqtt:topic:snzb01a:action" }
Number  SNZB_01_1_Button_Link    "Link quality [%d]" <none> (SNZB_01_1_Button)                      { channel="mqtt:topic:snzb01a:linkquality" }
Number  SNZB_01_1_Button_Battery "Battery [%d]"      <none> (SNZB_01_1_Button)                      { channel="mqtt:topic:snzb01a:battery" }
Number  SNZB_01_1_Button_Voltage "Voltage [%d]"      <none> (SNZB_01_1_Button)                      { channel="mqtt:topic:snzb01a:voltage" }

Create a Rule

val String filename = "my_super_cool_zigbee_rule_file.rules"

rule "Zigbee button received update"
when
   Member of ZigbeeButtonActions received update
then
   logInfo(filename, "Zigbee button received update: {}", triggeringItem.name)
   switch (triggeringItem) {
      case SNZB_01_1_Button_Action: {
         switch (triggeringItem.state) {
            case 'single': {
               // Do stuff
            }
            case 'double': {
               // Do other stuff
            }
            case 'long': {
               // Do super secret stuff
            }
         }
      }
   }
end

2: Temperature and Humidity Sensors

Not covered yet.

Add a new Thing to a file
Add a new Item to a file
Create a Rule

3: Motion Sensors

Reports occupancy.

Create Map Transformations
snzb03_occupancy.js
```
OPEN=OCCUPIED
CLOSED=IDLE
NULL=UNKNOWN
```

Add a new Thing to a file

Thing mqtt:topic:snzb03a "Important Motion Sensor" (mqtt:broker:bridge) @ "Important Room" {
   Channels:
     Type contact : occupancy   "Occupancy"    [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="REGEX:(.*occupancy.*)∩JS:snzb03_occupancy.js"]
     Type contact : tamper      "Tamper"       [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="REGEX:(.*tamper.*)∩JS:tamper.js"]
     Type contact : battery_low "Battery Low"  [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="REGEX:(.*battery_low.*)∩JS:battery_low.js"]
     Type number : linkquality  "Link Quality" [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="JSONPATH:$.linkquality"]
     Type number : battery      "Battery"      [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="JSONPATH:$.battery"]
     Type number : voltage      "Voltage"      [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="JSONPATH:$.voltage"]
}

Add a new Item to a file:

Group MotionSensors "Motion Sensors" <motion>

Group  SNZB_03_1_Motion_Sensor "Important Room Motion Sensor" <sonoff_snzb03> (GF_ImportantRoom, Sonoff_SNZB_03)
Contact SNZB_03_1_Motion_Sensor_Occupancy   "Important Room [MAP(snzb03_occupancy.map):%s]" <motion> (SNZB_03_1_Motion_Sensor, MotionSensors) { channel="mqtt:topic:snzb03a:occupancy" }
Contact SNZB_03_1_Motion_Sensor_Tamper      "Tamper [MAP(snzb_boolean.map):%s]"              <none>   (SNZB_03_1_Motion_Sensor)                { channel="mqtt:topic:snzb03a:tamper" }
Contact SNZB_03_1_Motion_Sensor_Battery_Low "Battery low [MAP(snzb_boolean.map):%s]"    <none>   (SNZB_03_1_Motion_Sensor)                { channel="mqtt:topic:snzb03a:battery_low" }
Number  SNZB_03_1_Motion_Sensor_Link        "Link quality [%d]"                             <none>   (SNZB_03_1_Motion_Sensor)                { channel="mqtt:topic:snzb03a:linkquality" }
Number  SNZB_03_1_Motion_Sensor_Battery     "Battery [%d]"                                  <none>   (SNZB_03_1_Motion_Sensor)                { channel="mqtt:topic:snzb03a:battery" }
Number  SNZB_03_1_Motion_Sensor_Voltage     "Voltage [%d]"                                  <none>   (SNZB_03_1_Motion_Sensor)                { channel="mqtt:topic:snzb03a:voltage" }

Create a new Rule:

val String filename = "best_rule_file_ever.rules"

rule "Motion sensor status"
when
   Member of MotionSensors changed
then
   logInfo(filename, triggeringItem.name + ": " + triggeringItem.state)

   switch (triggeringItem.state) {
      case OPEN: {
         switch (triggeringItem) {
            case SNZB_03_1_Motion_Sensor_Occupancy: {
               // Motion detected, let the dogs loose!
            }
         }
      }
      case CLOSED: {
         switch (triggeringItem) {
            case SNZB_03_1_Motion_Sensor_Occupancy: {
               // No more motion detected
            }
         }
      }
   }
end

4: Wireless Door/Window Sensors

Reports contact.

Add a new Thing to a file

Thing mqtt:topic:snzb04a "Hidden Door Contact Sensor" (mqtt:broker:bridge) @ "Hidden Room" {
   Channels:
      Type contact : sensor      "Contact"      [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="REGEX:(.*contact.*)∩JSONPATH:$.contact", on="false", off="true"]
      Type contact : tamper      "Tamper"       [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="REGEX:(.*tamper.*)∩JSONPATH:$.tamper", on="true", off="false"]
      Type contact : battery_low "Battery Low"  [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="REGEX:(.*battery_low.*)∩JSONPATH:$.battery_low", on="true", off="false"]
      Type number : linkquality  "Link Quality" [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="JSONPATH:$.linkquality"]
      Type number : battery      "Battery"      [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="JSONPATH:$.battery"]
      Type number : voltage      "Voltage"      [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="JSONPATH:$.voltage"]
}

Add a new Item to a file

Group DoorSensors   "Door Sensors"   <door>

Group  SNZB_04_1_Contact_Sensor "Hidden Door Contact Sensor" <sonoff_snzb04> (GF_HiddenRoom, Sonoff_SNZB_04)
Contact SNZB_04_1_Contact_Sensor_Contact     "Contact: [%s]"                              <door> (SNZB_04_1_Contact_Sensor, DoorSensors) { channel="mqtt:topic:snzb04a:sensor" }
Contact SNZB_04_1_Contact_Sensor_Tamper      "Tamper [MAP(snzb_boolean.map):%s]"           <none> (SNZB_04_1_Contact_Sensor)              { channel="mqtt:topic:snzb04a:tamper" }
Contact SNZB_04_1_Contact_Sensor_Battery_Low "Battery low [MAP(snzb_boolean.map):%s]" <none> (SNZB_04_1_Contact_Sensor)              { channel="mqtt:topic:snzb04a:battery_low" }
Number  SNZB_04_1_Contact_Sensor_Link        "Link quality [%d]"                          <none> (SNZB_04_1_Contact_Sensor)              { channel="mqtt:topic:snzb04a:linkquality" }
Number  SNZB_04_1_Contact_Sensor_Battery     "Battery [%d]"                               <none> (SNZB_04_1_Contact_Sensor)              { channel="mqtt:topic:snzb04a:battery" }
Number  SNZB_04_1_Contact_Sensor_Voltage     "Voltage [%d]"                               <none> (SNZB_04_1_Contact_Sensor)              { channel="mqtt:topic:snzb04a:voltage" }

Create a Rule

val String filename = "doors_and_windows_and_tings.rules"

rule "Door sensor status"
when
    Member of DoorSensors changed
then
    logInfo(filename, triggeringItem.name + ": " + triggeringItem.state)

    switch (triggeringItem.state) {
       case OPEN: {
           switch (triggeringItem) {
               case SNZB_04_1_Contact_Sensor_Contact: {
                  // The ***ting door is open!
               }
           }
       }
       case CLOSED: {
           switch (triggeringItem) {
               case SNZB_04_1_Contact_Sensor_Contact: {
                  // Closed now
               }
           }
       }
   }
end

Done.

hafniumzinc · July 2, 2020, 5:13pm

Thanks for this, looks great!

You can do at least this one, and probably a few more directly in the channel without the JS transformation:

max-e-moose · July 2, 2020, 6:10pm

Cheers!

Will have to re-evaluate the JS transformations as they are probably not all necessary, I know the contact sensor one is useful though as it flips the OPEN = True mapping to the opposite of the rest. They helped me get through implementation without errors so I included them here.

Bring on the improvements though. Let’s trim-the-fat/shed-some-weight/less-is-more this approach!

hafniumzinc · July 2, 2020, 6:40pm

I hear you - I went on the same journey recently with WLED stuff!

I think you can trim this down very easily already. For example, on your motion sensor, you could get rid of all the JS transforms by changing your things file as follows:

Type contact : occupancy   "Occupancy"    [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="JSONPATH:$.data.occupancy", on="true", off="false"]
Type contact : tamper      "Tamper"       [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="JSONPATH:$.data.tamper", on="true", off="false"]
Type contact : battery_low "Battery Low"  [ stateTopic="zigbee2mqtt/UNIQUE_ZIGBEE_ID", transformationPattern="JSONPATH:$.data.battery_low", on="true", off="false"]

The above will use the JSONPATH transform to extract the required values, then map true and false to on and off (which for a contact channel actually means true and false will map to open and closed). If you want to switch it, you can map on="false" and off="true"…

(I’ve made an assumption here on what the device actually returns on these topics, so you may need to tweak)

max-e-moose · July 4, 2020, 5:43pm

Good idea. Done! Replaced with a few simple maps. Much cleaner now.

Also improved my Zigbee2MQTT item by leaning on what I picked up from your post on the topic. Muchas gracias

wars · August 10, 2020, 11:11pm

I have this setup in place, but the range is not that good. Sonoff also released a ZigBee bridge which can be flashed with Tasmota. I saw some tutorials to connect it directly with home assistant through their ZigBee binding. Is this also possible with the Openhab ZigBee binding?
Connecting everything via mqtt is possible, but it can be easier

Goncalo_Santos · November 23, 2020, 6:17pm

Hey there,
I know you decided to go the MQTT way, but was wondering if anyone has any idea if it will just work with Zigbee Binding directly!
I’m thinking of buying some of those, but would be nice if someone had a positive experience already.

David_Chang · December 12, 2020, 3:55pm

Yes, I was able to get SONOFF SNZB-03 motion sensor working with standard ZigBee binding directly. The key to discovering is to change the ZigBee USB stick channel to 15. See this thread. I believe it is a ZigBee 3.0 strangeness. (Zigbee 3.0 Installation Code )

betahydri · February 12, 2021, 10:27am

I’m not able to get the SNZB-02 temperature/humidity sensor to work. I was able to join the device, but the sensor doesn’t send any data.

“date_code” : “20201026”,
“definition” : {
“description” : “Temperature and humidity sensor”,
“exposes” : [ {
“access” : 1,
“description” : “Remaining battery in %”,
“name” : “battery”,
“property” : “battery”,
“type” : “numeric”,
“unit” : “%”,
“value_max” : 100,
“value_min” : 0
}, {
“access” : 1,
“description” : “Measured temperature value”,
“name” : “temperature”,
“property” : “temperature”,
“type” : “numeric”,
“unit” : “°C”
}, {
“access” : 1,
“description” : “Measured relative humidity”,
“name” : “humidity”,
“property” : “humidity”,
“type” : “numeric”,
“unit” : “%”
}, {
“access” : 1,
“description” : “Link quality (signal strength)”,
“name” : “linkquality”,
“property” : “linkquality”,
“type” : “numeric”,
“unit” : “lqi”,
“value_max” : 255,
“value_min” : 0
} ],
“model” : “SNZB-02”,
“vendor” : “SONOFF”
},
“endpoints” : {
“1” : {
“bindings” : [ {
“cluster” : “msTemperatureMeasurement”,
“target” : {
“endpoint” : 1,
“ieee_address” : “0x00124b0018e1aba5”,
“type” : “endpoint”
}
}, {
“cluster” : “msRelativeHumidity”,
“target” : {
“endpoint” : 1,
“ieee_address” : “0x00124b0018e1aba5”,
“type” : “endpoint”
}
}, {
“cluster” : “genPowerCfg”,
“target” : {
“endpoint” : 1,
“ieee_address” : “0x00124b0018e1aba5”,
“type” : “endpoint”
}
} ],
“clusters” : {
“input” : [ “genBasic”, “genIdentify”, “msTemperatureMeasurement”, “msRelativeHumidity”, “genPowerCfg” ],
“output” : [ “genIdentify” ]
},
“configured_reportings” : [ {
“attribute” : “measuredValue”,
“cluster” : “msTemperatureMeasurement”,
“maximum_report_interval” : 1800,
“minimum_report_interval” : 5,
“reportable_change” : 50
}, {
“attribute” : “measuredValue”,
“cluster” : “msRelativeHumidity”,
“maximum_report_interval” : 3600,
“minimum_report_interval” : 10,
“reportable_change” : 100
}, {
“attribute” : “batteryVoltage”,
“cluster” : “genPowerCfg”,
“maximum_report_interval” : 62000,
“minimum_report_interval” : 3600,
“reportable_change” : 0
} ]
}
},
“friendly_name” : “TH01_SENSOR1”,
“ieee_address” : “0x00124b002268578f”,
“interview_completed” : true,
“interviewing” : false,
“model_id” : “TH01”,
“network_address” : 32103,
“power_source” : “Battery”,
“supported” : true,
“type” : “EndDevice”

With the SONOFF SNZB-03 Motion Sensor there was no problems it instantly begin to publish its data to my ZigBee2Mqtt bridge.

info 2021-02-12 11:12:41: MQTT publish: topic ‘zigbee2mqtt/MS01-MOTION1/occupancy’, payload ‘true’
info 2021-02-12 11:12:41: MQTT publish: topic ‘zigbee2mqtt/MS01-MOTION1/tamper’, payload ‘false’
info 2021-02-12 11:12:41: MQTT publish: topic ‘zigbee2mqtt/MS01-MOTION1/battery_low’, payload ‘false’
info 2021-02-12 11:12:41: MQTT publish: topic ‘zigbee2mqtt/MS01-MOTION1/linkquality’, payload ‘47’
info 2021-02-12 11:13:41: MQTT publish: topic ‘zigbee2mqtt/MS01-MOTION1/occupancy’, payload ‘false’
info 2021-02-12 11:13:41: MQTT publish: topic ‘zigbee2mqtt/MS01-MOTION1/tamper’, payload ‘false’
info 2021-02-12 11:13:41: MQTT publish: topic ‘zigbee2mqtt/MS01-MOTION1/battery_low’, payload ‘false’
info 2021-02-12 11:13:41: MQTT publish: topic ‘zigbee2mqtt/MS01-MOTION1/linkquality’, payload ‘47’

Dibbler42 · February 12, 2021, 11:53am

1.) Is it paired corretly with the Zigbee bridge?

2.) Have you checked with a mqtt Client

3.) is your openhab Configuration right

4.) Did you read that

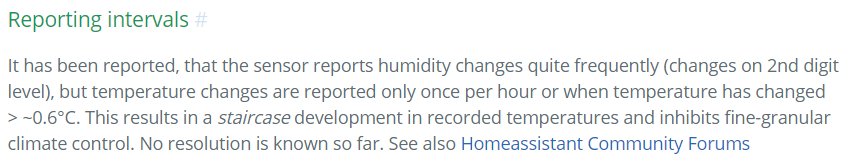

betahydri · February 12, 2021, 5:44pm

The solution was for me to switch to the DEV branch of Zigbee2Mqtt, after that sensors immediately begun to publish their data. Thanks, anyway Dibbler42.

I switched only because of the SNZB-02 sensor. All other Zigbee2Mqtt devices that I’m using were working without issues (e.g. IKEA bulbs, IKEA motion sensors and even SNZB-03 motion sensor).

Sonoff SNZB-02 issue

How to Switch to DEV branch of Zigbee2Mqtt

Taffy · February 13, 2021, 8:53pm

Have you thought about using the Sonoff Zigbee Bridge itself flashed with tasmota2mqqt?
That is how im currently receiving data from all my sensors. It takes out the need for any other binding as openhab just pick up the mqqt that the bridge outputs. Worth having a look anyway

pmknowles · April 25, 2021, 4:24am

A tip. Don’t use Contact as the Type use Switch. If you don’t put anything in the Command parameters the device becomes a read only switch (which is what it is really). Dealing with the state then becomes easier.
I think the original idea of the Contact was for an alarm sensor which in untriggered state is Closed and Open is actuated.

matt_shepherd · July 12, 2021, 1:02pm

Does anyone know how to publish a message from true and false to 1 & 0? my door contact has values of true and false but my security system only recognises 1 & 0.

cheers

freakofevil · July 25, 2021, 2:35am

Continuing the discussion from Sonoff Zigbee (SNZB) Sensors & Switches with Zigbee2MQTT:

First of all, thanks for the great tips. Without you I would never have been able to set up my Sonoff devices.

With your tips I was able to integrate the temperature sensor.

Here is my version of the working SNZB-02 setup.
I only had to adjust the motion detector setup a little bit.

temperatursensor.items

Group TemperatureSensoren "Temperatursensoren" <motion>

Group  SNZB_02_1_Temperatur_Humidity_Sensor "Important Room Motion Sensor" <sonoff_snzb02> (GF_ImportantRoom, Sonoff_SNZB_02)
Number SNZB_02_1_Temperatur_Humidity_Sensor_temperature   "Temperatur [%s]" <motion> (SNZB_02_1_Temperatur_Humidity_Sensor, TemperatureSensoren) { channel="mqtt:topic:snzb02a:temperature" }
Number SNZB_02_1_Temperatur_Humidity_Sensor_humidity      "humidity [%s]"              <none>   (SNZB_02_1_Temperatur_Humidity_Sensor)                { channel="mqtt:topic:snzb02a:humidity" }
Contact SNZB_02_1_Temperatur_Humidity_Sensor_Battery_Low "Battery low [%s]"         <none>   (SNZB_02_1_Temperatur_Humidity_Sensor)                { channel="mqtt:topic:snzb02a:battery_low" }
Number  SNZB_02_1_Temperatur_Humidity_Sensor_Link        "Link quality [%d]"                             <none>   (SNZB_02_1_Temperatur_Humidity_Sensor)                { channel="mqtt:topic:snzb02a:linkquality" }
Number  SNZB_02_1_Temperatur_Humidity_Sensor_Battery     "Battery [%d]"                                  <none>   (SNZB_02_1_Temperatur_Humidity_Sensor)                { channel="mqtt:topic:snzb02a:battery" }
Number  SNZB_02_1_Temperatur_Humidity_Sensor_Voltage     "Voltage [%d]"                                  <none>   (SNZB_02_1_Temperatur_Humidity_Sensor)                { channel="mqtt:topic:snzb02a:voltage" }

temperatursensor.things

Thing mqtt:topic:snzb02a "Temperatur Sensor" (mqtt:broker:MQTT-Broker) @ "Important Room" {
   Channels:
     Type number : temperature   "Temperature"    [ stateTopic="zigbee2mqtt/Temperatursensor_02", transformationPattern="JSONPATH:$.temperature"]
     Type number : humidity      "Humidity"       [ stateTopic="zigbee2mqtt/Temperatursensor_02", transformationPattern="JSONPATH:$.humidity"]
     Type contact : battery_low "Battery Low"  [ stateTopic="zigbee2mqtt/Temperatursensor_02", transformationPattern="JSONPATH:$.battery_low", on="true", off="false"]
     Type number : linkquality  "Link Quality" [ stateTopic="zigbee2mqtt/Temperatursensor_02", transformationPattern="JSONPATH:$.linkquality"]
     Type number : battery      "Battery"      [ stateTopic="zigbee2mqtt/Temperatursensor_02", transformationPattern="JSONPATH:$.battery"]
     Type number : voltage      "Voltage"      [ stateTopic="zigbee2mqtt/Temperatursensor_02", transformationPattern="JSONPATH:$.voltage"]
}

faximan · October 18, 2021, 3:19pm

Did some had success with SNZB-01 Wallswitch (Better Tochbutton) ?

I was able to integrate sucsessfuly the SZNB-2 Temp& Humid. Sensor SNZB-03 IR Detector also the SNZB-04 Window/Door Contacts in obenhab3 inbox over the homeassistant / zigbee2mqtt discovery …

But when i try to to link the item´s / Channels from the SNZB-01 i get a error Message
“there is no profile available for the selected item”

There is not much informations i could find…
May be it´is s the proble that these trigger sends "single, double an long an not “open” or “close” ?

May be some one have a working .thing and .item file for the SNZB-01 ?

freakofevil · October 18, 2021, 5:00pm

How do you Bind the sonoff devices?
You must use zigbee2mqtt

I tried it with the normal zigbee binding an Id did Not work

The ONLY WAY is the zigbee2mqtt binding

But if you bind it so it will work Perfect
You Can assable 3 Touch functions
Short
Double Long

Let me know If you Need More help

faximan · October 18, 2021, 6:04pm

I use zigbee2mqtt

May be you can share your config for the SNZB-01 ?

freakofevil · October 18, 2021, 7:42pm

No Problem i Post it tomorrow

faximan · October 18, 2021, 9:50pm

i have it!
the solution is in the first post… point 7…
i had to open the spoiler…

Sonoff Zigbee (SNZB) Sensors & Switches with Zigbee2MQTT

Prerequisites:

ZigBee Hardware

Software

Add-ons

Procedure:

Prepare the CC2531

Setup Zigbee2MQTT

Add Map Transformations

Add Zigbee2MQTT Thing

Add Zigbee2MQTT Item

Discover Zigbee Things and IDs

Add Zigbee Things

Add a new Thing to a file

Add a new Item to a file

Create a Rule

Add a new Thing to a file

Add a new Item to a file

Create a Rule

Create Map Transformations

Add a new Thing to a file

Add a new Item to a file:

Add a new Thing to a file

Add a new Item to a file

Create a Rule
