UI Widget for Solarman Inverter Animated

Add-on Marketplace UI Widgets
1

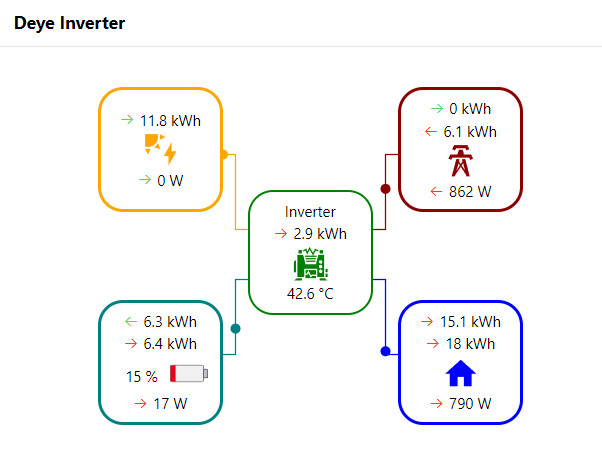

UI Widget for Solarman Inverter (I use sun-12k-sg03lp1-eu Inverter). It needs an openhab plugin for getting the data. I use Solarman Logger Binding (Release Initial release for the OpenHAB Solarman Logger Binding · catalinsanda/org.openhab.binding.solarman · GitHub), so it probably will work with a lot more inverters.
Inspired by OH3 Livio Energy Summary Animated


uid: Deye_Inverter_Widget
tags: []
props:
  parameters:
    - description: Title
      label: Title
      name: title
      required: false
      type: TEXT
    - context: item
      description: Consumption From Grid
      label: Consumption From Grid Item
      name: itemConsumptionFromGrid
      required: true
      type: TEXT
    - context: item
      description: Daily Consumption From Grid
      label: Daily Consumption From Grid Item
      name: itemDailyConsumptionFromGrid
      required: false
      type: TEXT
    - context: item
      description: Daily Production To Grid
      label: Daily Production To Grid
      name: itemDailyProductionToGrid
      required: false
      type: TEXT
    - context: item
      description: Inverter Temperature
      label: Inverter Temperature
      name: itemInverterTemperature
      required: false
      type: TEXT
    - context: item
      description: Solar Production
      label: Solar Production Item
      name: itemSolar
      required: false
      type: TEXT
    - context: item
      description: Solar Daily Production
      label: Solar Daily Production Item
      name: itemDailySolar
      required: false
      type: TEXT
    - context: item
      description: Home Consumption
      label: Home Consumption Item
      name: itemHomeConsumption
      required: false
      type: TEXT
    - context: item
      description: Daily Home Consumption
      label: Daily Home Consumption Item
      name: itemDailyHomeConsumption
      required: false
      type: TEXT
    - context: item
      description: Battery Consumption
      label: Battery Consumption Item
      name: itemBatteryConsumption
      required: false
      type: TEXT
    - context: item
      description: Daily Battery Consumption
      label: Daily Battery Consumption Item
      name: itemDailyBatteryConsumption
      required: false
      type: TEXT
    - context: item
      description: Daily Battery Charge
      label: Daily Battery Charge Item
      name: itemDailyBatteryCharge
      required: false
      type: TEXT
    - context: item
      description: Battery SOC
      label: Battery SOC Item
      name: itemBatterySOC
      required: false
      type: TEXT
  parameterGroups: []
timestamp: Dec 7, 2023, 6:37:04 PM
component: f7-card
config:
  title: = props.title
slots:
  content:
    - component: f7-block
      config:
        style:
          margin: 0
          padding: 0
      slots:
        default:
          - component: f7-block
            config:
              style:
                margin: 0
                padding: 0
                display: flex
                justify-content: center
                --f7-theme-color: var(--f7-text-color)
                --f7-block-font-size: 12px
            slots:
              default:
                - component: f7-col
                  config:
                    style:
                      display: flex
                      flex-direction: column
                      align-items: center
                  slots:
                    default:
                      - component: f7-block
                        config:
                          style:
                            height: 100px
                            width: 100px
                            border: 3px solid orange
                            border-radius: 20px
                            display: flex
                            justify-content: center
                            align-items: center
                            flex-direction: column
                        slots:
                          default:
                            - component: oh-link
                              config:
                                text: =items[props.itemDailySolar].state
                                iconF7: arrow_right
                                iconSize: 12px
                                iconColor: green
                                style:
                                  font-size: 12px
                                  white-space: nowrap
                            - component: oh-icon
                              config:
                                icon: if:mdi:solar-power
                                height: 30px
                                color: orange
                            - component: oh-link
                              config:
                                text: =items[props.itemSolar].state
                                iconF7: arrow_right
                                iconSize: 12px
                                iconColor: green
                                style:
                                  font-size: 12px
                                  white-space: nowrap
                      - component: f7-block
                        config:
                          style:
                            height: 70px
                            width: 100px
                            justify-content: center
                            align-items: center
                            flex-direction: column
                      - component: f7-block
                        config:
                          style:
                            height: 100px
                            width: 100px
                            border: 3px solid teal
                            border-radius: 20px
                            display: flex
                            justify-content: center
                            align-items: center
                            flex-direction: column
                        slots:
                          default:
                            - component: oh-link
                              config:
                                text: = items[props.itemDailyBatteryCharge].state
                                iconF7: arrow_left
                                iconSize: 12px
                                iconColor: green
                                style:
                                  font-size: 12px
                                  white-space: nowrap
                            - component: oh-link
                              config:
                                text: = items[props.itemDailyBatteryConsumption].state
                                iconF7: arrow_right
                                iconSize: 12px
                                iconColor: red
                                style:
                                  font-size: 12px
                                  white-space: nowrap
                            - component: f7-row
                              config:
                                style:
                                  display: flex
                                  align-items: center
                                  flex-direction: row
                                  height: 30px
                              slots:
                                default:
                                  - component: f7-col
                                    config:
                                      style:
                                        height: auto
                                        white-space: nowrap
                                        font-size: 12px
                                    slots:
                                      default:
                                        - component: Label
                                          config:
                                            text: =items[props.itemBatterySOC].displayState
                                  - component: f7-col
                                    config:
                                      style:
                                        height: auto
                                    slots:
                                      default:
                                        - component: oh-icon
                                          config:
                                            icon: battery
                                            state: =items[props.itemBatterySOC].displayState
                                            style:
                                              height: 30px
                                              align-item: cemter
                            - component: oh-link
                              config:
                                text: = items[props.itemBatteryConsumption].state
                                iconF7: "=(Number.parseInt(items[props.itemBatteryConsumption].state) > 0) ? 'arrow_right' : 'arrow_left'"
                                iconSize: 12px
                                iconColor: "=(Number.parseInt(items[props.itemBatteryConsumption].state) > 0) ? 'red' : 'green'"
                                style:
                                  font-size: 12px
                                  white-space: nowrap
                - component: f7-col
                  config:
                    style:
                      display: flex
                      flex-direction: column
                      align-items: center
                  slots:
                    default:
                      - component: f7-col
                        config:
                          tag: svg
                          xmlns: http://www.w3.org/2000/svg
                          viewBox: 0 0 10 150
                          preserveAspectRatio: xMidYMid slice
                          style:
                            width: 20px
                        slots:
                          default:
                            - component: f7-row
                              config:
                                tag: path
                                id: solarpath
                                d: M0,35 L5,35 L5,65 L10,65
                                stroke: orange
                                stroke-width: 1
                                vector-effect: non-scaling-stroke
                                fill: none
                            - component: f7-row
                              config:
                                tag: circle
                                r: 2
                                vector-effect: non-scaling-stroke
                                fill: orange
                                style:
                                  stroke-width: 4
                              slots:
                                default:
                                  - component: f7-row
                                    config:
                                      tag: animateMotion
                                      repeatCount: indefinite
                                      calcMode: linear
                                      keyPoints: "=(Number.parseInt(items[props.itemSolar].state) < 0) ? '1;0' : '0;1'"
                                      keyTimes: "=(Number.parseInt(items[props.itemSolar].state) < 0) ? '0;1' : '0;1'"
                                      dur: =Math.abs(1000/Number.parseInt(items[props.itemSolar].state))
                                    slots:
                                      default:
                                        - component: f7-row
                                          config:
                                            tag: mpath
                                            xlink:href: "#solarpath"
                            - component: f7-row
                              config:
                                tag: path
                                id: batterypath
                                d: M0,115 L5,115 L5,85 L10,85
                                stroke: teal
                                stroke-width: 1
                                vector-effect: non-scaling-stroke
                                fill: none
                            - component: f7-row
                              config:
                                tag: circle
                                r: 2
                                vector-effect: non-scaling-stroke
                                fill: teal
                                style:
                                  stroke-width: 4
                              slots:
                                default:
                                  - component: f7-row
                                    config:
                                      tag: animateMotion
                                      repeatCount: indefinite
                                      calcMode: linear
                                      keyPoints: "=(Number.parseInt(items[props.itemBatteryConsumption].state) < 0) ? '1;0' : '0;1'"
                                      keyTimes: "=(Number.parseInt(items[props.itemBatteryConsumption].state) < 0) ? '0;1' : '0;1'"
                                      dur: =Math.abs(1000/Number.parseInt(items[props.itemBatteryConsumption].state))
                                    slots:
                                      default:
                                        - component: f7-row
                                          config:
                                            tag: mpath
                                            xlink:href: "#batterypath"
                - component: f7-col
                  config:
                    style:
                      display: flex
                      flex-direction: column
                      align-items: center
                  slots:
                    default:
                      - component: f7-block
                        config:
                          style:
                            height: 82px
                            width: 100px
                            justify-content: center
                            align-items: center
                            flex-direction: column
                      - component: f7-block
                        config:
                          style:
                            height: 100px
                            width: 100px
                            border: 2px solid green
                            border-radius: 20px
                            display: flex
                            justify-content: center
                            align-items: center
                            flex-direction: column
                        slots:
                          default:
                            - component: Label
                              config:
                                text: Inverter
                            - component: oh-link
                              config:
                                text: =Math.round((Number.parseFloat(items[props.itemDailyConsumptionFromGrid].state) + Number.parseFloat(items[props.itemDailyProductionToGrid].state) + Number.parseFloat(items[props.itemDailyBatteryConsumption].state) - Number.parseFloat(items[props.itemDailyBatteryCharge].state) + Number.parseFloat(items[props.itemDailySolar].state) - Number.parseFloat(items[props.itemDailyHomeConsumption].state)) *100)/100 + ' kWh'
                                iconF7: arrow_right
                                iconSize: 12px
                                iconColor: red
                                style:
                                  font-size: 12px
                                  white-space: nowrap
                            - component: oh-icon
                              config:
                                icon: if:game-icons:power-generator
                                height: 30px
                                color: green
                            - component: Label
                              config:
                                text: =items[props.itemInverterTemperature].state
                                style:
                                  font-size: 12px
                                  white-space: nowrap
                - component: f7-col
                  config:
                    style:
                      display: flex
                      flex-direction: column
                      align-items: center
                  slots:
                    default:
                      - component: f7-col
                        config:
                          tag: svg
                          xmlns: http://www.w3.org/2000/svg
                          viewBox: 0 0 10 150
                          preserveAspectRatio: xMidYMid slice
                          style:
                            width: 20px
                        slots:
                          default:
                            - component: f7-row
                              config:
                                tag: path
                                id: gridpath
                                d: M10,35 L5,35 L5,65 L0,65
                                stroke: darkred
                                stroke-width: 1
                                vector-effect: non-scaling-stroke
                                fill: none
                            - component: f7-row
                              config:
                                tag: circle
                                r: 2
                                vector-effect: non-scaling-stroke
                                fill: darkred
                                style:
                                  stroke-width: 4
                              slots:
                                default:
                                  - component: f7-row
                                    config:
                                      tag: animateMotion
                                      repeatCount: indefinite
                                      calcMode: linear
                                      keyPoints: "=(Number.parseInt(items[props.itemConsumptionFromGrid].state) < 0) ? '1;0' : '0;1'"
                                      keyTimes: "=(Number.parseInt(items[props.itemConsumptionFromGrid].state) < 0) ? '0;1' : '0;1'"
                                      dur: =Math.abs(1000/Number.parseInt(items[props.itemConsumptionFromGrid].state))
                                    slots:
                                      default:
                                        - component: f7-row
                                          config:
                                            tag: mpath
                                            xlink:href: "#gridpath"
                            - component: f7-row
                              config:
                                tag: path
                                id: loadpath
                                d: M10,115 L5,115 L5,85 L0,85
                                stroke: blue
                                stroke-width: 1
                                vector-effect: non-scaling-stroke
                                fill: none
                            - component: f7-row
                              config:
                                tag: circle
                                r: 2
                                vector-effect: non-scaling-stroke
                                fill: blue
                                style:
                                  stroke-width: 4
                              slots:
                                default:
                                  - component: f7-row
                                    config:
                                      tag: animateMotion
                                      repeatCount: indefinite
                                      calcMode: linear
                                      keyPoints: "=(Number.parseInt(items[props.itemHomeConsumption].state) > 0) ? '1;0' : '0;1'"
                                      keyTimes: "=(Number.parseInt(items[props.itemHomeConsumption].state) > 0) ? '0;1' : '0;1'"
                                      dur: =Math.abs(1000/Number.parseInt(items[props.itemHomeConsumption].state))
                                    slots:
                                      default:
                                        - component: f7-row
                                          config:
                                            tag: mpath
                                            xlink:href: "#loadpath"
                - component: f7-col
                  config:
                    style:
                      display: flex
                      flex-direction: column
                      align-items: center
                  slots:
                    default:
                      - component: f7-block
                        config:
                          style:
                            height: 100px
                            width: 100px
                            border: 3px solid darkred
                            border-radius: 20px
                            display: flex
                            justify-content: center
                            align-items: center
                            flex-direction: column
                        slots:
                          default:
                            - component: oh-link
                              config:
                                text: = items[props.itemDailyProductionToGrid].state
                                iconF7: arrow_right
                                iconSize: 12px
                                iconColor: green
                                style:
                                  font-size: 12px
                                  white-space: nowrap
                            - component: oh-link
                              config:
                                text: = items[props.itemDailyConsumptionFromGrid].state
                                iconF7: arrow_left
                                iconSize: 12px
                                iconColor: red
                                style:
                                  font-size: 12px
                                  white-space: nowrap
                            - component: oh-icon
                              config:
                                icon: if:mdi:transmission-tower
                                height: 30px
                                color: darkred
                            - component: oh-link
                              config:
                                text: = items[props.itemConsumptionFromGrid].state
                                iconF7: "=(Number.parseInt(items[props.itemConsumptionFromGrid].state) < 0) ? 'arrow_right' : 'arrow_left'"
                                iconSize: 12px
                                iconColor: "=(Number.parseInt(items[props.itemConsumptionFromGrid].state) > 0) ? 'red' : 'green'"
                                style:
                                  font-size: 12px
                                  white-space: nowrap
                      - component: f7-block
                        config:
                          style:
                            height: 70px
                            width: 100px
                            justify-content: center
                            align-items: center
                            flex-direction: column
                      - component: f7-block
                        config:
                          style:
                            height: 100px
                            width: 100px
                            border: 3px solid blue
                            border-radius: 20px
                            display: flex
                            justify-content: center
                            align-items: center
                            flex-direction: column
                        slots:
                          default:
                            - component: oh-link
                              config:
                                text: =items[props.itemDailyHomeConsumption].state
                                iconF7: arrow_right
                                iconSize: 12px
                                iconColor: red
                                style:
                                  font-size: 12px
                                  white-space: nowrap
                            - component: oh-link
                              config:
                                text: =Math.round((Number.parseFloat(items[props.itemDailyConsumptionFromGrid].state) + Number.parseFloat(items[props.itemDailyProductionToGrid].state) + Number.parseFloat(items[props.itemDailyBatteryConsumption].state) - Number.parseFloat(items[props.itemDailyBatteryCharge].state) + Number.parseFloat(items[props.itemDailySolar].state))*100)/100 + ' kWh'
                                iconF7: arrow_right
                                iconSize: 12px
                                iconColor: red
                                style:
                                  font-size: 12px
                                  white-space: nowrap
                            - component: oh-icon
                              config:
                                icon: if:mdi:home
                                height: 30px
                                color: blue
                            - component: oh-link
                              config:
                                text: = items[props.itemHomeConsumption].state
                                iconF7: "=(Number.parseInt(items[props.itemHomeConsumption].state) > 0) ? 'arrow_right' : 'arrow_left'"
                                iconSize: 12px
                                iconColor: "=(Number.parseInt(items[props.itemHomeConsumption].state) > 0) ? 'red' : 'green'"
                                style:
                                  font-size: 12px
                                  white-space: nowrap
5 Likes
2

I have looked at many widgets for solar systems and have learnt a lot again.
I like the approach here very much:

  • The inverter is at the centre of the widget
  • Simple, clear design
  • Clever change of direction for the animation

Unfortunately, the animation did not work for me.

  • This is partly due to the fact that the parameter dur: requires a unit specification, i.e. dur: 4s and not just dur: 4
  • It also makes more sense for me to work with parseFloat instead of parseInteger, as I work with kW as a unit.

See as an example for my changes line 389 to 422:

- component: f7-row
  config:
    d: M10,35 L5,35 L5,65 L0,65
    fill: none
    id: gridpath
    stroke: darkred
    stroke-width: 1
    tag: path
    vector-effect: non-scaling-stroke
- component: f7-row
  config:
    fill: darkred
    r: 2
    style:
      stroke-width: 4
    tag: circle
    vector-effect: non-scaling-stroke
    visible: "=(Math.abs(Number.parseFloat(items[props.itemConsumptionFromGrid].state)) < 0.01) ? false : true"
  slots:
    default:
      - component: f7-row
        config:
          calcMode: linear
          dur: 4s
          keyPoints: "=(Number.parseFloat(items[props.itemConsumptionFromGrid].state) > 0) ? '1;0' : '0;1'"
          keyTimes: 0;1
          repeatCount: indefinite
          tag: animateMotion
        slots:
          default:
            - component: f7-row
              config:
                tag: mpath
                xlink:href: "#gridpath"

I have also changed the fact that the circle becomes invisible if the current flow is <0.01 W, only the path remains.

This version works for me on openHAB 4.0.4. I will use this widget as the basis for a Huawei Sun2000 widget.

3

Hi,
this widget is really great, reduced to the minimum. No pictures (like others) but pure Icons.
As I’m not that experienced in designing widgets by myself, I would like to ask for additional properties for charging an EV. Current load, battery status in kW /and%)

Thanks a lot
Joerg

4

I have now built in an easy way to make the speed of the respective circle animation dependent on the current strength

- component: f7-row
  config:
    d: M10,35 L5,35 L5,65 L0,65
    fill: none
    id: gridpath
    stroke: darkred
    stroke-width: 1
    tag: path
    vector-effect: non-scaling-stroke
- component: f7-row
  config:
    fill: darkred
    r: 2
    style:
      stroke-width: 4
    tag: circle
    vector-effect: non-scaling-stroke
    visible: "=(Math.abs(Number.parseFloat(items[props.itemConsumptionFromGrid].state)) < 0.01) ? false : true"
  slots:
    default:
      - component: f7-row
        config:
          calcMode: linear
          dur: "=(Math.abs(Number.parseFloat(items[props.itemConsumptionFromGrid].state)) > 8) ? '1s' :\n
           (Math.abs(Number.parseFloat(items[props.itemConsumptionFromGrid].state)) > 4) ? '2s' :\n
           (Math.abs(Number.parseFloat(items[props.itemConsumptionFromGrid].state)) > 2) ? '3s' :\n
           (Math.abs(Number.parseFloat(items[props.itemConsumptionFromGrid].state)) > 1) ? '4s' :\n
           (Math.abs(Number.parseFloat(items[props.itemConsumptionFromGrid].state)) > 0.5) ? '6s' :\n
           (Math.abs(Number.parseFloat(items[props.itemConsumptionFromGrid].state)) > 0.1) ? '8s' :'16s'"
          keyPoints: "=(Number.parseFloat(items[props.itemConsumptionFromGrid].state) > 0) ? '1;0' : '0;1'"
          keyTimes: 0;1
          repeatCount: indefinite
          tag: animateMotion
        slots:
          default:
            - component: f7-row
              config:
                tag: mpath
                xlink:href: "#gridpath"

As far as I know, there is no way to use a case statement here, but you can imitate an if…then…elseif

5

nice widget mate ,i use it with my Deye getting values from solar assistant and it works really well.I just want one thing to add and that is another smaller square named “natural gas” placed under inverter, with a line pointing to home showing my daily gas consumption…My coding skills are awful,tried to duplicate the right part of code for what i want but after hours i cant make it work right…Any help from an expert?
