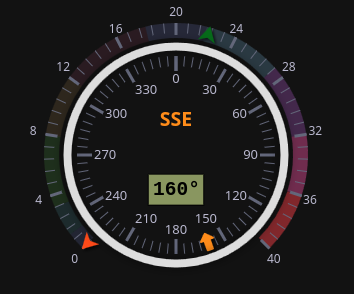

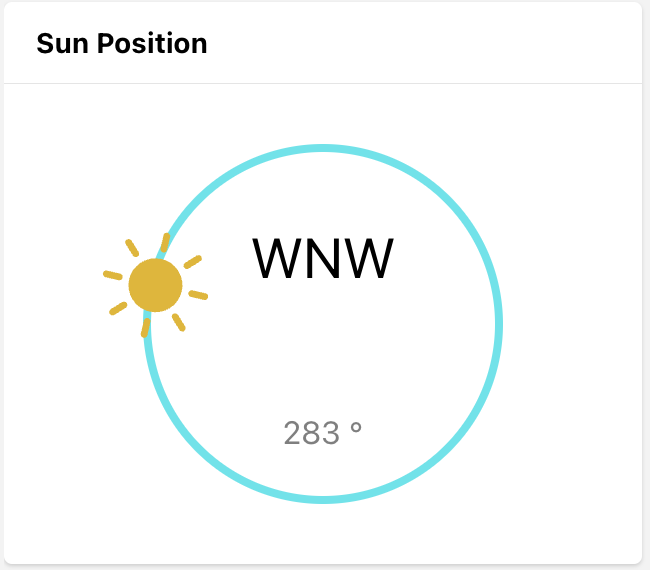

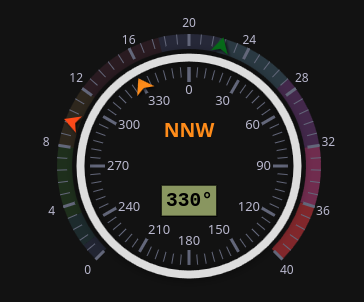

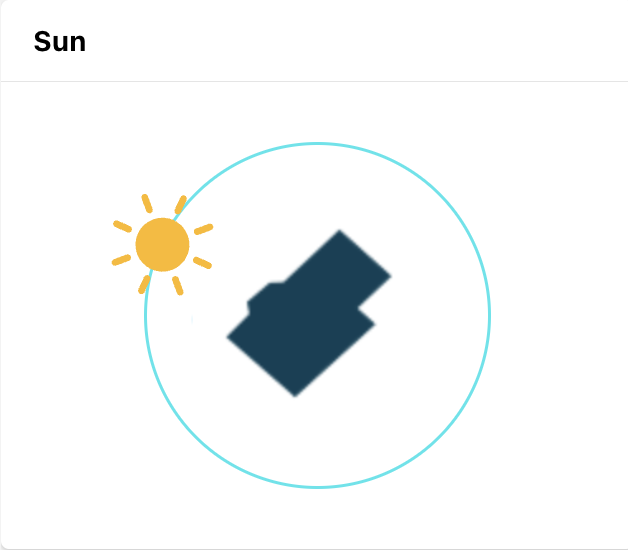

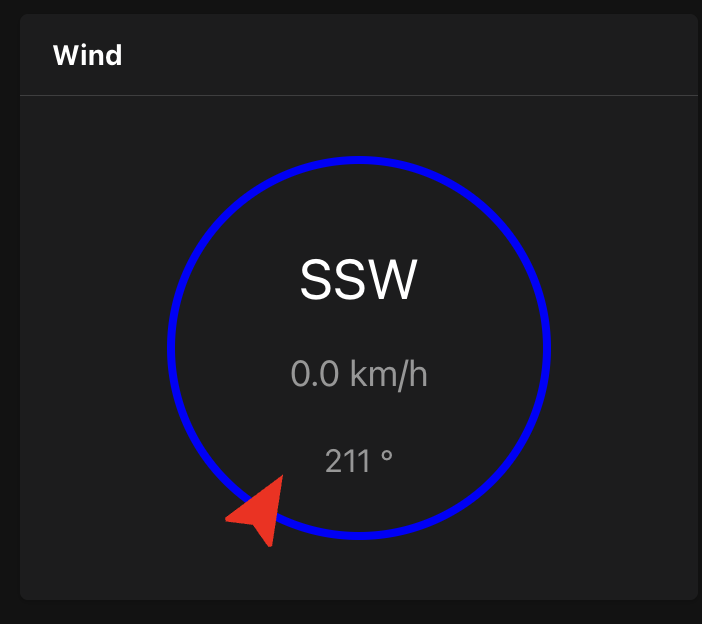

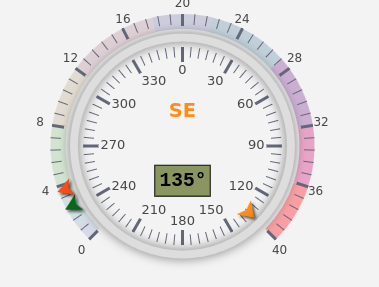

Using ideas and code from 2 different widgets, I created this option. I hope it will be useful to someone. The widgets I used are:
uid: windCompass
tags:
- Compass
- direction
- speed
- wind
props:
parameters:
- context: item
description: The source wind direction in degrees
label: Direction Item
name: directionItem
required: false
type: TEXT
- default: "#ff8c1a"
description: The wind direction needle color
label: Direction Needle Color
name: directionNeedleColor
required: false
type: TEXT
advanced: true
- description: The wind direction name in the tooltip
label: Direction Name
name: directionName
required: false
type: TEXT
- default: "true"
description: Whether to show the LCD
label: Show LCD
name: showLCD
required: false
type: BOOLEAN
- default: "true"
description: Whether to show wind direction
label: Show Wind Direction
name: showWindDir
required: false
type: BOOLEAN
- context: item
description: The wind speed
label: Wind Speed
name: windSpeed
required: false
type: TEXT
- default: "#066a19"
description: The wind speed needle color
label: Speed Needle Color
name: speedNeedleColor
required: false
type: TEXT
advanced: true
- description: The wind speed name in the tooltip
label: Speed Name
name: speedName
required: false
type: TEXT
- context: item
description: The wind gust speed
label: Gust Speed
name: gustSpeed
required: false
type: TEXT
- default: "#ff4a19"
description: The wind gust speed needle color
label: Gust Needle Color
name: gustNeedleColor
required: false
type: TEXT
advanced: true
- description: The wind gust speed name in the tooltip
label: Gust Name
name: gustName
required: false
type: TEXT
- default: "40"
description: The maximum wind speed to show
label: Max Speed
name: maxSpeed
required: false
type: DECIMAL
- default: "13"
description: The wind direction font size
label: Direction Font Size
name: directionFontSize
required: false
type: INTEGER
min: 6
max: 50
advanced: true
- default: "12"
description: The wind speed font size
label: Speed Font Size
name: speedFontSize
required: false
type: INTEGER
min: 6
max: 50
advanced: true
- default: "#ddd"
description: The gauge frame color
label: Frame Color
name: frameColor
required: false
type: TEXT
- description: The widget height (in px, %, etc.)
label: Height
name: height
required: false
type: TEXT
advanced: true
parameterGroups: []
timestamp: Jan 6, 2025, 2:54:01 PM
component: oh-chart
config:
height: =props.height
slots:
series:
- component: oh-data-series
config:
axisLabel:
distance: 12
fontSize: =props.directionFontSize
formatter: =v=>(v===360)?'':v.toFixed(0)+''
axisLine:
show: false
axisTick:
distance: -10
length: 10
splitNumber: 6
data:
- itemStyle:
color: =props.directionNeedleColor
name: =["N","NNE","NE","ENE","E","ESE","SE","SSE","S","SSW","SW","WSW","W","WNW","NW","NNW","N"][Math.round((Number.parseFloat(items[props.directionItem].state)
% 360) / 22.5)]
value: =Number.parseFloat(items[props.directionItem].state)
detail:
backgroundColor: rgb(137,150,96)
borderColor: "#000"
borderWidth: 1
color: "#000"
fontFamily: Courier New
fontSize: 1.4em
fontWeight: 600
formatter: =v=>v.toFixed(0)+'°'
offsetCenter:
- 0
- 35%
padding:
- 0
- 2
- 0
- 3
show: =props.showLCD
valueAnimation: true
width: 50%
endAngle: -270
max: = 360
min: = 0
pointer:
icon: arrow
itemStyle:
shadowBlur: 2
shadowColor: "#000a"
shadowOffsetX: 2
shadowOffsetY: 2
keepAspect: false
length: 15%
offsetCenter:
- 0
- -95%
width: 15%
radius: 66%
splitLine:
distance: -10
length: 15
splitNumber: 12
startAngle: 90
title:
color: =props.directionNeedleColor
fontSize: 1.4em
fontWeight: 600
offsetCenter:
- 0
- -35%
show: =props.showWindDir
tooltip:
formatter: "=props.directionName ? p=>props.directionName+':
<b>'+p.value.toFixed(1)+'°</b>' : NULL"
valueFormatter: =v=>v.toFixed(1)+'°'
type: gauge
- component: oh-data-series
config:
axisLabel:
distance: -13
fontSize: =props.speedFontSize
show: true
axisLine:
distance: -50
lineStyle:
color:
- - 0.03
- "#6271b833"
- - 0.08
- "#4a939b33"
- - 0.2
- "#52a44633"
- - 0.3
- "#a27e4933"
- - 0.45
- "#8e405f33"
- - 0.55
- "#5f66a044"
- - 0.68
- "#5b88a155"
- - 0.8
- "#8b48a166"
- - 0.9
- "#db489177"
- - 1
- "#ff3e4677"
width: 15
axisTick:
distance: -15
length: 10
show: true
data:
- itemStyle:
color: "=props.windSpeed ? props.speedNeedleColor : '#0000'"
tooltip:
formatter: "=props.speedName ? p=>props.speedName+': <b>'+p.value.toFixed(1)+'
'+items[props.windSpeed].state.split(' ')[1]+'</b>' : NULL"
valueFormatter: =v=>v.toFixed(1)+' '+items[props.windSpeed].state.split(" ")[1]
value: =Number.parseFloat(items[props.windSpeed].state)
- itemStyle:
color: "=props.gustSpeed ? props.gustNeedleColor : '#0000'"
tooltip:
formatter: "=props.gustName ? p=>props.gustName+': <b>'+p.value.toFixed(1)+'
'+items[props.gustSpeed].state.split(' ')[1]+'</b>' : NULL"
valueFormatter: =v=>v.toFixed(1)+' '+items[props.gustSpeed].state.split(" ")[1]
value: =Number.parseFloat(items[props.gustSpeed].state)
detail:
show: false
max: =props.maxSpeed
min: 0
pointer:
icon: arrow
itemStyle:
shadowBlur: 2
shadowColor: "#000a"
shadowOffsetX: 2
shadowOffsetY: 2
keepAspect: true
length: 12%
offsetCenter:
- 0
- -95%
width: 10%
radius: 88%
splitLine:
distance: -15
length: 12
splitNumber: 10
title:
show: false
type: gauge
- component: oh-data-series
config:
axisLabel:
show: false
axisLine:
lineStyle:
color:
- - 1
- =props.frameColor
shadowBlur: 10
shadowColor: "#0008"
width: 8
show: true
axisTick:
show: false
detail:
show: false
endAngle: -270
pointer:
show: false
radius: 75%
splitLine:
show: false
title:
show: false
type: gauge
tooltip:
- component: oh-chart-tooltip
config:
show: true
