Hi,

I’m new to all this and have started to do some experimentation. I had an XBee S2B module from an old project. I noticed in the bindings that S2C is supported but no mention of S2B. I know one of the key differences is that you have to upload a specific firmware to the S2B to support what mode you want to run it in (ie, coordinator).

Does anyone know if I flash it with a coordinator firmware that it will work with the Zigbee binding?

Thanks!

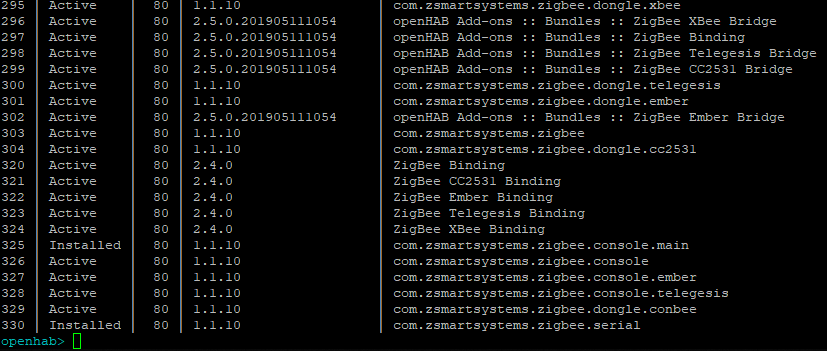

Yes, but you will need to update to the latest version as there is a bug in 2.4 that prevents the XBee working that I didn’t have time to fix. There is a script to do the update - see this post -:

So I finally went and got my first Zigbee device (Xiaomi Buttons).

I flashed the XBee device. Openhab seems to detect it okay when I turn debug logs on. When I look at the state of the XBee Coordinator Thing it just says Unknown.

When I go ‘Search’ in PaperUI in order to add the button I get this:

2019-02-17 12:38:12.287 [DEBUG] [bee.discovery.ZigBeeDiscoveryService] - Starting ZigBee scan for zigbee:coordinator_xbee:c72f4083

2019-02-17 12:38:12.293 [DEBUG] [bee.handler.ZigBeeCoordinatorHandler] - ZigBee coordinator is offline - aborted scan for zigbee:coordinator_xbee:c72f4083

When I press the broadcast button on the Button device - the Coordinator binding does seem to pick something up:

2019-02-17 12:42:15.253 [DEBUG] [ongle.xbee.internal.XBeeFrameHandler] - RX XBEE Data: 00 1E 91 00 15 8D 00 02 10 17 CF FC 1C 00 00 00 13 00 00 42 B4 1C FC CF 17 10 02 00 8D 15 00 80 81

2019-02-17 12:42:15.259 [DEBUG] [ongle.xbee.internal.XBeeFrameHandler] - RX XBEE: XBeeReceivePacketExplicitEvent [ieeeAddress=00158D00021017CF, networkAddress=64540, sourceEndpoint=0, destinationEndpoint=0, clusterId=19, profileId=0, receiveOptions=UNKNOWN, data=B4 1C FC CF 17 10 02 00 8D 15 00 80]

2019-02-17 12:42:15.263 [DEBUG] [tsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=64540/0, destinationAddress=0/0, profile=0000, cluster=19, addressMode=null, radius=0, apsSecurity=false, apsCounter=0, payload=B4 1C FC CF 17 10 02 00 8D 15 00 80]

2019-02-17 12:42:15.267 [DEBUG] [tsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DeviceAnnounce [64540/0 -> 0/0, cluster=0013, TID=NULL, nwkAddrOfInterest=64540, ieeeAddr=00158D00021017CF, capability=128]

The final outcome is that the button device doesn’t come up in PaperUI.

Any help would be much appreciated.

Can you provide an image of what you are looking at?

I’ve not tried these switches - Xiaomi devices tend to be problematic as they aren’t ZigBee. Most of the ones I’ve tried will work if you keep pressing a button to keep it awake during the association phase though.

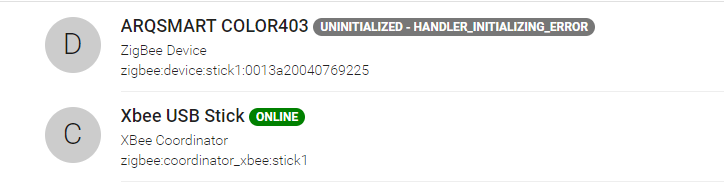

Here is the picture:

The thing is I’m not sure that Openhab is actually searching since the logs say 'Zigbee coordinator is offline - aborted scan for zigbee:coordinator_xbee:c72f4083. A side note is that PaperUI indicates its searching whereas the log shows that it had aborted.

When I look at the extended logs when I had the xbee coordinator and it initializes it indicates that everything is working. It appears to be correctly detecting the device and setting it up. When you press the physical button, the S2B appears to receive the signal.

This is the log when I add the S2B and it initializes:

2019-02-23 13:29:25.589 [DEBUG] [org.openhab.binding.zigbee.xbee ] - ServiceEvent REGISTERED - {org.openhab.binding.zigbee.handler.ZigBeeCoordinatorHandler}={service.id=397, service.bundleid=232, service.scope=singleton} - org.openhab.binding.zigbee.xbee
