Zigbee bulb not changing colors

James_Kester · May 30, 2024, 1:12am

I have zigbee dongle, and 2 sets of zigbee led puck lights and one zigbee lightbulb plugged into a lamp. I am feeding colors to these devices via mqtt.

All of the pucks are working, and changing colors. The light bulb is not. and I do not get why.

The bulb shows as online and connected. I have paired it twice and its been auto detected both times.

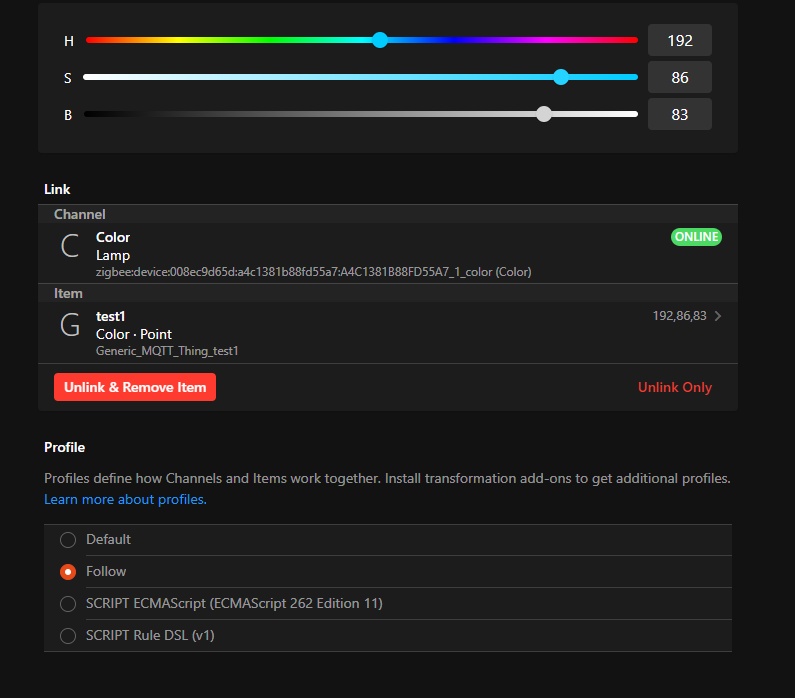

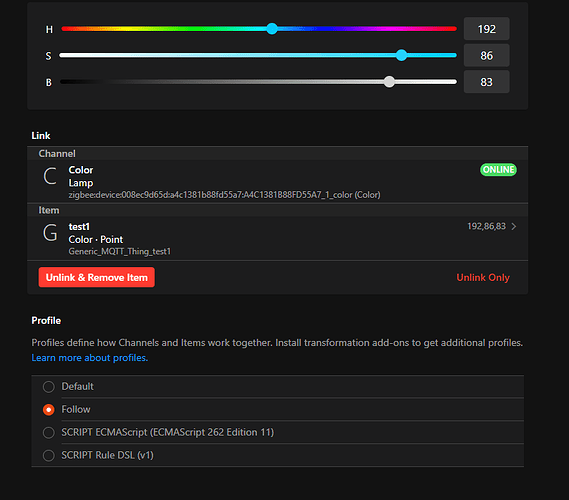

I can see the color changing in open hab but no dice with the lamp. I will add when I turn off the lamp, the zigbee device named Lamp (the bulb in question) does NOT go offline. It stays online… It seems like the coordinator is connecting but then losing connection.

I am seeing this in the logs:
20:02:33.639 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: No handler found for zigbee:device:008ec9d65d:a4c1381b88fd55a7:A4C1381B88FD55A7_1_color

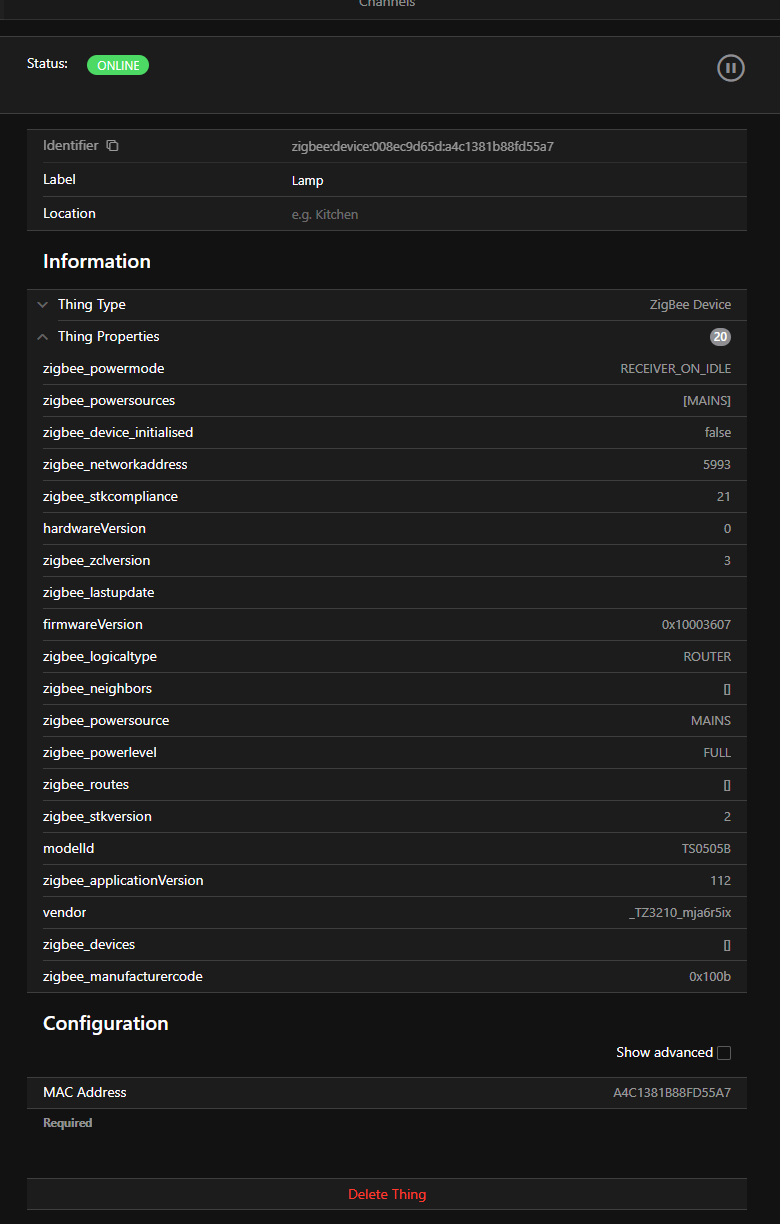

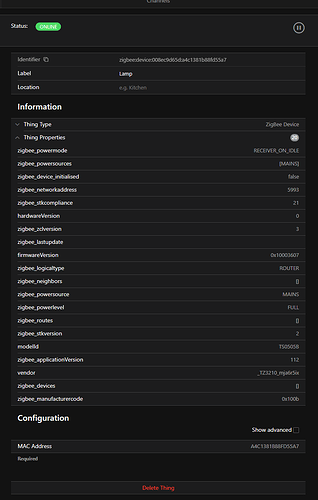

I am also noticing zigbee_device_initialised = false

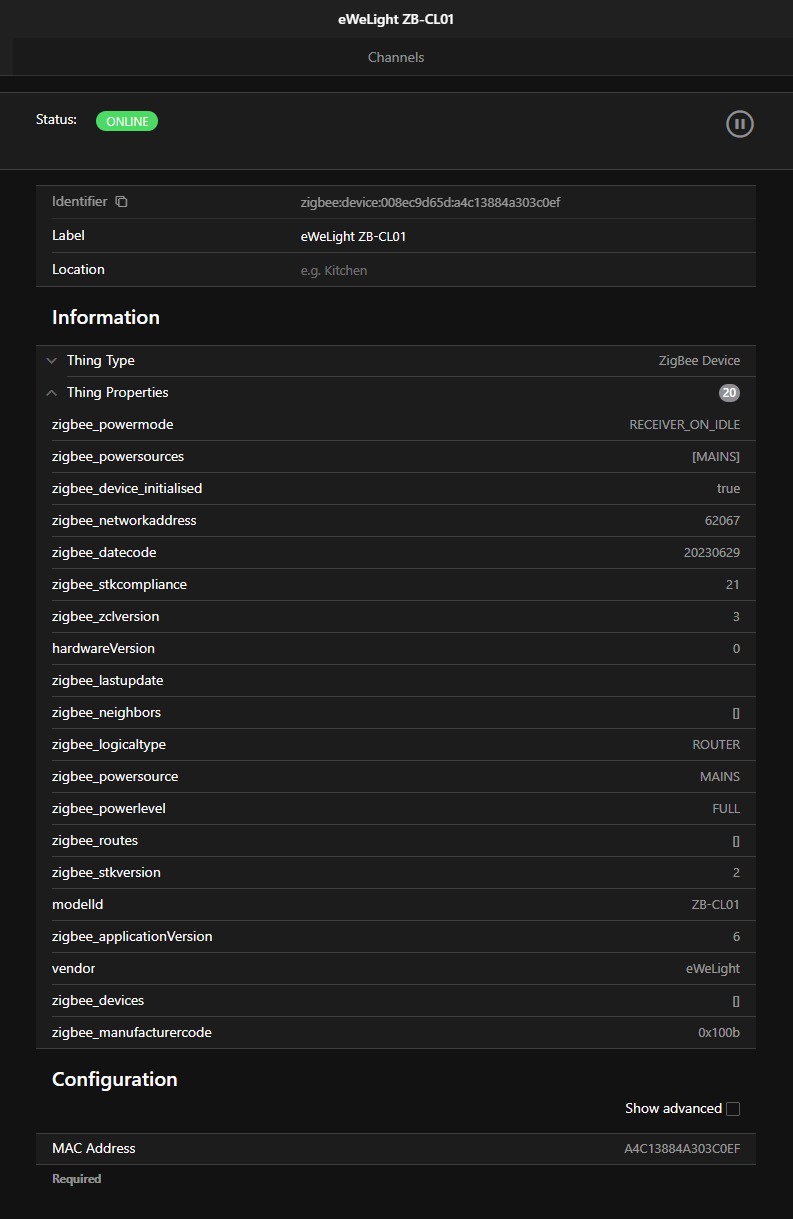

Also zigbee_applicationVersion = 112, where as my working lights are zigbee_applicationVersion = 6

anyone have any ideas? i have been at this for hours!!!

here is a bit more of the logs:

 A4C1381B88FD55A7: Command for channel zigbee:device:008ec9d65d:a4c1381b88fd55a7:A4C1381B88FD55A7_1_color --> 280,100,50 [HSBType]
20:02:32.637 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Command for channel zigbee:device:008ec9d65d:a4c138100ed6268b:A4C138100ED6268B_1_color --> 280,100,50 [HSBType]
20:02:32.637 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Command for channel zigbee:device:008ec9d65d:a4c13884a303c0ef:A4C13884A303C0EF_1_color --> 280,100,50 [HSBType]
20:02:32.637 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: No handler found for zigbee:device:008ec9d65d:a4c1381b88fd55a7:A4C1381B88FD55A7_1_color
20:02:32.637 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:008ec9d65d:a4c138100ed6268b:A4C138100ED6268B_1_color waiting for response to 280,100,50
20:02:32.637 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C13884A303C0EF: Change Color HSV (280, 100, 50) -> XY (27.779999999999997584154698415659368038177490234375, 10.519999999999999573674358543939888477325439453125)
20:02:32.637 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:008ec9d65d:a4c13884a303c0ef:A4C13884A303C0EF_1_color waiting for response to 280,100,50
20:02:33.012 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:008ec9d65d:a4c13884a303c0ef:A4C13884A303C0EF_1_color received SUCCESS in response to 280,100,50
20:02:33.012 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:008ec9d65d:a4c13884a303c0ef:A4C13884A303C0EF_1_color updated to 280,100,50
20:02:33.012 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Updating ZigBee channel state zigbee:device:008ec9d65d:a4c13884a303c0ef:A4C13884A303C0EF_1_color to 280,100,50
20:02:33.012 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:008ec9d65d:a4c13884a303c0ef
20:02:33.012 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:008ec9d65d:a4c13884a303c0ef
20:02:33.012 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:008ec9d65d:a4c13884a303c0ef in 14430 seconds
20:02:33.073 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:008ec9d65d:a4c138100ed6268b:A4C138100ED6268B_1_color received SUCCESS in response to 280,100,50
20:02:33.073 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:008ec9d65d:a4c138100ed6268b:A4C138100ED6268B_1_color updated to 280,100,50
20:02:33.073 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Updating ZigBee channel state zigbee:device:008ec9d65d:a4c138100ed6268b:A4C138100ED6268B_1_color to 280,100,50
20:02:33.073 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:008ec9d65d:a4c138100ed6268b
20:02:33.073 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:008ec9d65d:a4c138100ed6268b
20:02:33.073 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:008ec9d65d:a4c138100ed6268b in 14430 seconds
20:02:33.101 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:008ec9d65d:a4c138100ed6268b:A4C138100ED6268B_1_color updated to 239.52756,81.49606,59
20:02:33.101 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Updating ZigBee channel state zigbee:device:008ec9d65d:a4c138100ed6268b:A4C138100ED6268B_1_color to 239.52756,81.49606,59
20:02:33.101 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:008ec9d65d:a4c138100ed6268b
20:02:33.101 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:008ec9d65d:a4c138100ed6268b
20:02:33.101 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:008ec9d65d:a4c138100ed6268b in 14430 seconds
20:02:33.425 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=187, lastReportTime=Wed May 29 20:02:33 CDT 2024, implemented=true]
20:02:33.425 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=187, lastReportTime=Wed May 29 20:02:33 CDT 2024, implemented=true]  on endpoint 1
20:02:33.447 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=226, lastReportTime=Wed May 29 20:02:33 CDT 2024, implemented=true]  on endpoint 1
20:02:33.447 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=226, lastReportTime=Wed May 29 20:02:33 CDT 2024, implemented=true]
20:02:33.447 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:008ec9d65d:a4c13884a303c0ef:A4C13884A303C0EF_1_color updated to 265.03937,88.97638,59
20:02:33.447 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Updating ZigBee channel state zigbee:device:008ec9d65d:a4c13884a303c0ef:A4C13884A303C0EF_1_color to 265.03937,88.97638,59
20:02:33.447 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:008ec9d65d:a4c13884a303c0ef
20:02:33.447 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:008ec9d65d:a4c13884a303c0ef
20:02:33.447 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:008ec9d65d:a4c13884a303c0ef in 14430 seconds
20:02:33.499 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Level Control, id=0, name=Current Level, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=130, lastReportTime=Wed May 29 20:02:33 CDT 2024, implemented=true]
20:02:33.499 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:008ec9d65d:a4c13884a303c0ef:A4C13884A303C0EF_1_color updated to 265.03937,88.97638,51
20:02:33.499 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Updating ZigBee channel state zigbee:device:008ec9d65d:a4c13884a303c0ef:A4C13884A303C0EF_1_color to 265.03937,88.97638,51
20:02:33.499 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:008ec9d65d:a4c13884a303c0ef
20:02:33.499 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:008ec9d65d:a4c13884a303c0ef
20:02:33.499 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:008ec9d65d:a4c13884a303c0ef in 14430 seconds
20:02:33.585 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=194, lastReportTime=Wed May 29 20:02:33 CDT 2024, implemented=true]
20:02:33.585 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=194, lastReportTime=Wed May 29 20:02:33 CDT 2024, implemented=true]  on endpoint 1

chris · May 30, 2024, 10:23am

And if you change the colour in OH, does it change on the bulb? (I guess not)

So this is probably not really related, but as an FYI the way the binding works is it expects a device to send periodic reports - it doesn’t (normally) poll the device. What this means is it will take some time for a device to go offline after powering off - possibly up to an hour IIRC.

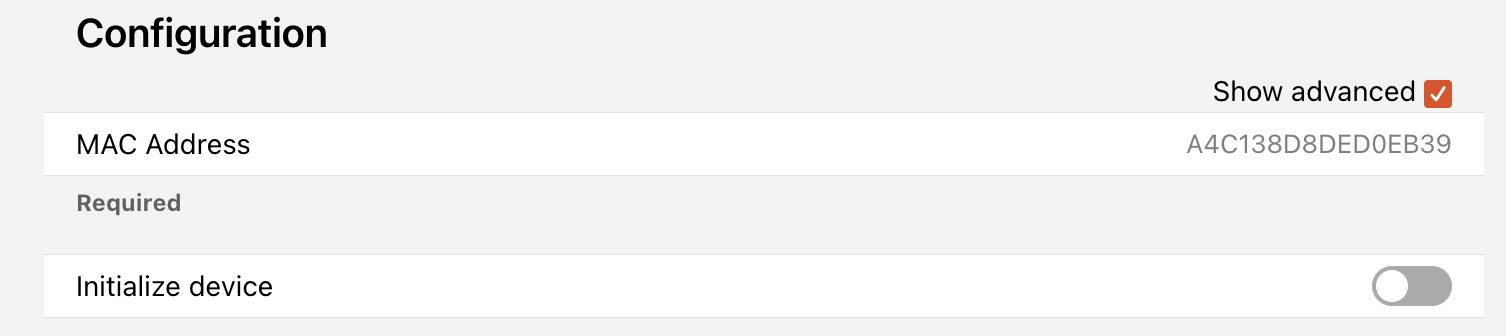

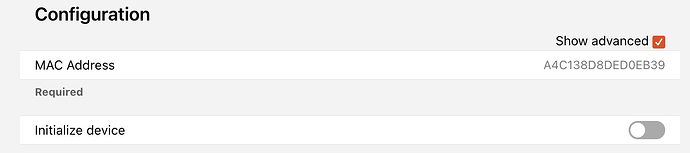

This might be more of an issue. To me it looks like the device is not responding - either it’s left the network, or comms is broken for some other reason.

The fact that the versions are significantly different might be an indicator. It’s hard to really know, but some newer devices can require additional information from the coordinator when they join, and if they don’t get this, they can simply leave the network.

Now, having said this, I don’t think it’s the issue either since both devices have the stkProperty that is the same.

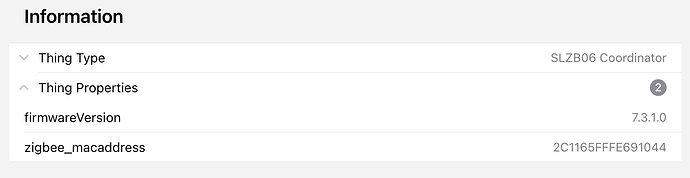

One other question - what is the coordinator, and what version of software is it running (youll find this in the coordinator properties).

This no handler error is indicative of problems with joining as well. I would suggest to reset the device, delete the thing, then join it to the network again.

James_Kester · May 31, 2024, 10:09pm

I just tried to readd it several times and I am getting the same thing.

I am using a sonoff zigbee 3.0 V2 dongle with
Zigbee (EZSP) 6.10.3.0 build 297

I tired several other firmwares but couldn’t get the coordinator back online.

chris · June 1, 2024, 4:05am

This is certainly a very old firmware - the latest release is something like 7.4, and I guess 6.10 is probably at least 5 or 6 years old. I forget when the Z3 changes came in - I think this should include them - I think it was either 6.6 or 6.10.

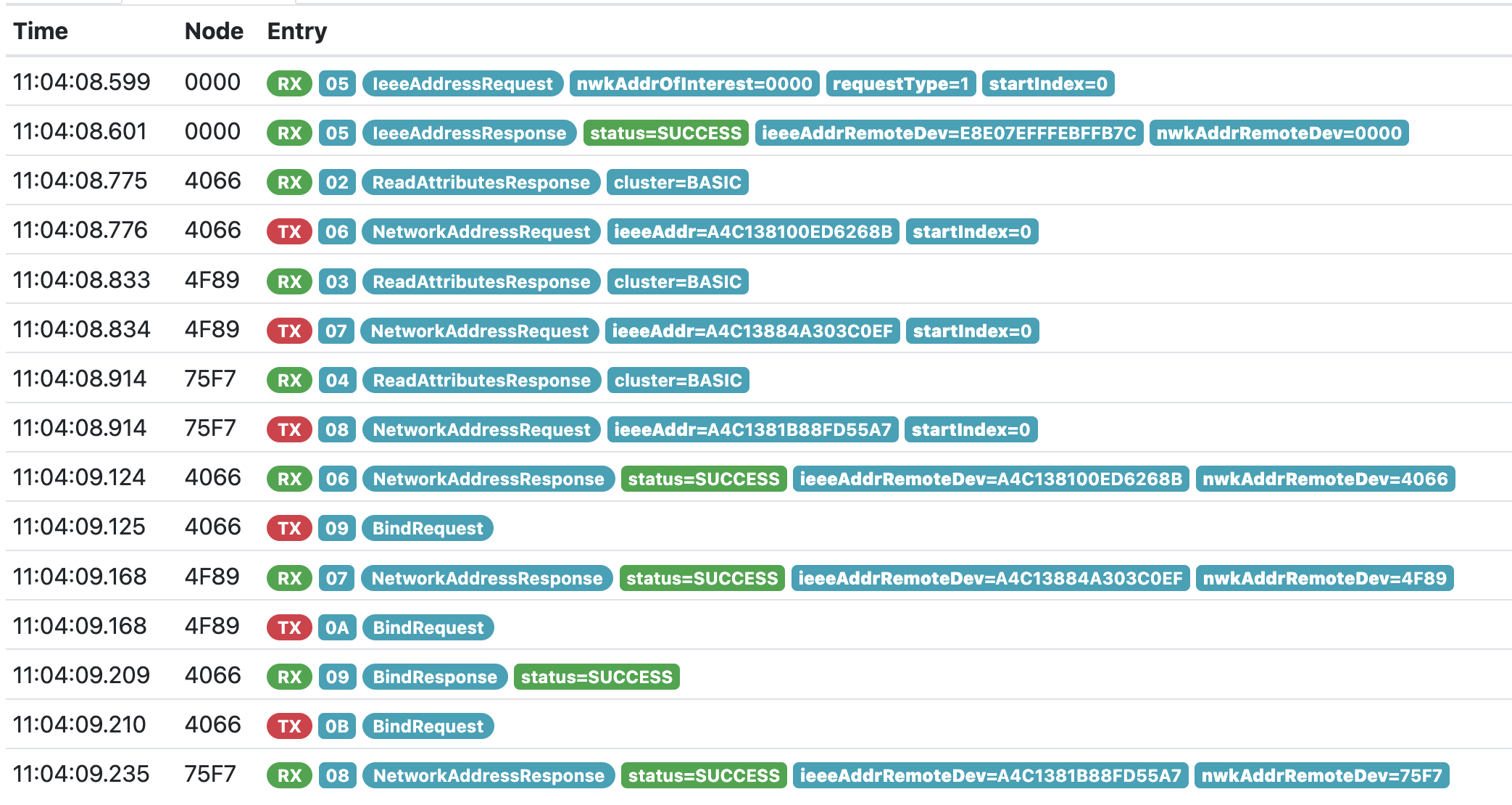

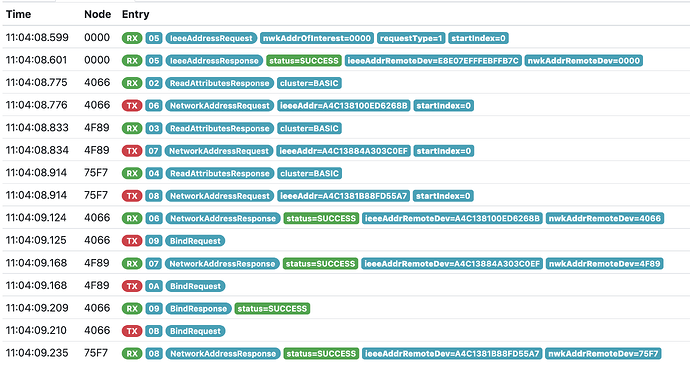

Unfortunately there’s not really a lot more I can say without detailed logs - potentially debug logs with the output of com.zsmartsystems.zigbee when the device joins might help understand what’s happening if you can get this. You should just be able to go to the console and use the log:set debug com.zsmartsystems.zigbee command to enable this.

Otherwise a sniffer will be required, but that’s a lot more hassle.

James_Kester · June 1, 2024, 2:22pm

When I flashed the new firmware I could not get the zigbee coordinator to come back online. I will see if I can find some configuration for it.

James_Kester · June 1, 2024, 4:08pm

Does any of this help? I re created everything.
zigbee:device:3ea840067f:a4c13884a303c0ef is working
zigbee:device:3ea840067f:a4c138100ed6268b is working
zigbee:device:3ea840067f:a4c1381b88fd55a7 is NOT working

11:03:29.280 [INFO ] [org.openhab.core.Activator           ] - Starting openHAB 4.2.0.M3 (Milestone Build)
11:03:29.501 [INFO ] [b.core.internal.i18n.I18nProviderImpl] - Time zone set to 'America/Chicago'.
11:03:29.505 [INFO ] [b.core.internal.i18n.I18nProviderImpl] - Location set to '44.0780552,-92.5098914'.
11:03:29.506 [INFO ] [b.core.internal.i18n.I18nProviderImpl] - Locale set to 'en_US'.
11:03:36.604 [INFO ] [b.core.model.lsp.internal.ModelServer] - Started Language Server Protocol (LSP) service on port 5007
11:04:03.146 [WARN ] [tty.util.ssl.SslContextFactory.config] - Trusting all certificates configured for Client@4cf7a20b[provider=null,keyStore=null,trustStore=null]
11:04:03.147 [WARN ] [tty.util.ssl.SslContextFactory.config] - No Client EndPointIdentificationAlgorithm configured for Client@4cf7a20b[provider=null,keyStore=null,trustStore=null]
11:04:03.917 [INFO ] [o.transport.mqtt.MqttBrokerConnection] - Starting MQTT broker connection to 'localhost' with clientid 13785f8b-ad56-4372-8330-29b0b4ccc70a
11:04:04.768 [INFO ] [re.automation.internal.RuleEngineImpl] - Rule engine started.
11:04:04.977 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - Default: Set profile to ZigBeeTransactionProfile [maxOutstandingTransactions=1, interTransactionDelay=50, maxRetries=2]
11:04:04.978 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - Broadcast: Set profile to ZigBeeTransactionProfile [maxOutstandingTransactions=2, interTransactionDelay=4000, maxRetries=0]
11:04:04.978 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - Multicast: Set profile to ZigBeeTransactionProfile [maxOutstandingTransactions=3, interTransactionDelay=1200, maxRetries=0]
11:04:04.979 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - ZigBeeNetworkManager initialize: networkState=UNINITIALISED
11:04:04.979 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - Network state is updated to INITIALISING
11:04:05.019 [DEBUG] [m.zsmartsystems.zigbee.ZigBeeEndpoint] - A4C138100ED6268B: Endpoint 1. Unsupported cluster 1000 - using ZclCustomCluster
11:04:05.022 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C138100ED6268B: Data store: Node was restored.
11:04:05.022 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Updating node NWK=4066
11:04:05.028 [DEBUG] [m.zsmartsystems.zigbee.ZigBeeEndpoint] - A4C1381B88FD55A7: Endpoint 1. Unsupported cluster 1000 - using ZclCustomCluster
11:04:05.030 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C1381B88FD55A7: Data store: Node was restored.
11:04:05.030 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Updating node NWK=75F7
11:04:05.035 [DEBUG] [m.zsmartsystems.zigbee.ZigBeeEndpoint] - A4C13884A303C0EF: Endpoint 1. Unsupported cluster 1000 - using ZclCustomCluster
11:04:05.035 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C13884A303C0EF: Data store: Node was restored.
11:04:05.035 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Updating node NWK=4F89
11:04:05.037 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - E8E07EFFFEBFFB7C: Data store: Node was restored.
11:04:05.037 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - E8E07EFFFEBFFB7C: Updating node NWK=0000
11:04:05.037 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - EZSP Dongle: Initialize with protocol ASH2.
11:04:05.071 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH: Connect
11:04:05.071 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - AshReceiveParserThread thread started
11:04:05.071 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH: Reconnect
11:04:05.072 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameRst []
11:04:05.088 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspVersionRequest [networkId=0, desiredProtocolVersion=4]
11:04:05.620 [INFO ] [openhab.event.ItemStateChangedEvent  ] - Item 'Generic_MQTT_Thing_Color' changed from 218,69,68 to 280,100,50
11:04:06.178 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameRstAck [version=2, resetCode=11, Reset: Software]
11:04:07.431 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH: Connected
11:04:07.431 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - Ember: Link State change to true, initialised=false, networkStateUp=false
11:04:07.431 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - Ember: Link State change to true ignored.
11:04:07.431 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=0, ackNum=0, reTx=false, data=00 00 00 04]
11:04:07.437 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=1, reTx=false, data=00 80 00 08 02 30 6A]
11:04:07.437 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
11:04:07.437 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspVersionResponse [networkId=0, protocolVersion=8, stackType=2, stackVersion=6A30]
11:04:07.437 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspVersionResponse [networkId=0, protocolVersion=8, stackType=2, stackVersion=6A30]
11:04:07.438 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspVersionRequest [networkId=0, desiredProtocolVersion=8]
11:04:07.438 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=1, ackNum=1, reTx=false, data=01 00 01 00 00 08]
11:04:07.445 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=2, reTx=false, data=01 80 01 00 00 08 02 30 6A]
11:04:07.445 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
11:04:07.445 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspVersionResponse [networkId=0, protocolVersion=8, stackType=2, stackVersion=6A30]
11:04:07.445 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspVersionResponse [networkId=0, protocolVersion=8, stackType=2, stackVersion=6A30]
11:04:07.445 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - EzspVersionResponse [networkId=0, protocolVersion=8, stackType=2, stackVersion=6A30]
11:04:07.445 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetStandaloneBootloaderVersionPlatMicroPhyRequest [networkId=0]
11:04:07.445 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=2, ackNum=2, reTx=false, data=02 00 01 91 00]
11:04:07.451 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=3, reTx=false, data=02 80 01 91 00 00 1C 04 18 0F]
11:04:07.451 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
11:04:07.451 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetStandaloneBootloaderVersionPlatMicroPhyResponse [networkId=0, bootloaderVersion=1C00, nodePlat=4, nodeMicro=24, nodePhy=15]
11:04:07.451 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_SOURCE_ROUTE_TABLE_SIZE]
11:04:07.451 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=3, ackNum=3, reTx=false, data=03 00 01 52 00 1A]
11:04:07.472 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=4, reTx=false, data=03 80 01 52 00 00 C8 00]
11:04:07.472 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
11:04:07.472 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=200]
11:04:07.472 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=200]
11:04:07.473 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_SECURITY_LEVEL]
11:04:07.473 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=4, ackNum=4, reTx=false, data=04 00 01 52 00 0D]
11:04:07.480 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=5, reTx=false, data=04 80 01 52 00 00 05 00]
11:04:07.480 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
11:04:07.480 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=5]
11:04:07.480 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=5]
11:04:07.480 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_ADDRESS_TABLE_SIZE]
11:04:07.480 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=5, ackNum=5, reTx=false, data=05 00 01 52 00 05]
11:04:07.487 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=6, reTx=false, data=05 80 01 52 00 00 20 00]
11:04:07.487 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
11:04:07.487 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=32]
11:04:07.487 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=32]
11:04:07.487 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_TRUST_CENTER_ADDRESS_CACHE_SIZE]
11:04:07.487 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=6, ackNum=6, reTx=false, data=06 00 01 52 00 19]
11:04:07.493 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=7, reTx=false, data=06 80 01 52 00 00 00 00]
11:04:07.493 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
11:04:07.493 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=0]
11:04:07.493 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=0]
11:04:07.493 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_STACK_PROFILE]
11:04:07.493 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=7, ackNum=7, reTx=false, data=07 00 01 52 00 0C]
11:04:07.499 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=0, reTx=false, data=07 80 01 52 00 00 00 00]
11:04:07.499 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
11:04:07.499 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=0]
11:04:07.499 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=0]
11:04:07.499 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_INDIRECT_TRANSMISSION_TIMEOUT]
11:04:07.499 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=0, ackNum=0, reTx=false, data=08 00 01 52 00 12]
11:04:07.505 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=1, reTx=false, data=08 80 01 52 00 00 B8 0B]
11:04:07.505 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
11:04:07.505 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=3000]
11:04:07.505 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=3000]
11:04:07.505 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_MAX_HOPS]
11:04:07.505 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=1, ackNum=1, reTx=false, data=09 00 01 52 00 10]
11:04:07.511 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=2, reTx=false, data=09 80 01 52 00 00 1E 00]
11:04:07.511 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
11:04:07.511 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=30]
11:04:07.511 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=30]
11:04:07.511 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_TX_POWER_MODE]
11:04:07.511 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=2, ackNum=2, reTx=false, data=0A 00 01 52 00 17]
11:04:07.532 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=3, reTx=false, data=0A 80 01 52 00 00 00 00]
11:04:07.532 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
11:04:07.532 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=0]
11:04:07.532 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=0]
11:04:07.532 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_SUPPORTED_NETWORKS]
11:04:07.532 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=3, ackNum=3, reTx=false, data=0B 00 01 52 00 2D]
11:04:07.538 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=4, reTx=false, data=0B 80 01 52 00 00 01 00]
11:04:07.538 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
11:04:07.538 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=1]
11:04:07.538 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=1]
11:04:07.538 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_KEY_TABLE_SIZE]
11:04:07.538 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=4, ackNum=4, reTx=false, data=0C 00 01 52 00 1E]
11:04:07.544 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=5, reTx=false, data=0C 80 01 52 00 00 0C 00]
11:04:07.544 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
11:04:07.544 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=12]
11:04:07.544 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=12]
11:04:07.544 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_APPLICATION_ZDO_FLAGS]
11:04:07.544 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=5, ackNum=5, reTx=false, data=0D 00 01 52 00 2A]
11:04:07.550 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=6, reTx=false, data=0D 80 01 52 00 00 00 00]
11:04:07.550 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
11:04:07.550 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=0]
11:04:07.550 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=0]
11:04:07.550 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_MAX_END_DEVICE_CHILDREN]
11:04:07.550 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=6, ackNum=6, reTx=false, data=0E 00 01 52 00 11]
11:04:07.556 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=7, reTx=false, data=0E 80 01 52 00 00 20 00]
11:04:07.556 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
11:04:07.556 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=32]
11:04:07.556 [DEBUG] [tsystems.zigbee.dongle.ember.EmberNcp] - EzspGetConfigurationValueResponse [networkId=0, status=EZSP_SUCCESS, value=32]
11:04:07.556 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspGetConfigurationValueRequest [networkId=0, configId=EZSP_CONFIG_APS_UNICAST_MESSAGE_COUNT]
11:04:07.556 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=7, ackNum=7, reTx=false, data=0F 00 01 52 00 03]

openhab> log:display
11:04:08.599 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
11:04:08.599 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0000, clusterId=0001, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=B8], lastHopLqi=255, lastHopRssi=0, sender=0000, bindingIndex=255, addressIndex=255, messageContents=05 00 00 01 00]
11:04:08.599 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=0000/0, destinationAddress=0000/0, profile=0000, cluster=0001, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=B8, rssi=0, lqi=FF, payload=05 00 00 01 00]
11:04:08.599 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - E8E07EFFFEBFFB7C: Node update. NWK Address=NULL
11:04:08.599 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - E8E07EFFFEBFFB7C: Node 0000 is not updated from ZigBeeNode [state=ONLINE, IEEE=E8E07EFFFEBFFB7C, NWK=----, endpoints=[]]
11:04:08.599 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: IeeeAddressRequest [0000/0 -> 0000/0, cluster=0001, TID=05, nwkAddrOfInterest=0000, requestType=1, startIndex=0]
11:04:08.599 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: IeeeAddressRequest [0000/0 -> 0000/0, cluster=0001, TID=05, nwkAddrOfInterest=0000, requestType=1, startIndex=0]
11:04:08.601 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=6, reTx=false, data=6D 90 01 45 00 00 00 00 01 80 00 00 40 01 00 00 B9 FF 00 00 00 FF FF 0D 05 00 7C FB BF FE FF 7E E0 E8 00 00 00]
11:04:08.601 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
11:04:08.601 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0000, clusterId=8001, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=B9], lastHopLqi=255, lastHopRssi=0, sender=0000, bindingIndex=255, addressIndex=255, messageContents=05 00 7C FB BF FE FF 7E E0 E8 00 00 00]
11:04:08.601 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=0000/0, destinationAddress=0000/0, profile=0000, cluster=8001, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=B9, rssi=0, lqi=FF, payload=05 00 7C FB BF FE FF 7E E0 E8 00 00 00]
11:04:08.601 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - E8E07EFFFEBFFB7C: Node update. NWK Address=NULL
11:04:08.601 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - E8E07EFFFEBFFB7C: Node 0000 is not updated from ZigBeeNode [state=ONLINE, IEEE=E8E07EFFFEBFFB7C, NWK=----, endpoints=[]]
11:04:08.601 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: IeeeAddressResponse [0000/0 -> 0000/0, cluster=8001, TID=05, status=SUCCESS, ieeeAddrRemoteDev=E8E07EFFFEBFFB7C, nwkAddrRemoteDev=0000, startIndex=null, nwkAddrAssocDevList=[]]
11:04:08.601 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: IeeeAddressResponse [0000/0 -> 0000/0, cluster=8001, TID=05, status=SUCCESS, ieeeAddrRemoteDev=E8E07EFFFEBFFB7C, nwkAddrRemoteDev=0000, startIndex=null, nwkAddrAssocDevList=[]]
11:04:08.601 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=E8E07EFFFEBFFB7C queueTime=150, state=COMPLETE, sendCnt=1, command=IeeeAddressRequest [0000/0 -> 0000/0, cluster=0001, TID=05, nwkAddrOfInterest=0000, requestType=1, startIndex=0]]
11:04:08.601 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - NWK Discovery for 0000 IeeeAddressRequest returned IeeeAddressResponse [0000/0 -> 0000/0, cluster=8001, TID=05, status=SUCCESS, ieeeAddrRemoteDev=E8E07EFFFEBFFB7C, nwkAddrRemoteDev=0000, startIndex=null, nwkAddrAssocDevList=[]]
11:04:08.601 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 4 outstanding
11:04:08.601 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - E8E07EFFFEBFFB7C: transactionComplete, state=COMPLETE, outstanding=0
11:04:08.601 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=4, outstandingQueues=0, sleepy=0/3
11:04:08.609 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=6, reTx=false, data=6D 90 01 3F 00 00 00 00 00 00 01 00 00 00 40 11 00 00 B8 05 00 00]
11:04:08.609 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
11:04:08.609 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=0000, apsFrame=EmberApsFrame [profileId=0000, clusterId=0001, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=B8], messageTag=05, status=EMBER_SUCCESS, messageContents=]
11:04:08.609 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=05 state=RX_ACK
11:04:08.609 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=05, state=RX_ACK, outstanding=4
11:04:08.620 [INFO ] [openhab.event.ItemStateChangedEvent  ] - Item 'Generic_MQTT_Thing_Color' changed from 280,100,50 to 250,66,60
11:04:08.629 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C13884A303C0EF: Node SVC Discovery: running NWK_ADDRESS
11:04:08.629 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=3, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=NetworkAddressRequest [0000/0 -> 4F89/0, cluster=0000, TID=--, ieeeAddr=A4C13884A303C0EF, requestType=0, startIndex=0]]
11:04:08.629 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=4, outstandingQueues=1, sleepy=0/3
11:04:08.703 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C138100ED6268B: Data store: Writing node.
11:04:08.715 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C13884A303C0EF: Data store: Writing node.
11:04:08.720 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C1381B88FD55A7: Data store: Writing node.
11:04:08.740 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=6, reTx=false, data=6D 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF E9 00]
11:04:08.740 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
11:04:08.740 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-23, relayList=]
11:04:08.748 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=6, reTx=false, data=6D 90 01 3F 00 00 66 40 04 01 00 00 01 01 40 10 00 00 B5 02 00 00]
11:04:08.748 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
11:04:08.748 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0000, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY], groupId=0, sequence=B5], messageTag=02, status=EMBER_SUCCESS, messageContents=]
11:04:08.748 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=02 state=RX_ACK
11:04:08.748 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=02, state=RX_ACK, outstanding=4
11:04:08.748 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4066, TID=02, event=RX_ACK, state=ACKED
11:04:08.756 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=6, reTx=false, data=6D 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
11:04:08.756 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
11:04:08.756 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
11:04:08.774 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=6, reTx=false, data=6D 90 01 45 00 00 04 01 00 00 01 01 40 01 00 00 1E FF EA 66 40 FF FF 3D 18 02 01 05 00 00 42 07 5A 42 2D 43 4C 30 31 04 00 00 42 08 65 57 65 4C 69 67 68 74 03 00 00 20 00 02 00 00 20 02 06 00 00 42 08 32 30 32 33 30 36 32 39 00 00 00 20 03 01 00 00 20 06 02]
11:04:08.774 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
11:04:08.774 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0000, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=1E], lastHopLqi=255, lastHopRssi=-22, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 02 01 05 00 00 42 07 5A 42 2D 43 4C 30 31 04 00 00 42 08 65 57 65 4C 69 67 68 74 03 00 00 20 00 02 00 00 20 02 06 00 00 42 08 32 30 32 33 30 36 32 39 00 00 00 20 03 01 00 00 20 06]
11:04:08.774 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0000, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=1E, rssi=-22, lqi=FF, payload=18 02 01 05 00 00 42 07 5A 42 2D 43 4C 30 31 04 00 00 42 08 65 57 65 4C 69 67 68 74 03 00 00 20 00 02 00 00 20 02 06 00 00 42 08 32 30 32 33 30 36 32 39 00 00 00 20 03 01 00 00 20 06]
11:04:08.774 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
11:04:08.774 [DEBUG] [com.zsmartsystems.zigbee.ZigBeeNode  ] - A4C138100ED6268B: Node state updated FROM UNKNOWN TO ONLINE
11:04:08.774 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=02, commandId=1]
11:04:08.774 [DEBUG] [pp.discovery.ZigBeeDiscoveryExtension] - A4C138100ED6268B: DISCOVERY Extension: Creating new discoverer for node
11:04:08.774 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C138100ED6268B: Data store: Deferring write for 250ms.
11:04:08.774 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Set profile to ZigBeeTransactionProfile [maxOutstandingTransactions=1, interTransactionDelay=50, maxRetries=2]
11:04:08.774 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C138100ED6268B: Node SVC Discovery: stopped
11:04:08.774 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C138100ED6268B: Node SVC Discovery: created discoverer
11:04:08.775 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C138100ED6268B: Node SVC Discovery: start discovery
11:04:08.775 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C138100ED6268B: Node SVC Discovery: starting new tasks [NWK_ADDRESS]
11:04:08.775 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C138100ED6268B: Node SVC Discovery: scheduled [NWK_ADDRESS]
11:04:08.775 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReadAttributesResponse [Basic: 4066/1 -> 0000/1, cluster=0000, TID=02, records=[ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=5, attributeDataType=CHARACTER_STRING, attributeValue=ZB-CL01], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=4, attributeDataType=CHARACTER_STRING, attributeValue=eWeLight], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=3, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=0], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=2, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=2], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=6, attributeDataType=CHARACTER_STRING, attributeValue=20230629], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=0, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=3], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=1, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=6]]]
11:04:08.775 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReadAttributesResponse [Basic: 4066/1 -> 0000/1, cluster=0000, TID=02, records=[ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=5, attributeDataType=CHARACTER_STRING, attributeValue=ZB-CL01], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=4, attributeDataType=CHARACTER_STRING, attributeValue=eWeLight], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=3, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=0], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=2, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=2], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=6, attributeDataType=CHARACTER_STRING, attributeValue=20230629], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=0, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=3], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=1, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=6]]]
11:04:08.775 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=311, state=COMPLETE, sendCnt=1, command=ReadAttributesCommand [Basic: 0000/0 -> 4066/1, cluster=0000, TID=02, identifiers=[5, 4, 3, 2, 6, 0, 1]]]
11:04:08.775 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 3 outstanding
11:04:08.775 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: transactionComplete, state=COMPLETE, outstanding=0
11:04:08.776 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=2, sleepy=0/3
11:04:08.776 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4066/0: Sending ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=273, state=WAITING, sendCnt=0, command=NetworkAddressRequest [0000/0 -> 4066/0, cluster=0000, TID=06, ieeeAddr=A4C138100ED6268B, requestType=0, startIndex=0]]
11:04:08.776 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 4 outstanding
11:04:08.776 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: NetworkAddressRequest [0000/0 -> 4066/0, cluster=0000, TID=06, ieeeAddr=A4C138100ED6268B, requestType=0, startIndex=0]
11:04:08.776 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/0, destinationAddress=4066/0, profile=0000, cluster=0000, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=06, rssi=--, lqi=--, payload=06 8B 26 D6 0E 10 38 C1 A4 00 00]
11:04:08.776 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0000, clusterId=0000, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=06], messageTag=06, messageContents=06 8B 26 D6 0E 10 38 C1 A4 00 00]
11:04:08.776 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=6, ackNum=2, reTx=false, data=6E 00 01 34 00 00 66 40 00 00 00 00 00 00 40 11 00 00 06 06 0B 06 8B 26 D6 0E 10 38 C1 A4 00 00]
11:04:08.777 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Added transaction to queue, len=2, transaction=ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=BindRequest [0000/0 -> 4066/0, cluster=0021, TID=--, bindingTableEntry=BindingTable [srcAddr=A4C138100ED6268B/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]]
11:04:08.777 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=4, outstandingQueues=2, sleepy=0/3
11:04:08.779 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - E8E07EFFFEBFFB7C: Data store: Writing node.
11:04:08.786 [INFO ] [gbee.discovery.ZigBeeDiscoveryService] - A4C138100ED6268B: Starting ZigBee device discovery
11:04:08.788 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=7, reTx=false, data=6E 80 01 34 00 00 BA]
11:04:08.788 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
11:04:08.788 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=BA]
11:04:08.788 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Added transaction to queue, len=3, transaction=ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=ReadAttributesCommand [Basic: 0000/0 -> 4066/1, cluster=0000, TID=--, identifiers=[5, 4, 3, 2, 6, 0, 1]]]
11:04:08.788 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=4, outstandingQueues=3, sleepy=0/3
11:04:08.800 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=7, reTx=false, data=6E 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
11:04:08.800 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
11:04:08.800 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
11:04:08.821 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=7, reTx=false, data=6E 90 01 3F 00 00 89 4F 04 01 00 00 01 01 40 10 00 00 B6 03 00 00]
11:04:08.821 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
11:04:08.821 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0000, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY], groupId=0, sequence=B6], messageTag=03, status=EMBER_SUCCESS, messageContents=]
11:04:08.821 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=03 state=RX_ACK
11:04:08.821 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=03, state=RX_ACK, outstanding=4
11:04:08.821 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4F89, TID=03, event=RX_ACK, state=ACKED
11:04:08.822 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=7, reTx=false, data=6E 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
11:04:08.822 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
11:04:08.822 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
11:04:08.833 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=7, reTx=false, data=6E 90 01 45 00 00 04 01 00 00 01 01 40 01 00 00 7D EC D7 89 4F FF FF 3D 18 03 01 05 00 00 42 07 5A 42 2D 43 4C 30 31 04 00 00 42 08 65 57 65 4C 69 67 68 74 03 00 00 20 00 02 00 00 20 02 06 00 00 42 08 32 30 32 33 30 36 32 39 00 00 00 20 03 01 00 00 20 06 02]
11:04:08.833 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
11:04:08.833 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0000, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=7D], lastHopLqi=236, lastHopRssi=-41, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 03 01 05 00 00 42 07 5A 42 2D 43 4C 30 31 04 00 00 42 08 65 57 65 4C 69 67 68 74 03 00 00 20 00 02 00 00 20 02 06 00 00 42 08 32 30 32 33 30 36 32 39 00 00 00 20 03 01 00 00 20 06]
11:04:08.833 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0000, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=7D, rssi=-41, lqi=EC, payload=18 03 01 05 00 00 42 07 5A 42 2D 43 4C 30 31 04 00 00 42 08 65 57 65 4C 69 67 68 74 03 00 00 20 00 02 00 00 20 02 06 00 00 42 08 32 30 32 33 30 36 32 39 00 00 00 20 03 01 00 00 20 06]
11:04:08.833 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
11:04:08.833 [DEBUG] [com.zsmartsystems.zigbee.ZigBeeNode  ] - A4C13884A303C0EF: Node state updated FROM UNKNOWN TO ONLINE
11:04:08.833 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=03, commandId=1]
11:04:08.833 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Set profile to ZigBeeTransactionProfile [maxOutstandingTransactions=1, interTransactionDelay=50, maxRetries=2]
11:04:08.833 [DEBUG] [pp.discovery.ZigBeeDiscoveryExtension] - A4C13884A303C0EF: DISCOVERY Extension: Creating new discoverer for node
11:04:08.833 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C13884A303C0EF: Data store: Deferring write for 250ms.
11:04:08.833 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReadAttributesResponse [Basic: 4F89/1 -> 0000/1, cluster=0000, TID=03, records=[ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=5, attributeDataType=CHARACTER_STRING, attributeValue=ZB-CL01], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=4, attributeDataType=CHARACTER_STRING, attributeValue=eWeLight], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=3, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=0], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=2, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=2], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=6, attributeDataType=CHARACTER_STRING, attributeValue=20230629], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=0, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=3], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=1, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=6]]]
11:04:08.834 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C13884A303C0EF: Node SVC Discovery: stopped
11:04:08.834 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReadAttributesResponse [Basic: 4F89/1 -> 0000/1, cluster=0000, TID=03, records=[ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=5, attributeDataType=CHARACTER_STRING, attributeValue=ZB-CL01], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=4, attributeDataType=CHARACTER_STRING, attributeValue=eWeLight], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=3, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=0], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=2, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=2], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=6, attributeDataType=CHARACTER_STRING, attributeValue=20230629], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=0, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=3], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=1, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=6]]]
11:04:08.834 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C13884A303C0EF: Node SVC Discovery: created discoverer
11:04:08.834 [DEBUG] [e.transaction.ZigBeeTransactionFuture] - TransactionFuture interrupted after 205ms: ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=205, state=WAITING, sendCnt=0, command=NetworkAddressRequest [0000/0 -> 4F89/0, cluster=0000, TID=--, ieeeAddr=A4C13884A303C0EF, requestType=0, startIndex=0]]
11:04:08.834 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=369, state=COMPLETE, sendCnt=1, command=ReadAttributesCommand [Basic: 0000/0 -> 4F89/1, cluster=0000, TID=03, identifiers=[5, 4, 3, 2, 6, 0, 1]]]
11:04:08.834 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C13884A303C0EF: Node SVC Discovery: start discovery
11:04:08.834 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C13884A303C0EF: Node SVC Discovery: NetworkAddressRequest returned null
11:04:08.834 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 3 outstanding
11:04:08.834 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C13884A303C0EF: Node SVC Discovery: starting new tasks [NWK_ADDRESS]
11:04:08.834 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: transactionComplete, state=COMPLETE, outstanding=0
11:04:08.834 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C13884A303C0EF: Node SVC Discovery: scheduled [NWK_ADDRESS]
11:04:08.834 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=3, sleepy=0/3
11:04:08.834 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4F89/0: Sending ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=331, state=WAITING, sendCnt=0, command=NetworkAddressRequest [0000/0 -> 4F89/0, cluster=0000, TID=07, ieeeAddr=A4C13884A303C0EF, requestType=0, startIndex=0]]
11:04:08.834 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 4 outstanding
11:04:08.834 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: NetworkAddressRequest [0000/0 -> 4F89/0, cluster=0000, TID=07, ieeeAddr=A4C13884A303C0EF, requestType=0, startIndex=0]
11:04:08.834 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/0, destinationAddress=4F89/0, profile=0000, cluster=0000, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=07, rssi=--, lqi=--, payload=07 EF C0 03 A3 84 38 C1 A4 00 00]
11:04:08.834 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0000, clusterId=0000, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=07], messageTag=07, messageContents=07 EF C0 03 A3 84 38 C1 A4 00 00]
11:04:08.834 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - Broadcast: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=null queueTime=0, state=WAITING, sendCnt=0, command=NetworkAddressRequest [0000/0 -> FFFF/0, cluster=0000, TID=--, ieeeAddr=A4C13884A303C0EF, requestType=0, startIndex=0]]
11:04:08.834 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=4, outstandingQueues=3, sleepy=0/3
11:04:08.834 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=7, ackNum=7, reTx=false, data=6F 00 01 34 00 00 89 4F 00 00 00 00 00 00 40 11 00 00 07 07 0B 07 EF C0 03 A3 84 38 C1 A4 00 00]
11:04:08.834 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=3, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=BindRequest [0000/0 -> 4F89/0, cluster=0021, TID=--, bindingTableEntry=BindingTable [srcAddr=A4C13884A303C0EF/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]]
11:04:08.835 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=4, outstandingQueues=4, sleepy=0/3
11:04:08.844 [INFO ] [gbee.discovery.ZigBeeDiscoveryService] - A4C13884A303C0EF: Starting ZigBee device discovery
11:04:08.844 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=4, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=ReadAttributesCommand [Basic: 0000/0 -> 4F89/1, cluster=0000, TID=--, identifiers=[5, 4, 3, 2, 6, 0, 1]]]
11:04:08.844 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=4, outstandingQueues=5, sleepy=0/3
11:04:08.847 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=0, reTx=false, data=6F 80 01 34 00 00 BB]
11:04:08.847 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
11:04:08.847 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=BB]
11:04:08.861 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=0, reTx=false, data=6F 90 01 59 00 F7 75 A7 55 FD 88 1B 38 C1 A4 FF DD 00]
11:04:08.861 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
11:04:08.861 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=75F7, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-35, relayList=]
11:04:08.882 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=0, reTx=false, data=6F 90 01 3F 00 00 F7 75 04 01 00 00 01 01 40 10 00 00 B7 04 00 00]
11:04:08.882 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
11:04:08.882 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=75F7, apsFrame=EmberApsFrame [profileId=0104, clusterId=0000, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY], groupId=0, sequence=B7], messageTag=04, status=EMBER_SUCCESS, messageContents=]
11:04:08.882 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=04 state=RX_ACK
11:04:08.882 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=04, state=RX_ACK, outstanding=4
11:04:08.882 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=0, reTx=false, data=6F 90 01 59 00 F7 75 A7 55 FD 88 1B 38 C1 A4 FF DD 00]
11:04:08.882 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=75F7, TID=04, event=RX_ACK, state=ACKED
11:04:08.882 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
11:04:08.882 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=75F7, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-35, relayList=]
11:04:08.913 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=0, reTx=false, data=6F 90 01 45 00 00 04 01 00 00 01 01 40 01 00 00 15 FF DC F7 75 FF FF 3B 18 04 01 05 00 00 42 07 54 53 30 35 30 35 42 04 00 00 42 10 5F 54 5A 33 32 31 30 5F 6D 6A 61 36 72 35 69 78 03 00 00 20 00 02 00 00 20 02 06 00 86 00 00 00 20 03 01 00 00 20 70 02]
11:04:08.913 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
11:04:08.913 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0000, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=15], lastHopLqi=255, lastHopRssi=-36, sender=75F7, bindingIndex=255, addressIndex=255, messageContents=18 04 01 05 00 00 42 07 54 53 30 35 30 35 42 04 00 00 42 10 5F 54 5A 33 32 31 30 5F 6D 6A 61 36 72 35 69 78 03 00 00 20 00 02 00 00 20 02 06 00 86 00 00 00 20 03 01 00 00 20 70]
11:04:08.913 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=75F7/1, destinationAddress=0000/1, profile=0104, cluster=0000, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=15, rssi=-36, lqi=FF, payload=18 04 01 05 00 00 42 07 54 53 30 35 30 35 42 04 00 00 42 10 5F 54 5A 33 32 31 30 5F 6D 6A 61 36 72 35 69 78 03 00 00 20 00 02 00 00 20 02 06 00 86 00 00 00 20 03 01 00 00 20 70]
11:04:08.913 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=0, reTx=false, data=6F 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
11:04:08.913 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node update. NWK Address=NULL
11:04:08.913 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
11:04:08.913 [DEBUG] [com.zsmartsystems.zigbee.ZigBeeNode  ] - A4C1381B88FD55A7: Node state updated FROM UNKNOWN TO ONLINE
11:04:08.913 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=04, commandId=1]
11:04:08.913 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: Set profile to ZigBeeTransactionProfile [maxOutstandingTransactions=1, interTransactionDelay=50, maxRetries=2]
11:04:08.913 [DEBUG] [pp.discovery.ZigBeeDiscoveryExtension] - A4C1381B88FD55A7: DISCOVERY Extension: Creating new discoverer for node
11:04:08.913 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C1381B88FD55A7: Data store: Deferring write for 250ms.
11:04:08.913 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C1381B88FD55A7: Node SVC Discovery: stopped
11:04:08.914 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C1381B88FD55A7: Node SVC Discovery: created discoverer
11:04:08.914 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C1381B88FD55A7: Node SVC Discovery: start discovery
11:04:08.914 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=0, reTx=false, data=6F 90 01 3F 00 00 66 40 00 00 00 00 00 00 40 11 00 00 BA 06 00 00]
11:04:08.914 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C1381B88FD55A7: Node SVC Discovery: starting new tasks [NWK_ADDRESS]
11:04:08.914 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReadAttributesResponse [Basic: 75F7/1 -> 0000/1, cluster=0000, TID=04, records=[ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=5, attributeDataType=CHARACTER_STRING, attributeValue=TS0505B], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=4, attributeDataType=CHARACTER_STRING, attributeValue=_TZ3210_mja6r5ix], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=3, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=0], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=2, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=2], ReadAttributeStatusRecord [status=UNSUPPORTED_ATTRIBUTE, attributeIdentifier=6], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=0, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=3], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=1, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=112]]]
11:04:08.914 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
11:04:08.914 [DEBUG] [discovery.ZigBeeNodeServiceDiscoverer] - A4C1381B88FD55A7: Node SVC Discovery: scheduled [NWK_ADDRESS]
11:04:08.914 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReadAttributesResponse [Basic: 75F7/1 -> 0000/1, cluster=0000, TID=04, records=[ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=5, attributeDataType=CHARACTER_STRING, attributeValue=TS0505B], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=4, attributeDataType=CHARACTER_STRING, attributeValue=_TZ3210_mja6r5ix], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=3, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=0], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=2, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=2], ReadAttributeStatusRecord [status=UNSUPPORTED_ATTRIBUTE, attributeIdentifier=6], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=0, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=3], ReadAttributeStatusRecord [status=SUCCESS, attributeIdentifier=1, attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeValue=112]]]
11:04:08.914 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
11:04:08.914 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=449, state=COMPLETE, sendCnt=1, command=ReadAttributesCommand [Basic: 0000/0 -> 75F7/1, cluster=0000, TID=04, identifiers=[5, 4, 3, 2, 6, 0, 1]]]
11:04:08.914 [DEBUG] [m.zsmartsystems.zigbee.zcl.ZclCluster] - 75F7/1: Error reading server attribute 6 in cluster 0 - UNSUPPORTED_ATTRIBUTE
11:04:08.914 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0000, clusterId=0000, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=BA], messageTag=06, status=EMBER_SUCCESS, messageContents=]
11:04:08.914 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 3 outstanding
11:04:08.914 [DEBUG] [m.zsmartsystems.zigbee.zcl.ZclCluster] - readSync request: ZclAttribute [cluster=Basic, id=6, name=Date Code, dataType=CHARACTER_STRING, lastValue=null, implemented=false]
11:04:08.914 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: transactionComplete, state=COMPLETE, outstanding=0
11:04:08.914 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=06 state=RX_ACK
11:04:08.914 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=06, state=RX_ACK, outstanding=3
11:04:08.914 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: Added transaction to queue, len=3, transaction=ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=0, state=WAITING, sendCnt=0, command=ReadAttributesCommand [Basic: 0000/0 -> 75F7/1, cluster=0000, TID=--, identifiers=[6]]]
11:04:08.914 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=7, sleepy=0/3
11:04:08.914 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4066, TID=06, event=RX_ACK, state=ACKED
11:04:08.914 [DEBUG] [.transaction.ZigBeeTransactionManager] - 75F7/0: Sending ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=411, state=WAITING, sendCnt=0, command=NetworkAddressRequest [0000/0 -> 75F7/0, cluster=0000, TID=08, ieeeAddr=A4C1381B88FD55A7, requestType=0, startIndex=0]]
11:04:08.914 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 4 outstanding
11:04:08.914 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: NetworkAddressRequest [0000/0 -> 75F7/0, cluster=0000, TID=08, ieeeAddr=A4C1381B88FD55A7, requestType=0, startIndex=0]
11:04:08.914 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/0, destinationAddress=75F7/0, profile=0000, cluster=0000, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=08, rssi=--, lqi=--, payload=08 A7 55 FD 88 1B 38 C1 A4 00 00]
11:04:08.914 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=4, outstandingQueues=6, sleepy=0/3
11:04:08.914 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=75F7, apsFrame=EmberApsFrame [profileId=0000, clusterId=0000, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=08], messageTag=08, messageContents=08 A7 55 FD 88 1B 38 C1 A4 00 00]
11:04:08.914 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=0, ackNum=6, reTx=false, data=70 00 01 34 00 00 F7 75 00 00 00 00 00 00 40 11 00 00 08 08 0B 08 A7 55 FD 88 1B 38 C1 A4 00 00]
11:04:08.925 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=1, reTx=false, data=70 80 01 34 00 00 BC]
11:04:08.925 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
11:04:08.925 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=BC]
11:04:08.961 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=1, reTx=false, data=70 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
11:04:08.961 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
11:04:08.961 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
11:04:08.969 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=1, reTx=false, data=70 90 01 3F 00 00 89 4F 00 00 00 00 00 00 40 11 00 00 BB 07 00 00]
11:04:08.969 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
11:04:08.969 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0000, clusterId=0000, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=BB], messageTag=07, status=EMBER_SUCCESS, messageContents=]
11:04:08.969 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=07 state=RX_ACK
11:04:08.969 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=07, state=RX_ACK, outstanding=4
11:04:08.969 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4F89, TID=07, event=RX_ACK, state=ACKED
11:04:08.979 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=1, reTx=false, data=70 90 01 59 00 F7 75 A7 55 FD 88 1B 38 C1 A4 FF DD 00]
11:04:08.979 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
11:04:08.979 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=75F7, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-35, relayList=]
11:04:08.987 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=1, reTx=false, data=70 90 01 3F 00 00 F7 75 00 00 00 00 00 00 40 11 00 00 BC 08 00 00]
11:04:08.987 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
11:04:08.987 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=75F7, apsFrame=EmberApsFrame [profileId=0000, clusterId=0000, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=BC], messageTag=08, status=EMBER_SUCCESS, messageContents=]
11:04:08.987 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=08 state=RX_ACK
11:04:08.987 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=08, state=RX_ACK, outstanding=4
11:04:08.987 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=75F7, TID=08, event=RX_ACK, state=ACKED
11:04:09.025 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C138100ED6268B: Data store: Writing node.
11:04:09.084 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C13884A303C0EF: Data store: Writing node.
11:04:09.103 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=1, reTx=false, data=70 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
11:04:09.103 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
11:04:09.103 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
11:04:09.124 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=1, reTx=false, data=70 90 01 45 00 00 00 00 00 80 00 00 40 01 00 00 1F FF EA 66 40 FF FF 0C 06 00 8B 26 D6 0E 10 38 C1 A4 66 40 02]
11:04:09.124 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
11:04:09.124 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0000, clusterId=8000, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=1F], lastHopLqi=255, lastHopRssi=-22, sender=4066, bindingIndex=255, addressIndex=255, messageContents=06 00 8B 26 D6 0E 10 38 C1 A4 66 40]
11:04:09.124 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/0, destinationAddress=0000/0, profile=0000, cluster=8000, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=1F, rssi=-22, lqi=FF, payload=06 00 8B 26 D6 0E 10 38 C1 A4 66 40]
11:04:09.124 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
11:04:09.124 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
11:04:09.124 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: NetworkAddressResponse [4066/0 -> 0000/0, cluster=8000, TID=06, status=SUCCESS, ieeeAddrRemoteDev=A4C138100ED6268B, nwkAddrRemoteDev=4066, startIndex=null, nwkAddrAssocDevList=[]]
11:04:09.124 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: NetworkAddressResponse [4066/0 -> 0000/0, cluster=8000, TID=06, status=SUCCESS, ieeeAddrRemoteDev=A4C138100ED6268B, nwkAddrRemoteDev=4066, startIndex=null, nwkAddrAssocDevList=[]]
11:04:09.124 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=621, state=COMPLETE, sendCnt=1, command=NetworkAddressRequest [0000/0 -> 4066/0, cluster=0000, TID=06, ieeeAddr=A4C138100ED6268B, requestType=0, startIndex=0]]
11:04:09.125 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C138100ED6268B: NWK Discovery NetworkAddressRequest returned from NetworkAddressResponse [4066/0 -> 0000/0, cluster=8000, TID=06, status=SUCCESS, ieeeAddrRemoteDev=A4C138100ED6268B, nwkAddrRemoteDev=4066, startIndex=null, nwkAddrAssocDevList=[]]
11:04:09.125 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 3 outstanding
11:04:09.125 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C138100ED6268B: NWK Discovery: Rediscovery found network address to 4066
11:04:09.125 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: transactionComplete, state=COMPLETE, outstanding=0
11:04:09.125 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=6, sleepy=0/3
11:04:09.125 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C138100ED6268B: NWK Discovery add node 4066
11:04:09.125 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Updating node NWK=4066
11:04:09.125 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4066/0: Sending ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=609, state=WAITING, sendCnt=0, command=BindRequest [0000/0 -> 4066/0, cluster=0021, TID=09, bindingTableEntry=BindingTable [srcAddr=A4C138100ED6268B/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]]
11:04:09.125 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 4 outstanding
11:04:09.125 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=4066
11:04:09.125 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: BindRequest [0000/0 -> 4066/0, cluster=0021, TID=09, bindingTableEntry=BindingTable [srcAddr=A4C138100ED6268B/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]
11:04:09.125 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=4066, endpoints=[]]
11:04:09.125 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - NWK Discovery for 4066 scheduling node discovery
11:04:09.125 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/0, destinationAddress=4066/0, profile=0000, cluster=0021, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=09, rssi=--, lqi=--, payload=09 8B 26 D6 0E 10 38 C1 A4 01 00 03 03 7C FB BF FE FF 7E E0 E8 01]
11:04:09.125 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - NWK Discovery for 4066 starting node discovery
11:04:09.125 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0000, clusterId=0021, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=09], messageTag=09, messageContents=09 8B 26 D6 0E 10 38 C1 A4 01 00 03 03 7C FB BF FE FF 7E E0 E8 01]
11:04:09.125 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Added transaction to queue, len=3, transaction=ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=IeeeAddressRequest [0000/0 -> 4066/0, cluster=0001, TID=--, nwkAddrOfInterest=4066, requestType=1, startIndex=0]]
11:04:09.125 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=4, outstandingQueues=6, sleepy=0/3
11:04:09.125 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=1, ackNum=5, reTx=false, data=71 00 01 34 00 00 66 40 00 00 21 00 00 00 40 11 00 00 09 09 16 09 8B 26 D6 0E 10 38 C1 A4 01 00 03 03 7C FB BF FE FF 7E E0 E8 01]
11:04:09.136 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=2, reTx=false, data=71 80 01 34 00 00 BD]
11:04:09.136 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
11:04:09.136 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=BD]
11:04:09.158 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=2, reTx=false, data=71 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
11:04:09.158 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
11:04:09.158 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
11:04:09.164 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C1381B88FD55A7: Data store: Writing node.
11:04:09.168 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=2, reTx=false, data=71 90 01 45 00 00 00 00 00 80 00 00 40 01 00 00 7E EC D7 89 4F FF FF 0C 07 00 EF C0 03 A3 84 38 C1 A4 89 4F 02]
11:04:09.168 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
11:04:09.168 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0000, clusterId=8000, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=7E], lastHopLqi=236, lastHopRssi=-41, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=07 00 EF C0 03 A3 84 38 C1 A4 89 4F]
11:04:09.168 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/0, destinationAddress=0000/0, profile=0000, cluster=8000, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=7E, rssi=-41, lqi=EC, payload=07 00 EF C0 03 A3 84 38 C1 A4 89 4F]
11:04:09.168 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
11:04:09.168 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
11:04:09.168 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: NetworkAddressResponse [4F89/0 -> 0000/0, cluster=8000, TID=07, status=SUCCESS, ieeeAddrRemoteDev=A4C13884A303C0EF, nwkAddrRemoteDev=4F89, startIndex=null, nwkAddrAssocDevList=[]]
11:04:09.168 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: NetworkAddressResponse [4F89/0 -> 0000/0, cluster=8000, TID=07, status=SUCCESS, ieeeAddrRemoteDev=A4C13884A303C0EF, nwkAddrRemoteDev=4F89, startIndex=null, nwkAddrAssocDevList=[]]
11:04:09.168 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=665, state=COMPLETE, sendCnt=1, command=NetworkAddressRequest [0000/0 -> 4F89/0, cluster=0000, TID=07, ieeeAddr=A4C13884A303C0EF, requestType=0, startIndex=0]]
11:04:09.168 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C13884A303C0EF: NWK Discovery NetworkAddressRequest returned from NetworkAddressResponse [4F89/0 -> 0000/0, cluster=8000, TID=07, status=SUCCESS, ieeeAddrRemoteDev=A4C13884A303C0EF, nwkAddrRemoteDev=4F89, startIndex=null, nwkAddrAssocDevList=[]]
11:04:09.168 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 3 outstanding
11:04:09.168 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C13884A303C0EF: NWK Discovery: Rediscovery found network address to 4F89
11:04:09.168 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: transactionComplete, state=COMPLETE, outstanding=0
11:04:09.168 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C13884A303C0EF: NWK Discovery add node 4F89
11:04:09.168 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=6, sleepy=0/3
11:04:09.168 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Updating node NWK=4F89
11:04:09.168 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=4F89
11:04:09.168 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4F89/0: Sending ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=652, state=WAITING, sendCnt=0, command=BindRequest [0000/0 -> 4F89/0, cluster=0021, TID=0A, bindingTableEntry=BindingTable [srcAddr=A4C13884A303C0EF/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]]
11:04:09.168 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=4F89, endpoints=[]]
11:04:09.168 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - NWK Discovery for 4F89 scheduling node discovery
11:04:09.168 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 4 outstanding
11:04:09.168 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - NWK Discovery for 4F89 starting node discovery
11:04:09.168 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: BindRequest [0000/0 -> 4F89/0, cluster=0021, TID=0A, bindingTableEntry=BindingTable [srcAddr=A4C13884A303C0EF/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]
11:04:09.168 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/0, destinationAddress=4F89/0, profile=0000, cluster=0021, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=0A, rssi=--, lqi=--, payload=0A EF C0 03 A3 84 38 C1 A4 01 00 03 03 7C FB BF FE FF 7E E0 E8 01]
11:04:09.169 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0000, clusterId=0021, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=0A], messageTag=0A, messageContents=0A EF C0 03 A3 84 38 C1 A4 01 00 03 03 7C FB BF FE FF 7E E0 E8 01]
11:04:09.169 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=4, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=IeeeAddressRequest [0000/0 -> 4F89/0, cluster=0001, TID=--, nwkAddrOfInterest=4F89, requestType=1, startIndex=0]]
11:04:09.169 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=4, outstandingQueues=6, sleepy=0/3
11:04:09.169 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=2, ackNum=0, reTx=false, data=72 00 01 34 00 00 89 4F 00 00 21 00 00 00 40 11 00 00 0A 0A 16 0A EF C0 03 A3 84 38 C1 A4 01 00 03 03 7C FB BF FE FF 7E E0 E8 01]
11:04:09.176 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=2, reTx=false, data=71 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
11:04:09.176 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
11:04:09.176 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
11:04:09.187 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=3, reTx=false, data=72 84 01 34 00 00 BE]
11:04:09.187 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
11:04:09.187 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=BE]
11:04:09.191 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=3, reTx=false, data=71 90 01 3F 00 00 66 40 00 00 21 00 00 00 40 11 00 00 BD 09 00 00]
11:04:09.191 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
11:04:09.191 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0000, clusterId=0021, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=BD], messageTag=09, status=EMBER_SUCCESS, messageContents=]
11:04:09.191 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=09 state=RX_ACK
11:04:09.191 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=09, state=RX_ACK, outstanding=4
11:04:09.191 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4066, TID=09, event=RX_ACK, state=ACKED
11:04:09.201 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=3, reTx=false, data=72 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
11:04:09.201 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
11:04:09.201 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
11:04:09.209 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=3, reTx=false, data=72 90 01 45 00 00 00 00 21 80 00 00 40 01 00 00 20 FF E9 66 40 FF FF 02 09 00 02]
11:04:09.209 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
11:04:09.209 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0000, clusterId=8021, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=20], lastHopLqi=255, lastHopRssi=-23, sender=4066, bindingIndex=255, addressIndex=255, messageContents=09 00]
11:04:09.209 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/0, destinationAddress=0000/0, profile=0000, cluster=8021, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=20, rssi=-23, lqi=FF, payload=09 00]
11:04:09.209 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
11:04:09.209 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
11:04:09.209 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: BindResponse [4066/0 -> 0000/0, cluster=8021, TID=09, status=SUCCESS]
11:04:09.209 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: BindResponse [4066/0 -> 0000/0, cluster=8021, TID=09, status=SUCCESS]
11:04:09.209 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=693, state=COMPLETE, sendCnt=1, command=BindRequest [0000/0 -> 4066/0, cluster=0021, TID=09, bindingTableEntry=BindingTable [srcAddr=A4C138100ED6268B/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]]
11:04:09.209 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 3 outstanding
11:04:09.209 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Added transaction to queue, len=4, transaction=ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=ConfigureReportingCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=--, records=[AttributeReportingConfigurationRecord [attributeDataType=UNSIGNED_16_BIT_INTEGER, attributeIdentifier=7, direction=0, minimumReportingInterval=1, maximumReportingInterval=7200, reportableChange=1]]]]
11:04:09.210 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=7, sleepy=0/3
11:04:09.210 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: transactionComplete, state=COMPLETE, outstanding=0
11:04:09.210 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=7, sleepy=0/3
11:04:09.210 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4066/0: Sending ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=434, state=WAITING, sendCnt=0, command=BindRequest [0000/0 -> 4066/0, cluster=0021, TID=0B, bindingTableEntry=BindingTable [srcAddr=A4C138100ED6268B/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]]
11:04:09.210 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 4 outstanding
11:04:09.210 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: BindRequest [0000/0 -> 4066/0, cluster=0021, TID=0B, bindingTableEntry=BindingTable [srcAddr=A4C138100ED6268B/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]
11:04:09.210 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/0, destinationAddress=4066/0, profile=0000, cluster=0021, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=0B, rssi=--, lqi=--, payload=0B 8B 26 D6 0E 10 38 C1 A4 01 00 03 03 7C FB BF FE FF 7E E0 E8 01]
11:04:09.210 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0000, clusterId=0021, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=0B], messageTag=0B, messageContents=0B 8B 26 D6 0E 10 38 C1 A4 01 00 03 03 7C FB BF FE FF 7E E0 E8 01]
11:04:09.210 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=3, ackNum=5, reTx=false, data=73 00 01 34 00 00 66 40 00 00 21 00 00 00 40 11 00 00 0B 0B 16 0B 8B 26 D6 0E 10 38 C1 A4 01 00 03 03 7C FB BF FE FF 7E E0 E8 01]
11:04:09.219 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=3, reTx=false, data=72 90 01 59 00 F7 75 A7 55 FD 88 1B 38 C1 A4 FF DD 00]
11:04:09.219 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
11:04:09.219 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=75F7, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-35, relayList=]
11:04:09.229 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=4, reTx=false, data=73 84 01 34 00 00 BF]
11:04:09.229 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
11:04:09.229 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=BF]
11:04:09.235 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=4, reTx=false, data=72 90 01 45 00 00 00 00 00 80 00 00 40 01 00 00 16 FF DC F7 75 FF FF 0C 08 00 A7 55 FD 88 1B 38 C1 A4 F7 75 02]
11:04:09.235 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
11:04:09.235 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0000, clusterId=8000, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_RETRY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=16], lastHopLqi=255, lastHopRssi=-36, sender=75F7, bindingIndex=255, addressIndex=255, messageContents=08 00 A7 55 FD 88 1B 38 C1 A4 F7 75]
11:04:09.235 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=75F7/0, destinationAddress=0000/0, profile=0000, cluster=8000, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=16, rssi=-36, lqi=FF, payload=08 00 A7 55 FD 88 1B 38 C1 A4 F7 75]
11:04:09.235 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node update. NWK Address=NULL
11:04:09.235 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node 75F7 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C1381B88FD55A7, NWK=----, endpoints=[]]
11:04:09.235 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: NetworkAddressResponse [75F7/0 -> 0000/0, cluster=8000, TID=08, status=SUCCESS, ieeeAddrRemoteDev=A4C1381B88FD55A7, nwkAddrRemoteDev=75F7, startIndex=null, nwkAddrAssocDevList=[]]
11:04:09.235 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: NetworkAddressResponse [75F7/0 -> 0000/0, cluster=8000, TID=08, status=SUCCESS, ieeeAddrRemoteDev=A4C1381B88FD55A7, nwkAddrRemoteDev=75F7, startIndex=null, nwkAddrAssocDevList=[]]
11:04:09.235 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C1381B88FD55A7: NWK Discovery NetworkAddressRequest returned from NetworkAddressResponse [75F7/0 -> 0000/0, cluster=8000, TID=08, status=SUCCESS, ieeeAddrRemoteDev=A4C1381B88FD55A7, nwkAddrRemoteDev=75F7, startIndex=null, nwkAddrAssocDevList=[]]
11:04:09.235 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=732, state=COMPLETE, sendCnt=1, command=NetworkAddressRequest [0000/0 -> 75F7/0, cluster=0000, TID=08, ieeeAddr=A4C1381B88FD55A7, requestType=0, startIndex=0]]
11:04:09.235 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C1381B88FD55A7: NWK Discovery: Rediscovery found network address to 75F7
11:04:09.235 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 3 outstanding
11:04:09.235 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C1381B88FD55A7: NWK Discovery add node 75F7
11:04:09.235 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: transactionComplete, state=COMPLETE, outstanding=0
11:04:09.235 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Updating node NWK=75F7
11:04:09.235 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=6, sleepy=0/3
11:04:09.235 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7:

James_Kester · June 1, 2024, 6:40pm

It doesn’t look like open hab supports firmware greater than 6.10.3…

chris · June 1, 2024, 10:37pm

Why do you think that? I already said above that this is very old firmware, and for sure the latest is supported. Personally, I’m using firmware 7.3 -:

chris · June 1, 2024, 10:47pm

The log seems to show no errors -:

From this it seems that a4c1381b88fd55a7 is responding fine to address requests. As I mentioned above though, it would be good to see a log when the device joins the network as this is the time that the interrogation happens and channels are defined (based on the response of the interogation).

Another thing you could try is to use the zigbee fingerprint command in the console. This would interrogate the device (if it responds!) and could provide useful info.

James_Kester · June 2, 2024, 12:08am

Weird, i was getting an error in openhab 4.1.5 but in 4.2 the v7 firmware works just fine.

Fingerprint:

openhab> zigbee fingerprint a4c1381b88fd55a7
|>| Node Descriptor
| |> Logical Type               ROUTER
| |> MAC Capabilities           [FULL_FUNCTION_DEVICE, MAINS_POWER, RECEIVER_ON_WHEN_IDLE]
| |> Stack Compliance           21
| |> Server Capabilities        []
| |> Buffer Size                66
| |> Incoming Transfer Size     66
| |> Outgoing Transfer Size     66
|
|>| Power Descriptor
| |> Available Power Sources    [MAINS]
| |> Current Power Source       MAINS
| |> Current Power Mode         RECEIVER_ON_IDLE
| |> Power Level                FULL
|
|>| ZDO
| |> ManagementBindRequest      SUCCESS
| |> IeeeAddressRequest         SUCCESS
| |> ManagementLqiRequest       SUCCESS
| |> ManagementRoutingRequest   NOT_SUPPORTED
|
|>| Basic Information
| |> Generic Device Class
| |> Generic Device Type
| |> Manufacturer Name          _TZ3210_mja6r5ix
| |> Model Indentifier          TS0505B
| |> Product Code
| |> Product URL
| |> Date Code
| |> Application Version        112
| |> Software Build ID          z.1.0
| |> Hardware Version           0
| |> Zcl Version                3
| |> Stack Version              2
| |
| |>| Endpoint 1
| | |> Profile                  0104  ZIGBEE_HOME_AUTOMATION
| | |> Device Type              010D  EXTENDED_COLOR_LIGHT
| | |> Device Version           1
| | |
| | |>| Input Clusters
| | | |
| | | |>| Cluster 0000 Basic
| | | | |> Type                 Server [Input]
| | | | |> Manufacturer Spec.   No
| | | | |
| | | | |>| Commands Generated
| | | | | |> FAILURE
| | | | |
| | | | |>| Commands Received
| | | | | |> FAILURE
| | | | |
| | | | |>| Attributes Supported
| | | | | |> 0000  ZCL Version                               >> UNSIGNED_8_BIT_INTEGER          3
| | | | | |> 0001  Application Version                       >> UNSIGNED_8_BIT_INTEGER          112
| | | | | |> 0002  Stack Version                             >> UNSIGNED_8_BIT_INTEGER          2
| | | | | |> 0003  HW Version                                >> UNSIGNED_8_BIT_INTEGER          0
| | | | | |> 0004  Manufacturer Name                         >> CHARACTER_STRING                _TZ3210_mja6r5ix
| | | | | |> 0005  Model Identifier                          >> CHARACTER_STRING                TS0505B
| | | | | |> 0007  Power Source                              >> ENUMERATION_8_BIT               0
| | | | | |> 0012  Device Enabled                            >> BOOLEAN                         true
| | | | | |> 4000  SW Build ID                               >> CHARACTER_STRING                z.1.0
| | | | | |> FFFD  Cluster Revision                          >> UNSIGNED_16_BIT_INTEGER         1
| | | |
| | | |>| Cluster 0003 Identify
| | | | |> Type                 Server [Input]
| | | | |> Manufacturer Spec.   No
| | | | |> Unsupported locally
| | | |
| | | |>| Cluster 0004 Groups
| | | | |> Type                 Server [Input]
| | | | |> Manufacturer Spec.   No
| | | | |> Unsupported locally
| | | |
| | | |>| Cluster 0005 Scenes
| | | | |> Type                 Server [Input]
| | | | |> Manufacturer Spec.   No
| | | | |
| | | | |>| Commands Generated
| | | | | |> FAILURE
| | | | |
| | | | |>| Commands Received
| | | | | |> FAILURE
| | | | |
| | | | |>| Attributes Supported
| | | | | |> 0000  Scene Count                               >> UNSIGNED_8_BIT_INTEGER          0
| | | | | |> 0001  Current Scene                             >> UNSIGNED_8_BIT_INTEGER          0
| | | | | |> 0002  Current Group                             >> UNSIGNED_16_BIT_INTEGER         0
| | | | | |> 0003  Scene Valid                               >> BOOLEAN                         false
| | | | | |> 0004  Name Support                              >> BITMAP_8_BIT                    0
| | | | | |> FFFD  Cluster Revision                          >> UNSIGNED_16_BIT_INTEGER         1
| | | |
| | | |>| Cluster 0006 On/Off
| | | | |> Type                 Server [Input]
| | | | |> Manufacturer Spec.   No
| | | | |
| | | | |>| Commands Generated
| | | | | |> FAILURE
| | | | |
| | | | |>| Commands Received
| | | | | |> FAILURE
| | | | |
| | | | |>| Attributes Supported
| | | | | |> 0000  On Off                                    >> BOOLEAN                         true
| | | | | |> 4000  Global Scene Control                      >> BOOLEAN                         true
| | | | | |> 4001  On Time                                   >> UNSIGNED_16_BIT_INTEGER         0
| | | | | |> 4002  Off Wait Time                             >> UNSIGNED_16_BIT_INTEGER         0
| | | | | |> 4003  Start Up On Off                           >> ENUMERATION_8_BIT               255
| | | | | |> F000                                            >>
| | | | | |> FFFD  Cluster Revision                          >> UNSIGNED_16_BIT_INTEGER         1
| | | |
| | | |>| Cluster 0008 Level Control
| | | | |> Type                 Server [Input]
| | | | |> Manufacturer Spec.   No
| | | | |
| | | | |>| Commands Generated
| | | | | |> FAILURE
| | | | |
| | | | |>| Commands Received
| | | | | |> FAILURE
| | | | |
| | | | |>| Attributes Supported
| | | | | |> 0000  Current Level                             >> UNSIGNED_8_BIT_INTEGER          254
| | | | | |> 0001  Remaining Time                            >> UNSIGNED_16_BIT_INTEGER         0
| | | | | |> 0011  On Level                                  >> UNSIGNED_8_BIT_INTEGER          255
| | | | | |> 0012  On Transition Time                        >> UNSIGNED_16_BIT_INTEGER         10
| | | | | |> 0013  Off Transition Time                       >> UNSIGNED_16_BIT_INTEGER         10
| | | | | |> 4000  Start Up Current Level                    >> UNSIGNED_8_BIT_INTEGER          254
| | | | | |> F000                                            >> UNSIGNED_16_BIT_INTEGER         1000
| | | | | |> FFFD  Cluster Revision                          >> UNSIGNED_16_BIT_INTEGER         1
| | | |
| | | |>| Cluster 0300 Color Control
| | | | |> Type                 Server [Input]
| | | | |> Manufacturer Spec.   No
| | | | |> Unsupported locally
| | | |
| | | |>| Cluster 1000
| | | | |> Type                 Server [Input]
| | | | |> Manufacturer Spec.   No
| | | | |> Unsupported locally
| | |
| | |>| Output Clusters
| | | |
| | | |>| Cluster 000A Time
| | | | |> Type                 Client [Output]
| | | | |> Manufacturer Spec.   No
| | | | |> Unsupported locally
| | | |
| | | |>| Cluster 0019 Ota Upgrade
| | | | |> Type                 Client [Output]
| | | | |> Manufacturer Spec.   No
| | | | |
| | | | |>| Commands Generated
| | | | | |> FAILURE
| | | | |
| | | | |>| Commands Received
| | | | | |> FAILURE
| | | | |
| | | | |>| Attributes Supported
| | | | | |> 0000  Upgrade Server ID                         >> IEEE_ADDRESS                    FFFFFFFFFFFFFFFF
| | | | | |> 0001  File Offset                               >> UNSIGNED_32_BIT_INTEGER         -1
| | | | | |> 0002  Current File Version                      >> UNSIGNED_32_BIT_INTEGER         268449287
| | | | | |> 0003  Current ZigBee Stack Version              >> UNSIGNED_16_BIT_INTEGER         2
| | | | | |> 0004  Downloaded File Version                   >> UNSIGNED_32_BIT_INTEGER         -1
| | | | | |> 0005  Downloaded ZigBee Stack Version           >> UNSIGNED_16_BIT_INTEGER         65535
| | | | | |> 0006  Image Upgrade Status                      >> ENUMERATION_8_BIT               0
| | | | | |> 0007  Manufacturer ID                           >> UNSIGNED_16_BIT_INTEGER         4107
| | | | | |> 0008  Image Type ID                             >> UNSIGNED_16_BIT_INTEGER         65535
| | | | | |> 0009  Minimum Block Request Period              >> UNSIGNED_16_BIT_INTEGER         0
| | | | | |> FFFD  Cluster Revision                          >> UNSIGNED_16_BIT_INTEGER         1

chris · June 2, 2024, 1:31am

I don’t know what versions you tried, but 7.2 should have worked fine with 4.1, but 4.2 brings support for 7.3 which was released by Silabs early this year. Silabs update the version of their protocol quite often these days…

From the fingerprint, it shows the device is apparently working fine on the network. I think we need to see the debug log during the binding initialisation when the channels are created. Also, you can try doing a reinitialisation of the device - there’s an advanced option in the thing config -:

I’m guessing this won’t work since it seems you’ve tried resetting and rejoining the device many times, so we need to find why the binding doesn’t (apparently!) like this one.

Another couple of things out of interest. Since you managed to get the fingerprint command working, how about trying a couple of other commands - eg the on and off commands, and maybe level and color (colour takes 3 args - R G and B - separated by space - in addition to the endpoint of course). This would then confirm that the device works - I suspect this will be ok, and the problem is somewhere in the binding initialisation.

James_Kester · June 2, 2024, 2:43pm

openhab> zigbee write 30199/1 0006 0000 false
Attribute value write error: READ_ONLY

Network  Addr  IEEE Address      Logical Type  State      EP   Profile                    Device Type                Manufacturer     Model
      0  0000  E8E07EFFFEBFFB7C  COORDINATOR   ONLINE
  16486  4066  A4C138100ED6268B  ROUTER        ONLINE      1  ZIGBEE_HOME_AUTOMATION     EXTENDED_COLOR_LIGHT       eWeLight         ZB-CL01
  20361  4F89  A4C13884A303C0EF  ROUTER        ONLINE      1  ZIGBEE_HOME_AUTOMATION     EXTENDED_COLOR_LIGHT       eWeLight         ZB-CL01
  30199  75F7  A4C1381B88FD55A7  ROUTER        ONLINE      1  ZIGBEE_HOME_AUTOMATION     EXTENDED_COLOR_LIGHT       _TZ3210_mja6r5ix  TS0505B

openhab> zigbee endpoint 30199/1
IEEE Address      : A4C1381B88FD55A7
Network Address   : 30199
Endpoint          : 1
Device Profile    : 0x0104, ZIGBEE_HOME_AUTOMATION
Device Type       : 0x010D, EXTENDED_COLOR_LIGHT
Device Version    : 1
Input Clusters    : (Server)
   0000 Basic
     - APS Security disabled
        S       0 r-- UNSIGNED_8_BIT_INTEGER    ZCL Version                              Sun Jun 02 09:13:49 CDT 2024 3
        S       1 r-- UNSIGNED_8_BIT_INTEGER    Application Version                      Sun Jun 02 09:13:49 CDT 2024 112
        S       2 r-- UNSIGNED_8_BIT_INTEGER    Stack Version                            Sun Jun 02 09:13:49 CDT 2024 2
        S       3 r-- UNSIGNED_8_BIT_INTEGER    HW Version                               Sun Jun 02 09:13:50 CDT 2024 0
        S       4 r-- CHARACTER_STRING          Manufacturer Name                        Sun Jun 02 09:13:50 CDT 2024 _TZ3210_mja6r5ix
        S       5 r-- CHARACTER_STRING          Model Identifier                         Sun Jun 02 09:13:50 CDT 2024 TS0505B
        U       6 r-- CHARACTER_STRING          Date Code
        S       7 r-- ENUMERATION_8_BIT         Power Source                             Sun Jun 02 09:13:50 CDT 2024 0
        U       8 r-- ENUMERATION_8_BIT         Generic Device Class
        U       9 r-- ENUMERATION_8_BIT         Generic Device Type
        U      10 r-- CHARACTER_STRING          Product Code
        U      11 r-- CHARACTER_STRING          Product URL
        U      16 rw- CHARACTER_STRING          Location Description
        U      17 rw- ENUMERATION_8_BIT         Physical Environment
        S      18 rw- BOOLEAN                   Device Enabled                           Sun Jun 02 09:13:50 CDT 2024 true
        U      19 rw- BITMAP_8_BIT              Alarm Mask
        U      20 rw- BITMAP_8_BIT              Disable Local Config
        S   16384 r-- CHARACTER_STRING          SW Build ID                              Sun Jun 02 09:13:50 CDT 2024 z.1.0
        S   65533 r-- UNSIGNED_16_BIT_INTEGER   Cluster Revision                         Sun Jun 02 09:13:50 CDT 2024 1
        U   65534 r-- ENUMERATION_16_BIT        Attribute Reporting Status
   0003 Identify
     - APS Security disabled
        S       0 rw- UNSIGNED_16_BIT_INTEGER   Identify Time
        S   65533 r-- UNSIGNED_16_BIT_INTEGER   Cluster Revision
        S   65534 r-- ENUMERATION_16_BIT        Attribute Reporting Status
   0004 Groups
     - APS Security disabled
        S       0 r-- BITMAP_8_BIT              Name Support
        S   65533 r-- UNSIGNED_16_BIT_INTEGER   Cluster Revision
        S   65534 r-- ENUMERATION_16_BIT        Attribute Reporting Status
   0005 Scenes
     - APS Security disabled
        S       0 r-- UNSIGNED_8_BIT_INTEGER    Scene Count                              Sun Jun 02 09:13:51 CDT 2024 0
        S       1 r-- UNSIGNED_8_BIT_INTEGER    Current Scene                            Sun Jun 02 09:13:51 CDT 2024 0
        S       2 r-- UNSIGNED_16_BIT_INTEGER   Current Group                            Sun Jun 02 09:13:51 CDT 2024 0
        S       3 r-- BOOLEAN                   Scene Valid                              Sun Jun 02 09:13:51 CDT 2024 false
        S       4 r-- BITMAP_8_BIT              Name Support                             Sun Jun 02 09:13:51 CDT 2024 0
        U       5 r-- IEEE_ADDRESS              Last Configured By
        S   65533 r-- UNSIGNED_16_BIT_INTEGER   Cluster Revision                         Sun Jun 02 09:13:52 CDT 2024 1
        U   65534 r-- ENUMERATION_16_BIT        Attribute Reporting Status
   0006 On/Off
     - APS Security disabled
        S       0 r-s BOOLEAN                   On Off                                   Sun Jun 02 09:40:21 CDT 2024 true
        S   16384 r-- BOOLEAN                   Global Scene Control                     Sun Jun 02 09:13:52 CDT 2024 true
        S   16385 rw- UNSIGNED_16_BIT_INTEGER   On Time                                  Sun Jun 02 09:13:52 CDT 2024 0
        S   16386 rw- UNSIGNED_16_BIT_INTEGER   Off Wait Time                            Sun Jun 02 09:13:53 CDT 2024 0
        S   16387 rw- ENUMERATION_8_BIT         Start Up On Off                          Sun Jun 02 09:13:53 CDT 2024 255
        S   65533 r-- UNSIGNED_16_BIT_INTEGER   Cluster Revision                         Sun Jun 02 09:13:53 CDT 2024 1
        U   65534 r-- ENUMERATION_16_BIT        Attribute Reporting Status
   0008 Level Control
     - APS Security disabled
        S       0 r-s UNSIGNED_8_BIT_INTEGER    Current Level                            Sun Jun 02 09:13:54 CDT 2024 254
        S       1 r-- UNSIGNED_16_BIT_INTEGER   Remaining Time                           Sun Jun 02 09:13:54 CDT 2024 0
        U       2 r-- UNSIGNED_8_BIT_INTEGER    Minimum Level
        U       3 r-- UNSIGNED_8_BIT_INTEGER    Maximum Level
        U       4 r-s UNSIGNED_16_BIT_INTEGER   Current Frequency
        U       5 r-- UNSIGNED_16_BIT_INTEGER   Minimum Frequency
        U       6 r-- UNSIGNED_16_BIT_INTEGER   Maximum Frequency
        U      15 r-- BITMAP_8_BIT              Options
        U      16 rw- UNSIGNED_16_BIT_INTEGER   On Off Transition Time
        S      17 rw- UNSIGNED_8_BIT_INTEGER    On Level                                 Sun Jun 02 09:13:54 CDT 2024 255
        S      18 rw- UNSIGNED_16_BIT_INTEGER   On Transition Time                       Sun Jun 02 09:13:54 CDT 2024 10
        S      19 rw- UNSIGNED_16_BIT_INTEGER   Off Transition Time                      Sun Jun 02 09:13:54 CDT 2024 10
        U      20 rw- UNSIGNED_16_BIT_INTEGER   Default Move Rate
        S   16384 rw- UNSIGNED_8_BIT_INTEGER    Start Up Current Level                   Sun Jun 02 09:13:54 CDT 2024 254
        S   65533 r-- UNSIGNED_16_BIT_INTEGER   Cluster Revision                         Sun Jun 02 09:13:55 CDT 2024 1
        U   65534 r-- ENUMERATION_16_BIT        Attribute Reporting Status
   0300 Color Control
     - APS Security disabled
        U       0 r-s UNSIGNED_8_BIT_INTEGER    Current Hue
        U       1 r-s UNSIGNED_8_BIT_INTEGER    Current Saturation
        U       2 r-- UNSIGNED_16_BIT_INTEGER   Remaining Time
        U       3 r-s UNSIGNED_16_BIT_INTEGER   Current X
        U       4 r-s UNSIGNED_16_BIT_INTEGER   Current Y
        U       5 r-- ENUMERATION_8_BIT         Drift Compensation
        U       6 r-- CHARACTER_STRING          Compensation Text
        U       7 r-s UNSIGNED_16_BIT_INTEGER   Color Temperature                        Sun Jun 02 09:12:27 CDT 2024 153
        S       8 r-- ENUMERATION_8_BIT         Color Mode
        U   16384 r-s UNSIGNED_16_BIT_INTEGER   Enhanced Current Hue
        S   16385 r-- ENUMERATION_8_BIT         Enhanced Color Mode
        U   16386 r-- UNSIGNED_8_BIT_INTEGER    Color Loop Active
        U   16387 r-- UNSIGNED_8_BIT_INTEGER    Color Loop Direction
        U   16388 r-- UNSIGNED_16_BIT_INTEGER   Color Loop Time
        U   16389 r-- UNSIGNED_16_BIT_INTEGER   Color Loop Start Hue
        U   16390 r-- UNSIGNED_16_BIT_INTEGER   Color Loop Stored Hue
        S   16394 r-- BITMAP_16_BIT             Color Capabilities                       Sat Jun 01 10:56:20 CDT 2024 25
        U   16395 r-- UNSIGNED_16_BIT_INTEGER   Color Temperature Min                    Sat Jun 01 10:56:35 CDT 2024 153
        U   16396 r-- UNSIGNED_16_BIT_INTEGER   Color Temperature Max                    Sat Jun 01 10:56:35 CDT 2024 500
        S   65533 r-- UNSIGNED_16_BIT_INTEGER   Cluster Revision
        U   65534 r-- ENUMERATION_16_BIT        Attribute Reporting Status
   1000
     - APS Security disabled
Output Clusters   : (Client)
   000A Time
     - APS Security disabled
        S   65533 r-- UNSIGNED_16_BIT_INTEGER   Cluster Revision
        S   65534 r-- ENUMERATION_16_BIT        Attribute Reporting Status
   0019 Ota Upgrade
     - APS Security disabled
        S       0 r-- IEEE_ADDRESS              Upgrade Server ID                        Sun Jun 02 09:13:55 CDT 2024 FFFFFFFFFFFFFFFF
        S       1 r-- UNSIGNED_32_BIT_INTEGER   File Offset                              Sun Jun 02 09:13:55 CDT 2024 -1
        S       2 r-- UNSIGNED_32_BIT_INTEGER   Current File Version                     Sun Jun 02 09:13:55 CDT 2024 268449287
        S       3 r-- UNSIGNED_16_BIT_INTEGER   Current ZigBee Stack Version             Sun Jun 02 09:13:56 CDT 2024 2
        S       4 r-- UNSIGNED_32_BIT_INTEGER   Downloaded File Version                  Sun Jun 02 09:13:56 CDT 2024 -1
        S       5 r-- UNSIGNED_16_BIT_INTEGER   Downloaded ZigBee Stack Version          Sun Jun 02 09:13:56 CDT 2024 65535
        S       6 r-- ENUMERATION_8_BIT         Image Upgrade Status                     Sun Jun 02 09:13:56 CDT 2024 0
        S       7 r-- UNSIGNED_16_BIT_INTEGER   Manufacturer ID                          Sun Jun 02 09:13:56 CDT 2024 4107
        S       8 r-- UNSIGNED_16_BIT_INTEGER   Image Type ID                            Sun Jun 02 09:13:57 CDT 2024 65535
        S       9 r-- UNSIGNED_16_BIT_INTEGER   Minimum Block Request Period             Sun Jun 02 09:13:57 CDT 2024 0
        U      10 r-- UNSIGNED_32_BIT_INTEGER   Image Stamp
        S   65533 r-- UNSIGNED_16_BIT_INTEGER   Cluster Revision                         Sun Jun 02 09:13:57 CDT 2024 1
        U   65534 r-- ENUMERATION_16_BIT        Attribute Reporting Status
Groups Supported  : 16
Groups Configured : 0

openhab> zigbee write 30199/1 0006 0000 false
Attribute value write error: READ_ONLY

openhab> zigbee write 30199/1 0300 0000 50
Error: Exception during command execution (IllegalArgumentException): A cluster specified by 0300 is not found for endpoint 1
openhab>

chris · June 2, 2024, 8:30pm

Sure - these are read only attributes - you cannot write to them, so that’s expected.

I suggested to use the on, off, level and color commands - not to write to attributes. As also stated, I suspect these will work, but it would good to check, and then lets see what the logs show from initialisation.

James_Kester · June 2, 2024, 9:02pm

Sorry this is all new to me. What is the best way to capture the initialization logs?
just run: log:set debug com.zsmartsystems.zigbee and then delete and re-add the thing?

I don’t seem to have the on off color or level commands…

openhab> zigbee
Usage: openhab:zigbee - read ENDPOINT CLUSTER [ATTRIBUTE1 ATTRIBUTE2 ...] [PERIOD=x] [CYCLES=x] - Read one or more attributes. If no attribute specified, all attributes will be read.
Usage: openhab:zigbee - attsupported ENDPOINT CLUSTER [MANUFACTURER-CODE] - Check what attributes are supported within a cluster.
Usage: openhab:zigbee - write ENDPOINT CLUSTER ATTRIBUTEID (VALUE [TYPE] | {VALUE1 VALUE2 ... VALUEN} TYPE) - Write an attribute.
Usage: openhab:zigbee - bind CLUSTER SOURCE-ENDPOINT [DESTINATION-ENDPOINT] - Binds a device to another device. If destination is not specified, the coordinator will be used.
Usage: openhab:zigbee - bindtable NODEID - Reads and displays the binding table from a node.
Usage: openhab:zigbee - channel CHANNEL - Sets the ZigBee channel.
Usage: openhab:zigbee - cmdsupported ENDPOINT CLUSTER [gen|rcv] [MANUFACTURER-CODE] - Check what commands are supported within a cluster, optionally restricted to generated / received commands
Usage: openhab:zigbee - endpoint ENDPOINT - Provides detailed information about an endpoint.
Usage: openhab:zigbee - node NODEID - Provides detailed information about a node.
Usage: openhab:zigbee - fingerprint ADDRESS - Get detailed information about a device
Usage: openhab:zigbee - info ENDPOINT [MANUFACTURER|MODEL|APPVERSION|STKVERSION|HWVERSION|ZCLVERSION|DATE] [REFRESH] - Get basic info about a device
Usage: openhab:zigbee - firmware [VERSION | CANCEL | FILE] - Updates the dongle firmware
Usage: openhab:zigbee - group READ|SYNC|CREATE|DELETE|ADD|REMOVE [GROUPID|ENDPOINT|NAME] - Manage groups
Usage: openhab:zigbee - installkey IEEEADDRESS KEYDATA - Adds an install key to the dongle, computing the MMO Hash from the join code
Usage: openhab:zigbee - linkkey [MMO] KEYDATA - Sets the link key int the dongle, optionally computing the MMO Hash from the join code
Usage: openhab:zigbee - neighbors NODEID - Lists the neighbors of a node.
Usage: openhab:zigbee - netbackup [RESTORE STRING] - Backup or restore the coordinator.
Usage: openhab:zigbee - join [ENABLE|DISABLE|PERIOD] [NODE] - Enable or disable network join.
Usage: openhab:zigbee - leave [forceNodeRemoval|fnr] NODE [PARENT] - Remove a node from the network.
Usage: openhab:zigbee - nodes  - Lists the known nodes in the network.
Usage: openhab:zigbee - otaupgrade [STATE | FILE | START | COMPLETE | CANCEL] [ENDPOINT] [FILENAME] - Provides detailed information about device over the air upgrade server status.
Usage: openhab:zigbee - reset ENDPOINT - Resets a node to factory defaults
Usage: openhab:zigbee - scene ENDPOINT [INFO | ADD | VIEW | STORE | RECALL] [GROUPID SCENEID TRANSITION_TIME NAME EXTENSION_FIELDS] - Provides scene support functions
Usage: openhab:zigbee - reportcfg ENDPOINT CLUSTER ATTRIBUTE - Read the reporting configuration of an attribute.
Usage: openhab:zigbee - subscribe ENDPOINT CLUSTER ATTRIBUTE MIN-INTERVAL MAX-INTERVAL REPORTABLE-CHANGE - Subscribe to attribute reports.
Usage: openhab:zigbee - unsubscribe ENDPOINT CLUSTER ATTRIBUTE - Unsubscribe from attribute reports.
Usage: openhab:zigbee - routingtable NODEID - Shows the routing table of a node.
Usage: openhab:zigbee - unbind CLUSTER SOURCE-ENDPOINT [DESTINATION-ENDPOINT] - Unbinds a device from another device. If destination is not specified, the coordinator will be used.
Usage: openhab:zigbee - covering ENDPOINT [UP | DOWN | OPEN | CLOSE | STOP | LIFT | TILT] [value] - Performs commands on the windowing covering cluster.
Usage: openhab:zigbee - identify ENDPOINT | NODE [TIME] - Identifies a device
Usage: openhab:zigbee - ncpmmohash INSTALLCODE - Passes an install code to the NCP and receives the MMO hash key
Usage: openhab:zigbee - ncpchildren  - Gets the NCP child information
Usage: openhab:zigbee - ncpconfig [CONFIGID] [VALUE] - Read or write an NCP configuration value
Usage: openhab:zigbee - ncpcounters  - Gets the NCP debug counters
Usage: openhab:zigbee - ncpmcast [SET INDEX ID EP NW] [CLEAR INDEX] - Read and configure NCP multicast group table
Usage: openhab:zigbee - ncppolicy [POLICYID] [DECISIONID] - Read or write an NCP policy decision
Usage: openhab:zigbee - ncprouting  - Read NCP routing information
Usage: openhab:zigbee - ncpscan [ENERGY | ACTIVE] - Performs a scan on the Ember NCP
Usage: openhab:zigbee - ncpsecuritystate  - Gets the current NCP security state and configuration
Usage: openhab:zigbee - ncpstate [ONLINE | OFFLINE] - Gets the NCP network state. Optionally brings the NCP online or offline.
Usage: openhab:zigbee - ncptoken [] - Reads and writes manufacturing tokens in the NCP
Usage: openhab:zigbee - ncptransientkey IEEEADDRESS KEYDATA - Adds a transient link key to the NCP
Usage: openhab:zigbee - ncpvalue [VALUEID] [VALUE] - Read or write an NCP memory value
Usage: openhab:zigbee - ncpversion  - Gets the NCP firmware version
Usage: openhab:zigbee - ncpsecuritystate  - Gets the current dongle security state and configuration
Usage: openhab:zigbee - setBridgeUid [bridgeUid] - sets the UID of the bridge to be used in subsequent commands; only required if there is more than 1 bridge

James_Kester · June 2, 2024, 9:12pm

16:09:47.621 [INFO ] [org.openhab.core.Activator           ] - Starting openHAB 4.2.0.M3 (Milestone Build)
16:09:48.049 [INFO ] [b.core.internal.i18n.I18nProviderImpl] - Time zone set to 'America/Chicago'.
16:09:48.054 [INFO ] [b.core.internal.i18n.I18nProviderImpl] - Location set to '44.0780552,-92.5098914'.
16:09:48.055 [INFO ] [b.core.internal.i18n.I18nProviderImpl] - Locale set to 'en_US'.
16:09:59.708 [INFO ] [b.core.model.lsp.internal.ModelServer] - Started Language Server Protocol (LSP) service on port 5007
16:10:31.861 [WARN ] [tty.util.ssl.SslContextFactory.config] - Trusting all certificates configured for Client@775e8f38[provider=null,keyStore=null,trustStore=null]
16:10:31.876 [WARN ] [tty.util.ssl.SslContextFactory.config] - No Client EndPointIdentificationAlgorithm configured for Client@775e8f38[provider=null,keyStore=null,trustStore=null]
16:10:33.300 [INFO ] [re.automation.internal.RuleEngineImpl] - Rule engine started.
16:10:33.307 [INFO ] [hab.event.ThingStatusInfoChangedEvent] - Thing 'mqtt:broker:a5487b2831' changed from UNINITIALIZED (NOT_YET_READY) to INITIALIZING
16:10:33.314 [INFO ] [hab.event.ThingStatusInfoChangedEvent] - Thing 'mqtt:broker:a5487b2831' changed from INITIALIZING to OFFLINE
16:10:33.539 [INFO ] [o.transport.mqtt.MqttBrokerConnection] - Starting MQTT broker connection to 'localhost' with clientid 9c4be1c1-f10d-4555-9ebe-8efef43f2e3d
16:10:33.541 [INFO ] [hab.event.ThingStatusInfoChangedEvent] - Thing 'zigbee:device:3ea840067f:a4c1381b88fd55a7' changed from UNINITIALIZED (NOT_YET_READY) to UNINITIALIZED (BRIDGE_UNINITIALIZED)
16:10:33.546 [INFO ] [hab.event.ThingStatusInfoChangedEvent] - Thing 'mqtt:topic:a5487b2831:adf2472466' changed from UNINITIALIZED (NOT_YET_READY) to INITIALIZING
16:10:33.551 [INFO ] [hab.event.ThingStatusInfoChangedEvent] - Thing 'mqtt:topic:a5487b2831:adf2472466' changed from INITIALIZING to OFFLINE (BRIDGE_OFFLINE)
16:10:33.603 [INFO ] [hab.event.ThingStatusInfoChangedEvent] - Thing 'mqtt:broker:a5487b2831' changed from OFFLINE to ONLINE
16:10:33.607 [INFO ] [hab.event.ThingStatusInfoChangedEvent] - Thing 'mqtt:topic:a5487b2831:adf2472466' changed from OFFLINE (BRIDGE_OFFLINE) to ONLINE
16:10:33.611 [INFO ] [hab.event.ThingStatusInfoChangedEvent] - Thing 'zigbee:coordinator_ember:3ea840067f' changed from UNINITIALIZED (NOT_YET_READY) to INITIALIZING
16:10:33.621 [INFO ] [hab.event.ThingStatusInfoChangedEvent] - Thing 'zigbee:device:3ea840067f:a4c138100ed6268b' changed from UNINITIALIZED (NOT_YET_READY) to UNINITIALIZED (BRIDGE_UNINITIALIZED)
16:10:33.635 [INFO ] [openhab.event.ItemStateChangedEvent  ] - Item 'Generic_MQTT_Thing_Color' changed from 280,100,50 to 211,73,71
16:10:34.625 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - Default: Set profile to ZigBeeTransactionProfile [maxOutstandingTransactions=1, interTransactionDelay=50, maxRetries=2]
16:10:34.625 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - Broadcast: Set profile to ZigBeeTransactionProfile [maxOutstandingTransactions=2, interTransactionDelay=4000, maxRetries=0]
16:10:34.625 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - Multicast: Set profile to ZigBeeTransactionProfile [maxOutstandingTransactions=3, interTransactionDelay=1200, maxRetries=0]
16:10:34.626 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - ZigBeeNetworkManager initialize: networkState=UNINITIALISED
16:10:34.626 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - Network state is updated to INITIALISING
16:10:34.629 [INFO ] [openhab.event.ItemStateChangedEvent  ] - Item 'Generic_MQTT_Thing_Color' changed from 211,73,71 to 185,93,90
16:10:34.704 [DEBUG] [m.zsmartsystems.zigbee.ZigBeeEndpoint] - A4C138100ED6268B: Endpoint 1. Unsupported cluster 1000 - using ZclCustomCluster
16:10:34.708 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C138100ED6268B: Data store: Node was restored.
16:10:34.708 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Updating node NWK=4066
16:10:34.714 [DEBUG] [m.zsmartsystems.zigbee.ZigBeeEndpoint] - A4C1381B88FD55A7: Endpoint 1. Unsupported cluster 1000 - using ZclCustomCluster
16:10:34.715 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C1381B88FD55A7: Data store: Node was restored.
16:10:34.716 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Updating node NWK=6466
16:10:34.720 [DEBUG] [m.zsmartsystems.zigbee.ZigBeeEndpoint] - A4C13884A303C0EF: Endpoint 1. Unsupported cluster 1000 - using ZclCustomCluster
16:10:34.720 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - A4C13884A303C0EF: Data store: Node was restored.
16:10:34.720 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Updating node NWK=4F89
16:10:34.722 [DEBUG] [database.ZigBeeNetworkDatabaseManager] - E8E07EFFFEBFFB7C: Data store: Node was restored.
16:10:34.723 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - E8E07EFFFEBFFB7C: Updating node NWK=0000
16:10:34.723 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - EZSP Dongle: Initialize with protocol ASH2.
16:10:34.758 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - AshReceiveParserThread thread started
16:10:34.758 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH: Connect
16:10:34.758 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH: Reconnect
16:10:34.759 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameRst []
16:10:34.781 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspVersionRequest [networkId=0, desiredProtocolVersion=4]

openhab> log:display
16:10:44.045 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=67, commandId=6]
16:10:44.045 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4F89/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=67, rssi=--, lqi=--, payload=00 67 06 00 01 00 20 01 00 20 1C 01]
16:10:44.045 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=67], messageTag=67, messageContents=00 67 06 00 01 00 20 01 00 20 1C 01]
16:10:44.045 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=7, ackNum=4, reTx=false, data=CF 00 01 34 00 00 89 4F 04 01 00 03 01 01 40 11 00 00 67 67 0C 00 67 06 00 01 00 20 01 00 20 1C 01]
16:10:44.055 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=0, reTx=false, data=CF 80 01 34 00 00 E9]
16:10:44.055 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
16:10:44.055 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=E9]
16:10:44.096 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=1, sleepy=0/3
16:10:44.185 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=0, reTx=false, data=CF 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 FC DB 00]
16:10:44.185 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
16:10:44.185 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=252, lastHopRssi=-37, relayList=]
16:10:44.189 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=0, reTx=false, data=CF 90 01 3F 00 00 89 4F 04 01 00 03 01 01 40 11 00 00 E9 67 00 00]
16:10:44.189 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
16:10:44.189 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=E9], messageTag=67, status=EMBER_SUCCESS, messageContents=]
16:10:44.189 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=67 state=RX_ACK
16:10:44.189 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=67, state=RX_ACK, outstanding=2
16:10:44.189 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4F89, TID=67, event=RX_ACK, state=ACKED
16:10:44.201 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=0, reTx=false, data=CF 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EC 00]
16:10:44.201 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
16:10:44.201 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-20, relayList=]
16:10:44.221 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=0, reTx=false, data=CF 90 01 3F 00 00 66 40 04 01 00 03 01 01 40 11 00 00 E8 66 00 00]
16:10:44.221 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
16:10:44.221 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=E8], messageTag=66, status=EMBER_SUCCESS, messageContents=]
16:10:44.221 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=66 state=RX_ACK
16:10:44.221 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=66, state=RX_ACK, outstanding=2
16:10:44.221 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4066, TID=66, event=RX_ACK, state=ACKED
16:10:44.243 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=0, reTx=false, data=CF 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EC 00]
16:10:44.243 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
16:10:44.243 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-20, relayList=]
16:10:44.249 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=0, reTx=false, data=CF 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 44 FF EC 66 40 FF FF 05 18 66 0B 06 00 02]
16:10:44.249 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
16:10:44.249 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=44], lastHopLqi=255, lastHopRssi=-20, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 66 0B 06 00]
16:10:44.249 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=44, rssi=-20, lqi=FF, payload=18 66 0B 06 00]
16:10:44.249 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
16:10:44.249 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
16:10:44.249 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=66, commandId=11]
16:10:44.249 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=66, commandIdentifier=6, statusCode=SUCCESS]
16:10:44.249 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=66, commandIdentifier=6, statusCode=SUCCESS]
16:10:44.249 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=620, state=COMPLETE, sendCnt=1, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=66, hue=141, saturation=203, transitionTime=10]]
16:10:44.249 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 1 outstanding
16:10:44.249 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: transactionComplete, state=COMPLETE, outstanding=0
16:10:44.249 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=1, sleepy=0/3
16:10:44.255 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=0, reTx=false, data=CF 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 FC DB 00]
16:10:44.255 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
16:10:44.255 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=252, lastHopRssi=-37, relayList=]
16:10:44.261 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=0, reTx=false, data=CF 90 01 45 00 00 04 01 00 03 01 01 00 01 00 00 A2 FC DB 89 4F FF FF 07 18 67 07 00 00 01 00 02]
16:10:44.261 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
16:10:44.261 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=A2], lastHopLqi=252, lastHopRssi=-37, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 67 07 00 00 01 00]
16:10:44.261 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=A2, rssi=-37, lqi=FC, payload=18 67 07 00 00 01 00]
16:10:44.261 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:10:44.261 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:10:44.261 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=67, commandId=7]
16:10:44.261 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ConfigureReportingResponse [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=67, status=null, records=[Attribute Status Record [status=SUCCESS, direction=false, attributeIdentifier=1]]]
16:10:44.261 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ConfigureReportingResponse [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=67, status=null, records=[Attribute Status Record [status=SUCCESS, direction=false, attributeIdentifier=1]]]
16:10:44.261 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=1004, state=COMPLETE, sendCnt=1, command=ConfigureReportingCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=67, records=[AttributeReportingConfigurationRecord [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, direction=0, minimumReportingInterval=1, maximumReportingInterval=7200, reportableChange=1]]]]
16:10:44.261 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=4, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=ConfigureReportingCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=--, records=[AttributeReportingConfigurationRecord [attributeDataType=ENUMERATION_8_BIT, attributeIdentifier=8, direction=0, minimumReportingInterval=1, maximumReportingInterval=7200]]]]
16:10:44.261 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 0 outstanding
16:10:44.261 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=0, outstandingQueues=2, sleepy=0/3
16:10:44.261 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: transactionComplete, state=COMPLETE, outstanding=0
16:10:44.261 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=0, outstandingQueues=2, sleepy=0/3
16:10:44.261 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4F89/1: Sending ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=632, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=68, level=196, transitionTime=10]]
16:10:44.261 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 1 outstanding
16:10:44.261 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=68, level=196, transitionTime=10]
16:10:44.261 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=68, commandId=4]
16:10:44.261 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4F89/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=68, rssi=--, lqi=--, payload=01 68 04 C4 0A 00]
16:10:44.261 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=68], messageTag=68, messageContents=01 68 04 C4 0A 00]
16:10:44.261 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=0, ackNum=5, reTx=false, data=D0 00 01 34 00 00 89 4F 04 01 08 00 01 01 40 11 00 00 68 68 06 01 68 04 C4 0A 00]
16:10:44.282 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=1, reTx=false, data=D0 80 01 34 00 00 EA]
16:10:44.282 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
16:10:44.282 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=EA]
16:10:44.314 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=1, sleepy=0/3
16:10:44.379 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=1, reTx=false, data=D0 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 FC DB 00]
16:10:44.379 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
16:10:44.379 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=252, lastHopRssi=-37, relayList=]
16:10:44.383 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=1, reTx=false, data=D0 90 01 3F 00 00 89 4F 04 01 08 00 01 01 40 11 00 00 EA 68 00 00]
16:10:44.383 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
16:10:44.383 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=EA], messageTag=68, status=EMBER_SUCCESS, messageContents=]
16:10:44.383 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=68 state=RX_ACK
16:10:44.383 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=68, state=RX_ACK, outstanding=1
16:10:44.383 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4F89, TID=68, event=RX_ACK, state=ACKED
16:10:44.421 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=1, reTx=false, data=D0 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 FC DB 00]
16:10:44.421 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
16:10:44.421 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=252, lastHopRssi=-37, relayList=]
16:10:44.427 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=1, reTx=false, data=D0 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 A3 FF DC 89 4F FF FF 05 18 68 0B 04 00 02]
16:10:44.427 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
16:10:44.427 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=A3], lastHopLqi=255, lastHopRssi=-36, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 68 0B 04 00]
16:10:44.427 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=A3, rssi=-36, lqi=FF, payload=18 68 0B 04 00]
16:10:44.427 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:10:44.427 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:10:44.427 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=68, commandId=11]
16:10:44.427 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=68, commandIdentifier=4, statusCode=SUCCESS]
16:10:44.427 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=68, commandIdentifier=4, statusCode=SUCCESS]
16:10:44.427 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=798, state=COMPLETE, sendCnt=1, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=68, level=196, transitionTime=10]]
16:10:44.427 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 0 outstanding
16:10:44.427 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: transactionComplete, state=COMPLETE, outstanding=0
16:10:44.427 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=0, outstandingQueues=1, sleepy=0/3
16:10:44.427 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4F89/1: Sending ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=798, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=69, hue=141, saturation=203, transitionTime=10]]
16:10:44.427 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 1 outstanding
16:10:44.427 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=69, hue=141, saturation=203, transitionTime=10]
16:10:44.427 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=69, commandId=6]
16:10:44.427 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4F89/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=69, rssi=--, lqi=--, payload=01 69 06 8D CB 0A 00]
16:10:44.427 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=69], messageTag=69, messageContents=01 69 06 8D CB 0A 00]
16:10:44.428 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=1, ackNum=2, reTx=false, data=D1 00 01 34 00 00 89 4F 04 01 00 03 01 01 40 11 00 00 69 69 07 01 69 06 8D CB 0A 00]
16:10:44.437 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=2, reTx=false, data=D1 80 01 34 00 00 EB]
16:10:44.437 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
16:10:44.437 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=EB]
16:10:44.554 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=2, reTx=false, data=D1 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 FF DC 00]
16:10:44.554 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
16:10:44.554 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=255, lastHopRssi=-36, relayList=]
16:10:44.560 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=2, reTx=false, data=D1 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 A4 FF DC 89 4F FF FF 07 18 4F 0A 00 00 20 83 02]
16:10:44.560 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
16:10:44.560 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=A4], lastHopLqi=255, lastHopRssi=-36, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 4F 0A 00 00 20 83]
16:10:44.560 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=A4, rssi=-36, lqi=FF, payload=18 4F 0A 00 00 20 83]
16:10:44.560 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:10:44.560 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:10:44.560 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=4F, commandId=10]
16:10:44.560 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=4F, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=131]]]
16:10:44.560 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=4F, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=131]]]
16:10:44.576 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=2, reTx=false, data=D1 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 FC DB 00]
16:10:44.576 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
16:10:44.576 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=252, lastHopRssi=-37, relayList=]
16:10:44.582 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=2, reTx=false, data=D1 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 A5 FF DC 89 4F FF FF 07 18 50 0A 01 00 20 E9 02]
16:10:44.582 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
16:10:44.582 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=A5], lastHopLqi=255, lastHopRssi=-36, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 50 0A 01 00 20 E9]
16:10:44.582 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=A5, rssi=-36, lqi=FF, payload=18 50 0A 01 00 20 E9]
16:10:44.582 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:10:44.582 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:10:44.582 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=50, commandId=10]
16:10:44.582 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=50, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=233]]]
16:10:44.582 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=50, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=233]]]
16:10:44.603 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=2, reTx=false, data=D1 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 FF DC 00]
16:10:44.603 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
16:10:44.603 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=255, lastHopRssi=-36, relayList=]
16:10:44.605 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=2, reTx=false, data=D1 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 A6 FF DC 89 4F FF FF 07 18 51 0A 00 00 20 EF 02]
16:10:44.605 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
16:10:44.605 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=A6], lastHopLqi=255, lastHopRssi=-36, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 51 0A 00 00 20 EF]
16:10:44.605 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=A6, rssi=-36, lqi=FF, payload=18 51 0A 00 00 20 EF]
16:10:44.605 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:10:44.605 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:10:44.605 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=51, commandId=10]
16:10:44.605 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=51, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=239]]]
16:10:44.605 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=51, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=239]]]
16:10:44.629 [INFO ] [openhab.event.ItemStateChangedEvent  ] - Item 'Generic_MQTT_Thing_Color' changed from 200,80,77 to 255,70,58
16:10:44.630 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=3, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=--, level=147, transitionTime=10]]
16:10:44.630 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=1, sleepy=0/3
16:10:44.630 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=--, level=147, transitionTime=10]]
16:10:44.630 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=2, sleepy=0/3
16:10:44.630 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4066/1: Sending ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=6A, level=147, transitionTime=10]]
16:10:44.630 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 2 outstanding
16:10:44.630 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=6A, level=147, transitionTime=10]
16:10:44.630 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=6A, commandId=4]
16:10:44.630 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4066/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=6A, rssi=--, lqi=--, payload=01 6A 04 93 0A 00]
16:10:44.630 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=6A], messageTag=6A, messageContents=01 6A 04 93 0A 00]
16:10:44.631 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=4, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=--, hue=180, saturation=178, transitionTime=10]]
16:10:44.631 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=2, ackNum=1, reTx=false, data=D2 00 01 34 00 00 66 40 04 01 08 00 01 01 40 11 00 00 6A 6A 06 01 6A 04 93 0A 00]
16:10:44.631 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=2, sleepy=0/3
16:10:44.631 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=--, hue=180, saturation=178, transitionTime=10]]
16:10:44.631 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=3, sleepy=0/3
16:10:44.639 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=3, reTx=false, data=D2 80 01 34 00 00 EC]
16:10:44.639 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
16:10:44.639 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=EC]
16:10:44.657 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=3, reTx=false, data=D2 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 FC DB 00]
16:10:44.657 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
16:10:44.657 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=252, lastHopRssi=-37, relayList=]
16:10:44.663 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=3, reTx=false, data=D2 90 01 3F 00 00 89 4F 04 01 00 03 01 01 40 11 00 00 EB 69 00 00]
16:10:44.663 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
16:10:44.663 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=EB], messageTag=69, status=EMBER_SUCCESS, messageContents=]
16:10:44.663 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=69 state=RX_ACK
16:10:44.663 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=69, state=RX_ACK, outstanding=2
16:10:44.663 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4F89, TID=69, event=RX_ACK, state=ACKED
16:10:44.684 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=3, reTx=false, data=D2 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EC 00]
16:10:44.684 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
16:10:44.684 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-20, relayList=]
16:10:44.684 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=3, reTx=false, data=D2 90 01 3F 00 00 66 40 04 01 08 00 01 01 40 11 00 00 EC 6A 00 00]
16:10:44.684 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
16:10:44.684 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=EC], messageTag=6A, status=EMBER_SUCCESS, messageContents=]
16:10:44.684 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=6A state=RX_ACK
16:10:44.684 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=6A, state=RX_ACK, outstanding=2
16:10:44.684 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4066, TID=6A, event=RX_ACK, state=ACKED
16:10:44.717 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=3, reTx=false, data=D2 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EC 00]
16:10:44.717 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
16:10:44.717 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-20, relayList=]
16:10:44.723 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=3, reTx=false, data=D2 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 45 FF EC 66 40 FF FF 05 18 6A 0B 04 00 02]
16:10:44.723 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
16:10:44.723 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=45], lastHopLqi=255, lastHopRssi=-20, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 6A 0B 04 00]
16:10:44.723 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=45, rssi=-20, lqi=FF, payload=18 6A 0B 04 00]
16:10:44.723 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
16:10:44.723 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
16:10:44.723 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=6A, commandId=11]
16:10:44.723 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Level Control: 4066/1 -> 0000/1, cluster=0008, TID=6A, commandIdentifier=4, statusCode=SUCCESS]
16:10:44.723 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Level Control: 4066/1 -> 0000/1, cluster=0008, TID=6A, commandIdentifier=4, statusCode=SUCCESS]
16:10:44.723 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=93, state=COMPLETE, sendCnt=1, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=6A, level=147, transitionTime=10]]
16:10:44.723 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 1 outstanding
16:10:44.723 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: transactionComplete, state=COMPLETE, outstanding=0
16:10:44.723 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=3, sleepy=0/3
16:10:44.723 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4066/1: Sending ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=92, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=6B, hue=180, saturation=178, transitionTime=10]]
16:10:44.723 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 2 outstanding
16:10:44.723 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=6B, hue=180, saturation=178, transitionTime=10]
16:10:44.723 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=6B, commandId=6]
16:10:44.723 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4066/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=6B, rssi=--, lqi=--, payload=01 6B 06 B4 B2 0A 00]
16:10:44.723 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=6B], messageTag=6B, messageContents=01 6B 06 B4 B2 0A 00]
16:10:44.723 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=3, ackNum=0, reTx=false, data=D3 00 01 34 00 00 66 40 04 01 00 03 01 01 40 11 00 00 6B 6B 07 01 6B 06 B4 B2 0A 00]
16:10:44.744 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=4, reTx=false, data=D3 80 01 34 00 00 ED]
16:10:44.744 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
16:10:44.744 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=ED]
16:10:44.758 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=4, reTx=false, data=D3 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EC 00]
16:10:44.758 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
16:10:44.758 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-20, relayList=]
16:10:44.766 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=4, reTx=false, data=D3 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 46 FF ED 66 40 FF FF 07 18 72 0A 00 00 20 86 02]
16:10:44.766 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
16:10:44.766 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=46], lastHopLqi=255, lastHopRssi=-19, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 72 0A 00 00 20 86]
16:10:44.766 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=46, rssi=-19, lqi=FF, payload=18 72 0A 00 00 20 86]

chris · June 2, 2024, 9:26pm

Sorry - I hadn’t realised they weren’t available in OH. I use a different implementation of this console for most of my testing. I’ll see if I can add these commands, but I think given everything else you’ve done, it would likely work ok as the basic communications with the device appears to be fine.

Yes, but also we will need the logging from the binding, so also do log:set debug org.openhab.binding.zigbee to enable that. Then I would try to do the reinitialisation using the configuration flag I mentioned earlier. In the UI, go to the Thing, in the Configuration select “Show advanced”, then click the “Initialise device” button, and hit save.

Hopefully the binding will try and do a rescan of all the channels, and we can see what’s happening. This will likely generate quite a lot of data for 20 or 30 seconds (maybe longer - depending on what else is happening on the network).

James_Kester · June 2, 2024, 9:35pm

The reinitialization happened quick.

openhab> log:set debug org.openhab.binding.zigbee
openhab> log:display
16:30:21.198 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:30:21.198 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=6B, commandId=10]
16:30:21.198 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=6B, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=253]]]
16:30:21.198 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=6B, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=253]]]
16:30:21.198 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=253, lastReportTime=Sun Jun 02 16:30:21 CDT 2024, implemented=true]  on endpoint 1
16:30:21.198 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=253, lastReportTime=Sun Jun 02 16:30:21 CDT 2024, implemented=true]
16:30:21.198 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color updated to 280.6299,99.6063,51
16:30:21.198 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Updating ZigBee channel state zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color to 280.6299,99.6063,51
16:30:21.198 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
16:30:21.198 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
16:30:21.198 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef in 14430 seconds
16:30:21.199 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=7, reTx=false, data=4E 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 E8 D6 00]
16:30:21.199 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
16:30:21.199 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=232, lastHopRssi=-42, relayList=]
16:30:21.208 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=7, reTx=false, data=4E 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 00 E8 D6 89 4F FF FF 07 18 6C 0A 00 00 20 7F 02]
16:30:21.208 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
16:30:21.208 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=00], lastHopLqi=232, lastHopRssi=-42, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 6C 0A 00 00 20 7F]
16:30:21.208 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=00, rssi=-42, lqi=E8, payload=18 6C 0A 00 00 20 7F]
16:30:21.208 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:30:21.208 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:30:21.208 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=6C, commandId=10]
16:30:21.208 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=6C, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=127]]]
16:30:21.208 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=6C, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=127]]]
16:30:21.208 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Level Control, id=0, name=Current Level, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=127, lastReportTime=Sun Jun 02 16:30:21 CDT 2024, implemented=true]
16:30:21.208 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color updated to 280.6299,99.6063,50
16:30:21.208 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Updating ZigBee channel state zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color to 280.6299,99.6063,50
16:30:21.208 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
16:30:21.208 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
16:30:21.208 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef in 14430 seconds
16:30:21.401 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=7, reTx=false, data=4E 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
16:30:21.401 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
16:30:21.401 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
16:30:21.407 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=7, reTx=false, data=4E 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 9A FF EA 66 40 FF FF 07 18 95 0A 00 00 20 C5 02]
16:30:21.407 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
16:30:21.407 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=9A], lastHopLqi=255, lastHopRssi=-22, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 95 0A 00 00 20 C5]
16:30:21.407 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=9A, rssi=-22, lqi=FF, payload=18 95 0A 00 00 20 C5]
16:30:21.407 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
16:30:21.407 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
16:30:21.407 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=95, commandId=10]
16:30:21.407 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=95, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=197]]]
16:30:21.407 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=95, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=197]]]
16:30:21.407 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=197, lastReportTime=Sun Jun 02 16:30:21 CDT 2024, implemented=true]
16:30:21.407 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=197, lastReportTime=Sun Jun 02 16:30:21 CDT 2024, implemented=true]  on endpoint 1
16:30:21.428 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=7, reTx=false, data=4E 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
16:30:21.428 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
16:30:21.428 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
16:30:21.430 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=7, reTx=false, data=4E 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 9B FF EA 66 40 FF FF 07 18 96 0A 01 00 20 FD 02]
16:30:21.430 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
16:30:21.430 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=9B], lastHopLqi=255, lastHopRssi=-22, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 96 0A 01 00 20 FD]
16:30:21.430 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=9B, rssi=-22, lqi=FF, payload=18 96 0A 01 00 20 FD]
16:30:21.430 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
16:30:21.430 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
16:30:21.430 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=96, commandId=10]
16:30:21.430 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=96, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=253]]]
16:30:21.430 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=96, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=253]]]
16:30:21.430 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=253, lastReportTime=Sun Jun 02 16:30:21 CDT 2024, implemented=true]  on endpoint 1
16:30:21.430 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=253, lastReportTime=Sun Jun 02 16:30:21 CDT 2024, implemented=true]
16:30:21.430 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color updated to 279.2126,99.6063,50
16:30:21.430 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Updating ZigBee channel state zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color to 279.2126,99.6063,50
16:30:21.430 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
16:30:21.430 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
16:30:21.430 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b in 14430 seconds
16:30:21.632 [INFO ] [openhab.event.ItemStateChangedEvent  ] - Item 'Generic_MQTT_Thing_Color' changed from 280,100,50 to 232,63,64
16:30:21.633 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Command for channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color --> 232,63,64 [HSBType]
16:30:21.633 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Command for channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color --> 232,63,64 [HSBType]
16:30:21.633 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Command for channel zigbee:device:3ea840067f:a4c1381b88fd55a7:A4C1381B88FD55A7_1_color --> 232,63,64 [HSBType]
16:30:21.633 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: No handler found for zigbee:device:3ea840067f:a4c1381b88fd55a7:A4C1381B88FD55A7_1_color
16:30:21.633 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=--, level=163, transitionTime=10]]
16:30:21.633 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=0, outstandingQueues=1, sleepy=0/3
16:30:21.633 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4066/1: Sending ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=E2, level=163, transitionTime=10]]
16:30:21.633 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 1 outstanding
16:30:21.633 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=E2, level=163, transitionTime=10]
16:30:21.633 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=E2, commandId=4]
16:30:21.633 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4066/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=E7, rssi=--, lqi=--, payload=01 E2 04 A3 0A 00]
16:30:21.633 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=E7], messageTag=E2, messageContents=01 E2 04 A3 0A 00]
16:30:21.633 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=--, level=163, transitionTime=10]]
16:30:21.633 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=1, sleepy=0/3
16:30:21.633 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4F89/1: Sending ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=E3, level=163, transitionTime=10]]
16:30:21.633 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 2 outstanding
16:30:21.633 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=7, ackNum=3, reTx=false, data=4F 00 01 34 00 00 66 40 04 01 08 00 01 01 40 11 00 00 E7 E2 06 01 E2 04 A3 0A 00]
16:30:21.633 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=E3, level=163, transitionTime=10]
16:30:21.633 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=E3, commandId=4]
16:30:21.633 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4F89/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=E8, rssi=--, lqi=--, payload=01 E3 04 A3 0A 00]
16:30:21.633 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=--, hue=164, saturation=160, transitionTime=10]]
16:30:21.633 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=1, sleepy=0/3
16:30:21.633 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color waiting for response to 232,63,64
16:30:21.633 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=--, hue=164, saturation=160, transitionTime=10]]
16:30:21.633 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=2, sleepy=0/3
16:30:21.633 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color waiting for response to 232,63,64
16:30:21.642 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=0, reTx=false, data=4F 80 01 34 00 00 69]
16:30:21.642 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
16:30:21.642 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=69]
16:30:21.642 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=E8], messageTag=E3, messageContents=01 E3 04 A3 0A 00]
16:30:21.642 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=0, ackNum=4, reTx=false, data=50 00 01 34 00 00 89 4F 04 01 08 00 01 01 40 11 00 00 E8 E3 06 01 E3 04 A3 0A 00]
16:30:21.650 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=1, reTx=false, data=50 80 01 34 00 00 6A]
16:30:21.650 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
16:30:21.650 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=6A]
16:30:21.684 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=2, sleepy=0/3
16:30:21.710 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=1, reTx=false, data=50 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
16:30:21.710 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
16:30:21.710 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
16:30:21.714 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=1, reTx=false, data=50 90 01 3F 00 00 66 40 04 01 08 00 01 01 40 11 00 00 69 E2 00 00]
16:30:21.714 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
16:30:21.714 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=69], messageTag=E2, status=EMBER_SUCCESS, messageContents=]
16:30:21.714 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=E2 state=RX_ACK
16:30:21.714 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=E2, state=RX_ACK, outstanding=2
16:30:21.714 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4066, TID=E2, event=RX_ACK, state=ACKED
16:30:21.724 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=1, reTx=false, data=50 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
16:30:21.724 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
16:30:21.724 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
16:30:21.728 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=1, reTx=false, data=50 90 01 3F 00 00 89 4F 04 01 08 00 01 01 40 11 00 00 6A E3 00 00]
16:30:21.728 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
16:30:21.728 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=6A], messageTag=E3, status=EMBER_SUCCESS, messageContents=]
16:30:21.728 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=E3 state=RX_ACK
16:30:21.728 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=E3, state=RX_ACK, outstanding=2
16:30:21.728 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4F89, TID=E3, event=RX_ACK, state=ACKED
16:30:21.752 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=1, reTx=false, data=50 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
16:30:21.752 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
16:30:21.752 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
16:30:21.758 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=1, reTx=false, data=50 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 9C FF EA 66 40 FF FF 05 18 E2 0B 04 00 02]
16:30:21.758 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
16:30:21.758 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=9C], lastHopLqi=255, lastHopRssi=-22, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 E2 0B 04 00]
16:30:21.758 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=9C, rssi=-22, lqi=FF, payload=18 E2 0B 04 00]
16:30:21.758 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
16:30:21.758 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
16:30:21.758 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=E2, commandId=11]
16:30:21.758 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Level Control: 4066/1 -> 0000/1, cluster=0008, TID=E2, commandIdentifier=4, statusCode=SUCCESS]
16:30:21.758 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Level Control: 4066/1 -> 0000/1, cluster=0008, TID=E2, commandIdentifier=4, statusCode=SUCCESS]
16:30:21.758 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=125, state=COMPLETE, sendCnt=1, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=E2, level=163, transitionTime=10]]
16:30:21.758 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 1 outstanding
16:30:21.758 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: transactionComplete, state=COMPLETE, outstanding=0
16:30:21.758 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=2, sleepy=0/3
16:30:21.758 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4066/1: Sending ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=125, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=E4, hue=164, saturation=160, transitionTime=10]]
16:30:21.758 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 2 outstanding
16:30:21.758 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=E4, hue=164, saturation=160, transitionTime=10]
16:30:21.758 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=E4, commandId=6]
16:30:21.758 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4066/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=E9, rssi=--, lqi=--, payload=01 E4 06 A4 A0 0A 00]
16:30:21.758 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=E9], messageTag=E4, messageContents=01 E4 06 A4 A0 0A 00]
16:30:21.758 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=1, ackNum=3, reTx=false, data=51 00 01 34 00 00 66 40 04 01 00 03 01 01 40 11 00 00 E9 E4 07 01 E4 06 A4 A0 0A 00]
16:30:21.779 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=1, reTx=false, data=50 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
16:30:21.779 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
16:30:21.779 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
16:30:21.779 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=2, reTx=false, data=51 84 01 34 00 00 6B]
16:30:21.779 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
16:30:21.779 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=6B]
16:30:21.779 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=2, reTx=false, data=50 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 01 EC D7 89 4F FF FF 05 18 E3 0B 04 00 02]
16:30:21.779 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
16:30:21.779 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=01], lastHopLqi=236, lastHopRssi=-41, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 E3 0B 04 00]
16:30:21.779 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=01, rssi=-41, lqi=EC, payload=18 E3 0B 04 00]
16:30:21.779 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:30:21.779 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:30:21.779 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=E3, commandId=11]
16:30:21.779 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=E3, commandIdentifier=4, statusCode=SUCCESS]
16:30:21.779 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=E3, commandIdentifier=4, statusCode=SUCCESS]
16:30:21.779 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=146, state=COMPLETE, sendCnt=1, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=E3, level=163, transitionTime=10]]
16:30:21.779 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 1 outstanding
16:30:21.779 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: transactionComplete, state=COMPLETE, outstanding=0
16:30:21.779 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=1, sleepy=0/3
16:30:21.779 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4F89/1: Sending ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=146, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=E5, hue=164, saturation=160, transitionTime=10]]
16:30:21.779 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 2 outstanding
16:30:21.779 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=E5, hue=164, saturation=160, transitionTime=10]
16:30:21.780 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=E5, commandId=6]
16:30:21.780 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4F89/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=EA, rssi=--, lqi=--, payload=01 E5 06 A4 A0 0A 00]
16:30:21.780 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=EA], messageTag=E5, messageContents=01 E5 06 A4 A0 0A 00]
16:30:21.780 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=2, ackNum=6, reTx=false, data=52 00 01 34 00 00 89 4F 04 01 00 03 01 01 40 11 00 00 EA E5 07 01 E5 06 A4 A0 0A 00]
16:30:21.789 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=3, reTx=false, data=52 80 01 34 00 00 6C]
16:30:21.789 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
16:30:21.789 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=6C]
16:30:21.914 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=3, reTx=false, data=52 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
16:30:21.914 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
16:30:21.914 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
16:30:21.918 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=3, reTx=false, data=52 90 01 3F 00 00 66 40 04 01 00 03 01 01 40 11 00 00 6B E4 00 00]
16:30:21.918 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
16:30:21.918 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=6B], messageTag=E4, status=EMBER_SUCCESS, messageContents=]
16:30:21.918 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=E4 state=RX_ACK
16:30:21.918 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=E4, state=RX_ACK, outstanding=2
16:30:21.918 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4066, TID=E4, event=RX_ACK, state=ACKED
16:30:21.926 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=3, reTx=false, data=52 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
16:30:21.926 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
16:30:21.926 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
16:30:21.930 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=3, reTx=false, data=52 90 01 3F 00 00 89 4F 04 01 00 03 01 01 40 11 00 00 6C E5 00 00]
16:30:21.930 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
16:30:21.930 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=6C], messageTag=E5, status=EMBER_SUCCESS, messageContents=]
16:30:21.930 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=E5 state=RX_ACK
16:30:21.930 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=E5, state=RX_ACK, outstanding=2
16:30:21.930 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4F89, TID=E5, event=RX_ACK, state=ACKED
16:30:21.954 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=3, reTx=false, data=52 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
16:30:21.954 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
16:30:21.954 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
16:30:21.960 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=3, reTx=false, data=52 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 9D FF E9 66 40 FF FF 05 18 E4 0B 06 00 02]
16:30:21.960 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
16:30:21.960 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=9D], lastHopLqi=255, lastHopRssi=-23, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 E4 0B 06 00]
16:30:21.960 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=9D, rssi=-23, lqi=FF, payload=18 E4 0B 06 00]
16:30:21.960 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
16:30:21.960 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
16:30:21.960 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=E4, commandId=11]
16:30:21.960 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=E4, commandIdentifier=6, statusCode=SUCCESS]
16:30:21.960 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=E4, commandIdentifier=6, statusCode=SUCCESS]
16:30:21.960 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=327, state=COMPLETE, sendCnt=1, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=E4, hue=164, saturation=160, transitionTime=10]]
16:30:21.960 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 1 outstanding
16:30:21.960 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color received SUCCESS in response to 232,63,64
16:30:21.960 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: transactionComplete, state=COMPLETE, outstanding=0
16:30:21.960 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=0, sleepy=0/3
16:30:21.960 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color updated to 232,63,64
16:30:21.960 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Updating ZigBee channel state zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color to 232,63,64
16:30:21.960 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
16:30:21.960 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
16:30:21.960 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b in 14430 seconds
16:30:21.981 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=3, reTx=false, data=52 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
16:30:21.981 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
16:30:21.981 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
16:30:21.981 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=3, reTx=false, data=52 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 02 EC D7 89 4F FF FF 05 18 E5 0B 06 00 02]
16:30:21.981 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
16:30:21.981 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=02], lastHopLqi=236, lastHopRssi=-41, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 E5 0B 06 00]
16:30:21.981 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=02, rssi=-41, lqi=EC, payload=18 E5 0B 06 00]
16:30:21.981 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:30:21.981 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:30:21.981 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=E5, commandId=11]
16:30:21.981 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=E5, commandIdentifier=6, statusCode=SUCCESS]
16:30:21.981 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=E5, commandIdentifier=6, statusCode=SUCCESS]
16:30:21.981 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=348, state=COMPLETE, sendCnt=1, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=E5, hue=164, saturation=160, transitionTime=10]]
16:30:21.981 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 0 outstanding
16:30:21.981 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color received SUCCESS in response to 232,63,64
16:30:21.982 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: transactionComplete, state=COMPLETE, outstanding=0
16:30:21.982 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color updated to 232,63,64
16:30:21.982 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=0, outstandingQueues=0, sleepy=0/3
16:30:21.982 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Updating ZigBee channel state zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color to 232,63,64
16:30:21.982 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
16:30:21.982 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
16:30:21.982 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef in 14430 seconds
16:30:22.168 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=3, reTx=false, data=52 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
16:30:22.168 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
16:30:22.168 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
16:30:22.176 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=3, reTx=false, data=52 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 03 F0 D8 89 4F FF FF 07 18 6D 0A 00 00 20 C0 02]
16:30:22.176 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
16:30:22.176 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=03], lastHopLqi=240, lastHopRssi=-40, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 6D 0A 00 00 20 C0]
16:30:22.176 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=03, rssi=-40, lqi=F0, payload=18 6D 0A 00 00 20 C0]
16:30:22.176 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:30:22.176 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:30:22.176 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=6D, commandId=10]
16:30:22.176 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=6D, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=192]]]
16:30:22.176 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=6D, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=192]]]
16:30:22.176 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=192, lastReportTime=Sun Jun 02 16:30:22 CDT 2024, implemented=true]
16:30:22.176 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=192, lastReportTime=Sun Jun 02 16:30:22 CDT 2024, implemented=true]  on endpoint 1
16:30:22.192 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=3, reTx=false, data=52 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
16:30:22.192 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
16:30:22.192 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
16:30:22.198 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=3, reTx=false, data=52 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 04 EC D7 89 4F FF FF 07 18 6E 0A 01 00 20 EE 02]
16:30:22.198 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
16:30:22.198 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=04], lastHopLqi=236, lastHopRssi=-41, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 6E 0A 01 00 20 EE]
16:30:22.198 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=04, rssi=-41, lqi=EC, payload=18 6E 0A 01 00 20 EE]
16:30:22.198 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:30:22.198 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:30:22.198 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=6E, commandId=10]
16:30:22.198 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=6E, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=238]]]
16:30:22.198 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=6E, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=238]]]
16:30:22.198 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=238, lastReportTime=Sun Jun 02 16:30:22 CDT 2024, implemented=true]  on endpoint 1
16:30:22.198 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=238, lastReportTime=Sun Jun 02 16:30:22 CDT 2024, implemented=true]
16:30:22.198 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color updated to 272.12598,93.70079,50
16:30:22.198 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Updating ZigBee channel state zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color to 272.12598,93.70079,50
16:30:22.198 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
16:30:22.198 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
16:30:22.198 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef in 14430 seconds
16:30:22.217 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=3, reTx=false, data=52 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
16:30:22.217 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
16:30:22.217 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
16:30:22.223 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=3, reTx=false, data=52 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 05 EC D7 89 4F FF FF 07 18 6F 0A 00 00 20 8C 02]
16:30:22.223 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
16:30:22.223 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=05], lastHopLqi=236, lastHopRssi=-41, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 6F 0A 00 00 20 8C]
16:30:22.223 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=05, rssi=-41, lqi=EC, payload=18 6F 0A 00 00 20 8C]
16:30:22.223 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:30:22.223 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:30:22.223 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=6F, commandId=10]
16:30:22.223 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=6F, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=140]]]
16:30:22.223 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=6F, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=140]]]
16:30:22.223 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Level Control, id=0, name=Current Level, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=140, lastReportTime=Sun Jun 02 16:30:22 CDT 2024, implemented=true]
16:30:22.223 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color updated to 272.12598,93.70079,55
16:30:22.223 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Updating ZigBee channel state zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color to 272.12598,93.70079,55
16:30:22.223 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
16:30:22.223 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
16:30:22.223 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef in 14430 seconds
16:30:22.416 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=3, reTx=false, data=52 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
16:30:22.416 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
16:30:22.416 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
16:30:22.422 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=3, reTx=false, data=52 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 9E FF EA 66 40 FF FF 07 18 97 0A 00 00 20 B7 02]
16:30:22.422 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
16:30:22.422 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=9E], lastHopLqi=255, lastHopRssi=-22, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 97 0A 00 00 20 B7]
16:30:22.422 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=9E, rssi=-22, lqi=FF, payload=18 97 0A 00 00 20 B7]
16:30:22.422 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
16:30:22.422 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
16:30:22.422 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=97, commandId=10]
16:30:22.422 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=97, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=183]]]
16:30:22.422 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=97, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=183]]]
16:30:22.422 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=183, lastReportTime=Sun Jun 02 16:30:22 CDT 2024, implemented=true]
16:30:22.422 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=183, lastReportTime=Sun Jun 02 16:30:22 CDT 2024, implemented=true]  on endpoint 1
16:30:22.438 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=3, reTx=false, data=52 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
16:30:22.438 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
16:30:22.438 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
16:30:22.446 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=3, reTx=false, data=52 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 9F FF EA 66 40 FF FF 07 18 98 0A 01 00 20 D6 02]
16:30:22.446 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
16:30:22.446 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=9F], lastHopLqi=255, lastHopRssi=-22, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 98 0A 01 00 20 D6]
16:30:22.446 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=9F, rssi=-22, lqi=FF, payload=18 98 0A 01 00 20 D6]
16:30:22.446 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
16:30:22.446 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
16:30:22.446 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=98, commandId=10]
16:30:22.446 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=98, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=214]]]
16:30:22.446 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=98, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=214]]]
16:30:22.446 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=214, lastReportTime=Sun Jun 02 16:30:22 CDT 2024, implemented=true]
16:30:22.446 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=214, lastReportTime=Sun Jun 02 16:30:22 CDT 2024, implemented=true]  on endpoint 1
16:30:22.446 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color updated to 259.3701,84.25197,50
16:30:22.446 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Updating ZigBee channel state zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color to 259.3701,84.25197,50
16:30:22.446 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
16:30:22.446 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
16:30:22.446 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b in 14430 seconds
16:30:22.462 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=3, reTx=false, data=52 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
16:30:22.462 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
16:30:22.462 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
16:30:22.470 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=3, reTx=false, data=52 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 A0 FF EB 66 40 FF FF 07 18 99 0A 00 00 20 95 02]
16:30:22.470 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
16:30:22.470 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=A0], lastHopLqi=255, lastHopRssi=-21, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 99 0A 00 00 20 95]
16:30:22.470 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=A0, rssi=-21, lqi=FF, payload=18 99 0A 00 00 20 95]
16:30:22.470 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
16:30:22.470 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
16:30:22.470 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=99, commandId=10]
16:30:22.470 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Level Control: 4066/1 -> 0000/1, cluster=0008, TID=99, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=149]]]
16:30:22.470 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Level Control: 4066/1 -> 0000/1, cluster=0008, TID=99, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=149]]]
16:30:22.470 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Level Control, id=0, name=Current Level, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=149, lastReportTime=Sun Jun 02 16:30:22 CDT 2024, implemented=true]
16:30:22.470 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color updated to 259.3701,84.25197,59
16:30:22.470 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Updating ZigBee channel state zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color to 259.3701,84.25197,59
16:30:22.470 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
16:30:22.470 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
16:30:22.470 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b in 14430 seconds
16:30:22.633 [INFO ] [openhab.event.ItemStateChangedEvent  ] - Item 'Generic_MQTT_Thing_Color' changed from 232,63,64 to 192,86,83
16:30:22.634 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Command for channel zigbee:device:3ea840067f:a4c1381b88fd55a7:A4C1381B88FD55A7_1_color --> 192,86,83 [HSBType]
16:30:22.634 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Command for channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color --> 192,86,83 [HSBType]
16:30:22.634 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Command for channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color --> 192,86,83 [HSBType]
16:30:22.634 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: No handler found for zigbee:device:3ea840067f:a4c1381b88fd55a7:A4C1381B88FD55A7_1_color
16:30:22.634 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=--, level=211, transitionTime=10]]
16:30:22.634 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=0, outstandingQueues=1, sleepy=0/3
16:30:22.634 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4F89/1: Sending ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=E6, level=211, transitionTime=10]]
16:30:22.634 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 1 outstanding
16:30:22.634 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=E6, level=211, transitionTime=10]
16:30:22.634 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=E6, commandId=4]
16:30:22.634 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4F89/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=EB, rssi=--, lqi=--, payload=01 E6 04 D3 0A 00]
16:30:22.634 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=--, level=211, transitionTime=10]]
16:30:22.634 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=EB], messageTag=E6, messageContents=01 E6 04 D3 0A 00]
16:30:22.634 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=1, sleepy=0/3
16:30:22.634 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4066/1: Sending ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=E7, level=211, transitionTime=10]]
16:30:22.634 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 2 outstanding
16:30:22.634 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=E7, level=211, transitionTime=10]
16:30:22.634 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=3, ackNum=3, reTx=false, data=53 00 01 34 00 00 89 4F 04 01 08 00 01 01 40 11 00 00 EB E6 06 01 E6 04 D3 0A 00]
16:30:22.634 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=E7, commandId=4]
16:30:22.634 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4066/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=EC, rssi=--, lqi=--, payload=01 E7 04 D3 0A 00]
16:30:22.634 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=--, hue=135, saturation=218, transitionTime=10]]
16:30:22.634 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=1, sleepy=0/3
16:30:22.634 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color waiting for response to 192,86,83
16:30:22.634 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=--, hue=135, saturation=218, transitionTime=10]]
16:30:22.634 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=2, sleepy=0/3
16:30:22.634 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color waiting for response to 192,86,83
16:30:22.642 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=4, reTx=false, data=53 80 01 34 00 00 6D]
16:30:22.642 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
16:30:22.642 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=6D]
16:30:22.642 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=EC], messageTag=E7, messageContents=01 E7 04 D3 0A 00]
16:30:22.642 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=4, ackNum=4, reTx=false, data=54 00 01 34 00 00 66 40 04 01 08 00 01 01 40 11 00 00 EC E7 06 01 E7 04 D3 0A 00]
16:30:22.650 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=5, reTx=false, data=54 80 01 34 00 00 6E]
16:30:22.650 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
16:30:22.650 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=6E]
16:30:22.685 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=2, sleepy=0/3
16:30:22.726 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=5, reTx=false, data=54 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
16:30:22.726 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
16:30:22.726 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
16:30:22.730 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=5, reTx=false, data=54 90 01 3F 00 00 89 4F 04 01 08 00 01 01 40 11 00 00 6D E6 00 00]
16:30:22.730 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
16:30:22.730 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=6D], messageTag=E6, status=EMBER_SUCCESS, messageContents=]
16:30:22.730 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=E6 state=RX_ACK
16:30:22.730 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=E6, state=RX_ACK, outstanding=2
16:30:22.730 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4F89, TID=E6, event=RX_ACK, state=ACKED
16:30:22.756 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=5, reTx=false, data=54 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
16:30:22.756 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
16:30:22.756 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
16:30:22.760 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=5, reTx=false, data=54 90 01 3F 00 00 66 40 04 01 08 00 01 01 40 11 00 00 6E E7 00 00]
16:30:22.760 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
16:30:22.760 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=6E], messageTag=E7, status=EMBER_SUCCESS, messageContents=]
16:30:22.760 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=E7 state=RX_ACK
16:30:22.760 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=E7, state=RX_ACK, outstanding=2
16:30:22.760 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4066, TID=E7, event=RX_ACK, state=ACKED
16:30:22.780 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=5, reTx=false, data=54 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 EC D7 00]
16:30:22.780 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
16:30:22.780 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=236, lastHopRssi=-41, relayList=]
16:30:22.780 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=5, reTx=false, data=54 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 06 EC D7 89 4F FF FF 05 18 E6 0B 04 00 02]
16:30:22.780 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
16:30:22.780 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=06], lastHopLqi=236, lastHopRssi=-41, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 E6 0B 04 00]
16:30:22.780 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=06, rssi=-41, lqi=EC, payload=18 E6 0B 04 00]
16:30:22.780 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:30:22.780 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:30:22.780 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=E6, commandId=11]
16:30:22.780 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=E6, commandIdentifier=4, statusCode=SUCCESS]
16:30:22.780 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=E6, commandIdentifier=4, statusCode=SUCCESS]
16:30:22.780 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=146, state=COMPLETE, sendCnt=1, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=E6, level=211, transitionTime=10]]
16:30:22.780 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 1 outstanding
16:30:22.780 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: transactionComplete, state=COMPLETE, outstanding=0
16:30:22.780 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=2, sleepy=0/3
16:30:22.780 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4F89/1: Sending ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=146, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=E8, hue=135, saturation=218, transitionTime=10]]
16:30:22.780 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 2 outstanding
16:30:22.780 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=E8, hue=135, saturation=218, transitionTime=10]
16:30:22.780 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=E8, commandId=6]
16:30:22.780 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4F89/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=ED, rssi=--, lqi=--, payload=01 E8 06 87 DA 0A 00]
16:30:22.781 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=ED], messageTag=E8, messageContents=01 E8 06 87 DA 0A 00]
16:30:22.781 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=5, ackNum=3, reTx=false, data=55 00 01 34 00 00 89 4F 04 01 00 03 01 01 40 11 00 00 ED E8 07 01 E8 06 87 DA 0A 00]
16:30:22.790 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=6, reTx=false, data=55 80 01 34 00 00 6F]
16:30:22.790 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
16:30:22.790 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=6F]
16:30:22.836 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=6, reTx=false, data=55 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
16:30:22.836 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
16:30:22.836 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
16:30:22.844 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=6, reTx=false, data=55 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 A1 FF EA 66 40 FF FF 05 18 E7 0B 04 00 02]
16:30:22.844 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
16:30:22.844 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=A1], lastHopLqi=255, lastHopRssi=-22, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 E7 0B 04 00]
16:30:22.844 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=A1, rssi=-22, lqi=FF, payload=18 E7 0B 04 00]
16:30:22.844 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
16:30:22.844 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
16:30:22.844 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=E7, commandId=11]
16:30:22.844 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Level Control: 4066/1 -> 0000/1, cluster=0008, TID=E7, commandIdentifier=4, statusCode=SUCCESS]
16:30:22.844 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Level Control: 4066/1 -> 0000/1, cluster=0008, TID=E7, commandIdentifier=4, statusCode=SUCCESS]
16:30:22.844 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=210, state=COMPLETE, sendCnt=1, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=E7, level=211, transitionTime=10]]
16:30:22.844 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 1 outstanding
16:30:22.844 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: transactionComplete, state=COMPLETE, outstanding=0
16:30:22.844 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=1, sleepy=0/3
16:30:22.844 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4066/1: Sending ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=210, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=E9, hue=135, saturation=218, transitionTime=10]]
16:30:22.844 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 2 outstanding
16:30:22.844 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=E9, hue=135, saturation=218, transitionTime=10]
16:30:22.844 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=E9, commandId=6]
16:30:22.844 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4066/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=EE, rssi=--, lqi=--, payload=01 E9 06 87 DA 0A 00]
16:30:22.844 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=EE], messageTag=E9, messageContents=01 E9 06 87 DA 0A 00]
16:30:22.844 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=6, ackNum=6, reTx=false, data=56 00 01 34 00 00 66 40 04 01 00 03 01 01 40 11 00 00 EE E9 07 01 E9 06 87 DA 0A 00]
16:30:22.852 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=7, reTx=false, data=56 80 01 34 00 00 70]
16:30:22.852 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
16:30:22.852 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=70]
16:30:22.928 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=7, reTx=false, data=56 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 F0 D8 00]
16:30:22.928 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
16:30:22.928 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=240, lastHopRssi=-40, relayList=]
16:30:22.932 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=7, reTx=false, data=56 90 01 3F 00 00 89 4F 04 01 00 03 01 01 40 11 00 00 6F E8 00 00]
16:30:22.932 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
16:30:22.932 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=6F], messageTag=E8, status=EMBER_SUCCESS, messageContents=]
16:30:22.932 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=E8 state=RX_ACK
16:30:22.932 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=E8, state=RX_ACK, outstanding=2
16:30:22.932 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4F89, TID=E8, event=RX_ACK, state=ACKED
16:30:22.972 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=7, reTx=false, data=56 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 F0 D8 00]
16:30:22.972 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
16:30:22.972 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=240, lastHopRssi=-40, relayList=]
16:30:22.978 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=7, reTx=false, data=56 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 07 F0 D8 89 4F FF FF 05 18 E8 0B 06 00 02]
16:30:22.978 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
16:30:22.978 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=07], lastHopLqi=240, lastHopRssi=-40, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 E8 0B 06 00]
16:30:22.978 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=07, rssi=-40, lqi=F0, payload=18 E8 0B 06 00]
16:30:22.978 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
16:30:22.978 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
16:30:22.978 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=E8, commandId=11]
16:30:22.978 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=E8, commandIdentifier=6, statusCode=SUCCESS]
16:30:22.978 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=E8, commandIdentifier=6, statusCode=SUCCESS]
16:30:22.978 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=344, state=COMPLETE, sendCnt=1, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=E8, hue=135, saturation=218, transitionTime=10]]
16:30:22.978 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color received SUCCESS in response to 192,86,83
16:30:22.978 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 1 outstanding
16:30:22.978 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color updated to 192,86,83
16:30:22.978 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: transactionComplete, state=COMPLETE, outstanding=0
16:30:22.978 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Updating ZigBee channel state zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color to 192,86,83
16:30:22.978 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=0, sleepy=0/3
16:30:22.978 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
16:30:22.978 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
16:30:22.978 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef in 14430 seconds
16:30:23.010 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=7, reTx=false, data=56 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF EA 00]
16:30:23.010 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
16:30:23.010 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-22, relayList=]
16:30:23.031 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=7, reTx=false, data=56 90 01 3F 00 00 66 40 04 01 00 03 01 01 40 11 00 00 70 E9 00 00]

chris · June 3, 2024, 12:39am

This log seems not to have captured the initialisation. The log:display command will only display a short part of the end of the log - you are probably better to use log:tail which continually scrolls the log and save it (depending on your OS etc) or possibly directly access the logs. It depends somewhat on how you have installed your system as to exactly how this is done - it should be described in the docs (eg openhabian if that’s what you’ve used).

James_Kester · June 3, 2024, 10:34pm

Got it, your’re right theres alot here, but I think it might be helpful

17:25:15.609 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Handler dispose.
17:25:15.609 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Polling stopped
17:25:15.609 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker removed for thingUID=zigbee:device:3ea840067f:a4c1381b88fd55a7
17:25:15.610 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c1381b88fd55a7
17:25:15.610 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Initializing ZigBee thing handler zigbee:device:3ea840067f:a4c1381b88fd55a7
17:25:15.610 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Coordinator status changed to ONLINE.
17:25:15.610 [INFO ] [hab.event.ThingStatusInfoChangedEvent] - Thing 'zigbee:device:3ea840067f:a4c1381b88fd55a7' changed from ONLINE to UNKNOWN
17:25:15.610 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Coordinator is ONLINE. Starting device initialisation.
17:25:15.610 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C1381B88FD55A7: NWK Discovery starting node rediscovery
17:25:15.610 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C1381B88FD55A7: NWK Discovery: Rediscovery using unicast to 6466
17:25:15.610 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=0, state=WAITING, sendCnt=0, command=NetworkAddressRequest [0000/0 -> 6466/0, cluster=0000, TID=--, ieeeAddr=A4C1381B88FD55A7, requestType=0, startIndex=0]]
17:25:15.611 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=9, sleepy=0/3
17:25:15.611 [DEBUG] [.transaction.ZigBeeTransactionManager] - 6466/0: Sending ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=1, state=WAITING, sendCnt=0, command=NetworkAddressRequest [0000/0 -> 6466/0, cluster=0000, TID=67, ieeeAddr=A4C1381B88FD55A7, requestType=0, startIndex=0]]
17:25:15.611 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 2 outstanding
17:25:15.611 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: NetworkAddressRequest [0000/0 -> 6466/0, cluster=0000, TID=67, ieeeAddr=A4C1381B88FD55A7, requestType=0, startIndex=0]
17:25:15.611 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/0, destinationAddress=6466/0, profile=0000, cluster=0000, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=B2, rssi=--, lqi=--, payload=67 A7 55 FD 88 1B 38 C1 A4 00 00]
17:25:15.611 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=6466, apsFrame=EmberApsFrame [profileId=0000, clusterId=0000, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=B2], messageTag=67, messageContents=67 A7 55 FD 88 1B 38 C1 A4 00 00]
17:25:15.612 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=1, ackNum=3, reTx=false, data=8B 00 01 34 00 00 66 64 00 00 00 00 00 00 40 11 00 00 B2 67 0B 67 A7 55 FD 88 1B 38 C1 A4 00 00]
17:25:15.618 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Configuration received: {zigbee_macaddress=A4C1381B88FD55A7, zigbee_initialise_device=true}
17:25:15.619 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Configuration update: Ignored zigbee_macaddress as no change
17:25:15.619 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Configuration update: Ignored zigbee_initialise_device as no change
17:25:15.619 [DEBUG] [ee.internal.ZigBeeDeviceConfigHandler] - Configuration update: Ignored zigbee_macaddress as no change
17:25:15.619 [DEBUG] [ee.internal.ZigBeeDeviceConfigHandler] - Configuration update: Ignored zigbee_initialise_device as no change
17:25:15.622 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Start initialising ZigBee Thing handler
17:25:15.622 [DEBUG] [iscovery.ZigBeeNodePropertyDiscoverer] - A4C1381B88FD55A7: ZigBee node property discovery start
17:25:15.622 [DEBUG] [iscovery.ZigBeeNodePropertyDiscoverer] - A4C1381B88FD55A7: ZigBee node property discovery using basic cluster on endpoint 6466/1
17:25:15.622 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=0, state=WAITING, sendCnt=0, command=ReadAttributesCommand [Basic: 0000/0 -> 6466/1, cluster=0000, TID=--, identifiers=[6]]]
17:25:15.622 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=9, sleepy=0/3
17:25:15.626 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=1, reTx=false, data=8A 90 01 3F 00 00 66 40 04 01 00 03 01 01 40 11 00 00 16 66 00 00]
17:25:15.626 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
17:25:15.626 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=16], messageTag=66, status=EMBER_SUCCESS, messageContents=]
17:25:15.626 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=1, reTx=false, data=8A 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF E9 00]
17:25:15.626 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
17:25:15.626 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-23, relayList=]
17:25:15.627 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=1, reTx=false, data=8A 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 86 FF E9 66 40 FF FF 07 18 EB 0A 00 00 20 B8 02]
17:25:15.627 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
17:25:15.627 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=86], lastHopLqi=255, lastHopRssi=-23, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 EB 0A 00 00 20 B8]
17:25:15.627 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=2, reTx=false, data=8B 84 01 34 00 00 17]
17:25:15.627 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=86, rssi=-23, lqi=FF, payload=18 EB 0A 00 00 20 B8]
17:25:15.627 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
17:25:15.627 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
17:25:15.627 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
17:25:15.628 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=EB, commandId=10]
17:25:15.628 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=2, reTx=false, data=8A 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF E9 00]
17:25:15.628 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=EB, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=184]]]
17:25:15.628 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
17:25:15.628 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=EB, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=184]]]
17:25:15.628 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=17]
17:25:15.628 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=184, lastReportTime=Mon Jun 03 17:25:15 CDT 2024, implemented=true]
17:25:15.628 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=184, lastReportTime=Mon Jun 03 17:25:15 CDT 2024, implemented=true]  on endpoint 1
17:25:15.628 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=66 state=RX_ACK
17:25:15.628 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-23, relayList=]
17:25:15.628 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=66, state=RX_ACK, outstanding=2
17:25:15.629 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4066, TID=66, event=RX_ACK, state=ACKED
17:25:15.633 [INFO ] [openhab.event.ItemStateChangedEvent  ] - Item 'Generic_MQTT_Thing_Color' changed from 211,73,71 to 185,93,90
17:25:15.636 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=2, reTx=false, data=8B 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 87 FF E9 66 40 FF FF 07 18 EC 0A 01 00 20 E0 02]
17:25:15.634 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Command for channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color --> 185,93,90 [HSBType]
17:25:15.634 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Command for channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color --> 185,93,90 [HSBType]
17:25:15.634 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Command for channel zigbee:device:3ea840067f:a4c1381b88fd55a7:A4C1381B88FD55A7_1_color --> 185,93,90 [HSBType]
17:25:15.636 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=87], lastHopLqi=255, lastHopRssi=-23, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 EC 0A 01 00 20 E0]
17:25:15.636 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
17:25:15.636 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=87, rssi=-23, lqi=FF, payload=18 EC 0A 01 00 20 E0]
17:25:15.636 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: No handler found for zigbee:device:3ea840067f:a4c1381b88fd55a7:A4C1381B88FD55A7_1_color
17:25:15.636 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
17:25:15.636 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
17:25:15.637 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=EC, commandId=10]
17:25:15.637 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=EC, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=224]]]
17:25:15.637 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=EC, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=224]]]
17:25:15.637 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=224, lastReportTime=Mon Jun 03 17:25:15 CDT 2024, implemented=true]
17:25:15.637 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=224, lastReportTime=Mon Jun 03 17:25:15 CDT 2024, implemented=true]  on endpoint 1
17:25:15.637 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color updated to 260.7874,88.18898,65
17:25:15.637 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Updating ZigBee channel state zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color to 260.7874,88.18898,65
17:25:15.637 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
17:25:15.637 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
17:25:15.638 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b in 14430 seconds
17:25:15.656 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=2, reTx=false, data=8B 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF E9 00]
17:25:15.656 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
17:25:15.656 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-23, relayList=]
17:25:15.656 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=2, reTx=false, data=8B 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 88 FF E9 66 40 FF FF 07 18 ED 0A 00 00 20 8C 02]
17:25:15.656 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
17:25:15.656 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=88], lastHopLqi=255, lastHopRssi=-23, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 ED 0A 00 00 20 8C]
17:25:15.657 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=88, rssi=-23, lqi=FF, payload=18 ED 0A 00 00 20 8C]
17:25:15.657 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=2, reTx=false, data=8B 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF E9 00]
17:25:15.657 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
17:25:15.657 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
17:25:15.657 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
17:25:15.657 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=ED, commandId=10]
17:25:15.657 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Level Control: 4066/1 -> 0000/1, cluster=0008, TID=ED, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=140]]]
17:25:15.657 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Level Control: 4066/1 -> 0000/1, cluster=0008, TID=ED, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=140]]]
17:25:15.657 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-23, relayList=]
17:25:15.657 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Level Control, id=0, name=Current Level, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=140, lastReportTime=Mon Jun 03 17:25:15 CDT 2024, implemented=true]
17:25:15.658 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color updated to 260.7874,88.18898,55
17:25:15.658 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=2, reTx=false, data=8B 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 89 FF E9 66 40 FF FF 05 18 66 0B 06 00 02]
17:25:15.658 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Updating ZigBee channel state zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color to 260.7874,88.18898,55
17:25:15.658 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=89], lastHopLqi=255, lastHopRssi=-23, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 66 0B 06 00]
17:25:15.658 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
17:25:15.658 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=89, rssi=-23, lqi=FF, payload=18 66 0B 06 00]
17:25:15.658 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
17:25:15.658 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
17:25:15.658 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
17:25:15.658 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
17:25:15.658 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=66, commandId=11]
17:25:15.658 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b in 14430 seconds
17:25:15.658 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=66, commandIdentifier=6, statusCode=SUCCESS]
17:25:15.659 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=66, commandIdentifier=6, statusCode=SUCCESS]
17:25:15.659 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=2038, state=COMPLETE, sendCnt=1, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=66, hue=198, saturation=254, transitionTime=10]]
17:25:15.659 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color received SUCCESS in response to 280,100,50
17:25:15.659 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 1 outstanding
17:25:15.659 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color updated to 280,100,50
17:25:15.659 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: transactionComplete, state=COMPLETE, outstanding=0
17:25:15.659 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Updating ZigBee channel state zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color to 280,100,50
17:25:15.659 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=1, outstandingQueues=9, sleepy=0/3
17:25:15.659 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
17:25:15.659 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4066/1: Sending ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=1539, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=68, level=211, transitionTime=10]]
17:25:15.659 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
17:25:15.659 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 2 outstanding
17:25:15.660 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b in 14430 seconds
17:25:15.660 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=68, level=211, transitionTime=10]
17:25:15.660 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=68, commandId=4]
17:25:15.660 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4066/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=B3, rssi=--, lqi=--, payload=01 68 04 D3 0A 00]
17:25:15.660 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=B3], messageTag=68, messageContents=01 68 04 D3 0A 00]
17:25:15.660 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=--, level=236, transitionTime=10]]
17:25:15.660 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=2, ackNum=5, reTx=false, data=8C 00 01 34 00 00 66 40 04 01 08 00 01 01 40 11 00 00 B3 68 06 01 68 04 D3 0A 00]
17:25:15.660 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=9, sleepy=0/3
17:25:15.660 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4F89/1: Sending ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=69, level=236, transitionTime=10]]
17:25:15.661 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 3 outstanding
17:25:15.661 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=69, level=236, transitionTime=10]
17:25:15.661 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=69, commandId=4]
17:25:15.661 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4F89/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=B4, rssi=--, lqi=--, payload=01 69 04 EC 0A 00]
17:25:15.661 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=--, hue=128, saturation=241, transitionTime=10]]
17:25:15.661 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=9, sleepy=0/3
17:25:15.661 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color waiting for response to 182,95,93
17:25:15.670 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=3, reTx=false, data=8C 80 01 34 00 00 18]
17:25:15.670 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
17:25:15.670 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=B4], messageTag=69, messageContents=01 69 04 EC 0A 00]
17:25:15.670 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=18]
17:25:15.670 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=3, ackNum=6, reTx=false, data=8D 00 01 34 00 00 89 4F 04 01 08 00 01 01 40 11 00 00 B4 69 06 01 69 04 EC 0A 00]
17:25:15.678 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=4, reTx=false, data=8D 80 01 34 00 00 19]
17:25:15.678 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
17:25:15.678 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=19]
17:25:15.774 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=4, reTx=false, data=8D 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 C4 CD 00]
17:25:15.774 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
17:25:15.774 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=196, lastHopRssi=-51, relayList=]
17:25:15.795 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=4, reTx=false, data=8D 90 01 3F 00 00 89 4F 04 01 08 00 01 01 40 11 00 00 19 69 00 00]
17:25:15.795 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
17:25:15.795 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=19], messageTag=69, status=EMBER_SUCCESS, messageContents=]
17:25:15.795 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=69 state=RX_ACK
17:25:15.795 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=69, state=RX_ACK, outstanding=3
17:25:15.795 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4F89, TID=69, event=RX_ACK, state=ACKED
17:25:15.813 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=4, reTx=false, data=8D 90 01 59 00 66 64 A7 55 FD 88 1B 38 C1 A4 FF DE 00]
17:25:15.813 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
17:25:15.813 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=6466, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-34, relayList=]
17:25:15.821 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=4, reTx=false, data=8D 90 01 3F 00 00 66 64 00 00 00 00 00 00 40 11 00 00 17 67 00 00]
17:25:15.821 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
17:25:15.821 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=6466, apsFrame=EmberApsFrame [profileId=0000, clusterId=0000, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=17], messageTag=67, status=EMBER_SUCCESS, messageContents=]
17:25:15.821 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=67 state=RX_ACK
17:25:15.821 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=67, state=RX_ACK, outstanding=3
17:25:15.821 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=6466, TID=67, event=RX_ACK, state=ACKED
17:25:15.854 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=4, reTx=false, data=8D 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 C0 CC 00]
17:25:15.854 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
17:25:15.854 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=192, lastHopRssi=-52, relayList=]
17:25:15.875 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=4, reTx=false, data=8D 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 20 C0 CC 89 4F FF FF 05 18 69 0B 04 00 02]
17:25:15.875 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
17:25:15.875 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=20], lastHopLqi=192, lastHopRssi=-52, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 69 0B 04 00]
17:25:15.875 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=20, rssi=-52, lqi=C0, payload=18 69 0B 04 00]
17:25:15.875 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
17:25:15.875 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
17:25:15.876 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=69, commandId=11]
17:25:15.876 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=69, commandIdentifier=4, statusCode=SUCCESS]
17:25:15.876 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=69, commandIdentifier=4, statusCode=SUCCESS]
17:25:15.876 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=216, state=COMPLETE, sendCnt=1, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=69, level=236, transitionTime=10]]
17:25:15.876 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 2 outstanding
17:25:15.876 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: transactionComplete, state=COMPLETE, outstanding=0
17:25:15.876 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=9, sleepy=0/3
17:25:15.876 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4F89/1: Sending ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=215, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=6A, hue=128, saturation=241, transitionTime=10]]
17:25:15.876 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 3 outstanding
17:25:15.876 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=6A, hue=128, saturation=241, transitionTime=10]
17:25:15.876 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=6A, commandId=6]
17:25:15.877 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4F89/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=B5, rssi=--, lqi=--, payload=01 6A 06 80 F1 0A 00]
17:25:15.877 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=B5], messageTag=6A, messageContents=01 6A 06 80 F1 0A 00]
17:25:15.877 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=4, ackNum=5, reTx=false, data=8E 00 01 34 00 00 89 4F 04 01 00 03 01 01 40 11 00 00 B5 6A 07 01 6A 06 80 F1 0A 00]
17:25:15.885 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=5, reTx=false, data=8E 80 01 34 00 00 1A]
17:25:15.885 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
17:25:15.885 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=1A]
17:25:16.024 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=5, reTx=false, data=8E 90 01 59 00 66 64 A7 55 FD 88 1B 38 C1 A4 FF DE 00]
17:25:16.024 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
17:25:16.024 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=6466, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-34, relayList=]
17:25:16.032 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=5, reTx=false, data=8E 90 01 45 00 00 00 00 00 80 00 00 40 01 00 00 D5 FF DD 66 64 FF FF 0C 67 00 A7 55 FD 88 1B 38 C1 A4 66 64 02]
17:25:16.032 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
17:25:16.032 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0000, clusterId=8000, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=D5], lastHopLqi=255, lastHopRssi=-35, sender=6466, bindingIndex=255, addressIndex=255, messageContents=67 00 A7 55 FD 88 1B 38 C1 A4 66 64]
17:25:16.032 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=6466/0, destinationAddress=0000/0, profile=0000, cluster=8000, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=D5, rssi=-35, lqi=FF, payload=67 00 A7 55 FD 88 1B 38 C1 A4 66 64]
17:25:16.032 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node update. NWK Address=NULL
17:25:16.032 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node 6466 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C1381B88FD55A7, NWK=----, endpoints=[]]
17:25:16.033 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: NetworkAddressResponse [6466/0 -> 0000/0, cluster=8000, TID=67, status=SUCCESS, ieeeAddrRemoteDev=A4C1381B88FD55A7, nwkAddrRemoteDev=6466, startIndex=null, nwkAddrAssocDevList=[]]
17:25:16.033 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: NetworkAddressResponse [6466/0 -> 0000/0, cluster=8000, TID=67, status=SUCCESS, ieeeAddrRemoteDev=A4C1381B88FD55A7, nwkAddrRemoteDev=6466, startIndex=null, nwkAddrAssocDevList=[]]
17:25:16.033 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C1381B88FD55A7: NWK Discovery NetworkAddressRequest returned from NetworkAddressResponse [6466/0 -> 0000/0, cluster=8000, TID=67, status=SUCCESS, ieeeAddrRemoteDev=A4C1381B88FD55A7, nwkAddrRemoteDev=6466, startIndex=null, nwkAddrAssocDevList=[]]
17:25:16.033 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=423, state=COMPLETE, sendCnt=1, command=NetworkAddressRequest [0000/0 -> 6466/0, cluster=0000, TID=67, ieeeAddr=A4C1381B88FD55A7, requestType=0, startIndex=0]]
17:25:16.033 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C1381B88FD55A7: NWK Discovery: Rediscovery found network address to 6466
17:25:16.033 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 2 outstanding
17:25:16.033 [DEBUG] [app.discovery.ZigBeeNetworkDiscoverer] - A4C1381B88FD55A7: NWK Discovery add node 6466
17:25:16.033 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: transactionComplete, state=COMPLETE, outstanding=0
17:25:16.033 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Updating node NWK=6466
17:25:16.033 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=8, sleepy=0/3
17:25:16.033 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node update. NWK Address=6466
17:25:16.033 [DEBUG] [.transaction.ZigBeeTransactionManager] - 6466/1: Sending ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=411, state=WAITING, sendCnt=0, command=ReadAttributesCommand [Basic: 0000/0 -> 6466/1, cluster=0000, TID=6B, identifiers=[6]]]
17:25:16.034 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node 6466 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C1381B88FD55A7, NWK=6466, endpoints=[]]
17:25:16.034 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 3 outstanding
17:25:16.034 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: ReadAttributesCommand [Basic: 0000/0 -> 6466/1, cluster=0000, TID=6B, identifiers=[6]]
17:25:16.034 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=6B, commandId=0]
17:25:16.034 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=6466/1, profile=0104, cluster=0000, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=B6, rssi=--, lqi=--, payload=00 6B 00 06 00]
17:25:16.034 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=6466, apsFrame=EmberApsFrame [profileId=0104, clusterId=0000, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=B6], messageTag=6B, messageContents=00 6B 00 06 00]
17:25:16.034 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=5, ackNum=0, reTx=false, data=8F 00 01 34 00 00 66 64 04 01 00 00 01 01 40 11 00 00 B6 6B 05 00 6B 00 06 00]
17:25:16.041 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=5, reTx=false, data=8E 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 C0 CC 00]
17:25:16.041 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
17:25:16.041 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=192, lastHopRssi=-52, relayList=]
17:25:16.045 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=6, reTx=false, data=8F 84 01 34 00 00 1B]
17:25:16.045 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
17:25:16.045 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=1B]
17:25:16.066 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=6, reTx=false, data=8E 90 01 3F 00 00 89 4F 04 01 00 03 01 01 40 11 00 00 1A 6A 00 00]
17:25:16.066 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
17:25:16.066 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=1A], messageTag=6A, status=EMBER_SUCCESS, messageContents=]
17:25:16.066 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=6A state=RX_ACK
17:25:16.066 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=6A, state=RX_ACK, outstanding=3
17:25:16.066 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4F89, TID=6A, event=RX_ACK, state=ACKED
17:25:16.067 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=6, reTx=false, data=8F 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF E9 00]
17:25:16.067 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
17:25:16.067 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-23, relayList=]
17:25:16.068 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=6, reTx=false, data=8F 90 01 3F 00 00 66 40 04 01 08 00 01 01 40 11 00 00 18 68 00 00]
17:25:16.068 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
17:25:16.068 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=18], messageTag=68, status=EMBER_SUCCESS, messageContents=]
17:25:16.068 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=68 state=RX_ACK
17:25:16.068 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=68, state=RX_ACK, outstanding=3
17:25:16.068 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4066, TID=68, event=RX_ACK, state=ACKED
17:25:16.072 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=6, reTx=false, data=8F 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF E9 00]
17:25:16.072 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
17:25:16.072 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-23, relayList=]
17:25:16.080 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=6, reTx=false, data=8F 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 8A FF E9 66 40 FF FF 05 18 68 0B 04 00 02]
17:25:16.080 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
17:25:16.080 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=8A], lastHopLqi=255, lastHopRssi=-23, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 68 0B 04 00]
17:25:16.080 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=8A, rssi=-23, lqi=FF, payload=18 68 0B 04 00]
17:25:16.080 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
17:25:16.080 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
17:25:16.080 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=68, commandId=11]
17:25:16.080 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Level Control: 4066/1 -> 0000/1, cluster=0008, TID=68, commandIdentifier=4, statusCode=SUCCESS]
17:25:16.080 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Level Control: 4066/1 -> 0000/1, cluster=0008, TID=68, commandIdentifier=4, statusCode=SUCCESS]
17:25:16.081 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=1961, state=COMPLETE, sendCnt=1, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=68, level=211, transitionTime=10]]
17:25:16.081 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 2 outstanding
17:25:16.081 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: transactionComplete, state=COMPLETE, outstanding=0
17:25:16.081 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=7, sleepy=0/3
17:25:16.081 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4066/1: Sending ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=1958, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=6C, hue=135, saturation=218, transitionTime=10]]
17:25:16.081 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 3 outstanding
17:25:16.081 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=6C, hue=135, saturation=218, transitionTime=10]
17:25:16.081 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=6C, commandId=6]
17:25:16.082 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4066/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=B7, rssi=--, lqi=--, payload=01 6C 06 87 DA 0A 00]
17:25:16.082 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=B7], messageTag=6C, messageContents=01 6C 06 87 DA 0A 00]
17:25:16.082 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=6, ackNum=7, reTx=false, data=90 00 01 34 00 00 66 40 04 01 00 03 01 01 40 11 00 00 B7 6C 07 01 6C 06 87 DA 0A 00]
17:25:16.086 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=6, reTx=false, data=8F 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 C0 CC 00]
17:25:16.087 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
17:25:16.087 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=192, lastHopRssi=-52, relayList=]
17:25:16.107 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=7, reTx=false, data=90 84 01 34 00 00 1C]
17:25:16.107 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
17:25:16.107 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=1C]
17:25:16.107 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=7, reTx=false, data=8F 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 21 C0 CC 89 4F FF FF 05 18 6A 0B 06 00 02]
17:25:16.107 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
17:25:16.107 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=21], lastHopLqi=192, lastHopRssi=-52, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 6A 0B 06 00]
17:25:16.107 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=21, rssi=-52, lqi=C0, payload=18 6A 0B 06 00]

James_Kester · June 3, 2024, 10:35pm

17:25:16.108 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
17:25:16.108 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
17:25:16.108 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=6A, commandId=11]
17:25:16.108 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=6A, commandIdentifier=6, statusCode=SUCCESS]
17:25:16.108 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=6A, commandIdentifier=6, statusCode=SUCCESS]
17:25:16.108 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=447, state=COMPLETE, sendCnt=1, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=6A, hue=128, saturation=241, transitionTime=10]]
17:25:16.108 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color received SUCCESS in response to 182,95,93
17:25:16.108 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 2 outstanding
17:25:16.108 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color updated to 182,95,93
17:25:16.108 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: transactionComplete, state=COMPLETE, outstanding=0
17:25:16.108 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C13884A303C0EF: Updating ZigBee channel state zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color to 182,95,93
17:25:16.108 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=6, sleepy=0/3
17:25:16.108 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
17:25:16.109 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef
17:25:16.109 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c13884a303c0ef in 14430 seconds
17:25:16.109 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=--, level=213, transitionTime=10]]
17:25:16.109 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=7, sleepy=0/3
17:25:16.109 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4F89/1: Sending ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=6D, level=213, transitionTime=10]]
17:25:16.109 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 3 outstanding
17:25:16.110 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=6D, level=213, transitionTime=10]
17:25:16.110 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=6D, commandId=4]
17:25:16.110 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4F89/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=B8, rssi=--, lqi=--, payload=01 6D 04 D5 0A 00]
17:25:16.110 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=0, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=--, hue=134, saturation=224, transitionTime=10]]
17:25:16.110 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=B8], messageTag=6D, messageContents=01 6D 04 D5 0A 00]
17:25:16.110 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=7, sleepy=0/3
17:25:16.110 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=7, ackNum=2, reTx=false, data=91 00 01 34 00 00 89 4F 04 01 08 00 01 01 40 11 00 00 B8 6D 06 01 6D 04 D5 0A 00]
17:25:16.110 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C13884A303C0EF: Channel zigbee:device:3ea840067f:a4c13884a303c0ef:A4C13884A303C0EF_1_color waiting for response to 190,88,84
17:25:16.119 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=0, reTx=false, data=91 80 01 34 00 00 1D]
17:25:16.119 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
17:25:16.119 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=1D]
17:25:16.132 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=7, sleepy=0/3
17:25:16.186 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=0, reTx=false, data=91 90 01 59 00 66 64 A7 55 FD 88 1B 38 C1 A4 FF DE 00]
17:25:16.186 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
17:25:16.186 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=6466, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-34, relayList=]
17:25:16.207 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=0, reTx=false, data=91 90 01 3F 00 00 66 64 04 01 00 00 01 01 40 11 00 00 1B 6B 00 00]
17:25:16.207 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
17:25:16.207 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=6466, apsFrame=EmberApsFrame [profileId=0104, clusterId=0000, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=1B], messageTag=6B, status=EMBER_SUCCESS, messageContents=]
17:25:16.207 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=6B state=RX_ACK
17:25:16.207 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=6B, state=RX_ACK, outstanding=3
17:25:16.207 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=6466, TID=6B, event=RX_ACK, state=ACKED
17:25:16.207 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=0, reTx=false, data=91 90 01 59 00 66 64 A7 55 FD 88 1B 38 C1 A4 FF DE 00]
17:25:16.208 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
17:25:16.208 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=6466, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-34, relayList=]
17:25:16.208 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=0, reTx=false, data=91 90 01 45 00 00 04 01 00 00 01 01 40 01 00 00 D6 FF DE 66 64 FF FF 06 18 6B 01 06 00 86 02]
17:25:16.208 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
17:25:16.208 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0000, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=D6], lastHopLqi=255, lastHopRssi=-34, sender=6466, bindingIndex=255, addressIndex=255, messageContents=18 6B 01 06 00 86]
17:25:16.208 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=6466/1, destinationAddress=0000/1, profile=0104, cluster=0000, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=D6, rssi=-34, lqi=FF, payload=18 6B 01 06 00 86]
17:25:16.209 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node update. NWK Address=NULL
17:25:16.209 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node 6466 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C1381B88FD55A7, NWK=----, endpoints=[]]
17:25:16.209 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=6B, commandId=1]
17:25:16.209 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReadAttributesResponse [Basic: 6466/1 -> 0000/1, cluster=0000, TID=6B, records=[ReadAttributeStatusRecord [status=UNSUPPORTED_ATTRIBUTE, attributeIdentifier=6]]]
17:25:16.209 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReadAttributesResponse [Basic: 6466/1 -> 0000/1, cluster=0000, TID=6B, records=[ReadAttributeStatusRecord [status=UNSUPPORTED_ATTRIBUTE, attributeIdentifier=6]]]
17:25:16.209 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=587, state=COMPLETE, sendCnt=1, command=ReadAttributesCommand [Basic: 0000/0 -> 6466/1, cluster=0000, TID=6B, identifiers=[6]]]
17:25:16.209 [DEBUG] [m.zsmartsystems.zigbee.zcl.ZclCluster] - readSync request: ZclAttribute [cluster=Basic, id=6, name=Date Code, dataType=CHARACTER_STRING, lastValue=null, implemented=false]
17:25:16.209 [DEBUG] [m.zsmartsystems.zigbee.zcl.ZclCluster] - 6466/1: Error reading server attribute 6 in cluster 0 - UNSUPPORTED_ATTRIBUTE
17:25:16.209 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 2 outstanding
17:25:16.209 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=0, state=WAITING, sendCnt=0, command=ReadAttributesCommand [Basic: 0000/0 -> 6466/1, cluster=0000, TID=--, identifiers=[6]]]
17:25:16.209 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=8, sleepy=0/3
17:25:16.210 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: transactionComplete, state=COMPLETE, outstanding=0
17:25:16.210 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=8, sleepy=0/3
17:25:16.210 [DEBUG] [.transaction.ZigBeeTransactionManager] - 6466/1: Sending ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=1, state=WAITING, sendCnt=0, command=ReadAttributesCommand [Basic: 0000/0 -> 6466/1, cluster=0000, TID=6E, identifiers=[6]]]
17:25:16.210 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 3 outstanding
17:25:16.210 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: ReadAttributesCommand [Basic: 0000/0 -> 6466/1, cluster=0000, TID=6E, identifiers=[6]]
17:25:16.210 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=6E, commandId=0]
17:25:16.210 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=6466/1, profile=0104, cluster=0000, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=B9, rssi=--, lqi=--, payload=00 6E 00 06 00]
17:25:16.213 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=6466, apsFrame=EmberApsFrame [profileId=0104, clusterId=0000, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=B9], messageTag=6E, messageContents=00 6E 00 06 00]
17:25:16.213 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=0, ackNum=7, reTx=false, data=92 00 01 34 00 00 66 64 04 01 00 00 01 01 40 11 00 00 B9 6E 05 00 6E 00 06 00]
17:25:16.221 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=1, reTx=false, data=92 80 01 34 00 00 1E]
17:25:16.221 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
17:25:16.221 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=1E]
17:25:16.262 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=1, reTx=false, data=92 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 C0 CC 00]
17:25:16.262 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
17:25:16.262 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=192, lastHopRssi=-52, relayList=]
17:25:16.266 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=1, reTx=false, data=92 90 01 3F 00 00 89 4F 04 01 08 00 01 01 40 11 00 00 1D 6D 00 00]
17:25:16.266 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
17:25:16.266 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=1D], messageTag=6D, status=EMBER_SUCCESS, messageContents=]
17:25:16.266 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=6D state=RX_ACK
17:25:16.266 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=6D, state=RX_ACK, outstanding=3
17:25:16.266 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4F89, TID=6D, event=RX_ACK, state=ACKED
17:25:16.301 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=1, reTx=false, data=92 90 01 59 00 66 64 A7 55 FD 88 1B 38 C1 A4 FF DE 00]
17:25:16.301 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
17:25:16.301 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=6466, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-34, relayList=]
17:25:16.305 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=1, reTx=false, data=92 90 01 3F 00 00 66 64 04 01 00 00 01 01 40 11 00 00 1E 6E 00 00]
17:25:16.305 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
17:25:16.305 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=6466, apsFrame=EmberApsFrame [profileId=0104, clusterId=0000, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=1E], messageTag=6E, status=EMBER_SUCCESS, messageContents=]
17:25:16.305 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=6E state=RX_ACK
17:25:16.305 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=6E, state=RX_ACK, outstanding=3
17:25:16.305 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=6466, TID=6E, event=RX_ACK, state=ACKED
17:25:16.309 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=1, reTx=false, data=92 90 01 59 00 66 64 A7 55 FD 88 1B 38 C1 A4 FF DE 00]
17:25:16.309 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
17:25:16.309 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=6466, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-34, relayList=]
17:25:16.317 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=1, reTx=false, data=92 90 01 45 00 00 04 01 00 00 01 01 40 01 00 00 D7 FF DE 66 64 FF FF 06 18 6E 01 06 00 86 02]
17:25:16.317 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
17:25:16.317 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0000, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=D7], lastHopLqi=255, lastHopRssi=-34, sender=6466, bindingIndex=255, addressIndex=255, messageContents=18 6E 01 06 00 86]
17:25:16.317 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=6466/1, destinationAddress=0000/1, profile=0104, cluster=0000, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=D7, rssi=-34, lqi=FF, payload=18 6E 01 06 00 86]
17:25:16.317 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node update. NWK Address=NULL
17:25:16.317 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node 6466 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C1381B88FD55A7, NWK=----, endpoints=[]]
17:25:16.317 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=6E, commandId=1]
17:25:16.317 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReadAttributesResponse [Basic: 6466/1 -> 0000/1, cluster=0000, TID=6E, records=[ReadAttributeStatusRecord [status=UNSUPPORTED_ATTRIBUTE, attributeIdentifier=6]]]
17:25:16.318 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReadAttributesResponse [Basic: 6466/1 -> 0000/1, cluster=0000, TID=6E, records=[ReadAttributeStatusRecord [status=UNSUPPORTED_ATTRIBUTE, attributeIdentifier=6]]]
17:25:16.318 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=109, state=COMPLETE, sendCnt=1, command=ReadAttributesCommand [Basic: 0000/0 -> 6466/1, cluster=0000, TID=6E, identifiers=[6]]]
17:25:16.318 [DEBUG] [iscovery.ZigBeeNodePropertyDiscoverer] - A4C1381B88FD55A7: Date code failed
17:25:16.318 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 2 outstanding
17:25:16.318 [DEBUG] [m.zsmartsystems.zigbee.zcl.ZclCluster] - 6466/1: Error reading server attribute 6 in cluster 0 - UNSUPPORTED_ATTRIBUTE
17:25:16.318 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: transactionComplete, state=COMPLETE, outstanding=0
17:25:16.318 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=7, sleepy=0/3
17:25:16.318 [DEBUG] [iscovery.ZigBeeNodePropertyDiscoverer] - A4C1381B88FD55A7: ZigBee node property discovery using OTA cluster on endpoint 6466/1
17:25:16.318 [DEBUG] [iscovery.ZigBeeNodePropertyDiscoverer] - A4C1381B88FD55A7: ZigBee node property discovery complete: {zigbee_logicaltype=ROUTER, zigbee_powerlevel=FULL, zigbee_manufacturercode=0x100b, modelId=TS0505B, zigbee_networkaddress=25702, zigbee_powersource=MAINS, zigbee_stkversion=2, zigbee_zclversion=3, zigbee_routes=[], zigbee_lastupdate=, zigbee_stkcompliance=21, vendor=_TZ3210_mja6r5ix, zigbee_powermode=RECEIVER_ON_IDLE, zigbee_powersources=[MAINS], hardwareVersion=0, firmwareVersion=0x10003607, zigbee_neighbors=[], zigbee_device_initialised=false, zigbee_applicationVersion=112, zigbee_devices=[]}
17:25:16.318 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Checking endpoint 1 channels
17:25:16.319 [DEBUG] [ter.ZigBeeChannelConverterFactoryImpl] - A4C1381B88FD55A7: Removing channel zigbee:switch_onoff in favor of zigbee:switch_level
17:25:16.319 [DEBUG] [ter.ZigBeeChannelConverterFactoryImpl] - A4C1381B88FD55A7: Removing channel zigbee:switch_level in favor of zigbee:color_color
17:25:16.319 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Dynamically created 2 channels
17:25:16.319 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Initializing device
17:25:16.319 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C1381B88FD55A7: Initializing channel zigbee:device:3ea840067f:a4c1381b88fd55a7:A4C1381B88FD55A7_1_colortemperature with org.openhab.binding.zigbee.internal.converter.ZigBeeConverterColorTemperature@59e40b62
17:25:16.322 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=0, state=WAITING, sendCnt=0, command=BindRequest [0000/0 -> 6466/0, cluster=0021, TID=--, bindingTableEntry=BindingTable [srcAddr=A4C1381B88FD55A7/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]]
17:25:16.323 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=8, sleepy=0/3
17:25:16.323 [DEBUG] [.transaction.ZigBeeTransactionManager] - 6466/0: Sending ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=1, state=WAITING, sendCnt=0, command=BindRequest [0000/0 -> 6466/0, cluster=0021, TID=6F, bindingTableEntry=BindingTable [srcAddr=A4C1381B88FD55A7/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]]
17:25:16.323 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 3 outstanding
17:25:16.323 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: BindRequest [0000/0 -> 6466/0, cluster=0021, TID=6F, bindingTableEntry=BindingTable [srcAddr=A4C1381B88FD55A7/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]
17:25:16.323 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/0, destinationAddress=6466/0, profile=0000, cluster=0021, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=BA, rssi=--, lqi=--, payload=6F A7 55 FD 88 1B 38 C1 A4 01 00 03 03 7C FB BF FE FF 7E E0 E8 01]
17:25:16.323 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=6466, apsFrame=EmberApsFrame [profileId=0000, clusterId=0021, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=BA], messageTag=6F, messageContents=6F A7 55 FD 88 1B 38 C1 A4 01 00 03 03 7C FB BF FE FF 7E E0 E8 01]
17:25:16.324 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=1, ackNum=6, reTx=false, data=93 00 01 34 00 00 66 64 00 00 21 00 00 00 40 11 00 00 BA 6F 16 6F A7 55 FD 88 1B 38 C1 A4 01 00 03 03 7C FB BF FE FF 7E E0 E8 01]
17:25:16.338 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=1, reTx=false, data=92 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 C0 CC 00]
17:25:16.338 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
17:25:16.338 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=192, lastHopRssi=-52, relayList=]
17:25:16.338 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=1, reTx=false, data=92 90 01 45 00 00 04 01 08 00 01 01 40 01 00 00 22 C0 CC 89 4F FF FF 05 18 6D 0B 04 00 02]
17:25:16.339 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
17:25:16.339 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=22], lastHopLqi=192, lastHopRssi=-52, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 6D 0B 04 00]
17:25:16.339 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=22, rssi=-52, lqi=C0, payload=18 6D 0B 04 00]
17:25:16.339 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=2, reTx=false, data=93 84 01 34 00 00 1F]
17:25:16.339 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
17:25:16.339 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
17:25:16.339 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
17:25:16.339 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=6D, commandId=11]
17:25:16.339 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=2, reTx=false, data=92 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF E8 00]
17:25:16.339 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=6D, commandIdentifier=4, statusCode=SUCCESS]
17:25:16.340 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
17:25:16.340 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Level Control: 4F89/1 -> 0000/1, cluster=0008, TID=6D, commandIdentifier=4, statusCode=SUCCESS]
17:25:16.340 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=1F]
17:25:16.340 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=231, state=COMPLETE, sendCnt=1, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4F89/1, cluster=0008, TID=6D, level=213, transitionTime=10]]
17:25:16.340 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-24, relayList=]
17:25:16.340 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 2 outstanding
17:25:16.340 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C13884A303C0EF: transactionComplete, state=COMPLETE, outstanding=0
17:25:16.341 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=7, sleepy=0/3
17:25:16.341 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4F89/1: Sending ZigBeeTransaction [ieeeAddress=A4C13884A303C0EF queueTime=231, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=70, hue=134, saturation=224, transitionTime=10]]
17:25:16.341 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 3 outstanding
17:25:16.341 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4F89/1, cluster=0300, TID=70, hue=134, saturation=224, transitionTime=10]
17:25:16.341 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=70, commandId=6]
17:25:16.341 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4F89/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=BB, rssi=--, lqi=--, payload=01 70 06 86 E0 0A 00]
17:25:16.341 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4F89, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=BB], messageTag=70, messageContents=01 70 06 86 E0 0A 00]
17:25:16.342 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=2, ackNum=2, reTx=false, data=94 00 01 34 00 00 89 4F 04 01 00 03 01 01 40 11 00 00 BB 70 07 01 70 06 86 E0 0A 00]
17:25:16.342 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=2, reTx=false, data=93 90 01 3F 00 00 66 40 04 01 00 03 01 01 40 11 00 00 1C 6C 00 00]
17:25:16.342 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=1C], messageTag=6C, status=EMBER_SUCCESS, messageContents=]
17:25:16.342 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
17:25:16.350 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=3, reTx=false, data=94 80 01 34 00 00 20]
17:25:16.350 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
17:25:16.350 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=20]
17:25:16.350 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=6C state=RX_ACK
17:25:16.350 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=6C, state=RX_ACK, outstanding=3
17:25:16.350 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=4066, TID=6C, event=RX_ACK, state=ACKED
17:25:16.378 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=3, reTx=false, data=94 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF E8 00]
17:25:16.378 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
17:25:16.378 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-24, relayList=]
17:25:16.399 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=3, reTx=false, data=94 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 8B FF E8 66 40 FF FF 05 18 6C 0B 06 00 02]
17:25:16.399 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
17:25:16.399 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=8B], lastHopLqi=255, lastHopRssi=-24, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 6C 0B 06 00]
17:25:16.399 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=8B, rssi=-24, lqi=FF, payload=18 6C 0B 06 00]
17:25:16.399 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
17:25:16.399 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
17:25:16.399 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=6C, commandId=11]
17:25:16.399 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=3, reTx=false, data=94 90 01 59 00 66 64 A7 55 FD 88 1B 38 C1 A4 FF DE 00]
17:25:16.399 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: DefaultResponse [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=6C, commandIdentifier=6, statusCode=SUCCESS]
17:25:16.400 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
17:25:16.400 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: DefaultResponse [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=6C, commandIdentifier=6, statusCode=SUCCESS]
17:25:16.400 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=6466, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-34, relayList=]
17:25:16.400 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color received SUCCESS in response to 192,86,83
17:25:16.400 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=2277, state=COMPLETE, sendCnt=1, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=6C, hue=135, saturation=218, transitionTime=10]]
17:25:16.400 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color updated to 192,86,83
17:25:16.400 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 2 outstanding
17:25:16.400 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=3, reTx=false, data=94 90 01 3F 00 00 66 64 00 00 21 00 00 00 40 11 00 00 1F 6F 00 00]
17:25:16.400 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: transactionComplete, state=COMPLETE, outstanding=0
17:25:16.400 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=6466, apsFrame=EmberApsFrame [profileId=0000, clusterId=0021, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=1F], messageTag=6F, status=EMBER_SUCCESS, messageContents=]
17:25:16.400 [DEBUG] [ing.zigbee.handler.ZigBeeThingHandler] - A4C138100ED6268B: Updating ZigBee channel state zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color to 192,86,83
17:25:16.400 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=6F state=RX_ACK
17:25:16.400 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
17:25:16.400 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=6F, state=RX_ACK, outstanding=2
17:25:16.400 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker reset for handler with thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
17:25:16.400 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=6, sleepy=0/3
17:25:16.401 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker cancelled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b
17:25:16.401 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=3, reTx=false, data=94 90 01 59 00 66 64 A7 55 FD 88 1B 38 C1 A4 FF DE 00]
17:25:16.401 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=6466, TID=6F, event=RX_ACK, state=ACKED
17:25:16.401 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=6466, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-34, relayList=]
17:25:16.401 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
17:25:16.401 [DEBUG] [.transaction.ZigBeeTransactionManager] - 4066/1: Sending ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=2175, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=71, level=140, transitionTime=10]]
17:25:16.401 [DEBUG] [g.zigbee.handler.ZigBeeIsAliveTracker] - IsAlive Tracker scheduled task for thingUID=zigbee:device:3ea840067f:a4c138100ed6268b in 14430 seconds
17:25:16.401 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 3 outstanding
17:25:16.402 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=71, level=140, transitionTime=10]
17:25:16.402 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=CLUSTER_SPECIFIC_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=71, commandId=4]
17:25:16.402 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=4066/1, profile=0104, cluster=0008, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=BC, rssi=--, lqi=--, payload=01 71 04 8C 0A 00]
17:25:16.402 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=4066, apsFrame=EmberApsFrame [profileId=0104, clusterId=0008, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=BC], messageTag=71, messageContents=01 71 04 8C 0A 00]
17:25:16.402 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Added transaction to queue, len=6, transaction=ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=MoveToLevelWithOnOffCommand [Level Control: 0000/0 -> 4066/1, cluster=0008, TID=--, level=127, transitionTime=10]]
17:25:16.402 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=3, ackNum=1, reTx=false, data=95 00 01 34 00 00 66 40 04 01 08 00 01 01 40 11 00 00 BC 71 06 01 71 04 8C 0A 00]
17:25:16.402 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=6, sleepy=0/3
17:25:16.403 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C138100ED6268B: Added transaction to queue, len=7, transaction=ZigBeeTransaction [ieeeAddress=A4C138100ED6268B queueTime=0, state=WAITING, sendCnt=0, command=MoveToHueAndSaturationCommand [Color Control: 0000/0 -> 4066/1, cluster=0300, TID=--, hue=198, saturation=254, transitionTime=10]]
17:25:16.403 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=7, sleepy=0/3
17:25:16.403 [DEBUG] [.converter.ZigBeeBaseChannelConverter] - A4C138100ED6268B: Channel zigbee:device:3ea840067f:a4c138100ed6268b:A4C138100ED6268B_1_color waiting for response to 280,100,50
17:25:16.405 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=3, reTx=false, data=94 90 01 45 00 00 00 00 21 80 00 00 40 01 00 00 D8 FF DD 66 64 FF FF 02 6F 00 02]
17:25:16.405 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
17:25:16.405 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0000, clusterId=8021, sourceEndpoint=0, destinationEndpoint=0, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=D8], lastHopLqi=255, lastHopRssi=-35, sender=6466, bindingIndex=255, addressIndex=255, messageContents=6F 00]
17:25:16.405 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=6466/0, destinationAddress=0000/0, profile=0000, cluster=8021, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=D8, rssi=-35, lqi=FF, payload=6F 00]
17:25:16.405 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node update. NWK Address=NULL
17:25:16.405 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node 6466 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C1381B88FD55A7, NWK=----, endpoints=[]]
17:25:16.405 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: BindResponse [6466/0 -> 0000/0, cluster=8021, TID=6F, status=SUCCESS]
17:25:16.405 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: BindResponse [6466/0 -> 0000/0, cluster=8021, TID=6F, status=SUCCESS]
17:25:16.406 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=84, state=COMPLETE, sendCnt=1, command=BindRequest [0000/0 -> 6466/0, cluster=0021, TID=6F, bindingTableEntry=BindingTable [srcAddr=A4C1381B88FD55A7/1, addrMode=DEVICE, dstAddr=E8E07EFFFEBFFB7C/1, clusterId=0300]]]
17:25:16.406 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=0, state=WAITING, sendCnt=0, command=ConfigureReportingCommand [Color Control: 0000/0 -> 6466/1, cluster=0300, TID=--, records=[AttributeReportingConfigurationRecord [attributeDataType=UNSIGNED_16_BIT_INTEGER, attributeIdentifier=7, direction=0, minimumReportingInterval=1, maximumReportingInterval=7200, reportableChange=1]]]]
17:25:16.406 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 2 outstanding
17:25:16.406 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=8, sleepy=0/3
17:25:16.406 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: transactionComplete, state=COMPLETE, outstanding=0
17:25:16.407 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=8, sleepy=0/3
17:25:16.407 [DEBUG] [.transaction.ZigBeeTransactionManager] - 6466/1: Sending ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=1, state=WAITING, sendCnt=0, command=ConfigureReportingCommand [Color Control: 0000/0 -> 6466/1, cluster=0300, TID=72, records=[AttributeReportingConfigurationRecord [attributeDataType=UNSIGNED_16_BIT_INTEGER, attributeIdentifier=7, direction=0, minimumReportingInterval=1, maximumReportingInterval=7200, reportableChange=1]]]]
17:25:16.407 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 3 outstanding
17:25:16.407 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: ConfigureReportingCommand [Color Control: 0000/0 -> 6466/1, cluster=0300, TID=72, records=[AttributeReportingConfigurationRecord [attributeDataType=UNSIGNED_16_BIT_INTEGER, attributeIdentifier=7, direction=0, minimumReportingInterval=1, maximumReportingInterval=7200, reportableChange=1]]]
17:25:16.407 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=72, commandId=6]
17:25:16.407 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=6466/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=BD, rssi=--, lqi=--, payload=00 72 06 00 07 00 21 01 00 20 1C 01 00]
17:25:16.411 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=4, reTx=false, data=95 80 01 34 00 00 21]
17:25:16.411 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
17:25:16.411 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=6466, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=BD], messageTag=72, messageContents=00 72 06 00 07 00 21 01 00 20 1C 01 00]
17:25:16.411 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=21]
17:25:16.411 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=4, ackNum=3, reTx=false, data=96 00 01 34 00 00 66 64 04 01 00 03 01 01 40 11 00 00 BD 72 0D 00 72 06 00 07 00 21 01 00 20 1C 01 00]
17:25:16.421 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=5, reTx=false, data=96 80 01 34 00 00 22]
17:25:16.421 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
17:25:16.421 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=22]
17:25:16.453 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=3, outstandingQueues=7, sleepy=0/3
17:25:16.521 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=5, reTx=false, data=96 90 01 59 00 89 4F EF C0 03 A3 84 38 C1 A4 C0 CC 00]
17:25:16.521 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
17:25:16.521 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4F89, sourceEui=A4C13884A303C0EF, lastHopLqi=192, lastHopRssi=-52, relayList=]
17:25:16.527 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=5, reTx=false, data=96 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 23 C0 CC 89 4F FF FF 07 18 A8 0A 00 00 20 A3 02]
17:25:16.527 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
17:25:16.527 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=23], lastHopLqi=192, lastHopRssi=-52, sender=4F89, bindingIndex=255, addressIndex=255, messageContents=18 A8 0A 00 00 20 A3]
17:25:16.527 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4F89/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=23, rssi=-52, lqi=C0, payload=18 A8 0A 00 00 20 A3]
17:25:16.527 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node update. NWK Address=NULL
17:25:16.527 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C13884A303C0EF: Node 4F89 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C13884A303C0EF, NWK=----, endpoints=[]]
17:25:16.527 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=A8, commandId=10]
17:25:16.528 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=A8, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=163]]]
17:25:16.528 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4F89/1 -> 0000/1, cluster=0300, TID=A8, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=163]]]
17:25:16.528 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=163, lastReportTime=Mon Jun 03 17:25:16 CDT 2024, implemented=true]
17:25:16.528 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C13884A303C0EF: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=163, lastReportTime=Mon Jun 03 17:25:16 CDT 2024, implemented=true]  on endpoint 1
17:25:16.531 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=5, reTx=false, data=96 90 01 59 00 66 64 A7 55 FD 88 1B 38 C1 A4 FF DE 00]
17:25:16.531 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
17:25:16.531 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=6466, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-34, relayList=]
17:25:16.537 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=7, ackNum=5, reTx=false, data=96 90 01 3F 00 00 66 64 04 01 00 03 01 01 40 11 00 00 22 72 00 00]
17:25:16.537 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=0, notRdy=false]
17:25:16.537 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspMessageSentHandler [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=6466, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=22], messageTag=72, status=EMBER_SUCCESS, messageContents=]
17:25:16.537 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX STA: msgTag=72 state=RX_ACK
17:25:16.537 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionProgress: TID=72, state=RX_ACK, outstanding=3
17:25:16.537 [DEBUG] [.zigbee.transaction.ZigBeeTransaction] - Transaction state changed: nwk=6466, TID=72, event=RX_ACK, state=ACKED
17:25:16.542 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=0, ackNum=5, reTx=false, data=96 90 01 59 00 66 64 A7 55 FD 88 1B 38 C1 A4 FF DE 00]
17:25:16.542 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=1, notRdy=false]
17:25:16.542 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=6466, sourceEui=A4C1381B88FD55A7, lastHopLqi=255, lastHopRssi=-34, relayList=]
17:25:16.548 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=1, ackNum=5, reTx=false, data=96 90 01 45 00 00 04 01 00 03 01 01 00 01 00 00 D9 FF DE 66 64 FF FF 07 18 72 07 00 00 07 00 02]
17:25:16.548 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=2, notRdy=false]
17:25:16.548 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY], groupId=0, sequence=D9], lastHopLqi=255, lastHopRssi=-34, sender=6466, bindingIndex=255, addressIndex=255, messageContents=18 72 07 00 00 07 00]
17:25:16.548 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=6466/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=D9, rssi=-34, lqi=FF, payload=18 72 07 00 00 07 00]
17:25:16.548 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node update. NWK Address=NULL
17:25:16.548 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C1381B88FD55A7: Node 6466 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C1381B88FD55A7, NWK=----, endpoints=[]]
17:25:16.548 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=72, commandId=7]
17:25:16.549 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ConfigureReportingResponse [Color Control: 6466/1 -> 0000/1, cluster=0300, TID=72, status=null, records=[Attribute Status Record [status=SUCCESS, direction=false, attributeIdentifier=7]]]
17:25:16.549 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ConfigureReportingResponse [Color Control: 6466/1 -> 0000/1, cluster=0300, TID=72, status=null, records=[Attribute Status Record [status=SUCCESS, direction=false, attributeIdentifier=7]]]
17:25:16.549 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction complete: ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=143, state=COMPLETE, sendCnt=1, command=ConfigureReportingCommand [Color Control: 0000/0 -> 6466/1, cluster=0300, TID=72, records=[AttributeReportingConfigurationRecord [attributeDataType=UNSIGNED_16_BIT_INTEGER, attributeIdentifier=7, direction=0, minimumReportingInterval=1, maximumReportingInterval=7200, reportableChange=1]]]]
17:25:16.549 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: Added transaction to queue, len=1, transaction=ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=0, state=WAITING, sendCnt=0, command=ConfigureReportingCommand [Color Control: 0000/0 -> 6466/1, cluster=0300, TID=--, records=[AttributeReportingConfigurationRecord [attributeDataType=ENUMERATION_8_BIT, attributeIdentifier=8, direction=0, minimumReportingInterval=1, maximumReportingInterval=7200]]]]
17:25:16.549 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerRemoved: 2 outstanding
17:25:16.549 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=8, sleepy=0/3
17:25:16.549 [DEBUG] [ee.transaction.ZigBeeTransactionQueue] - A4C1381B88FD55A7: transactionComplete, state=COMPLETE, outstanding=0
17:25:16.550 [DEBUG] [.transaction.ZigBeeTransactionManager] - Transaction Manager: Send Next transaction. outstandingTransactions=2, outstandingQueues=8, sleepy=0/3
17:25:16.550 [DEBUG] [.transaction.ZigBeeTransactionManager] - 6466/1: Sending ZigBeeTransaction [ieeeAddress=A4C1381B88FD55A7 queueTime=1, state=WAITING, sendCnt=0, command=ConfigureReportingCommand [Color Control: 0000/0 -> 6466/1, cluster=0300, TID=73, records=[AttributeReportingConfigurationRecord [attributeDataType=ENUMERATION_8_BIT, attributeIdentifier=8, direction=0, minimumReportingInterval=1, maximumReportingInterval=7200]]]]
17:25:16.550 [DEBUG] [.transaction.ZigBeeTransactionManager] - transactionListenerAdded: 3 outstanding
17:25:16.550 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX CMD: ConfigureReportingCommand [Color Control: 0000/0 -> 6466/1, cluster=0300, TID=73, records=[AttributeReportingConfigurationRecord [attributeDataType=ENUMERATION_8_BIT, attributeIdentifier=8, direction=0, minimumReportingInterval=1, maximumReportingInterval=7200]]]
17:25:16.550 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=CLIENT_TO_SERVER, disableDefaultResponse=false, manufacturerCode=0, sequenceNumber=73, commandId=6]
17:25:16.550 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - TX APS: ZigBeeApsFrame [sourceAddress=0000/1, destinationAddress=6466/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=8, apsSecurity=false, ackRequest=true, apsCounter=BE, rssi=--, lqi=--, payload=00 73 06 00 08 00 30 01 00 20 1C]
17:25:16.550 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - ASH TX EZSP: EzspSendUnicastRequest [networkId=0, type=EMBER_OUTGOING_DIRECT, indexOrDestination=6466, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ADDRESS_DISCOVERY, EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=BE], messageTag=73, messageContents=00 73 06 00 08 00 30 01 00 20 1C]
17:25:16.550 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameData [frmNum=5, ackNum=2, reTx=false, data=97 00 01 34 00 00 66 64 04 01 00 03 01 01 40 11 00 00 BE 73 0B 00 73 06 00 08 00 30 01 00 20 1C]
17:25:16.569 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=2, ackNum=5, reTx=false, data=96 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF E8 00]
17:25:16.569 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=3, notRdy=false]
17:25:16.569 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-24, relayList=]
17:25:16.569 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=3, ackNum=6, reTx=false, data=97 84 01 34 00 00 23]
17:25:16.569 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=4, notRdy=false]
17:25:16.569 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspSendUnicastResponse [networkId=0, status=EMBER_SUCCESS, sequence=23]
17:25:16.569 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=4, ackNum=6, reTx=false, data=96 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 8C FF E9 66 40 FF FF 07 18 EE 0A 00 00 20 BD 02]
17:25:16.570 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=5, notRdy=false]
17:25:16.570 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=8C], lastHopLqi=255, lastHopRssi=-23, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 EE 0A 00 00 20 BD]
17:25:16.571 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=8C, rssi=-23, lqi=FF, payload=18 EE 0A 00 00 20 BD]
17:25:16.571 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
17:25:16.571 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
17:25:16.571 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=EE, commandId=10]
17:25:16.571 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=EE, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=189]]]
17:25:16.572 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=EE, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=0, attributeValue=189]]]
17:25:16.572 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=189, lastReportTime=Mon Jun 03 17:25:16 CDT 2024, implemented=true]  on endpoint 1
17:25:16.572 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=0, name=Current Hue, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=189, lastReportTime=Mon Jun 03 17:25:16 CDT 2024, implemented=true]
17:25:16.579 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=5, ackNum=6, reTx=false, data=97 90 01 59 00 66 40 8B 26 D6 0E 10 38 C1 A4 FF E9 00]
17:25:16.579 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=6, notRdy=false]
17:25:16.579 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingRouteRecordHandler [networkId=0, source=4066, sourceEui=A4C138100ED6268B, lastHopLqi=255, lastHopRssi=-23, relayList=]
17:25:16.600 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - <-- RX ASH frame: AshFrameData [frmNum=6, ackNum=6, reTx=false, data=97 90 01 45 00 00 04 01 00 03 01 01 40 01 00 00 8D FF E9 66 40 FF FF 07 18 EF 0A 01 00 20 F3 02]
17:25:16.600 [DEBUG] [le.ember.internal.ash.AshFrameHandler] - --> TX ASH frame: AshFrameAck [ackNum=7, notRdy=false]
17:25:16.600 [DEBUG] [.zigbee.dongle.ember.ZigBeeDongleEzsp] - RX EZSP: EzspIncomingMessageHandler [networkId=0, type=EMBER_INCOMING_UNICAST, apsFrame=EmberApsFrame [profileId=0104, clusterId=0300, sourceEndpoint=1, destinationEndpoint=1, options=[EMBER_APS_OPTION_ENABLE_ROUTE_DISCOVERY, EMBER_APS_OPTION_RETRY], groupId=0, sequence=8D], lastHopLqi=255, lastHopRssi=-23, sender=4066, bindingIndex=255, addressIndex=255, messageContents=18 EF 0A 01 00 20 F3]
17:25:16.600 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX APS: ZigBeeApsFrame [sourceAddress=4066/1, destinationAddress=0000/1, profile=0104, cluster=0300, addressMode=DEVICE, radius=0, apsSecurity=false, ackRequest=false, apsCounter=8D, rssi=-23, lqi=FF, payload=18 EF 0A 01 00 20 F3]
17:25:16.600 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node update. NWK Address=NULL
17:25:16.600 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - A4C138100ED6268B: Node 4066 is not updated from ZigBeeNode [state=ONLINE, IEEE=A4C138100ED6268B, NWK=----, endpoints=[]]
17:25:16.601 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX ZCL: ZclHeader [frameType=ENTIRE_PROFILE_COMMAND, manufacturerSpecific=false, direction=SERVER_TO_CLIENT, disableDefaultResponse=true, manufacturerCode=0, sequenceNumber=EF, commandId=10]
17:25:16.602 [DEBUG] [rtsystems.zigbee.ZigBeeNetworkManager] - RX CMD: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=EF, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=243]]]
17:25:16.602 [DEBUG] [.transaction.ZigBeeTransactionManager] - notifyTransactionCommand: ReportAttributesCommand [Color Control: 4066/1 -> 0000/1, cluster=0300, TID=EF, reports=[AttributeReport [attributeDataType=UNSIGNED_8_BIT_INTEGER, attributeIdentifier=1, attributeValue=243]]]
17:25:16.602 [DEBUG] [erter.ZigBeeConverterColorTemperature] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=243, lastReportTime=Mon Jun 03 17:25:16 CDT 2024, implemented=true]  on endpoint 1
17:25:16.602 [DEBUG] [l.converter.ZigBeeConverterColorColor] - A4C138100ED6268B: ZigBee attribute reports ZclAttribute [cluster=Color Control, id=1, name=Current Saturation, dataType=UNSIGNED_8_BIT_INTEGER, lastValue=243, lastReportTime=Mon Jun 03 17:25:16 CDT 2024, implemented=true]
