Zwave binding and security issues

meschmesch · August 20, 2017, 7:41pm

Hi, I am using zwave-2.1.0-SNAPSHOT together with Fibaro Switch 2 (FGS 213 and FGS 223).

In non-secure binding (in habmin) I can receive the input of the S1 switch via an item in openhab. This means I can read that voltage by e.g. turning on the light was applied to the S1 input of the Fibaro Switch. Applying the voltage to the S1 input also correctly directly triggers the switch itself. The switch can correctly be controlled by items and switches via openhab.
In secure binding (also in habmin), the S1 input is completely non-reporting to openhab. This means that any items relating to the S1 switch always remain on “null” (instead of being off or on). Still, even in secure binding the input of the S1 correctly triggers the switch itself. Nevertheless, the switch can correctly be controlled by items and switches via openhab (some features are not working like the change of the switch type to switch type “toggle switch” or “momentary switch”.

Thus, this seems to be a problem of the secure binding implementation in openhab.
How can I solve that issue?

Thanks!!
Meschmesch

sihui · August 20, 2017, 8:18pm

As far as I understand the manual this is not possible at all:

Associations in Z-Wave network security mode
This parameter defnes how commands are sent in specifed association groups: as secure or non-secure. Parameter is active only in
Z-Wave network security mode. This parameter does not apply to 1st
„lifeline” group.

meschmesch · August 20, 2017, 9:16pm

I don’t understand what this has to do with the sending of information itself? This only means that for the Lifeline group there is no choice in sending information secure our non secure. This does not seem to state that in secure mode no information at all is transmitted on the Lifeline…

meschmesch · August 22, 2017, 7:35am

Update: The problem additionally seems to me somewhere else. Does someone have a working configuration for the Fibaro FGS 223 Switch which permits to get status updates on the physical S2 switch?

I have an item like

Switch Light_Status	{channel="zwave:device:12db123f123:node36:switch_binary2"}

However, it allways reports “NULL”. The same with binary1.

meschmesch · August 22, 2017, 9:23pm

Next Update: I switched to non-secure binding to make it more easy. In Debug mode I can see that there is no reporting on status updates on any physical events on the physical S2 switch unless the association group “On/Off (S2)” is set to OpenHabController. However, it seems like the status updates are not reported as originating from the S2 switch?!

NODE 36: Application Command Request (ALIVE:DONE)
NODE 36: resetResendCount initComplete=true isDead=false
NODE 36: Incoming command class COMMAND_CLASS_BASIC, endpoint 0
NODE 36: SECURITY NOT required on COMMAND_CLASS_BASIC
NODE 36: Received COMMAND_CLASS_BASIC V1 BASIC_SET
NODE 36: Basic report, value = 0
Notifying event listeners: ZWaveCommandClassValueEvent
NODE 36: Got an event from Z-Wave network: ZWaveCommandClassValueEvent
NODE 36: Got a value event from Z-Wave network, endpoint = 0, command class = COMMAND_CLASS_BASIC, value = 0
NODE 36: Updating channel state zwave:device:23ff142c123:node36:switch_binary to OFF [OnOffType]
NODE 36: Commands processed 1.
NODE 36: Checking command org.openhab.binding.zwave.internal.protocol.ZWaveCommandClassPayload@12ba63d.
Transaction completed - outstandingTransactions 0

This drives me crazy. Can anyone please help me I appreciate that…
Mesch.

sihui · August 23, 2017, 3:43pm

Actually I cannot follow what you want to achieve, sorry.

This is my FGS223 setup and event.log (zwave security binding 20170818, node not included with security):

Switch FibFGS223_1_Sw_1 "Living Wallplugs" (gRestore) { channel="zwave:device:15ca6a108b9:node30:switch_binary1" }
Switch FibFGS223_1_Sw_2 "Dining Wallplugs" (gRestore) { channel="zwave:device:15ca6a108b9:node30:switch_binary2" }
Number FibFGS223_1_Scenes "Scenes Wallplugs [%d]" { channel="zwave:device:15ca6a108b9:node30:scene_number" }

2017-08-22 20:23:20.361 [ItemStateChangedEvent     ] - FibFGS223_1_Sw_2 changed from OFF to ON
2017-08-22 20:23:20.822 [ItemStateChangedEvent     ] - FibFGS223_1_Sw_1 changed from OFF to ON
2017-08-22 20:23:20.883 [ItemStateChangedEvent     ] - FibFGS223_1_Scenes changed from 2.0 to 1.0
2017-08-22 23:27:09.113 [ItemStateChangedEvent     ] - FibFGS223_1_Sw_1 changed from ON to OFF
2017-08-22 23:27:09.985 [ItemStateChangedEvent     ] - FibFGS223_1_Sw_2 changed from ON to OFF
2017-08-22 23:27:10.043 [ItemStateChangedEvent     ] - FibFGS223_1_Scenes changed from 1.0 to 2.0

That is everything I need. So what does not work for you?

meschmesch · August 23, 2017, 9:02pm

Hi sihui,

I have the same items as you (see post #4) but for whatever reason I do not receive any events or status updates for binary1 and binary2. I receive NO status updates at all at openhab in case the S2 input is triggered by an external switch. I receive status updates only for node36:switch_binary in case the S1 input is triggered by an external switch - but still the node36:switch_binary1 is silent (always NULL). So it seems like node36:switch_binary1 and node36:switch_binary2 are not reported to openhab.

The same problem is with a FGS 213 which has only one input S1. node34:switch_binary is reporting correct values, node36:switch_binary1 is silent. In case of the FGS213 this does not matter, since binary and binary1 are identical. But in case of the FGS 223 this means that S2 is not accessable.

I know I appear pretty stupid here, but I would appreciate some guidance how to solve that problem, i.e. to also monitor status updates on node36:switch_binary1 and node36:switch_binary2.

Thank you sihui!

sihui · August 24, 2017, 3:36pm

If you switch between the development/security binding to the snapshot or stable binding, you have to delete all things and re-add them. Same thing applies vica versa.

Did you change any configuration parameters? For reference here are my config parameters (I’m using the development binding):

meschmesch · August 24, 2017, 8:13pm

Hi sihui,

wrong formulation from my side. I use the snapshot security binding with nodes included in mixture, with and without security. The FGS 213 and 223 we are currently talking about are inclued without security and in direct communication with the controller.

I use exact the same configuration parameters as you have, but binary1 and binary 2 remain silent.

So, same device, same parameters similar items, but no response.

I assume that it is possible to have some nodes included with security and some others without (not entry nodes but arbitrary nodes that were included while the controller was set to “always include with security”).

Thanks,
Michael

sihui · August 25, 2017, 6:30am

I’m pretty sure that is possible, although I did not test that, I’m using the refactored binding without any securely included nodes.
I guess the only chance to solve that problem is to provide a debug log (don’t edit it like in your above post, leave it the way it is) and then ping @chris so he can have a look at it.
Meanwhile you may run your debug log through the zwave log viewer, that’s a lot easier to read

chris · August 25, 2017, 7:03am

Yes - this is normally the case so there will be no problem with this situation.

meschmesch · August 25, 2017, 3:40pm

Hello @sihui and @chris ,

here is the debug log. It is about node 36 (FGS 223). Voltage was applied manually to input 2 at 17:31:39, and voltage was removed from input 2 at 17:31:45 (corresponding to turn on / turn off).

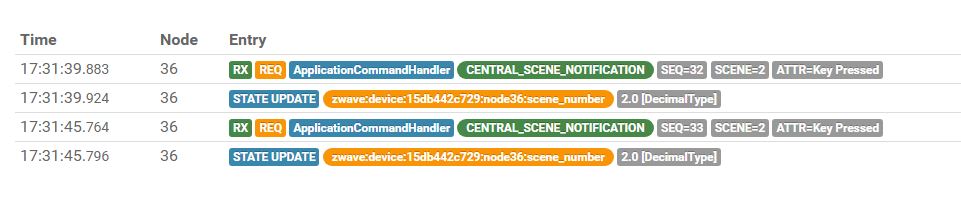

2017-08-25 17:31:39.883 [DEBUG] [WaveSerialHandler$ZWaveReceiveThread] - Receive Message = 01 0B 00 04 00 24 05 5B 03 20 00 02 AB
