This widget card will show the members of your configured security groups and the state of your alarm system. For usage, you will need the following groups and items in your modell and configured within the main_widget.
- securityGroup [semantic or non semantic]
The security group holds all items of type contact, motion or camera. The state of ech item will be shown as a badge. - securityMode
The securityMode item is of type string item which can have the following states (strings): disarmed, armed-away and armed-home. The state will colorize the icons like shown below [inactive - gray, active green or red]

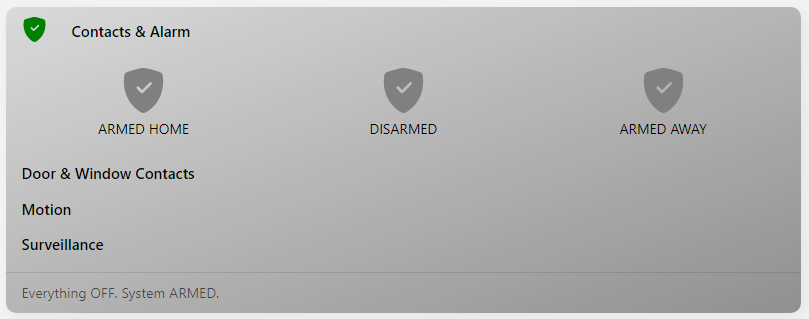

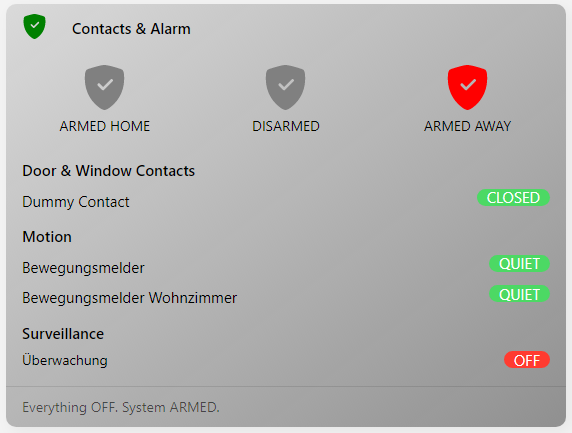

Screenshots
Changelog
Version 0.2
- styling changes
- implemeted accordion lists with badges
- added pin secured buttons for changing security mode. To use this, you need to install the main_widget_Security_Keypad widget as well.
Version 0.1
- initial release
Resources
uid: main_widget_Security_Card
tags: []
props:
parameters:
- context: item
description: Security Group Item
label: Security Group
name: securityGroup
required: true
type: TEXT
- context: item
description: Security Mode Item
label: Security Mode
name: securityMode
required: true
type: TEXT
- context: item
description: Security PIN Item
label: Security PIN
name: referencePIN
required: false
type: TEXT
component: f7-card
config:
style:
background: =(themeOptions.dark=="light") ? ("white"):("black")
--f7-card-header-border-color: transparent
border-radius: 10px
margin-left: 5px
margin-right: 5px
slots:
default:
- component: f7-card-content
config:
style:
height: auto
slots:
default:
- component: f7-row
config:
style:
justify-content: space-between
slots:
default:
- component: f7-col
config:
style:
text-align: center
slots:
default:
- component: oh-button
config:
action: popup
actionModal: widget:main_widget_Security_Keypad
actionModalConfig:
securityMode: =props.securityMode
referencePIN: =props.referencePIN
targetMode: armed-home
class:
- padding-top-half
- display-flex
- flex-direction-column
fill: '=vars.objVar.selectThing=="Security" ? true : false'
icon-f7: checkmark_shield_fill
iconColor: '=items[props.securityMode].state != "armed-home" ? "gray" : "red"'
iconSize: 60
style:
--f7-button-bg-color: transparent
--f7-button-hover-bg-color: '=vars.objVar.selectThing=="Security" ? "F8BB00" : "transparent"'
--f7-button-padding-horizontal: 0px
--f7-button-padding-vertical: 0px
--f7-button-text-color: 'themeOptions.dark=="light" ? white : black'
font-size: 14px
height: auto
text: ARMED HOME
- component: f7-col
config:
style:
text-align: center
slots:
default:
- component: oh-button
config:
action: popup
actionModal: widget:main_widget_Security_Keypad
actionModalConfig:
securityMode: =props.securityMode
referencePIN: =props.referencePIN
targetMode: disarmed
class:
- padding-top-half
- display-flex
- flex-direction-column
fill: '=vars.objVar.selectThing=="Security" ? true : false'
icon-f7: checkmark_shield_fill
iconColor: '=items[props.securityMode].state != "disarmed" ? "gray" : "green"'
iconSize: 60
style:
--f7-button-bg-color: transparent
--f7-button-hover-bg-color: '=vars.objVar.selectThing=="Security" ? "F8BB00" : "transparent"'
--f7-button-padding-horizontal: 0px
--f7-button-padding-vertical: 0px
--f7-button-text-color: 'themeOptions.dark=="light" ? white : black'
font-size: 14px
height: auto
text: DISARMED
- component: f7-col
config:
style:
text-align: center
slots:
default:
- component: oh-button
config:
action: popup
actionModal: widget:main_widget_Security_Keypad
actionModalConfig:
securityMode: =props.securityMode
referencePIN: =props.referencePIN
targetMode: armed-away
class:
- padding-top-half
- display-flex
- flex-direction-column
fill: '=vars.objVar.selectThing=="Security" ? true : false'
icon-f7: checkmark_shield_fill
iconColor: '=items[props.securityMode].state != "armed-away" ? "gray" : "red"'
iconSize: 60
style:
--f7-button-bg-color: transparent
--f7-button-hover-bg-color: '=vars.objVar.selectThing=="Security" ? "F8BB00" : "transparent"'
--f7-button-padding-horizontal: 0px
--f7-button-padding-vertical: 0px
--f7-button-text-color: 'themeOptions.dark=="light" ? white : black'
font-size: 14px
height: auto
text: ARMED AWAY
- component: f7-list
config:
noHairlinesBetween: true
accordionList: true
slots:
default:
- component: f7-list-item
config:
accordionItem: true
style:
margin-top: 15px
fontSize: 15px
font-weight: bold
title: Door Sensors
slots:
inner-end:
- component: f7-chip
config:
bgColor: transparent
iconMaterial: sensor_door
iconColor: '=loop.doorMember.state != "CLOSED" ? "red" : "gray"'
iconSize: 20px
default:
- component: f7-accordion-content
config:
noHairlinesBetween: true
accordionList: true
slots:
default:
- component: oh-repeater
config:
accordionList: true
fetchMetadata: semantics,widgetOrder,uiSemantics
fragment: true
for: securityGroupMember
sourceType: itemsWithTags
itemTags: Door
slots:
default:
- component: oh-list
config:
noHairlinesBetween: true
slots:
default:
- component: oh-repeater
config:
fetchMetadata: semantics
fragment: true
for: doorMember
sourceType: itemsInGroup
groupItem: =loop.securityGroupMember.name
slots:
default:
- component: f7-list-item
config:
style:
margin-top: -7px
fontSize: 14px
font-weight: 800
title: =loop.doorMember.label
slots:
default:
- component: f7-chip
config:
bgColor: transparent
iconMaterial: sensor_door
iconColor: '=loop.doorMember.state != "CLOSED" ? "red" : "gray"'
iconSize: 20px
- component: f7-list
config:
noHairlinesBetween: true
accordionList: true
slots:
default:
- component: f7-list-item
config:
accordionItem: true
style:
margin-top: 15px
fontSize: 15px
font-weight: bold
title: Window Sensors
slots:
inner-end:
- component: f7-chip
config:
bgColor: transparent
iconMaterial: sensor_window
iconColor: '=loop.cameraMember.state != "CLOSED" ? "red" : "gray"'
iconSize: 20px
default:
- component: f7-accordion-content
config:
noHairlinesBetween: true
accordionList: true
slots:
default:
- component: oh-repeater
config:
accordionList: true
fetchMetadata: semantics,widgetOrder,uiSemantics
fragment: true
for: securityGroupMember
sourceType: itemsWithTags
itemTags: Window
slots:
default:
- component: oh-list
config:
noHairlinesBetween: true
slots:
default:
- component: oh-repeater
config:
fetchMetadata: semantics
fragment: true
for: windowMember
sourceType: itemsInGroup
groupItem: =loop.securityGroupMember.name
slots:
default:
- component: f7-list-item
config:
style:
margin-top: -7px
fontSize: 14px
font-weight: 800
title: =loop.windowMember.label
slots:
default:
- component: f7-chip
config:
bgColor: transparent
iconMaterial: sensor_window
iconColor: '=loop.windowMember.state != "CLOSED" ? "red" : "gray"'
iconSize: 20px
- component: f7-list
config:
noHairlinesBetween: true
accordionList: true
slots:
default:
- component: f7-list-item
config:
accordionItem: true
style:
margin-top: 15px
fontSize: 15px
font-weight: bold
title: Motion Sensors
slots:
inner-end:
- component: f7-chip
config:
bgColor: transparent
iconMaterial: sensors
iconColor: '=loop.motionMember.state != "OFF" ? "red" : "gray"'
iconSize: 20px
default:
- component: f7-accordion-content
config:
noHairlinesBetween: true
accordionList: true
slots:
default:
- component: oh-repeater
config:
accordionList: true
fetchMetadata: semantics,widgetOrder,uiSemantics
fragment: true
for: securityGroupMember
sourceType: itemsWithTags
itemTags: MotionDetector
slots:
default:
- component: oh-list
config:
noHairlinesBetween: true
slots:
default:
- component: oh-repeater
config:
fetchMetadata: semantics
fragment: true
for: motionMember
sourceType: itemsInGroup
groupItem: =loop.securityGroupMember.name
slots:
default:
- component: f7-list-item
config:
style:
margin-top: -7px
fontSize: 14px
font-weight: 800
title: =loop.motionMember.label
slots:
default:
- component: f7-chip
config:
bgColor: transparent
iconMaterial: sensors
iconColor: '=loop.motionMember.state != "OFF" ? "red" : "gray"'
iconSize: 20px
- component: f7-list
config:
noHairlinesBetween: true
accordionList: true
slots:
default:
- component: f7-list-item
config:
accordionItem: true
style:
margin-top: 15px
fontSize: 15px
font-weight: bold
title: Surveillance
slots:
inner-end:
- component: f7-chip
config:
bgColor: transparent
iconMaterial: video_camera_front
iconColor: '=loop.cameraMember.state != "CLOSED" ? "red" : "gray"'
iconSize: 20px
default:
- component: f7-accordion-content
config:
noHairlinesBetween: true
accordionList: true
slots:
default:
- component: oh-repeater
config:
accordionList: true
fetchMetadata: semantics,widgetOrder,uiSemantics
fragment: true
for: securityGroupMember
sourceType: itemsWithTags
itemTags: Camera
slots:
default:
- component: oh-list
config:
noHairlinesBetween: true
slots:
default:
- component: oh-repeater
config:
fetchMetadata: semantics
fragment: true
for: cameraMember
sourceType: itemsInGroup
groupItem: =loop.securityGroupMember.name
slots:
default:
- component: f7-list-item
config:
style:
margin-top: -7px
fontSize: 14px
font-weight: 800
title: =loop.cameraMember.label
slots:
default:
- component: f7-chip
config:
bgColor: transparent
iconMaterial: video_camera_front
iconColor: '=loop.cameraMember.state != "OFF" ? "red" : "gray"'
iconSize: 20px
